Aluminium Circular Saw

GEMMA GROUP - Halbautomat GOTHA 600

saw blade diameter 600 x 30 mm

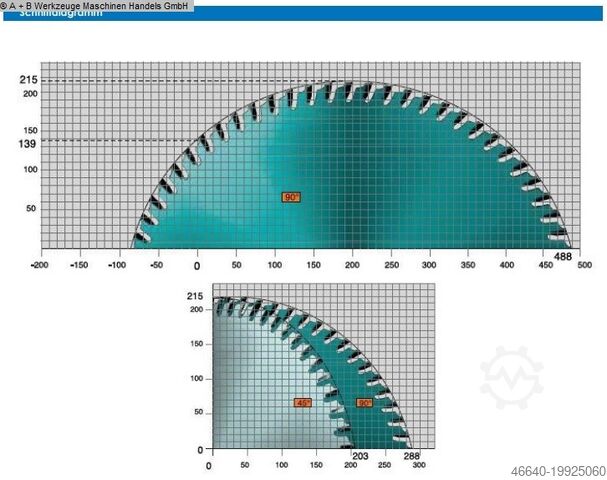

capacity 90 degrees: round 215 mm
capacity 90 degrees: square 195 x 195 mm
capacity 90 degrees: flat 140 x 395 mm
capacity 45 degrees: round 170 mm
capacity 45 degrees: square 170 x 170 mm
capacity 45 degrees: flat 100 x 175 mm
turning speeds 2800 U/min
total power requirement 3.0 kW
weight of the machine ca. 310 kg
range L-W-H 1077 x 1214 x 1558 mm
Features:

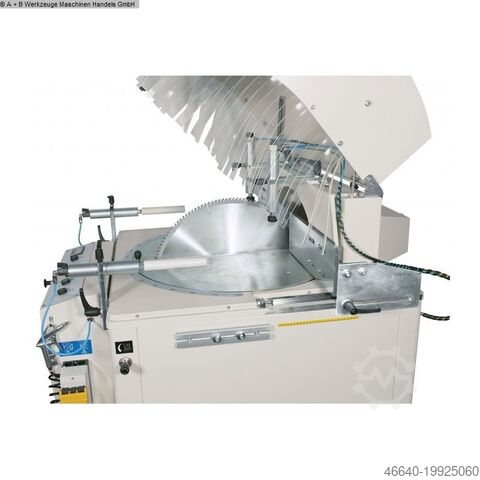

- Semi-automatic high-performance circular saw (underfloor)
* For cuts from 0° to 180° right and left
* In aluminum and light metal alloys
* With rising saw blade
* With extremely large cutting range (saw blade diameter 600 mm)
* Digital display for angle adjustment from 0° to 180°
- Manually opening safety cover
- Hydro-pneumatic saw blade feed (via two-hand operation)
- 2 pneumatic vertical vices with quick adjustment
- Heavy-duty cast iron construction ensures vibration-free .
. operation and maximum precision
- Large bearing-mounted turntable with internal indexing at 0/45°
* Ensures quick adjustment for miter cuts
- Extractor nozzle for connecting a chip extraction system
- Pneumatic spray system for cooling and lubricating the saw blade
- Machine base frame
- Powerful saw drive with 3-phase 3HP motor

Included in delivery:
Cedpfx Abjxaccfjwjhc
- 1x carbide saw blade ø 600 mm
- Blow-out gun
- Full protective cover
- Tool set
- Detailed operating instructions, maintenance manual, etc.
