FLAT GRINDING MACHINEGERD WOLFF
G115
FLAT GRINDING MACHINE
GERD WOLFF
G115
Year of construction
2025
Condition
New
Location
Ennepetal

Show images
Show map
Machine data
- Machine type:
- FLAT GRINDING MACHINE
- Manufacturer:
- GERD WOLFF
- Model:
- G115
- Year of construction:
- 2025
- Condition:
- new
- Functionality:
- fully functional
Price & Location
- Location:
- Scharpenbergerstr. 96-98, 58256 Ennepetal, DE
Call
Technical details
- Grinding length:
- 340 mm
- Grinding width:
- 170 mm
- Total height:
- 730 mm
- Total length:
- 930 mm
- Total width:
- 780 mm
Details about the offer
- Listing ID:
- A199-87895
- Update:
- 12.09.2025
Description

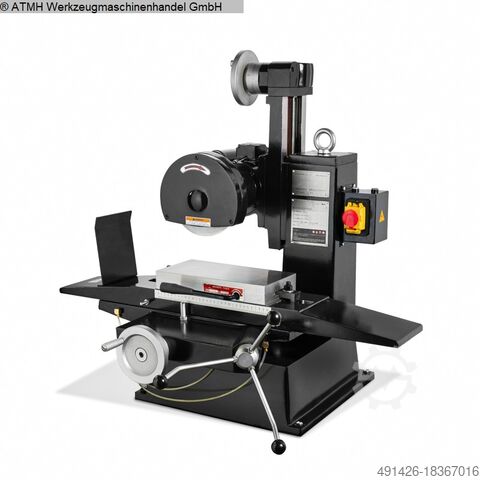

The G115 flat grinder is a compact grinding machine designed for processing the circumference or end face of the grinding wheel on horizontal or vertical surfaces of a workpiece. Using fixtures or shaped grinding wheels, it is also possible to machine inclined or contoured surfaces. The machine is ideally suited for small businesses, maintenance operations, home workshops, laboratories, instructional demonstrations, and more.
TECHNICAL DATA
Maximum removal rate: not greater than 0.03 mm
Maximum linear speed of the grinding wheel: 35 m/s
Table size: 152×304 mm
Maximum grinding height: 210 mm
Longitudinal travel of worktable: 340 mm
Cross travel of worktable: 170 mm
T-slot of worktable: 1–12 mm
Grinding wheel outer diameter × bore × width: 180×32×13 mm
Grinding head motor: 550 W / 220 V
Cedpfjxb Uq Dox Abwjrh
Vertical feed handwheel increment: 0.025 mm
Lateral feed handwheel increment: 0.02 mm
Net weight / gross weight: 210 / 260 kg
Machine dimensions: 930×780×730 mm
Packing dimensions: 1100×760×860 mm
The worktable can be moved forwards and backwards as well as left and right.
The grinding head can be raised and lowered vertically.
High rigidity throughout the entire machine structure.
The grinding head operates smoothly.
Compact design and low noise emissions.
A working enclosure is available separately.
The machine is lubricated via a manual oil pump. To lubricate, simply pull out the handle.
If you require special accessories to increase work efficiency, please contact customer service. Special accessories must be purchased separately.
PRODUCT INFORMATION:
From the proximal end of the main spindle, the radial run-out of the tapered bore axis is 0.01–0.02 mm at a distance of 100 mm.
The listing was translated automatically. Translation errors are possible.
TECHNICAL DATA
Maximum removal rate: not greater than 0.03 mm
Maximum linear speed of the grinding wheel: 35 m/s
Table size: 152×304 mm
Maximum grinding height: 210 mm
Longitudinal travel of worktable: 340 mm
Cross travel of worktable: 170 mm
T-slot of worktable: 1–12 mm
Grinding wheel outer diameter × bore × width: 180×32×13 mm
Grinding head motor: 550 W / 220 V
Cedpfjxb Uq Dox Abwjrh
Vertical feed handwheel increment: 0.025 mm
Lateral feed handwheel increment: 0.02 mm
Net weight / gross weight: 210 / 260 kg
Machine dimensions: 930×780×730 mm
Packing dimensions: 1100×760×860 mm
The worktable can be moved forwards and backwards as well as left and right.
The grinding head can be raised and lowered vertically.
High rigidity throughout the entire machine structure.
The grinding head operates smoothly.
Compact design and low noise emissions.
A working enclosure is available separately.
The machine is lubricated via a manual oil pump. To lubricate, simply pull out the handle.
If you require special accessories to increase work efficiency, please contact customer service. Special accessories must be purchased separately.
PRODUCT INFORMATION:
From the proximal end of the main spindle, the radial run-out of the tapered bore axis is 0.01–0.02 mm at a distance of 100 mm.
The listing was translated automatically. Translation errors are possible.
