Panel transport and swivel trolleys

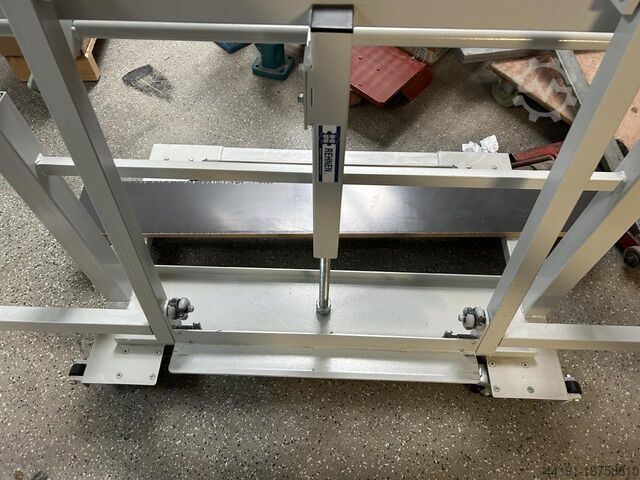

Geronne Plattenschwenkwagen

Condition: new, Year of construction: 2023, Dear customers, For prompt and reliable processing of your request, we kindly ask you to contact us preferably by email. This allows us to directly assign your request to the appropriate contact person, collect all information and documents completely, and process your request as quickly as possible. We look forward to hearing from you and will be happy to assist you! Bedpfx Asku Aibshmewu Always in stock, available as left-hand and right-hand models with motorized cleaning. Riedex DM-200 Motor power 4.0 kW Ready for connection. Packaged on a pallet! Ready for shipment. Alternatively, also available with JET cleaning. Many different versions are possible ... - with cell wheel lock (if desired, with a subframe) - with briquetting press etc.

Condition: used, machine/vehicle number: 008169, X axis working area: 4500 mm Y axis working area: 1550 mm Bsdpfsxaud Ijx Ahmowu Working Table: Pod and Rail Main Electrospindle power: 12 KW Number of controlled axes: 4 axes Total number of drilling spindles: 31 Total number of tool changer positions: 22

Condition: used, Year of construction: 2012, - Machining area: 5300x1400 mm - Main spindle replaced 3 years ago - 18-position tool changer Technical data Machining area - In the X direction: 5300 mm - In the Y direction with main spindle + WZ-0: 20 mm: 1400 mm - In the Y direction with drilling unit: (all vertical drills) 890 mm - Single-position machining: X = 2 x 2550 mm - Free space in the center: X = 200 mm - Alternating field machining: X = 2 x 2250 mm - Free space in the center: 800 mm 1 automatic tool/adapter changer magazine - Arrangement: mounted on the support, moving in the X direction - Disc changer with 18 magazine positions Guidance system - All axes are equipped with pre-tensioned, surface-hardened precision roller guides. Central lubrication - Manual central lubrication for all main axis linear guides and Z ball screw. 1 vacuum pump, 90 m3/h Console table consisting of: - 2 work piece stops fixed on the right and 2 on the left in the X direction, for movement in the Y direction - 10 adjustable support arms in the X direction, each with a rear stop - All stops are controlled by the program - The suction plates are fixed via the patented 2-circuit clamping system, eliminating the need for hoses. - 8 smooth support rails, automatically retractable - 2 push buttons for the workpiece clamping/releasing function Additional 2nd vacuum pump, 90 m3/h 1 additional central stop row, for centering workpieces Chip conveyor 1 main spindle - Drive power: 10.0 kW in S-6 operation - 7.5 kW in S-1 operation - Tool holder: HSK F63, taper diameter = 38 mm, similar to DIN 69893 - Speed range: infinitely variable RPM, programmable 1 centrally integrated CNC axis, rotating 360 degrees - for all adapter units, with torque support on the main spindle and pneumatic interface Bodpfx Aszuw Rtjhmjwu 1 vertical drilling unit l14 with 6 spindles, horizontal and attachment unit for a dado cutter - Horizontal drilling units with 2 outputs each Attachment unit for a dado cutter - Swivel range: 0 or 90° Control system ICOS CNC Modern, powerful PC-based control system with: - User-friendly interface with Windows standards - Trajectory control of all servo axes - Job list / order processing - IMA backup and recovery system on two hard drives - Uninterruptible power supply (UPS) IMAWOP software package - for dialog-oriented creation of CNC machining programs - - 3D view and basic simulation of the programmed workpiece, the suction cups and consoles including tool and adapter display.
