Lathe - cycle-controlledGildemeisrer
NEF 320
Machine data
- Machine type:
- Lathe - cycle-controlled
- Manufacturer:
- Gildemeisrer
- Model:
- NEF 320
- Year of construction:
- 2002
- Condition:
- excellent (used)
Price & Location
- Location:
- Bodenachermatte 1, 6260 Reiden, CH
Details about the offer
- Listing ID:
- A199-33015
- Reference number:
- CD-1129
- Update:
- 05.09.2025
Description
- Accessories included.
- 8-station tool turret.

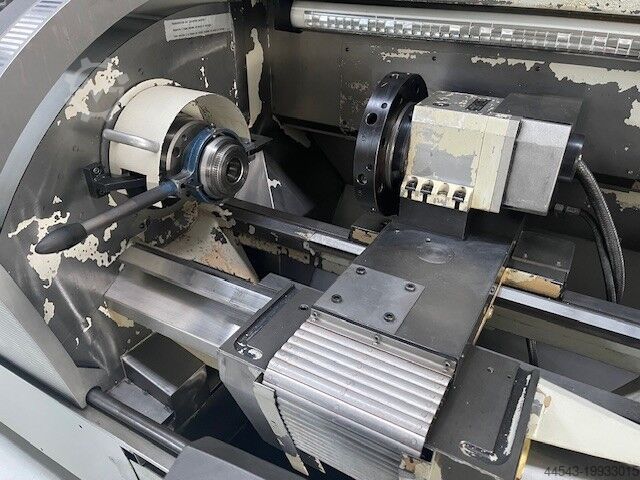

Working Area
Swing diameter over bed: 320 mm
Swing diameter over cross slide: 150 mm
Cjdpfxjxal I Dj Abwshc
Chuck diameter: 200 mm
Cross travel: 185 mm
Distance between centers: 750 mm
Turning Spindle
Spindle nose: DIN 55027 Size 6
Spindle bore diameter: 50.8 mm
Spindle taper: MT 6
Spindle diameter at front bearing: 85 mm
Main Drive (AC)
Drive power (100% duty cycle): 9.0 kW
Max. torque (100% duty cycle): 410 Nm
Speed range: 10 – 4000 rpm
Number of gear steps: 2
Speeds: infinitely variable
Feed Drive (AC)
X-axis feed force (100% duty cycle): 3000 N
Z-axis feed force (100% duty cycle): 6000 N
X-axis rapid traverse/feed rate: 8 m/min
Z-axis rapid traverse/feed rate: 10 m/min
Tailstock
Quill diameter: 70 mm
Quill stroke: 120 mm
Quill taper: MT 5
Machine Dimensions
Length: 2450 mm
Width: 1668 mm
Height: 1825 mm
Weight: 2000 kg
The listing was translated automatically. Translation errors are possible.
