Vertical lathe

GILDEMEISTER CTV 250

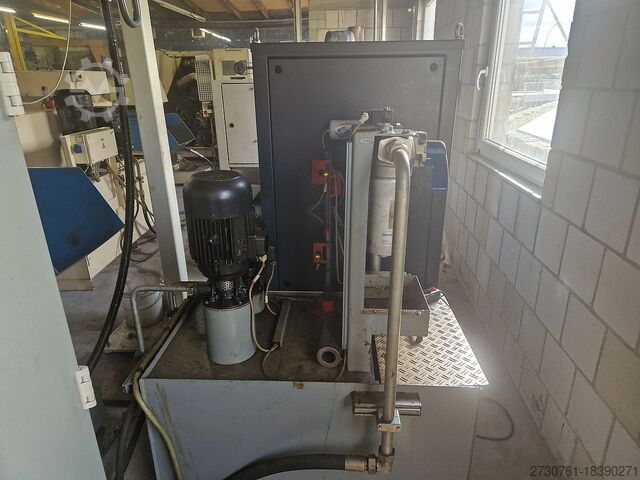

Condition: used, Year of construction: 2001, Technical details: turning length: 300 mm x-axis: plan: 800 mm longitudinal traverse (z-axis): 300 mm control: Siemens 840D revolution per minute: Hauptantrieb: 20 - 5000 U/min Revolution driven tool (turret): 6000 U/min. revolution per minute: C-Achse: 0 - 100 U/min spindle bore: 79 mm Torque: Hauptantrieb: 200 Nm max. torque on the spindle: 240 Nm max. torque at clamping center: Werkzeugträger: 28 Nm m rapid motion - x-axis: 100 m/min rapid traverse Z-axis: 45 m/min tool turret - number of stations: 12 Stationen / Stations tool taper: VDI 40 Main spindle capacity: 27 / 20 kW spindle hours: 42.400 h operating hours - idle run: 93.728 h electrics - voltage/frequency: 3~ / 400V / 50Hz V/Hz interface: ja total power requirement: 50 kVA Weight approx.: 8,0 t dimension machine approx.LxWxH: 3,2 x 3,95 x 2,8 m dimension L-W-H: Späneförderer: 3400 x 1150 x 2180 mm Bwodpfx Ahjvamgxjmsu Application: This vertical lathe is suitable for 2-axis machining (turning, drilling; milling, Y-axis) of chucked parts. Equipment: -High-pressure coolant unit BMF for 500 liters -Make Bürener chip conveyor with oil mist separator/industrial filter ifs/ IFM 1000CTV (electrostatic extraction) -Workpiece loading and unloading device with/for 20 stations -Power chuck Ø 225mm, foot switch -Clamping surface in the work area: W: 340 x H: 430mm with 7x T-slots according to DIN 650 -Hydraulics -6x various turning tool holders and 2x various tool holders (revolving) *

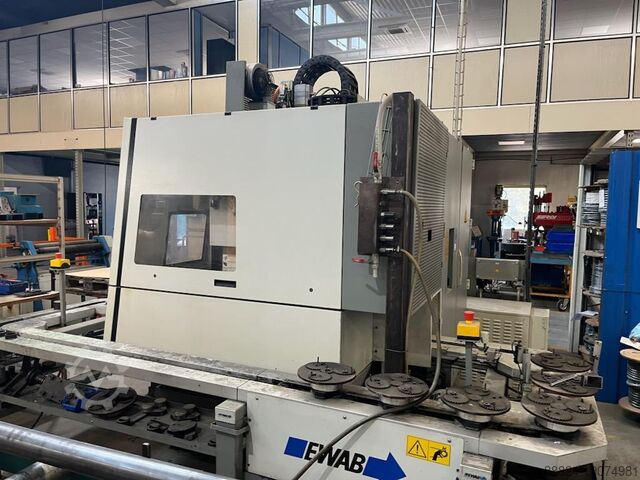

Condition: used, Year of construction: 2005, Technical details: swing diameter: 320 mm control: 840 D SIEMENS turning speeds: 5000 1/min spindle drive: 20 / 27 kW chucking diameter: 250 mm travel -x axis: 650 mm Bwjdemcibwepfx Ahmsu travel -z axis: 300 mm turret head: 12 Pos. tool holder: VDI 40 toolpiece turning speed range: 4000 1/min work piece power: max. 11,7 kW weight of the machine ca.: 8 t CNC vertical lathe, live tools, C-axis, high pressure pump 20 bar, 500l, filter, flush gun, 3-jaw chuc, EWAB loading station right, chipconveyor, approx. 23.500h "machine on", approx. 8.000h "spindle on" (in total) MACHINE WILL GET NEW (OVERHAULED) SPINDLE (0 hours) *

Condition: used, Year of construction: 2016, operating hours: 18,071 h, functionality: fully functional, machine/vehicle number: 06960000941, spindle motor power: 25,000 W, spindle speed (max.): 5,000 rpm, rapid traverse Y-axis: 30 m/min, torque: 280 Nm, input voltage: 400 V, overall weight: 6,000 kg, power: 25 kW (33.99 HP), input frequency: 50 Hz, controller manufacturer: Siemens, controller model: Sinumerik 849D sl, input current: 63 A, tool type: VDI 40, number of axes: 3, DMG MORI CTV 250, 2nd Generation – Vertical Turning Center (Pick-up), Year of Manufacture 2016 For sale is a well-maintained DMG MORI (Gildemeister) CTV 250, 2nd Generation, manufactured in 2016, with only 18,071 spindle hours. The machine is fully equipped for automated series production of chucked parts and is currently still powered on – inspection and demonstration possible by arrangement. Control System & Drive Siemens Sinumerik 840D sl (Slimline) including ShopTurn option AC main drive 25 / 32 kW, torque 280 / 360 Nm Spindle speed up to 5,000 rpm, duty cycle 100 % / 40 % Hollow cylinder, programmable clamping pressure via NC program Axes & Tools 12-station turret (disc diameter 340 mm), all stations powered (UDI 40) C-axis with powered tool system Y-axis +90 / -65 mm Linear guides, ball screws, glass scales, AC servomotors with absolute encoder Rapid traverse 30 m/min Automation & Metrology Workpiece transport system SRA 160 (drag chain, NC-controlled) including drag chain set Storage capacity: 30 parts (Ø 30–70 mm, max. 7 kg) or 18 parts (Ø 30–100 mm, max. 15 kg), max. total weight 320 kg including pallets Workpiece diameter 30–160 mm, workpiece height max. 160 mm Robot interface Profinet (electrical interface for 6-axis robot) Workpiece probe Renishaw LP2DD at the loading/unloading station, measuring accuracy 10 µm, with air blow cleaning Coolant & Peripherals Coolant system 8 / 20 bar, tank 600 l, high-pressure pump 20 bar / 40 l/min Coolant supply via turret disc to all stations Band filter system 40 µm with forced indexing, coolant level monitoring Hinged belt chip conveyor with extended discharge chute (+300 mm), enlarged chip container, modified sludge pump Aluminum machining package Bwodpfxezi R R No Ahmju Integrated work area extraction max. 400 m³/h, work area flushing with 3 flushing nozzles Cabinet cooling up to 40 °C, hydraulic oil cooler Air blower via main spindle, 4-color signal light Remote diagnostics via the internet Connection values: 400 V / 50 Hz, 40 kVA, 63 A · Weight: approx. 6,000 kg Sale from current location, dismantling/loading/transport by arrangement or by the buyer. Sale is subject to the exclusion of all warranties (commercial sale of used machines, sold as seen). Please contact us if you have any questions or would like to arrange a viewing.

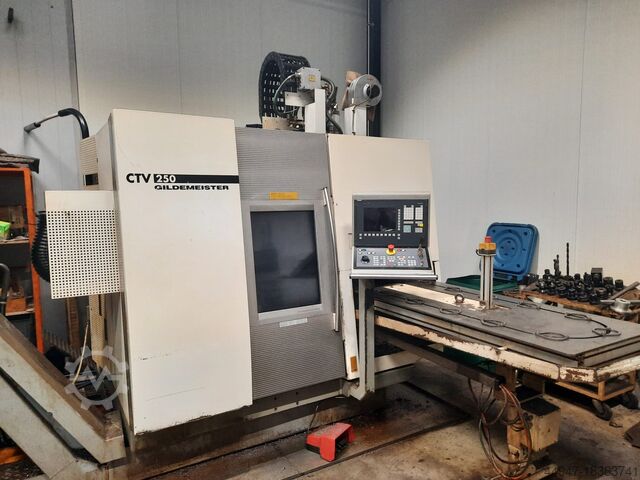

Year of construction: 2002, condition: ready for operation (used), Travel X/Z: 800mm/300mm, max. turning diameter: 320mm, max. turning length: 300mm, speed: 5000rpm, spindle power: 22kW, tool slots: 12, tool holder: VDI 40, main spindle clearance: 79mm. Machine dimensions X/Y/Z: approx. 5000mm/3900mm/2800mm, weight: approx. 6700kg, control: Siemens Sinumerik 840D, operating hours: 42996h. Documentation available. On-site inspection is possible. Bwjdpfx Ahoubyy Nsmsu

Condition: ready for operation (used), functionality: fully functional, travel distance X-axis: 800 mm, travel distance Z-axis: 300 mm, chuck outer diameter: 250 mm, spindle bore: 79 mm, number of slots in tool magazine: 12, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Travel in X-axis: 800 mm Travel in Z-axis: 300 mm Chuck diameter: 250 mm Bwodjzpxf Uspfx Ahmju Spindle head: 170 h5 Spindle diameter at the front bearing: 120 mm Spindle bore: 79 mm Number of tool stations: 12 EQUIPMENT C-axis

Condition: excellent (used), CNC vertical lathe Gildemeister CTV 250 Working area: Chuck diameter: 250mm X-axis: 800mm Z-axis: 300m Spindle head: 170 h5 Spindle diameter in the front bearing: 120mm Spindle bore: 79mm C-axis Number of work stations: 12 Bsdpfxovuqm Se Ahmswu Videos available!!

Condition: ready for operation (used), Year of construction: 2001, operating hours: 42,400 h, functionality: fully functional, machine/vehicle number: 0680 0000521, travel distance X-axis: 800 mm, spindle speed (max.): 5,000 rpm, turning length: 300 mm, spindle bore: 79 mm, controller model: Siemens 840D, TECHNICAL DETAILS Turning length: 300 mm Travel distance X-axis: 800 mm Travel distance Z-axis: 300 mm Speed range, main drive: 20 - 5,000 rpm Speed range, C-axis: 0 - 100 rpm Spindle bore: 79 mm Torque, main drive: 200 Nm Torque at the spindle: 240 Nm Torque, clamping device: 28 Nm Rapid traverse rate, X-axis: 100 m/min Rapid traverse rate, Z-axis: 45 m/min Tools and tool magazine Number of tool magazine positions: 12 Speed of driven tool, max.: 6,000 rpm Tool interface: VDI 40 Clamping area in the working area (W x H): 340 x 430 mm Number of T-slots according to DIN 650: 7 MACHINE DETAILS Control model: Siemens 840D Power, main spindle: 27 / 20 kW Total power requirement: 50 kVA Electrical version - voltage/frequency: 3~ / 400 V / 50 Hz Interface: yes Spindle operating hours: 42,400 h Total operating hours: 93,728 h Bjdpfozb Efgex Ahmowu Dimensions & Weight Machine dimensions (L x W x H): 3,200 x 3,950 x 2,800 mm Chip conveyor dimensions (L x W x H): 3,400 x 1,150 x 2,180 mm Machine weight: 8 t EQUIPMENT High-pressure coolant system (capacity: 500 l) Chip conveyor with oil mist separator / industrial filter IFM 1000CTV Workpiece loading and unloading device with 20 stations Hydraulic chuck (225 mm) Hydraulics 6x various turning tool holders 2x various tool holders (driven)

Condition: ready for operation (used), Year of construction: 2008, operating hours: 61,440 h, functionality: fully functional, machine/vehicle number: 06800003891, rotational speed (max.): 5,000 rpm, controller model: Siemens 840D powerline, Equipment: chip conveyor, documentation/manual, TECHNICAL DETAILS Max. speed: 5,000 rpm MACHINE DETAILS Control: Siemens 840D powerline Electrical Data Apparent power: 50 kVA Rated current: max. 72 A Current: 80 A Mains voltage: 400 V Frequency: 50 Hz Control voltage: 230 V Voltage: 24 V Operating hours: approx. 76,300 h Spindle hours: approx. 61,440 h EQUIPMENT Pallet circulation system Material conveyor belts for machined parts Bwjdpfx Asyzqtkohmju Chip conveyor Documentation/manual Note: The machine is sold without chuck, tools or raw part holders. Additionally, the seller can offer the following accessories: SMW KNCS225 chuck for €1,500 Ewab pallets (base pallets) 10 units for €500 Extension of transport belts for finished parts €2,000 Basic holder set VDI 40 suitable for the machine, 10 units for €1,000

Condition: like new (used), Year of construction: 2009, operating hours: 26,000 h, travel distance X-axis: 725 mm, travel distance Y-axis: 50 mm, travel distance Z-axis: 300 mm, spindle motor power: 11 W, spindle speed (min.): 5,000 rpm, total length: 3,171 mm, total height: 2,648 mm, total width: 4,254 mm, overall weight: 6,000 kg, CNC controller: SIEMENS SINUMERIK 840D-ERGOLINE Capacity X-axis travel mm: 725 Y-axis travel mm: ± 50 Z-axis travel mm: 300 Turning length mm: 160 Max. turning diameter mm: ø: 250 Swing over bed mm: ø: 320 Tool magazine Magazine places: 16 Tool holder: VDI-30 Tool length max. mm: 390 Tool diameter max. mm: 140 Lower turret Number of tool slots St .: 12 Speed driven tools RPM: 4.000 Drive power driven tools kW: 11,7 Milling function: Yes Bjdpoxf Hlbofx Ahmowu Main spindle Speed spindle rpm: 5.000 Drive power spindle kW: 11,7 (40% ED) Maximun torque Nm: 280 / 360 (100% / 40% ED) Coolant system Tank capacity liter: 980 L High-pressure bar: 8 / 20 Equipment Chip conveyor CE conformity Coolant gun Air blast / coolant switch-over Internal coolant supply Paper band filter Automatic workpiece magazine loader - 16 positions x ø 220 Working time hours Under power: 38.000 Cutting Time: 26.000 Basic machine dimensions / weight Length mm: 3.171 Width mm: 4.254 Height mm: 2.648 Weight kg: 6.000

Year of construction: 2010, condition: ready for operation (used), Turning machine CTV 250 - R Manufacturer: DMG Gildemeister Bwedpei Ewq Ssfx Ahmeu Serial number: 6860000451 Operating hours: 46,491 Spindle hours: 30,748 Footprint: 4m x 3m Optional cooling unit for connecting two CTV 250 machines
