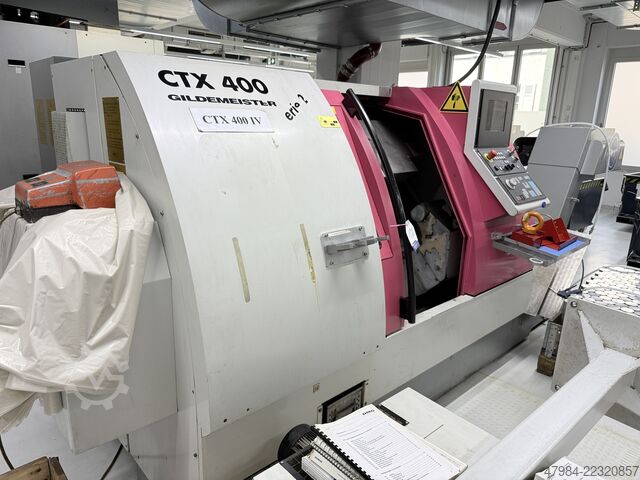

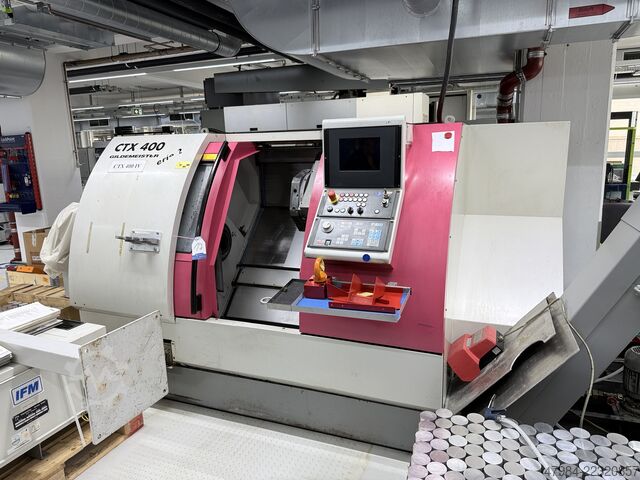

CNC turning and milling center

Gildemeister CTX 400 S2

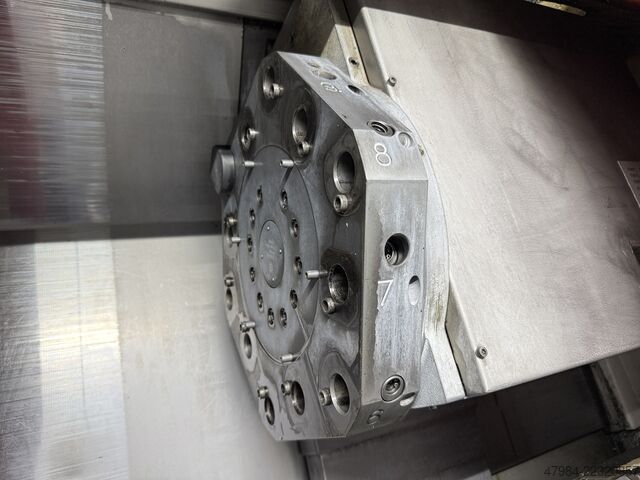

Condition: good (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: 01160007521, turning length: 635 mm, turning diameter: 220 mm, rapid traverse X-axis: 20 m/min, rapid traverse Z-axis: 24 m/min, total height: 1,700 mm, total length: 3,200 mm, total width: 1,700 mm, overall weight: 4,000 kg, controller manufacturer: GRUNDIG, input voltage: 400 V, input frequency: 50 Hz, input current: 80 A, nominal power (apparent): 44 kVA, number of slots in tool magazine: 12, number of driven tool stations in tool turret 1: 6, GILDEMEISTER CTX 400 S 2 CNC lathe - Swing diameter over the bed way cover: 570 mm - Swing diameter over the facing slide cover: 420 mm - Facing slide travel: 220 mm - Longitudinal travel: 635 mm Gbodpfxezlg A Ho Aglop - Includes a 12-position tool turret with 6 driven tool stations - Tailstock - Tailstock diameter in the front area: 80 mm - Tailstock travel: 550 mm - Tailstock mounting: MK 4 Note: The item must be collected between October 7th and October 14th, 2026, on a date to be agreed upon. FCA D-35576 Wetzlar - loaded onto a truck.

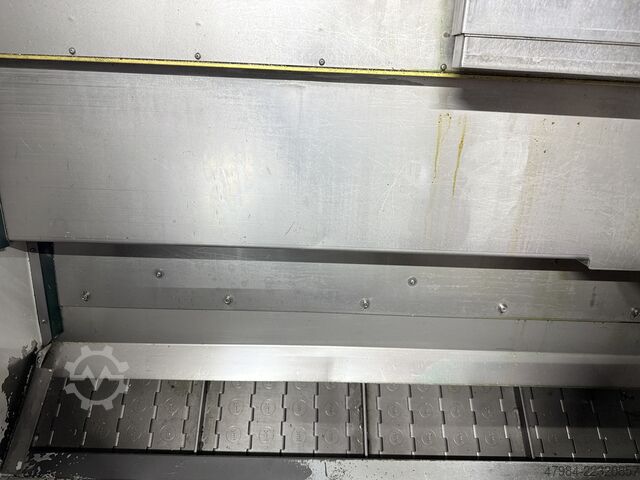

Condition: used, Year of construction: 2000, Gildemeister CTX 400 S2 Year of manufacture: 2000 2-axis machine (X and Z) 12-tool turret, VDI30 Fanuc 21iT control system Tailstock Chip conveyor included Gsdpozgupksfx Aglsbp Very good condition, machine comes from a school Operating hours: 14,000

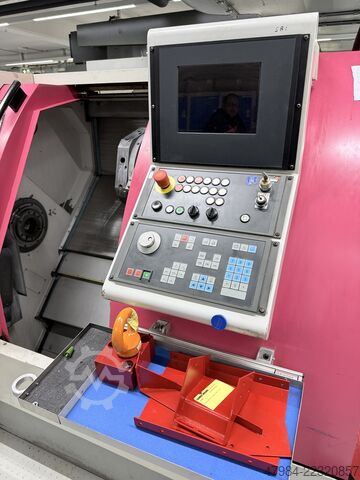

Condition: good (used), Year of construction: 1999, - Control system: Heidenhain CNC Pilot 3190/4290 - Turn-Plus software update - Turning diameter: 500 mm - Turning length: max. 635 mm - Spindle speed: 25-5000 rpm - 12-station turret, no driven tools - Tool holder VDI 30 Gbedozggahopfx Aglsp - Tailstock - Chip conveyor

Year of construction: 1999, condition: ready for operation (used), Fresh oil lubrication capacity: approx. 3l, voltage: 400V, frequency: 50Hz, fuse protection (slow-blow) according to VDE 0100: 80A, permissible voltage fluctuation at 400V: ±10%, connected load: 44kVA, length: 3210mm, width: 1750mm, height: 1750mm, weight: approx. 4.6t, with chip conveyor. An on-site inspection is possible. Gedpfjza E Sqox Agljbp

Condition: ready for operation (used), Year of construction: 2002, operating hours: 53,548 h, functionality: fully functional, machine/vehicle number: 01160014061, turning length: 630 mm, turning diameter: 420 mm, vice opening: 66 mm, control type: CNC control, Equipment: chip conveyor, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Working area Turning diameter: max. 420 mm Turning length: max. 630 mm Gbsdpfx Aoza D Rfegljp Spindle bore: 66 mm Turret Tool head: 12 tools, Sauter VDI30 CNC control: 4290 Heidenhain MACHINE DETAILS Electrical data Voltage: 400 V Auxiliary voltage: 230 V / 24 V Frequency: 50 Hz Current: 80 A Connected power: 44 kVA EQUIPMENT C-axis with driven tools Machine chip conveyor Documentation 2 driven tool holders External reference: 598
