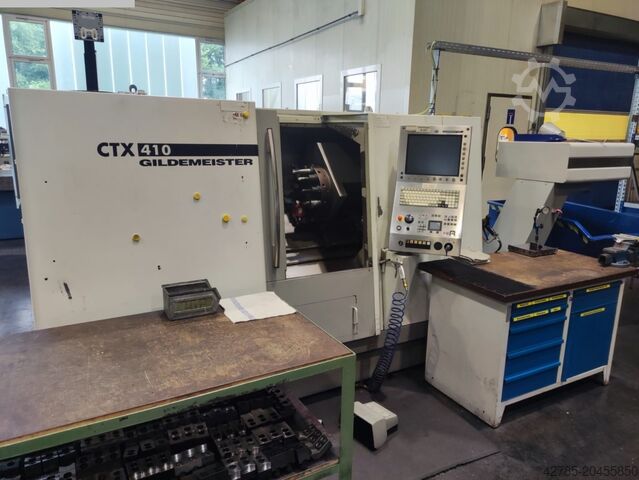

CNC Lathe

GILDEMEISTER CTX 410

Condition: used, Year of construction: 2008, turning diameter 0410 mm turning length 500 mm control Plus iT Heidenhain turret head 12 pos. VDI 30 swing over bed 520 mm spindle turning speed - stepless 25 - 5000 rpm spindle bore 87 mm feed - longitudinal/cross mm/min rapid travel - longitudinal/face 24/20 m/min dimensions 5000 x 1800 x 1800 mm total power requirement 44 KVA weight of the machine ca. 5,0 t Machine is with C- axe and life tooling! Control: Heidenhain Plus iT. Fpjdpfxjxukqms Aa Njp Machine has chip conveyor, chuck and tailstock.

Condition: used, 2 CNC turning-milling centers CTX 410 - YOM 2005 and 2007 Heidenhain Plus IT control Fpodpfxjxlthve Aa Nsp - 3-jaw chuck - driven tool stations - tailstock - chip conveyor - coolant tank

Condition: used, Year of construction: 2009, turning length 600 mm max. turning diameter 320 mm swing diameter above cross guideway 365 mm control CNC Pilot 4290 Heidenhain turning speed range - main spindle max. 5.000 min/-1 power capacity - main spindel 28 / 21 kW max. Torque 320 / 240 Nm spindle nose 170h5 Fpedpfx Aastqmrrs Nsp chucking diameter 215 mm spindle diameter in front bearing 130 mm spindle bore 87 mm max. bar capacity 65 mm number of toolpositions 12 pos. tool taper VDI 30 Number of driven toolspositions 12 pos. tool spindle speed range max. 4.500 min/-1 power capacity driven tool-stations 3,1 kW max. Torque 10 Nm x-travel 250 mm z-travel 635 mm tailstock 580 mm taper of center MK 4 diameter of quill 120 mm quill stroke 150 mm rapid traverse X: 24 / Z: 30 m/min total power requirement 44 kVA weight of the machine ca. 5,6 t dimensions of the machine ca. 4,5 x 2,0 x 2,0 m CNC Turning- and Milling Center Gildemeister - CTX 410 V3 - driven tool-stations - ca. 7.900h spindle-hrs.

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, turning length: 600 mm, turning diameter: 320 mm, spindle speed (max.): 5,000 rpm, travel distance X-axis: 250 mm, travel distance Z-axis: 635 mm, Machine with C-axis and driven tool positions TECHNICAL DETAILS Swing diameter: max. 505 mm Turning diameter: max. 320 mm Turning length: max. 600 mm Control: Siemens Sinumerik Powerline 840D Spindle Speed range: max. 5,000 rpm Bar capacity: 65 mm Travel paths x-axis: 250 mm z-axis: 635 mm Tool Number of positions in the tool changer: 12 Tool holder: VDI 30 Fsdpfx Asvprmvsa Nopp MACHINE DETAILS Dimensions (L x W x H): 4,296 mm x 1,715 mm x 1,770 mm Machine weight: 4,500 kg Incl. chip conveyor
