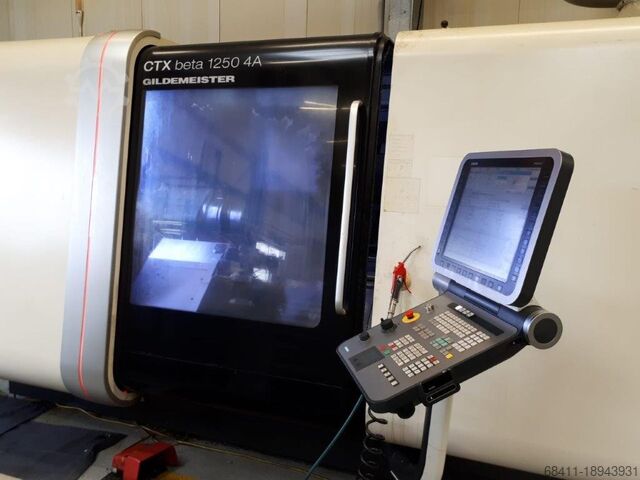

GILDEMEISTER CTX beta 1250 4 A

Condition: excellent (used), Year of construction: 2012, functionality: fully functional, turning length: 1,150 mm, turning diameter over cross slide: 300 mm, turning diameter: 340 mm, spindle speed (max.): 5,000 rpm, spindle bore: 104 mm, travel distance X-axis: 340 mm, travel distance Y-axis: 220 mm, travel distance Z-axis: 1,170 mm, CNC Turning and Milling Center Gildemeister CTX Beta 1250 4A with Sinumerik 840D ShopTurn 2x Y-axes Year of manufacture: 2012 Approx. 20,000 program run hours OPTION: Gear Cutting Enabled Technical Data: Main spindle speed: 5,000 rpm Drive power: 32 kW ISM 102 Counter spindle speed: 5,000 rpm Drive power: 32 kW ISM 76 Travel distances: X-axis: 300 mm Y-axis: +/- 110 mm Z-axis: 1170 mm Y-axis: Slide 1 + 2 Driven tools: 1x12 on slide 1+2 Speed: Direct drive Bar feeder package Part catcher operable on main and counter spindle Automatic sliding door Dodpfxeylm Rxs Adgsup Differential pressure monitoring on main and counter spindle Coolant system Chip conveyor Short bar loader IRCO MUK

Condition: good (used), Year of construction: 1971, machine/vehicle number: 170119003210A0, Offer 25217 Technical data: - Groove width: 3 to 36 mm - Max. groove length: 340 mm - Bore diameter: 10 to 350 mm - Feed rate: 0.01 - 0.22 mm - Cutting speed: 2 - 10 m/min - Return speed: 20 m/min - Max. pulling force: 1.5 t Dsdpfx Adswu Suvjgoup - Max. workpiece weight: 3 t - Table size: 350 x 450 mm - Working / operating height: 1050 mm - Drive: 400 V / 3 kW - Space requirement: approx. W 900 x H 1250 x D 700 mm - Weight: approx. 900 kg - Extensive accessories as shown

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, CNC twin-spindle turning center Control: CNC path control including 19" TFT Siemens Sinumerik 840 D sl solution line with ERGOline control and with ShopTurn 3 G Duodpfx Adewcd S Nsgjp TECHNICAL DATA Max. turning diameter 340 mm Spindle distance 1470 mm Turning length 1135 mm Swing over bed 700 mm Swing to tool carrier 2540 mm Travel paths: X1 – Tool carrier I 270 mm Y1 – Tool carrier I 120 mm Z1 – Tool carrier I 1200 mm X2 – Tool carrier II 195 mm Y2 – Tool carrier II 80 mm Z2 – Tool carrier II 1200 mm X3 – Counter spindle slide 180 mm Z3 – Counter spindle slide 1200 mm Main spindle Integrated spindle motor ISM 102 Drive power (100/40% duty cycle) 40/48 kW Torque (100/40% duty cycle) 570/680 Nm Speed range 0-4000 rpm Bar diameter 102 mm Draw tube inner diameter 104 mm C-axis and spindle brake (angular resolution) 0.001° Counter spindle Integrated spindle motor ISM 76 Drive power (100/40% duty cycle) 25/32 kW Torque (100/40% duty cycle) 280/380 Nm Speed range 0-5000 rpm Bar diameter 65/75 mm C-axis (angular resolution) 0.001° Slide 1 Tool carrier (direct drive) Number of tools 12 Tool holder diameter VDI (DIN 69880) 40 mm Maximum power (100/40% duty cycle) 10.9/14.2 kW Maximum torque (100/40% duty cycle) 26/34 Nm Speed range 40 – 10,000 rpm Slide 2 Tool carrier (direct drive) Number of tools 12 Tool holder diameter VDI (DIN 69880) 40 mm Maximum power (100/40% duty cycle) 10.9/14.2 kW Maximum torque (100/40% duty cycle) 26/34 Nm Speed range 40 – 10,000 rpm Slide 3 Rapid traverse speed X/Z axis 30/45 m/min Tool resolution Z axis 0.001° Feed force (40% duty cycle) X/Z axis 16/13 kN EQUIPMENT/ACCESSORIES  IRCO ILS-RBK 100/16 short-bar loader  Various main spindle reducers  NC-controlled workpiece retrieval device from both the main and counter spindles The device consists of an NC-controlled *Horizontal axis *Swivel unit *Vertical axis *2-jaw gripper for interchangeable gripper jaws  Conveyor belt for removing workpieces from the machine  8/20 bar coolant system with immersion cooler  Chip conveyor  Oil mist extraction  Control cabinet cooling unit (up to 40°)  Counter spindle slide  Easy-Tool monitor  1 collet chuck for quick-change clamping head size 100 for the main spindle  1 collet chuck for quick-change clamping head size 100, Nova Achsfix for the counter spindle  Approx. 40 various quick-change clamping heads size 100 (complete inventory)  Pneumatic tool changer, ø 100 mm  Approx. 50 various tool holders, fixed and driven (complete inventory)  Mounting elements  Documentation

Condition: excellent (used), Year of construction: 2012, CNC Turning and Milling Center Gildemeister CTX Beta 1250 4A with Sinumerik 840D Shopturn Year of manufacture: 2012 Program operating hours: approx. 20,000 h OPTION GEAR CUTTING ENABLED Technical data: Main spindle speed: Drive power: 32 kW ISM 102 Counter spindle speed: Drive power: ISM 76 Y-axis on slide 1 Driven tools 1x12 on slide 1+2 Bar feeder package Workpiece pick-up gripper deployable on main and counter spindle Coolant system Chip conveyor Dedoyfcrrjpfx Adgoup Short bar feeder IRCO MUK

Condition: used, Year of construction: 2011, Lathes Travel distance X: 270 mm Travel distance Y :120 mm Travel distance Z: 1200 mm turning length: 1135 mm max. turning diameter: 700 mm max. circulation diameter: 340 mm max. turning moment: 680 NM range of revolutions till: 4000 rpm Control: DMG powered tools Djdpfjwwv Ifox Adgoup Powered tools: 50 Scrapper chip conveyor Short bar loader magazine IRCO ILS-RBK 100/16 Various main spindle reduction sleeves NC-controlled workpiece removal device Conveyor belt for transporting the workpieces out of the machine Coolant system 8/20 bar with immersion cooler Coolant spray gun Chip conveyor Oil mist extraction system Control cabinet cooling unit (up to 40 °C) 4-color signal light, connection for bar loader magazine Main spindle as integrated spindle motor ISM 102 Counter spindle as integrated spindle motor ISM 76 Easy-Tool Monitor Approx. 40 various quick-change collets size 100 (entire stock) Pneumatic changeover device Ø 100 mm Approx. 50 various tool holders, static and driven (entire stock) Installation elements Documentation
