CNC Lathe

GILDEMEISTER MF 65

Condition: used, Year of construction: 2000, Turret 1 - facing/length turning 155/280 mm Turret 2 - facing/length turning 82/120 mm Spindle bore (main spindle) 79 mm ((w/collet chuck 65 mm) Spindle bore (sub spindele 65 mm (w/collet chuck 42 mm) Spindle speeds (25-5000 rpm (main spindle) C-axis - 5000 rpm. Crjdpfx Adey Hppze Nob Turret w/8 stations Control: Siemens Sinumerik 840 C Equipped with: Magazine bar feeder Manuf. Simag model 65.1 - 3200 mm - built 2000 Chip conveyor Various tool holders

Condition: used, Year of construction: 2011, Technical details: weight of the machine ca.: 11 t Cedpfx Adoyz Sdqj Nerb Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts. *

Condition: used, Year of construction: 2003, Technical details: weight of the machine ca.: 11 t Codpfxsyzyudj Ad Nerb Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts. *

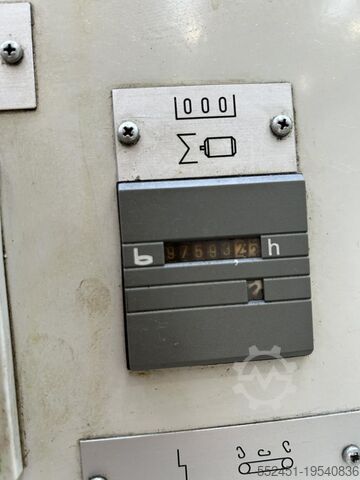

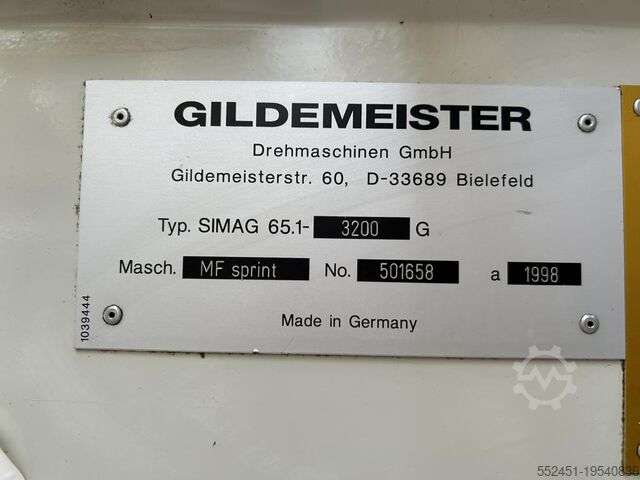

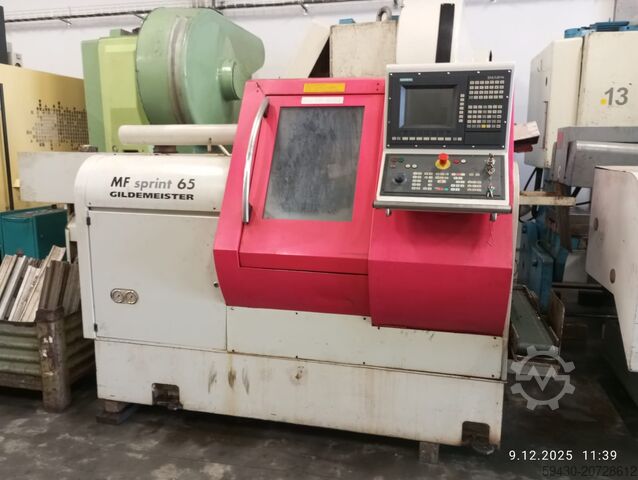

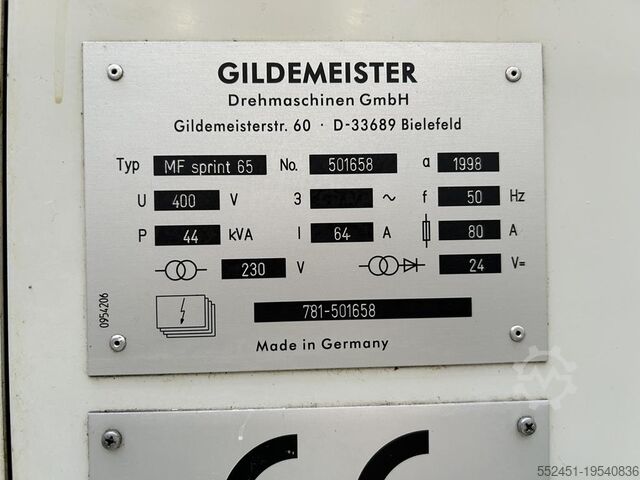

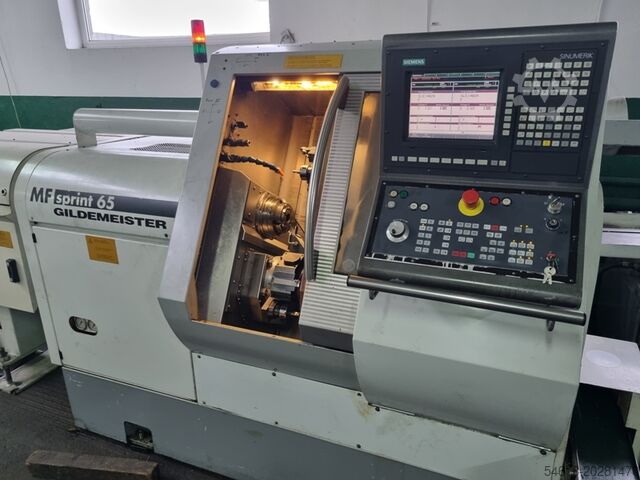

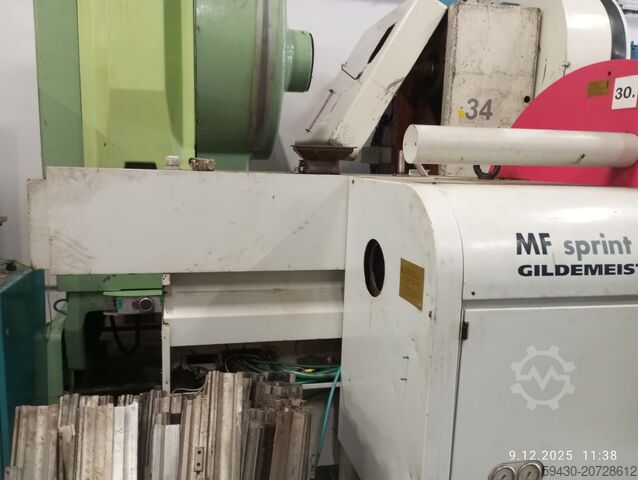

Condition: used, Year of construction: 1998, operating hours: 97,593 h, functionality: fully functional, turning diameter: 65 mm, spindle bore: 79 mm, spindle speed (max.): 4,500 rpm, spindle speed (min.): 25 rpm, For Sale: Gildemeister MF Sprint 65 CNC Sliding Headstock Lathe with 3-Meter Bar Feeder, as shown in the pictures. The machine was removed from our workshop in fully functional condition. A video of the machine in operation prior to disassembly is available upon request. Approximately five years ago, the linear guides of the X1 and Z1 slides (on the main spindle side) were replaced, including bearings and belts. A new HMI interface was installed recently. Detailed specifications and technical data can be found in the attached PDF. TECHNICAL DATA Control: Sinumerik 840C Bar Feeder: SIMAG 65.1-3200G, Year of Manufacture: 1998 Bar Length: 3 meters Bar Diameter / Spindle Bore: 65 mm Main Drive Power Output: 28 / 21 kW Speed Range: 25 – 4,500 rpm Torque: 320 / 240 Nm Maximum Feed Rate for Thread Cutting: 10 m/min C-Axis Speed: 120 rpm C-Axis Torque (Holding Torque): 180 Nm Tool Carrier Number of Tool Stations: 8 Shank Diameter (DIN 69880): 30 mm Number of Driven Tool Stations: 4 Power Output: 7.6 / 4.6 kW Torque: 24 / 14.7 Nm Maximum Speed of Tool Carrier 1: 4,000 rpm Maximum Speed of Tool Carrier 2: 4,000 rpm Slide 1 Cross Travel / Longitudinal Travel: 155 / 280 mm Rapid Traverse Speed X/Z: 22.5 / 22.5 m/min Feed Force X/Z: 900 / 900 daN Slide 2 Cross Travel / Longitudinal Travel: 82 / 120 mm Rapid Traverse Speed X/Z: 22.5 / 22.5 m/min Feed Force X/Z: 900 / 900 daN Crodpfxowym Nfe Ad Neb MACHINE DATA Dimensions with Bar Feeder and Chip Conveyor (L × W × H): approx. 6 × 2 × 2 meters Weight: approx. 6.5 tons Operating Voltage: 50 Hz, 400 V Accessories: Cooling System Chip Conveyor Documentation The offer is subject to change and non-binding, changes and errors in the technical data or the equipment, as well as prior sale reserved Used machines are purchased as seen, without warranty claims. Delivery ex works excluding packaging and insurance, unless otherwise agreed. The price does not include statutory value added tax. As is usual with used machines, payment is made before loading.

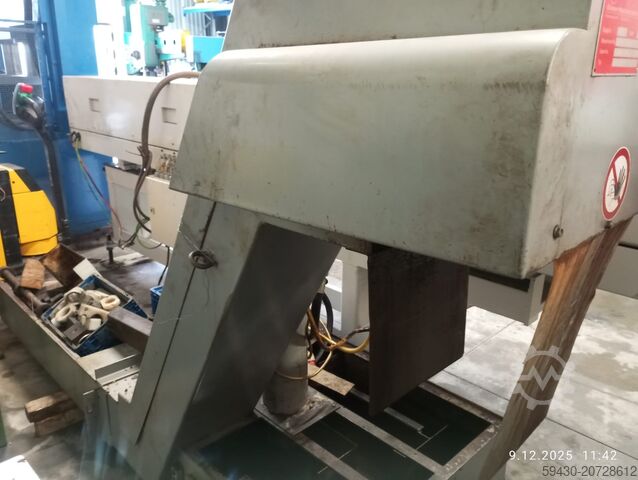

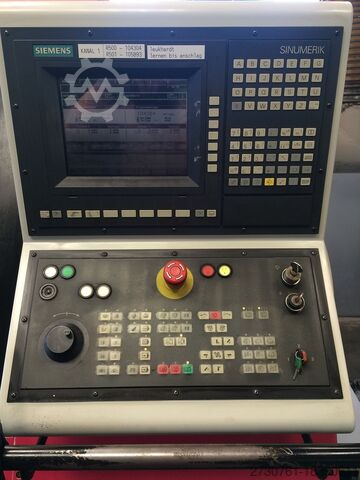

Condition: good (used), Year of construction: 1997, - Control system: SIEMENS SINUMERIK 840-C - Max. bar diameter: 65 mm - C-axis - Main spindle speed: 31 - 6,300 rpm Cjdpjxa Epbofx Ad Nerb - Turret 1: 8 stations, 4 of which are powered - Turret 2: 8 stations, 4 of which are powered - Driven tool speed: 4,000 rpm - Both turrets with internal cooling - High-pressure unit - Chip conveyor - Bar feeder IRCO SiMag 65 - Max. bar length: 3,200 mm Dimensions LxWxH: - Machine: 3,400 x 1,700 x 1,800 mm - Bar feeder: 4,000 x 1,000 x 1,400 mm - Chip conveyor: 3,000 x 1,100 x 1,600 mm Total weight: approx. 6,000 kg

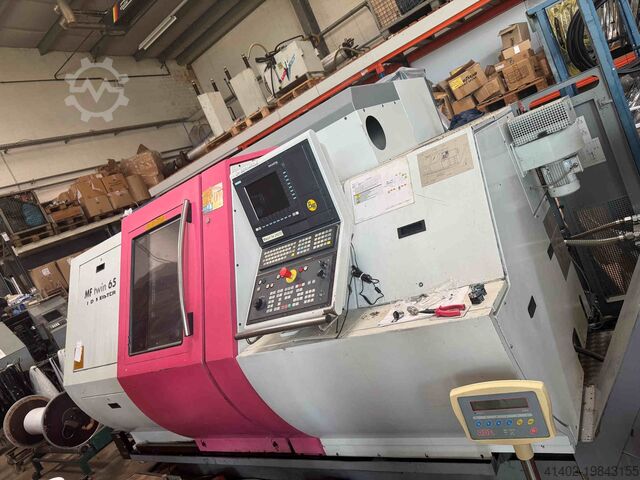

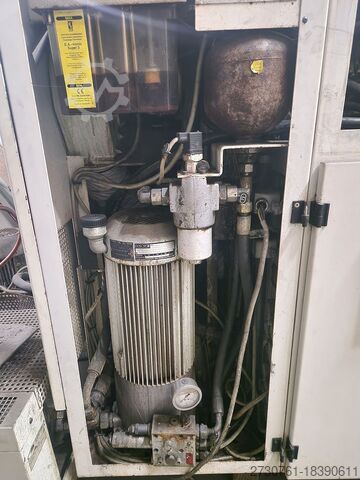

Condition: ready for operation (used), Year of construction: 1996, number of axes: 2, This Gildemeister MF twin 65 was manufactured in 1996. It features two turrets, each with 12 tool positions, all motorized-capable, and includes 14 driven tools and 14 tool holders. The machine boasts both spindles in very good condition and a bar passage of 65 mm, complemented by a Cucchi Pietro bar feeder. Contact us for more information about this machine. • 2 turrets (12 + 12 tool positions), all motorized-capable Codpfx Adjyaqr As Nerb • Bar passage: 65 mm • Both spindles in very good condition • New hydraulic/power unit pump Additional equipment • Cucchi Pietro bar feeder • 14 driven tools • 14 tool holders

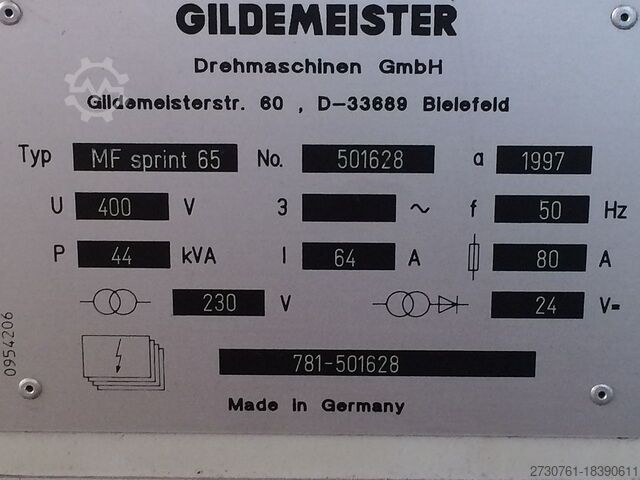

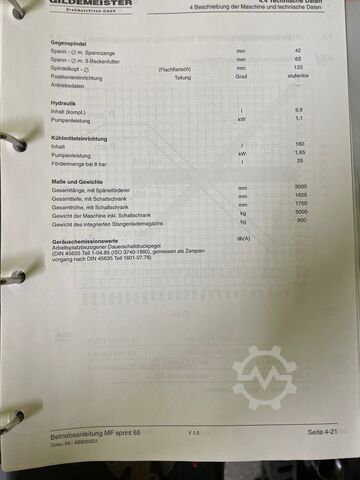

Condition: excellent (used), Year of construction: 1997, operating hours: 65,543 h, functionality: fully functional, machine/vehicle number: 501637, rotational speed (max.): 4,500 rpm, bar diameter (max.): 65 mm, number of slots in tool magazine: 16, Equipment: documentation/manual, No reserve price - guaranteed sale at the highest bid! TECHNICAL DETAILS Control: Sinumerik 840C Bar loader: Irco RBK 7212, built in 1999 Bar length: 1 m Bar diameter/spindle bore: 65 mm Spindle Main spindle: Hainbuch chuck Counter spindle: 3-jaw chuck Main drive Drive power: 28 / 21 kW Speed range: 25 – 4,500 rpm Torque: 320 / 240 Nm Feed rate for thread cutting: max. 10 m/min C-axis speed: 120 rpm C-axis torque (holding torque): 180 Nm Tool carrier Number of tools: 8 Codpowkp Ifefx Ad Nsrb Shank diameter according to DIN 69880: 30 mm Number of driven tool stations: 4 Power: 7.6 / 4.6 kW Torque: 24 / 14.7 Nm Tool carrier 1 speed: max. 4,000 rpm Tool carrier 2 speed: max. 4,000 rpm Slide 1 Transverse travel / Longitudinal travel: 155 / 280 mm Rapid traverse speed X/Z: 22.5 / 22.5 m/min Feed force X/Z: 900 / 900 daN Thread spindle pitch X: 15 × 25 mm Thread spindle pitch Z: 15 × 32 mm Slide 2 Transverse travel / Longitudinal travel: 82 / 120 mm Rapid traverse speed X/Z: 22.5 / 22.5 m/min Feed force X/Z: 900 / 900 daN Thread spindle pitch X/Z: 15 × 25 mm MACHINE DETAILS Operating hours: 65,543 h Dimensions including bar feeder and chip conveyor (LWH): approx. 6 × 2 × 2 m Weight: approx. 6.5 t Operating voltage: 50 Hz, 400 V EQUIPMENT - Holder for finished parts - Cooling system - Chip conveyor - Documentation - Various guide tubes for the bar feeder - Including 2 tool holders
