CNC Lathe

GILDEMEISTER NEF 520

Year of construction: 2006, condition: ready for operation (used), Turning diameter over bed/face slide: 500mm/290mm, face travel: 260mm, turning length: 1000mm, spindle bore: 70mm, speed: 3050rpm, torque: 920Nm, rapid traverse X/Z: 8m/min/10m/min, feed X/Z: 5m/min, quill stroke: 180mm, quill diameter: 80mm. Machine dimensions X/Y/Z: approx. 3400mm/2000mm/1850mm, weight: approx. 3100kg. Documentation available. On-site inspection is possible. Lrsdpfx Aevnd Tloaqjh

Condition: used, Year of construction: 2006, Technical details: turning diameter over bed: 500 mm turning dia. over face-slide: 290 mm turning length: 850 mm centre distance: 850 mm longitudinal traverse (z-axis): 900 mm facing movement (x-axis): 260 mm control: Manuaplus 4110 revolution per minute: 10 - 3000 / 2x seples U/min max. torque on the spindle: 920 Nm spindle bore: 70 mm facing movement (x-axis): 8 m/min. longitudinal traverse (z-axis): 10 m/min. operating hours - idle run: ca. 34.600 h tailstock taper ISO: MK 5 tailstock quill stroke: 180 mm total power requirement: 24 kVA Weight approx.: 5,2 t dimension machine xH: 2,2 x 3,2 x 1,9 m Multifix steel holder size C 3-jaw chuck Ø 250mm chip tray manual hour counter live center in tailstock Operation control panel and monitor Accessories: Lredpfx Aaswtct Heqjh 4-jaw chuck Ø 250mm with internal jaws various chuck keys Machine lighting 8x foot plates 4x wedge lifters various pairs of jaws 1x bezel Ø 100mm closed *

Condition: good (used), Year of construction: 2006, Control unit MANUAL PLUS 4110 Lredpsx Tg T Rsfx Aaqjh

Condition: ready for operation (used), Year of construction: 2006, operating hours: 32,503 h, functionality: fully functional, machine/vehicle number: 01510006441, controller model: MANUAL PLUS 4110, TECHNICAL DETAILS Ljdpox Uz Edsfx Aaqorh Control: MANUAL PLUS 4110 MACHINE DETAILS Electrical Supply Rated voltage: 400 V Phases: 3~ Frequency: 50 Hz Performance Data Power: 24 kVA Rated current: 35 A Fuse rating: 50 A Operating hours: 32,503 h

Condition: reconditioned (used), Year of construction: 2005, Cycle-controlled lathe GILDEMEISTER NEF 520 With MANUAL PLUS 4110 control Ljdpfx Aouda Tneaqjrh Year of manufacture: 2005 Spindle bore: 70 mm Center distance: 1000 mm O rotation over bed: 500 mm O rotation over cross slide: 290 mm Center height: 250 mm Speed range: 10 - 3050 rpm infinitely variable With the following accessories: Sliding guard with interior lighting 8-station Sauter VDI 30 turret with driven tools 10 pcs. VDI 30 tool holders 2 pcs. driven tools VDI 30 Coolant device 3 jaw chucks SCHUNK ROTA 0 250 mm ICP contour programming Tailstock with extendable drilling quill Chip tray Operating instructions

Condition: used, Year of construction: 2001, functionality: fully functional, center width: 1,000 mm, turning diameter over bed slide: 500 mm, For sale is a cycle-controlled lathe of the Gildemeister brand and type NEF 520 K The machine is fully functional, the guides are somewhat worn but still functional Technical data: Gildemeister universal lathe NEF 520K Year of manufacture: 2001 Control: Siemens Touch Panel Rotation Ø over bed: 500mm Rotation Ø over facing slide: 290mm Face travel: 260mm Center distance: 1000mm Drive power 12 KW 1st gear stage 8 - 750 rpm 2nd gear stage 32 - 3000 rpm Quill Ø: 80mm Quill holder: MK5 Quill stroke: 180mm Three-jaw manual chuck: Ø250mm Four-jaw manual chuck: Ø250mm Tool holder: Multifix size C Fixed vice with jaws and rollers, guide Ø10 - 115 On request, loading and transport can be organized for an additional charge Lrodpfx Aaetrmrxjqsh All prices plus VAT Viewing possible by appointment. Contact us, our team will be happy to help you. Trade-in or exchange possible! Machines purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality but inexpensive metalworking machine for your production? Or do you want to sell yours?

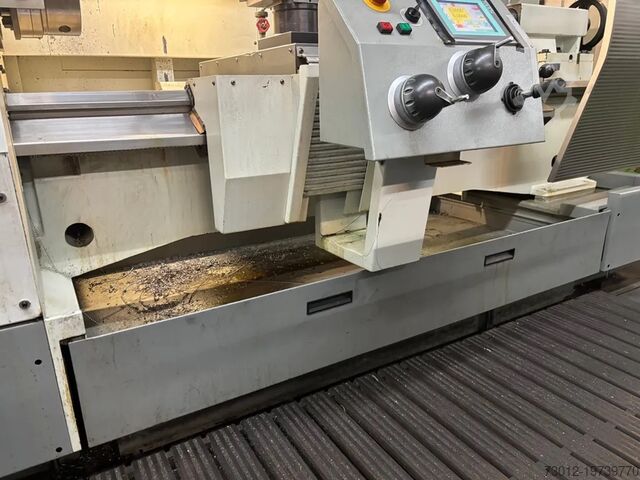

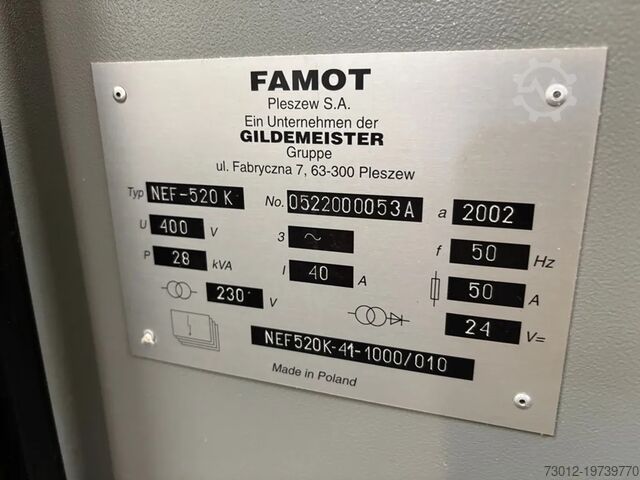

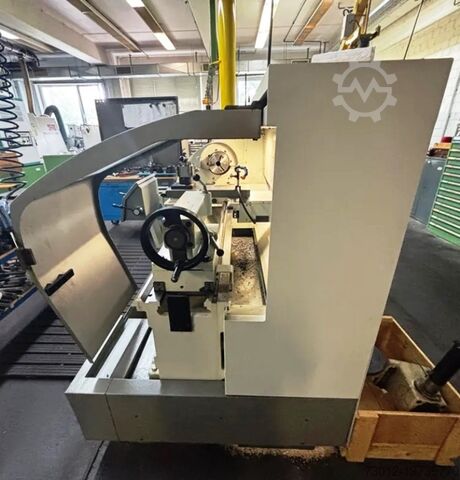

Condition: good (used), Year of construction: 2002, Gildemeister NEF 520 K Gildemeister NEF 520 K Cycle-Controlled Lathe with Siemens Sinumerik 810 DL Control, year of manufacture 2012, in excellent original condition. The machine comes from the training workshop of a renowned German mechanical engineering company. Technical Details Swing diameter over bed: 500 mm Swing diameter over cross slide: 290 mm Turning length: 1,250 mm Control: Siemens Simatic Cross slide travel: 260 mm Distance between centers: 1,500 mm Main Spindle: Speed range – main spindle: 8 - 3,000 rpm Drive power – main spindle: 12 kW Max. torque: 920 Nm Gear stages: 2 Spindle nose: No. 8 DIN55027 Spindle diameter in front bearing: 120 mm Max. bar capacity: 62 mm Spindle mount: ME80 Chuck diameter: 250 mm Tool Turret: Tool system: MultiFIX - C Tailstock: Quill diameter: 80 mm Quill taper: MT 5 Quill stroke: 180 mm Feed Rates: Rapid traverse x/z: 4 / 6 m/min Feed force x/z: 5 / 10 kN Total power requirement: 28 kVA Machine weight approx.: 3.0 t Space requirements approx.: 3.5 x 2.5 x 2.0 m Lrsdpfx Aasw Iqd Isqeh Accessories and Equipment: 1 coolant system About the machine: We are offering a Gildemeister NEF 520 K cycle-controlled lathe, year of manufacture 2012, in very good condition. The machine is, of course, fully functional. All slides run very smoothly and evenly. Even at high speeds, the Gildemeister operates very quietly. This latest generation of lathes is extremely user-friendly and can produce surface finishes comparable to grinding. Take the opportunity to inspect the machine under power at our premises and see its condition for yourself.

Condition: good (used), Year of construction: 2001, Gildemeister NEF 520 CNC Lathe Lredpfewftviex Aaqsh TECHNICAL DATA Working Area Swing over bed: 500 mm Swing over cross slide: 290 mm Chuck diameter: 250 mm Cross travel: 260 mm Center distance: 850 / 1350 mm Turning Spindle Spindle head DIN 55027 Size: 8 Spindle bore diameter: 70 mm Spindle mount: metric 80 Spindle diameter in front bearing: 120 mm Main drive AC Drive power: 12 kW Max. torque: 920 Speed range: 10 – 3000 rpm Gear ratios: 2 Switchable speeds: Continuously variable Feed drive X-feed force: 5000 N Z-feed force: 10000 N X-rapid traverse: 8 m/min Z-rapid traverse: 10 m/min Multifix tool carrier; Size: C Tailstock Quill diameter: 80 mm Quill stroke: 180 mm Quill mount: MK5 Dimensions L x W x H: 2900 x 1953 x 1825 mm Weight: 2700 kg SCOPE OF OFFER INCLUDES (list not exhaustive): Gildemeister lathe SMW Autoblok Hi-Grip high-precision chuck Chuck jaws Multifix tool holder Complete operating documentation Exact scope of offer as shown in the photo gallery We assume no liability for the accuracy, completeness, or timeliness of the information provided.

Condition: ready for operation (used), Year of construction: 2000, operating hours: 60,334 h, functionality: fully functional, machine/vehicle number: 01510000031, spindle bore: 70 mm, turning length: 1,350 mm, turning diameter: 500 mm, center width: 1,350 mm, spindle speed (max.): 3,000 rpm, No reserve price - guaranteed sale to the highest bidder! The payment deadline for the machine is 20/11/2025! Placing a bid obligates you to collect the machine within the specified period between 01/12/2025 and 05/12/2025! TECHNICAL DETAILS Turning length: 1,350 mm Swing diameter: 500 mm Swing diameter over cross slide: 290 mm Swing diameter over bed: 500 mm Chuck diameter: 250 mm Maximum spindle speed: 3,000 rpm Cross slide travel: 260 mm Distance between centers: 1,350 mm Spindle nose: 8 Spindle bore: 70 mm MACHINE DETAILS Control: HEIDENHAIN Ljdpfxoxm Slco Aaqjrh Dimensions & Weight Dimensions (L x W x H): 3,000 x 1,800 x 1,700 mm Total weight: 4,000 kg Electrical Data Type of input current: Three-phase Operating voltage: 400 V Frequency: 50 Hz Rated current: 25 A Connection load: 14 kVA Operating hours: 60,334 h
