CNC Lathe

GILDEMEISTER Sprint 20-8 linear

turning diameter max. 20 mm
turning length max. 80 mm
control Fanuc 310is
max. usable bar diameter 20 (25) mm
inner draw tube diameter 28,5 mm
Max. speed main spindle 10.000 min/-1
power capacity - main spindel 3,7 kW
max. Torque 9,4 Nm
C-Axis C1: 360 °
inner draw tube diameter 28,5 mm
Max. speed main spindle 10.000 min/-1
power capacity - main spindel 3,7 kW
max. Torque 9,4 Nm
C-Axis C2: 360 °
x-axis 1: 50 / 2: 240 mm
y-axis 1: 350 / 2: 120 mm
z-axis 1: 80 / 2: 300 mm
number of toolpositions 17 pos.
inner processing 6 pos.
outer processing 6 pos.
driven statition 5 pos.
Shank diameter 20 mm
shaft cross cut 12 x 12 mm
collet diameter ESX / ER 16
tool spindle speed range 3x 3.450 / 2x 6.000 min/-1
power capacity - driven tool-stations 5x 0.98 kW
max. Torque 3x 4 / 2x 2,3 Nm
number of toolpositions 13 pos.
inner processing 4
outer processing 4
driven statition 5 pos
Shank diameter 20 mm
shaft cross cut 12 x 12
collet diameter ESX / ER 16
tool spindle speed range 3x 3.450 / 2x 6.000 min/-1
power capacity - driven tool-stations 5x 0,98 kW
max. Torque 3x 4 / 2x 2,3 Nm
rapid traverse ( X / Y / Z ) max. 40 m/min
Dedpfx Astqmnnsg Hjuu
feed power max. 2,5 kN
Accelaration max. 5 m/s²
total power requirement 56 kVA
weight of the machine ca. 4,8 t
dimensions of the machine ca. 8,0 x 2,5 x 2,0 m
CNC-Short-Lathe

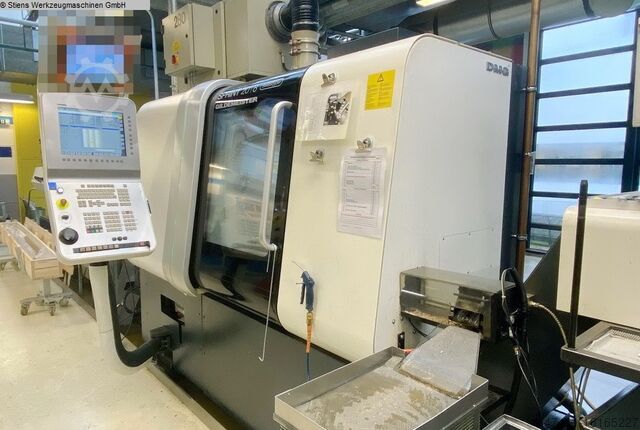

GILDEMEISTER - Sprint 20-8

- 8 Achsen ( 2x X / 2x Y / 2x Z / 2x C )
- Main- and Subspindle

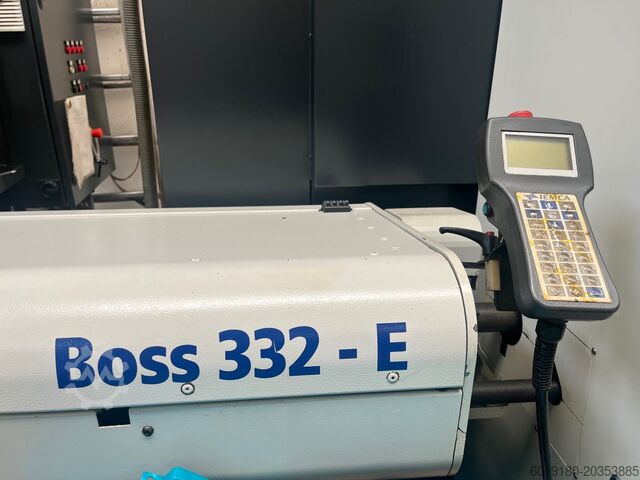

- Bar-Feeding-Magazine FMB turbo 3-36/ 3200A

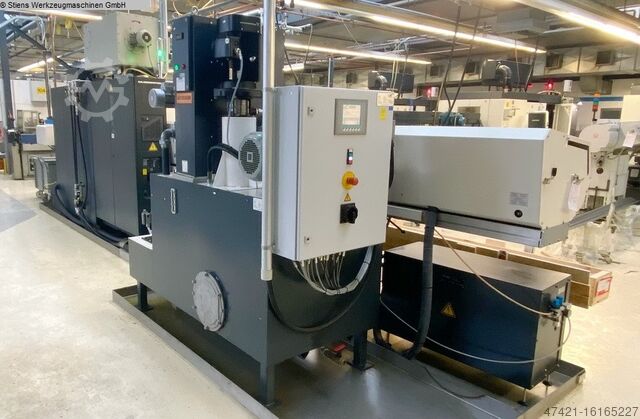

- Coolant System DELTATHERM
