Plutos Group FZCO

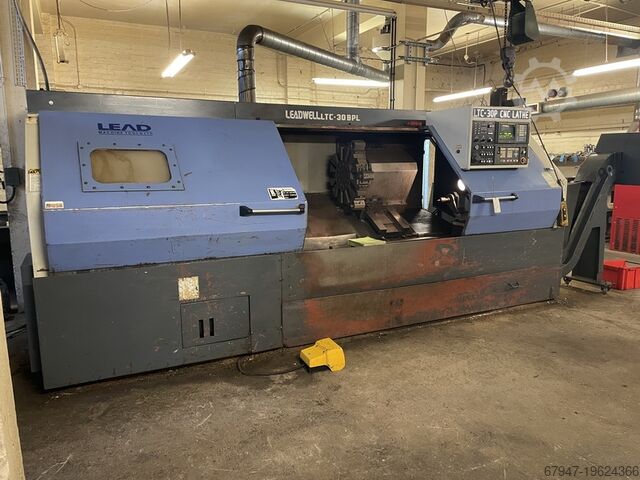

Condition: good (used), Year of construction: 1993, functionality: fully functional, machine/vehicle number: 1117-7177-26, turning diameter over cross slide: 450 mm, turning length: 1,000 mm, turning diameter: 550 mm, spindle bore: 78 mm, spindle speed (max.): 2,500 rpm, travel distance X-axis: 435 mm, travel distance Z-axis: 1,176 mm, spindle motor power: 43 W, rapid traverse Z-axis: 10 m/min, rotational speed (min.): 16 rpm, rotational speed (max.): 2,500 rpm, total height: 2,390 mm, total length: 5,360 mm, total width: 2,635 mm, quill diameter: 100 mm, quill stroke: 100 mm, swing diameter over cross slide: 450 mm, feed rate Z-axis: 10 m/min, turning diameter over bed slide: 450 mm, workpiece weight (max.): 1,500 kg, torque: 2,240 Nm, overall weight: 11,000 kg, chuck outer diameter: 400 mm, mount diameter: 400 mm, Equipment: documentation/manual, rotational speed infinitely variable, CNC Lathe Boehringer VDF 315 C with Fanuc Control We are selling a used CNC lathe from Boehringer VDF, type 315 C, equipped with a Fanuc 15-TF control unit. The machine is from 1993 and is in very good condition, as it has only been operated in single-shift mode and was never used for large series production. Blsdjymmpkspfx Ah Isd A special feature of this machine is the Fanuc control with a graphical user interface, which offers significant programming advantages compared to the (no longer supported) Philips control system. The machine is equipped with a chip conveyor and a coolant system. It is fully functional and free of any defects. All manuals for the machine and the control unit, including all necessary technical information, are available. The lathe is offered with a comprehensive accessories package (at additional cost) and can be collected in Eschweiler.

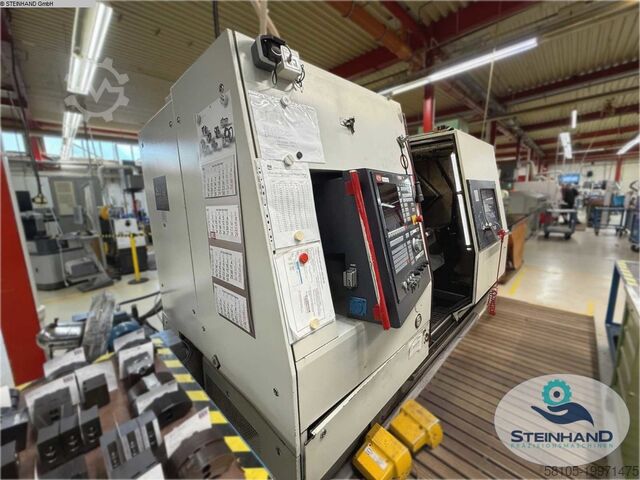

Condition: used, Year of construction: 2004, turning length: 1,050 mm, turning diameter: 465 mm, spindle bore: 95 mm, spindle speed (min.): 3,500 rpm, Turning diameter: 465 mm Turning length: 1,050 mm Spindle speed: 3,500 rpm Spindle bore: 95 mm Weight: approx. 7,500 kg Bljdpfx Aheymahae Iod

Condition: good (used), Year of construction: 2000, Traub TNE 300 Year of manufacture: 2000 Supplied with tooling Bjdpfx Aoylwn Ueh Iold In good running condition!

Condition: as good as new (ex-display), Year of construction: 2025, operating hours: 100 h, functionality: fully functional, turning diameter over cross slide: 600 mm, turning length: 548 mm, turning diameter: 460 mm, spindle bore: 88 mm, spindle speed (max.): 3,400 rpm, spindle speed (min.): 30 rpm, travel distance X-axis: 310 mm, travel distance Y-axis: 110 mm, travel distance Z-axis: 620 mm, spindle motor power: 24 W, rapid traverse X-axis: 24 m/min, rapid traverse Y-axis: 10 m/min, rapid traverse Z-axis: 24 m/min, rotational speed (min.): 30 rpm, rotational speed (max.): 4,500 rpm, overall weight: 7,600 kg, swing diameter over bed slide: 600 mm, bar passage: 75 mm, chuck outer diameter: 250 mm, Equipment: rotational speed infinitely variable, Top new machine, "THE TANK" with Siemens 828 Shopturn, BMT65 (MORI), Renishaw probe arm, and sub spindle. Available with automation at extra cost (see pictures). - Siemens 15.6'' touch display - Main spindle 3,500 rpm - Siemens motor - Box guideways with Turcite coating - 12-station BMT turret for 12 driven tools - 3-jaw chuck Ø 250 mm on main spindle - 3-jaw chuck Ø 150 mm on sub spindle Bjdpfxeylnb Ss Ah Ijld - C-axis - Y-axis - Sub spindle - Chip conveyor - Coolant system and high-pressure (IKZ), 20 bar - Work area lighting - Foot pedal for chuck - Multi-colour machine status indicator Pictured AGWs are not included in the offer.

Condition: good (used), Year of construction: 2007, CNC lathe MICROTURN CHALLENGER BNC 1840, year 2007. Control: FARGO 8055i/A, tool turret VDI 40 / 8 positions, chuck diameter 250 mm. Spindle mount: CAMLOCK D1-6. Center height: 230 mm. Turning length: 1000 mm. Spindle bore: 65 mm. Spindle speeds: 100–4500 rpm. Further data available in the data sheets. Coolant system installed. The machine is in good condition and can be demonstrated under power. Machine documentation available. Accessories: tool holders, jaws for the chuck. Bledjyhzg Depfx Ah Ied

Condition: ready for operation (used), Year of construction: 2013, functionality: fully functional, machine/vehicle number: 09071204, turning length: 1,000 mm, turning diameter: 430 mm, spindle speed (max.): 2,800 rpm, travel distance X-axis: 240 mm, travel distance Z-axis: 700 mm, TECHNICAL DETAILS Turning diameter: 430 mm Turning length: 1,000 mm Turning diameter over cross slide: 277 mm Spindle bore: 30 mm Spindle speed range: 30 - 2,800 rpm X-axis travel: 240 mm Z-axis travel: 700 mm MACHINE DETAILS Control: CNC Total power requirement: 10 kW Dimensions & Weight Required floor space: approx. 2,500 x 1,900 x 1,900 mm Machine weight: approx. 3,000 kg Blodpfx Ahsygxhxe Ijd EQUIPMENT 3-jaw chuck 200 mm 4-position tool holder Coolant system Machine lamp

Condition: excellent (used), Year of construction: 2012, Partially overhauled Heidenhain Manual Plus 620 control system Working area: Swing diameter over bed: 475 mm Swing diameter over cross slide: 260 mm Cross slide travel: 260 mm Centre distance: 1000 mm Turning length: 880 mm Main spindle drive Drive power – AC motor – 40% duty cycle: 25 kW Headstock Spindle nose DIN 55026: A6 size Spindle diameter in front bearing: 115 mm Spindle bore: 78 mm Speed range (constant V): 1 – 3000 rpm Cross slide Bledpfx Aeyffigoh Ied Feed rate, cross: 0.001 – 1000 mm/min Feed rate, longitudinal and thread cutting: 0.001 – 2000 mm/min Rapid traverse, cross/longitudinal: 5/10 m/min Tailstock Quill diameter: 70 mm Quill stroke: 120 mm Quill taper: 5 MT

Condition: ready for operation (used), Year of construction: 2005, operating hours: 20,634 h, functionality: fully functional, machine/vehicle number: 051116206, turning length: 1,000 mm, rotational speed (max.): 4,000 rpm, bar passage: 52 mm, controller model: Fagor 8040 TC, TECHNICAL DETAILS Swing diameter over bed: 450 mm Swing diameter over cross slide: 215 mm Turning length: 1,000 mm Bar capacity: 52 mm Spindle speed: 4,000 rpm MACHINE DETAILS Control unit: Fagor 8040 TC Bedpsycu Igsfx Ah Iold Dimensions & Weight Machine dimensions (L x W x H): 3,000 x 1,995 x 2,001 mm Machine weight: approx. 2,400 kg Operating hours: 20,634 h EQUIPMENT 4-position tool holder Tailstock Documentation

Condition: used, Year of construction: 2002, spindle motor power: 11 W, rotational speed (min.): 4,500 rpm, CNC Lathe "LEADWELL" Model T6 CNC FANUC 0-TD Complete with standard equipment Max. turning length: 450 mm Bledox U Ti Ijpfx Ah Isd Max. turning diameter: 290 mm ATC with 12 stations Spindle speed: 4500 rpm Motor power: 11 kW

Condition: excellent (used), Year of construction: 2020, Swing over bed 720mm, Swing over cross-slide 590mm, maximum machining diameter 481mm, maximum machining length 1275mm, Bodpfx Asx Uy Haeh Isld bar capacity 102 mm, 12 station turret, spindle speed 2,800 rpm, Fanuc I series control, tool setter, swarf conveyor, 3 jaw chuck,

Condition: good (used), Year of construction: 2004, Gildemeister CTX 510, year of manufacture 2004, Siemens 840 D control with Shop Turn, travel range X/Z 300/1050 mm, 12-position turret, VDI 40, tailstock, coolant pressure 20 bar, spindle speed up to 3,500 rpm, three-jaw chuck Ø 315 mm, bar capacity 90 mm, quill travel 150 mm, 14,000 spindle hours, only small batch sizes of 0 - 5 produced on the machine, programming was carried out directly on the machine, no driven tools. Bodpfx Ahjx Ux Tfs Ield

Condition: used, TECHNICAL DETAILS - Number of spindles : 2 - Number of turrets : 1 - Number of axes : 6 MAIN SPINDLE - Spindle nose : A2-8 - Max. bar diameter : 80 [mm] - Spindle power : 18,5 [kW] - Spindle speeds : 4.000 [rpm] - Max. turning diameter : 460 [mm] - C axis indexing precision : 0,001 [°] TURRET - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 260 x 795 [mm] - Y stroke : +/- 50 [mm] - Live tools speed : 6.000 [rpm] - Live tools power : 5,5 [kW] COUNTER-SPINDLE - Spindle nose : A2-5 - Max. bar diameter : 51 [mm] - Max. turning diameter : 190 [mm] - Spindle power : 11 [kW] - Spindle speeds : 6.000 [rpm] - C axis indexing precision : 0,001 [°] - Travel : 760 [mm] POWER SUPPLY - Supply voltage : 200 [V] - Total installed power : 42 [kVA] WEIGHT & DIMENSIONS Bodpox Tvkrofx Ah Iold - Machine floor space : 4.414 x 2.370 [mm] - Machine height : 2.115 [mm] - Machine weight : 6.200 [kg] MACHINE HOURS - Number of hours under power : 15525 [h] - Number of working hours : 12865 [h] EQUIPMENT - CNC : Mitsubishi MSX-850II - Interactive programming : MAPPS III - Interface : USB / PCMCIA / RJ45 - Tool probe : Renishaw - 3 colors status lamp - Tailstock function - Coolant tank - Chips conveyor : Droite - Spindle cooling unit - Parts catcher - Bar loader : LNS Quick LoadSERVO 80 - Parts conveying strip - Number of turning tool holders : 2 - Number of fixed tool holders : 10 - Chuck 3 jaws

Condition: used, TECHNICAL DETAILS - Number of axes : 4 - Number of spindles : 1 - Number of turrets : 1 MAIN SPINDLE - Spindle nose : A2-8 - Spindle power : 18,5 [kW] - Spindle speeds : 4.000 [rpm] - Max. bar diameter : 80 [mm] - Max. diameter on bench : 923 [mm] - Max. turning diameter : 460 [mm] Bljdpfx Aox Tvkleh Isd - C axis indexing precision : 0,001 [°] TURRET - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 260/1345 [mm] - Y stroke : +/- 50 [mm] - Tool type : BMT - Live tools speed : 10000 [rpm] TAILSTOCK - Tailstock type : Numérique - Type of cone : CM5 - Distance between centers : 1255 [mm] - Tailstock stroke : 734 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 39 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 3.110 x 1.922 [mm] - Machine height : 2.120 [mm] - Machine weight : 6.100 [kg] MACHINE HOURS - Number of hours under power : 26654 [h] - Number of working hours : 15488 [h] EQUIPMENT - CNC : CELOS - Interactive programming : MAPPS 4 - Interface : USB, PCMCIA, RJ45, RS232 - Tool probe : Renishaw - Coolant tank * with high-pressure pump : 15 [bars] - Chips conveyor - Tool probe - Parts catcher - Parts conveying strip - Bar loader : LNS QUICK LOAD SERVO 80 S2 - Number of fixed tool holders : 10 - Number of turning tool holders : 2 - Electric transformer - Collet chuck

Condition: used, Year of construction: 2007, Pallet size 500 x 500 X axis 710mm Y axis 680mm Z axis 680mm Bjdpfx Asx Ii Adeh Ijld spindle taper No 40 12,000 rpm.

Condition: used, TECHNICAL DETAILS - Number of axes : 6 - Number of spindles : 2 - Number of turrets : 1 MAIN SPINDLE - Spindle nose : A2-8" - Spindle power : 18.5 [kW] - Spindle speeds : 4000 [rpm] - Max. bar diameter : 90 [mm] - Max. turning diameter : 460 [mm] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE Bedpfx Ajx H Atyeh Isld - Spindle nose : A2-6" - Spindle power : 11 [kW] - Spindle speeds : 6000 [rpm] - C axis indexing precision : 0.001 [°] TURRET 1 - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 260/795 [mm] - Y stroke : +/-50 [mm] - Tool type : BMT - Live tools speed : 10000 [rpm] - Live tools power : 5.5 [kW] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 41 [kW] MACHINE HOURS - Number of hours under power : 21392.8 [h] - Number of working hours : 13797 [h] EQUIPMENT - CNC : CELOS - Interface : Ethernet / RS232 / USB / PCMCIA - Interactive programming : MAPPS V - 3 colors status lamp - Coolant tank : KNOLL * with high-pressure pump : 70 [bars] * with paper filtering unit - Tailstock option with counterspindle - Chips conveyor - Tool probe - Parts catcher - Parts conveying strip - Bar loader : LNS QUICKLOAD - Electric transformer - Number of turning tool holders : 2 - Number of fixed tool holders : 10 - Collet chuck

Condition: used, Year of construction: 2000, Technical details: turning diameter: 360 mm turning length: 520 mm total power requirement: 20 kW weight of the machine ca.: 3,8 t Bjdpfex Dcgxex Ah Ijld dimensions of the machine ca.: 3 x 2 x 2 m

Condition: used, Year of construction: 2007, Technical details: Bledjx Aq Hwjpfx Ah Isd turning diameter: 220 mm turning length: 310 mm total power requirement: 17 kW weight of the machine ca.: 3,3 t dimensions of the machine ca.: 2,25 x 1,63 x 1940 m greates pass round over bed: 430 mm bore diameter: 45 mm centre distance: 687 mm slide travel radial ( X-axis ): 160 mm slide travel axial ( Z-axis ): 310 mm spindle turning speed range: 0-6.300 U/min

Condition: used, Year of construction: 2001, Technical details: Bjdpfxox Aq Hko Ah Ield turning diameter: 220 mm turning length: 700 / 665 mm total power requirement: 17 kW weight of the machine ca.: 2,6 t dimensions of the machine ca.: 2,63 x 1,98 x 1,94 m greates pass round over bed: 430 mm Part length max.: 510 slide travel radial ( X-axis ): 160 mm bore diameter: 45 mm

Condition: used, Year of construction: 2011, turning length 1500 mm control SINUMERIK 828D centre height 270 mm greates pass round over bed 540 mm swing diameter over slide rest 310 mm bed width 350 mm Blodsxyaf Rspfx Ah Ijd max. workpiece weight 1500 kg spindle bore 85 mm turning speeds 27 - 2250 U/min main drive DC 11 kW MACHINE EQUIPMENT: - AME chip conveyor - Lynette - Heavy grey cast iron bed for optimum damping and reduced tool wear - Inductively hardened and parallel synchronised bed guides - Counter guides completely Turcite-coated and hand-scraped - Hardened and ground ball screws - Thermosymmetrical headstock - Main drive 11 kW - Infinitely variable speed range 27-2250 rpm with 3-stage gearbox

Condition: used, Year of construction: 1987, operating hours: 2,362 h, functionality: limited functionality, machine/vehicle number: L7+029, turning diameter over cross slide: 42 mm, spindle bore: 42 mm, spindle motor power: 7,500 W, rotational speed (max.): 4,500 rpm, Equipment: documentation/manual, LEADWELL LTC10 Year of manufacture: 1987 Operating hours: 2362h Turning diameter: 42mm CNC type: Fanuc OT Model A Number of tool turrets: 1 Axes: X, Z, and C Tailstock Number of turret positions: 8 Main and sub spindle speed: 4500 rpm Main spindle motor power: 7.5 kW Dimensions (L x W x H): 235 cm x 122 x 160 Weight: ? kg Chip conveyor Documentation: electrical diagrams, Fanuc manual, spare parts list, programming assistance, hard copy of parameters. Numerous fixed tool holders included in the sale. The machine is operational. It is somewhat aged, so it is not perfect. Machine is to be collected on site (Marignier - France). Loading and transport costs are the responsibility of the buyer. Bodpfx Ahjxwp T Ej Iold

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: R6A N3602, turning length: 520 mm, turning diameter: 360 mm, overall weight: 3,800 kg, TECHNICAL DETAILS Turning diameter: 360 mm Turning length: 520 mm MACHINE DETAILS Total power requirement: 20 kW Dimensions & Weight Required space: 3 x 2 x 2 m Bjdpfx Ahjxvrruo Ijld Machine weight: 3.8 t

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, machine/vehicle number: R2AP3901, turning length: 700 mm, turning diameter: 220 mm, travel distance X-axis: 160 mm, turning diameter over bed slide: 430 mm, workpiece length (max.): 510 mm, TECHNICAL DETAILS Turning diameter: 220 mm Turning length: 700 mm / 665 mm Swing diameter over bed: 430 mm Max. part length: 510 mm X-axis travel: 160 mm Spindle bore diameter: 45 mm MACHINE DETAILS Total power requirement: 17 kW Dimensions & Weight Bledpfxsxvrn Ns Ah Ied Required space approx.: 2.63 x 1.98 x 1.94 m Machine weight approx.: 2.6 t

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, turning length: 1,000 mm, spindle speed (max.): 3,000 rpm, turning diameter over bed slide: 480 mm, controller model: Siemens Sinumerik 840C, TECHNICAL DETAILS Turning length: 1,000 mm Swing diameter over bed: 550 mm Swing diameter over cross slide: 480 mm Turret: 12 positions Number of driven stations: 6 Tool holder: VDI50 Speed range: 30 - 3,000 rpm Spindle bore: 90 mm MACHINE DETAILS Bledoxtmvcjpfx Ah Iod Control: Siemens Sinumerik 840C Dimensions & weight Dimensions (LxWxH): 580 x 270 x 270 cm Weight: approx. 11 t EQUIPMENT SMW Autoblok 315 power chuck (without soft top jaws) Approx. 10 driven tools Approx. 10 live centers for tailstock

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, turning diameter: 450 mm, spindle speed (max.): 5,000 rpm, travel distance X-axis: 215 mm, travel distance Z-axis: 400 mm, bar diameter (max.): 51 mm, workpiece length (max.): 380 mm, TECHNICAL DETAILS Capacity Turning diameter: 450 mm Maximum machining diameter: 340 mm Maximum machining length: 380 mm Bar capacity: 51 mm Travel Range X-axis travel: 215 mm Z-axis travel: 400 mm Spindle Spindle speed: 30 – 5,000 rpm Spindle nose (Type No.): A2-6 Spindle bore: 59 mm Spindle bearing inner diameter: 100 mm Turret Tool positions: 12 Gripper: 25 mm Drill holder diameter: 32 mm Feed Rapid traverse X-axis: 30 m/min Rapid traverse Z-axis: 30 m/min Cutting feed (per revolution): 0.001 – 500 mm/rev Feed rate: 0 – 2,000 mm/min MACHINE DETAILS Control: Seicos Machine weight: 4,600 kg Motor Spindle motor (50% duty cycle / continuous): 11 / 7.5 kW Feed motor X-axis: 4 kW Feed motor Z-axis: 4 kW Turret indexing motor: 2.2 kW Guideway lubrication pump: 18 W Spindle coolant pump: 370 W Bljdpfx Aexrc Dgoh Ied

Condition: good (used), Year of construction: 2010, Machine have live tools option and Y axis. Cutting tools not come. Parts shown by hand not come. Technical details shown on pictures. Bledjxpw Nlspfx Ah Ijd
