Condition: used, Universal Milling Machine DECKEL FP1 Travel X: 300 mm Travel Y: 150 mm Cgodpfszbq Uyex Af Hju Travel Z: 300 mm Horizontal + vertical spindle Cone SA40 DECKEL Spindle speed: from 40 to 2000 RPM Table size: 600 x 210 mm Horizontally tiltable head Straight table Spindle motor: 2 speeds Motor: 1,3 kW Feeds: X - Z auto / Y manual Voltage: 380 V Width: 1200 mm Depth with electrical panel: 1200 mm Height:1600 mm Weight: approx 900 kg

Condition: used, Universal Milling Machine DECKEL FP1 Travel X: 300 mm Travel Y: 150 mm Travel Z: 300 mm Horizontal + vertical spindle Cone CM4 DECKEL Spindle speed: from 40 to 2000 RPM Horizontally tiltable head Spindle motor: 2 speeds Motor: 1,5 kW Feeds: X - Z auto / Y manual Supplied without table only with one 4 concentric jaws Ø 140 mm Voltage: 380 V Width: 1200 mm Depth: 1200 mm Total height: 1600 mm Codpfxjzbq T Aj Af Hogu Weight: approx 900 KG

Condition: excellent (used), functionality: fully functional, Universal milling machine Deckel FP1 with 3-axis active digital display TNC 113 Heidenhain and stepless feed, in very good condition, CE compliant. Technical data: >> Year of manufacture 1990, machine no. 2102-5046 >> Fixed angular table >> Speed: 40 - 2000 RPM >> Stepless feed in 3 axes >> Rapid traverse in 3 axes >> Drive power: 1.5 / 1.9 kW >> Spindle brake >> Travel distances X/Y/Z: 300/160/340 mm >> Vertical milling head on spindle support, adjustable by 100 mm Cedpfx Ajzbb E Aof Hsgu >> Vertical quill and horizontal quill - SK40 >> Clamping system S20x2 >> Weight approx. 800 kg Accessories and equipment: >> 3-axis digital display Heidenhain TNC113 >> Coolant system >> Machine lamp >> Operating manual, parts list About the machine: Offered is a universal milling machine Deckel FP1 in very good condition and CE compliant. The machine has very little backlash and all spindles move easily. Even at maximum speeds, the milling machine runs very smoothly. In this newer FP1 model, the feed is steplessly adjustable in three axes, and the machine also has rapid traverse in these axes. A major advantage is the active 3-axis digital display. With this Heidenhain control system, you can enter dimensions that the machine will automatically approach. The FP1 was located in a training workshop, where it was only used occasionally. An oil change has been carried out. Mechanically and electrically tested. The digital display from Heidenhain makes the work easier and even more precise. Take the opportunity to inspect and test this machine on site under power.

Condition: good (used), Year of construction: 1989, functionality: fully functional, Technical details x-travel 300 mm y-travel 160 mm z-travel 290 mm table surface area 210 x 600 mm tool taper SK 40 spindle turning speed range (16) 40 - 2000 U/min feeds -stepless- 5 - 500 mm/min rapid traverse 1,2 m/min spindle motor 1,5 / 1,9 kW total power requirement 9,5 kVA weight of the machine ca. 730 kg dimensions of the machine ca. 2000 x 2200 x 1655 mm Additional information Cgodpfx Afoza U Eyo Hju The machine comes from a vocational training center. Equipment: 3-axis active digital readout made by Heidenhain Fixed angle table Coolant equipment

Condition: ready for operation (used), Tool milling machine DECKEL FP 1 incl. dividing head -Travel distances X/Y/Z: 245x150x340mm -Without vertical head / machine was only used for horizontal milling operations -Spindle speed range: 95 - 1900 rpm -Dividing head Cedpfxeza Uf Tj Af Hjgu -Automatic feed in X & Y axis -Various collets / tool holders -Documentation Dimensions: L x W x H: 1.1 x 0.9 x 1.6 meters / Weight: 600 kg Errors and omissions excepted.

Condition: good (used), Year of construction: 1986, travel distance X-axis: 710 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 455 mm, x-travel: 710 mm y-travel: 600 mm z-travel: 455 mm Control: Dialog 4 Speed: 6300 rpm Tool holder: SK40 Quill stroke: 80 mm Table size: 550 x 1000 mm Table load: 0.6 t Total power requirement: kW Cgedpfxjza Aqko Af Hou Machine weight approx.: 4 t

Condition: ready for operation (used), Year of construction: 1995, Available immediately ex location: CNC tool milling machine Deckel, type FP 5–80, year of manufacture 1995, CNC control Dialog 12, universal table 750 x 520 mm. Travels X/Y/Z: 800/550/500 mm. Drive power: 9 kW. Quill stroke: 80 mm. Electronic handwheel. Spindle speeds: 32–5000 rpm. Feeds: 0–6000 mm/min. Weight: 4.5 t. Price: EUR 2,750 plus VAT, ex location. Cgjdpfx Ajzap Uief Heu

Condition: used, functionality: fully functional, DECKEL FP 1 milling machine, from a private collection. Few operating hours, but used regularly. Cedpjzaa Ndofx Af Hjgu No VAT shown, collection only, located in Munich.

Condition: excellent (used), Year of construction: 2000, functionality: fully functional, Technical details x-travel 300 mm y-travel 160 mm z-travel 290 mm table surface area 600 x 210 mm tool taper SK 40 spindle turning speed range (16) 40 - 2000 U/min feeds -stepless- 5 - 500 mm/min rapid traverse 1,2 m/min spindle motor 1,5 / 1,9 kW total power requirement 9,5 kVA weight of the machine ca. 830 kg dimensions of the machine ca. 2000 x 2200 x 1655 mm Additional information The machine is in very good condition and comes from a training workshop. Equipment: * 3-axis positioning control with active digital display Heidenhain TNC 123 Cgodpfxjy U U Nie Af Hju - Manual mode: Manual operation and positioning with manual input - Automatic mode: Single-block programme run, programme storage * Fixed angle table * Movable vertical milling head, swivel range +/- 90 degr., quill stroke 60 mm * Coolant equipment * Central lubrication * Tailstock with counter bearing * Manual

Condition: good (used), functionality: fully functional, Feed rates continuously adjustable in all 3 axes Spindle travel 60 mm Table surface 600 x 250 mm Cedpjy Uv D Isfx Af Hjgu Spindle speeds 45 - 1950 rpm Feed rates 10 – 470 mm/min...continuously adjustable... Longitudinal travel (X) 315 mm Transverse travel (Y) 180 mm Vertical travel (Z) 320 mm

Condition: ready for operation (used), Universal / Tool milling machine DECKEL FP 1 & 3-axis Heidenhain digital display -Very well-maintained, original condition -Travel ranges X/Y/Z 300x150x340mm -Speed range 40-2000 RPM -Automatic feeds / inputs in two axes -Vertical / horizontal milling capability -Tool holder ISO 40 -Fixed swivel table -3-axis Heidenhain digital display -Coolant system -Chip tray -Documentation Dimensions: L x W x H 1.1 x 0.8 x 1.7 meters / Weight 700 kg Errors and omissions excepted. Csdsy Ummmjpfx Af Hogu

Condition: used, DECKEL dividing head for direct and indirect dividing Includes the following equipment: - with tailstock - with draw tube Cgjdjy Rmwqepfx Af Hou - with 3 division plates Optional: 3-jaw chuck and/or 4-jaw chuck

Condition: used, Year of construction: 1989, x-travel 600 mm y-travel 450 mm z-travel 400 mm table-size 850 x 440 mm spindle taper SK 40 control HEIDENHAIN TNC 355 Cgodey Nnw Nspfx Af Hou ATC 32 Pos spindle turning speed range 20 - 4000 U/min spindle drive 5,9 kW quill stroke 80 mm feeds longditudinal/cross/vertical 1 - 2000 mm/min power feed x/y/z 7200 N rapid traverse longitudinal and cross 10 m/min rapid traverse vertical 10 m/min total power requirement 12 kW weight of the machine ca. 3 t Acc.: NC-dividing unit (=4th axis) make WALTER with 3-jaw chuck 160 mmø, vertical head with hydr. tool clamping and quill retraction, solid table, various tool fixtures, electron. hand wheel, coolant

Condition: reconditioned (used), Year of construction: 2026, functionality: fully functional, feed length X-axis: 300 mm, feed length Y-axis: 150 mm, feed length Z-axis: 340 mm, travel distance X-axis: 300 mm, travel distance Y-axis: 150 mm, travel distance Z-axis: 340 mm, feed rate X-axis: 500 m/min, feed rate Y-axis: 500 m/min, feed rate Z-axis: 500 m/min, quill stroke: 80 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 40 rpm, rapid traverse X-axis: 1 m/min, rapid traverse Y-axis: 1 m/min, table length: 600 mm, table width: 210 mm, total height: 1,750 mm, total length: 1,400 mm, total width: 1,600 mm, rotational speed (max.): 2,000 rpm, rotational speed (min.): 40 rpm, overall weight: 800 kg, table load: 200 kg, space requirement width: 1,600 mm, space requirement length: 1,400 mm, space requirement height: 1,750 mm, Equipment: CE marking, documentation/manual, The machine was overhauled/partially overhauled by our workshop in 2026 and, in the same process, retrofitted for CE conformity. The machine is in excellent condition. Complete machine in CE standard version. A CE declaration of conformity has been issued for the machine, with FPS Werkzeugmaschinen GmbH assuming responsibility as the manufacturer. As a result, the machine meets the requirements of the German Industrial Safety Regulation (Betriebssicherheitsverordnung – BetrSichV). The year of manufacture therefore corresponds to the date of the CE retrofit. EN ISO 12100, EN ISO 13857, DIN EN 13128:2009-09, EN ISO 13850, EN ISO 13849, EN 60204-1 - New CE switch cabinet (in accordance with current regulations of professional associations) - Safety brake motor: the milling spindle comes to an immediate stop upon reaching zero speed. Control 3-axis – Active – Digital display Spindle speed 40-2000 rpm, geometrically stepped direct-drive gearbox with 18 speed stages for maximum torque and milling performance Feed rate 5 to 500 mm/min, steplessly adjustable Rapid traverse 1.2 m/min Quill Extendable quill, vertical 80 mm, SK40 with M16 drawbar thread, optionally with DECKEL saw thread S20 x 2 Axes X/Y/Z 300/150/340 mm Table Fixed angle table 600 x 210 mm Maximum table load: 200 kg Equipment • Vertical and horizontal spindle • Milling head manually swivelable +/- 90° • Z-axis bellows Options • Chip tray Cgjdpfoy I Trpox Af Hsu • Machine light • Universal table • Rotary table • Slotting head • Dividing head • Steady rest • and more.

Condition: ready for operation (used), Universal Milling Machine MACMON M100 - Travel X/Y/Z: 310x340x170 mm - Swivel table: 645x200 mm - 16 spindle speeds: 40-2000 rpm - 16 automatic feeds Codpfx Afsy Ipkhe Hogu - Tool holder: ISO 40 - Swiveling vertical head - Horizontal and vertical milling facility - Chip tray - Documentation - Machine feet Dimensions (LxWxH): 1x1x1.7 m / Weight: 750 kg Errors and input mistakes excepted.

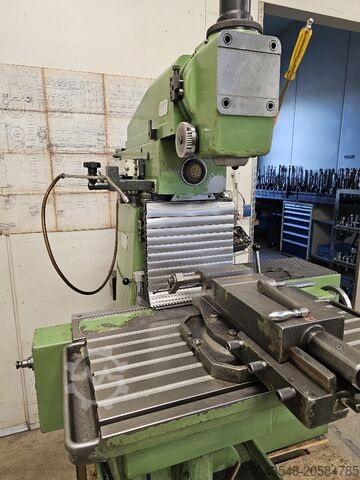

Condition: excellent (used), Year of construction: 1979, functionality: fully functional, Universal Milling Machine Deckel FP2 with 3-Axis Active – TNC 111 Digital Readout by Heidenhain, incl. Accessories, Excellent Condition Technical Data: >> Year of manufacture: 1979, Machine No. 2202-10512 >> Fixed angle table >> Spindle speeds: 25 – 2500 rpm >> Infinitely variable feed on 3 axes >> Rapid traverse on 3 axes >> Drive power: 2.2 kW Cedpfey H Ibcjx Af Hjgu >> Spindle brake >> Travel X/Y/Z: 400/220/400 mm >> Vertical milling head adjustable 150 mm on spindle carrier >> Vertical and horizontal quill – SK40 extendable >> Drawbar system M16 >> Weight approx. 1400 kg Equipment and Accessories: >> 3-axis TNC 111 Active digital readout by Heidenhain >> Coolant system >> Central lubrication >> 1 accessory cabinet containing: Collets, tool holders, clamping tools, tailstock, Dividing head with 3-jaw chuck, vise, tailstock, indexing plates, and much more About the Machine: For sale is a Deckel FP2 universal milling machine in excellent condition. The FP2 comes from a state-operated laboratory where it saw only minimal use. It includes an accessory cabinet with a wide range of tools. The machine has very little backlash, and all spindles move smoothly. The geometry is outstanding. Even at maximum spindle speeds, the milling machine runs quietly. On this newer FP2 model, the feed on all three axes is continuously adjustable and each axis has rapid traverse. A major advantage is the active 3-axis digital readout. With the Heidenhain digital control, set dimensions can be entered and the machine will automatically travel to these positions. An oil change has been carried out. The machine has been mechanically and electrically checked. The Heidenhain digital display makes operation easier and even more precise. Take advantage of the opportunity to view and test the machine under power on site.

Condition: used, Year of construction: 1987, functionality: fully functional, machine/vehicle number: 20031, travel distance X-axis: 560 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 450 mm, input voltage: 380 V, We offer this used Deckel Contour 3 tool milling machine, year of manufacture 1987. Control system: 6004 50 009302 00 Serial number: 20031 Year of manufacture: 1987 Wiring diagram: 6003 90 077302 00 Operating voltage: 380 V Frequency: 50/60 Hz Rated current: 23 A Control voltage: 24 V Maximum fuse: 35 A The machine is equipped with a rotary table and a tool changer. Cgodpfx Afjy Hfc Re Heu If you have any questions or need further information, please feel free to send us a message or call us.

Condition: excellent (used), Year of construction: 1983, functionality: fully functional, Universal Milling Machine Deckel FP3 with 3-Axis Active Digital Readout TNC 113 by Heidenhain and Infinitely Variable Feed—Excellent Condition Technical Data: Csdpey D Tl Isfx Af Hjgu >> Year of manufacture: 1983 Machine no. 2201-5919 >> Fixed angle table (reconditioned) >> Speed range: 25 – 2500 rpm >> Infinitely variable feed on all 3 axes >> Rapid traverse on all 3 axes >> Drive power: 2.0 / 4.0 kW >> Spindle brake >> Travel (X/Y/Z): 500 / 300 / 400 mm >> Vertical milling head movable on spindle head by 200mm >> Vertical and horizontal quill—SK40 extensible >> Pull-in system S20 x 2 >> Weight approx. 1500 kg Equipment and Accessories: >> 3-axis active digital readout Heidenhain TNC113 >> Coolant system >> Central electric lubrication About the machine: Offered here is a Universal Milling Machine Deckel FP3 in very good condition. The machine has very little backlash and all spindles move smoothly. On this newer FP3 model, the feed is infinitely adjustable in all three axes, and the machine also features rapid traverse for each axis. A major advantage is the active 3-axis digital readout. With the Heidenhain control, you can input dimensions that the machine will automatically position to. An oil change has been carried out. Mechanically and electrically tested. The Heidenhain DRO makes operation both easier and even more precise. Take advantage of the opportunity to inspect and test the machine under power on site. The machine is available immediately.

Condition: not inspected (used), Year of construction: 1989, functionality: unexamined, machine/vehicle number: 1616, travel distance X-axis: 300 mm, travel distance Y-axis: 300 mm, travel distance Z-axis: 300 mm, feed rate X-axis: 450 m/min, spindle speed (max.): 2,500 rpm, No reserve price - guaranteed sale to the highest bidder! Placing a bid commits you to collect the item within the scheduled period between 23.06.2026 and 26.06.2026! Cgodpfx Ajy D Shnsf Hou TECHNICAL DETAILS Travel X-axis: approx. 300 mm Travel Y-axis: approx. 300 mm Travel Z-axis: approx. 300 mm Spindle speed range: 40 to 2,500 rpm Table dimensions: 600 x 210 mm Number of feeds: 16 Feed rates: 28 to 450 mm/min Number of slots: 4 Tool holder: SK 40 MACHINE DETAILS Dimensions & weight Dimensions (L x W x H): 2,000 x 1,200 x 1,700 mm Machine weight: 1,000 kg EQUIPMENT Mounted vice (jaw width: 110 mm) Set of tool holders Milling cutters Collets Three-axis digital readout (manufacturer: FAGOR) External reference: 10

Condition: used, Deckel milling machine FP1 with 3-axis digital readout, 380V, 120–1900 rpm. Travel distance X-axis: 300 mm, Y-axis: 150 mm, Z-axis: 340 mm. Tool holder: MK 4 with draw thread S 20 x 2. Milling head type: Vertical milling head. Table type: Fixed table. Table clamping area: 600 x 210 mm. T-slot size: 12 mm. Feed X-axis: 290 mm, Y-axis: 150 mm, Z-axis: 330 mm. Weight: 700 kg. Deckel FP1 milling machine. Cgodpfx Afjy Ddd Uj Heu

Condition: used, Emco F3 - Milling Machine Accessories: - Vice - Workplace lighting - Coolant system - Tools & machine feet - Operating manual Technical specifications: Working area: - Longitudinal travel: 300 mm - Transverse travel: 200 mm - Vertical travel: 350 mm - Quill stroke for vertical milling spindle: 45 mm - Swiveling vertical milling head: ± 90° Clamping surface: - Table dimensions: 600 × 200 mm - 4 T-slots: 12 x 21 mm - Slot spacing: 45 mm Spindle: - Tool holder: DIN 2078 / SK30 - Tool clamping: extraction bolt M12 - Spindle speeds: 80 / 160 / 245 / 360 / 490 / 720 / 1100 / 2200 rpm Automatic feed for longitudinal slide: - Feed force: 1600 N (160 kp) - Speed: 20 - 200 mm/min (stepless) - Rapid traverse: 1200 mm/min Coolant system: - Tank capacity: 30 l - Pump capacity: 15 l/min Three-phase motor: - Power: 1.1 / 1.4 kW (60% duty cycle) - Speed: 1400 / 2800 rpm Dimensions: Cgedpfx Asy A Sdysf Hju - Dimensions W x H x D: approx. 1200 x 1900 x 1400 mm - Machine weight: approx. 450 kg

Condition: used, functionality: fully functional, Milling machine Deckel FP 4 M 3-axis digital readout Heidenhain Work area: 500 x 400 x 400 mm Drive power: 4 kW Fixed table 800 x 460 mm Chip tray Codpfxsy Awz Re Af Hsgu Spindle taper SK 40 Speed range n 50-2500 rpm Feed rates 8-630 mm/min Rapid traverse 1.3 m/min Space requirement approx. 2 x 2 x 2 m Weight approx. 1650 kg

Condition: excellent (used), functionality: fully functional, machine/vehicle number: 2201-5046, Good condition with various tool holders. SK40 - S20 Heidenhain active control Codsy Al Tnepfx Af Hjgu Automatic feeds on all axes. 4th axis controlled.

Condition: excellent (used), functionality: fully functional, machine/vehicle number: 2201-5046, Good condition with various tool holders. SK40 - S20 Heidenhain active control Cjdpfx Ajy Al H Ief Hogu Automatic feeds on all axes.

Condition: reconditioned (used), Year of construction: 1990, functionality: fully functional, Universal Tool Milling Machine DECKEL FP 4 MK With 3-axis active digital readout Heidenhain TNC 113 Year of manufacture: 1990 Travel range: X 500 Y 400 Z 400 mm Speed range: 50 – 2500 rpm Including the following accessories: Rigid angle table 800 mm x 460 mm clamping surface Movable vertical milling head Extendable quill Cgsdpfx Afjyycage Hsu Infinitely variable feed via potentiometer Hydraulic tool clamping GRESSEL hydraulic vise 125 mm Various SK 40 milling arbors Splash guard enclosure Automatic central lubrication pump for X, Y, Z axes Machine lamp Coolant device 4 machine feet Operating manual
