Year of construction: 2022, condition: new, functionality: fully functional, Completely new machine, packed. Did not suit our room since it is not installable two ways. Bought from KATOMSK AS Djdpfeyrb Swex Af Noki

Year of construction: 1984, condition: ready for operation (used), A precision circular saw Rohbi is available. Solid material cutting range: 50mm, tube and profile cutting range: 50-60mm, max. saw blade diameter: 225mm, bore: 20mm, speed: 1400rpm, max. feed length: 600mm, max. cutting length: 160mm. Machine dimensions X/Y/Z: approx. 1700mm/850mm/1600mm, weight: approx. 400kg. An on-site inspection is possible. Dkedpfx Asynlunof Noi

Year of construction: 2023, condition: ready for operation (used), functionality: fully functional, controller model: SIEMENS SIMATIC HMI, cutting height (max.): 320 mm, saw band length: 5,080 mm, throat depth: 370 mm, machine/vehicle number: 232597, No minimum price – guaranteed sale to the highest bidder! By placing a bid, you commit to timely collection, either between 11.05.2026 and 13.05.2026 or between 18.05.2026 and 21.05.2026! TECHNICAL DETAILS Belt length: 5,080 mm Material feed height: 1,200 mm Roller diameter: 630 mm Throat depth: 370 mm Max. cutting height: 320 mm Guide bar (hydraulic stroke): 200 mm Belt tension (hydraulic stroke): 60 mm Dsdpfx Afsyng Atj Neki Belt speed: 250 – 2,000 m/min MACHINE DETAILS Control system: SIEMENS SIMATIC HMI Operating voltage: 400 V Rated current: 32 A Dimensions & Weight Dimensions (L x W x H): 2,700 x 2,500 x 2,700 mm Weight: 2,100 kg EQUIPMENT Roller conveyor (roller conveyor width: 350 mm) External reference: Heraeus

Condition: not inspected (used), functionality: unexamined, overall weight: 1,500 kg, workpiece weight (max.): 250 kg, cutting speed: 75,000 mm/min, section length (max.): 400 mm, No minimum price - guaranteed sale to the highest bidder! Placing a bid obligates the buyer to collect the item within the specified timeframes: either between 11.05.2026 and 13.05.2026 or between 18.05.2026 and 21.05.2026. TECHNICAL DETAILS Dsdpfxoym Ntxo Af Neki Cutting length: approx. 400 mm Cutting speed: up to 75 m/min Saw feed: hydraulic Lowering speed: 0-250 mm/min Bandsaw blade dimensions: 4,100 x 27 x 0.9 mm Maximum material weight: 250 kg MACHINE DETAILS Bandsaw drive: 2.2 kW Hydraulic unit: 0.37 kW Coolant pump: 0.12 kW Total power requirement: min. 2.7 kW Dimensions & Weight Dimensions (L x W x H): 2,400 x 2,300 x 1,700 mm Weight: 1,500 kg External reference: Lot 17 / Weilheim

Condition: ready for operation (used), A fully automatic hydraulic horizontal band saw Amada in scissor design is available. Round cutting capacity: 254mm, rectangular cutting capacity: 254mm/279mm, saw band dimensions X/Y/Z: 3505mm/27mm/0.9mm, speed: 80m/min, feed: 390mm/stroke, max. cutting length: 3500mm, max. table load: 1000kg. Machine dimensions X/Y/Z: approx. 2250mm/2000mm/1500mm, weight: approx. 1250kg. An on-site inspection is possible. Dkodpfoym Dggox Af Nsi

Year of construction: 2009, condition: used, machine/vehicle number: 0301-260004, CNC-controlled Kaltenbach sawing and drilling system as a combination of double miter bandsaw with 3-axis drilling system and transport system for material transport Dkjdpfx Aoymy Imef Noi

Condition: used, Behringer HBP 650/800 Line is fitted with full automatic and unloading tables. Band dimensions: 10.000 x 67 x 1,6 mm Single cut: - Round: 800 mm - Rectangular: 800 x 780 mm - Flat: 1000 x 750 mm Minimal: - Round: 50 mm - Rectangular: 50 x 20 mm Band dimension: 10.000 x 67 x 1,6 mm Single cut : Round: 800 mm Single cut : Rectangular: 800 x 780 mm Single cut : Flat: 1.000 x 750 mm Minimal : Round: 50 mm Dkodsyma Igspfx Af Nei Minimal : Rectangular: 50 x 20 mm

Condition: used, Multihead cutting machine TRA2000/7/7, made by MAIR Including: 1) Loading table 2) Cutting machine with 7 cutting heads 3) Operator control panel 4) Unloading bin Optional to be build new upon requirement : 5) Double output craddle 6) New electrical control panel with frequency converters for cutting motors 7) Sound and safety protection cover Max. tube length: 7.500 mm Max. loading capacity: 2.000 kg Dkodeymaypopfx Af Nei Round tubes (outer ø): 12 – 50 mm Square tubes (hxw): 12×12 – 40×40 mm Rectangular tubes (hxw): 12×16 – 50×30 mm Max. thickness: 2,5 mm Length of tubes to be cut: 330 – 7.400 mm Number of cutting heads: 7

Condition: used, MULTIHEAD TUBE CUTTING MACHINE MAIR TRA3000/7/7/CAR + RA1 SCOPE OF SUPPLY 1 Loading table with: - Motorised slings loader, to load the complete bundle - Lateral chain transport conveyor, to introduce the tube 1 by 1 - Top support with vertical adjustment (to avoid loading of 2 tubes when working with small diameters) - Length stop and tube loader 2 Cutting machine TRA3000 with: - 7 independent cutting heads - All cutting heads can be lifted independently - Linear guide with scale for positioning of the cutting heads - Centralised tube transport system with production cycle adjustment 3 Single collecting cradle RA1, with: - Independent cradles, to collect the cut tubes - Lateral separators between cradles, to adapt the cradle length to the tube length - Motorised endless slings for soft tube collection. 4 Main electrical cabinet and operator control panel 5 Safety barriers around the machine & photelectric barriers & emergency line. Note: Safety barriers were installed by owner to have the machine under “safety conformity” TECHNICAL SPECIFICATIONS Manufacturer: MAIR Model: TRA 3000/7/7/CAR +RA1 Dedpfxsymax Ej Af Njki Yearly maintenance: made by MAIR Spain Max. input tube length: 7000 mm Bundle Loader: 3 Tn Max. loading capacity: 3000 Kg Round tubes (outer Ø): 12-60 mm Square tubes (HxW): 12x12-50x50 mm (see note) Rectangular tubes (HxW): 12x16-60x40 mm (see note) Thickness Min-Max.: 0.8 - 4.0 mm (depending on yield) Cutting lengths: 330-6900 mm Max. straightness tolerance: 1 mm/m Number of cutting heads: 7 Motors power: 2.2 kW Cutting disc diameter: 300 mm Voltage: 380 / 50 V/HZ, 3 phases Compressed air: It must be supplied filtered and lubricated 6 bar Total installed power: Aprox. 21kW – 50Amp Manufacturer: MAIR Model: TRA 3000/7/7/CAR +RA1 Yearly maintenance: made by MAIR Max. input tube length: 7000 mm Bundle Loader: 3 Tn Max. loading capacity: 3000 Kg Round tubes (outer Ø): 12-60 mm Square tubes (HxW): 12x12-50x50 mm (see note) Rectangular tubes (HxW): 12x16-60x40 mm (see note) Thickness Min-Max.: 0.8 - 4.0 mm (depending on yield) Cutting lengths: 330-6900 mm Max. straightness tolerance: 1 mm/m Number of cutting heads: 7 Motors power: 2.2 kW Cutting disc diameter: 300 mm Voltage: 380 / 50 V/HZ, 3 phases Compressed air: It must be supplied filtered and lubricated 6 bar Total installed power: Aprox. 21kW – 50Amp

Condition: used, MULTIHEAD TUBE CUTTING MACHINE MAIR TRA3000/7/8 Scope of supply: 1 Loading table with: - Motorised slings loader, to load the complete bundle - Lateral chain transport conveyor, to introduce the tube 1 by 1 - Top support with vertical adjustment (to avoid loading of 2 tubes when working with small diameters) - Length stop and tube loader Dedpfeymaw Uox Af Noki 2 Cutting machine TRA3000 with: - 7 independent cutting heads - All cutting heads can be lifted independently - Linear guide with scale for positioning of the cutting heads - Centralised tube transport system with production cycle adjustment 3 Double collecting cradle RA3, with: - Independent cradles, to collect the cut tubes - Lateral separators between cradles, to adapt the cradle length to the tube length - Motorised endless slings for soft tube collection. Note: with the double craddle system, it is possible to make the bundling and strapping in collecting craddle nº1, while production continues, without machine stop. 4 Main electrical cabinet and operator control panel NOTE:  This machine has worked very few hours.  Mechanical condition is very good.  It only requires cleaning & repainting to be “as new” Max. input tube length: 8000 mm Bundle Loader: 3 Tn Max. loading capacity: 3000 Kg Round tubes (outer Ø): 12-60 mm Square tubes (HxW): 12x12-40x40 mm Rectangular tubes (HxW): 12x16-50x30 mm Thickness Min.-Max.: 0.8 - 3.0 mm (depending on yield) Cutting lengths: 330 - 7900 mm Max. straightness tolerance: 1 mm/m Number of cutting heads: 8 Motors power: 2.2 kW Cutting disc diameter: 300 mm

Condition: used, Automatic cutting, brushing & washing, drying, made RSA Dkjdpfxsymarls Af Nei Entry length: 12.000mm Exit length: 30 - 1.000 mm In packed condition – ready to be delivered. Entry length: 12.000mm Exit length: 30 - 1.000 mm Diameter: 12 - 80 mm

Condition: used, RSA center for high-performance cutting, deburring, cleaning, drying and stacking for steel and stainless steel tubes. Scope of Supply: Dkjdpfx Afeymapqs Noi - 1 RSA high-speed precision saw model RASACUT NC 1500 - 1 Transfer system between the RASACUT precision saw and the RSA tube feeding system 1500 - 1 RSA tube feeding system 1500 - 1 RSA cleaning system RASACLEAN ET 1500 Including: - 1 RSA drying system TURBODRY - 1 RSA RASAPORT 1500 PR system High production High precision Very short setup times Easy handling Easy machine connection RSA High performance Saw RASACUT TWIN NC 1500: Fast and Precise Round diameter: from 10 to 40 mm Square size: from 10x10 to 40x40 mm Wall thickness: from 1 to 3 mm Material: steel and stainless steel Original lengths: 6,200 mm Fixed length cutting and deburring: from 200 to 1,500 mm Round diameter: from 10 to 40 mm Square size: from 10x10 to 40x40 mm Wall thickness: from 1 to 3 mm Material: steel and stainless steel Original lengths: 6,200 mm Fixed length cutting and deburring: from 200 to 1,500 mm

Year of construction: 2019, condition: used, Automatic high-precision tube cutting machine TS72, made by ADIGE Cuts round, square, rectangular, and flat-oval tubes up to 102 mm in diameter. Efficient production: - Program up to 4 different cut lengths per tube - Continuous measurement changes for small batches Organized unloading: - Program up to 3 different unloading positions plus a scrap container. Non-Stop unmanned production: - Automatic production changes without tools. - High-capacity bundle loader holds up to 4000 kg of material. Superior Cutting Quality: High precision, efficiency, and versatility for tube cutting - Independently operated hydraulic material clamps ensure precise clamping and high cut accuracy. - Blade and clamps detach during return movement to prevent wear. TECHINCAL DATA Working range - Round tube cutting: from 8 to 102 mm - Square tube cutting: from 10x10 to 80x80 mm - Bar cutting: Up to 40 mm - Cutting length: From 20 mm to 3.000 mm Loading - Loading from bundle: Fully automatic - Unloading positions: 3 + 1 (scrap) Tools - Cutting blade diameter: From 200 to 350 mm General - Total installed power: 20 kW Round tube cutting: from 8 to 102 mm Square tube cutting: from 10x10 to 80x80 mm Bar cutting: Up to 40 mm Dkedjymangspfx Af Nsi Cutting length: From 20 mm to 3.000 mm Loading from bundle: Fully automatic Unloading positions: 3 + 1 (scrap) Cutting blade diameter: From 200 to 350 mm Total installed power: 20 kW

Condition: like new (used), functionality: fully functional, SEGHETTO STM AUTOMATIC SAW FOR SPECIAL STEELS MODEL FRICTION 100 TYPE MARVAL 8 USED MACHINE INTERNAL CODE: SER 56 Dkjdpfx Afjylzfdo Noi

Year of construction: 1998, condition: ready for operation (used), Feed rate: 50-1000 mm/min, operating voltage: 3x 400 V, control voltage: 24 V, rated current: 12 A. On-site viewing is possible. Dodpfxjyln A Ns Af Nski

Condition: used, RSA RASACUT SC 3000 – Complete automatic tube cutting, deburring, measuring, cleaning & drying line This is a complete RSA high-performance tube processing line for continuous production, from stock tube to finished fixed-length tube sections up to 3,000 mm. The system integrates the full workflow: Bundle Loader → Cutting → Deburring → Measuring → Cleaning (washing) → Drying, with automatic transfer between stations. KEY FEATURES · Fixed length cutting up to 3,000 mm · Complete RSA line: Bundle Loader + Cutting + Deburring + Measuring + Cleaning (washing) + Drying · Automatic tube singulation from bundle magazine · Servo-controlled saw forward feed with programmable cutting parameters · Automatic interlinking between stations (no manual adjustment required) · Deburring with 360° rotation, inside + outside edges · 100% length measuring with automatic rejection · Integrated washing and drying system for finished tube preparation · Siemens control: S7-300 + OP17 · Supplied with a large set of wrap-around jaws TECHNICAL DESCRIPTION 1. Bundle loader magazine The tube bundle is loaded by crane or forklift into the magazine. The system automatically singulates the tubes and feeds them into the roller infeed, allowing continuous production from stock tubes up to 8,000 mm. 2. Cutting | RSA RASACUT SC 3000 Automatic sawing unit with servo-controlled saw feed and electronically controlled length stop. Tubes are clamped and cut to the programmed fixed length, with programmable cutting parameters for repeatable cutting results. 3. Deburring | RSA RASAPLAN XY 3000 Automatic end deburring system using high-performance brushes on both sides. Each tube rotates 360° during brushing, enabling simultaneous inside and outside deburring of both end faces. Automatic adjustment is performed from the central control. 4. Measuring | RSA RASACHECK 3000 A Integrated length measuring station providing 100% control of finished parts. Workpieces outside the programmed tolerance limits are automatically rejected, ensuring only compliant parts proceed to the next stages. 5. Cleaning | RSA RASACLEAN ET 3000 Washing system designed for thorough removal of swarf and dirt particles. Workpieces pass through a sealed washing zone where the cleaning medium is applied under pressure and contaminants are collected in a swarf filter. 6. Drying | TURBODRY Hot-air drying station with adjustable air volume and temperature. Removes droplets and condensation after washing, delivering dry tube sections for downstream handling. 7. Tooling | Large set of wrap-arount jaws Supplied with a large set of wrap-around jaws covering multiple tube diameters, enabling quick changeovers without additional tooling. WORKING RANGE · Round tube diameter: 10 to 90 (101) mm · Wall thickness: 0.6 to 6 mm · Stock length (incoming tubes): 8,000 mm · Fixed cut length (finished parts): 150 to 3,000 mm (Up to 2,000 mm for Ø 10–14 mm) · Tube weight: Max.10 kg/m · Length/diameter ratio: 2:1 · Length tolerance: Ø10–49 mm ±0.2 mm | Ø50–74 mm ±0.25 mm | Ø75–90 mm ±0.3 mm Can be inspected in production (seen running). Dkedpfjyllvysx Af Nsi Contact us for a quote, full details and inspection arrangements. Round tube diameter: 10 to 90 (101) mm Fixed cut length (finished parts): 150 to 3,000 mm (Up to 2,000 mm for Ø 10–14 mm) Length tolerance: Ø10–49 mm ±0.2 mm | Ø50–74 mm ±0.25 mm | Ø75–90 mm ±0.3 mm Wall thickness: 0.6 to 6 mm Tube weight: Max.10 kg/m Length/diameter ratio: 2:1 Stock length (inc...

Year of construction: 2012, condition: ready for operation (used), A Schüco double miter saw for aluminum profiles is available. Saw units: 2, max. cutting length: 6000mm, saw blade diameter: 500mm, bore: 32mm, max. miter angle: 22.5°, fixed stops: 90°/45°/22.5°, min. cutting length: 300mm. Machine dimensions X/Y/Z: approx. 7500mm/1800mm/2000mm, weight: approx. 2200kg. Documentation available. An on site inspection is possible. Djdpjyh Nv Tofx Af Njki

Year of construction: 2019, condition: ready for operation (used), overall weight: 1,900 kg, total width: 3,100 mm, total height: 2,200 mm, cutting speed: 150,000 mm/min, product length (max.): 1,200 mm, This Metal Band Saw was manufactured in 2019. The MEBAeco 510 features a cutting capacity of Ø 510 mm and 700 × 510 mm for rectangular materials. It operates with a powerful 7.5 kW motor and a saw blade speed of 15–150 m/min. Consider the opportunity to buy this MEBAeco 510 Metal Band Saw for your cutting needs. Contact us for further details. • Cutting angle: 90° • Cutting capacity (round / rectangular): Ø 510 mm / 700 × 510 mm • Motor power: 7.5 kW • Saw blade size: 6100 × 41 × 1.3 mm • Saw blade speed: 15–150 m/min • Remaining piece length (manual), without bundle clamp: 25 mm • Remaining piece length (manual), with bundle clamp: 160 mm Dsdpfxjyhqf Se Af Noki • Maximum material size with bundle clamp: Ø 510 mm / 700 × 500 mm • Minimum cutting length: 5 mm • Working height: 750 mm

Year of construction: 2011, condition: ready for operation (used), functionality: fully functional, saw blade diameter: 350 mm, workpiece length (max.): 6,000 mm, workpiece width (max.): 60 mm, workpiece height (max.): 15 mm, TECHNICAL DETAILS Max. workpiece width: 60 mm Max. workpiece height: 15 mm Max. workpiece length: 6,000 mm Drilling diameter: 16 mm Dksdpoygw Ttofx Af Nji Saw blade diameter: 350 mm Infeed roller length: 10,000 mm Thread cutting: M12 MACHINE DETAILS Total power requirement: 15 kW Dimensions & Weight Required space: approx. 12.0 x 2.0 x 2.3 m Machine weight: approx. 3.2 t EQUIPMENT Saw 4 x top drilling units 4 x bottom drilling units 6 x drilling and threading units 2 x countersinking units

Year of construction: 2019, operating hours: 1,000 h, condition: excellent (used), functionality: fully functional, travel distance Y-axis: 269 mm, machine/vehicle number: 1111127689, Equipment: sliding door, Hello, the machine is in perfect condition. For more information, please contact me by email. Cutting Capacity (Max): Dedpfx Asyfrucsf Neki Magnutom 400: ø151 mm / 5.9" 151 x 403 mm / 5.9 x 15.9" 92 x 550 mm / 3.6 x 21.7" PHYSICAL SPECIFICATIONS: Cutting Motor: Continuous Power (S1): 11 kW / 14.7 HP Intermittent Power (S3): 16 kW / 21.5 HP Cut-off Wheels for Magnutom 400: Diameter x Thickness x Bore: 432 x 3.0 x 32 mm / 17 x 0.12 x 1.26" Rotational Speed (at rated load): 1000–1950 rpm Cut-off Wheels for Magnutom 500: Diameter x Thickness x Bore: 508 x 3.5 x 32 mm / 20 x 0.13 x 1.26" Rotational Speed (at rated load): 1000–1850 rpm Positioning & Feed: Cut-off Wheel Positioning Range: Y = 385 mm / 15.16", Z = 235 mm / 9.25" Max. Sample Height Under the Cut-off Wheel: No limitation Max. Positioning Speed: Y = 70 mm/s / 2.75"/s, Z = 50 mm/s / 1.97"/s Feed Speed Range: 0.1 – 10 mm/s / 0.002 – 0.2"/s (adjustable in steps of 0.1 mm/s / 0.002"/s) Cutting Force: 0–1400 N / 10–315 lbf Cutting Table: Fixed Table (Magnutom-400/-500): W x D 827 x 781 mm / 32.56 x 30.75" Optional X-Table: W x D (max): 942 x 781 mm / 37.10 x 30.75" W x D (min): 673 x 781 mm / 26.50 x 30.75" Travel Range (X-axis): 269 mm / 10.6" T-slots, Bi-directional: 12 mm / 0.48" Dimensions and Weight: Width: 1758 mm / 5' 9" Depth: 1463 mm / 4' 9" Height: 1882 mm / 6' 2" Weight: 2400 kg / 5291 lbs Cutting Chamber: Width: 1000 mm / 3' 3" Depth: 1206 mm / 3' 11" Height: 918 mm / 3' 0" Ambient Conditions: Operating Temperature: 5 – 40 °C / 41 – 104 °F Humidity: 0 – 95% RH, non-condensing

Year of construction: 2001, condition: excellent (used), functionality: fully functional, machine/vehicle number: 1340020158, Variable notching possibilities for mullion and transom combinations, e.g. for curtain walls, conservatories, sky lights, and special designs Precise and safe notching is ensured because the workpiece is fixed and only the saw units move Both saw units are adjusted in height simultaneously by means of a hand wheel (analogue display on the hand wheel) The cutting depth is set using an analogue display Manual angle adjustment of the saw blades using a digital display of the tilting angles Djdpfx Ajyfhvpef Noki Support table with compound slide and pivoting back fence is manually adjustable for optimal use of the cutting range The angle of the pivoting back fence is shown on a digital display Horizontal and vertical profile clamping Automatic working cycle at a 90° pivoting angle (two-hand control when cutting special angles) Hydro-pneumatic saw feed Lower saw unit (vertical): Saw blade diameter 550 mm Tilting range from 45° forwards to 60° towards the rear Max. cutting height of 210 mm Power supply 230/400 V, 3~, 50 Hz Power output 3 kW with motor brake Saw blade speed 2,800 rpm Manual tilting angle adjustment with digital display Upper saw unit (horizontal): Saw blade diameter 500 mm Tilting range from 55° downwards up to 60° upwards Notching depth, max. 190 mm Power supply 230/400 V, 3~, 50 Hz Power output 3 kW with motor brake Saw blade speed 2,800 rpm Manual tilting angle adjustment with digital display Travel 830 mm max. Support table with working height of 990 mm: Pivoting range from 30° left to 30° right, home position 0° Pivoting range manual with digital display Compressed air supply 7 bar Air consumption per working cycle 35 l without spraying, 45 l with spraying Length 3,000 mm, depth 1,420 mm, height 1,600 mm, weight 1,250 kg

Year of construction: 2003, condition: ready for operation (used), A fully automatic metal band saw Kasto with roller conveyors is available. Mitre min./max.: -45°/60°, max. cutting diameter: 260mm, max. cutting dimensions X/Y: 300mm/260mm, saw band dimensions X/Y/Z: approx. 2910mm/27mm/0.9mm, machine dimensions X/Y/Z: approx. 1500mm/1850mm/1500mm, weight: approx. 900kg, control: Kasto BasicControl. Certain parts of the machine are defective. An on-site inspection is possible. Dkedpfsycwrhsx Af Nsi

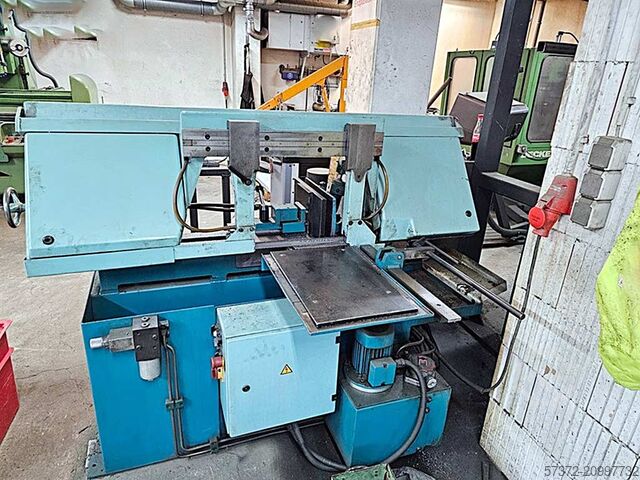

Year of construction: 1992, condition: ready for operation (used), A semi-automatic horizontal bandsaw Knuth is available. Miter range: 0°-60°, min. cutting range: 25mm, max. cutting diameter: 325mm, max. cutting diameter X/Y: 400mm/315mm, saw band speed: 100m/min, saw band dimensions X/Y/Z: 4380mm/34mm/1.1mm. Machine dimensions X/Y/Z: approx. 2150mm/2150mm/1650mm, weight: approx. 1800kg. An on-site inspection is possible. Dkedjya Hxfjpfx Af Nji

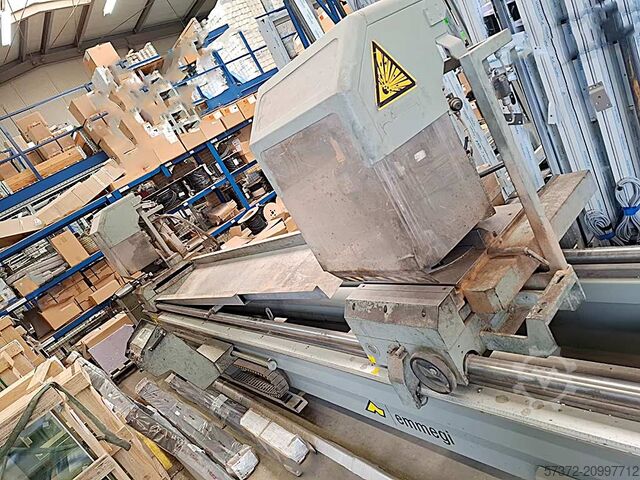

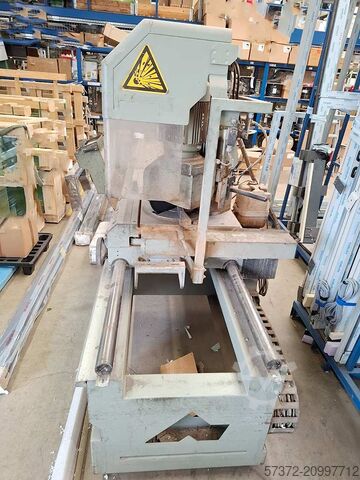

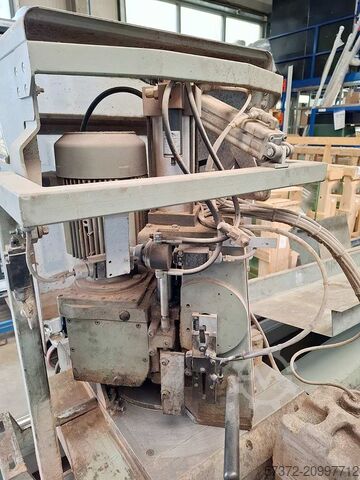

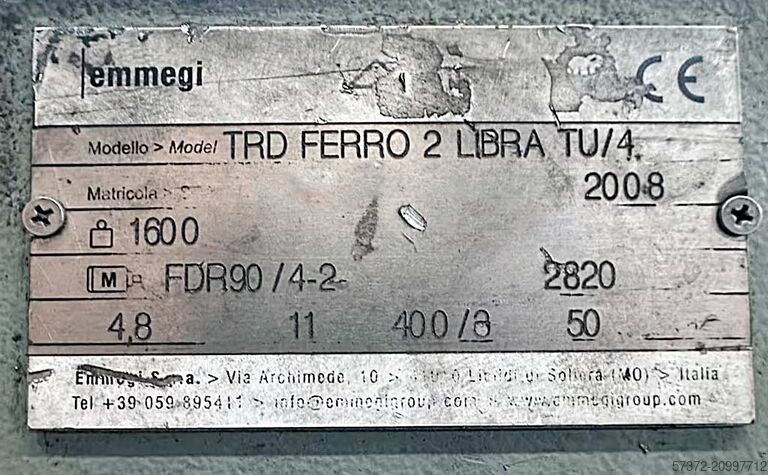

Year of construction: 2008, condition: ready for operation (used), A double-head miter saw Emmegi for cutting metal and profile material is available. Saw heads: 2, saw blade diameter: 350mm, max. cutting length: 4000mm, cutting range: 130mm, saw blade speed: 2820rpm. Machine dimensions X/Y/Z: approx. 5000mm/1800mm/2000mm, weight: approx. 1600kg. Documentation available. On-site inspection is possible. Dksdpfx Asya Hwujf Nji

Year of construction: 1991, condition: ready for operation (used), Saw blade diameter: 630mm, max. material diameter: 200mm, max. material dimensions X/Y: 185mm/185mm, cutting speed: 170m/min, min. cutting range: 25mm, max. saw carriage stroke: 242mm, max. saw carriage feed: 650mm/min, max. saw carriage rapid return: 5m/min, saw blade clamping flange diameter: 160mm, clamping force vertical/horizontal: 52kN/12kN, section clamping stroke: 520mm, section length range: 25mm-1000mm, working height: 800mm. Documentation available. On-site inspection is possible. Dedpfeyarq Tex Af Njki
