Condition: like new (used), Year of construction: 2005, functionality: fully functional, GÖTZINGER RBS Dowel and Stair Drilling Machine, Swiveling with Laser In very good condition, the machine has been used very little and is in absolutely like-new condition; it comes from an educational institution. It can be used to drill dowel holes and similar. The machine has a BKF-5 drilling head with 5 drill chucks, M10 internal thread. The distance between the drill chucks is 32 mm horizontally and 25 mm vertically. The entire drilling head can be swiveled 360° with a degree indicator and various scales. A standard 2-jaw chuck can also be used. You will also receive 3 additional drill chucks for drills with a cylindrical shank of 12 or 16 mm, and for drills with an M10 external thread. The machine table is 1100 mm wide and 250 mm deep. There is a stop at the front that can be recessed if needed. For the production of dowel joints, there are 2 adjustable angle stops on the machine table, which can be set with an accurate scale. In addition, there are two 2500 mm long stop rails with 2 folding stops and a scale each; these stop rails can be mounted on the left and right. The machine drills completely automatically, which was problematic with larger drill diameters. For this reason, the machine has been converted to manual feed via a feed lever and switch. Lsdszgh Tvjpfx Akyern The workpiece is clamped with 2 pneumatic clamping cylinders; the switch is located directly on the clamping cylinder. 380V, 2100W 2820 rpm Year of manufacture: 2005 Weight: approx. 300 kg With this machine, you can produce all types of frame dowel joints, at right angles, butt joints, and miter joints. Ideal for the production of dowel joints in timber frame construction, furniture, door and window construction, and similar applications. Stairs can be manufactured very well due to the swiveling capability. The drilling unit can be swiveled to both sides up to 65° with a scale and has a detent at 0°. This allows handrails to be drilled very well into stair stringers with the machine. Due to the stops, the drilling head, and the construction of the machine, dowel joints are produced in a very short time, which makes the machine very economical. The machine requires a compressed air connection of 6 bar (the air consumption is very low). Right-hand rotation. Mills and drills very well and cleanly. The linear laser at the top of the machine allows marked dowel holes and angles to be drilled very quickly and accurately. The max. drilling height is 100 mm; the drilling height is adjusted at the front under the machine table with a handwheel. The height can be read on a very precise, mechanical counter. The max. drilling hole depth is 190 mm with a stop and scale. The max. workpiece height is 360 mm. Everything functions perfectly. Comes with a manual. We will personally deliver and demonstrate the machine anywhere in Germany for 220.00 euros. This means you have no risk when purchasing. Delivery to Austria and the rest of the EU is also possible upon request. Professional equipment, not hardware store junk. You can start working with the machine immediately. Very stable and durable construction. The precision guides with the backlash-free ball bearing bushings are in good condition and move easily. The swiveling mechanism is also very smooth due to the 2 groove ball bearings; locking is possible with a locking screw.

Condition: used, Year of construction: 2003, functionality: fully functional, total width: 2,670 mm, total length: 5,000 mm, type of input current: three-phase, overall weight: 2,750 kg, workpiece height (max.): 50 mm, Gannomat Matrix 250/70 We offer this used, CNC-controlled multi-spindle boring, gluing, and dowel inserting machine, manufactured in 2003. Ledpfezcf Udex Akyern Manufacturer: Gannomat Model: Matrix 250/70 Year of manufacture: 2003 - Suitable for flat surfaces up to a diameter of 35 mm - Suitable for end surfaces: drilling 6, 8, 10, 12 mm, gluing and inserting with a diameter of 8 mm, - Dowel length from 25 to 60 mm - X-length: 2,500 mm - Y-length: 700 mm - Maximum workpiece thickness: 50 mm - Includes miter stop - A 4-zone layout is possible with a center stop - Includes 16 suction cups and 8 clamps, as shown in the pictures - Includes vacuum pump - Simple programming directly on the machine, drilling of left and right parts is easily possible without the need for extra programming; during operation, it only needs to be positioned against the respective stop The machine is currently still in use. However, we only use it as a pure drilling machine and do not use the dowel inserting and gluing functions. An inspection can be arranged upon request. If you have any questions or require more information, please feel free to send us a message.

Condition: excellent (used), Year of construction: 2022, Manufacturer: Ganner Gannomat Type: SELEKTA 253 220 V, 1 phase, 50 Hz Year of manufacture: 2022 - used Complete in standard version with: - Fully automatic electronic control system with program selector switch COILING-GLUING-DRIVING IN - Dowel feed via electronic vibrating conveyor with potentiometer for stepless adjustment of the dowel feed rate - Automatic dowel diameter and dowel length control with Auto-DL-Select system (automatic ejection of incorrect dowel lengths +/- 5 mm into the collection container) - Closed gluing system with 6 bar glue pressure via glue nozzle for glues with a viscosity of 150 to 350 mPas - Stepless electronic glue quantity adjustment with potentiometer via time preselection by electronic control - Selector switch GLUE/WATER for flushing/cleaning the gluing system with EasyClean function button (automatic cleaning program for glue hose and glue nozzle via spray funnel and dirty water collection container) - Control lamp for glue residue level indicator in the glue container - 1 stainless steel container for 5 kg of glue and 1 stainless steel container for 5 l of water for flushing/cleaning - 4 rollers for moving the machine including 1 pistol for dowels Ø 8 mm, dowel length 25 - 40 mm Drive-in overhang 7 - 20 mm Air connection: 6 bar Lredpfezbyu Asx Akysn Price ex warehouse 54634 Bitburg - immediately available -

Condition: used, Year of construction: 2006, drilling depth: 28 mm, Used Koch Drilling and Dowel Insertion Machine, Sprint-PTP-3 Technical data of the machine: Workpiece dimensions: Length Y: 110-800mm Width X: 20-1200mm Thickness Z: 14-60mm Material: Chipboard/MDF/Softwood Machine with 2 working areas. 2 workpieces with a maximum width of 600mm each can be loaded independently of each other. Lredpfx Aezbunkjkyen Working height 900mm - with horizontal drilling station - with glue application and dowel insertion station - with 1 oscillating conveyor - Drilling distance vertically Z above the support table: 35 mm - 1 stop rail on the left and right - Mechanical digital displays for height adjustment - Work cycle triggered by a manual button Koch Numeric with 1 NC axis (X) Positioning control with PC (Windows XP Professional PC) Including widened machine frame for a maximum workpiece width of 1200mm 2 additional workpiece clamping cylinders Center stop for 4 working areas (removable for wide workpieces) Horizontal drilling station with 1 drilling spindle: Max. drilling depth 28mm Drill chuck Ø10mm Total drill length 70mm Drill speed 7200 rpm With dowel hole blow-out Glue application and dowel insertion station Dowel diameter: 8mm Dowel length 30mm Dowel projection 7-14 mm Set to 11mm Tolerance for wood dowels: --- Dowel length +/- 1 mm --- Dowel diameter +0.1/-0.2 mm With electronic glue monitoring (ELC) A monitoring device is installed before the glue valve, which measures the glue flow during each work cycle. If no glue is injected at a valve, the machine interrupts its work cycle and displays the corresponding glue valve in the control cabinet. Electrical values: Connection value: 400V, 50 Hz, 3 phases Voltage fluctuations max +6% to 10% Air connection 1 x R 1/2" internal thread 7 bar Extraction air velocity: approx. 30m/sec

Condition: used, Year of construction: 2005, functionality: fully functional, New in the offer SCM MB 21 / HOLZKRAFT TECNOMAX MB21 Multi-spindle drilling machine Table width: 905 mm Maximum drilling stroke: 60 mm Lrsdpfxezaddfj Akysn Drilling spindles: 21 Drill spacing: 32 mm 2 parallel stops Pneumatic tilting drilling block Pneumatic workpiece clamping Pneumatic clamping: 3 Workpiece support: standard table Drilling depth adjustment: turret-type stop Conformity marking: CE mark Weight: 267 kg Space requirements: Length: 1 m Space requirements: Width: 1.1 m Space requirements: Height: 1.3 m

Condition: used, Year of construction: 1997, Used machine Year of manufacture: 1997 Equipment and technical data: Lrsdpfx Aoy Tczkekysn - Number of drilling spindles: 21 pcs. with 32 mm spacing - Drilling direction: Bottom and end face - Swivel range: 0-90 degrees, adjustable by handwheel - Pneumatic material clamps: 3 pcs. - Passage: Max. 100 mm in height and max. 640 mm in width - Motor: 1.5 kW - Diameter of dust extraction: 120 mm - Includes a variety of stops (see pictures) Availability: short notice Location: 63934 Röllbach

Condition: ready for operation (used), Year of construction: 1987, functionality: fully functional, Schleicher DBS 1300 A36: +36 drilling spindles +approx. 1240–1300 mm working width +32 mm grid spacing +swiveling unit +horizontal and vertical drilling +pneumatic clamping Lsdpfx Akjy S Ry Seyern Price: negotiable, €400 Shipping via freight forwarder possible.

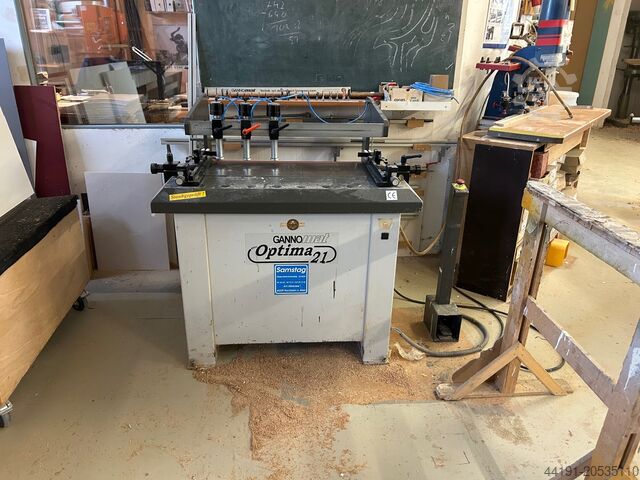

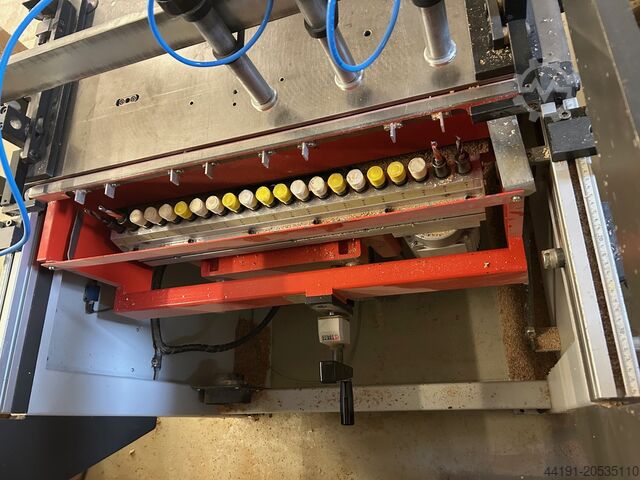

Condition: good (used), Year of construction: 1999, functionality: fully functional, For sale is a high-quality dowel drilling machine, a GANNOMAT OPTIMA 21, Type 510, manufactured in 1999. The machine operates cleanly and precisely and is perfectly suited for dowel joints, hole patterns, and carcass processing. Technical data: +Manufacturer: GANNOMAT / Ganner +Model: OPTIMA 21 +Type: 510 +Year of manufacture: 1999 +21 drilling spindles +32-mm system +Drilling width: approx. 640 mm +Pneumatic workpiece clamping +Horizontal and vertical drilling possible +Foot pedal operation +Spindle speed: approx. 2,800 rpm +Motor power: approx. 1.5 kW +Connection: 400 Volt high voltage +Compressed air connection required +Robust industrial design +Weight: approx. 400 kg Condition / Equipment: +Fully functional +Well-maintained condition +Ready for immediate use +Heavy-duty professional design +Precise stops and easy operation Perfectly suited for: -Furniture manufacturing Lsdey Szhyspfx Akyern -Kitchen manufacturing -Interior design -Carcass production -Series drilling -Dowel joints Price: €2,950 net Inspection and test run possible at any time by arrangement. Loading can be assisted, or shipping via a freight forwarder is possible. You will receive an invoice with VAT shown.

Condition: used, Year of construction: 2005, Used machine Year of manufacture: 2005 Features and technical specifications: - Motor 400V-50Hz-3Ph, 1.5 kW - Pneumatic single-head boring machine with 23 spindles - Aluminum fence with 4 stops (2 profiles each right/left, 1500 mm each) - Equipped with quick-change chuck - 2 patented accident-safe pneumatic clamping cylinders - Connection for dust extraction unit according to EU standards - Aluminum boring beam with spindle spacing of 32 mm - Worktable made of MDF and cast iron - Patented spiral system for fine adjustment of drilling depth - Pneumatic drilling head swiveling with lock at any position between 0° – 90° Ljdsy Si Alepfx Akyorn - Foldable side stops with fine adjustment via mechanical counters with decimal display - Drill height setting via mechanical counters with decimal display - Rear fence, travel up to max. 300 mm - Fixed stops at 37 mm for insertion of concealed hinge drill bits - Complies with EU standards - Max. drilling width: 704 mm - Max. drilling depth: 65 mm - Max. workpiece width: 960 mm - Max. workpiece length: 3000 mm - Max. workpiece thickness: 60 mm Availability: short notice Location: 63934 Röllbach

Condition: used, Year of construction: 2014, Used machine Year of manufacture: 2014 Equipment and technical specifications: Complete in standard configuration with: - Support with linear guide consisting of: 1 pc. single-spindle horizontal drilling unit, 0.65 kW motor, stroke 70 mm Tool speed selectable via operator software (3,000/5,000/8,000 rpm) 1 pc. blow-out, glue application, and dowel insertion station for dowels Ø 8 mm, dowel length 25-50 mm - Fully automatic, electronically controlled central lubrication - X-axis NC-controlled, with working length 1,300 mm, feed speed max. 105 m/min - Z-axis adjustable manually via mechanical digital counter, position via support table 5-40 mm - Dowel insertion projection adjustable 7-20 mm via mechanical digital counter, drilling depth 0-35 mm (with drill length GL 70 mm) is automatically set in conjunction with insertion projection - Closed glue system with 6 bar glue pressure via glue nozzle, for adhesives with viscosity 150 to 350 mPas - Glue quantity infinitely adjustable via operator software - Selector switch GLUE/WATER for flushing the glue system, each with: 1 stainless steel container for 7.5 kg glue and 7.5 l water - Control lamp for glue level indication in the glue container - 1 pc. left side fence, 1 pc. right side fence, and 1 pc. center fence (all removable) - 4 pcs. start buttons for individual operation with 1-4 workpieces - 4 pcs. pneumatic angled clamping cylinders 10° for workpiece thickness up to max. 80 mm, workpiece length (Y) min. 70 mm - 1 pc. extraction funnel, connection Ø 80 mm 1 pc. TCT control with: Integrated industrial PC, incl. Soft PLC type Beckhoff TWINCAT, operating temperature range 0-50°C, 15" capacitive TFT industrial touchscreen display, operating system: WINDOWS 7 - Programming via menu-guided user software, drilling distances freely programmable with ABSOLUTE, RELATIVE, or GRID dimensioning, automatic workpiece mirroring and process optimization, 4 work areas can be assigned with different programs, graphical workpiece representation, parametric programming, zero-point offset, programmable work lists, error diagnosis with plain text Options: 1 Electronic, optical glue monitoring system G.I.C. (Glue Insert Control) for 1 pc. glue nozzle 1 Z-axis with NC-controlled dynamic positioning for height adjustment of the drilling and dowel insertion station (programmable from 5-40 mm) travel speed max. 30 mm/sec 1 Single-spindle vertical drilling unit from above, 0.65 kW, (3,000/5,000/8,000 rpm), position (Y) manually adjustable via mechanical digital counter from 5-40 mm, drilling depth (Z) max. 30 mm (with drill length GL 57 mm), workpiece thickness (Z) max. 50 mm, workpiece length (Y) min. 130 mm (incl. drilling depth compensation, e.g., for Häfele Minifix) 4 Vertical-angled clamping cylinders 10° with holders, additional 1 Keyboard with holder Lodpfjy Ih Skox Akyorn Availability: by arrangement; currently being overhauled at Ganner factory Location: Austria

Condition: excellent (used), Year of construction: 1998, functionality: fully functional, Drilling machine with automatic angle adjustment Lrsdpfx Akey Iaizjyon

Condition: new, Year of construction: 2026, Pitch 32 mm Working width 896 mm Boring depth max. 65 mm Motor output 2x1,5 kW Overall size 1122x1040x1250 mm Lrjdpfxoy Ehz Hs Akyjn Weight 380 kg Number of boring spindles 29 St.

Condition: new, Year of construction: 2026, Pitch 32 mm Working width 704 mm Boring depth max. 70 mm Motor output 1,5 kW Lsdpfoy Ehzgjx Akysrn Weight 310 kg Number of boring spindles 23 St.

Condition: new, Year of construction: 2026, Pitch 32 mm Working width 1088 mm Boring depth max. 85 mm Motor output 2x1,5 kW Overall size 1320x1040x1250 mm Ljdpfx Aksy Ehyveyern

Condition: good (used), Code: 0359 Brand: MASTERWOOD Model: TEKNOMAT 2000-P - CE Standard Electronic anuba inserting machine with 2 controlled axis for inserting anuba hinges – CE Standard Technical specifications: Lsdpfxey Eg T Ue Akysrn Working stroke length 3100 mm – Displacement speed 72 mt/min Working stroke height 350 mm – Displacement speed 15 mt/min Working stroke depth 150 mm - Displacement speed 15 mt/min Working table mm 150 x 3800 N° 2 rear stops with manual positioning N° 4 rear bracket-type clamps with reference stops Side stops with manual positioning 1 right - 1 left 2 pneumatic front clamps Anuba unit with double magazine for male female anuba hinges - Diameter 14 mm Tilting head - 7 + 90° Double stem anuba screw device Front fences on machine table for machining of assembled doors and windows Control CNC 2: Microprocessor control unit – Digital display – Multitasking operating system – Programming of manual and automatic anuba inserting – Inserting of single, anuba – Step by step execution Installed electrical power 7,62 Kw Compressed air 6-7 atm Machine Overall dimensions m 4400 x 1600 x 1600 h Weight kg 1650 Electrical cabinet overall dimensions mm 1050 x 550 x 1100 h Weight kg 390

Condition: used, Year of construction: 1996, Drilling head with 21 spindles, pitch 32 mm, working width: 640 mm, portal passage: approx. 750 mm, drilling stroke: 100 mm, positional adjustment of the drilling unit: 0-45 mm, positional adjustment of the hole pattern: 0-300 mm, spindle speed: 2800 rpm, shank diameter of the drill: 10 mm, clamping height of the workpieces: max. 100 mm, motor: 1.5 kW, working height: 850 mm, compressed air connection: 6 bar, weight: approx. 400 kg. Location: Nattheim. Lrsdpfjy Dd I Hjx Akysn

Condition: excellent (used), Year of construction: 1988, Scheer dowel drilling machine DB 12 used 3 spindles 32 mm drilling center distance Motor 1.1 kW Max. drilling depth 70 mm Location: ex stock 54634 Bitburg Ljdpfx Aey Ahuhekyjrn - immediately available -

Condition: good (used), Year of construction: 1980, Dowel drilling machine for frame production Lrodpfx Aeyy I Snjkyen

Condition: used, Year of construction: 2014, complete in standard configuration with: - Fully automatic electronic control with foot pedal for clamping-drilling-unclamping, electric jog operation, - Automatic return of the drilling unit after reaching the preset drilling depth - Automatic extension of drilling depth when end-grain drilling saves the need to adjust drilling depth from flat to end-grain drilling. (+10 mm, e.g. with dowel length 35 mm, drilling depth flat side 14 mm, drilling depth end-grain 24 mm). - 1 drilling beam with 21 spindles, 32 mm pitch, 1.5 kW motor (drill feed 0-70 mm) incl. 21 quick-change chucks (Ganner system) for easy bit changes. - Simple swiveling of the drilling unit from 0° to 90°, supported by gas cylinder. - 1 clamping beam, movable in Y-axis with 3 pneumatic clamping cylinders, for workpiece height up to max. 80 mm. - Ideal stop system consisting of: - 1 stop fence 1800 mm for shelf drilling (aluminum profile 40x40 mm) with 3 drop-in stops, with quick-change system, easily swappable from right to left for mirror-image shelf drilling in carcass constructions, also suitable for line boring in System 32. - Side stops and position settings, as well as drilling height position via support table using mechanical digital counters. - Side stops can be easily swiveled away, for the quickest changeover from carcass to frame and line boring. - Clamping arms for clamping beam designed for line boring positions up to max. 300 mm. - Ideal three-stage... Weight: approx. 400 kg gross, approx. 350 kg net. Dimensions (L x W x H): 1.35 m x 1.25 m x 1.40 m Equipment: 1 extraction hood, dust tested, ø 120 mm. 1 set for line boring in System 32 complete with: 1 base fence 1050 mm (aluminum profile 40x40 mm), 1 setting gauge for line boring. 1 frame dowel device complete with: 1 center stop, 1 round stop rod 850 mm long, 2 stops. Location: Nattheim. Lsdpjyyxkhofx Akyern

Condition: used, Year of construction: 1985, Used machine Year of manufacture: 1985 Universal dowel drilling machine with swiveling drilling unit with fully automatic control with 2 safety pneumatic clamps Drill motor 2.2 kW with 21 spindles Spindle pitch: 32 mm with attached oil damper Height adjustment: 80 mm Drilling depth: 80 mm Weight: 420 kg Availability: short notice Location: Röllbach Lredpfx Aoyvl Hzjkyon

Condition: excellent (used), DB5 dowel hole drilling machine & row drilling machine - 21 drilling spindles - 32mm spindle pitch Lsdpfxsytvaro Akyorn - 380 volts - 2.2 kW - Dimensions: length 1400mm x depth 900mm x height 1300mm - 2 pcs longitudinal stops

Condition: repair required (used), Year of construction: 1998, functionality: limited functionality, 2 drilling spindles, individually selectable 1 glue gun (note: glue pump missing) Lodpeytq R Ejfx Akysrn Dowel insertion tool for 8 x 40 mm dowels The following issues were identified during testing: - Glue specification missing - Center stop rule missing - On the left working field, the front stops do not engage; instead, they lower when drilling on the right field - SPS module Beckhoff repeatedly fails. Machine must then be restarted. - Rubber pads under the hold-downs are missing. When inserting the dowels, the parts deform because the surface is too smooth

Condition: used, Used machine Equipment and technical data: - Universal dowel drilling machine for horizontal and vertical drilling - Working width 720 mm - With drilling beam, drive motor 3 HP, 2800 rpm - 23 drilling spindles, drilling pitch 32 mm Lrsdpfx Aoyq T Iuekyjn - Pneumatic workpiece clamping via foot pedal - 2 stop rails 1000 mm - with undercarriage Availability: short-term Storage location: 63934 Röllbach

Condition: excellent (used), Year of construction: 2014, functionality: fully functional, The HOMAG WEEKE OPTIMAT ABD 150 is a high-performance CNC machine designed for precise drilling, dowel insertion, and hardware fitting in furniture production and panel processing. This machine is ideal for cabinet makers, furniture manufacturers, and industrial woodworking operations requiring accurate and efficient automated processing. Lrodjym Nvtjpfx Akyon The machine features: CNC-controlled drilling and inserting unit Integrated glue and dowel insertion system Robust industrial construction Compact footprint Easy-to-use control panel CE certified The machine has been regularly maintained and is ready for operation.

Condition: excellent (used), Year of construction: 2022, functionality: fully functional, machine/vehicle number: 432.08.202.22, drilling depth: 70 mm, input voltage: 400 V, pressure: 8 bar, input frequency: 50 Hz, power: 1.5 kW (2.04 HP), The FD 921 is equipped with 21 drilling spindles set at a 32 mm pitch. Drill bits up to a diameter of 35 mm can be used for drilling dowel holes, line bore holes, and cup hinges. The large cast iron table, side stops, pneumatic workpiece clamps, and ergonomic controls make the FD 921 a premium dowel boring machine. Further technical data: Number of drill heads: 21 (11 right-hand, 10 left-hand rotation) Axis distance between drill heads: 32 mm Max. workpiece size: 850x3000 mm Lrodpeyf A N Djfx Akyen Max. workpiece height: 65 mm Required air pressure: 6-8 bar Accessories: - 11 tool holders with 5 mm right-hand dowel drill bits - 10 tool holders with 5 mm left-hand dowel drill bits - Positioning system for side stop with 8 stops - Additional pneumatic clamps - Mitre stop for FD 21 - Bracket for side stops and further accessories - Gauge for transferring the position of the cast stops - Coupling system for table extension
