Condition: used, Year of construction: 1980, functionality: fully functional, travel distance X-axis: 6,000 mm, travel distance Y-axis: 5,150 mm, The machine is in good technical condition, connected to power and can be tested. Kdedpexxtbcefx Ag Ijw

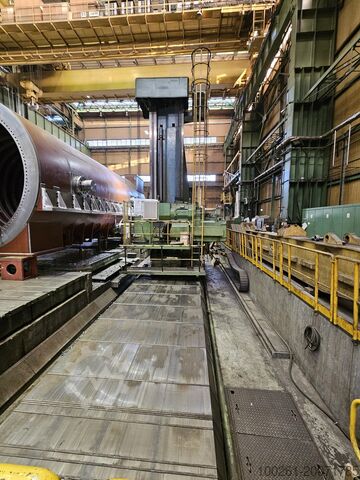

Condition: excellent (used), Year of construction: 1978, functionality: fully functional, I am selling this machine. It can be connected and tested under power. Very good condition. Kdsdpfx Asxwl Tbeg Iew X 11,500; Y 3,150; Z 2,000; clamping system M 100. Includes support column, 6 plates sized 6,500 x 1,850 x 400 mm. Rotary table E 20. Heads, etc. This is a complete workstation. Weight approx. 200,000 kg.

Condition: good (used), Year of construction: 1983, travel distance X-axis: 6,000 mm, Spindle diameter: 200 mm Machining width: 6000 mm Machining height: 3150 mm Max. machining depth: 1985 mm Slide cross-section: 530 x 550 mm Table load: 20 t Plate field size: 16800 x 5500 mm Tool holder: SK 60 Approx. machine weight: 173 t Additional information: - Additional equipment: large and small angular head - Offer number: 22979 - Table is the S20 MP model, table size: 2200 x 2500 mm - Machining width on the machine X-axis (X-Way): 6000 mm - Including 6 plates, each 5600 mm x 1850 mm Kjdsxv Sz Aopfx Ag Isdw

Condition: good (used), Year of construction: 1987, travel distance X-axis: 11,500 mm, travel distance Y-axis: 4,500 mm, travel distance Z-axis: 2,000 mm, x-travel 11,500 mm y-travel 4,500 mm w-axis 1,600 mm z-axis 2,000 mm Spindle diameter 200 mm Rotary table 3,000 x 4,000 mm Bed length of rotary table 4,600 mm Kedpfexv Swqox Ag Iedw Tool holder SK50 Workpiece weight on rotary table 80 t Total power requirement 83 kW Additional information incl. 15 plates

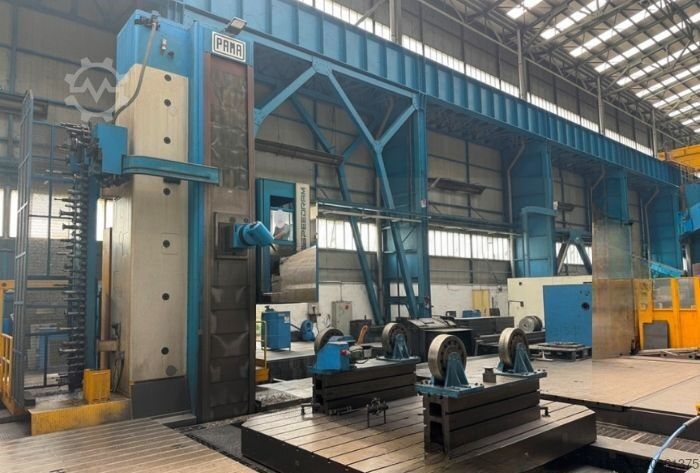

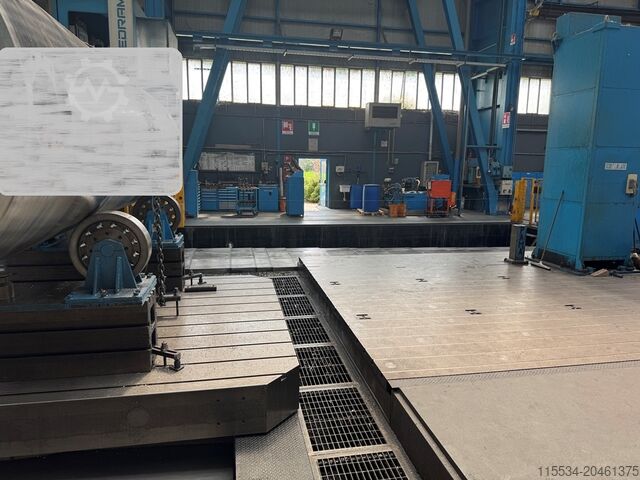

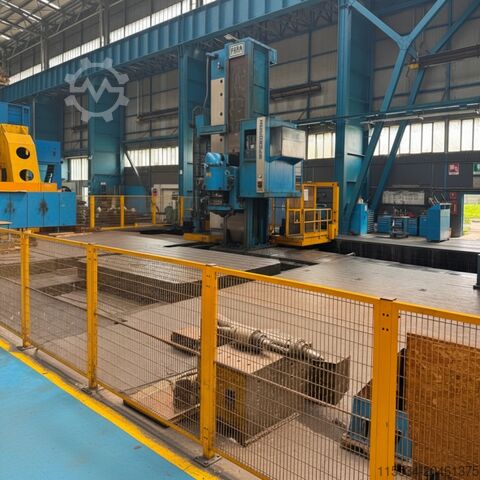

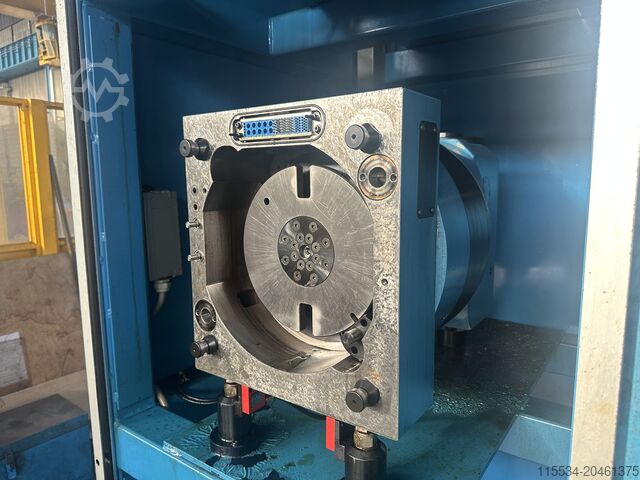

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, travel distance X-axis: 13,000 mm, travel distance Y-axis: 5,000 mm, travel distance Z-axis: 1,200 mm, spindle speed (max.): 2,500 rpm, feed rate X-axis: 20,000 m/min, feed rate Z-axis: 20,000 m/min, feed length W-axis: 1,000 mm, position of the milling head: 360, table load: 100,000 kg, rapid traverse X-axis: 20,000 m/min, rapid traverse Z-axis: 20,000 m/min, table length: 4,500 mm, table width: 3,500 mm, quill diameter: 180 mm, workpiece weight (max.): 100,000 kg, Equipment: rotational speed infinitely variable, CNC BORING MACHINE PAMA model SPEEDRAM 2000 Hydrostatic Numerical control Siemens Sinumerik 840D X-Axis mm 13,000 Y-Axis mm 5,000 Z-Axis mm 1,200 W-Axis mm 1,000 Total axial travel (Z+W) mm 2,200 Working feed on all axes mm/min 8,000 Rapid traverse X, Z, W mm/min 20,000 Rapid traverse Y mm/min 15,000 Spindle: Boring spindle diameter mm 180 Ram spindle dimensions mm 400 x 440 Spindle speed (3 ranges) max rpm 2,500 Spindle power (S1) kW 91 Rated spindle torque (S1) Nm 9,050 Boring spindle internal taper ISO 50 DIN 69871/2 AD-Type Big Plus Clamping plates: 2 units m2 30 + 30 = total 60 Table 1 dimensions mm 6,000 x 5,000 Table 2 dimensions mm 6,000 x 5,000 Load capacity Kg/m2 15,000 Thickness mm 300 T-slot dimensions mm 28 H12 - DIN 650 T-slot pitch mm 250 Rotary-Traverse Table TH 100: Table dimensions mm 3,500 x 4,500 Load capacity Ton 100 Longitudinal (V-axis) travel mm 3,000 Feed/rapid traverse speed V-axis mm/min 10,000 Auto right angle head mod. TS 35 360 Taper ISO 50 - DIN 69871/2 Spindle diameter mm 128.57 Max spindle speed rpm 2,000 Universal head TU 30 360 Taper ISO 50 - DIN 69871/2 Spindle diameter mm 128.57 Max spindle speed rpm 2,500 Facing slide – UT 5-630 S Platform diameter mm 630 Slide stroke mm 200 Max rotation speed rpm 250 Slide feed rate mm/min 1/400 Max machinable diameter mm 1,250 Chain tool magazine cu 130 r80 80 positions Complete with: - Accessory storage with 3+1 positions, closed fixed type - Workpiece probe with radio transmission (Renishaw) - Adaptive technology control - Tool life monitoring and twin tools management - Coolant through spindle - No. 3 chip conveyors Ksdpfxsxuq H Uj Ag Ijdw USED MACHINE

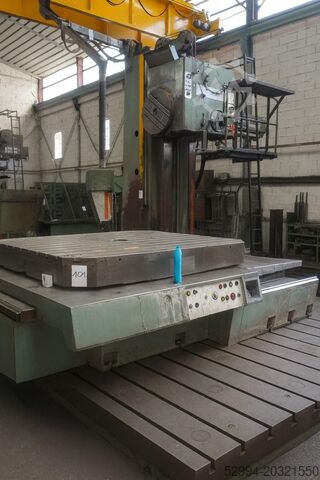

Condition: ready for operation (used), Type: Ti 1800 Turning table 1800 x 2000 mm Cap on Table: 15.000 kg 360° turnable cross displacement: 1250 mm Kedpfxexpgkro Ag Iedw Rotary table dimensions: 1800 x 2000 mm Max weight on table: 15 000 kg

Condition: excellent (used), Year of construction: 1985, functionality: fully functional, travel distance X-axis: 1,200 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 700 mm, Completely overhauled plate-type boring mill from a high-end aerospace company. New control cabinet New drives New CNC control system X / Y / Z: 1,200 / 2,000 / 700 mm (Longitudinal travel = X, Cross travel = Y, Vertical/Spindle axial = Z) Further details upon request. Technical Data Spindle Boring spindle diameter: 100 mm Spindle taper: ISO 50 Milling spindle diameter: 185 mm Spindle axial travel: 700 mm Automatic infinitely variable spindle and vertical feed: 2 × 1,000 mm/min Rapid traverse spindle and vertical axis: 5,500 mm/min Minimum spindle axis height above table: 0 mm Maximum spindle axis height above table: 1,500 mm Maximum distance spindle nose to table center: 1,850 mm Spindle speed ranges – Torque range: 5–14 rpm – Continuous power range: 15–1,450 rpm Number of speed ranges (continuous power): 4 Range values (rpm): 6–51 / 49–160 / 140–460 / 440–1,450 Table Rotary table dimensions: 1,100 × 1,300 mm Longitudinal travel: 1,200 mm Cross travel: 2,000 mm Automatic infinitely variable cross and longitudinal feed: 2 × 1,000 mm/min Rapid traverse longitudinal and cross: 5,500 mm/min Automatic infinitely variable table rotation: 30–100 °/min Rapid table rotation: 5,000 °/min Lifting data (assembly/transport) Required for group 1: – 1 steel bar Ø 70 mm × 1,600 mm length – 1 steel bar Ø 70 mm × 2,400 mm length – 4 rings for rope spacing – 4 wire ropes Ø 22 mm Weight group 1 approx. 12,500 kg For lifting group 2: – two wire ropes minimum Ø 18 mm Weight group 2 approx. 3,500 kg Kjdpsxizccefx Ag Iodw For lifting group 3: – use hand ropes Weight group 3 approx. 1,300 kg

Condition: refurbished (used), Year of construction: 1980, functionality: fully functional, travel distance X-axis: 15,000 mm, travel distance Y-axis: 5,150 mm, travel distance Z-axis: 2,000 mm, spindle speed (max.): 630 rpm, spindle diameter: 250 mm, table load: 80,000 kg, table length: 4,000 mm, table width: 3,550 mm, Year of manufacture: 1980 (retrofit 2023) Control: Siemens 840D Axes: 3+2 Spindle diameter: 250 mm Spindle speed: 0.8 – 630 rpm X: 15,000 mm Y: 5,150 mm Z: 2,000 mm Rotary table: 4000 x 3550 mm / 80 t / S80B Kedpfx Ajxfvnlsg Iedw 3 x milling heads

Condition: used, x-axis / mm y-axis / mm z-axis / mm The boring mill is sold without clamping plates – the price refers exclusively to the boring mill. Technical data Horizontal milling and drilling machine with support sleeve Working range Vertical adjustment of the headstock from the clamping surface: 0 - 3000 mm Horizontal adjustment of the column: 7000 mm Maximum drilling depth with drill spindle alone: 1200 mm Maximum drilling depth with drill spindle and support sleeve together: 1300 mm Drill spindle diameter: 150 mm Milling spindle diameter: 240 mm Support sleeve diameter: 390 mm Support sleeve extension: 700 mm Drill spindle tool holder: ISO 50 Maximum workpiece weight: 70,000 kg When placed in 4 prisms: 95,000 kg Main drive Total speed range, adjustable from 2 - 795 rpm Series 1 2 - 50.4 rpm Series 2 50.4 - 126 rpm Series 3 126 - 314 rpm Series 4 314 - 795 rpm Maximum drive power at rated speed 17.5 80 kW Quick adjustment speed of spindle box and column 1800 mm/min Rapid adjustment speed of drill spindle and support sleeve 1400 mm/min Fine adjustment speed of spindle box and column medium 75 mm/min Fine 3 mm/min Fine adjustment speed of drill spindle and support sleeve Medium 57.7 mm/min Fine 2.5 mm/min Feed of headstock and column for milling Row 1 3 - 75 mm/min Kdsdoxdnrajpfx Ag Isw Row 2 72 - 1800 mm/min Feed of drill spindle for drilling Row 1 0.19 - 4.7 mm/min Row 2 2.2 - 56 mm/min Row 3 56 - 1400 mm/min Special equipment Numerical length measuring device in horizontal and vertical directions Accuracy 0.01 mm Rotatable and movable clamping table, Collet & Engelhard, Offenbach Model Tdvmf 1.6 (for technical data, see ‘Clamping table’) Rotatable and movable clamping table from Scharmann, Rheydt Model DAV 1600 Rotatable and movable clamping table from Froriep, Rheydt Swivel crane for tool change, maximum load capacity 500 kg Special tools Carbide core drill bits for extracting core samples Universal facing and boring head from Wohlhaupter, Frickenhausen Model UPA7, with the following specifications: 1 division of the fine adjustment 0.01 mm in diameter 1 revolution of the fine adjustment 0.5 mm in diameter Facing and boring range 0 - 1250 mm Maximum slide adjustment 210 mm Automatic slide feed in mm/rev during facing 0.05 - 0.10 - 0.15 - 0.20 - 0.25 - 0.30 - 0.35 - 0.40 - 0.45 - 0.50 - 0.55 - Quick adjustment per revolution of the quick adjustment spindle 6 mm in diameter Largest diameter of the slide at zero position corresponds to the smallest drilling diameter of 323 mm Head height without shaft 260 mm

Condition: used, Year of construction: 2008, Technical details: spindle diameter: 200 mm x-travel: 10000 mm y-travel: 4000 mm z-axis: 1500 mm W-axis (spindle longitudinal): 1000 mm bore spindle turning speed range: 1 - 2000 U/min dimension of the ram: 600 x 530 mm high speed spindle taper ISO: 60/50 rapid motion - x-axis: 8000 mm/min rapid motion - y-axis: 8000 mm/min rapid traverse Z-axis: 5 m/min total power requirement: 120 kW weight of the machine ca.: 135 t dimensions of the machine ca.: 16,0 x 5,0 x 10,0 m with CNC Steuerung HEIDENHAIN iTNC 530 hydrostatic guideways x and Y- axis autom. toolchanger 40-pockets autom. Pickup Station for angular milling head, universal milling head and facing head rotary table 3000 x 3000 mm , max load 60 to. Kedpfxow S Nn He Ag Isdw v-axis 2500 mm measuring probe, chip conveyor and coolant attachment *

Condition: used, Year of construction: 1996, functionality: fully functional, travel distance X-axis: 10,000 mm, travel distance Y-axis: 2,600 mm, travel distance Z-axis: 700 mm, Manufacturer: PAMA Model:SPEEDRAM 1 CNC Year1996 Spindle:140mm. Tranversal travel:10.000 mm. Vertical travel:2.600 mm. RAM travel:600 mm. Ram Size: 360x320 Spindle travel:700 mm. Spindle taper:ISO 50 Spindle motor power:50 Kw. Spindle speeds: 6 ÷ 2000 Rpm. Cnc:CNC Selca 3045 ATC: 60nos. Total weight:65 Tons. Kdjdpfx Aswzh Apog Iow Features and Accessories Complete with: - n. 1 automatic universal milling head - n. 1 Floor plate 6000x2500x300mm -n. 1 Floor plate 4500x2000x300mm - Rotry Table 2000x1600 with long travel 2000mm -Loading capacity on table:15ton - levelling shoes

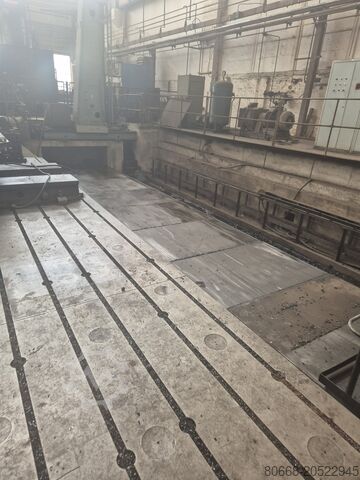

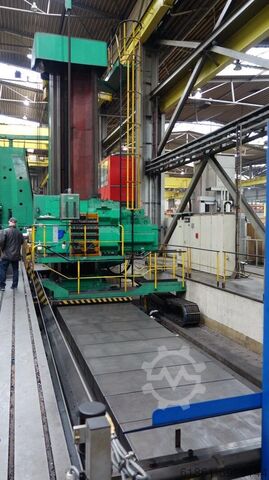

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, Ram-Type Floor Type and Milling Machine with SCHARMANN rotary sliding table Brand: SKODA / Type: W200 Basic body constructed in 1986 / 1999 Overhaul / Retrofit on CNC by SKODA. The machine can be inspected by appointment. Technical specifications: Travels: X-axis: 8.000 mm Y axis: 4.150 mm W-axis: 2.000 mm Z-axis: 1.600 mm Spindle: - Spindle diameter: 200 mm - Tool taper to DIN 2080 AD, ISO 60 - Spindle speed: 0,0 to 930 rpm - Drive power spindle: 77 kW Rotary table: - Manufacturer: SCHARMANN - Table surface area: 6.000 x 4.000 mm - V-axis: 2.000 mm - Table load max.: 80 tons - B-axis: 360 ° A, graduation: 0.001 A ° Kdjdpfx Ajwxyxqjg Isw Equipment: - CNC-Control: SIEMENS Sinumerik 840 CE - Chip conveyor - ... There is no guarantee for correctness and completeness of the technical details and accessoires. - Subject to prior sale. Detailed technical data sheet and information on equipment available on request.

Condition: ready for operation (used), Year of construction: 1986, functionality: fully functional, travel distance X-axis: 21,900 mm, travel distance Y-axis: 6,000 mm, travel distance Z-axis: 1,250 mm, spindle speed (max.): 800 rpm, spindle diameter: 225 mm, table load: 140,000 kg, swivel angle C-axis (max.): 360 °, TECHNICAL DETAILS Travel paths X-travel: 21,900 mm Y-travel: 6,000 mm Z-travel (drill spindle stroke): 1,250 mm W-travel (headstock stroke): 1,200 mm V-travel (table travel): 2,450 mm Control system: SIEMENS 840D Table Rotary table dimensions, longitudinal: 4,500 mm Rotary table dimensions, transverse: 4,500 mm C-axis: 360° Table load: 140 t Number of workbenches: 9 Dimensions per workbench (L x W x H): 6,000 x 2,000 x 400 mm Spindle Spindle diameter: 225 mm Spindle speed: 800 rpm Spindle mount: ISO 60 / 50 Ram dimensions: 550 x 460 mm MACHINE DETAILS Total power requirement: 100 kW Space required approx.: 25 x 7 x 11.5 m EQUIPMENT - 9 platen bays, each measuring 6,000 x 2,000 x 400 mm Kdsdpswm Dnlofx Ag Iow - 1 rotary table measuring 4,500 x 4,500 mm with a table load capacity of 140 t - SIEMENS 840D control system

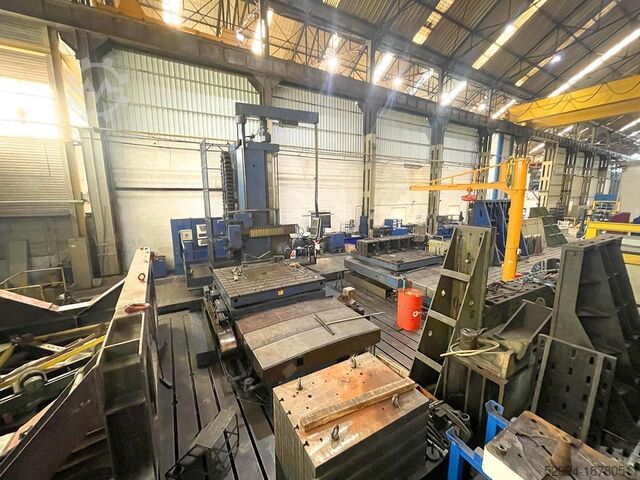

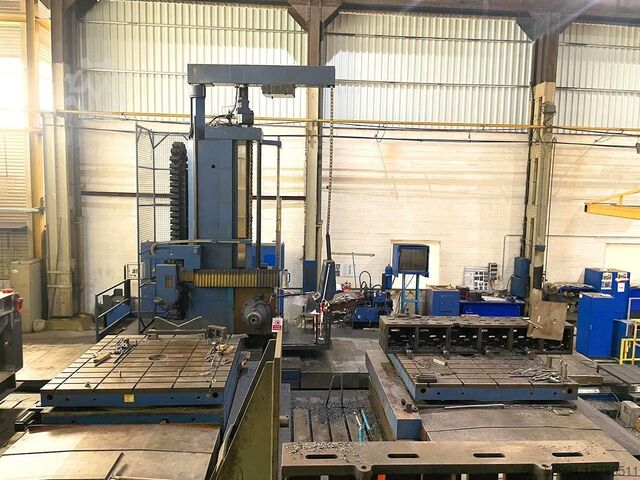

Condition: ready for operation (used), travel distance X-axis: 9,000 mm, Type: 6055-AF16SMM Frezen, boren en draaien! Longitudinale X-beweging van de kolom: 9000 mm Kruis Y-beweging of kolom: 650 mm Verticale Z-verplaatsing of freeskop: 3000 mm Horizontale W-verplaatsing of freeskop: 1200 mm Machine kan met 6 assen tegelijk werken 2 hydrostatische tafels CNC gestuurd - Gewicht op de tafel: 30 ton - Continue 360° - Dwarsverplaatsing van de tafel: 2500 mm Gereedschapswisselaar met 60 posities Kjdpfx Agjv Sfm Uo Isdw Freeskopondersteuning / ondersteuning van de versteviging van de broche Ondersteuning van boorspindels / ondersteuningsportefeuilleverhogingen Cross traverse Y-axis (table/column): 650 mm (column) Vertical traverse Z-axis: 3000 mm Spindle traverse W-axis: 1200 mm Milling spindle taper (ISO): ISO 50 Dia spindle -- Spindle bore: 160 mm Digital read-out (1) CNC(2): Heidenhain TNC 530 Rotary table dimensions: 2 tables 2380 x 2380 mm Max weight on table: 2 tables x 30 ton

Condition: ready for operation (used), travel distance X-axis: 18,000 mm, travel distance Y-axis: 3,600 mm, travel distance Z-axis: 700 mm, spindle speed (max.): 1,600 rpm, spindle diameter: 160 mm, CNC FLOOR TYPE BORING MACHINE MAKE PAMA MODEL SPEEDRAM 2 Kdedjv Rv N Rjpfx Ag Ijw X AXIS: 18000MM Y AXIS: 3600MM Z AXIS: 700MM V AXIS: 800MM (RAM TRAVEL) Z+V AXIS: 1500MM SPINDLE DIA: 160MM,ISO50 SPINDLE MOROR:65KW SPINDLE SPEED: 1600RPM ATC: 60POSITIONS MILLING HEAD: MANUEL MILLING HEAD: AUTOMATIC CNC ECS FLOOR PLATES 4NOS(4000X1500) 1NO(3000X2000) ROTRY TABLE: NOT AVAILABLE

Condition: excellent (used), For sale rotary table for boring machine Table 2000mmx2000mm Table weight 20000kg Max table load 40000kg Kedeui Nt Nspfx Ag Iedw Travel 2000mm Control Table condition perfect

Condition: used, Year of construction: 1997, Technical details: spindle diameter: 180 mm x-travel: 6.000 mm Kedpfx Agsru Rfho Ijdw y-travel: 2.900 mm total power requirement: 95 kW weight of the machine ca.: 130 mit Zubehör t z-travel: 1.250 Ram mm w-axis: 1000 Spindel mm ram stroke: 1250 mm dimension of the ram: 450 x 450 mm bore spindle stroke: 1000 mm bore spindle turning speed range: 920 1/min powered rotary table: IOS 40 CNC 2 Achsen B u.V Rotary-table: 3000 x 3500 mm Rotary-table: CNC-IOS 40 NC mm stepless adjustable, relative to diameter: Index 4x 90° -360000 Winkel =0,001 Grad mm travel - cross: Längs 1230 mm table load of rotary table max.: 40 Tonnen clamping plate: 3 x 8000 x 2000 mm CNC Ram-Type Floor Boring and Milling machine, dismantled and stored The headstock sliding guides were recoated and scraped. *

Year of construction: 1987, condition: good (used), technical data: X-way 11500 mm Y-way 4500 mm Kdedpfx Ashx Eukeg Iow Spindle diameter 200 mm
