Condition: excellent (used), Year of construction: 2005, Technical Data: Minimum bending capacity (steel): ø 19.8 x 3.0 mm Maximum bending capacity (steel): ø 76.1 x 3.0 mm Maximum bending capacity (stainless steel): ø 76.1 x 1.65 mm Bending radius: max. 150 mm Bending angle: max. 190° Bending direction: clockwise (right) Maximum tube length: 6000 mm Mobile control panel CE marking Dimensions (L x W x H): approx. 7200 x 2000 x 1650 mm Weight: approx. 3 t Equipment: Torsion device Programmable bending angle Digital travel distance display Bljdpfx Aaeynt Ice Hsd Digital torsion angle display 1 x movable drawer support Collets Condition: Very good condition, lightly used The seller is not liable for any typing or data transmission errors. The machine's appearance, technology, and wear are commensurate with its age; used machines are sold without any warranty.

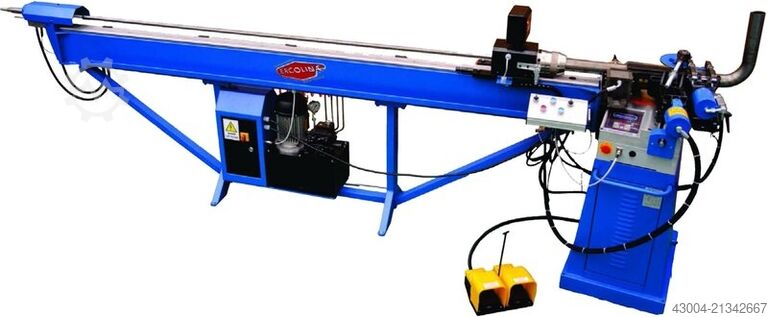

Condition: new, neu ca. 12 - 14 Wochen ab Auf Italien 38900 € 742.99 € 64 mm 4000 mm 950 mm 1250 mm 850 kg 10 cm³ 64 x 3,3 mm 2" mm Bjdpoynmtfsfx Aa Held 60,3 x 2,2 mm 60 x 60 x 2 mm 40 x 60 x 4 mm 60 x 40 x 3 mm 76 mm 200 mm 20 mm 210 ° 4.2 kW 15 l with mandrel 3 m length FST closure system (Patented) with auxiliary system for stabilizing the hydraulic pressure of the slide Programmable C-axis bending Positioning of the 2-axis manual spindle carriage (Y1=Feed and B=Rotation) with high resolution encoder and standard adjustable mechanical stops Multifunction control keyboard integrated in the machine body with microprocessor control with multifunctional menu 30 programs of 9 bends each can be memorized Screen for digital display for carriage feed (Y1 Axis) and rotation (B Axis) External pressure gauges for easy setting of the system and closing pressure Variable bending speed up to 4 rpm (Inverter versions) Pneumatic chuck ALTERNATIVELY: model with mandrel length 1,5 / 4 / 6 mm

Condition: new, neu ca. 12 - 14 Wochen ab Auf Italien 32900 € 628.39 € 50 mm 4000 mm 950 mm Bljdpfx Aajynmrns Hed 1250 mm 430 kg 6 cm³ 50 x 3,31 mm Ø 1”1/4 mm Ø 50 x 2,5 mm 40 x 40 x 4 mm 25 x 50 x 6 mm 50 x 25 x 2,7 mm 60 mm 200 mm 20 mm 210 ° 1,25 / 2,5 3.5 kW 15 l With mandrel 3 m length Can be used with or withoud mandrel Two bending speeds Programmable bend sequencing and mandrel retraction Independent clamp and pressure die adjustment Micrometer wiper die adjustment Auxiliary system for stabilizing the hydraulic slide pressure Quick tool change system With pneumatic material clamping and DRO system for linear and rotational positioning ALTERNATIVELY: model with mandrel 6 m length price on request

Condition: good (used), Year of construction: 2005, control type: CNC control, - Max. bending angle: +/- 180 + 10° - Tube feed length: 4100 mm - Round steel tube up to 30 x 2.2 mm² - Round stainless steel tube up to 30 x 1.5 mm Bsdpjymzdcjfx Aa Held - Square tubes: 20 x 2.5 mm - Bending time for 90 degrees: 1.5 sec (advance) - Longitudinal feed speed: 450 mm/sec - Maximum bending radius: 125 mm - Freestanding bending head, 850 mm long - Bending axis drive: electrohydraulic

Condition: good (used), Year of construction: 2008, control type: CNC control, Stainless steel tube diameter: up to 42 x 2.0 mm Steel tube diameter: up to 42 x 3.0 mm Max. bending angle: +/- 180 + 10° Section modulus: 4.1 ccm Operating pressure: 6 bar Total power requirement: 5.5 kW Machine weight approx.: 3 t Space requirement approx.: 6100 x 2300 x 1300 mm Blsdsymzb Uepfx Aa Hod

Condition: used, Hydraulic Profile Bending Machine, Pipe Bending Machine LANG Type Ondomat 60 Serial No. 2589 Year of manufacture: 1970 Bending capacity max.: Ø 60 x 2 mm Pressing force: 20 tons Counterforce: 7.5 tons Blodpfeyi Hrwjx Aa Hod Maximum bending angle: 135° Tool stroke: 250 mm Maximum tool width: 125 mm External width of tool rocker: 90 mm Motor power: 18 kW Power supply: 380 Volt, 50 Hz - Hydraulic bending process with counterpressure cylinder for wrinkle-free bending - Up to 10 different bending angles in sequence via automatic indexing turret - Two-hand control panel - 1 set of bending dies Ø 30 mm, die width rocker = 78 mm, die width counterholder = 50 mm Required space (L x W x H): 2000 x 750 x 1500 mm Weight: approx. 2 tons Good condition

Condition: good (used), Year of construction: 1996, control type: CNC control, Tube diameter: 4-28 mm Wall thickness: / mm Minimum bending radius: 1.5 x D - 2.0 x D mm Control: Siemens LOGO Delivery rate: 4.5 l/min Max. bending angle +/-: 190° Nominal pressure: 250 bar Operating pressure: 3095 bar Delivery rate: 4.5 l/min Total power requirement: 1.5 kW Blodpfsyfph Hex Aa Hod Drive: Hydraulic cylinder and roller chain

Condition: good (used), functionality: fully functional, Year of construction: 2009, Used tube bending machine from Jutec Type: 5000 Capacity: up to approx. 40 mm Mandrel length: 4500 mm CNC controlled Automatic head Manually rotatable head with hydraulic clamping Incl. 3 sets of tools Bjdpfx Aoyfmwxoa Hold Year of manufacture: 2009 Very little used

Condition: new, Year of construction: 2026, Technical data readout as standard. Discover its reliable features that make the ZX7055V DRO an excellent choice for your workshop: Heavy, stable cast-iron frame: The solid cast structure ensures durability and precision. The ZX7055V DRO maintains stability even under heavy-duty tasks. The variable spindle speed control operates in two ranges: low: 75–438 rpm, high: 438–2500 rpm. Automatic spindle feed: Save time and increase productivity with automatic feeding. The vertical head allows efficient machining without constant supervision. Massive cross table with precision-ground surface: Guarantees perfect flatness and accuracy during machining. Dovetail guides: Ensure smooth and precise three-axis movement for top machining results. Quiet operation thanks to ground gears: Focus on work, not on noise. Ground gears guarantee quiet operation and comfort. Left/right rotation: Adapt the machine to your needs. Dual-direction spindle rotation increases machining flexibility. Tilting head ±90° and adjustable height: Perfect for angled and multi-position operations. The ZX7055V DRO drilling–milling machine is a modern tool that will redefine your machining experience. Order today and experience exceptional performance in your workshop! The machine base is available as an optional accessory. Technical parameters: Maximum drilling capacity Cast iron (HT200) 45mm Steel 32mm Bodpfx Ajyapyrja Held Maximum face milling 80mm Maximum end milling 28mm Table size 820×240mm Table travel (X/Y) 595 / 185mm Maximum tapping capacity M24 Spindle taper MK4 Spindle speed (rpm) Motor S1/S6 1.5/1.8kW Low: 75–438 / High: 438–2500 Spindle travel Manual: 107mm / Automatic: 100mm Distance spindle–column 250mm Max. distance spindle–table 445mm Net weight 350kg Overall dimensions 1084×924×1550mm / with base 2150mm

Condition: good (used), Ring bending machine, profile bending machine, bending machine, pipe bending tool, pipe bender, pipe bending machine, mandrel bending machine -Manufacturer: Dako Gedore, electro-hydraulic pipe bender on a mobile base -Pipe diameter: 3/8" to 3" Blodpfx Aasx Nfhre Hod -Stroke: 320 mm -Motor: AEG 1.5 kW -Accessories: incl. bending jaws up to 3" (see photos) -Transport dimensions: 1140/1045/H1200 mm Total weight: 389 kg

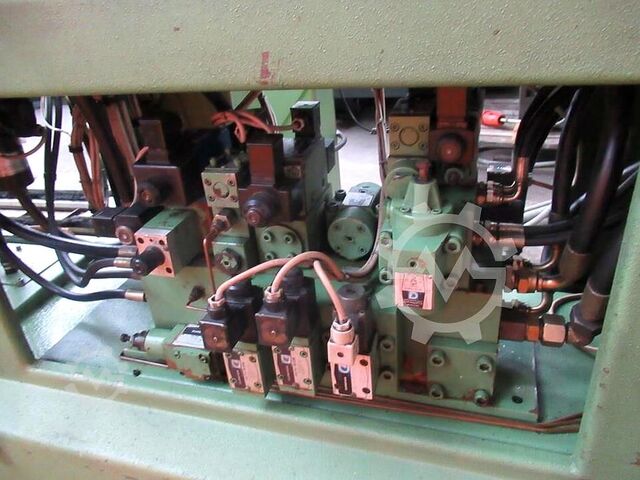

Condition: used, Year of construction: 1988, gebraucht 1988 090151 prompt, Zwischenverkauf v Italien 12800 € 1 42 mm 4665 mm 800 mm 1160 mm 1470 kg 42 x 2,5 mm 40 x 1,2 mm 30 x 40 x 1,7 mm 40 x 30 x 1,3 mm 255 mm 22 mm 180 ° 90 °/s 5,5 kW 120 l Capacity specifications refer to 400 N/mm² Maximum bending radius with pipe guide rollers: 255 mm Maximum bending radius with pipe guide slide: 175 mm Bsdpjxx A Ekjfx Aa Hjld Minimum bending angle: 4° Maximum usable length without positioning device: 3900 mm Maximum usable length with positioning device: 3370 mm Adjustable mandrel extension travel from 8 mm Opening and closing travel of the counter-clamping jaws: 0-45 mm Opening and closing travel of the rollers or slides: 12-22-42 mm Operating manual in German Machine does not comply with AMVO or UVV regulations Tools not included

Condition: new, Cesurbend Mandrel Bending Machine/Tube Bending Machine PBNC-90 A Technical Specifications Bedsxvzurjpfx Aa Hold Max. Tube Diameter (mild steel): 90 mm Max. Tube Wall Thickness (mm): 4 Max. Bending Angle (°): 190 Tube Bending Rate (d/min): 3-6 Max. Hydraulic Pressure (bar): 200 Max. Bending Radius (mm): 250 Tube Loading Length (mm): 3000 Bending Motor Power (kW): 15 Hydraulic Motor Power (kW): 5.5 Machine Width (mm): 1400 Machine Length (mm): 4500 Machine Height (mm): 1600 Machine Weight (kg): 3000 Features • On our standard NC machines, the distance and rotation after bending are achieved using the operator assistance and parallelism device. • You can bend more quickly and accurately by monitoring the progress and rotational positions of the bends carried out with our machines equipped with the NC Car System.

Condition: new, Cesurbend Mandrel Bending Machine/Tube Bending Machine PBNC-65 A Technical Specifications Max. tube diameter (mild steel) 63 mm Max. wall thickness (mm) 3 Max. bending angle (°) 190 Tube bending speed (d/min) 7-10 Max. hydraulic pressure (bar) 200 Max. bending radius (mm) 250 Min. bending radius (mm) 45 Tube length (mm) 4000 Bending tolerances (mm) ±0.25 mm Bending motor power (kW) 7.5 Hydraulic motor power (kW) 4 Bsdpexvzt Uofx Aa Held Oil tank capacity (l) 50 Machine width (mm) 1500 Machine length (mm) 6200 Machine height (mm) 1500 Machine weight (kg) 2000 Features • The machine is equipped with 5 cylinders • On our standard NC machines, positioning and rotation after bending are achieved using the operator assistance and parallelism device. • You can bend faster and error-free by monitoring the progress and rotational positions of bends carried out with our machines equipped with an NC Car System.

Condition: new, Cesurbend CNC Tube and Pipe Bending Machine PBNC-51 A Technical Specifications Max. Tube Diameter (Mild Steel): 51 mm Max. Tube Wall Thickness (mm): 3 Max. Bending Angle (°): 190 Tube Bending Speed (rpm): 7–10 Max. Hydraulic Pressure (bar): 200 Max. Bending Radius (mm): 250 Tube Length (mm): 4000 Bending Motor Power (kW): 5.5 Hydraulic Motor Power (kW): 3 Machine Width (mm): 1300 Machine Length (mm): 5750 Machine Height (mm): 1500 Blsdpfx Aoxvzr Rja Hsd Machine Weight (kg): 2000 Features • On our standard NC machines, distance and rotation after bending are handled via operator assistance and parallelism devices. • Using our machines equipped with the NC Car System, you can monitor bend progress and rotational positions, enabling faster and error-free bending.

Condition: new, functionality: fully functional, Year of construction: 2025, controller manufacturer: Self-developed brand, workpiece length (max.): 2,000 mm, workpiece height (max.): 160 mm, nominal power (apparent): 45 kVA, number of spindles: 14, machine/vehicle number: 2016, Product Features: The KaFe manual Panel Bender (Bending Center) is a next-generation, fully automatic multilateral bending center, offering high precision and efficiency. It represents a benchmark for automated production in the sheet metal manufacturing industry. It significantly reduces labor costs and boasts a bending speed three times that of CNC press brakes, reaching 0.5 seconds per cycle. Full servo control ensures product accuracy within 3 seconds. Blsdjxu Uhvopfx Aa Hjd Product Function: The KaFe Manual Panel Bender (Bending Center) can bend sheet metal into various complex shapes without the need for molds. Equipped with a pure electric servo system, it replaces hydraulic drive and offers environmentally friendly, high-speed, high-precision, and maintenance-free features. This high-tech product was developed and manufactured to improve production efficiency, reduce labor intensity, and enhance corporate image in the sheet metal industry.

Condition: new, Cesurbend Mandrel Bending Machine / Tube Bending Machine PBNC-65 Technical Specifications Bjdext Rdwjpfx Aa Hjld Max. Tube Diameter (mild steel): 63 mm Max. Tube Wall Thickness (mm): 3 Max. Bending Angle (°): 190 Tube Bending Rate (rpm): 7–10 Max. Hydraulic Pressure (bar): 200 Max. Bending Radius (mm): 250 Min. Bending Radius (mm): 45 Tube Length (mm): 3500 Bending Tolerance (mm): ± 0.25 mm Bending Motor Power (kW): 7.5 Hydraulic Motor Power (kW): 4 Oil Tank Capacity (L): 50 Machine Width (mm): 1450 Machine Length (mm): 4250 Machine Height (mm): 1200 Machine Weight (kg): 1600 Features • 4-way adjustable gauge • Chain bending system • Gear motor • Touchscreen control panel • Foot pedal operation • Hydraulic mandrel movement • Hydraulic damping function • Hydraulic compression function • Hydraulic pusher • Four cylinders • 7" touch color display • 15 sequential twist positions • 100 program memory capacity • Omron PLC control

Condition: new, Cesurbend Mandrel Tube Bending Machine / Pipe Bending Machine PBNC-51 Technical Specifications Max. Tube Diameter: 51 mm Max. Tube Wall Thickness (mm): 3 Max. Bending Angle (°): 190 Tube Bending Rate (rpm): 7-10 Max. Hydraulic Pressure (bar): 200 Max. Bending Radius (mm): 250 Tube Length (mm): 3000 Bending Motor Power (kW): 5.5 Hydraulic Motor Power (kW): 3 Machine Width (mm): 1400 Machine Length (mm): 4215 Machine Height (mm): 1450 Machine Weight (kg): 1600 Features • In this process, the jaw clamps the tube after it is inserted into the machine. The tube is bent over the die to half its diameter. When using a mandrel and wiper, better results are achieved for bends requiring higher quality, with thinner wall thickness and smaller radii. • This is a three-piston machine with a hydraulic spool located behind the hydraulic boom. Blsdjxt Rc Tspfx Aa Hed

Condition: new, Cesurbend Tube Bending Machine / Pipe Bending Machine PBNC-38 Technical Specifications Max. tube diameter (mm): 38 Max. wall thickness (mm): 2 Max. bending angle (°): 190 Tube bending speed (rpm): 8-10 Max. bending radius (mm): 250 Tube length (mm): 2500 Bsdpfx Aext Rctoa Held Bending motor power (kW): 3 Hydraulic motor power (kW): 1.5 Machine width (mm): 1400 Machine length (mm): 3250 Machine height (mm): 1200 Machine weight (kg): 700 Features • 4-position adjustable gauge • Option to use mandrel and spoon on NC machines • The carriage system is equipped with a linear guide rail and carriage • Connection equipment is standard. Mandrel and spoon are optional. • 7" color touchscreen display • 5 sequential twisting options • 100 program memory capacity • Omron PLC control

Condition: new, Cesurbend Mandrel Tube Bending Machine PBH-32 E Technical Specifications Max. tube diameter (mild steel): 32 mm Max. tube wall thickness (mm): 2 Max. bending angle (°): 190 Tube bending speed (rpm): 8.5 Max. bending radius (mm): 275 Bljdoxt Rcgepfx Aa Hed Bending motor power (kW): 2.2 Hydraulic motor power (kW): 1.5 Tube length (mm): 2000 Machine width (mm): 1000 Machine length (mm): 2300 Machine height (mm): 1050 Machine weight (kg): 400 Features • 4-way adjustable measuring device • 7" touchscreen colour display • 5 sequential twisting options • 100 program memory capacity • Omron PLC control

Condition: new, Cesurbend Mandrel Bending Machine / Tube Bending Machine PBH-32 Technical specifications Max. tube diameter: 32 mm Max. wall thickness (mm): 2 Max. bending angle (°): 190 Tube bending speed (d/min): 8.5 Max. bending radius (mm): 275 Bending motor power (kW): 2.2 Hydraulic motor power (kW): 1.5 Tube length (mm): 2000 Machine width (mm): 1000 Machine length (mm): 2300 Machine height (mm): 1050 Machine weight (kg): 400 Features • Hydraulic clamping • Brake motor / precision rotation • Manual size adjustment Bedoxt Rb Nspfx Aa Hold

Condition: new, Cesurbend Mandrel Tube Bending Machine / Pipe Bender PBM-32 E Technical Specifications Max. tube diameter (mm): 32 Bsdpjxt Rbpefx Aa Hold Max. tube wall thickness (mm): 2 Max. bending angle (°): 190 Tube bending speed (rev/min): 8.5 Max. bending radius (mm): 275 Bending motor power (kW): 2.2 Tube length (mm): 2000 Machine width (mm): 1000 Machine length (mm): 2300 Machine height (mm): 1050 Machine weight (kg): 300 Features • 4-way adjustable measuring device • 7" color touch display • 5 sequential rotation options • 100 program memory capacity • Omron PLC control

Condition: new, Cesurbend Mandrel Bending Machine / Pipe Bending Machine PBM-32 Technical Specifications Max. pipe diameter: 32 mm Max. wall thickness (mm): 2 Max. bending angle (°): 190 Pipe bending speed (r/min): 8.5 Max. bending radius (mm): 275 Bending motor power (kW): 2.2 Pipe length (mm): 2000 Machine width (mm): 1000 Machine length (mm): 2300 Machine height (mm): 1050 Machine weight (kg): 300 Features Bedpoxt Ra Eefx Aa Hsld • This is a semi-automatic machine. If you need to bend only a few pipes per day (25-50 pieces per day), this machine is the right choice. • It is the simplest pipe bending machine with brake motor. • Brake motor / precise bending • Manual dimension setting • Former rack

Condition: used, Year of construction: 2010, tube diameter 4 - 28 mm 3000 mm bending radius max. 90 ° connected load frequency 400 V total power requirement 1,5 kW weight of the machine ca. 0,75 t dimensions of the machine ca. 3,7 x 1,2 x 1,5 m Bedsxtqwwjpfx Aa Hsld Electro-hydraulic mandrel tube bending machine with - Bending mandrels for 18mm tube - Tools for: 8mm, 10mm, 12mm, and 18mm - PC interface - Laptop - Documentation See images for further accessories

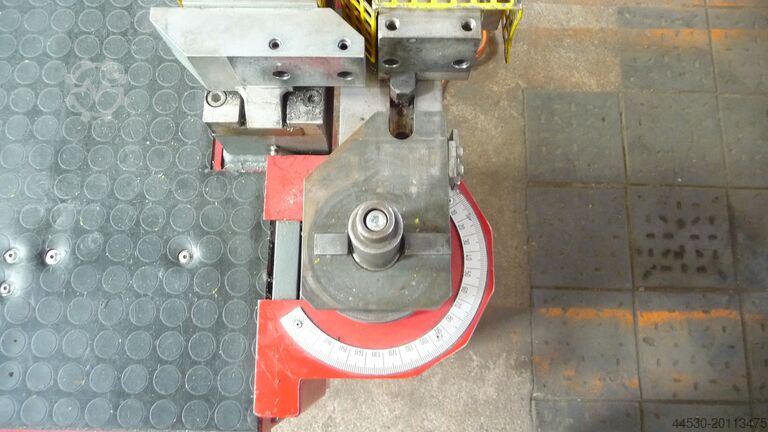

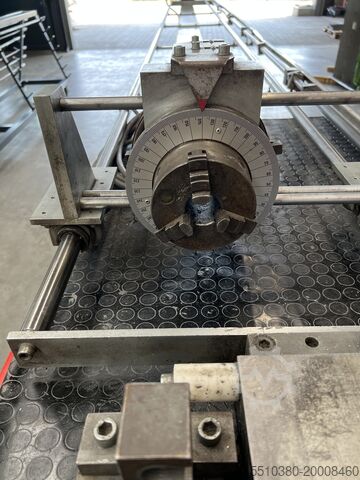

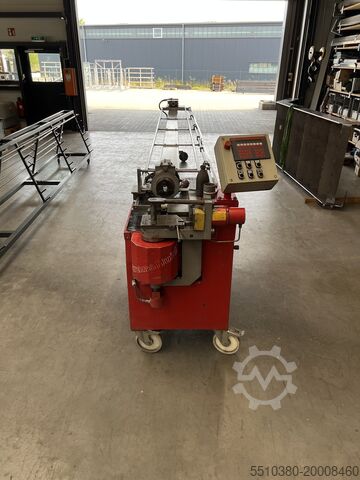

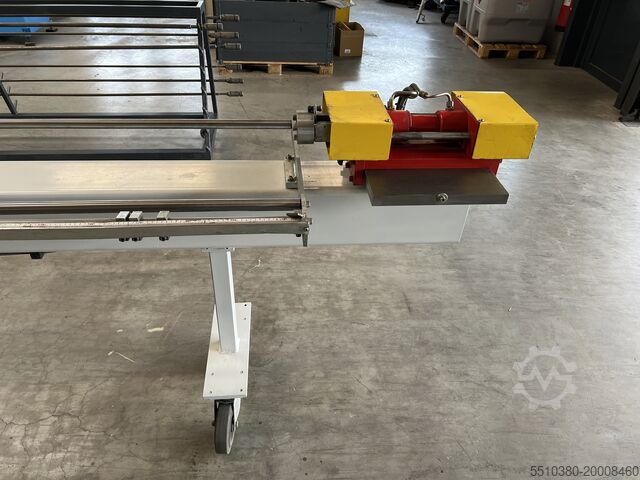

Condition: used, functionality: fully functional, Year of construction: 1998, machine/vehicle number: 7385, degree of automation: semi-automatic, actuation type: electric, controller manufacturer: Transfluid, controller model: IPU 20, pipe diameter (max.): 648 mm, pipe length (max.): 6,000 mm, tube wall thickness (max.): 3 mm, bending angle (max.): 180 °, bending radius (max.): 125 mm, bending radius (min.): 50 mm, working width: 6,000 mm, mandrel length: 5,500 mm, number of axes: 3, working height: 1,300 mm, table length: 7,000 mm, table width: 900 mm, table height: 1,300 mm, overall weight: 1,000 kg, total length: 7,000 mm, total width: 900 mm, total height: 1,300 mm, power: 5 kW (6.80 HP), input voltage: 400 V, input current: 25 A, input frequency: 50 Hz, type of input current: three-phase, oil tank capacity: 1,320 l, operating pressure: 200 bar, Equipment: documentation/manual, emergency stop, Bending software requires a new update. Bending mandrels are available, bending tools are not included. Bledpexcxupsfx Aa Hsd

Condition: new, Year of construction: 2025, tube diameter 48,3 mm wall strength 3,25 mm bending radius min. max. 180 mm Blsdpoxcuiiofx Aa Hed Bending speed 20 °/sec total power requirement 2,4 kW weight of the machine ca. 700 t dimensions of the machine ca. 3880 x 800 x 1250 m Description: Round tube steel (S235): 60.0 x 6.0 mm Round tube stainless steel (S 355): 60.0 x 4.0 mm Square tube steel: 50 x 50 x 4.0 mm Rectangular tube steel: 60 x 40 x 2.0 mm max. usable length: 3048 mm Bending speed: 10°/sec including tools (see photos) Mandrel is no longer available, can be retrofitted
