Schuemo B.V. Niederlassung Deutschland

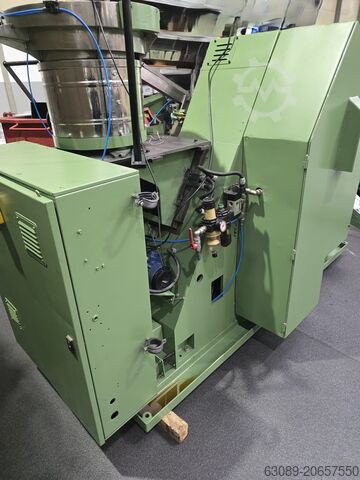

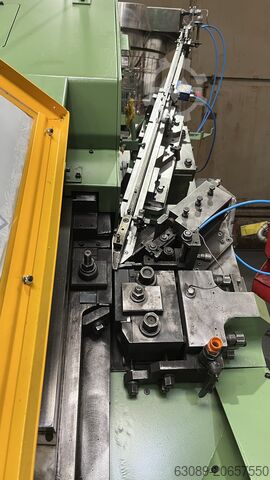

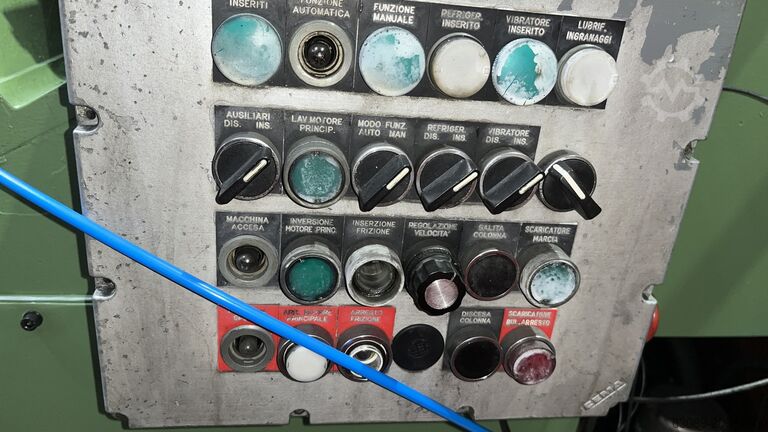

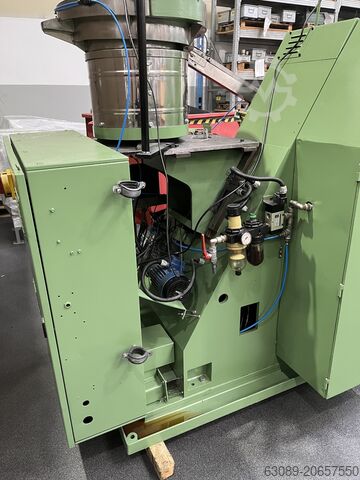

Condition: used, Thead Roller TLM RP8 TLM TORTONA Tjdpfx Agex Aqprscjf Diameter range: 3-8 mm Shaft length under head: 90 mm Max. thread length: 52 mm Tool sizes:130x115x54

Condition: good (used), Year of construction: 1998, functionality: fully functional, FOR SALE Thread rolling machines Todpfx Agoxv Dcxscof Escofier H20Z

Condition: excellent (used), Year of construction: 2015, Roll pressure infinitely adjustable from 117 kN feeds - fine adjustment 0,5-45 mm/min turning speeds 0-80 U/min Swivel angle of the roller heads 11 ° Diameter of the roller spindles 69,85 mm Stroke - Roller screw slide 0-150 mm min. dist. - roller screws 138 mm max. dist. - roller screws 285 mm Tjdpfxoxukrqe Agcef min. diameter - Rolling tools 230 mm max. diameter - Rolling tools 135 mm min. dia. 2 mm max. diameter 55 mm thread length at plunge operation 200 mm thread length at continiuous operation 2000 mm maximum thread pitch 4 mm total power requirement 14 kW weight of the machine ca. 2,4 t dimensions of the machine ca. 2,0 x 2,5 x 1,9 m Rolling time continuously adjustable from: 0.1s Pause time continuously adjustable from: 0.1s Rolling spindle length: 200mm Machine bed height: 810mm Rolling spindle height above machine bed: 200 mm Height of support bearings: 115 mm Largest pitch for serrated teeth: 2.5 mm (up to 70 kg/mm2 Strength of the material)

Condition: ready for operation (used), functionality: fully functional, Technical Data – SENY D75B: Rolling Pressure: 220 kN Workpiece Diameter: min. 3 mm – max. 70 mm Maximum Pitch: 6 mm Maximum Groove Pitch: 2.25 mm Maximum Roll Width: 160 mm Roll Diameter: min. 133 mm – max. 170 mm Roller Shaft Rotational Speeds: 24 – 30 – 38 – 45 – 62 – 72 – 90 – 114 rpm Roll Holder Shaft Diameter: 54 mm standard – 69.85 mm special Distance Between Shafts: min. 135 mm – max. 230 mm Working Stroke: max. 15 min Feed Rate: 0.5 mm/s – 6 mm/s Rolling Time: 0.1 s – 100 s Tsdsxm Stgjpfx Agcjf Pause Time: 0.1 s – 100 s Main Motor Power: 5.5 kW Electrical Consumption: 8.6 kW Reservoir Capacity: 130 liters Weight: approx. 2,100 kg. Additional rolls available: M4.5 x 0.75 ISO. M6 ISO. M10 ISO.

Condition: used, TECHNICAL DETAILS - Min./max. diameter of workpieces : 2 / 18 [mm] - Max. thread : 2 [mm] - Max. plunge length : 40 [mm] - Power : 6 [t] - Min./max. diameters of the rollers : 70 / 100 [mm] - Standard cam travel : 5 [mm] WEIGHT & DIMENSIONS - Machine floor space : 775 x 555 [mm] Tedpfx Agexbt Izscjf - Machine height : 1100 [mm] - Machine weight : 650 [kg]

Condition: used, TECHNICAL DETAILS - Min./max. diameter of workpieces : 2 / 40 [mm] - Max. thread : 5 [mm] - Maximum length in plunge : 54 [mm] Tsdpfx Agjxbt Iuocef - Power : 12 [t] WEIGHT & DIMENSIONS - Machine floor space : 2000 x 1750 [mm] - Machine weight : 2100 [kg]

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, machine/vehicle number: 00049781, workpiece diameter (max.): 50 mm, spindle diameter: 69 mm, spindle speed (max.): 5,000 rpm, stroke length: 130 mm, roll spacing: 255 mm, TECHNICAL DETAILS Contact surface: 180 mm Workpiece diameter: 4 - 50 mm Rolling pressure (infinitely variable): 0-200 kN Feed (infinitely variable): 0-50 mm/s Rolling cycles per minute: 0-86 Rolling spindles Rolling spindle diameter: 69.85 mm Distance between rolling spindles: 125 - 255 mm Spindle mounting length: 160 mm Traverse of the rolling spindle slide: 130 mm Rolling spindle speed: 3000-5000 rpm Rolling tool diameter: 130 - 200 mm Tedpexbfwzofx Agcof Machine bed height: 800 mm Height of rolling spindle above machine bed: 160 mm MACHINE DETAILS Control system: SIEMENS SIMATIC C7 Voltage: 400 V, 50 Hz Dimensions & Weight Machine height: 1,600 mm Weight: 2,400 kg

Condition: used, Year of construction: 2002, functionality: fully functional, machine/vehicle number: M24I/9053, Offer Number: M24I/9053 Machinetype: thread rolling machine - 2 rolls Make: BAD DÜBEN Type: PRX 32 E CNC Constr. year: 2002 diameter range: 10-24 mm Forging power: 7-20 to thread length plunge method: 195 mm daylight: 160 mm max. pitch: 3,5 mm Tsdpfxjw Nxnwo Agcsf roller bore: 80 mm roller width: 235 mm roller length: 195 mm rpm: 40 - 315 Location: Germany

Condition: used, Year of construction: 2007, pressure 20 - 300 kN adjustment of rolling slide 50 mm diameter of rolling spindle 120 mm roll spindle height over machine bed 200 mm Control SIN 840 D taper length of the roll spindle 200 mm rolling spindle turning speeds 0 - 50 1/min torque per rolling spindle 2700 Nm Todpfow E Nmkox Agcef power capacity 2 x 8,4 kW distance between rolling spindles min. 271 / max. 368 mm rolling tool outer diameter max. 300 mm total power requirement 26 kW weight of the machine ca. 7,1 t dimensions of the machine ca. 9,70 x 4,50 x 3,80 m CNC machine for gear cold rolling / thread rolling Hydraulic rolling process Felsomat loader cell Complete housing

Condition: used, Year of construction: 1988, Technical details: pressure: 10 t workpiece diameter - max.: 40 mm threading length: 70-80 mm workpiece diameter min/max: 3 / 40 mm revolution per minute: 47-94 U/min feed speed: 0,5 - 6 mm/s work stroke: max. 7 mm total power requirement: 4,68 kW Weight approx.: 1,4 t dimensions of machine: 1,4 x 1,4 x 1,7 B T H m dimensions of hydaulic: 0,8 x 1,2 m Hydraulic drive manual and automatic cycle adjustable roller speed max. thread diameter 40mm min. thread diameter 3mm up to 3.5 mm pitch max. pitch 1.75mm roller width min. 80 mm max. 120mm shaft speed 47-94 roller shaft diameter 40 Tsdpfx Agsw D Aq Tjcjf various rollers as accessories *

Condition: refurbished (used), Thread rolling machine ORT RP18 B 2-roll overhauled LOW PRICE The machine is in our warehouse in Gussago BS, under power Test run possible Mimu Machine Tools Italy Power (Ton): 18 Tsdewwmiyepfx Agcjf Number of rollers: 2

Condition: used, Year of construction: 1997, machine/vehicle number: 707, Ingramatic thread rolling machine RP21 RV, year 97, used Tsdjwiu Afjpfx Agcjf

Condition: like new (used), Thread rolled both ends the same time! Diameter range M6-M16 Max total length 600 mm. Max threaded length 60 mm. Adjustment is not difficult at all. Tsdswalx Eopfx Agcof We could offer machine with dies according to your wish, be made by our factory too. We are located at Athens, Greece, near to the center. You can view machine under power after appointment.

Condition: ready for operation (used), Year of construction: 2003, functionality: fully functional, CNC Thread, Gear, and Profile Rolling Machine Model ROLLEX 1 Substructure: The substructure of the thread and profile rolling machine consists of welded steel profiles, partially covered with sheet metal. The space for the process lubricant reservoir is located in the front area of the substructure. Main drive: The main drive generates the rotary motion of the rolling tools required for gear rolling. The drive motor is flanged to the base plate of the rolling spindle bearing via the Cyclo Drive gearbox. The rotary motion is transmitted to the rolling spindle via the Schmidt coupling. The machine operates in a speed range of 0 to 30 rpm, with this range further subdivided into 0 to 20 rpm for continuous operation (S1) and 20 to 30 rpm for intermittent operation (S4). The speed is continuously adjustable using a frequency converter. Brand PROFIROLL Type ROLLEX 1 Year of manufacture 2003 Control, Brand, Type Siemens, Sinumerik, 840D Motor power (kW): 18 kW Electrical connection: 400 V Rolling range: Max. rollable workpiece diameter: 40 mm Rolling carriage stroke: 2 x 80 mm Min. / max. center distance of rolling spindles: 160 / 320 mm Tsdpfsv Uxq Ssx Agcsf Rolling spindle height above the machine bed: 160 mm Max. tool diameter: 250 mm Rolling spindle mounting diameter: 120 mm Rolling spindle mounting length: 80 mm Power & Drive Max. rolling force: 100 kN Rolling spindle speed, continuously variable 0-30 rpm Motors Rolling spindle drive: 2 x 13 Nm Hydraulics 50 Hz: 5.5 kW Process lubrication 50 Hz: 0.1 kW Central lubrication 50 Hz: 0.06 kW Temperature range: +5–+40 °C Current type/frequency: 3 N/50 Hz Nominal voltage: 400 V Control voltage: 24 V Auxiliary voltage: 24 V/230 V Connected load: 18 kW Nominal current of the machine: 39 A

Condition: used, Year of construction: 2007, Manufacturer: ORT Model: RP18 Year : 2007 Maximum rolling thrust 18 Ton Roller shaft diameter 54 mm Roller shaft key 12 mm Minimum diameter workpiece to rolled 3 mm Maximum diameter workpiece to be rolled 60 mm Max.length workpiece rolled in plunge-feed 175 mm Max.length workpiece to rolled in enfilade — Tedpfsv Tqdbox Agcjf Maximum Pitch workpiece to be rolled 4 mm Maximum roller diameter 185 mm Main motor power 7,5 HP Total installed power 11 HP Maximum noise level 80 db Net weight 1800 kg Height Rolling shaft from the floor 1035 mm Machine width 1450 mm Standard machine depth 900 mm Total machine height 1800 mm

Condition: new, Year of construction: 2025, functionality: fully functional, thread length: 12,000 mm, overall weight: 5,000 kg, workpiece diameter (max.): 90 mm, spindle diameter: 80 mm, type of input current: three-phase, roll diameter: 250 mm, spindle speed (max.): 50 rpm, spindle speed (min.): 20 rpm, total height: 2,000 mm, total length: 2,400 mm, total width: 2,000 mm, 60 ton hydraulic thread rolling machine with swivel spindles for infeed and thru-feed rolling Tsdpfxsv Rb Ape Agcjf Download PDF file for photographs

Condition: ready for operation (used), Year of construction: 1995, BAD DUBEN Model PRX 32 E - CNC Used - in excellent condition Bad Duben: 2 The Cylindrical Thread Roller Brand: BAD DUBEN Model: PRX 32 E - CNC Type: Threading Machines, Thread Rollers, Cylindrical Die Condition: Used, good condition Tjdpfx Agev Imqyjcof Serial no.: 17 Year: 1995 Max rolling pressure: 16 T Workpiece diameter: 6 - 24 mm. Thread Length: 200mm. Roller diameter: 195 mm. Max pitch: 3mm. Speed Range of roller splindles: 40-315 Diam: 210 mm. Weight: 4,500 kg. Visible c/o H.B.R. srl - Calolziocorte (LC) - Italy

Condition: good (used), Rolling pressure 220 kN Ø Pieces 3mm min; 70mm max Pitch 6mm max Grooving pitch 2.25mm max Roller width 160mm max Ø Roller 133mm min; 170mm max Roller shaft speed 24 30 38 45 62 72 90 114 rpm Ø Roller carrier shaft 54mm standard; 69.85 special Tjdpfxevyyyxs Agcsf Distance between shafts 135mm min; 230mm max Working stroke 15min max Feed rate 0.5mm/s to 6mm/s Laminating time 0.1s to 100s Pause time 0.1s to 100s Main motor 5.5 Kw Electrical power consumption 8.6 Kw Tank capacity 130 L Weight approx 2100 Kg

Condition: refurbished (used), Thread rolling machine ORT RP18 B 2-roll Tedpfx Agjvxa Dbscef overhauled See video The machine is in our warehouse in Gussago BS, under power Test run possible Mimu Machine Tools Italy Power (Ton): 18 Number of rollers: 2

Condition: excellent (used), pressure 0,5 - 20 t max. workpiece diameter 5 - 75 mm threading length 2000 mm pitch in mm 8 mm diameter of roll spindle taper 69,85 Tedpfsvpaa Rjx Agcof tool diameter 200 mm roll spindle turning speed range 20 - 90 U/min stroke 0 - 20 mm total power requirement 7,5 kW weight of the machine ca. 3,1 t dimensions of the machine ca. 1,9 x 1,1 x 1,2 m

Condition: good (used), Year of construction: 1973, pressure 0,5 - 10 t max. workpiece diameter 2 - 50 mm threading length 2000 mm pitch in mm 3 mm diameter of roll spindle taper 54 tool diameter 145 mm roll spindle turning speed range 41 - 129 U/min stroke 0 - 8 mm Todpfx Asvpaakegcjf total power requirement 4,5 kW weight of the machine ca. 1,3 t dimensions of the machine ca. 1,3 x 1,2 x 1,2 m

Condition: used, Thread rolling machine, thread rolling machine, segment thread rolling machine, cold forming machine, thread rolling head, rolling head Tjdpeu Tyvhjfx Agcsf -Manufacturer:BWF, thread rolling head -Type: RK 12-20 -Thread rollers: M24 x 1.5 -Dimensions: Ø 120 x 180 mm -Weight: 5.6 kg

Condition: used, Thread Rolling Machine, Cold Rolling Machine, Thread Rolling Machine, Profile Rolling Machine Manufacturer: PEE-WEE Model: UPW 24 Serial No.: P07 Year of manufacture: 2007 Maximum rolling force: 24 tons Maximum tool diameter: 270 mm Roll spindle diameter: 69.85 mm Tool bore diameter: 70 mm (nominal diameter) Maximum tool/reception length: 180 mm Maximum workpiece diameter: 50 mm Hydraulic motor power: 3 kW Roll drive motor power: approx. 5.5 kW Electrical connection: 400 Volt, 50 Hz, 10 kW - Pivotable roll spindle for through-feed thread rolling - Roll spindle speed adjustable in 4 steps via gearbox shift - Hydraulic unit integrated in the machine base - Operating manual with electrical schematic Tjdpjuz If Nsfx Agcsf Space requirements (L x W x H): 2,000 x 1,450 x 1,900 mm Weight: approx. 3 tons Very good condition Plunge Rolling: The thread rolling tools, having the same pitch as the workpiece, form the thread by penetrating the workpiece up to the nominal diameter. The maximum thread length is limited to the width of the rolling dies. Through-feed Rolling: Used when the thread length is greater than the width of the rolling dies. Through-feed tools are divided into three sections – entry, calibration, and exit. Knurling rolls have no pitch and are swiveled at the lead angle corresponding to that of the profile to be rolled. Lead angle rolls differ from knurling rolls by having a pitch in the profile. The sum of the lead angle and swivel angle results in the effective lead angle in the workpiece.

Condition: refurbished (used), Year of construction: 2009, ORT RP30 MS 2-roll 30 tons thread rolling, knurling, small gears 2009 = YOM Electronic overhaul and electronic retrofit with Siemens PLC (2025) The machine is visible working in our warehouse in Gussago BS. Possibility of proof M i m u Machine Tools Power (Ton): 30 Number of rollers: 2 PLC: Yes Todpouykz Defx Agcjf

Condition: used, ORT RP18B overhauled Tsdpfxjuua H Rj Agcsf
