Condition: used, Year of construction: 1995, pressure 135 t bevel length 4000 mm distance between columns 3150 mm total power requirement 15 kw dimensions 4030 x 1440 x 2420 mm machine weight ab. 9500 kg Equipment: - MNC 10 control unit - Electric backgauge ( X ) Bcjdpfoyn R Hpox Afcow - Positioning of the depth adjustment ( Y1 Y2 ) - 2 stop fingers, manually adjustable - Rear side guard - Upper and lower tool

Condition: used, Year of construction: 2011, pressure 220 t chamfer lenght 3100 mm distance between columns 2600 mm column arm 300 mm stroke - stepless adjustable 200 mm dayligth 450 mm Control ATL 550 total power requirement 18,7 kW weight 11500 kg range L-W-H 3500 x 1900 x 2800 mm Bedpfjyn R Hiex Afcscw Equipment: - ATL 550 control unit - Electric back gauge ( X ) - Positioning of the depth adjustment ( Y1 Y2 ) - 2 stop fingers, manually adjustable - Rear side guard - Upper and lower tool

Condition: new, pressure 220 t chamfer lenght 4100 mm distance between columns 3600 mm column arm 410 mm ram stroke speed 150 mm/sec work speed 10.0 mm/sec return speed 140 mm/sec work stroke 265 mm dayligth 480 mm table height 900 mm table width 110 mm oil volume 300 ltr. voltage 400 Volt total power requirement 18.5 kW weight 15000 kg range L-W-H 5000 x 2400 x 2850 mm ALPMAC Manufacturer Video: ?v=_FxXyPAcxlE ?v=YfkX9RwWv_0 ALPMAC Product Video Model B: ?v=lmT1tfy43WE ----- MODEL SERIES B175-3100 - CNC electro-hydraulic press brake with: * increased installation height * increased cylinder stroke * increased throat depth ----- ! MADE FROM CERTIFIED QUALITY STEEL (ST 37-42-52) ! HIGH-PERFORMANCE HYDRAULIC COMPONENTS (HAWE GERMANY) ! HIGH RUNNING QUIET DUE TO LOWER OPERATING PRESSURE (50-60 dB) ! INDUCTION-HARDENED & CHROME-PLATED CYLINDER PISTONS FOR CONTINUOUS USE ! ALUMINUM CAST REAR STOP COMPONENTS ! REAR STOP WITH POWERFUL DRIVE MOTOR (1.0 kW) ! MACHINE TABLE MADE OF ROBUST & DURABLE STEEL (C45) Bcedpfx Afeynnk Escjw GREEN ECO Technology: Lower consumption. More quiet. Full control. ! Peak performance with minimal energy consumption ! Maximum power at minimal cost ! Maximum performance when it's really needed ! Main motor is only activated by the foot pedal ! No energy wasted in standby mode ! Controlled start-up process Equipment: - CNC electro-hydraulic press brake - DELEM CNC control model DA-66T- graphics/touchscreen * 2D graphic touchscreen programming operation * 3D display in simulation and production * 17" high-resolution color TFT screen * Bending sequence calculation * Product programming and display in actual size * USB interface - CNC controlled axes: Y1 - Y2 - X - R - Z1 and Z2, as well as CNC crowning - CNC electro-motorized backgauge (X-axis) * on ball screws * Travel: max. 750 mm * X-axis travel speed: 350 mm/s * with 2x CNC-controlled backgauge fingers - CNC electro-motorized height adjustment (R-axis) * Travel: max. 250 mm * R-axis travel speed: 300 mm/s - CNC electro-motorized table crowning - ROLLERI Rehfuß upper tool "PS 135.85-R08", System "A" * including quick-change clamping * including crowning device in the tool holder - ROLLERI split universal die block "M 460 R" * including 1x die shoe "C 1050-R" - Rear safety device: light barrier - HAWE hydraulic components - FIESSLER AKAS laser safety device in front of the machine (incl. FPSC) - 2x front support arms with sliding system * easily and keylessly height-adjustable - FIESSLER freely movable double foot control - CE marking / Declaration of Conformity

Condition: new, neu ca. 10 Wochen ab Auftrags Türkei 127400 € 2407.86 € 220 to 4050 mm Y1 / Y2 / X und R Achse 265 mm 3600 mm 410 mm 530 mm hydraulisch 200 mm/s 12 mm/s 180 mm/s 650 mm 500 mm/s 250 mm 900 mm 104 mm 5250 mm 1770 mm 2900 mm 15000 kg 1 SERVO MOTOR AND PUMP PER CYLINDER Standard accessories: 4 axes (Y1, Y2,X andR) CNC control SKY 22 - intuitive touch-screen control (simple drawing of the bending outline with your finger) 21,5“ in full HD - with 2D and 3D working screen - direct programming of the bending angle - user friendly programming in dialogue form optionally in 2D or 3D mode - 2D and 3D simulation of the bending sequence - automatic tool selection in 3D mode - automatic calculation of the blank sheet size - bending order calculation - graphic product and tool memory - correction possibility - USB and Ethernet interfaces for import, backup and programm transportation - OS: Windows - IGES, STEP, DXF files import servo motorized back gauge on linear guides and ball screws back gauge finger blocks on double linear guides CNC crowning table upper tool 1010 / A / 75 °, devidedand cranked 4-V die block 60x60 2009 (V = 16,22,35 and 50 mm) laser safety device Fiessler AKASmounted on the upper beam linear guided sheet support arms according to CE rules oilfilling users manual in English or German Bjdpfoynm Amex Afcocw ADVANTAGES OF THIS CONCEPT: - hydraulic works only while upper beam movement - low energy consumption - low noise level - high speed optional equipment: Z1/Z2-axes CNC Control Delem DA-66 S CNC control DELEM DA-69S 3D incl. PC software Profile-S with 3D file import option Quick release clamping for upper tool

Condition: good (used), functionality: fully functional, Year of construction: 2009, control type: CNC control, controller manufacturer: CYBELEC, controller model: MODEVA 10S, bending force (max.): 250 t, working width: 3,100 mm, stroke length: 250 mm, throat depth: 400 mm, distance between stands: 2,550 mm, installation height: 517 mm, operating speed: 100 mm/s, reverse speed: 90 mm/s, number of axes: 6, table height: 900 mm, type of crowning: CNC-controlled, back gauge adjustment: CNC-controlled, overall weight: 15,000 kg, total length: 4,550 mm, total width: 2,350 mm, total height: 2,950 mm, power: 18.5 kW (25.15 HP), input voltage: 400 V, Technical data NEW INTERMEDIARIES/PUNCHES/DIES. Protective laser Crowning table with CNC CNC CYBELEC MODEVA 10S CNC axes: Y1/Y2/X/R Bedpfx Aoymyffefcscw Manual axes: Z1/Z2 Year: 2009 FREESTANDING MACHINE

Condition: used, functionality: fully functional, Year of construction: 2002, machine/vehicle number: 81511, control type: CNC control, bending force (max.): 225 t, overall weight: 25,000 kg, Equipment: european tool clamping system, Used HACO press brake ERMS432225, year of manufacture 2002, serial no. 81511 Bsdpeyml D Tofx Afcecw

Condition: used, Year of construction: 2000, Press Brake Manufacturer: Trumpf Model: TRUMABEND V230 Year of manufacture: 2000 Refurbished: 2010 CNC Control: Delem DA 65 Graphic Year of manufacture: 2000 Max. press force: 230 tons Max. working length: 3,060 mm C-frame throat depth: 410 mm Max. installation height: 535 mm Max. stroke of bending beam: 365 mm Max. sheet thickness approx.: 12 mm Bcsdpfx Afoyma Rbecow Backgauge travel: 600 mm Clearance between uprights: 2,690 mm Weight: 18,210 kg Required space: 3,660 x 2,120 x 3,095 mm Standard features: Upper drive concept with two-cylinder design Y1/Y2 Y1/Y2 configuration Electro-hydraulic ram drive with proportional valve technology Ram position measuring system with spring compensation via glass scales Modern block hydraulics Spherical suspension and tilting of the press beam 2-axis (R, X - CNC) backgauge system Innovative and safe finger adjustment from the front 2 self-centering backgauge fingers Program-controlled lower tool shift (I-axis) for 2 positions Safety guard Oil cooler CE marking Including accessories and options: CNC crowning 4 support arms Hydraulic upper tool clamping Modufix Hydraulic lower tool clamping for single V dies Preparation for ACB angle measurement system 6-axis backgauge system Safety device with light curtain Additional operator console Network card Robot interface Operating manuals

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2002, controller model: Delem DA 66W, bending force (max.): 234 t, overall weight: 20,000 kg, working length: 4,300 mm, TECHNICAL DETAILS Bending force: 2,300 kN Working length: 4,300 mm Distance between uprights: 3,700 mm MACHINE DETAILS Bedpfxoylwbhs Afcscw CNC control: Delem DA 66W CNC-controlled axes: Y1, Y2, X1, X2, R1, R2, Z1, Z2 Power: 26 kW Voltage: 230/400 V Weight: 20,000 kg EQUIPMENT CNC crowning system Hydraulic Wila New Standard upper and lower clamping

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2009, machine/vehicle number: 9550006, bending force (max.): 254 t, stroke length: 265 mm, overall weight: 18,900 kg, working length: 4,100 mm, TECHNICAL DETAILS Working length: 4,100 mm Pressing force: 2,500 kN Max. stroke: 265 mm Rapid traverse speed: 190 mm/s Working speed: 10 mm/s Return speed: 150 mm/s MACHINE DETAILS Bcodpfx Asylv T Nefcew Electrical data Main motor power: 22 kW Total connected load: 26 kW Line voltage: 3 PH 400 V AC Frequency: 50 Hz Control voltage: 24 V DC Rated current: 63 A Weight: 18,900 kg EQUIPMENT Bending aid

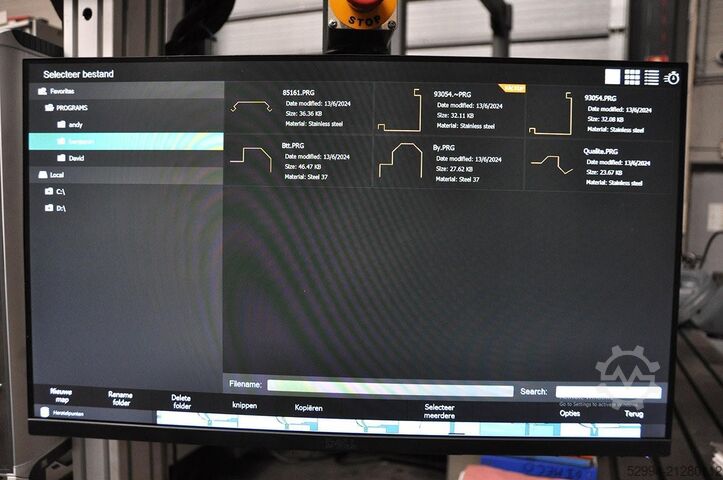

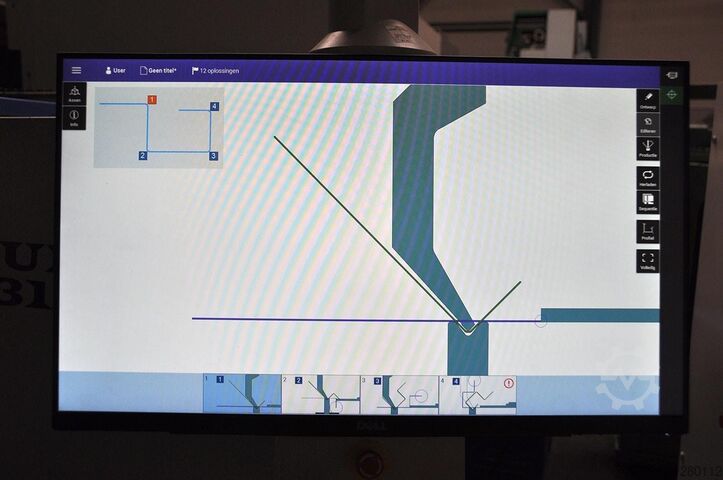

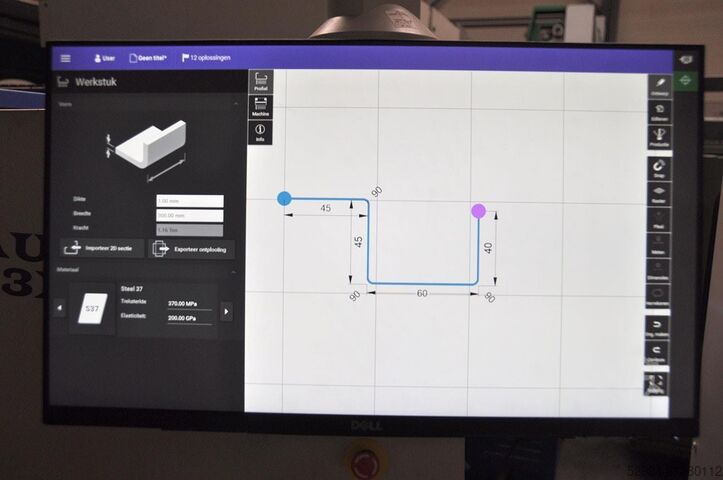

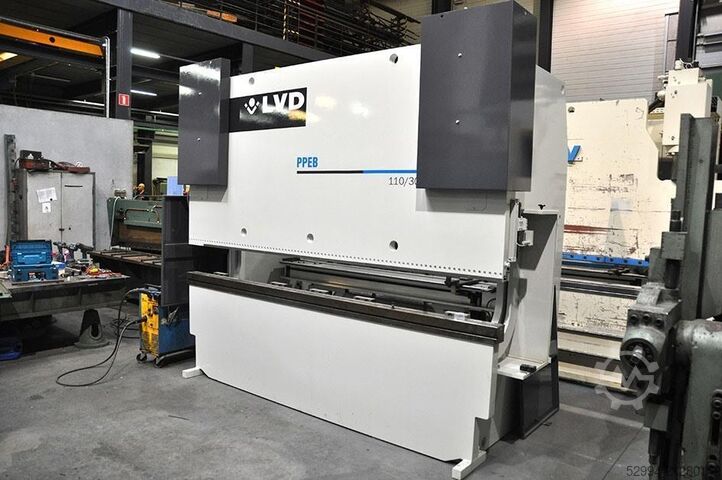

Condition: ready for operation (used), controller manufacturer: 2D Touch, throat depth: 300 mm, operating speed: 10 mm/s, reverse speed: 79 mm/s, power: 20 kW (27.19 HP), travel distance Z-axis: 200 mm, empty load weight: 10,000 kg, passage width: 2,550 mm, 6 axes: Y1 / Y2 / X / R / Z1 / Z2 upper and lower hydraulic clamping Willa/Modufix tooling Bcjdoylqnujpfx Afcjw 2D touchscreen control Capacity: 110 ton x 3100 mm Backgauge: CNC Locking speed: 100 mm/sec

Condition: good (used), functionality: fully functional, Capacity 160 tons --- Bending length 1250 mm --- Stroke 250 mm --- Bcodpfx Ajylcbmefcow Thrust 500 mm --- Max. installation height 480 mm --- Weight approx. 11.2 tons --- Power 30 kW --- System tool holder + tools

Condition: not inspected (used), functionality: unexamined, Year of construction: 1995, stroke length: 400 mm, throat depth: 250 mm, pressing force: 200 t, working length: 3,100 mm, Equipment: documentation/manual, No minimum price – guaranteed sale to the highest bidder! Bidding obligates you to collect the item within the specified period from 08/04/26 to 16/04/26! TECHNICAL DETAILS Bcsdpfx Aeyk U Ddofcsw Max. pressing force: 2000 kN / 200 t Max. working length: 3100 mm Max. stroke: 400 mm Throat depth: 250 mm MACHINE DETAILS Operating voltage: 400 V Control voltage: 24 V Frequency: 50 Hz Nominal current: 100 A Connection load: 22 kW Total connected load: 35.5 kW Dimensions & Weight Dimensions (L x W x H): 4500 x 4000 x 3200 mm Machine weight: 19 t Transport width: 2,700 mm EQUIPMENT Workshop drawer cabinets Numerous punches, dies, and other press brake tools Operating manual

Condition: new, functionality: fully functional, Year of construction: 2025, The 4100×220 ton model is perfect for processing medium-thick sheet metal thanks to its large bending bed, making it ideal for series production and complex component manufacturing. • CNC numerical control with multi-axis management (6 axes) for synchronized movements and high precision • Robust steel mechanical frame • Motorized back gauge with servo control for accurate positioning • High-precision sensors and optical scales (GIVI) • Intuitive graphical CNC control system with automatic optimization of the bending sequence • Adjustable front supports for improved operator ergonomics • Promecam tool holders for quick tool change • Thanks to WILA CNC-controlled crowning and 6-axis control, the machine ensures outstanding bending quality even on long sheets and heavy gauges, enhancing productivity and repeatability TECHNICAL DATA: Press brake: MVD CNC 6 axes Model: B 220 Series Year: 2025 Condition: New CNC 6 Axes: ESA 650 Touch Screen Crowning: Wila CNC-controlled Bending force: 220 Ton Bending length: 4100 mm Distance between uprights: 3600 mm Stroke: 260 mm Opening: 465 mm Throat depth: 410 mm Table height: 970 mm Bcjdpfsyk Ul Isx Afcow Approach speed: 180 mm/s Return speed: 140 mm/s Working speed: 10 mm/s Oil tank: 290 l Main motor: 18.5 kW Dimensions: 5620x2530x3035 mm Weight: 12,750 kg

Condition: ready for operation (used), functionality: fully functional, Year of construction: 1995, Used hydraulic press brake Manufacturer: Hämmerle Model: 200-3100 Bjdpfx Afjyklwnjcecw Year of manufacture: 1995 The machine is supplied with numerous tools (press brake knives).

Condition: excellent (used), Technical data: Working length: 4100 mm Frame width: 3650 mm Pressing force: 220 tons CNC control: OPERATOR OPII graphic Color display size: 14" Controlled axes: Y1/Y2; X1/X2; R1/R2; Z1/Z2 Motorized adjustable backgauge Throat depth: 300 mm Stroke: 180 mm Bodpjykkrkjfx Afcecw Automatic crowning Motor power: 17 kW Dimensions (length x width x height): approx. 4800 x 2300 x 2900 mm Weight: approx. 17 tons Accessories: AMADA tools (new) The seller is not liable for typographical or data transmission errors. The machine is in a condition regarding appearance, technology, and wear appropriate to its age; used machines are sold without any warranty.

Condition: excellent (used), functionality: fully functional, Number of axes: 6 Maximum bending length: 4100 mm Bending force: 200 tons Bending thickness: 6 mm Bcodpfjyizidox Afcjw Stroke: 215 mm Maximum approach speed: 200 mm/s Power: 15 kW Weight: 15,600 kg

Condition: good (used), Year of construction: 2010, Press brake with max. pressing force of 400 tonnes max. working length 5100 mm max. stroke 365 mm Bcodpfx Aeyh T Srsfcow 34 kW Total weight 38 tonnes

Condition: used, functionality: fully functional, Year of construction: 1998, machine/vehicle number: 40225, control type: CNC control, actuation type: hydraulic, bending force (max.): 225 t, Hydraulic CNC press brake from the brand HACO, model 40225, year of manufacture 1998. The machine has a nominal pressing force of approx. 225 tons and a working width of approx. 4,000 mm. Equipped with CNC control and electric backgauge, suitable for precise bending of steel and other sheet materials. Features European tool clamping system. Suitable for heavy-duty sheet metal processing in an industrial environment. The machine is offered in used condition. Bodpfx Asyhxtujfcscw

Condition: ready for operation (used), controller manufacturer: Cadman-B Touch, throat depth: 405 mm, installation height: 500 mm, operating speed: 21 mm/s, reverse speed: 200 mm/s, total length: 7,081 mm, total width: 2,200 mm, total height: 3,640 mm, power: 37 kW (50.31 HP), travel distance Z-axis: 300 mm, empty load weight: 24,600 kg, passage width: 5,050 mm, table width: 120 mm, 9 assen: Y1 / Y2 / X1 / X2 / R1 / R2 / Z1 / Z2 / V 4 plaatsteunen aan de voorkant laserkluisbeveiliging Willa-gereedschap Capacity: 220 ton x 6100 mm Bcjdpfxsyhibxj Afcow Backgauge: CNC Locking speed: 120 mm/sec

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2000, bending force (max.): 230 t, throat depth: 300 mm, distance between stands: 4,050 mm, back gauge: 600 mm, working length: 5,000 mm, TECHNICAL DETAILS Pressing force: 230 t Bending length: 5,000 mm Distance between uprights: 4,050 mm Installation height: 800 mm Bcsdpjyg D Abofx Afcjw Ram stroke: 500 mm Throat depth: 300 mm Backgauge: 600 mm Control: BC 45 Graphic MACHINE DETAILS Total power requirement: 18.7 kW Machine weight: approx. 22.0 t Space required: approx. 6.0 x 2.2 x 3.75 m EQUIPMENT 4 backgauge fingers Crowning device Manual finger height adjustment via crank 140 mm Front groove in the table Various tools

Condition: ready for operation (used), functionality: fully functional, bending force (max.): 200 t, stroke length: 250 mm, throat depth: 315 mm, distance between stands: 3,650 mm, working length: 4,050 mm, The machine's control unit has been renewed! TECHNICAL DETAILS Pressing force: 200 t Bending length: 4,050 mm Frame width: 3,650 mm Stroke: 250 mm Throat depth: 315 mm Maximum tool width: 100 mm Table width: 190 mm Table height above floor: 800 mm Bcjdpfx Asyg Dtmofcew Rapid traverse: 100 mm/s Working speed: 8 mm/s Return speed: 75 mm/s MACHINE DETAILS Control system: CYBELEC CybTouch 12 Total power requirement: 18.5 kW Current consumption: 25 A Protection: 50 A Tank capacity: 240 l Dimensions & Weight Space requirement: approx. 4.4 x 1.8 x 3.0 m Machine weight: approx. 17 t EQUIPMENT Swiveling operator panel, front right CNC electric backgauge (X axis) CNC electric depth adjustment (Y1 + Y2 axis) 4x manually adjustable, flip-up backgauge fingers Manually adjustable table crowning, via hand crank Rear and side safety guards 3x front support arms Free-moving double foot switch Universal die block

Condition: ready for operation (used), controller manufacturer: TS Touch, installation height: 515 mm, operating speed: 20 mm/s, reverse speed: 90 mm/s, total length: 2,900 mm, total width: 1,850 mm, total height: 2,260 mm, power: 9 kW (12.24 HP), travel distance Z-axis: 275 mm, empty load weight: 5,100 kg, passage width: 2,050 mm, 4 assen: Y1 / Y2 Y3 / X touchscreenbediening Willa/Modufix bovengereedschap Y3 = onderste tafel, in hoogte verstelbaar De onderste tafel fungeert tevens als dichtdrukmatrijs (pneumatisch). Bcsdpfxoyf Ruhj Afcjw Er is ook (elektrische) doorbuigingscompensatie in de onderste tabel. Capacity: 40 ton x 2050 mm Backgauge: CNC Max distance between table -- ram: 415 > 575 mm (variable) Locking speed: 90 mm/sec

Condition: ready for operation (used), controller manufacturer: Cadman Touch-B, throat depth: 350 mm, installation height: 500 mm, operating speed: 10 mm/s, reverse speed: 80 mm/s, total length: 5,545 mm, total width: 1,990 mm, total height: 3,380 mm, power: 30 kW (40.79 HP), travel distance Z-axis: 250 mm, empty load weight: 23,000 kg, passage width: 3,150 mm, table width: 250 mm, 5 assen: Y1 / Y2 / X / R / V Laserbeveiliging voor en achter CNC-bombardement boven- en onder-LVD-gereedschap buigmes van 88° inbegrepen Cadman Touch nieuw 2023 Capacity: 250 ton x 4100 mm Backgauge: CNC Locking speed: 80 mm/sec Bcsdpfx Asyf Rt Rofcsw

Condition: excellent (used), functionality: fully functional, Year of construction: 1995, ELECTRONIC RETROFIT IN 2001 Maximum press force 2000 kN That equals 200 tons Maximum working length 3100 mm Maximum stroke 400 mm Throat depth 250 mm Machine weight 16,600 kg Electrical data Operating voltage 400 V, 50 Hz Control voltage 24 V DC Power Main motor 22 kW Total connected load 28 kW Fuse rating 100 A Hydraulic oil specification HLP46 or HLP68 HM46 or HM68 his machine is equipped with CNC numerical bending control. Bending method 3 point bending, Normal mode Measurement and positioning axes visible in control Y1 and Y2 for ram positioning X axis for backgauge depth Bcedpfx Aeyf Ibxsfcew Z axis for backgauge lateral positioning R axis for backgauge height Typical positioning accuracy for this class of machine Backgauge repeatability approx ±0.05 mm Bending angle accuracy depends on tooling and material, typically ±0.3 to ±0.5 degrees The control calculates bend angles based on Material thickness Tool geometry Press force Bend allowance Main intention of use The primary purpose of this machine is precision bending of sheet metal parts. Typical operations Straight bends Box shapes U bends Complex multi step formed parts It is designed for medium to heavy gauge sheet metal over long bending lengths.

Condition: good (used), functionality: fully functional, CNC Press Brake Press Force: 170 t Bending Length: 4000 mm Distance Between Frames: 3750 mm CNC: Cybelec DNC 880 S Throat Depth: 400 mm JEAN PERROT Synchro Press Brake 170T x 4000mm – CNC Cybelec 880 S Bedpfsyfxa Ssx Afcocw Technical Specifications: Capacity: 170 tons / Bending length 4000 mm. Clearance between side frames: 3750 mm. Throat depth: 400 mm. Equipment: Crowning system and hydraulic tool clamping. Safety: Front and rear light curtains.
