Göksu Maschinenmontagen GmbH & Co. KG & Co.KG

Condition: used, Year of construction: 2018, Used Yaskawa industrial robot, model MH-24, in good condition. Redpfxezia Ece Anpow

Condition: used, Year of construction: 2019, Used Yaskawa industrial robot MH-50 in good condition. Rsdsziaz Dopfx Anpsw

Condition: used, Year of construction: 2017, functionality: fully functional, Used Yaskawa industrial robot, model MA-2010, in good condition. Rodpeziay Hefx Anpjw

Condition: excellent (used), Stäubli Industrial Robot TX60 with CS8C-TX60 Controller – 6-Axis Robotic Arm For sale is a pre-owned Stäubli TX60 industrial robot, including the CS8C-TX60 control unit. The robot is ideally suited for precise handling, assembly, or inspection tasks in automation technology. Technical Data – Robotic Arm TX60 Axes: 6 Max. load capacity: 4.5 kg (up to 9 kg possible) Reach: 670 mm Rodpfxeziaaye Anpow Repeatability: ± 0.02 mm Mounting: Floor, wall, or ceiling Protection rating: IP65 (optional IP67 at wrist) Robot weight: approx. 51.4 kg CS8C-TX60 Controller Power supply: 1X230V-50/60Hz, 1700 VA, 120 kA Compact 19" controller with VAL3 control system Communication via Ethernet / RS232 / fieldbus (optional) Digital inputs/outputs and expansion options Protection rating: IP20 (optional IP54) Dimensions: approx. 331 × 445 × 455 mm Controller weight: 31 kg Scope of Delivery Stäubli TX60 robotic arm CS8C-TX60 controller Connection cables (robot–controller) Teach pendant, handheld programming device Condition: used Scope of delivery: (see picture) (Subject to changes and errors in the technical data and details!) We are happy to answer any further questions by phone.

Condition: excellent (used), Kuka Type: KUKA KR 16 R2010 / Control Unit KR C4 / KUKA smartPAD KUKA KR 16 R2010 – Industrial Robot Technical Data: Payload: 16 kg Reach: 2010 mm Repeatability: ±0.05 mm Axes: 6 Mounting Options: Floor, ceiling, wall, or angled mounting possible Controller: KUKA KR C4 (Standard) Typical Applications: Handling & Assembly Arc Welding Machine Operation Packaging & Palletizing Pick-and-Place Tasks Special Features: Flexibly deployable in many industrial sectors High precision and reliability Compact design with a large reach Condition: used Scope of Delivery: (See image) (Changes and errors in the technical data are subject to change!) We would be happy to answer any further questions you may have by telephone. Rsdpszh U Uvjfx Anpew

Condition: excellent (used), Stäubli Type: TX90L robot / CS8C controller Six-axis robot with controller The high-performance robots in the TX90 series, designed for medium payloads, offer maximum flexibility for a wide range of applications due to their compact and streamlined design. Thanks to the three mounting options – floor, wall, and ceiling – these six-axis robots are easy to integrate. The completely encapsulated design (IP 65) enables use in cleanrooms or under harsh environmental conditions. Features Completely encapsulated design with internal supply lines Rigid structure Multiple mounting options Patented Stäubli JCM gearbox modules Large reach Advantages Perfect protection of the components. Standard design for cleanroom class ISO 5. Easy to clean. Excellent dynamic path performance High flexibility Rodpfxszh U Tfe Anpsw Precision, dynamics, and speed with reduced maintenance effort Optimal utilization of the workspace Technical data TYPE TX90L Number of degrees of freedom 6 Nominal payload 6 kg Maximum payload 15 kg Reach 1200 mm Repeatability ±0.035 mm Protection class (wrist) IP65 (IP67) Mounting options Floor / Wall / Ceiling Controller Stäubli CS8 CS8C Features Ethernet, fieldbus, digital inputs and outputs, serial interfaces Easy to integrate, 19-inch rack-mount version, protection class IP20 All connections on the front Proven digital technology Advantages Open architecture Compact Good accessibility Reliable Technical data: Type CS8C Dimensions (H x W x D) 331 x 445 x 455 mm 481 x 445 x 455 mm Protection class IP20 (IP54 optional) Working memory 64 MB RAM (min.) Storage capacity 128 MB (min.) Flash disk and USB port System/Programming language VAL 3 (multitasking interpreter language), PLC language IEC 61131-3 Communication Serial interface RS232/422, Ethernet, ModBus/TCP server Type: Robot TX90L / Controller CS8C Condition: used Scope of supply: (See image) (Changes and errors in the technical data and information are subject to change!) We would be happy to answer any further questions you may have over the phone.

Condition: not inspected (used), Epson Type: G20-A01SR / RC180 Epson SCARA robot with Epson robot controller Epson SCARA G20 Long arm with high force The G20 manipulators are suitable for very high payloads, such as heavy components or packaging units with high weight (up to 20 kg). Epson G20 Max. payload: 20 kg, Reach: 850 / 1,000 mm, Z-stroke: 180 / 420 mm Redpjzh U S Uofx Anpsw Epson controller RC180 Condition: untested / spare part is defective! Condition: used Scope of delivery: (See picture) (Changes and errors in the technical data and specifications are subject to change!) We will gladly answer any further questions you may have over the phone.

Condition: excellent (used), Stäubli Type: TX90L robot / CS8C controller Six-axis robot with controller The high-performance robots in the TX90 series, designed for medium payloads, offer maximum flexibility for many applications due to their compact and streamlined design. Thanks to the three mounting options – floor, wall, and ceiling – the six-axis robots are easy to integrate. The completely encapsulated design (IP 65) allows use in cleanrooms or under aggressive environmental conditions. Features Completely encapsulated design with internal supply lines Rigid structure Multiple mounting options Patented Stäubli JCM gearbox modules Large reach Advantages Perfect protection of components Standard version for cleanroom class ISO 5 Easy to clean Excellent dynamic path performance Redpfx Anszh U Sbepow High flexibility Precision, dynamics, and speed with reduced maintenance Optimal use of the workspace Technical data TYPE TX90L Number of degrees of freedom 6 Nominal payload 6 kg Maximum payload 15 kg Reach 1200 mm Repeatability ±0.035 mm Protection class (wrist) IP65 (IP67) Mounting options Floor / Wall / Ceiling Controller Stäubli CS8 CS8C Features Ethernet, fieldbus, digital inputs and outputs, serial interfaces Easy to integrate, 19-inch rack-mount version, protection class IP20 All connections on the front Proven digital technology Advantages Open architecture Compact Good accessibility Reliable Technical data: Type CS8C Dimensions (H x W x D) 331 x 445 x 455 mm 481 x 445 x 455 mm Protection class IP20 (IP54 optional) Working memory 64 MB RAM (min.) Storage capacity 128 MB (min.) Flash Disk and USB port System/Programming language VAL 3 (multitasking interpreter language), PLC-IEC 61131-3 language Communication Serial interface RS232/422, Ethernet, ModBus/TCP server Type: TX90L robot / CS8C controller Condition: used Scope of supply: (See picture) (Changes and errors in the technical data are subject to change!) We will be happy to answer any further questions you may have by telephone.

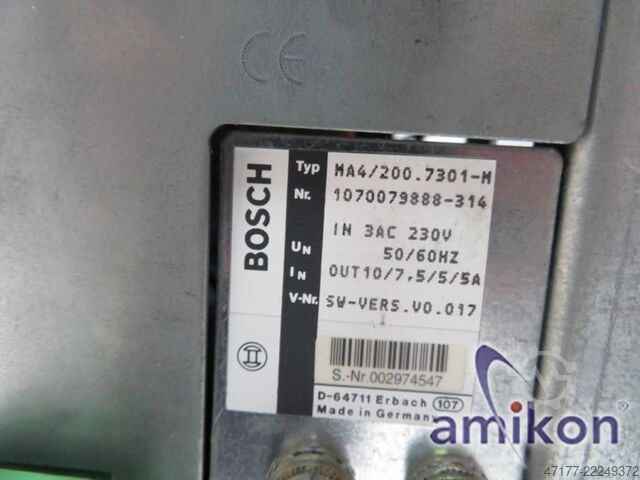

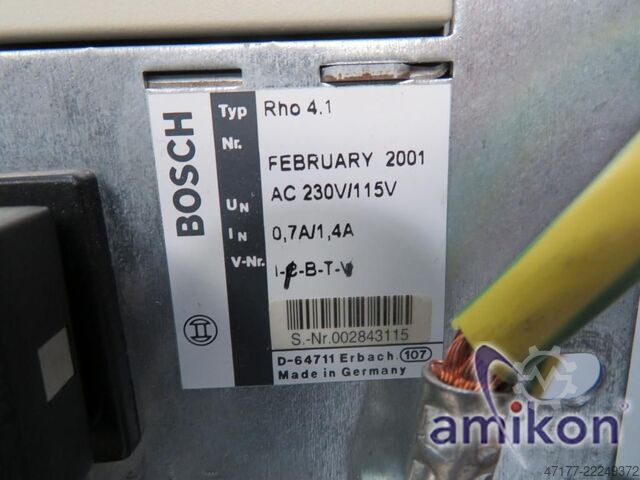

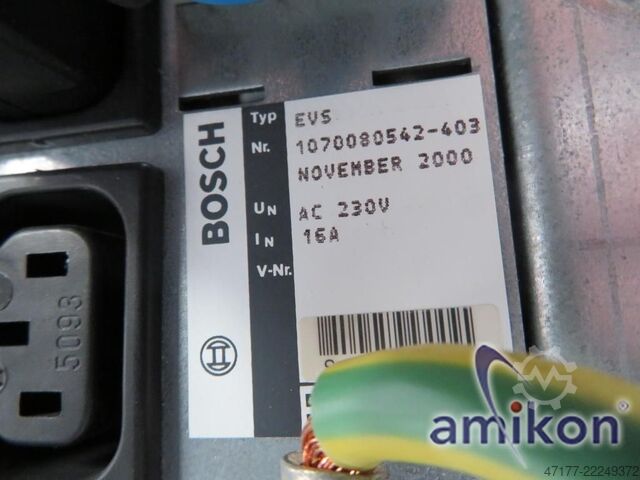

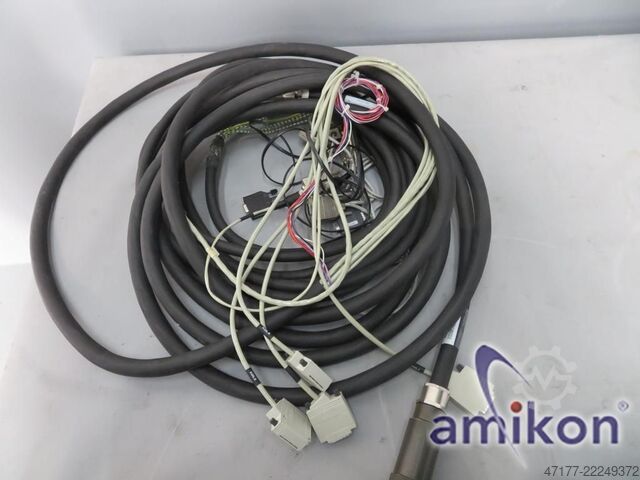

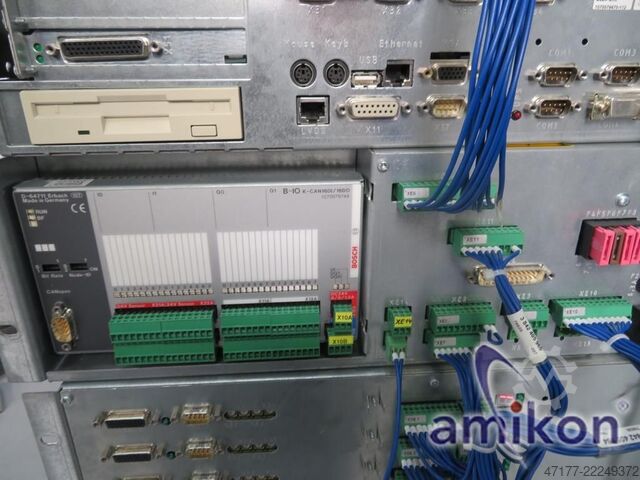

Condition: not inspected (used), Bosch Rexroth Type: SCARA SR6, control panel defective Bosch Rexroth articulated-arm robot, turbo SCARA SR6 with control unit Rated load: 2 kg Maximum load (sleeve diameter 20 mm): 5 kg Maximum load (sleeve diameter 25 mm): 8 kg Rated maximum moment of inertia (axis 4): 500 kgcm² Maximum moment of inertia (axis 4): 1000 kgcm² Horizontal force, continuous/maximum: 60/150 N Vertical force, continuous/maximum: 200/300 N Torque (axis 4), rated/maximum: 5/10 Nm Condition: used Scope of supply: (See picture) Rjdpfezh U R Rex Anpjw (Changes and errors in the technical data are subject to change!) We will be happy to answer any further questions you may have over the phone.

Condition: refurbished (used), Year of construction: 2013, machine/vehicle number: R-00626, load capacity: 20 kg, arm reach: 1,813 mm, controller manufacturer: R-30iB A-Size, teach pendant manufacturer: A05B-2255-C101#EGN, Refurbished FANUC M-20iA/20M manufactured in 2013.04. The robot comes with an R-30iB A-Size controller including iPendant.   Our experts extensively tested the robot, after which we conducted a maintenance service according to the manufacturers’ specifications. The grease is examined for the amount of iron particles, indicating the corresponding axes' condition. Only robots in excellent mechanical condition will be completely refurbished, ensuring a long-term solution for our customers. This enables us to deliver our robots with a warranty term of 12 months as standard!   Brand: FANUC Model: M-20iA/20M Model Number: A05B-1222-B702 Year of Manufacture Robot: 2013.04 Warranty term (months): 12   Payload (kg): 20 Reach (mm): 1813 Repeatability (mm): ± 0.08 Controlled Axes: 6-axis Installation Type: Floor, Upside-down, Wall, Angle Mount Weight (kg): 250   Controller: R-30iB A-Size Year of Manufacture Cabinet: 2013.04 RCC Length (m): 7   Redpfx Aozh Uy Esnpjw Teach Pendant: A05B-2255-C101#EGN Teach Pendant Cable Length (m): 10

Condition: refurbished (used), Year of construction: 2012, machine/vehicle number: R-00625, load capacity: 10 kg, arm reach: 1,420 mm, controller manufacturer: R-30iA Mate, teach pendant manufacturer: A05B-2518-C202#EGN, Refurbished FANUC M-10iA manufactured in 2012.04. The robot comes with an R-30iA Mate controller including iPendant.   Our experts extensively tested the robot, after which we conducted a maintenance service according to the manufacturers’ specifications. The grease is examined for the amount of iron particles, indicating the corresponding axes' condition. Only robots in excellent mechanical condition will be completely refurbished, ensuring a long-term solution for our customers. This enables us to deliver our robots with a warranty term of 12 months as standard!   Brand: FANUC Model: M-10iA Model Number: A05B-1221-B402 Year of Manufacture Robot: 2012.04 Warranty term (months): 12   Payload (kg): 10 Reach (mm): 1420 Repeatability (mm): ± 0.08 Controlled Axes: 6-axis Installation Type: Floor, Upside-down, Wall, Angle Mount Weight (kg): 130   Controller: R-30iA Mate Rsdpfx Anjzh Uyfopew Year of Manufacture Cabinet: 2012.03 RCC Length (m): 7   Teach Pendant: A05B-2518-C202#EGN Teach Pendant Cable Length (m): 10

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, KUKA Robot KR 240-2 2000, Serial Number 910453, Industrial Robot including Control Cabinet 57278 The KUKA KR 240-2 robot is a {axis}-axis robot arm with a payload of 240 kg and a reach of 2700 mm. Manufacturing applications include palletizing. Common applications for the KUKA KR 240-2 include: Additive manufacturing, assembly, dispensing, polishing, material handling, palletizing, and remote TCP. Specification: Rsdpfezh Htdox Anpow Manufacturer: KUKA Model: KR 240-2 2000 Type: Robot Arm Axes: 6 Payload: 240 kg Reach: 2700 mm Repeatability: 0.06 mm Weight: 1267 kg Serial Number: 910453 Control Cabinet: 57278 Year of Manufacture: 02/2008 Used – normal signs of wear. Further details, article numbers and images available upon request. Two-week commissioning guarantee. No further warranty. In addition, spare parts are constantly available in stock. The robot is fully functional and can be inspected on site. Free loading / ex works. The stated amount is net. The legally required VAT of 19% will be added at checkout. You will receive a proper invoice with VAT shown. Collection on site in 74722 Buchen/Hainstadt. Shipping or freight costs vary depending on the quantity, weight and desired delivery conditions. Shipping costs abroad on request – please specify country, city and postcode. Freight costs on request – please provide the delivery address.

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, KUKA KR 240-2 2000 robot, serial number 910452, industrial robot including control cabinet 57273. The KUKA KR 240-2 robot is a {axis}-axis robot arm, with a payload of 240 kg and a reach of 2700 mm. Manufacturing applications include palletizing. Common applications for the KUKA KR 240-2 include: additive manufacturing, assembly, dispensing, polishing, material handling, palletizing, and remote TCP. Specifications: Brand: KUKA Model: KR 240-2 2000 Type: Robot arm Axes: 6 Payload: 240 kg Reach: 2700 mm Repeatability: 0.06 mm Weight: 1267 kg Serial number: 910452 Control cabinet: 57273 Year of manufacture: 02/2008 Used item – shows normal signs of wear. Further details, article numbers, and images available upon request. Two-week start-up guarantee. No further warranty. In addition, spare parts are constantly available in stock. The robot is fully functional and can be inspected. Free loading / ex works. Redpfjzh Hq Nox Anpsw The stated amount is net. The legally required VAT of 19% will be added at checkout. You will receive a proper invoice with VAT shown. Local pickup in 74722 Buchen/Hainstadt. Shipping or freight costs vary depending on the quantity, weight, and desired delivery conditions. Shipping costs to foreign countries upon request – Please provide the country, city, and postal code. Freight costs upon request – Please provide the delivery address.

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, KUKA KR 240 L210-2 2000 Robot, serial number 911888, industrial robot including control cabinet 64961. The KUKA KR 240 L210-2 robot is a {axis}-axis robot arm, with a payload of 210 kg and a reach of 2900 mm. Manufacturing applications include additive manufacturing. Common applications of the KUKA KR 240 L210-2 include: additive manufacturing, assembly, dispensing, polishing, material handling, palletizing, and remote TCP. Specifications Manufacturer: KUKA Model: KR 240 L210-2 2000 Type: Robot arm Axes: 6 Payload: 210 kg Reach: 2900 mm Repeatability: 0.06 mm Weight: 1277 kg Serial number: 911888 Control cabinet: 64961 Year of manufacture: 07/2008 Used item – normal signs of wear. Rodezh Hg Djpfx Anpew Further details, article numbers, and images available upon request. Two weeks commissioning guarantee. No further warranty. In addition, spare parts are constantly available in stock. The robot is fully functional and can be inspected upon request. Free loading / ex works. The stated amount is net. The legally required value-added tax of 19% will be added at checkout. You will receive a proper invoice with VAT shown. Local pickup in 74722 Buchen/Hainstadt. Shipping or freight costs vary depending on the quantity, weight, and desired delivery conditions. Shipping costs to foreign countries upon request – please specify country, city, and postal code. Freight costs upon request – please specify delivery address.

Condition: used, Year of construction: 2011, functionality: unexamined, Equipment: documentation/manual, IRS Robotics® – Reliability as Standard KUKA KL 1500-3 7th Axis Robot Linear Rail – available in several lengths Includes our warranty. Inspected by our in-house robotics engineers. Brand: KUKA Type: KL 1500-3 Currently available lengths (while stocks last): Gross length = 5841 mm Gross length = 5856 mm Gross length = 5869 mm Gross length = 8369 mm Gross length = 12893 mm Gross length = 13899 mm Optional: We can supply the robot with a KUKA robot. Complete with 7th axis drive unit, including the drive in the robot controller, motor, cable chain, grease pump, fully functional and ready to operate. Valid for the following KUKA robot types (availability on request): KR 30 to KR 125 KR 150 Rsdpfjzh Hfyjx Anpow KR 200 KR 360 KR 500 About us: Our daily business is the reliable supply of refurbished A-brand robots: ABB – KUKA – ABB – YASKAWA. Established in 2002. We ship worldwide.

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, KUKA KR 240 L210-2 2000 Robot, Serial Number 912870, Industrial Robot including Control Cabinet 61246 The KUKA KR 240 L210-2 robot is a {axis}-axis robot arm with a payload of 210 kg and a reach of 2900 mm. Manufacturing applications include additive manufacturing. Common applications for the KUKA KR 240 L210-2 include: additive manufacturing, assembly, dispensing, polishing, material handling, palletizing, and remote TCP. Specifications Manufacturer: KUKA Model: KR 240 L210-2 2000 Type: Robot Arm Axes: 6 Payload: 210 kg Reach: 2900 mm Repeatability: 0.06 mm Weight: 1277 kg Serial Number: 912870 Control Cabinet: 61246 Year of Manufacture: 06/2008 Used item – shows normal signs of wear. Further details, article numbers, and images available upon request. Two-week commissioning guarantee. No further warranty. In addition, spare parts are constantly available in stock. The robot is fully functional and can be inspected at any time. Free loading / ex works. The stated amount is net. The legally required value-added tax of 19% will be added at checkout. You will receive a proper invoice with the VAT shown. Collection on site in 74722 Buchen/Hainstadt. Rjdpozh E A Rsfx Anpjw Shipping – or freight costs vary depending on the quantity, weight, and desired delivery conditions. Shipping costs to foreign countries on request – please provide country, city, and postal code. Freight costs on request – please provide the delivery address.

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, KUKA KR 240 L210-2 2000 robot, serial number 910437, industrial robot including control cabinet 56178. The KUKA KR 240 L210-2 robot is a {axis}-axis robot arm, with a payload of 210 kg and a reach of 2900 mm. Manufacturing applications include additive manufacturing. Common applications for the KUKA KR 240 L210-2 include: additive manufacturing, assembly, dispensing, polishing, material handling, palletizing, and remote TCP. Specifications: Manufacturer: KUKA Model: KR 240 L210-2 2000 Type: Robot arm Axes: 6 Payload: 210 kg Reach: 2900 mm Repeatability: 0.06 mm Weight: 1277 kg Serial number: 910437 Control cabinet: 56178 Year of manufacture: 01/2008 Used – normal signs of wear and tear. Further details, article numbers and pictures available upon request. Two-week commissioning guarantee. No further warranty. Rsdpfxjzh Exls Anpow In addition, spare parts are constantly available in stock. The robot is fully functional and can be inspected at any time. Free loading / ex works. The stated amount is net. The legally required VAT of 19% will be added at checkout. You will receive a proper invoice with VAT shown. Collection on site in 74722 Buchen/Hainstadt. Shipping or freight costs vary depending on the quantity, weight and desired delivery conditions. Shipping costs to foreign countries on request – Please specify country, city and postal code. Freight costs on request – Please specify delivery address.

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, KUKA KR 240 L210-2 2000, serial number 913923, industrial robot including control cabinet 60255. The KUKA KR 240 L210-2 robot is a {axis}-axis robot arm with a payload of 210 kg and a reach of 2900 mm. Manufacturing applications include additive manufacturing. Common applications for the KUKA KR 240 L210-2 include: additive manufacturing, assembly, dispensing, deburring, material handling, palletizing, and remote TCP. Specifications Manufacturer: KUKA Model: KR 240 L210-2 2000 Rjdpfozh Equex Anpew Type: Robot arm Axes: 6 Payload: 210 kg Reach: 2900 mm Repeatability: 0.06 mm Weight: 1277 kg Serial number: 913932 Control cabinet: 60255 Year of manufacture: 10/2008 Used – normal signs of wear. Further details, article numbers, and images available upon request. Two weeks commissioning warranty. No further warranty. In addition, spare parts are constantly available in stock. The robot is fully functional and can be inspected at any time. Free loading / ex works. The stated amount is net. The legally required VAT of 19% will be added at checkout. You will receive a proper invoice with VAT shown. Collection on site in 74722 Buchen/Hainstadt. Shipping costs vary depending on the quantity, weight, and desired delivery conditions. Shipping costs to foreign countries upon request – Please specify country, city, and postal code. Freight costs upon request – Please specify the delivery address.

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: KR240L210-2 2000, KUKA KR 240 L210-2 2000 industrial robot, serial number 912406, including control cabinet 60498. The KUKA KR 240 L210-2 robot is a {axis}-axis robot arm, with a payload of 210 kg and a reach of 2900 mm. Manufacturing applications include additive manufacturing. Common applications of the KUKA KR 240 L210-2 include: additive manufacturing, assembly, dispensing, deburring, material handling, palletizing, remote TCP. Specifications Manufacturer: KUKA Rodpezh Ellefx Anpew Model: KR 240 L210-2 2000 Type: Robot arm Axes: 6 Payload: 210 kg Reach: 2900 mm Repeatability: 0.06 mm Weight: 1277 kg Serial number: 912406 Control cabinet: 60498 Year of manufacture: 06/2008 Used item – normal signs of wear. Further details, article numbers, and images available upon request. Two weeks commissioning guarantee. No further warranty. In addition, spare parts are constantly available in stock. The robot is fully functional and can be inspected. Free loading / ex works. The stated amount is net. The legally required VAT of 19% will be added at checkout. You will receive a proper invoice with VAT shown. Collection on site in 74722 Buchen/Hainstadt. Shipping costs vary depending on the quantity, weight, and desired delivery conditions. Shipping costs to foreign countries upon request – please specify country, city, and postal code. Freight costs upon request – please specify the delivery address.

Condition: ready for operation (used), Year of construction: 2019, load capacity: 13 kg, number of axes: 3, This 3-axis WEMO 16-5 eDesign gantry robot was manufactured in 2019. It features a maximum X-axis stroke of 800 mm, a Y-axis stroke of 1,800 mm, and a Z-axis stroke of 4,550 mm, with a maximum handling weight of 13 kg. Designed for injection molding automation and part handling, consider the opportunity to buy this WEMO 16-5 eDesign gantry robot. Contact us for further details. • Robot Type: Gantry Robot (Top Entry Cartesian Robot) • Application: Injection Molding Automation / Part Handling • Machine Size: 250–500 t • Maximum X-Axis Stroke: 800 mm • Maximum Y-Axis Stroke: 1,800 mm • Maximum Z-Axis Stroke: 4,550 mm • Power Supply: 3 × 400 V AC + N + PE • Frequency: 50 Hz • Rated Current: 16 A • Compressed Air Pressure: 6 bar • Programming System: WIPS Redpfx Ajzhv Dxsnpsw • Operating Hours: Approx. 1,000 h • Previous Use: Redundant Backup System • Condition: Dismantled and Stored on Pallets

Condition: like new (used), Year of construction: 2022, functionality: fully functional, machine/vehicle number: 2L11309YZ5725702, overall weight: 12,000 kg, controller manufacturer: SIEMENS, controller model: SIMATIK HMI, teach pendant manufacturer: OTC, input current: 150 A, total length: 10,000 mm, total width: 8,000 mm, total height: 2,700 mm, Equipment: documentation/manual, FEMITEC NV 2102-NEFC welding robot cell - in like-new condition - recorded operating hours: 17 - serial number: 2L11309YZ5725702 - system number: 133504 - including welding robot from manufacturer OTC, type: FD-V210+H2 - with spot welding tongs, as well as cutting and beveling unit from manufacturer BRÄUER, type KAPPUSTAR, and turning devices - controllers and teach pendants from manufacturer OTC, type: FBL-C003006 - permissible ambient temperature: 10 - 45°C - voltage: TN-S 400 VAC - frequency: 50 Hz - fuse rating: 1700 A - rated current: 150 A - operating pressure: 6 bar - including safety enclosure and light curtain system - with operating manual and documentation Collection: upon request Redpfxezht N Eo Anpew FCA D-67677 Enkenbach – loaded onto a truck

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, machine/vehicle number: 76-63678, ABB Robotics IRB 7600-340/2.8 M2004 Robot, Serial No. 76-63678 - Mechanics Only The 7600 is one of the heaviest industrial robots from ABB. This unit was manufactured in 2010. The IRB 7600 is ideal for heavy-duty applications, regardless of the industry. Typical applications include handling heavy tools, rotating car bodies, lifting engines, handling heavy parts in foundries or forging plants, loading and unloading machine cells, and handling large and heavy pallet loads. This robot comes with the IRC5 M2004 controller (the fifth generation of the ABB control system), which features the following: FlexPendant The FlexPendant features a clear, color-based touchscreen design and a 3D joystick for intuitive interaction. Powerful, customized application support enables the loading of: RAPID programming language RAPID programming offers the perfect combination of simplicity, flexibility, and performance. It is a truly unlimited language with support for structured programs, shop floor language, and advanced features. It also provides powerful support for many process applications. Communication The IRC5 supports the most modern fieldbuses for I/O and is a well-functioning node in any plant network. Sensor interfaces, remote hard drive access, and socket messaging are examples of the many powerful network functions. Motion Control The IRC5 supports the most modern fieldbuses for I/O and is a well-functioning node in any plant network. Sensor interfaces, remote hard drive access, and socket messaging are examples of the many powerful network functions. Applications Arc welding, spot welding, press tending, palletizing, loading and unloading parts, machining, parts handling, polishing, measurement, parts assembly, laser welding Nd:Yag, gluing - bonding, plasma cutting, advanced manufacturing General Specifications • Maximum robot payload: 340 kg • Number of axes: 6 • Maximum reach: 2800 mm • Repeatability: 0.3 mm • Controller: IRC5 M2004 Robot motion speed (degrees per second) • Axis 1: 75 °/s • Axis 2: 50 °/s • Axis 3: 55 °/s • Axis 4: 100 °/s Redpfxszhttws Anpjw • Axis 5: 100 °/s • Axis 6: 160 °/s Robot motion range • Axis 1: ± 180 ° • Axis 2: +85 ° to -60 ° • Axis 3: ± 60 ° to -180 ° • Axis 4: ± 300 ° • Axis 5: ± 100 ° • Axis 6: ± 300 ° Used item – shows normal signs of wear. Further details, article numbers, and images available upon request. Two-week commissioning guarantee. No further warranty. In addition, spare parts are constantly available in stock. The robot is fully functional and can be inspected at any time. Free loading / ex works. The stated amount is net. The statutory VAT of 19% will be added at checkout. You will receive a proper invoice with VAT shown. Collection on site in 74722 Buchen/Hainstadt. Shipping or freight costs vary depending on quantity, weight, and desired delivery terms. Shipping costs to foreign countries upon request – please provide country, city, and postal code. Freight costs upon request – please provide delivery address.

Condition: excellent (used), functionality: fully functional, ABB Robotics IRB 6640-205/2.75 M2004 robot, serial number 66-75601 - mechanics only. This ABB robot is an ABSOLUTE ACCURACY machine. The ABB Robotics IRB 6640 M2004 is a robot designed for various applications, with a focus on high production capacity. It features an extension of 2750 mm. The payload of 205 kg makes the robot suitable for many heavy-duty applications. Enhanced path performance: The IRB 6640 incorporates TrueMove and QuickMove of the second generation. This gives the robot more precise movements, ultimately resulting in less programming time and a better process result. Easier installation and simple maintenance: Various new features, such as simplified stacking pockets and more space in the robot base. Easy maintenance. Almost 400 kg less weight simplifies assembly. Equipped with the latest IRC5 controller. Applications: Spot welding, press tending, palletizing, loading and unloading of parts, machining, parts handling, measurement, assembly of parts, gluing - bonding Robot Information: • Maximum robot load: 205 kg • Maximum reach: 2750 mm • Repeatability: 0.1 mm • Controller: IRC5 M2004 Robot Applications: • Spot welding • Press tending • Material handling • Machine tending • Palletizing • Assembly Used item – normal signs of wear and tear. Further details, article numbers, and images available upon request. Two-week commissioning guarantee. No further warranty. In addition, spare parts are constantly available in stock. The robot is fully functional and can be inspected on site. Free loading / ex works. Rsdpfezhtrajx Anpjw The stated amount is net. The legally required VAT of 19% will be added at checkout. You will receive a proper invoice with VAT shown. Collection on site in 74722 Buchen/Hainstadt. Shipping or freight costs vary depending on the quantity, weight, and desired delivery conditions. Shipping costs to foreign countries upon request – Please provide country, city, and postal code. Freight costs upon request – Please provide delivery address.

Condition: excellent (used), Year of construction: 2010, operating hours: 16,184 h, functionality: fully functional, machine/vehicle number: 76-63839, ABB Robotics IRB 7600-325/3.1 M2004 robot, serial number 76-63839 (16,184 operating hours) - mechanics only The 7600 is one of ABB's heaviest industrial robots. This unit was manufactured in 2010. The IRB 7600 is ideal for heavy-duty applications, regardless of the industry. Typical applications include handling heavy fixtures, rotating car bodies, lifting engines, handling heavy parts in foundries or forging plants, loading and unloading machine cells, and handling large and heavy pallet loads. This robot is supplied with the IRC5 M2004 controller (fifth generation of the ABB control system), which features the following: FlexPendant The FlexPendant features a clear, color-based touchscreen design and a 3D joystick for intuitive interaction. Powerful, customized application support enables the loading of RAPID programming language RAPID programming offers the perfect combination of simplicity, flexibility, and performance. It is a truly unlimited language with support for structured programs, shop floor language, and advanced features. It also provides powerful support for many process applications. Communication The IRC5 supports the most modern fieldbuses for I/O and is a well-functioning node in any plant network. Sensor interfaces, remote hard drive access, and socket messaging are examples of the many powerful network functions. Motion control The IRC5 supports the most modern fieldbuses for I/O and is a well-functioning node in any plant network. Sensor interfaces, remote hard drive access, and socket messaging are examples of the many powerful network functions. General specification • Maximum robot load: 325 kg • Number of axes: 6 • Maximum reach: 3100 mm • Repeatability: 0.3 mm • Controller: IRC5 M2004 Robot motion speed (degrees per second) • Axis 1: 75 °/s • Axis 2: 50 °/s • Axis 3: 55 °/s • Axis 4: 100 °/s • Axis 5: 100 °/s • Axis 6: 160 °/s Robot motion range • Axis 1: ± 180 ° • Axis 2: +85 ° to -60 ° • Axis 3: ± 60 ° to -180 ° • Axis 4: ± 300 ° • Axis 5: ± 100 ° • Axis 6: ± 300 ° Used item – normal signs of wear and tear. Further details, article numbers, and images available upon request. Two-week commissioning guarantee. No further warranty. Spare parts are constantly available in stock. The robot is fully functional and can be inspected. Rsdpfxszhtn Ue Anpsw Free loading / ex works. The stated amount is net. The statutory VAT of 19% will be added at checkout. You will receive a proper invoice with VAT shown. Collection on site in 74722 Buchen/Hainstadt. Shipping or freight costs vary depending on the quantity, weight, and desired delivery conditions. Shipping costs to foreign countries on request - please provide the country, city, and postal code. Freight costs on request - please provide the delivery address.

Condition: excellent (used), Year of construction: 2012, functionality: fully functional, machine/vehicle number: 6640-109036, ABB Robotics IRB 6640-205/2.75 M2004 Robot, Serial No. 6640-109036 - Mechanics Only This ABB robot is an ABSOLUTE ACCURACY machine. The ABB IRB 6640 M2004 205 kg is a robot designed for various applications, focusing on high production capacity. It has an extension of 2750 mm. The 205 kg payload makes the robot suitable for many heavy-duty applications. Enhanced path performance: The IRB 6640 features second-generation TrueMove and QuickMove. This gives the robot more precise movements, ultimately resulting in less programming time and a better process result. Easier installation and simple maintenance: Various new features such as simplified stacking pockets and more space in the robot base. Easy maintenance. Nearly 400 kg less weight simplifies assembly. Equipped with the latest IRC5 controller. Applications Spot welding, press tending, palletizing, loading and unloading of parts, machining, part handling, measurement, assembly of parts, gluing/bonding Robot Information • Maximum robot load: 205 kg • Maximum reach: 2750 mm • Repeatability: 0.1 mm • Controller: IRC5 M2004 Year of manufacture: 2012 Robot Applications Rsdpfxozhtlye Anpjw • Spot welding • Press tending • Material handling • Machine tending • Palletizing • Assembly Used item – normal signs of wear. Further details, article numbers and images available upon request. Two-week commissioning guarantee. No further warranty. In addition, spare parts are constantly available in stock. The robot is fully functional and can be inspected on request. Free loading / ex works. The stated amount is net. The legally required VAT of 19% will be added at checkout. You will receive a proper invoice with VAT shown. Collection on site in 74722 Buchen/Hainstadt. Shipping costs vary depending on the quantity, weight and desired delivery conditions. Shipping costs to foreign countries on request – please provide country, city and postcode. Freight costs on request – please provide delivery address.
