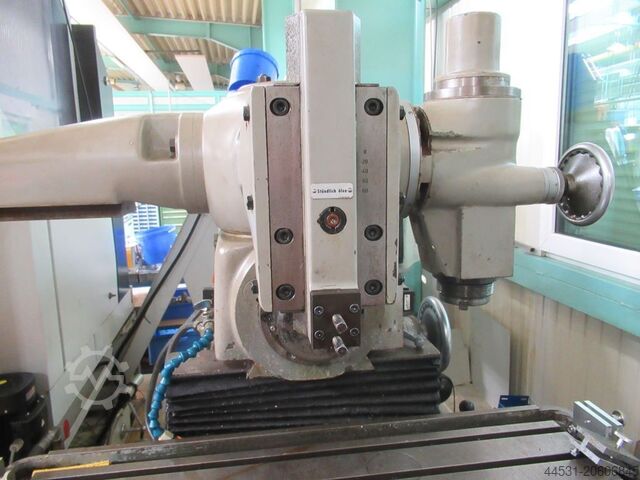

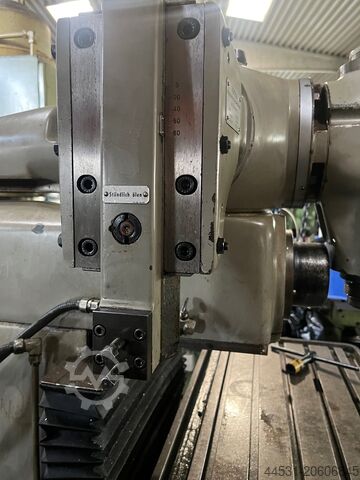

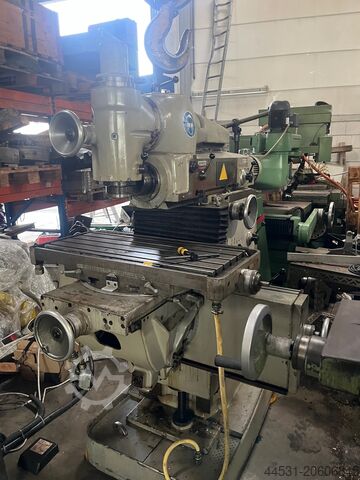

Condition: ready for operation (used), Year of construction: 2010, Universal milling machine with slotting head SHW Nodpsxy N N Sefx Ah Djdd Type UF 1 Year of manufacture: 1970 Retrofit: 2010 Table: 700 x 310 mm Travel X/Y/Z: 550/340/420 mm Spindle mount: SK 40 Spindle speeds: 46 – 2200 rpm Quill stroke: 80 mm Slotting stroke: 200 mm Feeds: 12 – 254 mm/min Weight: 2 t SK 40 tool holders Hydraulic vise Weight: 2 t Price: EUR 2,500.— plus VAT ex location

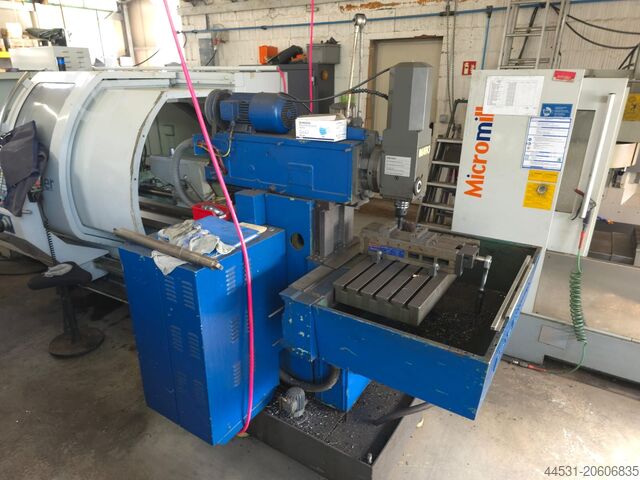

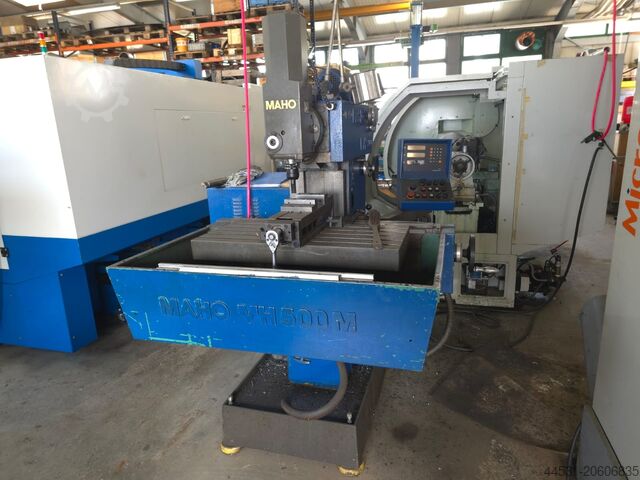

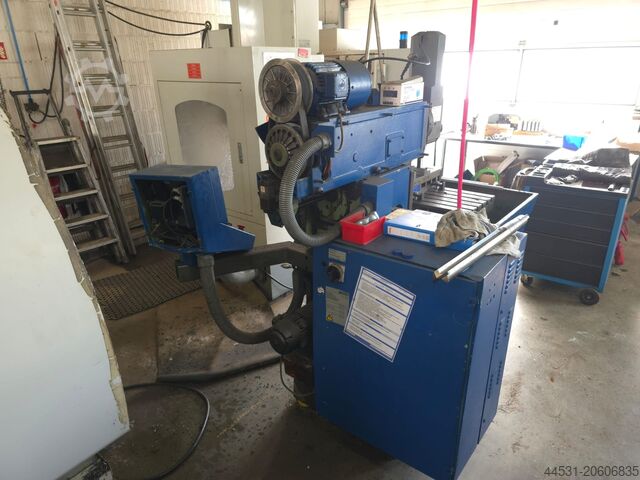

Condition: ready for operation (used), Year of construction: 1989, Available immediately from location: MAHO Toolroom Milling Machine Type MH 500 M Year of manufacture 1989 Ndedpfx Aoxy N Nxjh Djd Heidenhain Digital Display Table 800 x 360 mm SK 40 Spindle speeds 63 – 4000 rpm Quill stroke 50 mm Travel X/Y/Z 500/380/350 mm Drive 3 kW Feed rates 10 – 1000 mm/min Coolant system Weight 1600 kg Adapters Hydraulic vise Price: €3,000 plus VAT, ex location

Condition: good (used), BOHNER & KOHLE 'BOKO F63.100' 6-AXIS UNIVERSAL VERTICAL MILLING & BORING MACHINE WITH NUTECH MACHINE SERVICES CONTROL UKUK X' Axis: Approx 2,400mm; 'Y' Axis: Approx 1,200mm; 'Z' Axis: Approx 1,300mm; 'W' Axis: Approx 300mm; 'C' Axis: Full Rotation x 'B' Axis +/- 90°; Table Dimensions Approx 1,800mm x 1,200mm; Max Table Load Approx 7,500kg; ISO 50 Taper; Spindle Head Swivel Left & Right; Spindle Speeds Approx 22-3150 RPM; Max Workpiece Height Approx 1,000mm; Rotating Work Table. Ndedpfxexyp Two Ah Dod

Condition: used, Year of construction: 1988, Tool CNC Milling Machine HERMLE type UWF 1000 CNC Year of construction: 1988 Travel X: 700 mm Travel Y: 550 mm Travel Z: 500 mm Numerical Command: HEIDENHAIN TNC 155 Spindle ISO 40 Spindle: Ø 70 mm Spindle speed: from 25 to 3150 RPM Njdpfsxxpw Tox Ah Dedd Table size: 1000 x 500 mm Vertical sleeve travel: 100 mm Swivel head Spindle motor: 6,9 kW Weight: 3,3 T

Condition: ready for operation (used), Year of construction: 1985, functionality: fully functional, Hermle UWF 600 H Milling Machine | SK40 | 3-Axis Automatic | Precision Machine Hermle UWF 600 H Year of manufacture: 1985 CNC Control: SIEMENS 810 Ndedpoxxk Rzsfx Ah Ded — Work Area (Travel and Distances) • Vertical distance spindle head to worktable, upright: 180 / 530 mm • Vertical distance spindle head to column plate, upright: 49 / 370 mm • Distance spindle head to spindle saddle front: 36 mm • Distance table center to lower edge of tailstock: 74 mm • Vertical distance spindle head to counter bearing: 190 / 265 mm • Distance cutter to conversion and tailstock: 160 mm • Distance table center to spindle saddle front: 155 mm • Distance vertical spindle head to center of milling table: 165 mm • Vertical distance vertical spindle head to clamping surface table: 114 / 464 mm • Swivel range of spindle head bearing: ± 90° • Quill stroke: 85 mm – extendable — Axis Movements • Longitudinal travel: 400 mm • Cross travel of spindle saddle: 330 mm • Vertical travel: 400 mm • Axis movements: automatic — Spindle & Taper • Milling spindle in front bearing: 50 mm • Clamping system: SK40 DIN 69871, compatible with DIN 69872 Also usable with drawbar ANSI B5.50 (ISO 7388/28) — Table & Clamping Elements • Vertical clamping table: 410 × 265 mm • Clamping surface of angle table: 630 × 330 mm • T-slots: 5 pcs, width 14H7 mm • Distance vertical clamping table to T-slot bottom: 47 mm • Distance vertical clamping table to column plate: 160 mm • Universal clamping table (option): Order No. 356 or 606039 • NC rotary table, 4th axis, manually tiltable and swiveling (option): Ø 350 mm — Additional / Special Equipment (marked 'X' if present) • Splash guard enclosure with safety doors • Measuring probe system Optionally listed: • Tailstock with counter bearing • High-frequency spindle • Intermediate gearbox for operation of horizontal and vertical spindle — Application Range (as per documentation) • Single-part production and toolmaking • Complex CNC milling operations The Hermle UWF 600 H is a robust, precise, and universally applicable production and toolroom milling machine, ideal for demanding single parts as well as tool and fixture construction. With SK40 tool taper, automatic axis feeds, and versatile adjustment options, this machine offers high flexibility for both horizontal and vertical milling tasks. Thanks to the swiveling spindle head, large clamping surfaces, and optional equipment such as rotary and angle tables, the UWF 600 H is perfectly suited for complex milling tasks, model making, repair work, as well as precise small batch production. The machine impresses with its solid construction, reliable mechanics, and a proven machine design – ideal for workshops, engineering companies, training facilities, repair shops, or prototype development.

Condition: ready for operation (used), Year of construction: 2011, Feeler QMP-23A 5 Axis Vertical Machining Centre Model: QMP-23A Fanuc Series Oi-MD Control Remote Electronic Handwheels 5 Axis Trunnion Table Travels: X: 580mm (48m/min) Y: 420mm (48m/min) Z: 510mm (48m/min) Spindle Nose to Table Surface: 80 – 590mm Spindle Centre to Column Surface: 510mm Table Surface to Floor 820mm Table Centre to Column Surface: 245 – 665mm GANRO TR-150S (TRS Range) Y Axis Tilting Rotary Table 150mm Capacity YOM: 2015 Nsdjxxbzwspfx Ah Dedd *For sale with Jet Machinery Ltd* Stock No: 79001 Serial No: VKC064 Price: £24,950.00 + VAT Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details. Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.

Condition: used, Year of construction: 1987, Universal CNC Milling Machine CNC MAHO MH 400 E Ndodpfxjxxa A He Ah Ded Travel X: 400 mm Travel Y: 375 mm Travel Z: 250 mm Numerical Command CNC PHILIPS 432 Table: 700 x 270 mm Cone: SA40 Spindle speed: from 80 to 4000 RPM Year of construction: 1987 Central lubrication Manually swivel head Supplied with doc + machine parameters Voltage: 380 V Width: 2200 mm Depth: 2000 mm Total height: 2000 mm Weight: approx 1,5 T

Condition: used, Year of construction: 1989, Universal CNC Milling Machine MAHO MH 600 E2 Travel X: 600 mm Travel Y: 400 mm Travel Z: 450 mm Numerical Command CNC PHILIPS 432 Cone SA40 Spindle speed: from 20 to 4000 RPM Table size: 900 x 480 mm TravelSpindle sleeve travel: 80 mm Year of construction: 1989 1 lubricant tank Voltage: 380 V Width: 2500 mm Depth: 2400 mm Total height: 2000 mm Weight: approx 3,5 T Nedpfx Ahjxxa Amo Dodd

Condition: good (used), Year of construction: 1991, functionality: fully functional, CNC Tool Milling Machine HERMLE UWF 900 W Year of manufacture: 1991 Control: Heidenhain TNC 360 X-axis travel: 600 mm Y-axis travel: 400 mm Z-axis travel: 420 mm Spindle taper ISO: SK 40 Vertical quill stroke: 75 mm Speed range: 20 ... 4000 rpm Spindle head swivels left and right: 90° left / right Feed rate X/Y/Z: 1...6000 mm/min Rapid traverse X/Y: 7 m/min + Z: 6 m/min Table size: 900 x 460 mm Table load capacity: 400 kg Total power requirement: 13 kW Machine dimensions (approx.) LxWxH: 4.0 x 3.8 x 2.0 m Weight (approx.): 2300 kg Equipment: Nedoxw Sd Tepfx Ah Dsdd - Separate production cell - Coolant system - Swivelling control panel with arm - Heidenhain SK 40 touch probe - Handwheel

Condition: defective spare-parts repository (used), Maho MH 600 W Ndedpfoxwpyrjx Ah Dsd from training workshop, exceptionally well-maintained Dimensions Machine depth: 1800 mm Machine height: 2200 mm Machine weight: 3000 kg Table length: 900 mm Table width: 480 mm Travels X-axis travel: 600 mm Y-axis travel: 400 mm Z-axis travel: 400 mm

Condition: good (used), Year of construction: 2001, functionality: fully functional, Kunzmann WF 7 CNC milling machine TNC 410 control Manufacturer: Kunzmann Type: WF 7 Year of manufacture: 2001 Condition: used, under power Control: Heidenhain TNC 410 X-path 610 Y-path 400 Z-path 400 SK 40 housing Speed 1-5000rpm Tilt/swivel table Scope of delivery: - Underlays - Various tool holders Njdpjxwl Ufsfx Ah Djdd

Condition: excellent (used), Year of construction: 2009, operating hours: 12,959 h, functionality: fully functional, travel distance X-axis: 650 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 450 mm, spindle speed (max.): 12,000 rpm, total height: 2,450 mm, total width: 2,400 mm, total length: 3,100 mm, table width: 630 mm, table length: 630 mm, table load: 350 kg, overall weight: 6,800 kg, Kunzmann WF 650 5-Axis Simultaneous Machining Center (2009) Manufacturer: Kunzmann Type: WF 650 5-Axis Simultaneous Machining Center Year of manufacture: 2007 Commissioned: 2009 Condition: Used, very good Machine ON: 46,181 h Spindle hours: 12,959 h Control: Heidenhain iTNC 530 Software Package 1 for iTNC 530 X-axis 650 mm Y-axis 500 mm Z-axis 450 mm Vertical milling head tilting range: -5° + 95° NC built-in rotary table Ø 630 mm Table load: 350 kg Spindle speed: 12,000 rpm Tool holder: SK40 Tool changer with 20 spindles Tools Internal coolant supply: Tool clamp with coolant supply and blow-out device through the spindle. Flow rate 25 l/min at 40 bar Optional water/air through the spindle Paper belt filter Controlled CNC milling head (B-axis) Mounting kit for TS 640 probe head 3D probe with infrared transmission Dimensions LxWxH approx.: 3.1 x 2.4 x 2.45 m Weight approx. 6,800 kg Coolant system LxWxH approx.: 1.6 x 2.00 x 0.50 m Njdexwl T Ujpfx Ah Djdd Scope of delivery: – Documentation – Machine feet – Machine light

Condition: excellent (used), Year of construction: 2015, functionality: fully functional, travel distance X-axis: 500 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 400 mm, spindle speed (max.): 12,000 rpm, spindle speed (min.): 20 rpm, 1 universal milling machine DMG-MORI DMU 50 Eco 3+2 Year 2015 Travel X/Y/Z: 500 mm x 450 mm x 400 mm Control: Heidenhain TNC 620 Motor spindle SK 40 with 12,000 rpm Swivel rotary table with digital drives, B-axis (-50°/110°), C-axis 360° 32-position tool changer with double gripper Direct measuring system for X/Y/Z Ndodpfsxv D E Tox Ah Ded Production package: internal coolant supply, chip conveyor, rinsing gun Coolant/air blast switching via M-function Electronic handwheel Infrared measuring probe Heidenhain TS 649

Condition: excellent (used), Tool milling machine Manufacturer: Mikron Ndsdpfexvr Trox Ah Ded Model: WF 3 DP Three-axis Heidenhain digital readout Tool holder: SK 40 24 spindle speeds: 30 – 2240 rpm Infinitely variable feeds, from 1 – 750 mm/min Table clamping surface: 450 x 800 mm X travel: 500 mm Y travel: 500 mm Z travel (vertical): 400 mm Hydraulic tool clamping Space requirements: Width: 1800 mm Depth: 1700 mm Height: 2000 mm (with pallet) Weight: 1800 kg

Condition: good (used), Year of construction: 1995, 3-axis machining center HERMLE UWF 902 H, no. 10979, year of manufacture 1995, HEIDENHAIN control, weight 4,500 kg, designated for retrofit, known damages/defects: tool changer not operational (no longer mapped in the control system). Ndsdpfoxva Scsx Ah Dod

Condition: used, Year of construction: 2019, High-speed milling machine OPS Ingersoll HighSpeed EAGLE V9, year 2019, with excellent equipment and extensive accessories is offered for sale. - Dynamic 5-axis high-speed milling machine with Heidenhain TNC 640, HSK50 spindle (Step-Tec) with up to 36,000 rpm - Very good condition, currently only approx. 10,000 operating hours - Special features such as wet milling option for graphite electrodes (coolant filtration system) and automation preparation for pallet changer - Extensive accessories including shrink-fit device (HAIMER), screw compressor (Atlas Copco), EROWA pallets UPC 320, T-slot table 520 x 520 mm, LANG clamping devices, shrink-fit chucks, tools, workshop equipment and workbenches (see accessories list) Nsdpsxvaatefx Ah Djdd

Condition: used, Year of construction: 2019, High-speed milling machine OPS Ingersoll HighSpeed EAGLE V9, year 2019, featuring excellent equipment and an extensive range of accessories for sale. Njdpfx Ahexu U Uve Dedd - Dynamic 5-axis high-speed milling machine with Heidenhain TNC 640, HSK50 spindle (Step-Tec) with up to 36,000 rpm - Excellent condition, currently only about 10,000 operating hours - Special features such as wet milling option for graphite electrodes (coolant filtration system) and pre-installation for automation with pallet changer - Extensive accessories including shrink fit machine (HAIMER), screw compressor (Atlas Copco), EROWA pallet UPC 320, T-slot table 520 x 520 mm, LANG clamping systems, shrink fit chucks, tools, workshop equipment, and workbenches (see accessories list)

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, Tool Milling Machine Kunzmann WF4/3 with Heidenhain TNC 320 CNC Control – Excellent Condition, CE-Compliant, from Training Workshop! Technical Specifications: • Year of manufacture: 2010, Machine No. 347283 • Fixed angular table • Infinitely variable spindle speed up to 4,500 rpm • Infinitely variable feed in 3 axes from 0 to 2,000 mm/min • Rapid traverse X and Y axis: 5,000 mm/min Z axis: 4,000 mm/min • Travel X/Y/Z: 400/350/400 mm • Table size: 650 x 350 mm • Table load capacity: 250 kg • Vertical quill stroke: 60 mm • Vertical and horizontal quill – SK40 taper • Hydraulic clamping system • Weight approx. 1,800 kg • Space requirement approx.: 2.3 x 2 x 2 m • Drive power: 15 KVA Accessories and Equipment: • Heidenhain TNC 320 CNC control • Hydraulic clamping, vertical and horizontal • Automatic central lubrication • Spindle brake • Technical documentation, spare parts diagrams, control manuals and programming examples • Handwheels • Coolant system • Electronic handwheel HR410 About the Machine: Njdoxuppujpfx Ah Djdd Offered for sale is a Kunzmann WF4/3 tool milling machine with Heidenhain TNC 320 CNC control. This universal milling machine is in excellent condition and has seen very few operating hours. It comes from a facility where it was used exclusively for training purposes. The control is very user-friendly. Additionally, the machine features hydraulic clamping both vertically and horizontally. Changing from vertical to horizontal operation is very straightforward by swinging away the vertical head. The ways are regularly lubricated via the central lubrication system. The Kunzmann has been mechanically and electrically inspected by us. You are welcome to view and test the Kunzmann on-site under power. There are 7 units of Kunzmann WF4/3 with the TNC 320 Heidenhain milling machines available. The machines are available immediately.

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, Tool Milling Machine Kunzmann WF4/3 with Heidenhain TNC 320 Contour Control, Excellent Condition, CE Certified, from Training Workshop!! Technical Data: Ndodpfx Ahjxupd So Dsd >> Year of Manufacture: 2010 Machine No.: 347281 >> Fixed angle table >> Infinitely variable spindle speed up to 4500 rpm >> Infinitely variable feed rate in 3 axes from 0 to 2000 mm/min >> Rapid traverse X and Y axis: 5000 mm/min Z axis: 4000 mm/min >> Travel (X/Y/Z): 400/350/400 mm >> Table size: 650 x 350 mm >> Table load capacity: 250 kg >> Vertical quill stroke: 60 mm >> Vertical and horizontal quill - SK40 >> Hydraulic clamping system >> Weight approx. 1800 kg >> Space requirements: approx. 2.3 x 2 x 2 m >> Drive power: 15 KVA Accessories & Equipment: >> Heidenhain TNC 320 contour control >> Hydraulic clamping vertical and horizontal >> Automatic central lubrication >> Spindle brake >> Technical documentation, spare parts lists, manual for the control and programming examples >> Handwheels >> Coolant system >> Electronic handwheel HR410 About the machine: Offered is a Kunzmann WF4/3 tool milling machine with Heidenhain TNC 320 contour control. This universal milling machine is in excellent condition, having only been used for training purposes and with very few operating hours. The control system is very user-friendly. The machine features hydraulic clamping both vertically and horizontally. Switching from vertical to horizontal operation is very simple, facilitated by folding away the vertical head. The guideways are regularly lubricated via central lubrication. The Kunzmann has been mechanically and electrically inspected by us. Take the opportunity to view and test the Kunzmann under power at our facility. A total of 7 Kunzmann WF4/3 milling machines with TNC 320 Heidenhain control are available. The machines are immediately available.

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, Kunzmann WF4/3 Tool Milling Machine with Heidenhain TNC 320 Path Control – Excellent Condition, CE-Compliant, from Training Workshop! Nedjxupdljpfx Ah Dodd Technical Data: - Year of manufacture: 2010 Machine No. 347284 - Fixed angular table - Spindle speed: Infinitely variable up to 4500 rpm - Feed rate: Infinitely variable in 3 axes from 0 to 2000 mm/min - Rapid traverse X and Y axes: 5000 mm/min - Rapid traverse Z axis: 4000 mm/min - Travel distances X/Y/Z: 400/350/400 mm - Table surface: 650 x 350 mm - Table load: 250 kg - Vertical quill stroke: 60 mm - Vertical and horizontal quill – SK40 - Hydraulic clamping system - Weight approx. 1800 kg - Overall dimensions approx.: 2.3 x 2 x 2 m - Drive power: 15 KVA Accessories and Equipment: - Heidenhain TNC 320 path control - Hydraulic clamping vertical and horizontal - Automatic central lubrication - Spindle brake - Technical documentation, spare parts diagrams, control operating manual, and programming examples - Handwheels - Coolant system - Electronic handwheel HR410 About the Machine: For sale is a Kunzmann WF4/3 tool milling machine equipped with a Heidenhain TNC 320 path control. This universal milling machine is in excellent condition and has very low operating hours. It comes from a facility where it was used exclusively for training purposes. The control system is very user-friendly. Additionally, the machine offers hydraulic clamping both vertically and horizontally. Conversion from vertical to horizontal operation is very straightforward thanks to the folding vertical head. The guides are regularly lubricated by the central lubrication system. The Kunzmann has been mechanically and electrically tested by us. Take advantage of the opportunity to inspect and test the Kunzmann under power on site. Seven units of the Kunzmann WF4/3 with TNC 320 Heidenhain milling machines are available. The machines are ready for immediate delivery.

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, Kunzmann WF4/3 Tool Milling Machine with Heidenhain TNC 320 Path Control – Excellent Condition, CE-Compliant, from a Training Workshop!! Technical Data: >> Year of manufacture: 2010, Machine No. 347285 >> Fixed angle table >> Infinitely variable spindle speed up to 4500 rpm >> Infinitely variable feed on 3 axes from 0 to 2000 mm/min >> Rapid traverse X and Y axis: 5000 mm/min, Z axis: 4000 mm/min >> Travel (X/Y/Z): 400/350/400 mm >> Table surface: 650 x 350 mm >> Table load capacity: 250 kg >> Vertical quill stroke: 60 mm >> Vertical and horizontal quill – SK40 taper >> Hydraulic drawbar system >> Weight approx. 1800 kg >> Required floor space approx.: 2.3 x 2 x 2 m >> Drive power: 15 KVA Accessories and Equipment: >> Heidenhain TNC 320 path control >> Hydraulic clamping, vertical and horizontal >> Automatic centralized lubrication system >> Spindle brake >> Technical documentation, spare parts diagrams, control operating manual, and programming examples >> Handwheels >> Coolant system >> Electronic handwheel HR410 About the Machine: For sale is a Kunzmann WF4/3 tool milling machine equipped with a Heidenhain TNC 320 path control. This universal milling machine is in very good condition and has only a few operating hours. It comes from a facility where it was used exclusively for training purposes. The control system is very easy to operate. Additionally, the machine features hydraulic clamping both vertically and horizontally. Changing from vertical to horizontal operation is straightforward thanks to the fold-away vertical head. The guides are regularly lubricated via the centralized lubrication system. The Kunzmann has been mechanically and electrically tested by us. Take advantage of the opportunity to view and test the Kunzmann under power at our premises. A total of 7 Kunzmann WF4/3 machines with Heidenhain TNC 320 control are available. The machines are available for immediate delivery. Ndedpsxupczsfx Ah Djd

Condition: excellent (used), Year of construction: 2010, feed length X-axis: 650 mm, feed length Y-axis: 500 mm, feed length Z-axis: 475 mm, feed rate X-axis: 6,000 m/min, feed rate Y-axis: 6,000 m/min, feed rate Z-axis: 6,000 m/min, table width: 450 mm, table length: 1,530 mm, X-Axis: 650mm Y-Axis: 500mm Z-Axis: 475mm Table Length: 1530mm Table Width: 450mm Table load: 350 Spindle speeds: 55 - 4000Rpm Feed rate X-Axis:6000mm/min. Feed rate Y-Axis:6000mm/min. Feed rate Z-Axis:3000mm/min. Length: 2300mm Width: 2550mm Height: 2200mm Weight: 2850kg Nsdpfxextmqto Ah Dedd Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: excellent (used), Year of construction: 2010, feed length X-axis: 650 mm, feed length Y-axis: 500 mm, feed length Z-axis: 475 mm, table width: 450 mm, table length: 1,530 mm, table load: 350 kg, X-Axis: 650mm Y-Axis: 500mm Nedpsxtbkuefx Ah Dsdd Z-Axis: 475mm Table Length: 1530mm Table Width: 450mm Table load: 350 Spindle speeds: 55 - 4000Rpm Feed rate X-Axis:6000mm/min. Feed rate Y-Axis:6000mm/min. Feed rate Z-Axis:3000mm/min. Length: 2300mm Width: 2550mm Height: 2200mm Weight: 2850kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: good (used), functionality: fully functional, CNC tool milling machine MIKRON WF 21 C CNC control Heidenhain TNC 155 year of construction 1988 Technical data X: 450 mm Y: 400 mm Z: 400 mm Table size 700 x 350 mm Spindle holder ISO 40 Spindle speed 40-4000 rpm 21 steps Feed 2-3000 mm/min. Rapid traverse X and Y 6000 mm/min. Rapid traverse Z 5000 mm/min. Pinol displacement 90 mm Ndsdpfx Ahoxr Dy Ae Dod Distance table - spindle nose max. 450 mm Main spindle drive 3.3 and 4 kW Space requirement L x W x H 3000 x 2700 x 2000 mm Weight 2400 kg

Condition: used, Year of construction: 1970, functionality: unexamined, MAHO - Universal swivel table Njdpfxexqpfnj Ah Dedd
