Condition: ready for operation (used), Year of construction: 2010, controller manufacturer: FANUC, This ESCO Escomatic EC12 was manufactured in 2010. A Swiss type turning machine, it's ideal for precision and efficiency in small part production. Contact us for more information about this machine. Additional equipment • 3x automatic bar feeders • 1x decoiler unit Machine Benefits Technical Machine Benefits • Bar capacity (through spindle): up to 12 mm • Rated power: 15 kva • Rated current: 32 a • Working voltage: 3-phase, 400v / 50hz • Control voltage: 24v dc • Type of current: ac • Lighting voltage: 24v dc Ihsdpoyar E Refx Ahuet Extra Information 3x identical, fully functional machines available Additional spare parts are also included

Condition: ready for operation (used), Year of construction: 2005, controller manufacturer: FANUC, controller model: Series 18i-TB, This 6-axis STAR MICRONICS SB-16 was manufactured in 2005, featuring a FANUC 18i-TB control unit, a maximum machining diameter of 18 mm, and a length per chucking of 200 mm. It boasts a main spindle speed up to 10000 rpm and dual spindle motor power of 2.2/3.7 kW. If you are looking to get high-quality turning capabilities, consider the STAR MICRONICS SB-16 machine we have for sale. Contact us for more information. Ihodpfxoyaqlve Ahuot Additional equipment • Bar Feeder: Model: FMB MINIMAG 3200/A / Bar Length Capacity: Up to 3200 mm Machine Benefits Technical Machine Benefits • Number of cnc axes: 6 • Cnc axis travel: x1-axis (main gang slide): ~45 mm / y1-axis (cross slide): ~320 mm / z1-axis (main spindle slide): ~205 mm / x2-axis (sub-spindle cross slide): ~100 mm /z2-axis (sub-spindle travel): ~205 mm / c-axis (main and sub-spindle): 360° full contouring • Max. Machining diameter: 18 mm / max. Machining length per chucking: 200 mm • Main spindle speed (max): 10000 rpm / spindle motor power: 2. 2 / 3. 7 kw

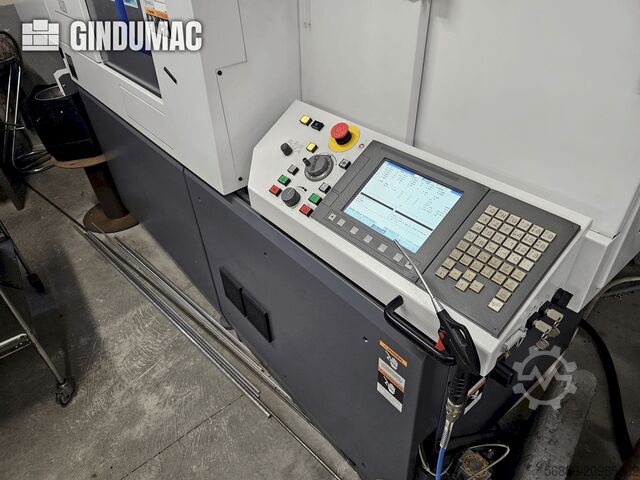

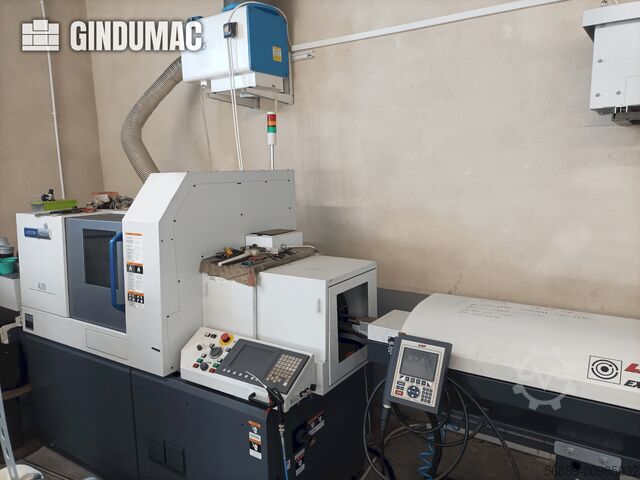

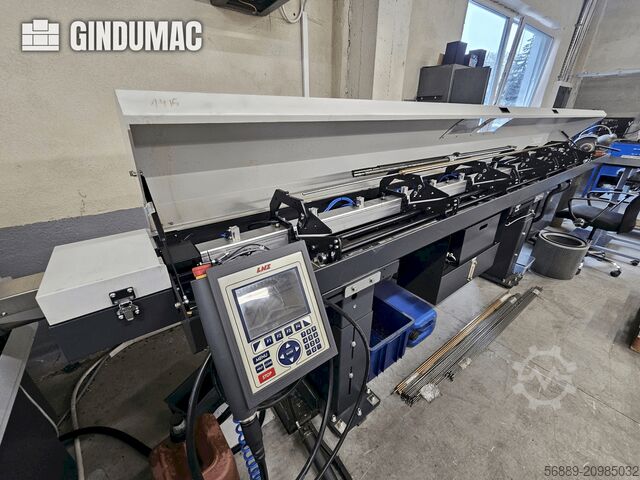

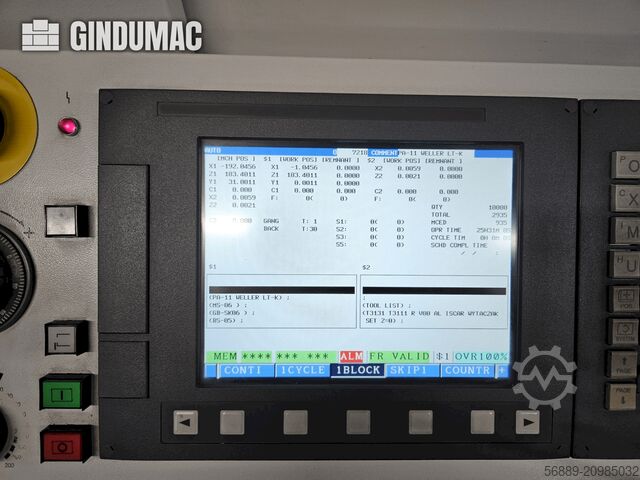

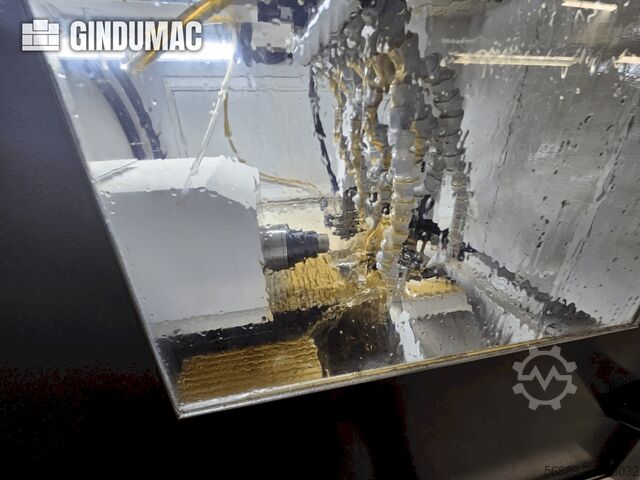

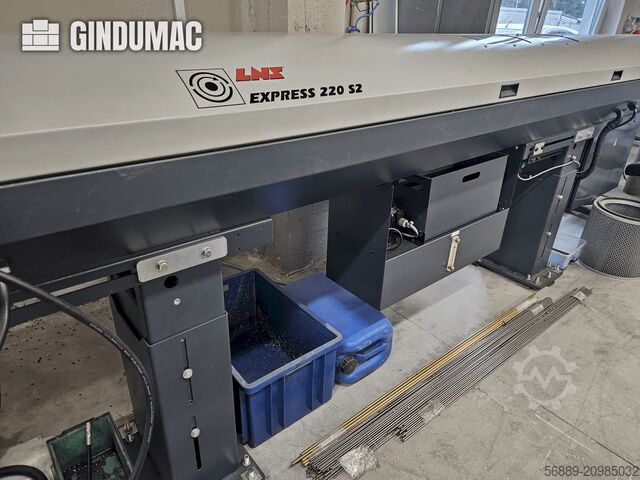

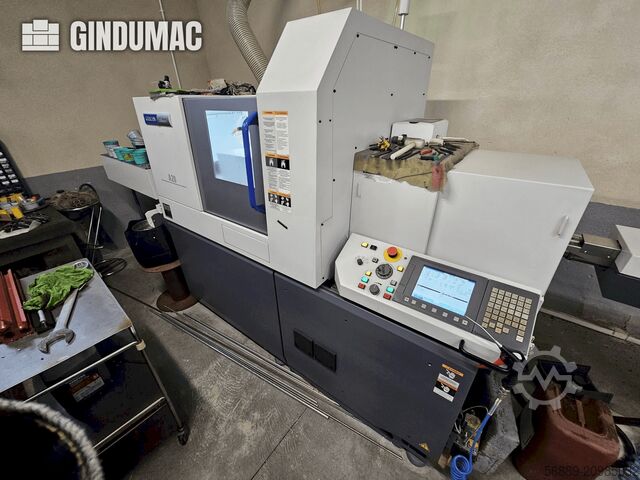

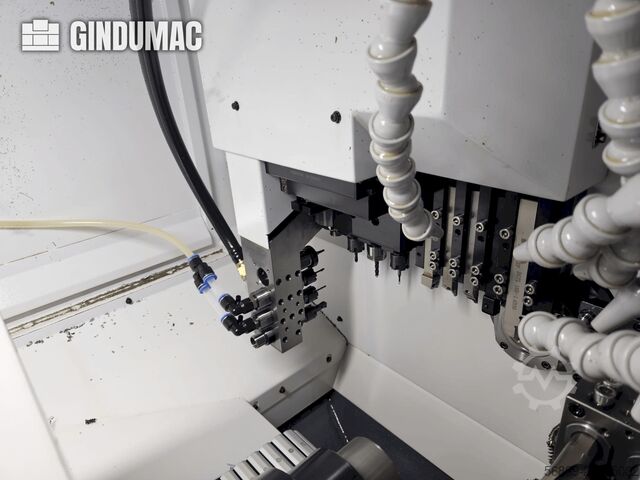

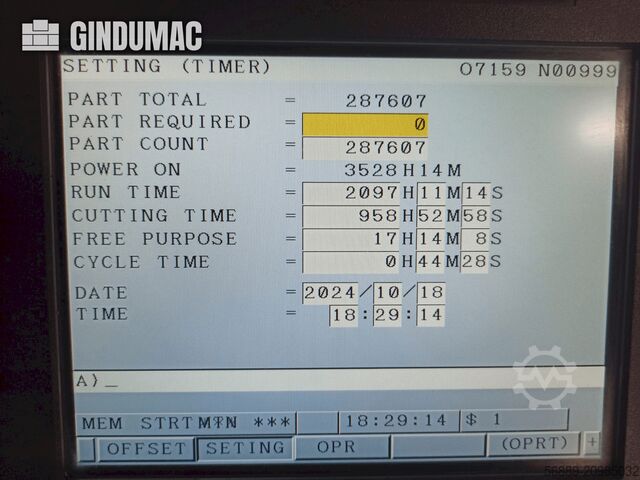

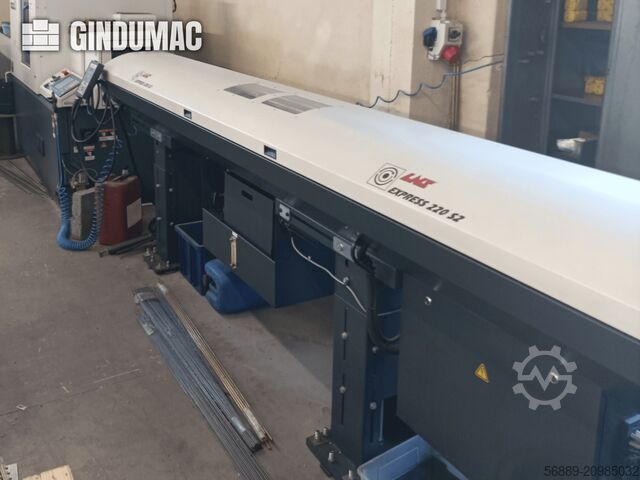

Condition: ready for operation (used), Year of construction: 2018, spindle motor power: 37,000 W, spindle speed (max.): 10,000 rpm, overall weight: 2,300 kg, total height: 1,750 mm, controller manufacturer: CINCOM, number of axes: 6, This 6-axis Citizen Cincom A20 was manufactured in 2018 and features a main spindle with a maximum bar diameter of 20 mm and a speed range up to 10,000 rpm. It includes a sub spindle and driven tools with a tool system supporting up to 21 tools. The machine offers rapid traverse rates up to 32 m/min and comes with an LNS Express 220 bar feeder. Consider the opportunity to buy this Citizen Cincom A20 swiss type turning machine. Contact us for more information. Additional equipment • Bar feeder with magazine for bars up to 3 m • Diameter range: 2–20 mm • Automatic bar change system • Other accessories Machine Benefits Technical Machine Benefits • Rapid traverse: axis x1: 18 m/min axes y1, z1, x2, z2: 32 m/min Extra Information Workpiece Main Spindle: Max bar diameter: 20 mm Max machining length: 200 mm Main spindle drive power: 37 kW Spindle speed range: 10000 rpm Spindle indexing – C-axis: 0001 ° Sub Spindle: Max bar diameter: 20 mm Max pick-off length: 80 mm Sub spindle drive power: 15 kW Spindle speed range: 8000 rpm Spindle indexing – C-axis: 0001 ° Ihsdpfx Ahoyaqhkjuet Tools Driven Tools: Number of tools: 4 Speed range: 6000 rpm Drive power: 075 kW Tool System: Max number of tools: 21 For turning: 5 For drilling (fixed): 4 front / 8 rear Dimensions Machine Depth 2120 mm

Condition: used, Year of construction: 2000, operating hours: 60,000 h, machine/vehicle number: IntNr231375, STAR SA 12 CNC sliding head lathe, year of manufacture 2000 CNC control: FANUC 18i-T Operating hours: 60,000 Ihodpfxeyaptfe Ahuot Technical data - Number of axes: 5 - Number of spindles: 2 MAIN SPINDLE - Max. bar diameter: 12 mm - Z-axis travel: 140 mm - Spindle speed: 8,000 rpm - Spindle drive power: 2.2 kW - Number of tool positions: 13 COUNTER SPINDLE - Max. bar diameter: 10 mm - Spindle speed: 8,000 rpm - Number of tool positions: 4 FMB Minimag bar loader The machine can be inspected under power by prior appointment. Technical data and specifications subject to change and error. Prior sale reserved!

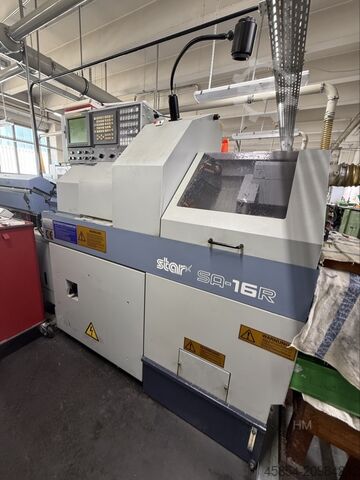

Condition: used, Year of construction: 2007, operating hours: 32,000 h, machine/vehicle number: IntNr231374, STAR SA 16R CNC sliding head lathe, year of manufacture 2007 Isdpfx Ahsyapqweujht CNC control: FANUC 18i-T Operating hours: 32,000 Technical specifications: - Number of axes: 5 - Number of spindles: 2 MAIN SPINDLE - Maximum bar diameter: 16 mm - Z-axis travel: 140 mm - Spindle speed: 8,000 rpm - Spindle drive power: 2.2 kW - Number of tool stations: 13 SUB SPINDLE - Maximum bar diameter: 12 mm - Spindle speed: 8,000 rpm - Number of tool stations: 4 FMB Minimag bar feeder The machine can be inspected under power by appointment. Subject to prior sale. Technical specifications and details are subject to change and error.

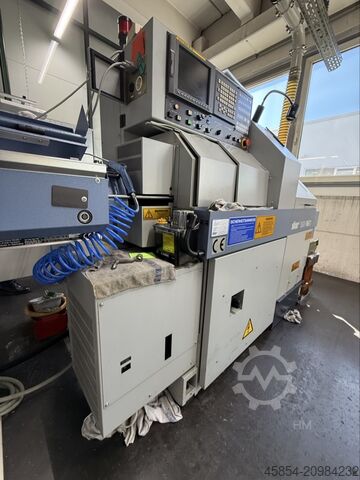

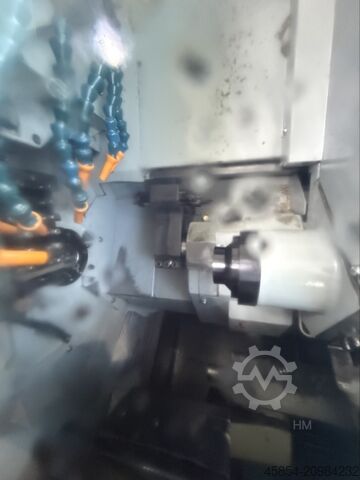

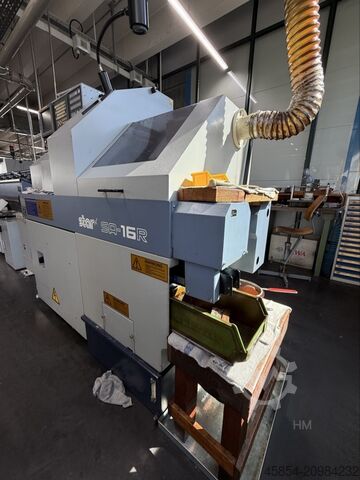

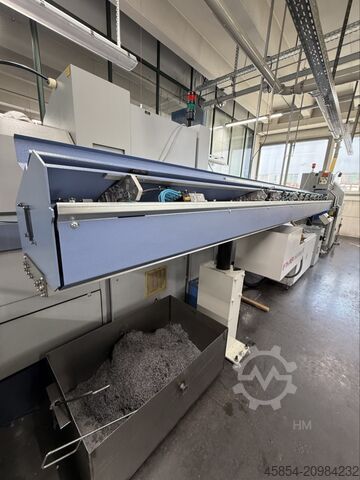

Condition: used, Year of construction: 2007, operating hours: 7,200 h, machine/vehicle number: IntNr231373, STAR SA 16R CNC sliding head lathe, year of manufacture 2007 CNC control: FANUC 18i-T Operating hours: 7,200 Technical specifications: - Number of axes: 5 - Number of spindles: 2 Isdpfx Aheyapqkeujht MAIN SPINDLE - Max. bar diameter: 16 mm - Z-axis travel: 140 mm - Spindle speed: 8,000 rpm - Spindle drive power: 2.2 kW - Number of tool positions: 13 COUNTER SPINDLE - Max. bar diameter: 12 mm - Spindle speed: 8,000 rpm - Number of tool positions: 4 FMB Minimag bar feeder The machine can be inspected under power by appointment. All technical data and details are subject to change and errors. Prior sale reserved!

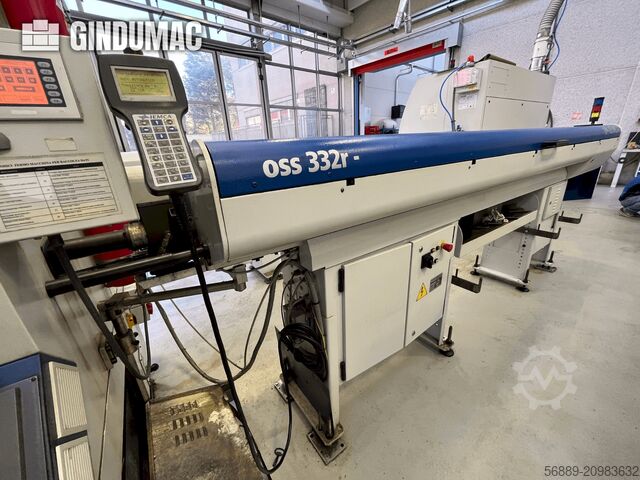

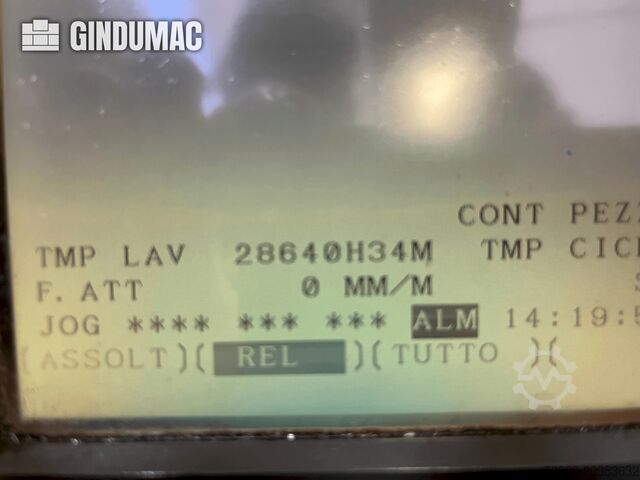

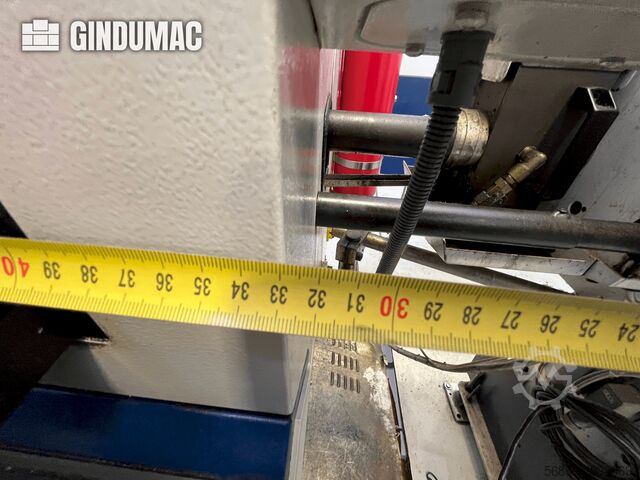

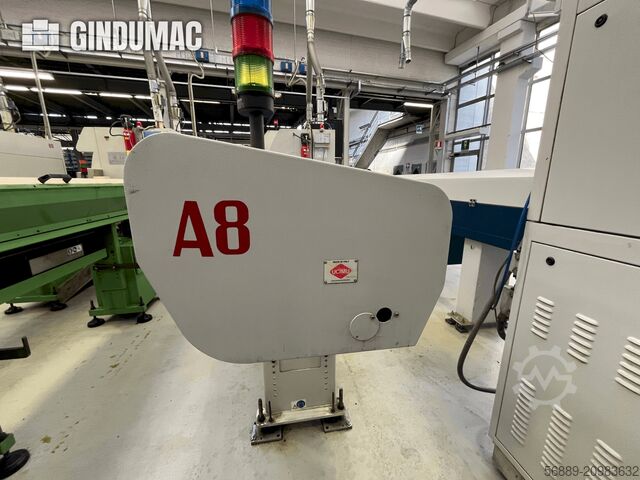

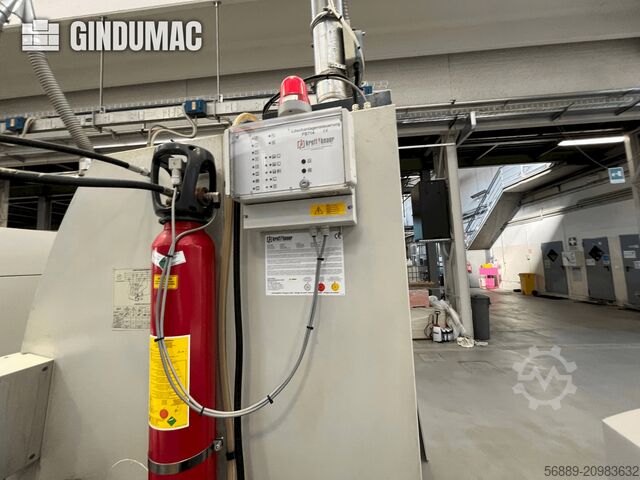

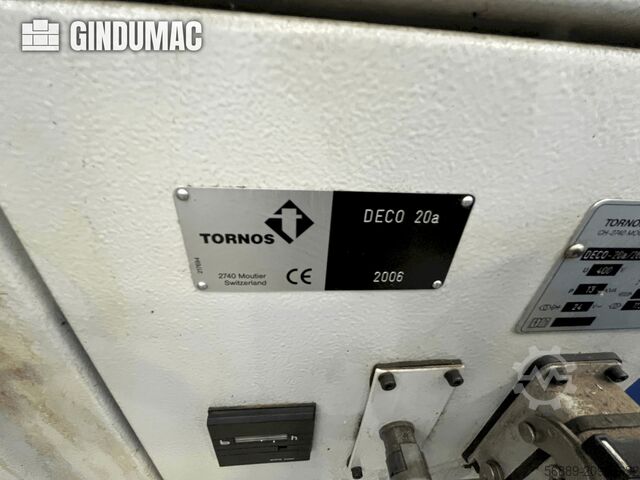

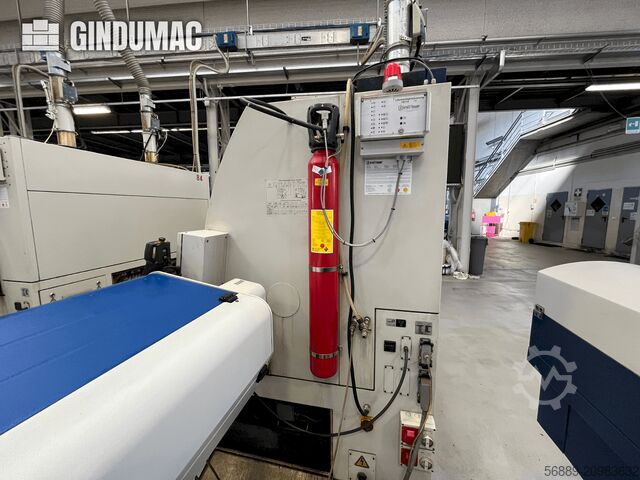

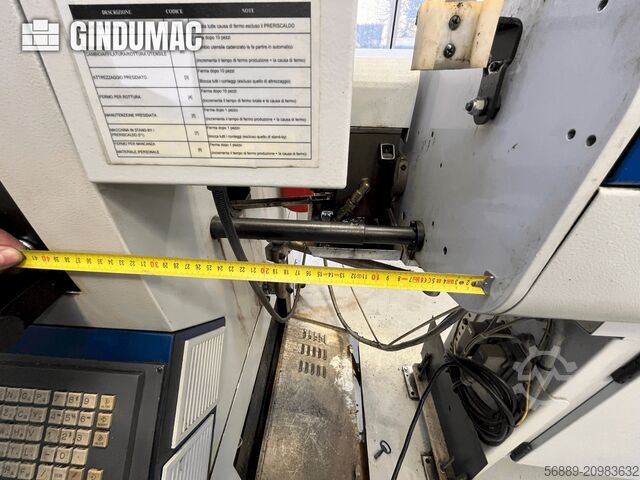

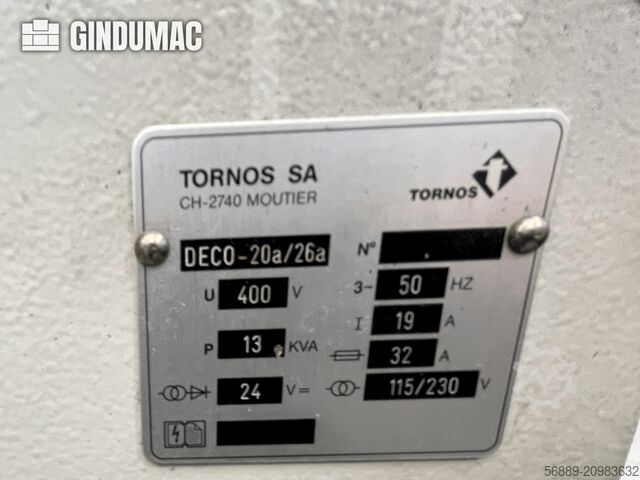

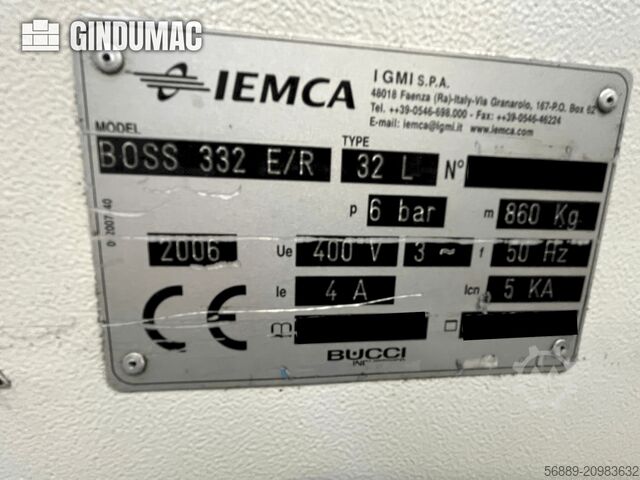

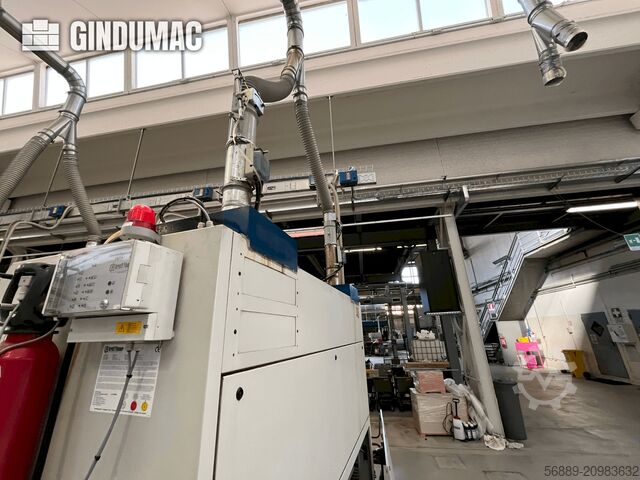

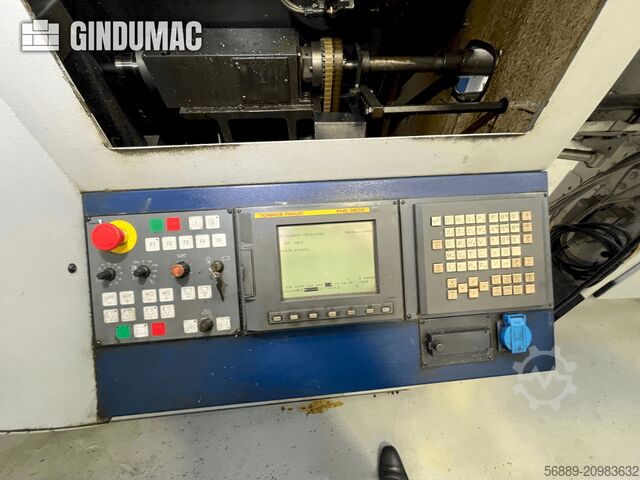

Condition: ready for operation (used), Year of construction: 2006, operating hours: 28,791 h, This TORNOS DECO 20A was manufactured in 2006. A robust Swiss type turning machine, it features a bar passage of 25.4mm and can accommodate up to 21 fixed and 15 rotating tools. It includes an IEMCA BOSS 332 E/R loader and a CONVEYORS IND. ASS. TMTPF 2294 conveyor, enhancing its operational efficiency. Consider the opportunity to buy this TORNOS DECO 20A Swiss type turning machine. Contact us for more information about this machine. Additional equipment Iodpfxsyan Ius Ahueht • Loader • Conveyor • Automatic Fire Extinguishing System Machine Benefits Technical Machine Benefits • Maximum fixed/rotating tools: 21/15 Extra Information Machine still under power

Condition: ready for operation (used), Year of construction: 2000, operating hours: 33,594 h, This TORNOS DECO 2000/13 was manufactured in 2000. A robust Swiss type turning machine with a bar passage of 16 mm and maximum spindle power of 9.7 kWh. It includes an IEMCA GENIUS 226/32 loader and a CONVEYORS IND. ASS. TMTPF 1440 conveyor. Equipped with an automatic fire extinguishing system from Kraft & Bauer. Consider the opportunity to buy this TORNOS DECO 2000/13 Swiss type turning machine. Contact us for more information. Additional equipment • Loader • Conveyor • Automatic Fire Extinguishing System Machine Benefits Technical Machine Benefits • Maximum fixed/rotating tools: 20/16 • Bar passage: 16 mm • High spindle speed capability Extra Information Ihedsyan Ibspfx Ahust Machine still under power

Condition: ready for operation (used), Year of construction: 1999, This TORNOS DECO 2000/13 was manufactured in 1999. It features a bar passage of 16 mm and supports up to 20 fixed and 16 rotating tools. Equipped with an IEMCA loader, CONVEYORS IND. ASS. conveyor, and additional oil filter tank, this machine ensures efficient operation. Consider the opportunity to buy this TORNOS DECO 2000/13 swiss type turning machine. Contact us for more information about this machine. Additional equipment • Loader • Conveyor • Additional Oil Filter Tank • Additional Oil Filter Tank Machine Benefits Technical Machine Benefits • Bar passage: 16 mm • Maximum fixed tools: 20 Ihjdpjyalqmefx Ahuet • Maximum rotating tools: 16 Extra Information Machine still under power

Condition: ready for operation (used), Year of construction: 2017, spindle speed (max.): 8,000 rpm, controller manufacturer: FANUC, controller model: na, number of axes: 9, This 9-axis Hanwha XE 26 H was manufactured in 2017, featuring a sophisticated control unit. Ideal for complex horizontal turning operations, this machine ensures precision and efficiency. If you are looking to get high-quality turning capabilities consider the Hanwha XE 26 H machine we have for sale. Contact us for more information about this machine. Machine Benefits Technical Machine Benefits • Z-axis: z1 axis travel: 210 mm (with bushing) • Z-axis: z2 axis travel: 215 mm Extra Information Isdpfx Ajyalnrohuoht Inventory number: 00191 Type: Mobile turret lathe Condition: Used Status: Excellent Axes: 9 (5 linear + 4 rotary) Sub-spindle turning diameter: Ø 26 mm Sub-spindle speed: 8,000 rpm Sub-spindle motor power: 1.5/2.2 kW Index: 0.001°

Condition: ready for operation (used), Year of construction: 2007, number of axes: 7, This 7-axis Citizen Cincom K16 VII was manufactured in 2007. It features a motorized system, an Iemca 332 loader, a high-pressure pump, and a chip evacuator, making it ideal for intricate Swiss-type turning operations. Consider the opportunity to buy this Citizen Cincom K16 VII Swiss type turning machine. Contact us for more information about this machine. Additional equipment • Iemca 332 loader • High pressure pump Ihsdpfxjyalmuj Ahuot • Chip evacuator Machine Benefits Technical Machine Benefits • Motorized with 7 axes + 2 axes c Extra Information Machine still under power

Condition: ready for operation (used), Year of construction: 2017, operating hours: 17,014 h, spindle motor power: 5,500 W, spindle speed (max.): 8,000 rpm, controller manufacturer: FANUC, This 14-axis TORNOS MultiSwiss 6x16 was manufactured in 2017, featuring 6 independent spindles with synchronized motors, a maximum bar diameter of 16 mm, and spindle speeds up to 8,000 rpm. It includes a back-working unit, up to 18 tool positions, a high-pressure coolant system, and a chip conveyor. If you are looking to get high-quality turning capabilities, consider the TORNOS MultiSwiss 6x16 machine we have for sale. Contact us for more information about this machine. Additional equipment • Coolant System: High-pressure emulsion or oil • Chip Conveyor: Yes Machine Benefits Technical Machine Benefits • Back-working unit: yes (with up to 3 tools, including rotating tools) • Number of spindles: 6 independent spindles with synchronized motors • Tool holders: up to 18 tool positions (including rotating tools) Isdpfx Ahoyairzeuoht • Max bar diameter: 16 mm Extra Information Machine still under power

Condition: ready for operation (used), Year of construction: 2011, operating hours: 42,929 h, spindle motor power: 5,600 W, spindle speed (max.): 8,000 rpm, overall weight: 3,500 kg, controller manufacturer: FANUC, This TORNOS MultiSwiss 6x14 was manufactured in 2011. It features six spindles for simultaneous machining, with a bar capacity of 14 mm and a maximum part length of 40 mm. The main spindle can reach speeds up to 8,000 rpm, powered by a 5.6 kW motor. Consider the opportunity to buy this TORNOS MultiSwiss 6x14 swiss type turning machine. Contact us for more information. Machine Benefits Technical Machine Benefits • Bar capacity (max diameter): 14 mm • Max part length: 40 mm • Number of spindles: 6 spindles for simultaneous machining Ihsdpfxjyairuo Ahuet Extra Information Machine still under power

Condition: ready for operation (used), Year of construction: 2004, operating hours: 35,324 h, spindle motor power: 11,000 W, spindle speed (max.): 8,000 rpm, controller manufacturer: FANUC, number of axes: 10, This 10-axis Tornos-Bechler MultiDeco 26-6 was manufactured in 2004. It features a maximum bar diameter of 20 mm, spindle speeds up to 8,000 rpm, and a main spindle motor power of approximately 11-15 kW. It includes multiple front and rear tool stations and an optional chip conveyor. If you are looking to get high-quality turning capabilities, consider the Tornos-Bechler MultiDeco 26-6 machine we have for sale. Contact us for more information about this machine. Additional equipment • Cooling System: Oil or emulsion • Chip Conveyor: Optional Iedpsyairnjfx Ahujht Machine Benefits Technical Machine Benefits • Tool stations: multiple front and rear tool stations (modular) Extra Information Max. Bar Diameter: 20 mm Max. Part Length: Approx. 100–120 mm (per clamping) Back-Working Unit: Yes (3-axis configuration)

Condition: ready for operation (used), Year of construction: 2000, operating hours: 64,409 h, spindle motor power: 18,000 W, spindle speed (max.): 8,000 rpm, controller manufacturer: FANUC, number of axes: 10, This 10-axis Tornos-Bechler MultiDeco 26-6 was manufactured in 2000, featuring a max bar diameter of 26 mm and part length up to 120 mm per clamping. It operates with spindle speeds up to 8,000 rpm and a main spindle drive power of 18 kW. Consider the opportunity to buy this Tornos-Bechler MultiDeco 26-6 swiss type turning machine. Contact us for more information about this machine. Ihjdpfx Asyairhjhust Additional equipment • Back-working Capabilities: Yes Machine Benefits Technical Machine Benefits • Max. Bar diameter: 26 mm • Max. Part length: approximately 120 mm (per clamping) Extra Information Machine still under power

Condition: ready for operation (used), Year of construction: 1997, operating hours: 54,044 h, spindle motor power: 15,000 W, spindle speed (max.): 3,500 rpm, controller manufacturer: FANUC, This TORNOS MultiDeco 20-8b was manufactured in 1997. It features 8 main spindles and a counter-spindle, supporting a maximum bar diameter of 20 mm. Main spindle speeds reach up to 3,500 rpm, with spindle power ranging from 15 to 18.5 kW. If you are looking to get high quality turning capabilities consider the TORNOS MultiDeco 20-8b machine we have for sale. Contact us for more information. Machine Benefits Technical Machine Benefits • Maximum bar diameter: 20 mm Isdeyairbopfx Ahuoht Extra Information Machine still under power

Condition: ready for operation (used), Year of construction: 2014, spindle motor power: 22,000 W, spindle speed (max.): 8,000 rpm, controller manufacturer: FANUC, controller model: 0i-TD, number of axes: 4, This 4-axis Miyano GN-3200W was manufactured in 2014, featuring twin spindles for efficient left and right operations. It handles a maximum turning diameter of 40 mm and a machining length of 50 mm. Equipped with two horizontal linear turrets and a spindle speed range up to 8,000 rpm, it's ideal for precise small-scale turning tasks. Consider the opportunity to buy this Miyano GN-3200W swiss type turning machine. Contact us for more information about this machine. Machine Benefits Technical Machine Benefits • Maximum turning diameter: 35 mm (with stationary collet), up to 40 mm (with pull-type collet) • Maximum machining length: 50 mm • Tool shank size: 10 mm, 12 mm, and 16 mm • Drill shank diameter: 20 mm Ijdpfx Ahoyaiqdjujht Extra Information Machine still under power

Condition: ready for operation (used), Year of construction: 2010, spindle motor power: 3,700 W, spindle speed (max.): 8,000 rpm, overall weight: 1,350 kg, total height: 1,000 mm, number of axes: 6, This 6-axis Miyano BX-26S was manufactured in 2010, featuring a maximum blank diameter of Ø26 mm and a maximum working length of 330 mm. It includes a dual-spindle setup with rotation speeds up to 8000 rpm and a linear turret with 18 total tools. The machine is equipped with a FANUC 18i-TB control system, supporting 6 controlled axes and 4-axis simultaneous interpolation. If you are looking to get high-quality turning capabilities consider the Miyano BX-26S machine we have for sale. Contact us for more information. Machine Benefits Technical Machine Benefits • Maximum blank diameter: Ø26 mm (Ø20 mm for bx-20s) • Maximum working length: 330 mm • Bed type: flat Extra Information Turret Turret Type: Linear Total Number of Tools: 18 Rotating Tools (Slide 1 / Slide 2): 6 / 4 Flat Tools (Slide 1 / Slide 2): 4 / 4 Tool Size: Slide No.1: Ø16 mm Slide No.2: Ø16 mm Tapping Capacity (L-SP / SP): M8 Drilling Capacity (L-SP): Ø12 mm Injection Unit Chuck Sleeve Type: AR-16 Chuck Sleeve: AR-16 Clamping Force Thrust Force (Z1 / Z2 L-SP and R-SP): 3325 N Other Axes: 1847 N Movement Slide No.1 Travels: X1: 135 mm Y1: 260 mm Z1: 70 mm Slide No.2 Travels: X2: 215 mm Y2: 75 mm Z2: 180 mm Media Tank Capacities: Hydraulic: 10 L Coolant: 140 L Electrical Specifications: Power Supply Capacity: 20 KVA Voltage: AC200/220V Frequency: 50/60 Hz Required Air Pressure: 0.5 MPa Fuse Capacity: 40 A Control Unit Numerical Control (NC) System: FANUC 18i-TB Controlled Axes: 6 axes (X1, Z1, Y1, C1, X2, Z2, Y2, C2) Simultaneous Interpolation: 4 axes Commands: G00, G01, G02/G03, G32, G04, G98/G99 Special Functions: Tool compensation, repetitive cycles, macro programming, backlash compensation Display: 9.5" CRT Operation Panel: Flat keyboard Input/Output: RS-232-C Electric Motors: Spindles (L-SP / R-SP): 3.7 / 2.2 kW Slides (X1, Y1, Z1, Y2, X2, Z2): 0.5 – 0.75 kW Rotating Tool: 0.5 kW Hydraulic Motor: 0.75 kW Coolant Pump: 0.2 kW High-Pressure Coolant Pump: 0.821 / 1.349 kW Dimensions Ihjdsyaip Tepfx Ahuot Machine Depth 2140 mm

Condition: like new (used), Year of construction: 2019, operating hours: 3,000 h, functionality: fully functional, You can find all further data in the attachment. Machine complete with high-pressure unit and bar feeder. Hardly used; being sold from high-end medical technology production. Purchase price for machine + full-option peripherals: €382,036.86 (all original invoices available). Technical Data SV-20R Total number of axes: 12 Max. rapid traverse speed: 30 m/min Weight: 4,150 kg Coolant tank capacity: 220 liters Dimensions (L x W x H): approx. 2,730 x 1,350 x 1,865 mm Main Side Number of axes: 6 Main spindle axes (spindle head): Z1 / C1 Linear slide axes: X1 / Y1 Turret axes: B3 / X3 / Y3 / Z3 B-axis on turret: freely programmable Max. machining diameter: 20 mm / 23 mm (optional) Max. spindle head stroke (sliding/headstock turning): 205 mm / 50 mm Max. drive power main spindle: 5.5 kW Max. main spindle speed: 10,000 rpm Linear Slide Tools Turning tools: 7 pcs (□ 12 mm) Cross machining tools: 5 pcs (ER16) Max. drive power cross machining: 2.2 kW Max. cross machining speed: 8,000 rpm Turret Tools Number of tool stations: 8 pcs (all driven) B-axis: 4 stations Max. drive power cross machining: 4.0 kW Max. cross machining speed: 5,750 rpm Back Side Number of axes: 4 Sub spindle axes: X2 / Z2 / C2 Vertical axis for back machining: Y2 Max. gripping diameter: 20 mm / 23 mm (optional) Max. sub spindle drive power: 3.7 kW Max. sub spindle speed: 8,000 rpm Back Machining Tools Tool stations: 8 pcs (all driven) Max. back machining speed: 8,000 rpm Standard Equipment Ihsdpsyacvyofx Ahuot FANUC 31i-B5 control with manual pulse generator C-axis control on main and sub spindle Synchronously driven guide bush unit 7-position turning tool holder on linear slide 5 + α driven tools for cross machining on linear slide 8 + α tools for turning, drilling, cross machining on the turret 4 programmable turret stations for B-axis machining 8 + α tools incl. drill sleeves for driven back machining Sub spindle for back machining Air blow-out device for sub spindle Workpiece collection tray Pneumatic system with maintenance unit Sub spindle part ejection monitoring Workpiece conveyor for unloading workpieces Central lubrication Separate coolant tank with level and flow monitoring Interface for bar feeder magazine Leveling pads and adjusting screws

Condition: ready for operation (used), Year of construction: 2014, controller manufacturer: FANUC, controller model: 0i-TD, This 5-axis Star SB-20R type N was manufactured in 2014, featuring a CNC Fanuc 0i-TD, C-axis on both main and sub-spindles, and a 6-position tool holder. It includes a 5-spindle unit for cross drilling, a sub-spindle with a 20mm part picking capacity, and a standalone coolant tank. Ideal for precision small parts production. If you are looking to get high-quality turning capabilities, consider the Star SB-20R type N machine we have for sale. Contact us for more information. Additional equipment • Part ejection safety lock / Part ejection device (spring type) / Blow-off device for guide bushing and sub-spindle / Standalone coolant tank with level monitoring / Probe / Automatic central lubrication unit with level monitoring / Interface for bar feeder / RS232C interface / RJ45 / USB • The machine was used for serial production of small parts with extreme precision from standard relatively soft material. The machine was not dynamically stressed, production was carried out on oil. Service was regular, with almost continuous replacement of bearings, all in perfect condition. • MBC (BROXTEC) chip conveyor / Workpiece conveyor belt / FMB Minimag 3200 bar feeder (⌀ 8) Machine Benefits Technical Machine Benefits • C-axis on the main spindle and sub-spindle • Clamping device on the main spindle and sub-spindle / collet clamping sleeve for main spindle and sub-spindle f25 • 6-position tool holder 12x12mm / 4-position tool holder without drill clamping • Sub-spindle with part picking capacity of 20mm (23mm) • 5-spindle unit for cross drilling with driven tools / drive unit for driven tools for rear-side machining with 4x er16 drill holders /tool breakage safety device Extra Information 4 machines are available Ihodsx U Ty Topfx Ahujt

Condition: good (used), Year of construction: 2007, functionality: fully functional, machine/vehicle number: 0179 (033), turning length: 125 mm, spindle speed (max.): 7,000 rpm, turning diameter: 32 mm, clamping diameter: 32 mm, workpiece length (max.): 150 mm, The machine is supplied with tool holders and spare parts. TECHNICAL DETAILS Swing diameter over bed: 32 mm Spindle bore: 32 mm Turning length: 125 mm Control: YASKAWA SIEMENS 840 DI V2 Spindle speeds: 7000 rpm Workpiece length: max. 150 mm Clamping diameter: 32 mm Feed rate: 0 - 2000 mm/min MACHINE DETAILS Machine weight: approx. 5.7 t Space requirements: approx. 10.5 x 2 x 1.9 m Ihsdpfx Aex U Tchehuot Connection voltage: 200 V, 3 phases Frequency: 50 / 60 Hz Connected load: 8.0 kVA

Condition: ready for operation (used), Year of construction: 1999, operating hours: 78,000 h, functionality: fully functional, turning length: 205 mm, spindle speed (max.): 10,000 rpm, bar diameter (max.): 20 mm, controller model: Fanuc 16i-T, number of axes: 9, CNC sliding headstock lathe with 9 axes! Iedpfsx U Af Ssx Ahueht TECHNICAL DETAILS Axes: X / C1 / Y / E / B / A / X / C2 Maximum bar diameter: 20 mm Maximum turning length: 205 mm / 195 mm Maximum main spindle speed: 10,000 rpm Maximum sub-spindle speed: 10,000 rpm MACHINE DETAILS Control: Fanuc 16i-T Coolant: Oil Tank capacity: 170 L Operating hours: 78,000 h EQUIPMENT 4-position tool holder 3 cross drilling units Turret with 8 stations Various additional tool holders Tailstocks Parts conveyor Bar feeder FMB Turbo 3-26 /3200/A Fire extinguishing system Kraft & Bauer Chip conveyor Mayfran

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, turning length: 205 mm, spindle speed (max.): 10,000 rpm, turning diameter: 20 mm, controller model: Cincom Mitsubishi Meldas, counter spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Bar diameter max.: 20 mm Turning length max.: 205 mm Main spindle speed max.: 10,000 rpm C-axis (main spindle): 0.001 degree Counter spindle speed max.: 10,000 rpm C-axis (counter spindle): 0.001 degree Tool capacity: 18 tools Ihedpjx U Afxofx Ahuot Axes: 7 MACHINE DETAILS Control: Cincom Mitsubishi Meldas Dimensions & Weight Machine dimensions (LxWxH): 2,540 x 1,450 x 1,850 mm Machine weight: 1,750 kg Bar feeder dimensions (LxWxH): 3,900 x 900 x 1,450 mm Bar feeder weight: 850 kg EQUIPMENT Parts conveyor belt Bar feeder FMB Turbo 3-26

Condition: ready for operation (used), Year of construction: 1997, functionality: fully functional, turning length: 205 mm, spindle speed (max.): 10,000 rpm, turning diameter: 20 mm, controller model: Cincom Mitsubishi Meldas, counter spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Max. bar diameter: 20 mm Max. turning length: 205 mm Max. main spindle speed: 10,000 rpm Main spindle C-axis: 0.001 degrees Max. sub spindle speed: 10,000 rpm Ijdpfox U Ad Uox Ahueht Sub spindle C-axis: 0.001 degrees Tool capacity: 18 tools Number of axes: 7 MACHINE DETAILS Control: Cincom Mitsubishi Meldas Dimensions & Weight Machine dimensions (LxWxH): 2,540 x 1,450 x 1,850 mm Machine weight: 1,750 kg Bar feeder dimensions (LxWxH): 3,900 x 900 x 1,450 mm Bar feeder weight: 850 kg EQUIPMENT Parts conveyor FMB Turbo 3-26 bar feeder

Condition: good (used), Year of construction: 2003, functionality: fully functional, Technical details working diameter max. 32 mm spindle passage 36 mm turning length 320 mm Control MITSUBISHI MELDAS 635LC travel max. (X1) 108 mm travel max. (Y1) 275 mm travel max. (Z1) 325 mm travel max. (X3) 238 mm travel max. (Z3) 410 mm main spindle speeds: 200 - 8000 U/min c-axis 0,001° deg. Subspindle spindle speeds 200 - 7000 U/min c-axis 0,001° deg. rapid traverse 20 m/min main drive 3,7 / 5,5 kW Subspindle motor 1,5 / 2,2 kW dimensions of machine 2,77 x 1,24 x 1,79 m weight of the machine ca. 2850 kg Additional information CNC Swiss-Type Lathe First put into operation December 2005 The machine was used for a single shift and is in good condition with no maintenance backlog. Equipment: FMB Turbo 5-42/3200C bar loader, built 2004 High-pressure pump Many collet chucks for main spindle Iodpfxjx Uzcvo Ahueht Various collets Drive unit for synchronously driven guide bush Synchronously driven guide bush Drive unit for transversely driven spindle on linear support Pick-up spindle Collet chuck for pick-up spindle Blow-out device for pick-up spindle Five fixed tool holders on the rear Workpiece removal device Coolant tank Central lubrication system Door lock Ejection device for workpieces with through holes Machine documentation The machine will be sold without tools and extraction system.
