Teco Werkzeugmaschinen GmbH & Co. KG

Condition: ready for operation (used), Year of construction: 1986, operating hours: 1,200 h, functionality: fully functional, wheel width: 250 mm, helix angle: 45 °, type of input current: AC, travel distance Y-axis: 250 mm, feed rate X-axis: 12 m/min, stroke length: 400 mm, rotational speed (min.): 1,500 rpm, rotational speed (max.): 2,600 rpm, grinding wheel speed: 2,100 rpm, grinding spindle motor power: 1,500 W, gear diameter: 250 mm, overall weight: 3,730 kg, rotary table diameter: 200 mm, stroke adjustment: 400 mm, tool length: 280 mm, wheel diameter: 250 mm, distance table center to spindle nose: 607 mm, Equipment: sliding door, Grinding Machine STANKO 3A662 The STANKO 3A662 is a semi-automatic tool grinding machine designed for precision sharpening of worm milling cutters and gear cutting tools. Manufactured in the former USSR, this machine is known for its robust mechanical design, reliability, and long service life in industrial environments. The machine is capable of sharpening cutters with a maximum diameter of up to 200 mm and a maximum cutter length of approximately 280 mm. Grinding is performed using abrasive or diamond grinding wheels with diameters from 200 to 250 mm, allowing flexibility for different sharpening operations. The grinding slide provides a maximum stroke of 400 mm, with adjustable feed speeds depending on the spiral pitch of the cutter. The grinding head can be swiveled up to ±45°, enabling the sharpening of cutters with different helix angles. The grinding spindle operates at discrete speeds of 1500, 1900, 2100, and 2600 rpm and is powered by a 1.5 kW motor. The machine operates on three-phase AC power (220/380 V, 50 Hz). With an overall machine weight of approximately 2600 kg (up to 3730 kg including accessories), the rigid cast-iron construction ensures excellent stability and vibration damping during operation. Key Features -Semi-automatic grinder for worm milling cutters -Maximum cutter diameter: 200 mm -Grinding wheel diameter: 200–250 mm -Adjustable grinding slide stroke up to 400 mm -Swivel grinding head up to ±45° -Multiple spindle speeds: 1500 / 1900 / 2100 / 2600 rpm -Supports abrasive and diamond grinding wheels -Heavy-duty industrial construction Typical Applications -Sharpening of worm milling cutters -Maintenance and reconditioning of gear cutting tools -Tool rooms and gear manufacturing plants Ffodpfox Nprbjx Agmjt

Condition: ready for operation (used), Year of construction: 1982, operating hours: 120 h, functionality: fully functional, machine/vehicle number: 572, wheel width: 32 mm, helix angle: 45 °, type of input current: three-phase, workpiece weight (max.): 200 kg, stroke length: 160 mm, rotational speed (min.): 50 rpm, rotational speed (max.): 280 rpm, grinding wheel speed: 1,920 rpm, grinding spindle motor power: 1,500 W, grinding wheel bore: 127 mm, grinding wheel diameter: 350 mm, overall weight: 8,000 kg, grinding wheel width: 32 mm, rotary table diameter: 280 mm, stroke adjustment: 160 mm, table diameter: 280 mm, table load: 200 kg, wheel diameter: 350 mm, Gear Grinding Machine Stanko 5M841 / 5A841 The Stanko 5M841 (5A841) is a heavy-duty gear grinding machine designed for precision finishing of cylindrical gears with straight and helical teeth. This machine is widely used in industrial gear production and is known for its robust construction, reliability, and long service life. The machine is capable of grinding gears with helix angles up to ±45° and supports workpieces weighing up to 200 kg. Grinding is performed using disc-type grinding wheels with a diameter of 260–350 mm and a width of 16–32 mm, ensuring high accuracy and consistent surface quality. The grinding wheel spindle operates at 1920 rpm and is driven by a 1.5 kW motor. The reciprocating stroke of the grinding slide is infinitely adjustable from 20 to 160 mm, with a variable stroke rate of 50 to 280 double strokes per minute, allowing precise adaptation to different gear sizes and grinding conditions. The machine is equipped with a rotary work table (Ø 280 mm) and is designed for continuous industrial operation. Power supply is 3-phase, 380 V, 50 Hz. With an overall machine weight of approximately 8000 kg, the 5M841 offers excellent stability during grinding operations. Key Advantages: -Suitable for straight and helical gears -Helix angle up to ±45° -Heavy, rigid cast-iron construction -Infinitely adjustable grinding stroke -Reliable mechanical design, easy maintenance -Ideal for medium and heavy industrial applications Typical Applications: -Precision gear finishing -Gear manufacturing and refurbishment -Mechanical engineering and heavy industry Fedsx I Ncdspfx Agmoft

Condition: excellent (used), Year of construction: 2018, max. wheel diameter 360 mm gear width 210 mm max. module 7 min. module 0,5 Control Burri weight of the machine ca. 9,5 t Ffjdpfxsx E Dupj Agmot

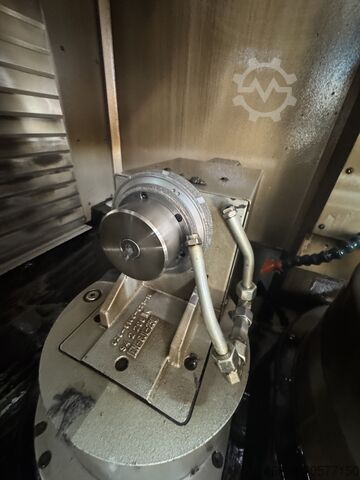

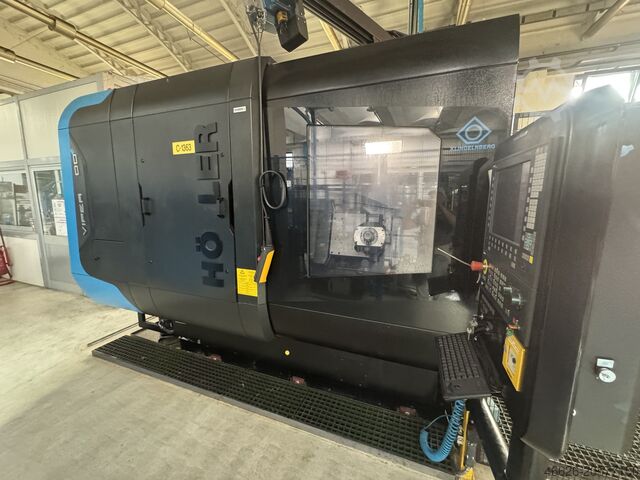

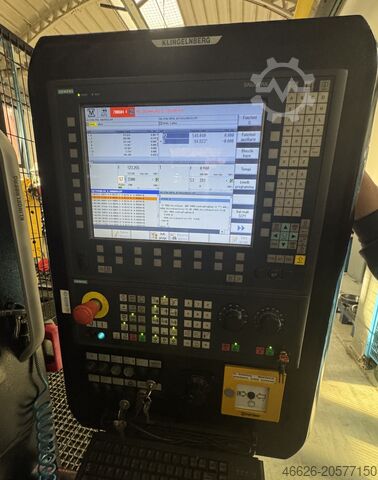

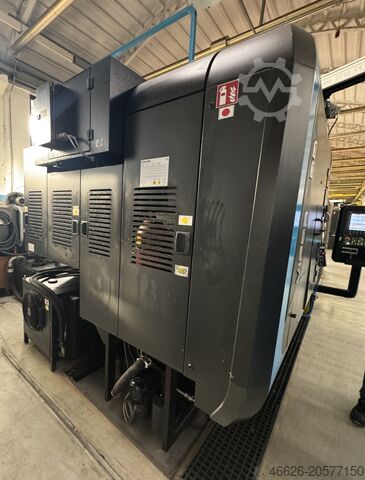

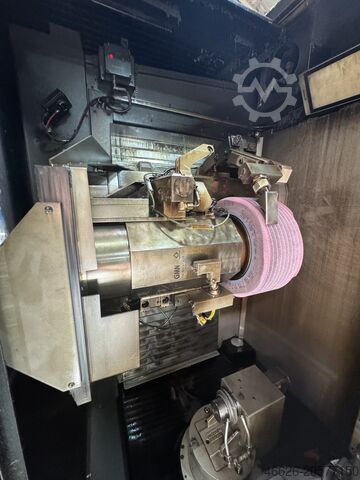

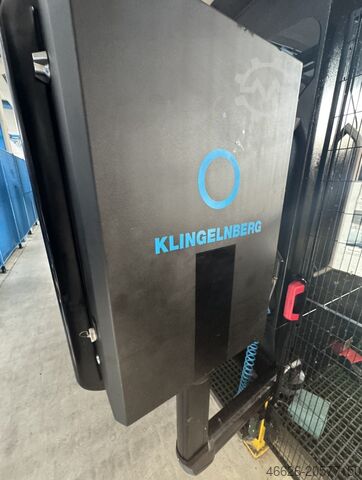

Condition: like new (used), Year of construction: 2020, operating hours: 18,000 h, functionality: fully functional, As-new Gear Grinding Machine KLINGELNBERG VIPER 500 W All-inclusive machine equipped for internal and external gearing Equipped with a special converter from EUR kW to US standard connection (simplified global connection) Available due to restructuring at a high-tech family-run company (no automotive production) Working Area and Capacities Fodpfx Aexx T N Tegmsft Max. workpiece diameter: 500 mm Max. grinding stroke: 500 mm Working area over table (min.–max.): 300 – 800 mm Distance between spindle center and table (min.–max.): 442 – 1042 mm Module (generating grinding module): 0.5 – 22 Swivel angle (min.–max.): –180° to +45° Grinding System Grinding wheel diameter (min.–max.): 221 – 350 mm Grinding worm diameter (min.–max.): 221 – 350 mm Max. grinding wheel width: 75 mm Max. grinding worm width: 150 mm Grinding spindle power: 37 kW Max. grinding wheel speed: 6000 rpm Table and Feeds Table diameter: 400 mm Table bore Ø × depth: 100 × 500 mm Max. table speed: 1000 rpm Max. axial feed: 20,000 mm/min Max. radial feed: 12,000 mm/min Max. tangential feed: 20,000 mm/min Connections and Dimensions Total connected load: 60 kVA Machine dimensions (L × W × H): 4220 × 3120 × 2526 mm Filter unit dimensions (L × W): 3490 × 2250 mm Net weight approx.: 19,300 kg Machine Configuration – VIPER 500 W Base Machine and Options VIPER 500 W base machine Preparation for internal grinding arms Internal grinding unit V5 for straight or helical internal gears Measuring system for profile, lead, and pitch of external gears Measuring system for profile, lead, and pitch of internal gears V5 Touch Trigger Phasing System Power supply with ESR voltage drop compensation 100 mm table adapter Preparation for hydraulic clamping devices Hydromechanical unit for drawbar clamping systems Grinding oil filtration system with band filter 100 Fire extinguishing system Automatic work area door Cleaning system with spray gun Crane/hoist integrated into enclosure Isolation transformer Voltage stabilizer and isolation transformer Signal light/beacon tower Software Packages Gear PRO software Software for grinding of spline shafts Software for testing of spline shafts BIAS control software for gear grinding CBN grinding wheel software ADI dressing process optimization DLC lifetime monitoring for dressing tools Flexible profile correction for grinding operations Consumables Endless filter band Assembly/disassembly aid for filter band 100 Diamond dressing rollers CVD dressing roller D200 R1 for profile grinding CVD special dressing roller for generating grinding Grinding wheels Grinding wheel D350 B60 for profile grinding Grinding wheel D350 B45 for profile grinding Profiled grinding wheel D350 B150 for generating grinding Distance rings/intermediate plates 4 intermediate plates B100 22 intermediate plates B60 30 intermediate plates B45 37 intermediate plates B30 Additional Components Grinding wheel flange without intermediate plate Set of standard probes / measuring probes Additional Options Warranty extension from 12 to 24 months Closed Loop 1.0 basic version Interface for external automation

Condition: used, Year of construction: 2000, Technical details: max. wheel diameter: 180 mm max. module: 5 min. module: 1 weight of the machine ca.: 14 t dimensions of the machine ca.: 4,5 x 2,84 x 2,8 m Fsdpfx Agewv Ug Remeft min. number of teeth: 7 toolpiece turning speed range: 4000-10000 U/min tool length: 210 mm With tail stock No dressing device Only CBN *

Condition: used, Year of construction: 1988, Technical details: max. wheel diameter: 210 mm Ffodpfx Agswrzutjmet total power requirement: 60 kW weight of the machine ca.: 8 t dimensions of the machine ca.: 2,85 x 2,60 x 1,80 m grinding slide feed: 700 mm grinding slide feeds: 1-15.000 m/min max. workpiece weight: 150 kg centre height: 260 mm grinding wheel diameter: 240 mm

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: 1191, rotational speed (min.): 4,000 rpm, rotational speed (max.): 10,000 rpm, tool length: 210 mm, TECHNICAL DETAILS Largest workpiece diameter: 180 mm Module range: 1 - 5 Minimum number of millable teeth: 7 Milling head swivel angle: ±35° Resolution accuracy: 0.1 degrees Workpiece table load: 17 kN Tool data Infinitely variable tool speed range: 4,000 - 10,000 rpm Number of tool threads: 1 - 7 Tool diameter for generating grinding: max. 145 mm Tool diameter for form grinding: max. 175 mm Tool length: max. 210 mm Total tool travel in the V-axis: max. 200 mm Shift travel from machine center - plus (+) direction: max. 100 mm Shift travel from machine center - minus (-) direction: max. 100 mm Fodpfxewmb Ame Agmsft MACHINE DETAILS Operating voltage: 400 V Control voltage: 24 V Frequency: 50 Hz Maximum rated current: 65 A Fuses in the supply line: 80 A Ambient temperature: +15 °C - +38 °C Relative humidity: max. 90% at 20 °C Relative humidity: max. 50% at 38 °C Operating noise: 80 dB(A) EQUIPMENT - With counterholder - No dresser - CBN wheels only

Condition: used, Year of construction: 2001, Technical details: max. wheel diameter: 280 mm max. module: 5 min. module: 1 min. number of teeth: 7 toolpiece turning speed range: 4.000...10.000 U/min tool length: 210 mm Fjdpjwh Dlmsfx Agmeft CBN *

Condition: like new (used), Year of construction: 1987, functionality: fully functional, machine/vehicle number: 61373, IT IS IN WORKING CONDITION Fodpfevwlf Ijx Agmjft

Condition: excellent (used), Year of construction: 2000, Gear grinder CNC controller SIEMENS 840C Max. external diameter: 1.500 mm Grinding lenght/Max. gear width (spur gears): 980 mm Module: 1.5 - 25 Ffsdpfx Agou Aqi Hjmet Base diameter/Root circle diameter: min 80 mm Helice angle: 35º Table diameter: 1.000 mm Max. weight: 6.000 Kg Grinding wheel power: 20 kW Profile corrections: max. 0.5 mm Lead corrections: max 1 mm Tailstock height: 1.250 mm Axial slide travel (z-axis): 1.000 mm Dimensions: 7.760 x 8.360 x 4.500 mm Weight: 42.000 Kg

Condition: used, Year of construction: 1999, max. wheel diameter 280 mm gear width 330 mm max. module 5 min. module 1 Control LIEBHERR CNC total power requirement 28 kW weight of the machine ca. 12 t dimensions of the machine ca. m Ffodpfxot Hwu Aj Agmst

Condition: used, Year of construction: 1980, max. wheel diameter 2500 mm gear width 1200 mm max. module 32 min. module 3 total power requirement 25 kW weight of the machine ca. 60 t dimensions of the machine ca. m Gear , min. / max. 180 / 2,500 mm Module 3 - 32 Helix angle, max. 10 - 35 ° Gear width for straight gears 1,200 mm Stroke length, approx. 100 - 1,200 mm No. of strokes 80 - 350 /min Stroke position adjustable 300 mm Stroke speed 4 - 40 mm Max. weight of workpiece, approx. 18,000 kg Fsdjt Hwqqspfx Agmjft Min. / max. no. of teeth 16 / 576 Table size x bore 1,400 x 500 mm Grinding wheel Ø, approx. 500 mm Grinding wheel peripheral speed 34 m/s Total electrical load, approx. 45 kW - 380 V - 50 Hz Weight of machine, approx. 60,000 kg Accessories / Special Features: * Hydrostatic guides in grinding slide, table and in all other guideways. * Completely covered working area with sliding doors. * Automatic grinding process for various cycles, with settings for roughing, finishing, fine finishing and automatic dressing cycle after preset number of teeth. * Profile correction is possible via appropriate dressing, as well as additional movement of grinding slide (depth and width crowning). * Approx. 50 change gears. * Grinding slideTilt display device. * Large coolant device with band filter and oil mist exhaust. * Separate switch cabinet. * Separate hydraulic unit. * Separate oil cooling unit. Condition : Very good. Machine can soon be inspected in our showrooms. It is not under power at present. Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract. The machine comes directly from a first class gear factory, where it was grinding Quality 5 - 6. Grinding diagrams are available. This type and quality of machine is rarely available. Thank you for your interest. We always have a good selection of gear machines available. Please let us know what you need.

Condition: good (used), Year of construction: 1979, gear dia. 360 mm Ffsdpfoqy Hytox Agmet
