Thorwesten Maschinenbau GmbH

Condition: ready for operation (used), Year of construction: 2008, operating hours: 22,491 h, spindle speed (max.): 1,800 rpm, travel distance X-axis: 410 mm, spindle motor power: 37,000 W, total height: 1,930 mm, total width: 2,120 mm, overall weight: 5,500 kg, product length (max.): 4,250 mm, number of axes: 2, Horizontal turning machine manufactured in 2008. This Weiler E70 / 2000 features a swing over bed of 720 mm and a maximum workpiece weight of 2,500 kg. It includes a steady rest, tailstock, and faceplate, providing versatility for various applications. With a spindle speed range of 1 – 1,800 rpm and a robust main drive power of 37 kW, this machine is designed for precision. If you are looking to get high-quality turning capabilities, consider the Weiler E70 / 2000 machine we have for sale. Contact us for further details. • Working range and capacities: • Swing over bed: 720 mm • Swing over cross slide: 430 mm • Center height: 360 mm • Distance between centers: 1,000 / 2,000 / 3,000 / 4,000 / 6,000 mm • Bed width: 480 mm • Max workpiece weight (unsupported): 2,500 kg • Max workpiece weight (with steady rest): 3,800 kg • Spindle and headstock: • Spindle bore (standard): 106 mm • Spindle bore (options): 128 / 165 / 216 / 262 / 317 mm Rjdpfxeyn Nxkj Afcsp • Spindle nose: DIN 55027 size 11 • Max torque at spindle: 3,150 Nm • Feeds and movement: • Z-axis rapid traverse: 10,000 mm/min (10 m/min) • X-axis rapid traverse: 5,000 mm/min (5 m/min) • Feed force (Z): 20,000 N • Feed force (X): 10,000 N • Tailstock: • Quill diameter: 115 mm • Quill stroke: 225 mm • Inner taper: MK 6 (Morse Taper) • Threading capabilities: • Metric threads: 0.1–400 mm • Inching threads: 1/4–56 TPI • Module threads: 0.125–28 mm • DP threads: 1–224 DP • Hours: 22,491 h Additional equipment • Steady rest • Tailstock • Faceplate

Condition: repair required (used), Year of construction: 2024, functionality: unexamined, machine/vehicle number: P20750, CNC machine / Swiss-type automatic lathe with control system Model: M16-4M5 / CINCOM LFV Technology / Mitsubishi Control M730LPC-4VS (see attached PDF for more information) - Year of manufacture: 2024 - Serial no.: P20750 Rsdpfx Aeynhz Refcsp Damages (drop damage) - see photos - During installation work, the CNC lathe fell from the transport pallet when using a pallet truck and toppled onto the factory yard paving, rotating by 90°. The machine was subsequently recovered and set upright. According to the documented and traceable incident, mechanical damage was observed on the front side of the machine, including deformations, dents, distortion, scoring, as well as scratches and abrasion marks. The visible damages affected various cover panels as well as the door/door handle to the interior. No further damages were apparent in the demonstrated condition, but additional defects cannot be ruled out due to the nature of the incident. Damage to the machine bed, the control system, the drive, and the different axes of the turning unit is possible. Therefore, in addition to the described visually apparent damages, other hidden or functional defects cannot be excluded. The sale is made without warranty or guarantee.

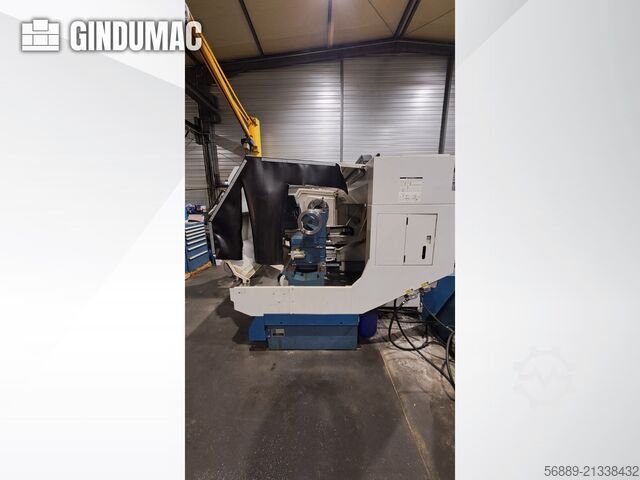

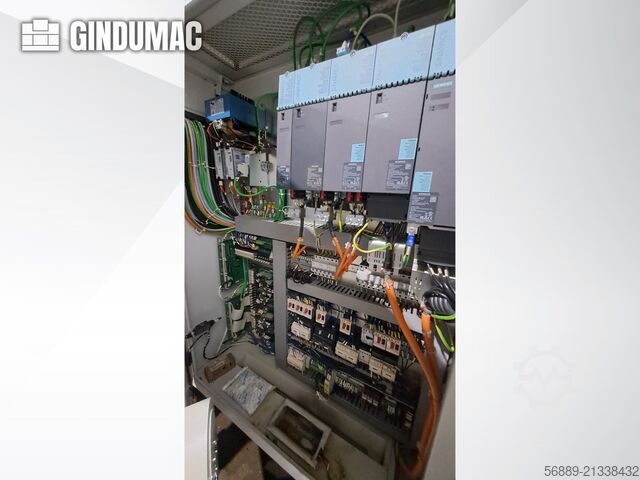

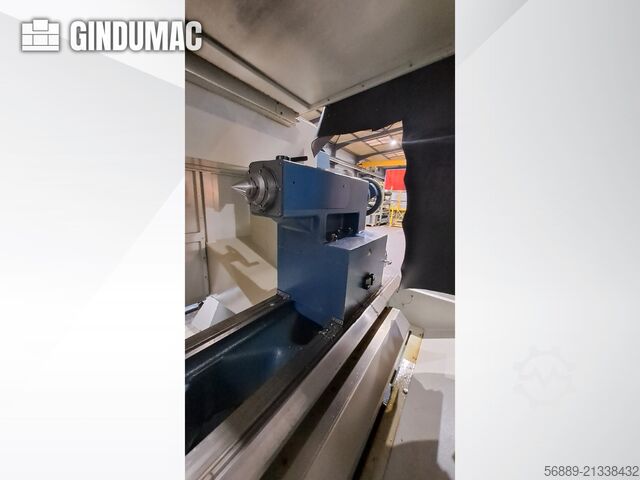

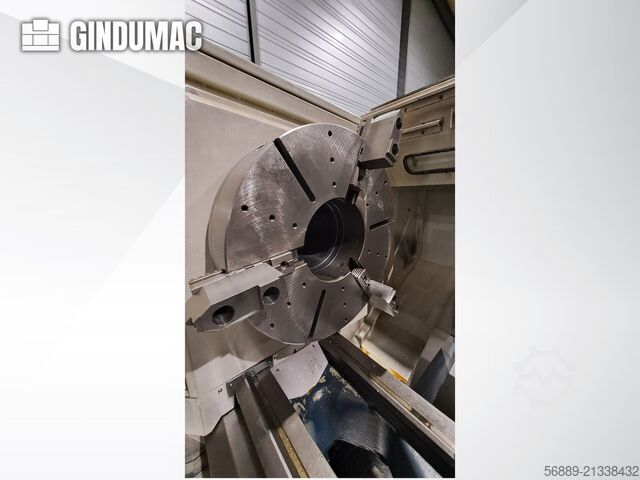

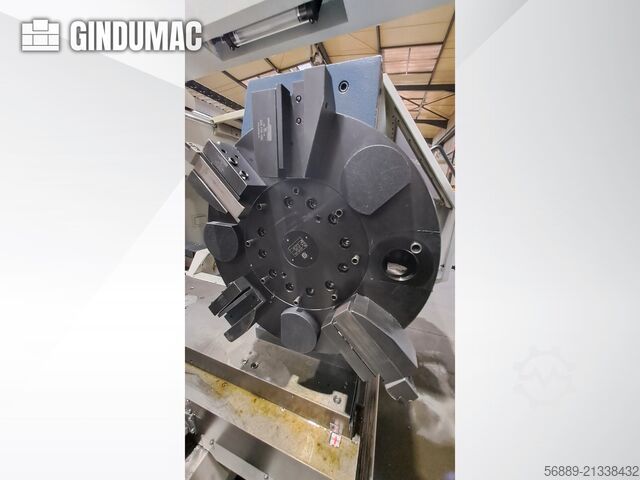

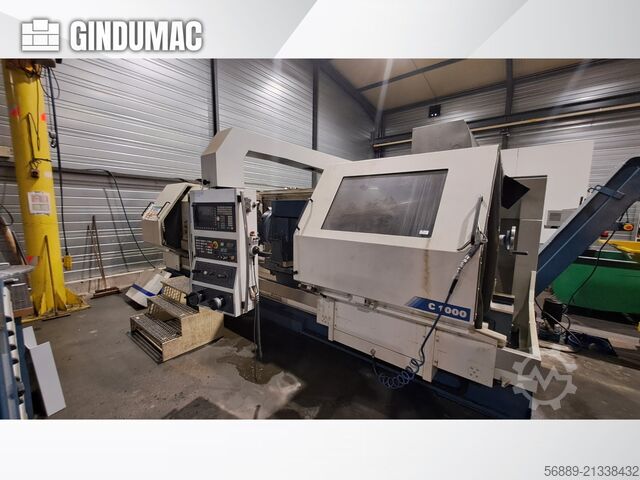

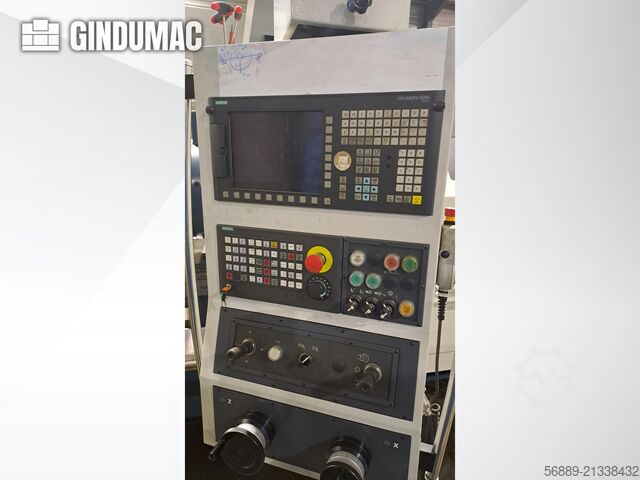

Condition: ready for operation (used), Year of construction: 2020, operating hours: 885 h, overall weight: 10,250 kg, controller manufacturer: SIEMENS, controller model: 828D, This 4-axis Romi C1000 was manufactured in 2020. It features a maximum diameter over bed of 1,000 mm and a distance between centers of 3,000 mm. The machine is equipped with a Siemens 828D CNC control system and has a rapid traverse of 8 m/min. If you are looking to get high-quality turning capabilities, consider the Romi C1000 horizontal turning machine we have for sale. Contact us for further details. • Main motor power: 33.6 kW • Maximum diameter over bed: 1000 mm • Maximum diameter over cross slide: 700 mm • Center height: 510 mm Rodpfeynhmasx Afcjp • Distance between centers: 3000 mm • Tailstock taper: MT5

Condition: used, Year of construction: 2019, controller manufacturer: Fanuc, controller model: 0i-TF, _____ Description: Year of manuf. : 2019 Control : Fanuc 0i-TF Turning diam. : 175 mm Turning length : 120 mm Mainspindle: Technology:Belt-driven spindle Rjdpfx Aoynda Nofcep Speed:6.000 rpm Power (max.):11 kW Torque (max.):93 Nm Barcapacity:51 mm Workpiececlamping:Collet chuck, Hainbuch Spanntop mini Axfix 65 Subspindle: Technology:Belt-driven spindle Speed:6.000 rpm Power (max.):11 kW Torque (max.):93 Nm Workpiececlamping:Collet chuck, Nann Movement in A:540 mm Toolcarrier I (X/Y/Z): Technology:Turret with 12 stations Taper:BMT 45P Tooldrive:6.000 rpm, 3,7 kW, 23,5 Nm Movement in X/Y/Z:135/80/530 mm Rapid travers in X/Y/Z:30/15/40 m/min Toolcarrier II (X/Y/Z): Technology:Turret with 12 stations Taper:BMT 45P Tooldrive:6.000 rpm, 3,7 kW, 23,5 Nm Movement in X/Y/Z:135/80/530 mm Rapid travers in X/Y/Z:30/15/40 m/min Equipment/Accessory: Chipmanagement:Chip conveyor Coolingmanagement:Coolant pumps with High-pressure, 25 bar Toolmeasurement:Automatic Measuring arm, Renishaw Rawmaterialfeed:Barloader, Breuning-Irco ILS MUK 7012 III Finished part removal I:Parts catcher with Box (Mainspindle) Finished part removal II:Parts catcher with conveyor belt Toolholder:Misc. static and driven toolholder Further Equipment:Trafo, Oilskimmer

Condition: used, Year of construction: 2007, controller manufacturer: Siemens, controller model: 840 D, _____ Description: Year of manuf. : 2007 Control : Siemens 840 D Turning diam. : 100 mm Turning length : 580 mm In General: Year of manufacture:2007 Control system:Siemens 840 D Turning diameter:100 mm Turning length:approx. 580 mm Bar capacity:32 mm Main spindle: Technology:Motorised spindle Speed:8,000 rpm Torque max.:100 Nm Power max.:26 kW Rodjynda Aepfx Afcep C-axis:0.001° Bar capacity:32 mm Clamping cylinder:Hollow clamping cylinder Chuck:Hainbuch Spanntop Sub spindle: Technology:Motorised spindle Speed:8,000 rpm Max. torque:100 Nm. Max. power:26 kW C-axis:0.001° X-axis:145 mm Z-axis:380 mm Clamping cylinder:Partial hollow clamping cylinder Chuck:Hainbuch Spanntop Tool carrier I (X/Y/Z): Technology:Tool turret Number of stations:12 units Tool holder:VDI 25 Tool drive:6,000 rpm X-axis:220 mm Y-axis:60 (+/- 30) mm Z-axis:320 mm Tool carrier II (X/Z): Technology:Tool turret :Number of stations. 12 units Tool holder:VDI 25 Tool drive:6,000 rpm X-axis:120 mm Z-axis:345 mm Equipment: Chip management:Chip conveyor Coolant supply:Internal coolant system Bar loader:Irco Breuning Parts removal:Parts gripper + indexing conveyor Tailstock:Stroke 250 mm, quill MK 3 Chuck:2x Hainbuch Spanntop Tool holder:Various driven and static holders

Condition: ready for operation (used), Year of construction: 2005, travel distance X-axis: 210 mm, travel distance Z-axis: 230 mm, controller manufacturer: FANUC, controller model: 18T, This 4-axis DOOSAN H310T was manufactured in 2006. It features a maximum turning diameter of 310 mm and a turning length of 230 mm. The machine is equipped with twin spindles and twin turrets, allowing for efficient machining operations. With a spindle speed of up to 3,500 rpm and a robust construction, this CNC turning center is designed for high productivity. If you are looking to get high-quality turning capabilities, consider the DOOSAN H310T machine we have for sale. Contact us for further details. • Rapid traverse (X/Z): 24 m/min • Cutting feedrate: 0.001 – 500 mm/rev • Number of spindles: 2 • Chuck size: Ø250 mm (3-jaw hydraulic chuck) • Spindle nose: ASA A2-8 • Spindle bore: 77 mm • Spindle speed: up to 3500 rpm Rjdeym Uxyspfx Afcop • Spindle motor power: 15 / 18.5 kW (AC) • Through-spindle coolant: Yes • Number of turrets: 2 • Tool stations: 2 × 10 • Standard tool size: 25 mm • Turret indexing time: 0.35 sec • Supports turning, drilling, tapping, and milling operations • CNC Control: FANUC 18T • Absolute / incremental positioning • Linear, circular, and threading interpolation • Automatic sliding doors • Chip conveyor • Separate left/right bed design for high rigidity and stability • Prepared for automation • Very stable and compact heavy-duty construction • Floor space: approx. 2840 × 2125 mm • Machine height: approx. 2383 mm • Machine weight: approx. 7800 kg

Condition: ready for operation (used), Year of construction: 2014, total height: 2,222 mm, total width: 2,204 mm, overall weight: 10,600 kg, product length (max.): 3,290 mm, This 8-axis Miyano ABX64 YY2 was manufactured in 2014. It features a maximum work length of 125 mm and a maximum work diameter of Ø 165 mm. The machine is equipped with two turrets, each having 12 positions, and rapid traverse rates of up to 30 m/min. If you are looking to get high-quality turning capabilities, consider the Miyano ABX64 YY2 horizontal turning machine we have for sale. Contact us for further details. • Number of spindles: 2 • Spindle speed: SP1: 40 – 4000 rpm, SP2: 50 – 5000 rpm • Inner diameter of draw tube: SP1: Ø 65.5 mm, SP2: Ø 52 mm • Chuck system: Hydraulic cylinder (SP1 / SP2) • Collet chuck type: SP1: S collet system H-S26 / DIN185E, SP2: S collet system H-S22 / DIN177E • Power chuck: SP1: 6" hydraulic chuck, SP2: 6" hydraulic chuck • Number of turrets: 2 • Turret stations: 12 positions each • Tool shank size: □ 20 mm • Internal tool hole size: Ø 25 mm / Ø 40 mm • Index time: 0.25 sec / position • Turret HD1: X1: 16 m/min, Z1: 30 m/min, Y1: 12 m/min • Turret HD2: X2: 20 m/min, Z2: 30 m/min, Y1: 12 m/min • Sub-spindle axis: Zs: 30 m/min Redpfx Aeym T Efofcep • Number of rotary tools (HD1, HD2, HD3): 12 (max. 24) • Maximum spindle speed: 6000 rpm • Machining capacity: Drilling: max. Ø 20 mm, Tapping: max. M14 × 2, End milling: max. Ø 16 mm • Hydraulic tank capacity: 10 l • Lubricating tank capacity: 4 l • Coolant tank capacity: 400 l • Voltage: AC 200/220 V ± 10% • Frequency: 50/60 Hz ± 1 Hz • Power consumption: 48 kVA • Air supply: 5 bar (5 kgf/cm²)

Condition: ready for operation (used), Year of construction: 2006, This 3-axis MORI SEIKI NL2500MC/700 was manufactured in 2006. It features a maximum machining diameter of 366 mm and a turning length of 705 mm. The machine is equipped with a turret that has 12 positions and a spindle speed of up to 4000 rpm. If you are looking to get high-quality turning capabilities, consider the MORI SEIKI NL2500MC/700 horizontal turning machine we have for sale. Contact us for further details. • Maximum Machining Diameter: 366 mm • Maximum Turning Length: 705 mm • X/Z Travel: 260/795 mm • Number of Positions: 12 • Features: Turret with milling function 6000 rpm (5.5/3.7 kW) • Programmable Tailstock: MT5 • Tool Presetter • Tool Holders Rjdpfxoym T Dnj Afcep • High-pressure Coolant • Kitagawa 10'' Hollow Chuck • Workpiece Unloader • Chip Conveyor • Coolant 20 Bar

Condition: ready for operation (used), Year of construction: 1995, functionality: fully functional, Mazak QT10 + LNS Bar Loader Technical Data: Working Area: - Max. swing diameter: 300 mm - Over cross slide: 190 mm - Max. turning diameter: 110 mm - Max. turning length: 256 mm Main Spindle: - Speed range: 60 – 6,000 rpm - Main drive power: 7.5 kW - Constant torque: 96 Nm - Bar work up to max. diameter: 40 mm Rsdpfeym Tx Eox Afcop Turret: - Number of tool stations: 8 Axes Travel: - Turret travel: - X-axis: 100 mm - Z-axis: 290 mm Traverse Speed: - Rapid traverse: - X-axis: 30.5 m/min - Z-axis: 33 m/min - Feed range: 0 – 5,000 mm/min Machine Data: - Total connected load: 23 kVA - Machine weight: approx. 2,700 kg - Machine dimensions (L x W x H): approx. 2.00 x 1.35 x 1.92 m STANDARD ACCESSORIES: - Tool presetting device (MAZAK Tool Eye System) - Fully enclosed work area with coolant and chip protection - Double foot switch for chuck open/close - Chuck status feedback (open/closed) - Work area lighting - Documentation SPECIAL ACCESSORIES: - Automatic chuck open/close M06/M07 - Indicator lamp for machining status - Various tool holders

Condition: ready for operation (used), Year of construction: 1996, operating hours: 46,282 h, functionality: fully functional, controller model: TX 8F, counter spindle speed (max.): 4,000 rpm, workpiece diameter (max.): 56 mm, Equipment: bar feeder, chip conveyor, No reserve price – guaranteed sale to the highest bidder! Submitting a bid obligates you to collect the item within the specified period, either between 11/05/2026 and 13/05/2026 or between 18/05/2026 and 21/05/2026. TECHNICAL DETAILS Max. counter-spindle speed: 4,000 rpm Max. workpiece diameter: 56 mm Rapid traverse: max. 15 m/min Fine interpolation cycle: 0.34 ms Maximum thread pitch: 999,999 mm Maximum radius: 99,999.999 mm Feed override: 0–200% Rapid traverse override: 0–100% Spindle speed override: 50–120% Workpiece removal via counter spindle Programming: EIA and ISO code Input/output resolution: X/Z: 0.001 mm, C-axis: 0.001° Redpfxeym A E Ij Afcop C-AXIS Main spindle: Max. speed: 80 rpm Torque at 100% duty cycle: 100 Nm Accuracy: +/- 3 arcmin Counter spindle: Max. speed: 80 rpm Torque at 100% duty cycle: 30 Nm Accuracy: +/- 3 arcmin Tool Turret 1 & 2 Driven tools per turret: 10 (14) Max. speed: 4,000 (8,000) rpm Power at 100% duty cycle: 1.5 kW Power at 15% duty cycle: 4 kW Torque at 15% duty cycle: 12.4 (4) Nm Number of tool holders per turret: 10 (14) Cylindrical shank as per DIN 69880: Ø 30 x 55 (25 x 48) mm Tool cross-section: 20 x 20 (16 x 16) mm Chip-to-chip time according to VDI 2852: 1.2 s Index time per station: 0.6 s Over 5 stations: 1.5 s Counter spindle (numerically controlled in Z-direction) Max. speed: 4,000 rpm Max. clamping diameter: 65 mm Continuously programmable AC motor: 11 kW Torque: 210 Nm Feed force at 100% duty cycle: 6,000 N Feed travel: 520 mm Ball screw: Ø 32 x 10 mm MACHINE DETAILS Control: TX 8F Operating voltage: 400 V Frequency: 50 Hz Control voltage: 230 V Rated current: 85 A Connection: 54 kW Connected load: 39 kW Noise emission at operator station: 71 dB(A) Hydraulics System pressure: 60 bar Tank capacity: 150 l Coolant Per tool turret: single-stage centrifugal pump Pump pressure: 5/12 bar Tank capacity without chip conveyor: 300 l Tank capacity with chip conveyor: 280 l Dimensions & Weight Dimensions (L x W x H): 11,000 x 2,000 x 2,600 mm Weight: 6,000 kg Read operating hours: 46,282 h EQUIPMENT STAMAG bar feeder Chip conveyor Hainbuch chucking system Two 10-station turrets with driven tool stations Counter spindle External reference: L. Schaible

Condition: not inspected (used), Year of construction: 2005, functionality: unexamined, machine/vehicle number: BE55324S, turning length: 300 mm, travel distance X-axis: 100 mm, travel distance Z-axis: 250 mm, overall weight: 5,000 kg, controller model: FANUC SERIES 18i-TB, No reserve price – guaranteed sale to the highest bidder! Placing a bid obligates the buyer to timely collection, either between 11.05.2026 and 13.05.2026 or between 18.05.2026 and 21.05.2026! TECHNICAL DETAILS Turning length: approx. 300 mm Travel distance X-axis: approx. 100 mm Travel distance Z-axis: approx. 250 mm MACHINE DETAILS Control: FANUC SERIES 18i-TB Connected load: 36 kW Operating voltage: 200/220 V Frequency: 50/60 Hz Dimensions & Weight Dimensions (L x W x H): 8,000 x 2,000 x 2,200 mm Weight: 5,000 kg EQUIPMENT Main spindle with HAINBUCH chuck Counter spindle with HAINBUCH chuck Rodpfx Ajym Ax Iefcjp Double turret, each featuring 12 tool stations Bar feeder by BREUNING SIMAG, type: 42.1 R-3000 External reference: Pieper – Lot 111

Condition: ready for operation (used), Year of construction: 2012, functionality: fully functional, machine/vehicle number: 1310370, turning length: 240 mm, turning diameter: 180 mm, spindle speed (max.): 6,000 rpm, bar diameter (max.): 35 mm, controller model: FANUC SERIES oi-TD, No reserve price – guaranteed sale to the highest bidder! Placing a bid obligates you to collect the machine within the designated periods: either between 11/05/2026 and 13/05/2026 or between 18/05/2026 and 21/05/2026. TECHNICAL DETAILS Max. turning diameter: 180 mm Max. turning length: 240 mm Chuck size: 6 inch Max. swing over bed: 320 mm Max. bar capacity: 26/35 mm Spindle bearing diameter: 75 mm Max. spindle speed: 6,000 rpm X-axis travel: 120 mm Z-axis travel: 280 mm Rapid traverse X-axis: 12 m/min Rapid traverse Z-axis: 18 m/min MACHINE DETAILS CNC control: FANUC SERIES oi-TD Operating voltage: 200 V Frequency: 50/60 Hz Redpeym Ab Nefx Afcjp Connection: 23 kVA Dimensions & weight Dimensions (L x W x H): 1,500 x 1,500 x 2,200 mm Weight: 2,000 kg EQUIPMENT 12-position turret External reference: Elos - Lot 7

Condition: ready for operation (used), Year of construction: 2010, functionality: fully functional, spindle bore: 65 mm, spindle speed (max.): 5,000 rpm, bar passage: 60 mm, controller model: Siemens 840D Powerline, counter spindle speed (max.): 5,000 rpm, TECHNICAL DETAILS Spindle bore: 65 mm Bar capacity: 60 mm Main spindle max. speed: 5,000 rpm Counter spindle speed: 5,000 rpm MACHINE DETAILS Control: Siemens 840D Powerline Machine weight: 3,500 kg EQUIPMENT Redpfx Ajymw Iqjfcep C-axis IEMCA bar feeder Master 880/33 HF (bar length up to 3,200 mm) KSS coolant supply / cooling unit Hinged belt chip conveyor

Condition: ready for operation (used), Year of construction: 2014, operating hours: 3,971 h, spindle speed (max.): 6,300 rpm, travel distance X-axis: 100 mm, travel distance Z-axis: 300 mm, spindle motor power: 5,500 W, total width: 1,700 mm, overall weight: 1,400 kg, controller manufacturer: SIEMENS, controller model: Sinumerik 828D, number of axes: 2, Horizontal turning machine manufactured in 2014. These EMCO TURN E25 features a maximum turning diameter of 85 mm and a turning length of 225 mm. Includes a VDI 16 disk turret with 12 tool stations and a maximum chuck size of 100 mm. If you are looking to get high-quality turning capabilities, consider the EMCO TURN E25 machines we have for sale. Contact us for further details. 2 units available. • Availability: 2 units • Working range: • Swing over bed: 250 mm • Max. turning diameter: 85 mm • Max. turning length: 225 mm • Max. bar capacity: 25.5 mm • Distance between centers: 405 mm • Main spindle & drive: • Spindle connection: Ø 70 h5 • Max. chuck size: Ø 100 mm • Max. torque: 35 Nm • C-axis resolution: 0.001° • Tooling system: • Turret type: VDI 16 disk turret with directional logic • Number of tool stations: 12 Redjymqmmepfx Afcep • Tool shank cross-section: 12 x 12 mm • Feeds & axis performance: • Feed force (X / Z): 3000 N / 3500 N • Rapid traverse (X / Z): 15 m/min / 24 m/min • Positioning spread (Ps): 3 µm • Physical dimensions Utilities: • Supply voltage: 400 V (3/PE) • Total connected load: 6 kVA • Coolant tank capacity: 140 liters • Sound pressure level: 78 dB(A) Additional equipment • Chip conveyor Dimensions Machine Depth 1270 mm

Condition: ready for operation (used), Year of construction: 2011, operating hours: 4,741 h, controller manufacturer: SIEMENS, controller model: Sinumerik 828D, Horizontal turning machine manufactured in 2011. These EMCO TURN E25 features a maximum turning diameter of 85 mm and a turning length of 225 mm. Includes a VDI 16 disk turret with 12 tool stations and a maximum chuck size of 100 mm. If you are looking to get high-quality turning capabilities, consider the EMCO TURN E25 machines we have for sale. Contact us for further details. 2 units available. • Availability: 2 units • Working range: • Swing over bed: 250 mm • Max. turning diameter: 85 mm • Max. turning length: 225 mm • Max. bar capacity: 25.5 mm • Distance between centers: 405 mm • Main spindle & drive: • Spindle connection: Ø 70 h5 • Max. chuck size: Ø 100 mm • Max. torque: 35 Nm • C-axis resolution: 0.001° • Tooling system: • Turret: VDI 16 disk turret with directional logic • Tool stations: 12 • Tool shank cross-section: 12 x 12 mm • Feeds & axis performance: • Feed force (X / Z): 3000 N / 3500 N • Rapid traverse (X / Z): 15 m/min / 24 m/min • Positioning spread (Ps): 3 µm • Utilities: • Supply voltage: 400 V (3/PE) • Total connected load: 6 kVA • Coolant tank capacity: 140 liters Rjdpfx Afeympxnocsp • Sound pressure level: 78 dB(A) Additional equipment • Chip conveyor (referenced in the stated machine weight)

Condition: ready for operation (used), Year of construction: 2021, operating hours: 489 h, spindle speed (max.): 3,250 rpm, spindle motor power: 33,000 W, controller manufacturer: SIEMENS, controller model: 840D, number of axes: 2, Horizontal turning machine manufactured in 2021. This DMG MORI CLX 550 features a maximum turning diameter of 480 mm and a turning length of 1,240 mm. It is equipped with a 12-position turret and a maximum spindle speed of 3,250 rpm. If you are looking to get high-quality turning capabilities, consider the DMG MORI CLX 550 machine we have for sale. Contact us for further details regarding this machine. • Main spindle • Spindle type: A2-8", AC motor • Max. torque: 630 Nm (40% duty cycle) • Bar capacity: Ø 80 mm • Working range and capacity • Max. turning diameter: 480 mm • Max. turning length: 1,240 mm • Rapid traverse (X/Z): 30 m/min • Axes: Linear guideways in all axes (size 45 mm) Redpfx Aoympiasfcsp • Bed: Improved bed construction for stability • Tooling and turret • Turret type: VDI 40 • Stations: 12-position turret (one position defect) + 6 BT stations • Measuring system: Direct measuring system for the X-axis • Control and software • Control panel: DMG MORI SLIMline Multi-Touch • CNC: 19" SIEMENS 840D • Software: ShopTurn, 3D control technology

Condition: ready for operation (used), Year of construction: 2003, operating hours: 5,137 h, spindle speed (max.): 6,000 rpm, travel distance X-axis: 202 mm, travel distance Z-axis: 450 mm, spindle motor power: 12,000 W, total height: 1,730 mm, total width: 1,563 mm, overall weight: 3,500 kg, controller manufacturer: SIEMENS, controller model: Sinumerik 840D powerline, product length (max.): 4,000 mm, number of axes: 3, This 3-axis Gildemeister CTX 310 was manufactured in 2003. It features a maximum turning diameter of 246 mm and a turning length of 445 mm. The machine is equipped with a spindle power of 12 kW and a maximum spindle speed of 6000 rpm. If you are looking to get high-quality turning capabilities, consider the Gildemeister CTX 310 horizontal turning machine we have for sale. Contact us for further details. • Availability: 2 units available • Spindle • Nose: FL 140 h5 • Max torque: 115 Nm (153 Nm at 40% S6) • Bore: 69 mm • Chuck diameter: 170 mm (optional 210 mm) • Bar capacity: Ø 50 mm • Working range • Swing over bed: 500 mm • Max turning diameter: 246 mm • Max turning length: 445 mm • Distance between centers: 600 mm • Turret and tools • Turret type: VDI 30 • Tool stations: 12 • Driven tools speed: 4200–5000 rpm (depends on control: Fanuc/Siemens/Heidenhain) • Driven tools power: 3.3–4.4 kW • Feeds and axis data • Rapid traverse (X/Z): 24/30 m/min • C-axis rapid: 100 rpm Rjdpeympcajfx Afcjp • Feed force (X/Z): 450 daN • Resolution (X/Z): 0.001 mm • Bed • Inclination: 45° • Material: Cast iron • Electrical and auxiliary • Supply voltage: 400 V (±10%), 50 Hz • Total installed power: 24 kVA • Hydraulic system pressure: 50 bar • Coolant tank capacity: 175 liters • Control systems (options): GE-FANUC 21i-TB, Siemens 840D, Heidenhain 4290 E Additional equipment • Chip conveyor (both units) • Extraction unit (one unit)

Condition: ready for operation (used), Year of construction: 2017, spindle speed (max.): 3,500 rpm, number of axes: 3, This 3-axis SMEC PL 25M was manufactured in 2017. It features a maximum workpiece diameter of 300 mm and a maximum workpiece length of 520 mm. The machine is equipped with a bar capacity of 75 mm through the spindle and offers a maximum spindle speed of 3500 rpm. If you are looking to get high-quality mill-turn capabilities, consider the SMEC PL 25M machine we have for sale. Contact us for further details. • Max. workpiece diameter: 300 mm • Max. workpiece length: 520 mm • Bar capacity (through spindle): 75 mm • Max. driven tool speed: 5000 rpm Rodpfx Asymnb Iefcsp • Tool stations: 12

Condition: ready for operation (used), Year of construction: 2007, operating hours: 32,700 h, functionality: fully functional, travel distance X-axis: 165 mm, rotational speed (max.): 5,000 rpm, bar passage: 65 mm, controller model: SIEMENS 840 D, Equipment: chip conveyor, TECHNICAL DETAILS X1 travel: 165 mm Z1 travel: 220 mm X2 travel: 165 mm Z2 travel: 150 mm X3 travel: 165 mm Z3 travel: 650 mm Y3 travel: 80 (+50/-30) mm Bar capacity: 65 mm Main and sub-spindle speed: 5,000 rpm Turrets: 3, each with 12 stations (all driven) Driven tool speed: 4,000 rpm Tool holder: VDI 30 with drive, DIN 5480 MACHINE DETAILS Control: SIEMENS 840 D Operating hours Power-on hours: 52,511 h Spindle hours: 32,700 h Redpfxsymmdbo Afcep EQUIPMENT C-axis Y-axis Coolant system Chip conveyor Bar feeder TOP Automazioni XF 375

Condition: as good as new (ex-display), Year of construction: 2025, Optiturn L28 HS CNC lathe directly from the manufacturer. L28 HS - The OPTIMUM CNC lathe with Siemens control SINUMERIK 808D Advanced PPU 150. Strutted machine bed made of gray cast iron - Elaborate spindle bearings - Emergency stop impact switch - Central lubrication - Reference switch - Maintenance-friendly protective housing Redpfxjymlf Ro Afcep - Rear access flap for maintenance - Safety switch on the front sliding door - Turning turret is located behind the turning center (left turning tool) - Linear guide - Software package "SINUMERIK 808D on PC" included. (Practical training software, so that workpieces can be programmed and simulated offline on the PC. Free to download free of charge - Two-year SIEMENS warranty included Technical data Electrical connection 400 V / 3 Ph ~50 Hz Total connected load 3.75 kVA Spindle Drive motor S1 operation 2.2 kW Torque drive motor S1 operation 14 Nm Torque at the spindle 28 Nm Spindle holder DIN 6350 A2-3 Spindle cone 5C Spindle bore Ø 30 mm Cooling lubricant system Coolant pump output 95 W Tank capacity 25 liters Machine data Center height 169 mm Center width 430 mm Rotation Ø over cross slide Ø 200 mm Rotation Ø over machine bed Ø 300 mm Speed range Spindle speeds* 40 - 4,000 min-1 Tool turret Type electric Number of tool positions 6 tools Mounting height, width square max. 16 mm Mounting diameter of boring bar max. 16 mm Accuracy Repeat accuracy ± 0.01 mm Positioning accuracy ± 0.01 mm Bhajn7pvcu Travel distance X-axis 145 mm Z-axis 465 mm Feed speed X-axis 10,000 mm/min. Z-axis 12,000 mm/min. Machine leasing possible via Siemens Finance. Liquidity required.

Condition: as good as new (ex-display), Year of construction: 2025, Optiturn L34 HS CNC lathe directly from the manufacturer. L34 HS - The OPTIMUM CNC lathe with Siemens control SINUMERIK 808D Advanced PPU 150. Strutted machine bed made of gray cast iron - Elaborate spindle bearings - Emergency stop switch - Central lubrication - Spindle and feed motors from Siemens - Maintenance-friendly protective housing - Rear access flap for maintenance - Safety switch on the front sliding door - Turning turret is located behind the turning center (left turning tool) - Linear guide - Software package "SINUMERIK 808D on PC" included. (Practical training software, so that workpieces can be programmed and simulated offline on the PC. Free to download Technical data Electrical connection 400 V / 3 Ph ~50 Hz Total connected load 6.5 kVA Spindle Drive motor S1 operation 3.7 kW Torque drive motor S1 operation 23.6 Nm Torque at the spindle 40 Nm Spindle holder DIN 6350 A2-3 Spindle bore Ø 46 mm Coolant system Coolant pump output 95 W Tank capacity 75 liters Machine data Center height 165 mm Center width 600 mm Rotation Ø over cross slide Ø 146 mm Rotation Ø over machine bed Ø 350 mm Speed range Yvwdh0 Spindle speeds* 30 - 3500 min-1 Tool turret Type electric Number of tool positions 6 tools Mounting height, width square max. 16 mm Mounting diameter of boring bar max. 16 mm Redpfjymlfkox Afcop Accuracy Repeat accuracy ± 0.01 mm Positioning accuracy ± 0.01 mm Travel distance X-axis 145 mm Z-axis 465 mm Feed speed X-axis 6,000 mm/min. Z-axis 8,000 mm/min. Machine leasing possible via Siemens Finance. Liquidity required.

Condition: used, Year of construction: 2015, CMZ TA 20 Y-400 Swing over bed / cross slide: 760 / 600 mm Maximum turning diameter: 460 mm Distance between spindle and tailstock: 473 mm Axes travels X / Y / Z / B: 310 / +70 / −50 / 640 / 640 mm Rapid traverse speeds X / Z / B: 30 m/min Rapid traverse speed Y: 15 m/min Main spindle: Maximum speed: 4,000 rpm Power: 22 / 15 kW at 366 / 286 Nm Bearing diameter outer / inner: 150 / 100 mm Spindle bore: 73 mm Bar capacity: 66 mm Chuck diameter: 210 mm Tailstock: Quill stroke: 400 mm Tool turret: 12 stations, all driven Maximum speed: 12,000 rpm Power: 11.3 / 8.1 kW Maximum torque: 75 Nm CNC control: FANUC 32i TB Voltage: 400 V / 50 Hz Connected load: 45 kVA Rsdpsymc U Aofx Afcop Dimensions: approx. L x W x H 2.5 x 1.8 x 2.1 m Weight: approx. 6 t Operating hours: approx. 24,952 h Machining time: approx. 1,247 h Scope of supply: Bar feeder IEMCA KID 80/16, year 2018 Coolant system

Condition: used, Year of construction: 2019, CMZ TA 20 YS-640 Swing over bed / slide: 760 / 600 mm Max. turning diameter: 460 mm Distance between main and sub spindle: 649 mm Axis travels X / Y / Z / B: 310 / +70 / −50 / 640 / 640 mm Rapid traverse X / Z / B: 30 m/min Rapid traverse Y: 15 m/min Main spindle: Max. speed: 4,000 rpm Power: 22 / 15 kW at 366 / 286 Nm Rodpoymc Sbsfx Afcsp Bearing diameter external / internal: 150 / 100 mm Spindle bore: 73 mm Bar capacity: 66 mm Chuck diameter: 210 mm Tool turret: 12 stations, all driven Max. speed: 12,000 rpm Power: 11.3 / 8.1 kW Max. torque: 75 Nm Sub spindle: Max. speed: 4,500 rpm Power: 14 / 8 kW at 292 / 153 Nm Bearing diameter external / internal: 150 / 100 mm Spindle bore: 61 mm Bar capacity: 52 mm Chuck diameter: 175 mm CNC control: FANUC 32i TB Voltage: 400 V / 50 Hz Connected load: 45 kVA Dimensions (L x W x H): approx. 2.5 x 1.8 x 2.1 m Weight: approx. 6.3 t Operating hours: approx. 14,129 h Cutting hours: approx. 321 h Scope of delivery: - Bar feeder BREUNING IRCO SiMag 80.1-R-3000 II, year 2015 - Coolant unit

Condition: used, Year of construction: 2013, INDEX ABC 65 Distance between main and counter spindle: approx. 250 mm Rodpfxeymbp So Afcsp Main spindle: - Spindle bore: 65 mm - Max. speed: 6,000 rpm - Power: 25 / 35 kW at 80 / 120 Nm - Chuck diameter: 160 mm - Spindle bearing (ISO 702/1): 140 mm - C-axis Upper tool turret: - 10 stations - Max. speed: 12,000 rpm - Power: 7.5 kW at 11.25 Nm - Travel X / Y / Z: 140 / ± 50 / 300 mm - Rapid traverse X / Y: 30 / 50 m/min Lower tool turret: - 9 stations - Max. speed: 12,000 rpm - Power: 9 kW at 10 Nm - Travel X / Y / Z: 140 / ± 50 / 300 mm - Rapid traverse X / Y: 30 / 50 m/min Counter spindle: - Spindle bore: 52 mm - Max. speed: 6,000 rpm - Power: 5 / 9 kW at 10.5 / 20 Nm - Chuck diameter: 110 mm - Travel X / Y: 140 / 300 mm Back machining units: - 8 units incl. 5 driven stations - Max. speed: 12,000 rpm - Power: 6.4 kW at 7 Nm Workpiece and offcut handling unit with gripper: - Travel X: approx. 1,580 mm - Speed: approx. 68 m/min - Swivel angle: approx. 33° - Max. diameter: 65 mm - Max. workpiece weight: 2 kg CNC control: INDEX C 200-4D (based on Siemens Sinumerik 840 D-sl) Dimensions: approx. 4.1 x 2.1 m Required floor space incl. bar loader and coolant/filter unit: approx. 11 x 1.5 x 2 m (L x W x H) Weight: approx. 7 t Power supply: 400 V / 50 Hz Operating hours: 30,431 h Hydraulic hours: 28,806 h Scope of delivery: - Bar loader INDEX MBL - Coolant filtration unit KNOLL KF 150 - Chip conveyor KNOLL 320 S-1/160

Condition: used, Year of construction: 2014, INDEX ABC 65 Redjymblaopfx Afcsp Distance between main and counter spindle: approx. 250 mm Main spindle: Bore: 65 mm Maximum speed: 6,000 rpm Power: 25 / 35 kW at 80 / 120 Nm Chuck diameter: 160 mm Bearing ISO 702/1, diameter 140 mm C-axis Upper tool turret: 10 stations Maximum speed: 12,000 rpm Power: 7.5 kW at 11.25 Nm Travel X / Y / Z: 140 / ±50 / 300 mm Rapid traverse X / Y: 30 / 50 m/min Lower tool turret: 9 stations Maximum speed: 12,000 rpm Power: 9 kW at 10 Nm Travel X / Y / Z: 140 / ±50 / 300 mm Rapid traverse X / Y: 30 / 50 m/min Counter spindle: Bore: 52 mm Maximum speed: 6,000 rpm Power: 5 / 9 kW at 10.5 / 20 Nm Chuck diameter: 110 mm Travel X / Y: 140 / 300 mm Back machining units: 8 units incl. 5 driven stations Maximum speed: 12,000 rpm Power: 6.4 kW at 7 Nm Workpiece and offcut handling unit with gripper: Travel X approx. 1,580 mm Speed approx. 68 m/min Swivel angle approx. 33° Maximum diameter: 65 mm Maximum weight: 2 kg CNC control: INDEX C 200-4D (based on Siemens Sinumerik 840 D-sl) Dimensions: approx. 4.1 x 2.1 m Required space incl. bar loader and coolant/filter unit: approx. L x W x H 11 x 1.5 x 2 m Weight: approx. 7 t Voltage: 400 V / 50 Hz Operating hours: 18,384 h Hydraulic hours: 16,694 h Scope of delivery: - Bar loader INDEX MBL - Coolant filter unit KNOLL KF 150 - Chip conveyor KNOLL 320 S-1/160 - Additional cooling unit KLH SC 8.K2L.MT-00-IND
