AWB Vertrieb & Engineering GmbH

Condition: good (used), Year of construction: 2008, functionality: fully functional, Used machine WEEKE ABD 250 - Year of manufacture: 2008 - Availability approx. March/April 2026 - Automatic dowel insertion with glue - 3 horizontal drilling spindles Ihjdpfx Aex Tcwlehuet - 3 vertical drilling spindles - Maximum workpiece dimensions: 2500/800/60 mm

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, Machine for inserting vinyl glue and reins with gun - vibrating bowl for feeding the reins - glue tank 9 kg - water tank 9 liters - cleaning disposition - pneumatic pistol Ijdjx Rcybopfx Ahuoht - for reins 8 mm, length 25 to 50 mm

Condition: good (used), functionality: fully functional, Swing type row drilling machine, 19 spindles, pneumatic clamping Ihjdpfxjx Rbklj Ahujt

Condition: used, Year of construction: 1994, functionality: not functional, machine/vehicle number: 9311/4966, feed length X-axis: 2,000 mm, feed length Y-axis: 100 mm, drilling depth: 60 mm, total height: 60 mm, input voltage: 440 V, working height: 2,200 mm, space requirement width: 5,500 mm, space requirement length: 7,000 mm, pressure: 7 bar, input frequency: 50 Hz, workpiece length (max.): 2,000 mm, Installed at our factory 2013, we got it operational but intend client shortly after went bust, and wasn't of use for our other production. The machine has sat collecting dust since, we now need the space and offering at a spares price. The machine will be removed by end of January 2026, broken down into components and stored. Isdsx Id Dvopfx Ahueht Unit comprises Hopper Twin cut off saw XZ cnc router both ends xy cnc router both ends y Drill both end z drill on overhead gantry x 2 ( drill or xslot) y glue and dowel insert both ends x drill on overhead gantry x 2 ( drill or yslot) Return to operator

Condition: used, Year of construction: 2023, New showroom machine: List price €4,168 net Standard equipment: - Thread cutting device - Control panel with OLED display - Robust, high-quality drill head hood with ergonomically angled front - LED lighting - Rapidly adjustable and ergonomic drilling depth stop - Infinitely variable speed control via central rotary knob - Emergency stop button - Thermal overload protection - Spindle stop - Drill guard with electrical safety interlock - Power cable with Schuko plug - 3-year warranty for single-shift operation Technical data: Spindle B16 Drilling depth (mm): 60 Max. thread cutting capacity (depending on pitch): up to M10 Speed display: digital Drilling depth display: digital Drilling depth stop: stop ring (form-fit) Manual feed Table height adjustment with rack and pinion Motor: 3-phase, frequency-controlled, Power supply: 230 V (kW): 0.54 Continuous/normal drilling capacity (mm): 13/15 (in E335/ST60) Throat (mm): 220 Column diameter (mm): 70 Usable table surface (W x L) (mm): 300 x 250 Distance spindle-working surface (mm): max. 750 Ihedex Hwp Nspfx Ahujt Center displacement (mm): 20 T-slot size, spacing (mm), number: 2, 125 Dimension width (mm): 13/26 Spindle speed, stepless electric (rpm): 40–4,000 Machine dimensions (mm): without package: 420 x 540 x 1,780 with package: 572 x 936 x 2,142 Weight (kg): 85 Includes drilling package 1 #296590, Flott [Felix] 2.0 80 machine vice and quick-action drill chuck 1–13 mm (accuracy 0.17 mm) Location: Rieth

Condition: excellent (used), KOCH Dowel Inserting Machine Type DL-80 Machine No.: A0005/6390 Workpiece Dimensions: Workpiece length: 180 - 2500 mm Workpiece width: 70 - 800 mm Workpiece thickness: 12 - 40 mm - with glue application and dowel insertion station - with 1:1 glue pump - 1 vibratory feeder with control mirror per side - lateral dowel hole air nozzles - mechanical digital display for height adjustment - PLC control - machine bed with linear guides 1 x NC axis for positioning Configuration of glue application and dowel insertion station: 6 single dowel tools per side Dowel diameter: 8 mm Dowel length: 35 mm Dowel projection: 7-14 mm Pitch: 32 mm Minimum dowel center distance: 32 mm; maximum: 736 mm Tolerances for wooden dowels: Dowel length: +/- 1 mm Dowel diameter: +0.1 / -0.2 mm Ihedpfx Ajx Ez A Rjhuet Electronic Glue Monitoring ELC The monitoring device is installed before the glue valve. With every working cycle (glue shot), the glue flow is measured. If no glue is dispensed from an activated glue valve, the machine interrupts its cycle and indicates the relevant glue valve on the control cabinet. 12 x Electronic Glue Monitoring ELC, one per glue valve Flip-up belt extension Workpiece alignment station in belt infeed for minimum workpiece width of 70 mm, plus alignment for narrow parts Electrical connection rating: 400 V, 50 Hz, 3 phase Voltage fluctuation: max. +6 to -10% Air connection: 7 bar Extraction air speed: approx. 30 m/sec Ambient temperature at installation site: min. 10° C (50° F), max. 40° C (100° F)

Condition: used, Year of construction: 1977, operating hours: 250 h, functionality: fully functional, machine/vehicle number: 704384, drilling depth: 80 mm, total length: 1,500 mm, total height: 1,200 mm, overall weight: 640 kg, drill spindle length: 100 mm, compressed air connection: 5 bar, working width: 1,200 mm, height adjustment type: mechanical, space requirement width: 1,200 mm, pressure: 5 bar, power: 4.4 kW (5.98 HP), Machine in excellent condition. Inspection by appointment. Ihodpfxex Dbg Rs Ahuet

Condition: ready for operation (used), Year of construction: 1979, functionality: fully functional, compressed air connection: 5 bar, From business closure Schleicher dowel drilling machine DBS 1000 Isdpfx Ajx Avf Sohueht Year of manufacture: 1979 Also ideal for line boring with 5mm holes, 32mm spacing Comes with 25 pcs. 5mm carbide-tipped brad point drills and 8mm carbide drills, as well as 16mm and 35mm drill bits for cup hinges and other drill bits Pneumatically tiltable to horizontal/vertical position Machine is mobile Payment in cash upon collection No warranty

Condition: like new (used), Year of construction: 2023, operating hours: 300 h, functionality: fully functional, machine/vehicle number: 549.347, see description in the attached documents Ijdpfxjxzc U De Ahueht

Condition: used, Year of construction: 1981, Used machine Year of manufacture: 1981 Ihedpfx Ahsxx D D Ijujt Universal dowel boring machine with a swiveling drilling unit with fully automatic control with 2 safety pneumatic clamps Drilling gearbox motor 2.2 kW with 21 spindles Spindle pitch 32 mm with built-in oil damping Height adjustment 80 mm Drilling depth 80 mm With chassis Weight 420 kg Availability: short-term Location: Flörsheim

Condition: like new (used), DEMONSTRATION MACHINE For sale is a Felder FD-21 dowel boring machine. The machine is in use in our showroom and is therefore in mint condition. Technical data: - Version with 21 spindles - 2 hold-down clamps Ihsdpfx Asxxi T Ushuot - 2 stops, each 1.5 m, for line boring - 2 side stops with reading optics - Indexing system for side stop with 8 positions - Motor power: 2 HP - Year of manufacture: 2025 The machine is located in A-5431 Kuchl and can be inspected and picked up during our opening hours at any time. Subject to prior sale! Related terms: dowel milling machine, drilling machine, line boring Reference: R-A0117

Condition: used, Year of construction: 1997, Used machine Year of manufacture: 1997 Condition: well-maintained Equipment and technical data: - Number of drilling spindles: 21 pcs, 32 mm pitch - Drilling direction: from below and end-face - Swivel: 0–90 degrees via handwheel - Pneumatic material clamps: 3 pcs - Passage: max. 100 mm height and max. 640 mm width - Motor: 1.5 kW - Extraction connection diameter: 120 mm - Includes a variety of stops (see pictures) Iedpfx Ahoxwz Ihsujht Availability: approx. mid-April 2026 Storage location: Hesse

Condition: new, Year of construction: 2024, functionality: fully functional, - Single-head drilling machine for drilling from 0 – 90 ° - Pneumatically adjustable head angle - Cast iron spindles - High-speed spindles - Pneumatic material clamps - Cast iron worktable - Quick and precise setup - Accurate drilling STANDARD MACHINE EQUIPMENT: - 2 aluminium rulers, each 1.5 m long (right and left) with two stops - 5 quick-release drill chucks Technical specifications: Number of spindles: 21 Distance between first and last drill: 640 mm Number of pneumatic presses: 2 Distance between spindle centers: 32 mm Max drilling depth: 65 mm Air consumption: 10 l/cycle Max workpiece size: 915 x 3000 mm Max workpiece thickness: 70 mm Working pressure: 6 – 7 bar Rotation speed: 2800 rpm Motor power: 1.5 kW Ihsdpfexwcbcjx Ahujt Noise level: 76.1 dB Dimensions: Length: 1030 mm Width: 1030 mm Height: 1285 mm Pickup: Almelo, Netherlands Mobile: +31634707163

Condition: used, Year of construction: 2018, 1 x CNC-CONTROLLED DRILLING, GLUING AND DOWEL INSERTING MACHINE GANNOMAT "INDEX 130 PRO" (with options as Index 180 Pro) 400V, 3Ph, 50Hz complete in standard design with: - Support with linear guide consisting of: 1 x single-spindle horizontal drilling unit, 1.1 kW motor, tool speed selectable via operator software (3000/5000/8000 rpm) 1 x blow-out, gluing and dowel inserting station in reinforced design for dowels Æ 8 mm, dowel length 30 mm - fully automatic, electronically controlled central lubrication - X-axis NC controlled, with working length 1300 mm, travel speed max. 78 m/min. - Z-axis, position via support table 5-40 mm programmable with NC-controlled Z-axis option - Dowel driving overhang of 7-20 mm, programmable with NC-controlled Y-axis option, drilling depth of 0-35 mm (with drill length GL 70 mm) is automatically set with driving overhang - Closed glue system with 6 bar glue pressure via glue nozzle, for glues with a viscosity of 150 to 350 mPas - Glue quantity continuously adjustable via operator software - GL/WATER selector switch for rinsing the glue system, 1 stainless steel container each for 5 kg glue and 5 l water - Control lamp for residual glue quantity display in the glue container - 1 side stop left, 1 side stop right and 1 center stop (all removable) - 4 start buttons for individual working with 1-4 workpieces - 4 pcs. Pneumatic inclined clamping cylinder 10° for workpiece thicknesses up to max. 80 mm, workpiece length (Y) min. 70 mm - 1 pc. suction funnel, connection Æ 80 mm - 1 pc. TCT control with: built-in industrial PC, incl. Soft PLC type Beckhoff TWINCAT, operating temperature range 0-50°C, TFT industrial display 15" resistive touchscreen, resolution 1024 x 768, CPU 2 GHz, 256 MB RAM, 2x network interface adapters, IDE hard disk, 4x USB rear, 1x USB front, operating system: WINDOWS 7 - programming via menu-driven user software, drilling distances freely programmable with ABSOLUTE, RELATIVE or GRID dimensioning, automatic workpiece mirroring and work step optimization, 4 work fields can be assigned with different programs, graphic workpiece display, parametric programming, 0-point shift, programmable work lists, error diagnosis with plain text OPTIONS: 1 electronic, optical glue monitoring system G.I.C. (Glue Insert Control) for 1 glue nozzle 4 vertical inclined clamping cylinders 10° with holder, additionally, (total 8 clamping cylinders) 1 surcharge for machine bed length 1800 mm with working length 1800 mm 1 surcharge for: 1 horizontal drilling unit, motor 1.5 kW, with multi-spindle drilling head with 3 individually controllable drilling spindles, pitch 32 mm arranged in X-axis, tool speed 3000 rpm. (The standard working length is not reduced) 1 Y-axis NC-controlled, with recirculating ball screw and dynamic traversing speed of 300 mm/sec. The dowel driving overhang 7-30 mm and the drill hole depth 0-42 mm can be programmed via software. (with drill length GL 77 mm) for vertical drilling unit drilling from TOP, Y-axis position 5-42 mm 1 surcharge Y-axis NC-controlled position 5-62 mm instead of 5-42 mm 1 surcharge for: 1 vertical drilling unit drilling from TOP, motor 1.5 kW, with multi-spindle drilling head with 3 individually accessible drilling spindles, 32 mm pitch arranged in X-axis, tool speed 3000 rpm. Y-axis position 5-42 mm, workpiece length (Y) min. 130 mm, (the standard working length is not reduced) 1 Z-axis NC-controlled, with K Ihsdpfoxwaz Hex Ahuet

Condition: ready for operation (used), Year of construction: 1994, functionality: unexamined, Pneumatic drilling stroke Pneumatic workpiece clamping 2 tables, each 500 x 280 mm Tables inclinable 2 drilling motors, each 2.2 kW Ihsdpfxsxu Ecks Ahuot 2 drilling gearboxes, each with 6 spindles Spindle distance: 25/35/40/47/52 mm Digital display for width adjustment Weight approx. 400 kg

Condition: not inspected (used), Year of construction: 1977, functionality: unexamined, Max. working width: 740 mm Ihodpfoxuggwsx Ahujt Max. pass-through width: 820 mm Motor: 2.2 kW 23 drilling spindles Horizontal drilling depth: 120 mm Vertical drilling depth: 80 mm Weight: approx. 350 kg

Condition: used, Year of construction: 1999, functionality: fully functional, overall weight: 600 kg, number of spindles: 21, SCM MB 63 multi-spindle drill, 21 spindles, 1.5 kW power, fully functional Ijdpfx Ahexqx U Ejusht

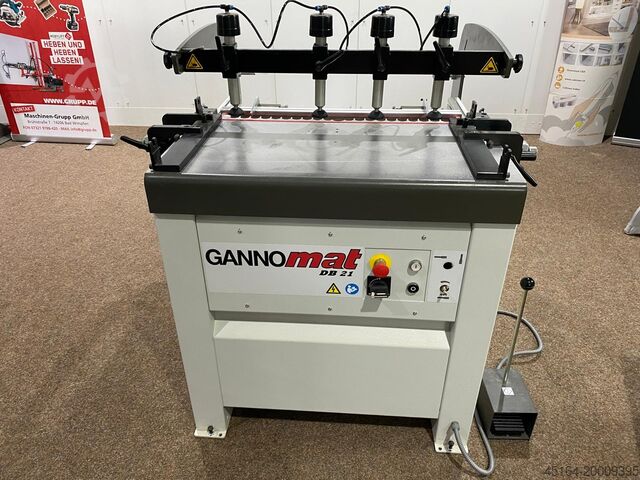

Condition: used, Year of construction: 2024, Dowel Hole Drilling Machine GANNOMAT "DB 21400V, 3Ph, 50Hz / 1.5 kW" complete in standard configuration, equipped with: - Fully automatic electronic control with pulse operation via foot pedal for clamp-drill-release sequence, including electrical skip operation. - Automatic return of the drilling unit after reaching the preset drilling depth. - Automatic drilling depth extension for end-face drilling. This saves the need to adjust the drilling depth when switching from flat-face to end-face drilling (+10 mm, e.g., with dowel length 35 mm, flat-face drilling depth 14 mm, end-face drilling depth 24 mm). - 1 drilling beam with 21 spindles, 32 mm pitch, 1.5 kW motor (drilling feed 0-70 mm). Includes 21 quick-change chucks (Ganner system) for easy drill bit changeover. - Easy pivoting of the drilling unit from 0° to 90°, assisted by gas cylinders. - 1 clamping beam movable on Y-axis with 3 pneumatic clamping cylinders, for workpieces up to max. 80 mm height. Ideal fence system consisting of: - 1 stop ruler, 1800 mm, for shelf drilling (aluminum profile 40x40 mm) with 3 drop-in stops. - Quick-change system, easily switchable from right to left stop for mirrored drilling of shelves in carcass construction; also suitable for line boring in system 32. - Side stops and position adjustments, as well as drilling height position, via mechanical digital counters on the support table. - Side stops can be easily folded away for fastest set-up change from carcass to frame or line drilling. - Clamping arms for the clamping beam enable line boring positions up to max. 300 mm. - Optimized three-stage tool system. Includes 1 set of dowel drill bits: - 5 carbide dowel bits, Ø 8x77 mm, right - 4 carbide dowel bits, Ø 8x77 mm, left Basic machine Dowel Hole Drilling Machine GANNOMAT "DB 21400V, 3Ph, 50Hz / 1.5 kW" complete in standard version, equipped with: - Fully automatic electronic control with pulse operation via foot pedal for clamp-drill-release, electrical skip operation. - Automatic return of the drilling unit after reaching the preset drilling depth. - Automatic extension of drilling depth for end drilling saves the need to adjust depth when switching from flat to end drilling (+10 mm, e.g. for dowel length 35 mm, flat-side depth 14 mm and end-side depth 24 mm). - 1 drilling beam with 21 spindles, 32 mm pitch, 1.5 kW motor (drilling feed 0-70 mm). Includes 21 quick-change chucks (Ganner system) for easy drill changeover. Ihedpfxjxnlflj Ahuet - Easy pivoting of the drilling unit from 0° to 90°, gas spring assisted. - 1 clamping beam, Y-axis adjustable, with 3 pneumatic clamps for workpieces up to max. 80 mm high. - Ideal stop system comprising: - 1 stop ruler, 1800 mm, for shelf drilling (aluminum profile 40x40 mm) with 3 drop-in stops, quick-change system, easily switched from right to left for mirrored shelf drilling in carcass constructions, also usable for line boring in system 32. - Side stops and adjustable positions, as well as drill height position, via mechanical digital counters on the support table. - Side stops can be folded away easily for shortest retool time from carcass to frame and line boring operations. - Clamping arms for the clamp beam suitable for line-boring positions up to max. 300 mm. - Three-stage optimized tool system. Extraction funnel, dust tested, Ø 120 mm 1 set for line boring in system.

Condition: like new (used), functionality: fully functional, Dübellock drilling machine Ayen 23, complete equipment, partly new drill bits Isdpfx Ahoxg N Dpoujht

Condition: used, Year of construction: 1985, Used machine Year of manufacture: 1985 Equipment and technical data: - 23-spindle drilling head (32 mm pitch, suitable for carcass and furniture construction) - Pneumatic clamping cylinders for workpieces - Infinitely adjustable depth stops - Adjustable fence with measuring scale - Solid worktable with lateral supports - Quick-change drill bushes for various drill diameters - Foot pedal control for pneumatic operation - Drilling spindles: 23 units, 32 mm pitch - Max. drilling depth: approx. 65 mm - Drilling diameter: 2–35 mm - Motor power: 2.2 kW - Speed: approx. 2800 rpm - Compressed air connection: G 1/4 - Air consumption: approx. 7 l/cycle Ijdpfxsxdpmlo Ahuoht - Electrical connection: 380 V, 50 Hz - Worktable: approx. 1000 × 350 mm - Dimensions (L×W×H): approx. 1200 × 800 × 1200 mm - Weight: 490 kg Location: Baden-Württemberg Availability: short notice

Condition: good (used), Year of construction: 2007, functionality: fully functional, NC-controlled drilling and dowel-inserting machine Manufacturer: Weeke Model: Optimat ABD 150 Year of manufacture: 2007 Workpiece dimensions: Length: 20 - 1250 mm Width: 100 - 800 mm Thickness: 10 - 60 mm Active center stop: maximum length 600 mm Equipment: - Horizontal drilling unit with 3 individually selectable spindles, spindle pitch 32 mm - 1 dowel insertion unit (spaced 32 mm from the first drilling spindle) - Glue nozzle with adjustable glue output - Glue flow monitoring - Mist oiler for glue nozzle - Standard dowel sizes: 8x30 mm / 8x35 mm Ihedpfx Aoxdl Rashuet - Vibratory feeder for automatic dowel feed 1. BASE MACHINE - Rigid welded steel frame construction - Axis travel in X, Y, and Z directions - Ball screw drives (Y- and Z-axis) and rack and pinion drive (X-axis) - Digital AC servo motor - Support table with left and right side stops and rear fence - Pneumatic center stop, manually actuated via selector switch - 6 overhead pneumatic clamps, manually adjustable - Centralized lubrication system power control PC85T Modern control system based on Windows PC

Condition: new, Year of construction: 2025, CNC-controlled drilling, gluing, and dowel insertion machine Complete in standard configuration with: - Support with linear guide consisting of: 1 pc. single-spindle horizontal drilling unit, motor 0.65 kW, stroke 70 mm Tool speed selectable via operator software (3000/5000/8000 rpm) 1 pc. blow-out, gluing, and dowel insertion station for dowels Ø 8 mm, dowel length 25–50 mm - Fully automatic, electronically controlled central lubrication - X-axis NC controlled, with working length 700 mm, max. traversing speed 95 m/min - Z-axis manually adjustable via mechanical digital counter, position on support table 5–40 mm Iodsw Sgm Hspfx Ahuoht - Dowel insertion projection adjustable from 7–20 mm via mechanical digital counter, drilling depth 0–35 mm (with drill length TL 70 mm), automatically set with insertion projection - Closed glue system with 6 bar glue pressure via glue nozzle, for glues with viscosity from 150 to 350 mPas - Glue quantity steplessly adjustable via operator software - Selector switch GLUE/WATER to flush glue system, each with: 1 stainless steel container for 7.5 kg glue and 7.5 l water - Indicator lamp for residual glue level in glue container - 1 pc. left side stop, 1 pc. right side stop (all removable) - 2 pcs. start buttons for individual operation with 1–2 workpieces - 2 pcs. pneumatic angled clamping cylinders 10° for workpiece thickness up to max. 80 mm, workpiece length (Y) min. 70 mm - 1 pc. extraction funnel, connection Ø 80 mm - 1 pc. TCT controller with: Integrated industrial PC, incl. Beckhoff TwinCAT soft PLC, operating temperature range 0–50°C, 15" capacitive touchscreen TFT industrial display, operating system: WINDOWS 10 IoT LTSC (long term support channel) - Programming via menu-guided user software, drilling distances freely programmable with ABSOLUTE, RELATIVE, or GRID dimensioning, automatic workpiece mirroring and process optimization, 2 working fields assignable with different programs, graphical workpiece display, parametric programming, zero-point shift, programmable work lists, plain text error diagnosis - Integrated options: - Electronic optical glue monitoring system G.I.C. (Glue Insert Control) for 1 pc. glue nozzle, art. no. 0470-0810 - 1 EASY CLEAN system, for automatic test glue shots before starting the drilling/gluing/dowel insertion program. E.C.S. for 1 pc. glue nozzle, art. no. 0471-Z010 - 1 single-spindle vertical drilling unit from ABOVE, 0.65 kW, (3000/5000/8000 rpm), position (Y) manually adjusted via mechanical digital counter Adjustable from 5–40 mm, drilling depth (Z) max. 30 mm (with drill length TL 57 mm) Workpiece thickness (Z) max. 50 mm, workpiece length (Y) min. 130 mm (incl. drilling depth compensation, e.g., for Häfele Minifix) Art. No. 0471-0830 - 4 vertical angled clamping cylinders 10° with mount, additional, Art. no. 0470-0850 Available: short notice

Condition: new, Year of construction: 2022, New machine Year of manufacture: 2022 DESCRIPTION 21 drilling spindles with quick-change system; five quick-change chucks included in delivery Heavy-duty steel worktable; five quick-change chucks included in delivery Patented system for fast and easy adjustment of drilling depth via spiral disc Pneumatic drill head swiveling, allowing drilling in any position between 0° and 90° Fold-down cast iron side stops with round bar guide Side stops easily adjustable and lockable to millimeter scale using magnifier Height adjustment of drill head via counter Two positionable pneumatic clamping cylinders With a spindle center distance of 640 mm, it is possible to process two workpieces of 316 mm width each SCOPE OF DELIVERY Two pneumatic pressure cylinders Five quick-change chucks Two stop rails, each 1.5 m long Iedpfx Ahew I Uqlsusht Four fold-down stops for the stop rails One setting gauge for fine adjustment of the fold-down stops on the stop rails TECHNICAL DATA Dimensions and Weights Worktable length 885 mm Worktable width 332 mm Product length approx. 1015 mm Product width/depth approx. 990 mm Product height approx. 1270 mm Net weight approx. 260 kg Electrical Data Rated input power 1.5 kW Delivered power 1.1 kW Motor duty cycle S3 Connection voltage 400 V Mains frequency 50 Hz Noise Emission Sound pressure level 78.3 dB(A) Pneumatic Connection Working pressure 6 – 8 bar Spindle Maximum drilling width 640 mm Maximum drilling depth at 90°: 65 mm Number of spindles: 21 Spindle distance 32 mm Center distance first to last spindle: 640 mm Spindle spacing sufficient for two workpieces of 316 mm each Spindle speed: 2800 rpm Drill head swivel range: 0 – 90° Maximum workpiece height: 130 mm Extraction Extraction nozzle diameter: 80 mm Including optional accessories: 2 pcs. Additional pneumatic pressure cylinders for MDB 21/23/29 PRO 17 pcs. Quick-change chucks for MDB 21/23/29 PRO 1 pc. Setting gauge for rear fence distance for MDB 21/23/29 PRO 1 pc. Reference pin for line drilling for MDB 21/23/29 PRO Location: Solingen Availability: Immediately

Condition: used, Year of construction: 1993, Used machine Ihsdpsw I Uy Tjfx Ahuot Year of manufacture: 1993 Features and technical data: 2-jaw drill chuck up to 20 mm shank diameter Pneumatic positioning adjustment on 2 levels 0-100 mm Max. drilling depth: 150 mm Precision indexing rail 12 mm Center locking and cross adjustment 2 pneumatic safety clamping cylinders Motor 1.5 kW Speed: 2800 rpm Long hole drilling device, lowerable, with 2 program cams Machine weight approx. 310 kg Machine dimensions (W x D x H): 1100 x 1100 x 1500 mm (without stop) Availability: short-term Location: Röllbach

Condition: used, Year of construction: 1997, Used machine Year of construction 1997 Universal dowel drilling machine with drilling from below heavy cast iron table pneumatic swivel device; effortless changeover from vertical to horizontal or to any miter angle Drilling unit with digital positioning for 0-edge transfer, touch stops are used which transfer the tool thickness to the vertical bore during horizontal drilling to the vertical bore for hole line drilling, the stop system is slid into guides on the side of the machine table Working width 700 mm Portal passage max. 850 mm Drilling depth max. 80 mm Operating pressure 6-8 bar Motor 1.9 kW Spindle speed 2800 rpm 21 spindles pitch 32 mm Spindle distance min. 32 mm Spindle distance max. 640 mm Space requirement L X W x H 960 x 630 x1140 mm Weight approx. 300 kg Isdjw Naa Uspfx Ahusht Availability: short term Storage location: Flörsheim
