Condition: used, Year of construction: 2006, operating hours: 11,000 h, functionality: fully functional, travel distance X-axis: 350 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 300 mm, workpiece weight (max.): 25 kg, We offer this used AGIE CHARMILLES + EROWA Roboform 350 + EROWA Robot Compact wire EDM machine, manufactured in 2006. Only approximately 9,500 generator hours! Manufacturer: AGIE CHARMILLES + EROWA Model: Roboform 350 + EROWA Robot Compact Year of manufacture: 2006 Condition: used Category ID: 1901 Type ID: 1429 Machine type: Wire EDM machine Details: Bsdpfxoy Tb Aye Af Hjwn Year of manufacture: 2006 Travel ranges: X/Y/Z 350 x 250 x 300 mm Minimum power consumption: 5 kVA Maximum electrode weight: 25 kg 44-position electrode changer Compact Accessories: Includes Erowa zero-point clamping system on the table WITHOUT electrode holders in the changer, but these can be purchased separately! If you have any questions or require further information, please send us a message or call us.

Condition: ready for operation (used), Year of construction: 2005, travel distance X-axis: 350 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 250 mm, controller manufacturer: AGIE, number of axes: 3, This 3-axis AGIE Hyperspark 2 Exact with Erowa was manufactured in 2005. It features an X-axis travel of 350 mm, Y-axis travel of 250 mm, and Z-axis travel of 250 mm. The machine is equipped with AGIE VISION 4 Software and includes an EROWA ROBOT MULTI with 60 ITS 148 places and 240 ITS 50 magazine places. If you are looking to get high-quality die-sinking EDM capabilities, consider the AGIE Hyperspark 2 Exact machine we have for sale. Contact us for further details. • EROWA ROBOT MULTI with 60 ITS 148 Places and 240 ITS 50 Magazine Places Bwodpoy S A Dcofx Af Hon

Condition: used, Year of construction: 2008, Charmilles FO 350 S Die-Sink Electro-Discharge Machine. Serial No. 642977 (2008). Country of Origin: Switzerland Please Note: this lot has been professionally decommissioned and secured for transit Bjdpsy Rz Nbsfx Af Hswn Location: This lot is located in Birmingham, UK. A charge of £550 for decomissioning and loading onto suitable transport will be automatically added to your invoice should you be successful in purchasing this item. Blocking and securing will be at the cost of the purchaser.

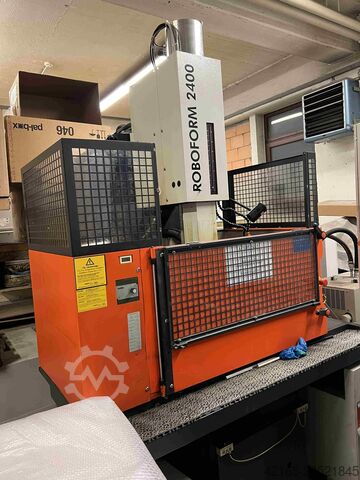

Condition: excellent (used), Year of construction: 2001, Charmilles Roboform 2400 Year of manufacture: 2001 Bwsdpfxoy Ncylj Af Hsn X-320 mm, Y-220 mm, Z-320 mm Max. workpiece dimensions: 880 mm x 550 mm x 225 mm Table: 560 mm x 320 mm Weight: 3,500 kg Including EROWA tooling Excellent condition!

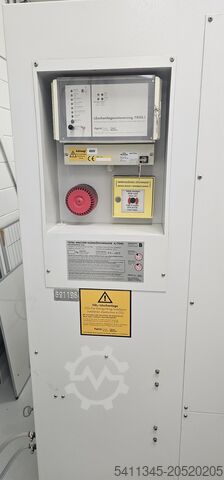

Condition: ready for operation (used), Year of construction: 2002, travel distance X-axis: 350 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 300 mm, overall weight: 2,500 kg, number of axes: 3, This 3-axis CHARMILLES ROBOFORM 35P die-sinking EDM machine was manufactured in 2002. It features a travel range of 350 mm in the X-axis, 250 mm in the Y-axis, and 300 mm in the Z-axis, with a maximum workpiece weight of 500 kg. The machine is equipped with a 32-position rotary tool changer and a high-speed Z-axis for enhanced performance. If you are looking to get high-quality die-sinking capabilities, consider the CHARMILLES ROBOFORM 35P machine we have for sale. Contact us for further details. • Table dimensions: 400 x 500 mm • Maximum workpiece weight: 500 kg • Dielectric capacity: 400 l • Rotational axis: C-axis Bodpsy Idtkofx Af Hewn • Z-axis type: High-speed Z-axis • Tooling interface: Combi chuck • Tool changer: 32-position rotary changer • Electrical: 380 V, 3 Ph, 50 Hz, 5 kVA, 5 A • Safety: Integrated fire extinguishing system Additional equipment • Eckert cooling unit • Measuring probe (touch probe)

Condition: used, Year of construction: 2002, functionality: fully functional, machine/vehicle number: 2.0396, travel distance X-axis: 400 mm, travel distance Y-axis: 300 mm, travel distance Z-axis: 350 mm, input voltage: 400 V, input frequency: 50 Hz, We are offering this used Zimmer+Kreim Genius 600 die-sinking EDM machine, year of manufacture 2002. Type: Genius Model: 600 Serial number: L.08316 Year of manufacture: 10/02 Operating voltage: 400 V Frequency: 50 Hz Bjdpsy Hfbmefx Af Hswn Connected load: 5 kVA Accessories: Drilling head with pipe guide 12-position tool changer If you have any questions or need more information, please feel free to send us a message or call us.

Condition: good (used), Year of construction: 2004, functionality: fully functional, machine/vehicle number: 73, travel distance X-axis: 400 mm, travel distance Y-axis: 300 mm, travel distance Z-axis: 350 mm, type of input current: three-phase, input voltage: 400 V, overall weight: 3,000 kg, input frequency: 50 Hz, input current: 12 A, Equipment: documentation/manual, We are offering this well-maintained AGIE HYPERSPARK 2 EXACT die-sinking EDM machine, year of manufacture 2004. Model: HYPERSPARK 2 EXACT Installation serial number: 73 Serial number: 30.303 Year of manufacture: 2004 Power consumption: 628.702 Weight: 3,000 kg Bwsdpfx Ajy Hfavsf Hjn Voltage: 3 × 400 V Frequency: 50 Hz Power: 8.3 kVA Rated current: 12 A Short-circuit current: 10 kA 20-position automatic tool changer If you have any questions or require further information, please feel free to send us a message or contact us by phone.

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, travel distance X-axis: 350 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 250 mm, workpiece weight (max.): 200 kg, total height: 2,372 mm, total width: 1,731 mm, total length: 1,000 mm, table width: 630 mm, quill stroke: 250 mm, table length: 400 mm, workpiece length (max.): 800 mm, workpiece width (max.): 500 mm, workpiece height (max.): 265 mm, GF AgieCharmilles FORM 20 Year of manufacture: 2008 Travel paths: X=350 mm, Y=250 mm, Z=250 mm Max. workpiece size: X=800 mm, Y=500 mm, Z=265 mm Max. workpiece weight: 200 kg Max. electrode weight: 50 kg Distance table – chuck: 230 - 480 mm APG FORM Generator – working current: 72 Amperes Bwsdpfey Eml Rjx Af Hjn Best achievable surface finish: Ra 0.2 µm Including pneumatic chuck Erowa ITS 50 Including 4-position electrode changer in magazine Machine weight (net): 2000 kg Machine dimensions (L x W x H): 1300 x 1850 x 2500 mm The machine will be cleaned, serviced, and subsequently tested after your order is received. We are happy to commission the machine for you as well.

Condition: not inspected (used), Year of construction: 1989, travel distance X-axis: 400 mm, travel distance Y-axis: 300 mm, travel distance Z-axis: 250 mm, Manufacturer: Hitachi Seiko Ltd., Japan Type: H-DS02N Year of manufacture: 1989 X-axis: approx. 200–400 mm Y-axis: approx. 150–300 mm Z-axis: approx. 150–250 mm Table size: ~300×200 – 500×300 mm Max. workpiece weight: 200–500 kg Type: transistor EDM generator Max. current: ~30–100 A Pulse control: analog / early digital Achievable surface finish: Ra ~0.8–3 µm Operationality uncertain Bsdpfxjy D Ncco Af Hewn

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, travel distance X-axis: 300 mm, travel distance Y-axis: 200 mm, travel distance Z-axis: 300 mm, workpiece weight (max.): 500 kg, total height: 2,400 mm, total width: 1,600 mm, total length: 1,500 mm, table width: 500 mm, type of input current: three-phase, distance table to quill: 550 mm, workpiece length (max.): 800 mm, workpiece width (max.): 480 mm, workpiece height (max.): 250 mm, control cabinet length: 880 mm, control cabinet width: 700 mm, control cabinet height: 1,860 mm, input voltage: 400 V, overall weight: 1,240 kg, tank capacity: 280 l, Equipment: documentation/manual, Sinker EDM Machine CM323Z Technical Data Maximum table travel (X x Y): 300 x 200 mm Maximum head travel (Z): 300 mm Orbital movement (deflection) U-V travel: ± 5 mm Distance head/table: 250 to 550 mm Table size: 500 x 350 mm Maximum workpiece weight: 500 kg Work tank dimensions: 820 x 500 x 300 mm Dielectric tank volume: 280 l Maximum electrode weight: 15 kg Smooth linear guides Glass scale encoders on all 3 axes Required space (W x D x H): approx. 1600 x 1500 x 2400 mm Weight: 1000 kg Generator / Power Supply Unit 75 EZ Technical Data Maximum machining current: 75 A Power consumption: 5 kVA Maximum possible feed rate: 550 mm³/min Achievable surface finish: 0.45 µm/Ra Electrode wear rate: 0.2 % Required space (W x D x H): approx. 700 x 880 x 1860 mm Weight: 240 kg Additional options included: Orbital and Z-axis deflection system – CNC controlled. Programmable Z-axis allows for both roughing and finishing in a single operation; thread eroding is also possible. Bwedpfx Afsy A If Ts Hsn Fire extinguisher Permanent magnetic chuck 150 x 300 mm Rapid tank filling system Safety switch for tank door Manual quick-change chuck Included accessories: Quick-change system with approx. 20 electrode holders Electrode materials: copper and graphite Drill chuck, collets Tool cabinet Dielectric fluid Operator training at our facility in 1110 Vienna included The machine has rarely been used (1,083 operating hours) and is therefore in very good condition, and can be demonstrated under power. Inspection possible during our business hours or by appointment. Sale due to upcoming retirement.

Condition: used, Year of construction: 2007, travel distance X-axis: 350 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 300 mm, workpiece weight (max.): 500 kg, total height: 2,398 mm, total width: 1,690 mm, total length: 19,000 mm, quill stroke: 300 mm, workpiece length (max.): 790 mm, workpiece width (max.): 530 mm, workpiece height (max.): 275 mm, overall weight: 2,800 kg, Charmilles Roboform 350 Year of manufacture: 2007 Die-sinking EDM machine with C-frame design Fixed table with lowering tank Travel distances (X/Y/Z): 350 x 250 x 300 mm Bedpfx Asyzzblef Hewn Maximum workpiece dimensions: 790 x 530 x 275 mm Maximum workpiece weight: 500 kg Programmable tank height: 100–325 mm Generator hours: 6,337 h

Condition: good (used), Year of construction: 2000, functionality: fully functional, travel distance X-axis: 350 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 300 mm, workpiece weight (max.): 500 kg, Charmilles Roboform 35 Year of manufacture: 2000 C-frame design Fixed table with lowering tank Travel distances: X=350 mm, Y=250 mm, Z=300 mm Max. workpiece size: X=780 mm, Y=400 mm, Z=300 mm Max. workpiece weight: 500 kg Max. electrode weight: 50 kg Distance table to chuck: 150 - 450 mm Working current 64 Ampere Isopulse generator Linear glass scales with 0.5 µm measuring resolution Includes pneumatic chuck Erowa ITS 50/3R Systems Bwsdeyyxbtopfx Af Hjn Machine weight (net): 2800 kg Machine dimensions (L x W x H): 1900 x 1690 x 2400 mm The machine was in operation with our customer until recently and is fully functional.

Condition: used, Year of construction: 1995, functionality: fully functional, machine/vehicle number: 009.009, travel distance X-axis: 350 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 350 mm, workpiece weight (max.): 400 kg, total height: 2,600 mm, total width: 2,250 mm, total length: 1,700 mm, table width: 450 mm, type of input current: three-phase, table length: 600 mm, workpiece length (max.): 800 mm, workpiece width (max.): 600 mm, workpiece height (max.): 350 mm, input voltage: 400 V, overall weight: 2,575 kg, input frequency: 50 Hz, space requirement width: 2,250 mm, space requirement height: 2,600 mm, space requirement length: 1,700 mm, AGIE AGIETRON COMPACT 2 Die-Sinking EDM – Precision Swiss-Made Machine For sale is a high-quality AGIE AGIETRON COMPACT 2 die-sinking EDM machine, year of manufacture 1995, built in robust industrial design. This machine is renowned for its precision, reliability, and durability, making it ideal for toolmaking, mold making, and industrial manufacturing. The machine features travel paths of 350 × 250 × 350 mm (X/Y/Z) and a spacious work tank measuring 800 × 600 × 350 mm. The worktable measures 600 × 450 mm, allowing the machining of workpieces up to 400 kg. Equipped with an 8-position electrode changer and an EROWA IST 50/100 electrode holder, the machine enables efficient and automated machining processes. Control is handled via the AGIE system (ATK-2 / DAI 2), combined with the AGIEMATIC T generator + AGIEPULS 60 HSF. Technical highlights: • Axes travel: 350 × 250 × 350 mm • Work tank: 800 × 600 × 350 mm • Table size: 600 × 450 mm • Max. workpiece weight: 400 kg • Electrode holder: EROWA IST 50/100 • 8-position electrode changer • Power requirement: 5.8 kVA • Voltage: 400 V / 50 Hz • Rated current: 8.37 A • Machine weight: approx. 2,575 kg Bwsdpfx Afoyw Rz Tj Hsn • Dimensions: 1700 × 2250 × 2600 mm Features: • Robust industrial-grade construction • High-precision die-sinking EDM machining • Integrated fire extinguishing safety system • Premium Swiss quality machine The machine is in good condition and has seen little use. A powered inspection is possible by appointment.

Condition: excellent (used), Year of construction: 2018, Working table dimensions (width x depth): 600 x 400 mm Internal dimensions of working tank (W x D x H): 975 x 555 x 350 mm Fluid level in working tank (min. - max.): 170 ~ 300 mm Working tank volume: 180 L X-axis travel: 350 mm Y-axis travel: 250 mm Bjdpfjyv Ezlox Af Hjwn Z-axis travel: 270 mm Maximum workpiece weight: 550 kg Maximum electrode weight: 50 kg Distance between clamping system and table surface: EROWA COMBI / EROWA ITS: 217 ~ 487 mm 3R COMBI / 3R MACRO: 200 ~ 470 mm Distance between table surface and floor: 810 mm Machine dimensions (W x D x H) (including power supply and dielectric tank): 2080 x 1955 x 2350 mm Installation footprint (W x D): 2800 x 2900 mm Machine weight (including NC): 3200 kg Air pressure (automatic clamping system): 0.65 MPa Air consumption: 100 l/min (ANR) Total power consumption: 3-phase, 50/60 Hz, 10 kVA

Condition: excellent (used), Year of construction: 2015, Working table dimensions (width x depth): 600 x 400 mm Internal dimensions of working tank (W x D x H): 975 x 555 x 350 mm Fluid level in working tank (min. - max.): 170 ~ 300 mm Working tank volume: 180 L X-axis travel: 350 mm Y-axis travel: 250 mm Bwedpjyv Eyhefx Af Hen Z-axis travel: 270 mm Maximum workpiece weight: 550 kg Maximum electrode weight: 50 kg Distance between clamping system and table surface: EROWA COMBI / EROWA ITS: 217 ~ 487 mm 3R COMBI / 3R MACRO: 200 ~ 470 mm Distance between table surface and floor: 810 mm Machine dimensions (W x D x H) (including power supply and dielectric tank): 2080 x 1955 x 2350 mm Installation footprint (W x D): 2800 x 2900 mm Machine weight (including NC): 3200 kg Air pressure (automatic clamping system): 0.65 MPa Air consumption: 100 l/min (ANR) Total power consumption: 3-phase, 50/60 Hz, 10 kVA Working hours: 5.744h

Condition: refurbished (used), Year of construction: 2007, functionality: fully functional, travel distance X-axis: 350 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 300 mm, workpiece weight (max.): 500 kg, total height: 2,398 mm, total width: 1,690 mm, total length: 1,900 mm, quill stroke: 300 mm, workpiece length (max.): 790 mm, workpiece width (max.): 530 mm, workpiece height (max.): 275 mm, overall weight: 2,800 kg, tank capacity: 410 l, Charmilles Roboform 350 Year of manufacture: 2007 C-frame sinker EDM machine Fixed table with lowering tank Travel (X/Y/Z): 350 x 250 x 300 mm Maximum workpiece dimensions: 790 x 530 x 275 mm Maximum workpiece weight: 500 kg Programmable bath height: 100-325 mm Including pneumatic chuck Erowa ITS 50 / 3R Systems / Hirschmann (choice of one) Maximum electrode weight: 50 kg Without electrode changer Charmilles DPControl operating interface Operation via 12" LCD color touchscreen Keyboard and hand pendant also available Machine dimensions: 1900 x 1690 x 2522 mm Total weight: 2800 kg The machine will be cleaned and serviced by us upon receipt of order. Afterwards, an EDM test will be performed. We are happy to commission the machine at your site and provide operator training. Optional: - Transport - Cooling unit - Dielectric fluid Bedpoyu N Skofx Af Hswn - Clamping devices

Condition: ready for operation (used), Year of construction: 2006, travel distance X-axis: 350 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 350 mm, total height: 2,580 mm, total width: 3,350 mm, overall weight: 3,200 kg, product length (max.): 1,630 mm, number of axes: 3, This 3-axis AGIE AGIETRON INTEGRAL 2 was manufactured in 2006. It features a travel of 350 mm in the X-axis, 250 mm in the Y-axis, and 350 mm in the Z-axis. The machine can accommodate workpieces up to 840 x 670 x 250 mm and has a maximum electrode weight of 100 kg. If you are looking to get high-quality die-sinking capabilities, consider the AGIE AGIETRON INTEGRAL 2 machine we have for sale. Contact us for further details. • Units available: 2 • Workpiece size: 840 x 670 x 250 mm • Weight: 400 kg • Number of electrodes: 28 • Max. electrode weight: 100 kg • Circuit diagram: 625942.8 Bjdjyrqk Nopfx Af Hewn • Electrical: 3 × 400 V, 50 Hz, 6.1 kVA, 8.8 A

Condition: ready for operation (used), Year of construction: 2006, travel distance X-axis: 300 mm, travel distance Y-axis: 200 mm, travel distance Z-axis: 350 mm, total height: 200 mm, total width: 210 mm, overall weight: 150 kg, product length (max.): 460 mm, number of axes: 3, This 3-axis HUBER OCT-3020 NA die-sinking EDM machine was manufactured in 2006. It features a travel of 300 mm in the X-axis, 200 mm in the Y-axis, and 350 mm in the Z-axis, accommodating workpieces up to 460 x 210 x 200 mm. If you are looking to get high-quality die-sinking capabilities, consider the HUBER OCT-3020 NA machine we have for sale. Contact us for further details. • Electrode diameter range: 0.3–3.0 mm • Power supply: 400 VAC, 3-phase, 50/60 Hz • Connected load: 3.8 kVA Additional equipment Bwsdpfx Aoyrg Tgef Hon • Electrode pre-positioner: Erowa

Condition: used, Year of construction: 2007, operating hours: 128,688 h, functionality: fully functional, machine/vehicle number: 642672, 128,688 h active time (total time the machine was switched on) Bwjdpfx Ajym N Naef Hsn 21,821 h operating time (net time in which the machine was actively used)

Condition: good (used), Year of construction: 2000, operating hours: 10,000 h, functionality: fully functional, AGIE FUTURA V 1PM Bodpsymnrmefx Af Hown MONDO 20 STAR Year: 2000 Operating hours: approx. 10,000 h Documentation: Complete

Condition: ready for operation (used), Year of construction: 2006, travel distance X-axis: 350 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 300 mm, overall weight: 2,350 kg, This 3-axis CHARMILLES Roboform 350 die-sinking EDM machine was manufactured in 2006. It features travel paths of 350 x 250 x 300 mm and can accommodate a maximum electrode weight of 25 kg. The machine has a power consumption of 7.5 kVA and weighs 2350 kg. If you are looking to get high-quality die-sinking capabilities, consider the CHARMILLES Roboform 350 machine we have for sale. Contact us for further details. Bedpfx Afoylzi Nj Hewn • Maximum electrode weight: 25 kg • Minimum power consumption: 5 kVA • Power: 7.5 kVA • Voltage: 400 V • Frequency: 50 Hz • Current: 10.6 A Additional equipment • Erowa zero-point clamping system on table (included) • Electrode holder: not included

Condition: excellent (used), Year of construction: 2006, machine/vehicle number: 642576, travel distance X-axis: 350 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 300 mm, workpiece weight (max.): 500 kg, total height: 2,522 mm, total width: 1,690 mm, total length: 1,900 mm, table width: 500 mm, type of input current: three-phase, table length: 400 mm, overall weight: 2,350 kg, table load: 500 kg, For sale is a premium-quality die-sinking EDM machine from Charmilles, model Roboform 350. The machine is in excellent condition, both technically and visually. Technical specifications: Year of manufacture: 2006 Machine no.: 642576 Travel paths (X, Y, Z): 350 x 250 x 300 mm Table dimensions: 400 x 500 mm Max. workpiece weight: 500 kg Max. electrode weight: 50 kg Connected load: 7.5 kVA Current consumption: 10.6 A Bwedpfoykrckox Af Hjn Voltage: 400 V / 3-phase / 50 Hz Machine weight: 2,350 kg Dimensions (L x W x H): 1,900 x 1,690 x 2,522 mm The scope of delivery does not include chucks or clamping devices; these can be offered separately on request. Transport and loading can be organized throughout Europe at an additional cost. Prices are subject to VAT. Inspection is possible by appointment. Please contact us—our team will be happy to assist you! Trade-in or exchange is possible! Machinery purchase and sale PURCHASE / SALE OF PRODUCTION AND METALWORKING MACHINERY AND MORE. Are you in need of a high-quality yet affordable metalworking machine for your production? Or are you looking to sell your machine? For more information or contact options, please visit our website.

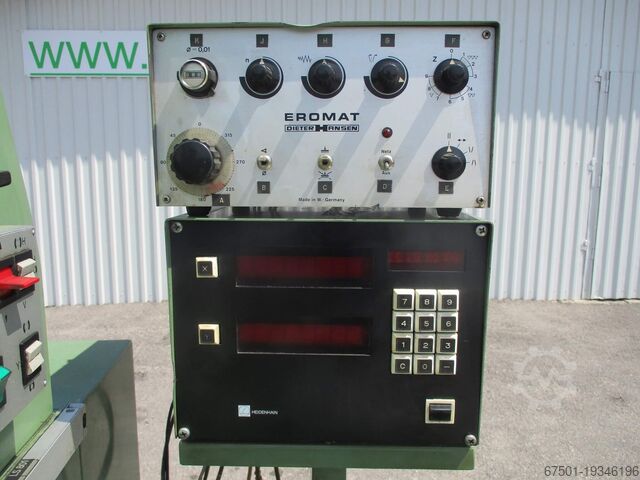

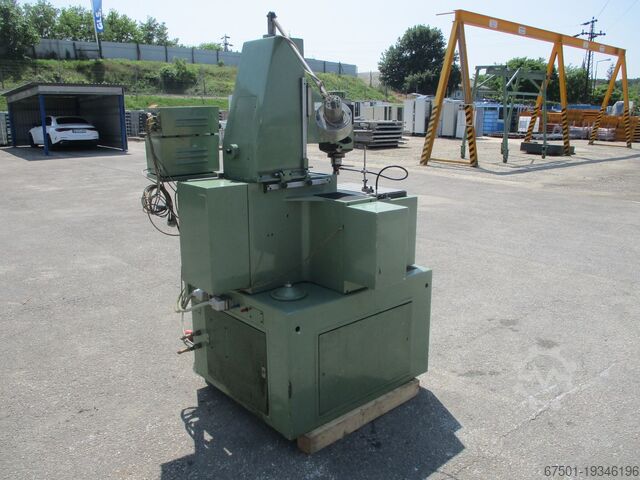

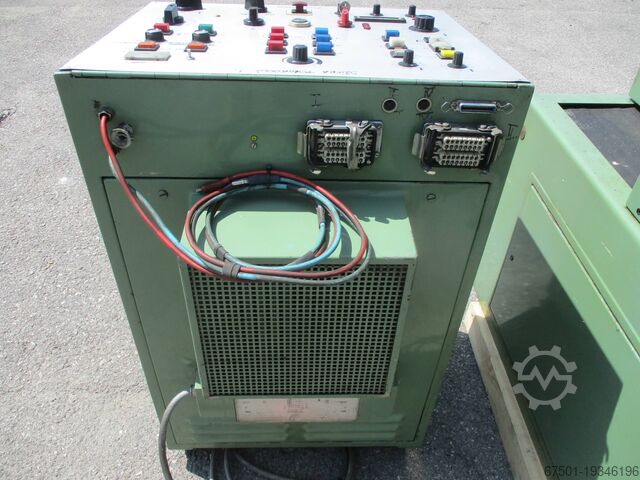

Condition: excellent (used), functionality: fully functional, Despite its age, the machine is in like-new condition!!! For sale is a powerful wire erosion machine, model 600 ERCOCOM II, from Dieter Hansen, equipped with a Heidenhain control system. The machine is equipped with high-quality components and is particularly suitable for precise applications in tool and mold making. Features & Highlights: • Adaptimat with gap process monitoring – specifically for graphite machining to avoid arcing (New price alone approx. €13,000) • 16-position electrode changer for automated series machining Bwsdpfoykq U Eox Af Hon • Erowa clamping system for precise and fast setup • 3D probe with carbide ball for accurate measurement • Cooling system (7 kW) • Integrated extraction system for fumes Some barrels with dielectric fluid are included! An inspection and functional test are possible by appointment. If you are interested, we look forward to hearing from you. The price includes packaging on the original heavy-duty pallet and loading onto your truck using a forklift.

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, mitsubishi EA8 cnc zinc spark machine year of construction 2010 c-axis Bodpjyh E N Ajfx Af Hewn 4-fold changer x,y,z 300 x 250 x 250 mm generator 60 A max. workpiece weight 550 kg max. electrode weight 25 kg chiller hirschmann mount fire extinguishing system magnet on the table documentation and diskettes machine is connected for inspection

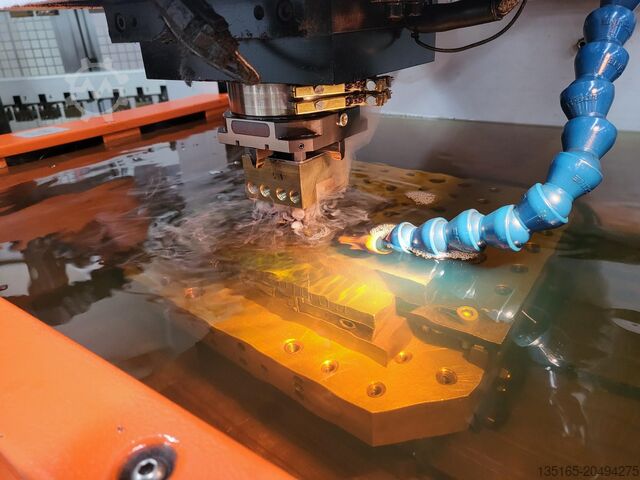

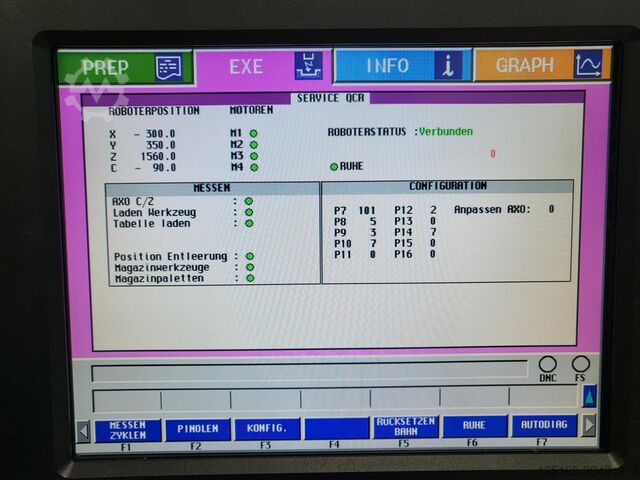

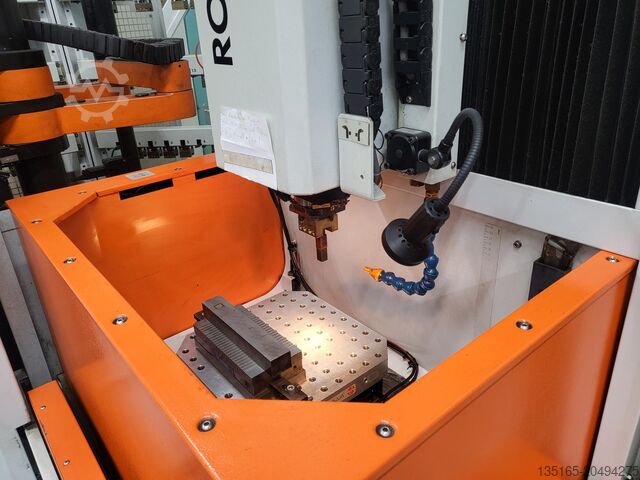

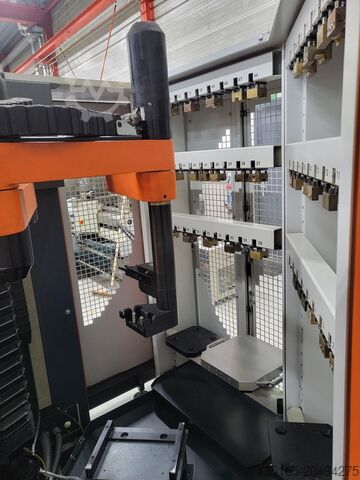

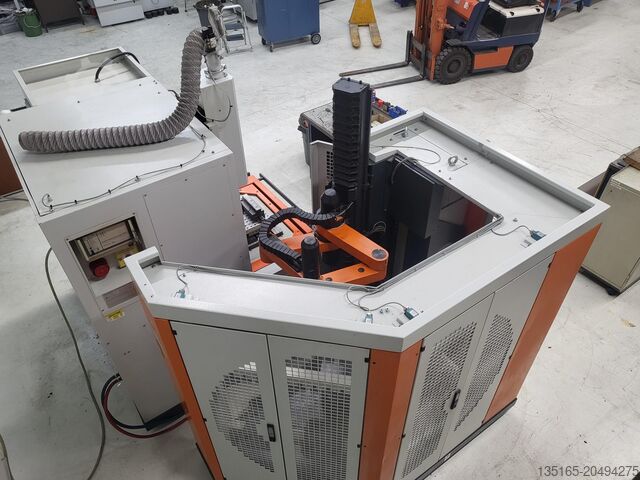

Condition: excellent (used), Year of construction: 2001, operating hours: 27,265 h, functionality: fully functional, Charmilles Roboform 35 with QCRI robot Bwjdsyh E A Nspfx Af Hon Year of manufacture: 2001 Operating hours: 27,265 X, Y, Z travel: 355 x 255 x 305 mm C-axis with Erowa chuck Erowa chuck on the table Erowa probe Magnet 3 x aluminium Erowa pallets 320 x 320 mm 35 x electrode holders 50 x 50 mm QCRI robot 4 x pallet positions on the table 54 x electrode holder locations Documentation and diskettes Machine powered up for inspection
