Bintec Ag

Condition: good (used), functionality: fully functional, Year of construction: 2006, Max. cutting length: 3050 mm Max. sheet thickness (steel 450 MPa): 8 mm Number of strokes per minute: approx. 10–15 (adjustable) Blade gap adjustment: Manual or motorized (depending on version) Shearing angle adjustment: approx. 0.5° – 2.5° Back gauge – X axis up to 1000 mm Control: HACO SC70 or SC90 (depending on equipment) Gjdpfjxlr Stsx Afpobu Sheet holders: Hydraulic, automatically controlled Table: With ball supports Main motor power: approx. 11–15 kW Machine dimensions (L×W×H): approx. 3900 × 2200 × 1900 mm Machine weight: approx. 9500–10500 kg

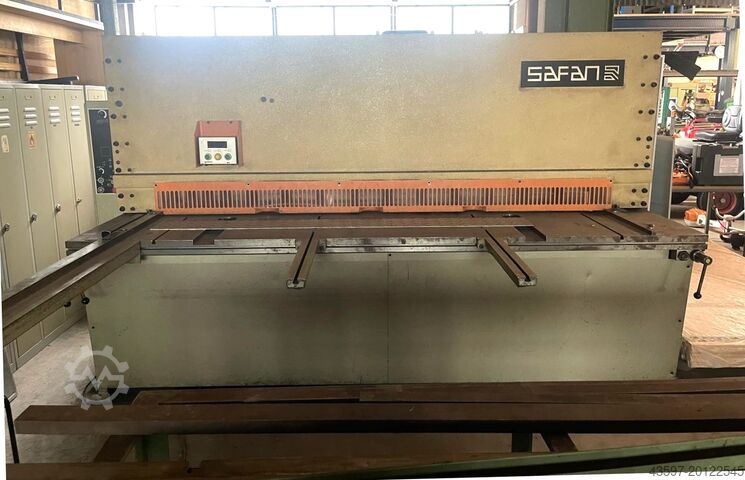

Condition: used, functionality: fully functional, Year of construction: 1989, Hydraulic Guillotine Shear Make: SAFAN Type: VS 255-8 Year: 1989 Technical Specifications Manufacturer: SAFAN Model: VS 255-8 Year of manufacture: 1989 Working length: 2550 mm Sheet thickness: 8 mm Motor power: 11 kW Sheet hold-down devices: 24 Cutting angle: min. 0.5° / max. 1.5° Dimensions: approx. L 3.00 x W 2.50 (plus support arms 1.6 m) x H 2.15 m Weight: approx. 8 t Equipment Gbodpjxhc Svjfx Afpou • Angle stop • 2 x support arms • Motorised backgauge with digital readout • Pneumatic sheet support device • Adjustable cutting angle • Manual blade gap adjustment • Cutting length limiter All information without guarantee. A demonstration is possible at any time in our showroom.

Condition: good (used), working width: 2,550 mm, sheet thickness (max.): 8 mm, power: 15 kW (20.39 HP), Guillotine SAFAN - HT 255-8 MACH-ID 9237 Make: SAFAN Type: HT 255-8 Control: ARA TOUCHSCREEN Touchscreen backgauge Maximum sheet thickness: 8mm Max. cutting length: 2550mm Strokes on full length: 19mm Strokes in short 1000 length:40 Cutting angle: 0,5 - 2 Gr° Length backgauge: 0 - 1000mm Number of down holders: 17 Approach speed: 200mm/sec. Power: 15kW Gsdpfsxdb Eysx Afpjbu Length: 3400mm Width: 2300mm Height: 2150mm Weight: 8900kg

Condition: used, Year of construction: 1999, sheet width 3060 mm plate thickness 8.0 mm thickness at "Niro-steel" 6.0 mm distance between columns 3100 mm down holder 16 Stück no. of strokes max. 10 - 15 Hub/min oil volume 160 ltr. cutting angle 1.6 ° back stop - adjustable 6.0 - 750 mm Control ELGO P9521 total power requirement 18.5 kW weight 6300 kg range L-W-H 3900 x 2300 x 1630 mm Features: - Robust electro-hydraulic swing beam shear - ELGO digital display model P9521, for electric backgauge * Backgauge travel X = 750 mm * Backgauge-free ball screw drive Gbsdoxaci Ejpfx Afpju * Travel speed 100 mm/s - 1x stable side stop * With T-slot, flip-stop, and millimeter scale - 2x stable front support arms - Electric cutting length limiter * Cutting length limiter to increase the stroke rate/min. - Manual cutting gap adjustment * Centrally operated on the right side stand - Front support plates - Front finger/interference guard - Inching operation with push buttons on the left control panel - Protective grille = safety device behind the machine - Operating instructions (PDF)

Condition: used, Year of construction: 2003, sheet width 3100 mm plate thickness 8.0 mm thickness at "Niro-steel" 6.0 mm down holder 14 Stück no. of strokes 20 Hub/min cutting angle 1.2 ° control ELGO "P9521" work height max. 800 mm oil volume 150 ltr. total power requirement 15.0 kW weight 7000 kg range L-W-H 3900 x 2300 x 1600 mm Current new price approx. 40.000 Euro Special price upon request Equipment: - NC electro-hydraulic swing beam shear - ELGO NC control unit "P9521", front left - NC electro-motorized backgauge * Travel range = 5.0 - 1,000 mm (X axis) * On recirculating ball screws * Positioning accuracy 0.1 mm * Travel speed 80.0 mm/sec. - Manual lateral cutting gap adjustment - 1x side stop, with T-slot and mm scale - 2x front support arms, with T-slot and mm scale - Ball transfer units in the front support table Gedpoxach Uofx Afpebu - Hinged finger guard with safety switch - BOSCH/HOERBIGER hydraulic system - SIEMENS electrical system - 1x freely movable foot switch - 2x front emergency stop buttons - Rear safety guard - Operating instructions (PDF)

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2014, machine/vehicle number: 11.2760, working width: 3,100 mm, sheet thickness (max.): 8 mm, back gauge: 1,000 mm, TECHNICAL DETAILS Control: CNC Max. working width: 3,100 mm Throat depth: 40 mm Max. sheet thickness: 8 mm Gjdpjw Tzkvjfx Afpebu Back gauge: 1,000 mm Motor power: 16.5 kW MACHINE DETAILS Transport dimensions: 3,400 mm x 2,300 mm x 2,100 mm (L x W x H) Transport weight: 8,000 kg Transport packages: 2 Documentation available: Yes CE marking present: Yes

Condition: good (used), Huttenlocher - Plate Shear 2580x8mm - Cutting length: 2500mm - Maximum cutting thickness: 8mm - Fully functional - Manual back gauge Dimensions: Gsdpfx Afew I A Dajpobu LxWxH 3.2x2.5x1.6 meters / Weight 6.5 t Subject to errors and input mistakes.

Condition: ready for operation (used), Hydraulic shear LVD HST-C 40/8 Year of construction 2005 Serial number 29992 Technical specifications Max sheet thickness 8 mm Cutting length 4050 mm Back gauge range 1000 mm Cutting angle 0.5°-2° Blade clearance 0,05-1.2 mm Number of strokes per min 10-40 Number of hold dawns 21 motor 15kW weight 13000 kg oil 250l Gjdpfx Aewaa T Rsfpsbu Voltage 3 x 380V Options included : Command control PNC20 for adjustment of back gauge, cutting angle and blade clearance Security norms CE 1 square arm from support L1500mm 1 extra support L1500mm

Condition: new, Year of construction: 2024, Attention!! Special Offer!! Warranty inspection free of charge—only for Customers who have taken part in the demonstration at the machine showroom in Bydgoszcz. A part of our machines is available IMMEDIATELTY. Hydraulic guillotine shears SMO-3204-N QC12Y 4x3200 Specifications - Maximum cutting thickness (S235): up to 4.0 mm - Maximum cutting length: 3200 mm - Blade inclination angle: 1.5° - Strokes per minute: 8 - 12 - Backgauge travel distance: 600 mm - Motor power output: 5.5 kW - Length: 3950 mm - Width: 1670 mm Gbodpsvvuitefx Afpeu - Height: 1800 mm - Weight: 4200.0 kg Equipment and features - Backgauge equipped with ball screws and driven by the electric motor - Hydraulic hold-downs to clamp the sheet over the entire cut length. - Blade clearance adjustment - Ball transfer units on the worktable - Work lighting - Front supports - Mobile foot switch Rear chute The rear chute is equipped with ball transfer units to slide smoothly away from the shear after cutting. E21S control (Mounted on a swivel arm on the left-hand side of the machine.) - Motorized backgauge - Capable of storing 40 programs, with up to 25 different steps each. - Retract function - Single-click parameter saving - Parameter memory in the event of power failure Top quality components - Rexroth hydraulic valve - Siemens-licensed main motor - Schneider electrical components Steel hydraulic line tubings Hydraulic lines made of steel instead of rubber reduce the risk of future leaks. Ergonomics The operator can work freely throughout the machine's working area thanks to the mobile foot switch and the controller on the swivel arm. Additional LED lighting and laser indicator ensure a comfortable view of the workpieces in any situation. Safety We attach great importance to the safety of our Clients, therefore we equip our shears with visible safety labels, rear light curtains and easily accessible safety switches. The machines comes with carefully prepared instructions manual. The machine has a CE marking and EU declaration of conformity. Oil cooling system The Oil Cooling System guarantees the stability of the machine's performance even after long, continuous operation. Pressure Control System PCS ensures blade reliability for years to come. Assistance by a specialist We strive to maintain constant communication with our Customers. To support this, every machine purchase includes a specialist support package with hours of expert guidance. Within the service, our technicians may: - Specify the bending steps for intricate parts. - Advise on material and gas selection - Assist in the selection of operating parameters for different materials The remaining time can be checked in the Otinus Customer Panel.

Condition: ready for operation (used), Year of construction: 1983, working width: 4,000 mm, sheet thickness (max.): 8 mm, back gauge: 1,000 mm, overall weight: 12,000 kg, total length: 4,400 mm, total width: 2,500 mm, total height: 1,850 mm, cutting length (max.): 4,100 mm, throat depth: 100 mm, Cutting length 4100 mm, cutting capacity 8 mm, motor 18 KW, working high 800 mm, back gauge 1000 mm motorised, footpedal, frontarms, cutting gap adjustable, pneumatic sheet support backside, dimension 4400x2500x1850 mm, weight ca. 12000 kgs Gbedpfxovvafaj Afpeu

Condition: new, Year of construction: 2024, Attention!! Special Offer!! Warranty inspection free of charge—only for Customers who have taken part in the demonstration at the machine showroom in Bydgoszcz. A part of our machines is available IMMEDIATELTY. Hydraulic guillotine shears SMO-3106-N Cybelec CybTouch 8 Specifications - Maximum cutting thickness (S235): up to 6.0 mm - Maximum cutting length: 3200 mm - Blade inclination angle: 1.5° - Strokes per minute: 14 - Backgauge travel distance: 600 mm - Motor power output: 7.5 kW - Length: 3900 mm - Width: 1600 mm - Height: 1740 mm - Weight: 5200.0 kg Equipment and features - Backgauge equipped with ball screws and driven by the electric motor - Hydraulic hold-downs to clamp the sheet over the entire cut length. - Blade clearance adjustment - Ball transfer units on the worktable - Work lighting - Front supports - Mobile foot switch Rear chute The rear chute is equipped with ball transfer units to slide smoothly away from the shear after cutting. CybTouch 8w control (Mounted on a swivel arm on the left-hand side of the machine.) - Parameter setting based on material specifications - Automatic clearance setting - Automatic correction for backgauge positioning - Backgauge retract movement to avoid bending of material - Supports that cover ⅔ of the standard size material - Support for RTS - the handover of the cut material to the user - Support for the motorized backgauge - Docking position - Hold-down pressure on sheet management - Hydraulic pressure management - Saving long cut sequences and programming in live colors - Clear page layout with large buttons on the easy-to-read screen that displays all the data an operator needs. - Very intuitive and operator-friendly user-interface - Few-second programming a part sequence - Assistance by a specialist We strive to maintain constant communication with our Customers. To support this, every machine purchase includes a specialist support package with hours of expert guidance. Within the service, our technicians may: - Specify the bending steps for intricate parts. Gbjdevhclmopfx Afpsu - Advise on material and gas selection - Assist in the selection of operating parameters for different materials The remaining time can be checked in the Otinus Customer Panel.

Condition: used, Year of construction: 1998, sheet thickness: 8driving power: 18,5weight approx.: 5800messurements (LxWxH): 2130 x 3260 x 2360sheet length: 1550 Max. cutting length: 1550 mm side. Projection in column: 50 mm Sheet metal passage: 16 mm Cutting angle adjustable: 2°30 - 0.5° Empty strokes: 25 - 32 Number of hold-downs: 8 Cutting pressure: 280 bar Oil filling: 300 l Total connected load: 20.1 kW External dimensions: 2130 x 3260 x 2360 mm with - CNC control SIEMENS S 5 for numerical sheet metal bending - Holding up device mot. Scrap switch - Sheet metal removal with conveyor belt - Cutting gap and cutting angle with control programmable - Spare blades - Shear blade for 750 kg strength - Separate hold-down actuation, e.g. cutting after cracking - Hold-down pressure can be set and read from the front - 2 rocker stops - Finger protection with recessed grip - Balls in the support table - Angle stop with Norius -Foot switch used in good condition Price on request. Delivery: from warehouse or location free loading truck. Gedpfxsvaatle Afpobu Payment: in the case of takeover purely net or by agreement. Technical specifications are non-binding. Errors excepted.

Condition: used, Year of construction: 1993, Technical details: sheet width: 3150 mm plate thickness: 13 mm distance between columns: 3670 mm Knife length: 3150 mm down holder: 18 Stück back gauge: motorisch 1000 height over floor: 850 mm operating hours: 3256 Table dimensions: LxB: 3770 x 500 mm total power requirement: 30 kW Gbsdeu Icnfepfx Afpju weight of the machine ca.: 12,9 t dimensions of machine: 4,4 x 2,8 x 2,4 m Short stroke Continuous run Gap lighting Hydraulic sheet metal lifting device rear light curtain Positionable backgauge *

Condition: excellent (used), working width: 3,000 mm, sheet thickness (max.): 10 mm, sheet thickness steel (max.): 10 mm, cutting length (max.): 3,100 mm, table length: 3,000 mm, Used Very Clean Hydraulic Industrial Sheet Metal shear / Guillotine Edwards Pearson VE shear 3metre x 10mm in excellent used condition For Sale Capacity 3070mm x 10mm. Squaring Arms and Work Supports. Front operated Powered Back Gauge Serviced with Bystronic UK Complete with: Swissax 2000 control with automatic backstop Gedpfx Ajuv Hpijfpjbu blade gap adjustment and rake adjustment

Condition: used, Year of construction: 1980, Technical data: Max. sheet width: 2500 mm Gbodpfotvfzcsx Afpou Max. Sheet thickness: 8 mm Weight, approx.: 6400 kg

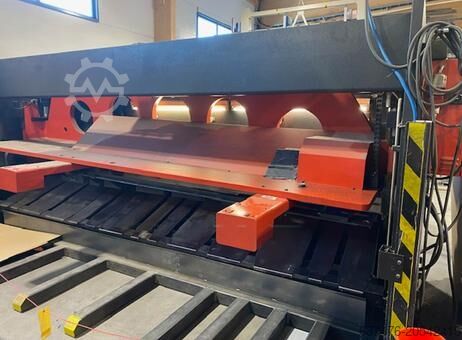

Condition: excellent (used), Year of construction: 1999, AMADA MODEL GPN 840 HYDRAULIC SHEAR MAXIMUM CUTTING LENGTH 4000 mm MAXIMUM THICKNESS M.S. 45 kg/mm/2 8 mm MAXIMUM THICKNESS S.S. 60/kg/mm2 6 mm STROKES PER. MIN 10 - 35 BACK GAUGE RANGE 10 - 1000 mm MOTOR SIZE 15 KW MACHINE WEIGHT 10100 kg STANDARD EQUIPMENT PROGRAMMABLE MOTORISED BACK GAUGE 1.5 METRE SIDE GAUGE 1.5 METRE FRONT SUPPORT SHADOW LINE LIGHT AUTOMATIC HYDRAULIC HOLD DOWN CLAMPS CENTRALISED LUBRICATION FOOTSWITCH SHADOW LIGHT BEAM CYCLE COUNTER AUTOMATIC SHEARING CONTACTS IN BACK GAUGE BLADE GAP AND RAKE ANGLE ADJUSTMENT Gbsdotrkmnopfx Afpeu FRONT FLIP STOPS ONE SET OF BLADES 4 CUTTING EDGES ADJUSTABLE STROKE WORK CHUTE HOUR COUNTER AUTO-DIAGNOSTICS

Condition: used, Year of construction: 1983, Max. cutting length: 3,000 mm Max. sheet thickness: 8 mm steel Motorized back stop with fine adjustment via handwheel up to 1000 mm Gsdpor D Tnwofx Afpsbu cutting length limitation knife sharpened Weight: 6,800 kg

Condition: used, Year of construction: 1989, sheet length: 3.100sheet thickness: 8,0cutting area width: 3100total power requirements: 11weight approx.: 7500messurements (LxWxH): 4180 x 2150 x 2000 Multi-edge blades for cutting aluminum, carbon steel, and stainless steel  Cutting-line illumination and wire for shadow-line cutting • Stroke counter • Quick cutting-length adjustment • Gjdporu Un Hjfx Afpsbu Hydraulic and electrical overload protection • Squaring arm and front support arms • Bed infill plates with ball transfers • Delta inverter with ball screw and polished rod with 0.01 mm accuracy • Backgauge adjustment according to blade gap • Backgauge retraction feature • Sub-program and programming loop • Sequence repeat function • Auto-cutting (Flying cut)

Condition: new, Year of construction: 2024, Hydraulic Guillotine Shear QC12Y 8x4000 SMO-4008-N Specifications - Maximum thickness mild steel (PN-EN S235): up to 8.0 mm - Maximum working length: 4000 mm - Cutting angle: 1.5° - Strokes/minute: 8 - Backgauge retract distance: 600 mm - Motor power: 11.0 kW - Length: 4800 mm - Width: 1800 mm - Height: 1950 mm - Total mass: 7300.0 kg Equipment - Backgauge powered by an electric motor (on ball screws) - Hydraulic sheet metal clamping over the entire working length - Blade clearance adjustment - Ball transfer units built in on the table - Workspace illumination - Front Suports - Mobile foot switch Rear ramp The rear ramp has been fitted with ball transfer units so that cut-offs are never left over on the machine. E21S Controller (Mounted on a swivel arm on the left side of the machine) - Backgauge control - 40 programs can be stored - up to 25 different steps in each program - Retract function - One-touch parameter saving - Parameters memory in case of power failure Gjdpfxoiuzupo Afpebu Steel hydraulic lines Hydraulic lines made of steel instead of rubber reduce the chances of future leaks. OCS - Oil Cooling System Oil Cooling System - guarantees the stability of the machine's operating parameters even after long, continuous operation. PCS - Preassure Control System Pressure Control System ensures reliable operation of the blade for many years. Assistance by a specialist We make sure to stay in constant touch with our Clients. Therefore, we add a package of tech support hours of Otinus Professional Assistance to every machine purchased. Technical consulting We have specialists who will determine the right machine and accessories before the purchase - on the basis of technical drawings of the parts you plan to make. See and test the machine Join us for a special demonstration where a qualified Otinus technician will show you the full functionality of the machine. In addition, you will be able to try out how the device will perform against your needs. You can provide technical drawings and sample material. Included in the machine price Jednodniowe szkolenie wraz z instalacją maszyny - 1 day (up to 8 hours) - installation of the machine and learning to use the controller. Telephone consultation with a specialist - 7.30 am - 9.00 pm (Mon-Sat) – a time package of 8 tech support hours to be used within 12 months. Free loan of transport rollers and two lifting jacks for easier positioning of the machine at the Client's site. The rollers and jack will be delivered upon prior (no less than 7 days before delivery of the machine) request. Terms of cooperation - 24 month warranty. - Lead time: approx: 10 - 12 weeks. Not applicable if a machine is labeled as available immediately. - The machine is brand new. - Warranty and post-warranty service provided by the seller. - The Client is responsible for the machine during unloading and transport on their premises.

Condition: new, Year of construction: 2024, Hydraulic Guillotine Shear QC12Y 8x3200 SMO-3208-N Specifications - Maximum thickness mild steel (PN-EN S235): up to 8.0 mm - Maximum working length: 3200 mm - Cutting angle: 1.5° - Strokes/minute: 10 - 15 - Backgauge retract distance: 600 mm - Motor power: 11.0 kW - Length: 4300 mm - Width: 2000 mm - Height: 2100 mm - Total mass: 6400.0 kg Equipment - Backgauge powered by an electric motor (on ball screws) - Hydraulic sheet metal clamping over the entire working length - Blade clearance adjustment - Ball transfer units built in on the table - Workspace illumination - Front Suports - Mobile foot switch Rear ramp The rear ramp has been fitted with ball transfer units so that cut-offs are never left over on the machine. E21S Controller (Mounted on a swivel arm on the left side of the machine) - Backgauge control - 40 programs can be stored - up to 25 different steps in each program - Retract function - One-touch parameter saving - Parameters memory in case of power failure Gbodpfxeh Rah Ue Afpeu Steel hydraulic lines Hydraulic lines made of steel instead of rubber reduce the chances of future leaks. OCS - Oil Cooling System Oil Cooling System - guarantees the stability of the machine's operating parameters even after long, continuous operation. PCS - Preassure Control System Pressure Control System ensures reliable operation of the blade for many years. Assistance by a specialist We make sure to stay in constant touch with our Clients. Therefore, we add a package of tech support hours of Otinus Professional Assistance to every machine purchased. Technical consulting We have specialists who will determine the right machine and accessories before the purchase - on the basis of technical drawings of the parts you plan to make. See and test the machine Join us for a special demonstration where a qualified Otinus technician will show you the full functionality of the machine. In addition, you will be able to try out how the device will perform against your needs. You can provide technical drawings and sample material. Included in the machine price Jednodniowe szkolenie wraz z instalacją maszyny - 1 day (up to 8 hours) - installation of the machine and learning to use the controller. Telephone consultation with a specialist - 7.30 am - 9.00 pm (Mon-Sat) – a time package of 8 tech support hours to be used within 12 months. Free loan of transport rollers and two lifting jacks for easier positioning of the machine at the Client's site. The rollers and jack will be delivered upon prior (no less than 7 days before delivery of the machine) request. Terms of cooperation - 24 month warranty. - Lead time: approx: 10 - 12 weeks. Not applicable if a machine is labeled as available immediately. - The machine is brand new. - Warranty and post-warranty service provided by the seller. - The Client is responsible for the machine during unloading and transport on their premises.

Condition: new, Year of construction: 2025, Delivery ex works TR Cutting length: 3030 mm Sheet thickness (42kgf / mm): 8 mm Sheet thickness (70kgf / mm): 4 mm Cybelec Cybtouch 8 touchscreen CNC control All-steel welded construction Automatic cutting angle adjustment Automatic cutting gap adjustment Working table with roller balls Hold-down-system Hardened and grounded upper and lower blades with 4 cutting edges Foldable front finger guard (CE compliant) Adjustable cutting stroke length 1 meter angle stop on the left with scaling 1 meter front sheet metal supports (2 pieces) CE light curtain on the rear of the machine (900 mm) Cutting line lighting Bosch Rexroth or Hoerbiger / HAWE hydraulic system Gedpfx Afegu Nu Ejpobu Bosch Rexroth or ECKERLE hydraulic pump SIEMENS / Schneider / ABB / Omron Electronic Components Documentation in German or English CE conformity
