Zemlin Druckgraphik GmbH

Condition: used, Year of construction: 2003, Format: 260 x 380 mm Equipment: Letter Press Tiegel - DIE Cutter Punching force 40 tons Fjdpfx Aoxmr S Aofpsgh Size min.: 40 x 70 mm Standard chase: 260 x 340mm Speed min.: 2.200 sph - max. 5.500 sph Complete with tools and accessories include frame

Condition: good (used), Year of construction: 1979, TOSI VERONA Fsdexdu Nrepfx Afpsgh Max. size: 1200x1800 mm Min. size: 400x400 mm In production Location: Germany

Condition: ready for operation (used), Year of construction: 1983, BOBST SPO 1600 Max Speed 5000 per hour Year 1983 Max lenght 1075mm Max width 1580mm Fully reconditioned by Bobst 2015 Fedpfjxcayyex Afpegh Central line

Condition: good (used), Year of construction: 2012, Rabolini Imperia FS die cutter Max. size: 1200x1700 mm 2x safety mats Fjdpfxjw Skmwe Afpogh

Condition: used, Year of construction: 1973, This Heidelberg OHT, manufactured in 1973, is a robust and reliable punching machine designed for high-volume production. With a serial number T 184 103 H, this unit is currently located in Germany. It handles a largest sheet size of 260 x 380 mm and a smallest sheet size of 40 x 70 mm, with a maximum mold size of 260 x 350 mm. The machine delivers a punching force of 40 tons and boasts an impressive capacity of 5,500 sheets per hour. Powered by a 380 V, 1.25 KW motor, it features two locking frames and weighs 1,100 kg, making it both powerful and stable for continuous operation. The machine is offered as seen, ready for inspection and integration into your production line. Format: 260 x 380 mm Fgsdpfxewxm Rms Afpsh Equipment: As seen Largest sheet 260 x 380 mm Smallest sheet 40 x 70 mm Max. Mold size 260 x350 mm Punching force 40 tons Capacity 5500 Bg./h 380 V 1,25 KW Own weight 1100 kg 2 Locking frame

Condition: ready for operation (used), Fully Automatic Flatbed Die-Cutter, Non-Stop Feeder, Fgjdpfjwly D Hex Afpsh Automatic Vacuum Plate, Double Sheet Cleaning Station, Turn Die Cutting Frame, (Batch Delivery) Non-Stop Delivery With Belt, Cutting Force 300 TON, Up to 4.500 Speed/H, Working With Corrugated Cardboard Of Thickness Max. 9mm, Min. 0,9mm, Format: Max. 1055x1575mm, Min. 400x600mm, Standard Accessories Bobst SPO 1575 EG 1980, fully rebuilted 2015, chain changed 2024.

Condition: excellent (used), Year of construction: 2004, functionality: fully functional, Punching plate Crosland CVK 980 Size 78 x 100 cm Year 2004 Fgsdpfx Ajwif Hujfpoh in very good working condition available immediately

Condition: like new (used), Year of construction: 2020, operating hours: 1,000 h, functionality: fully functional, punching force: 300 t, overall weight: 18,000 kg, Max. sheet size: 1060×740mm Min. sheet size: 400×360mm Stock range: Paperboard157~2000gsm Corrugated board (E,B LUTE) Min. gripper edge: 4mm Max. die-cutting size: 1040×730mm Max. pressure: 250tons Max speed: 7500sph Fjdpfxowhvq Io Afpsgh Rules height: 23.8mm Main motor capacity: 11kw Total power capacity: 23kw Dimensions (L×W×H): 6000×4200×2400mm Net weight: 18,000kg

Condition: ready for operation (used), Year of construction: 2006, Bobst SP102-BMA Foilmaster Equipped with: Fully Automatic Feeder Double Sheet Control Centre Line Hot Foil Unit 2 x honeycomb chase 2 x die cutting chase 16 Independent Heating Zones Foil Advance Shafts Automatic Delivery Elevated (High Pile) Specification: Fedpfxswgz Rkj Afpjgh Sheet Format Max: 720mm x 1020mm Sheet Format Min: 350mm x 400 mm Working Material Paper/Solid Board: 80-2000gr Corrugated Board: "E" and "B" - max. 4mm Gripper margin: 9-15mm Stamping Format: Max 680mm x 1010mm Max speed: 7,500 p/h

Condition: used, Year of construction: 2002, Die-cutter Iberica JRK-105 Year: 2002 Description: Stripping unit Blanking unit Technical specifications: Maximum sheet size: 750 x 1050 mm Minimum sheet size: 350 x 400 mm Minimum paper thickness (according to quality):90 – 95 g/m2 Maximum cardboard thickness: 1.5 mm Maximum corrugated board thickness: 3 mm Maximum operational pressure: 300 T Maximum speed: 8500 sheets/hour Main drive motor with variable speed: 20 CV (15 KW) Fgjdpfx Afjv Rci Dspjh Total power installed: 43 CV (32 KW) Air required pressure: 6 KG / CM2 Machine appr. Weight: 23.600 KG Floor space occupied: length 10.10 M. width 6.26 M. height 3.30 M.

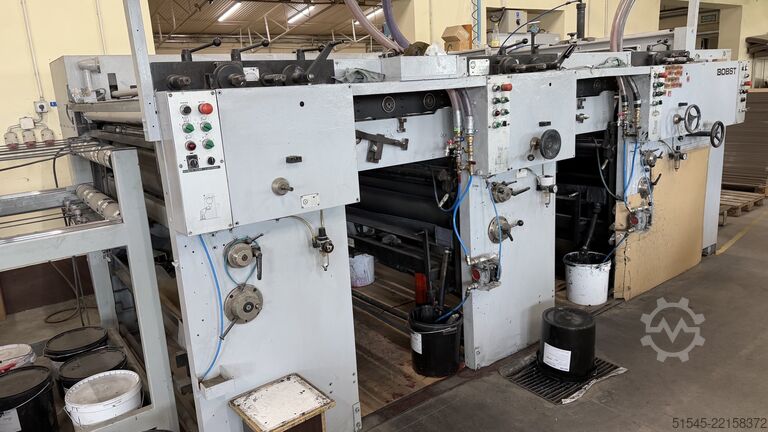

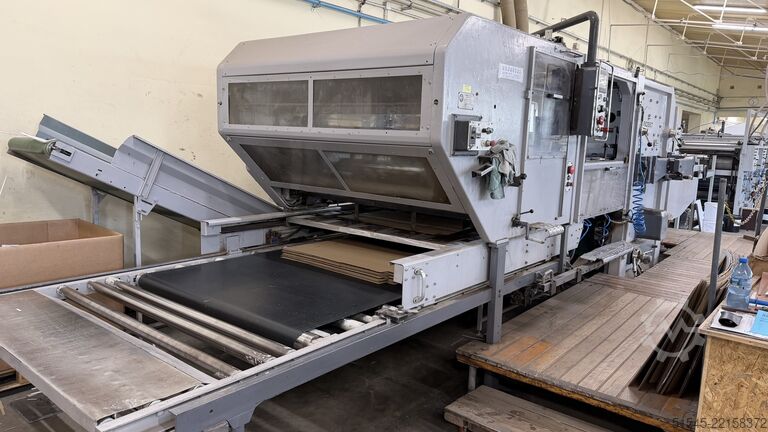

Condition: used, Year of construction: 1988, BOBST Printing Machine with 4 bottom colors anilox cilinders 120l/cm and 80l/cm TRANSFER BOBST FLATBED DIE CUTTER BOBST AUTOPLATINE SPO 1600, max format 1100 mm x 1600 mm / 43.3" x 63" with 4 Bottom Printing unit and transfer Bobst * Vacuum feeder * Die cutting section * Waste elimination section * Centerline II * High pile delivery with two lifting tables * Max sheet format: 1100 mm x 1600 mm / 43.3" x 63" * Min sheet format: 520mm x 600mm / 20.5" x 23.6" * Cutting force: 400 t * Materials: E, B, C, CB, BE flutes * Max speed: 6,000 sheets/hour Fodpfev Ifpuex Afpsgh Possibility to sell them separately

Condition: good (used), Drossert ST 3B Cauhe Die cutting machine The machine is fully operational, ready for production. Weight 3500kg Power supply 380V Production under the Drossert Maschinenbau GMBH Germany brand by the Cauhe factory in Spain. Equipment: – pneumatic clutch and brake – console – 3 operating modes: single, continuous, with time delay on opening – central lubrication Fgedeu Umcqspfx Afpsh – additional safety covers – hard sheet metal for pressure

Condition: used, Year of construction: 1984, Die-cutter Bobst SP 142-ER Year: 1984 Hours: 29.924 (on counter; real expected production hours around 60.000/70.000) Equipped with: - Stripping and Blanking Stations - Push Lay system Fsdpfor I Ipvjx Afpjgh - Non-Stop Feeder with manual change over bars - Non-Stop Delivery - Corrugated board feeder - Quick locking Tooling in Stripper - Micrometric system Technical specifications: - Max cutting speed : 6.000 s/h - Max sheet size : 1420 x 1020 mm - Min sheet size : 700 x 500 mm - Cutting force : max. 600 T - Solid board up to 2.000 g/m2 - Corrugated board up to 4mm thick

Condition: used, Year of construction: 1998, Die-cutter Bobst SP 104-ER Year: 1998 Only around 23.000 running hours Equipped with: - Manual non-stop infeed - Quick lock in cutting chase/stripping-and blanking section - Chase loader Fgsdpfx Afer I Iprspsh - Two cubes - Easy transfer - Elevated

Condition: good (used), Year of construction: 2006, functionality: fully functional, type of input current: three-phase, punching force: 350 t, power: 4 kW (5.44 HP), Equipment - Format 82x112cm - Motorized quick-clamping frame - Cutting plate - Timer for opening and closing times - Brake on the flywheel - Pneumatic clutch with safety valve - 3 operating modes - Manual pressure adjustment via handwheel - High-quality safety systems - CE certificate Fjdpfxerwi Hvo Afpogh - Long-term spare parts security - Manufacturer: cauhe-industries.com

Condition: ready for operation (used), Sheet format: 2000x1200mm, suitable for solid board, corrugated board and other materials. Fedeht Hfqepfx Afpogh

Condition: ready for operation (used), Sheet format: 890x1180mm, inner frame width: 820x1120mm, pressing force: 300t, motor power: 4kW, length: 1800mm, width: 2100mm, weight: 4.3t. Fgsdpfjht Hfmjx Afpoh
