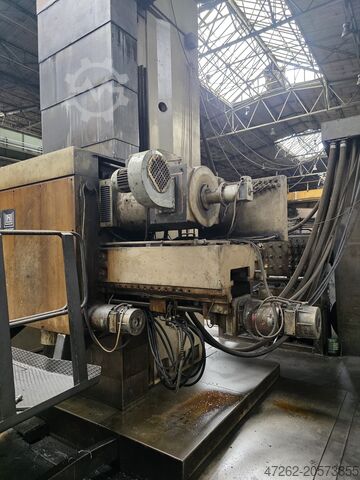

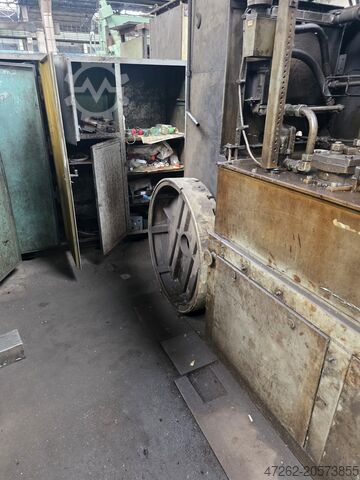

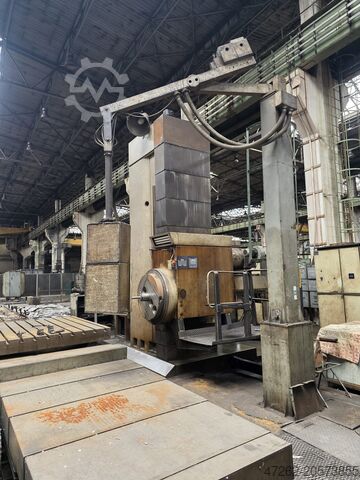

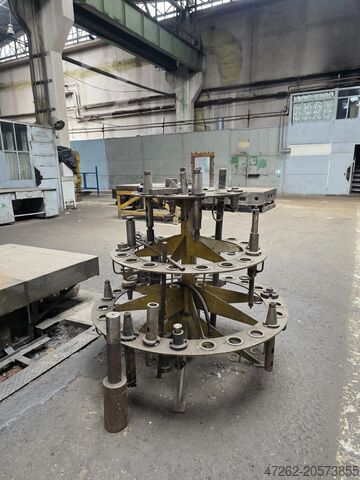

Condition: ready for operation (used), Union boring mill BFK 130/1 x-axis 3500 mm y-axis 2000 mm z-axis 1250 mm table surface area 1600 x 2000 mm movable table load 12.5 t tool taper SK50 Angle heads 0° - 180° Weight approx. 35 t Milling heads Face plate Itodpfx Adoxx Ny Us Dop

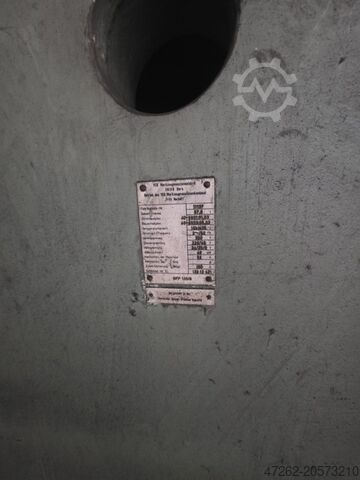

Condition: ready for operation (used), Union BFP 130/6 Floor Type Boring Mill Iedpexx Na Iofx Ad Djtp Spindle diameter: 130 mm X-axis travel: 5600 mm Y-axis travel: 2000 mm Z-axis travel: 1000 mm W-axis: 400 mm U-axis: 320 mm Rotary table: 1800x2000 mm Floor plates: 4 pcs 1750x3500x350 mm Tool taper: ISO SK50 Total power requirement: approx. 40 kW Machine weight: approx. 58 t

Condition: excellent (used), functionality: fully functional, travel distance X-axis: 1,250 mm, travel distance Y-axis: 985 mm, travel distance Z-axis: 900 mm, table load: 2,500 kg, spindle speed (min.): 5,000 rpm, spindle speed (max.): 5,000 rpm, total height: 3,885 mm, total length: 4,490 mm, total width: 5,700 mm, table length: 800 mm, table width: 800 mm, feed rate X-axis: 4 m/min, feed rate Y-axis: 4 m/min, feed rate Z-axis: 4 m/min, rapid traverse X-axis: 8 m/min, rapid traverse Y-axis: 8 m/min, rapid traverse Z-axis: 8 m/min, Technical machine data: Manufacturer: TOS Kuřim Overall length: 4,490 mm Overall width: 5,700 mm Overall height: 3,885 mm Total weight: 21,000 kg Total power consumption: 65 kVA Longitudinal travel X-axis: 1,250 mm Transversal travel Y-axis: 985 mm Vertical travel Z-axis: 900 mm Workholding base positioning (pallet): 360° x 1 Spindle taper: ISO 50 Working spindle (number of speeds / speed range): stepless / 10–5,000 rpm Spindle motor power: 22.5 kW Max. spindle torque: 1,000 Nm Feed range X–Y/Z (number of steps / range): stepless / 1–4,000 mm/min Rapid traverse X–Y/Z: 8,000 mm / min Number of pallets: 2 pcs Pallet dimensions (width x length): 800 x 800 mm Max. pallet load: 2,500 kg Itsdpfx Aoxxxg Dod Dsp Tool changer – number of tools: 50 pcs

Condition: used, Year of construction: 1994, Some typical specifications for the TOS W75 machine are: Spindle diameter: approx. 75 mm. Spindle speeds: e.g. 18-1800 rpm. X-axis: approx. 1,250 mm. Y-axis: approx. 900 mm. Z-axis or W-axis: various values, e.g. 560 mm. Itjdpfx Adoxw Ucle Dop Table size: approx. 950 × 950 mm. Weight: approx. 10,000 kg All information provided without guarantee.

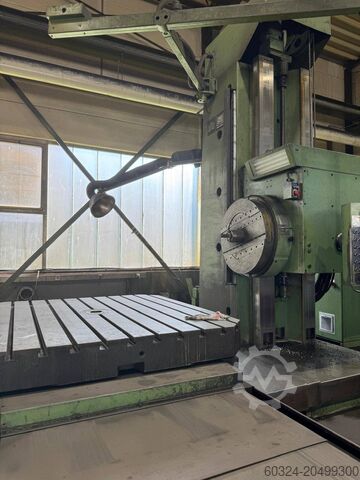

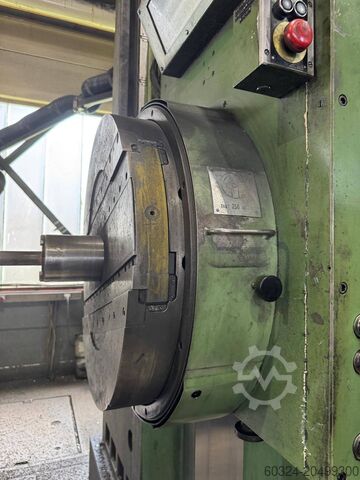

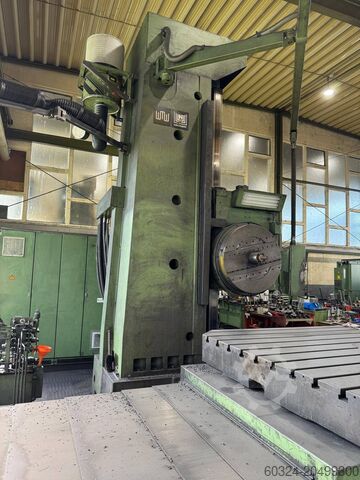

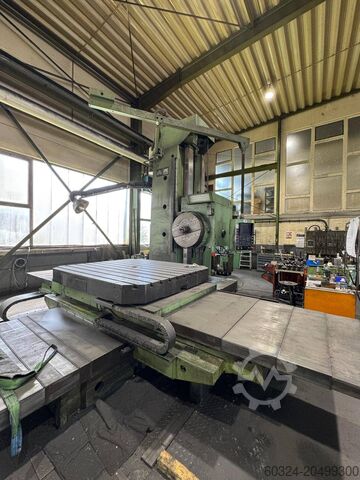

Condition: good (used), Year of construction: 1992, Ref. -No.: 10578 Manufacturer: UNION Type: BFT 130 NC Year of construction: 1992 Type of control: CNC Control: Heidenhain 430 Storage location: Halberstadt Country of origin: Germany X-Travel: 2000 mm Y-Travel: 1600 mm Z-Travel: 1600 mm W-Axis: 600 mm Itjdsxvw Nfopfx Ad Djp Spindle Diameter: 130 mm W-Travel (Boring Spindle): 900 mm Table Load: 8000 kg Clamping Area: 1800 x 2000 mm T - groove width: 28 mm T - slot spacing: 160 mm Tool Taper: ISO 50 Spindle Turning Speed - Stepless: 1000 RPM Spindle Speed: 10 - 2000 RPM Max. Torque On The Boring Spindle: 3150 Nm Rapid Traverse X-Axis: 2500 m / min Rapid Traverse Z-Axis: 2500 m / min Drive Capacity - Spindle Motor: 15 - 30 kW Borehole Diameter: 800 mm W-axis feed: 2500 mm / min Y-axis feed: 2500 mm / min Table size: 2000 x 1600 mm Rapid adjustments W-axis: 3150 mm/min. Rapid adjustment Y-axis: 5000 mm / min Cross slide movement: 320 mm Torque max. face support: 5300 Nm Tarpaulin diameter max.: 1400 mm Machine length: 6000 mm Machine width: 4000 mm Machine Height: 4000 mm Weight Of The Machine Ca.: 40 t Further information: The machine can be viewed under power by arrangement.

Condition: good (used), Year of construction: 1994, Control: Heidenhain TNC 415 Travel paths: X=2000, Y=2000, Z=1250 mm B axis: 360° Table size: 1600 x 1800 mm Max. workpiece weight: 12,000 kg Work spindle: 130 mm Taper: SK 50 Tool changer: 60 stations Hollow spindle flange Ø: 221.44 mm Max. centring cone Ø: 180 mm Spindle extension: 800 mm Speed: 400 – 1600 rpm Feed: up to 8000 mm/min Table rotation B axis: 1.5 rpm Weight: approx. 32,000 kg Operator platform, electrically height-adjustable approx. 1200 mm, Chip conveyor Itjdpfsxvb Ixsx Ad Djp

Condition: excellent (used), Year of construction: 2008, feed length X-axis: 10,000 mm, feed length Y-axis: 2,500 mm, feed length Z-axis: 1,500 mm, SPECIFICATION: Longitudinal stroke “X” axis 10000mm + 1000mm for pick up the milling head Cross stroke “Z” axis 1500 mm Itsdpfexbgn Ijx Ad Djp Spindle headstock vertical travel “Y” axis 2500mm Two re-circulation ball screw on vertical axis Controlled continuously in 7 axis Heidenhain iTNC 530M with alternative control smart NC cyborg TE 530 with mouse 1 x pcs Rotary table CES size 2000 x 2500 mm in specification Two floor plates 6400x1900mm,

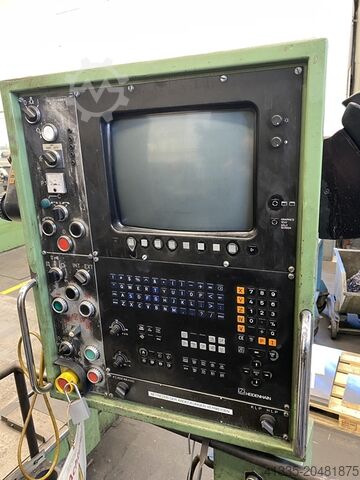

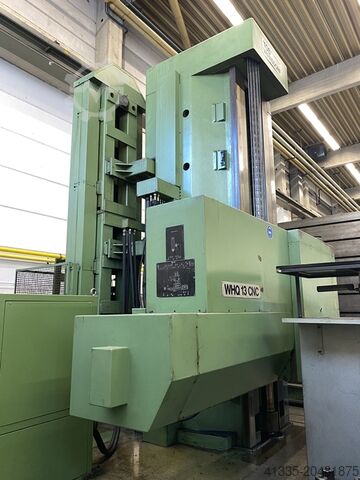

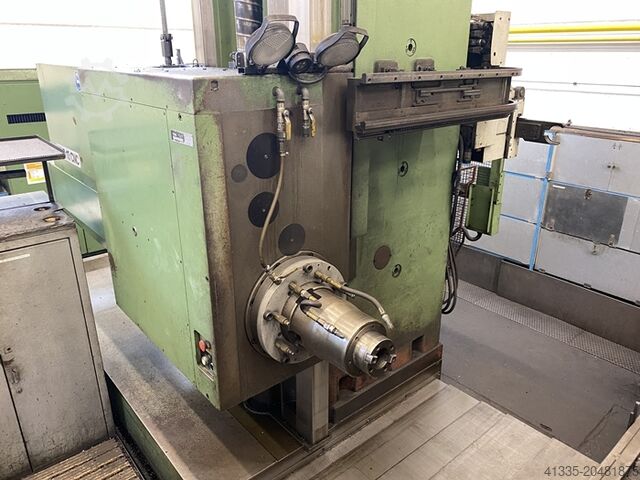

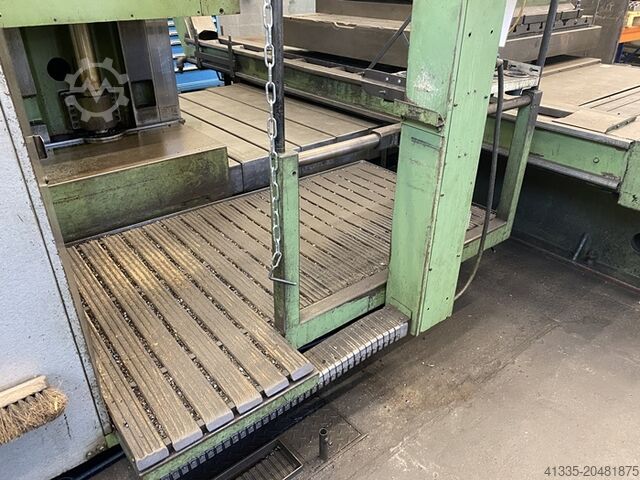

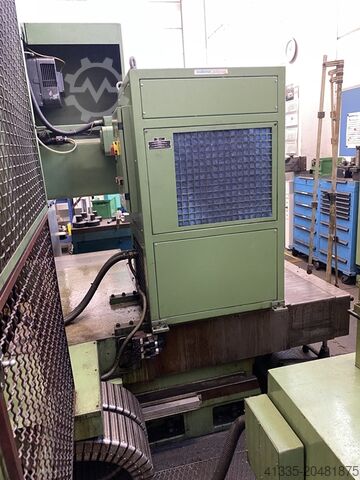

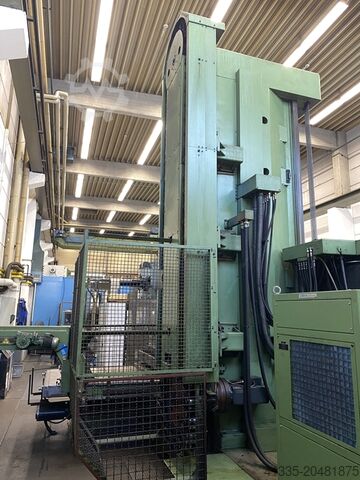

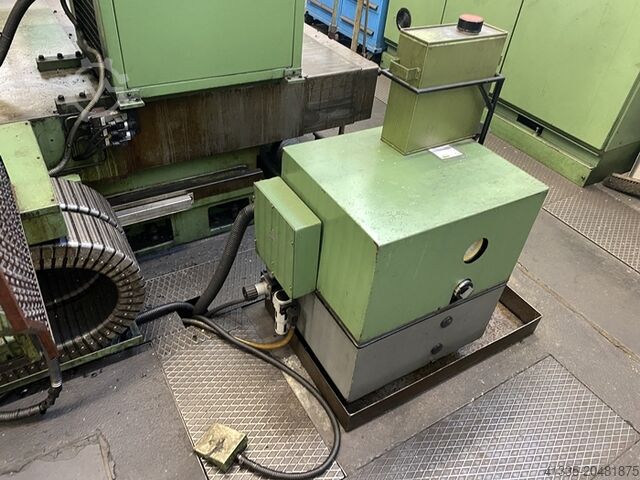

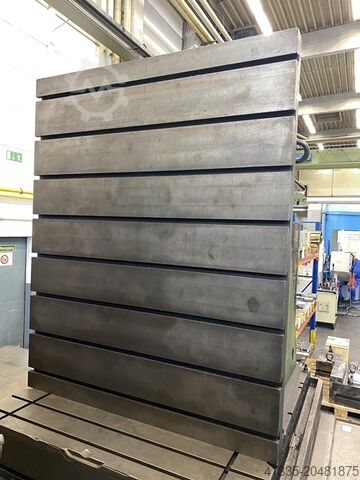

Condition: good (used), Year of construction: 2004, Ref. -No.: 10520 Manufacturer: TOS VARNSDORF Type: WHNQ 13 CNC Year of construction: 2004 Type of control: CNC Control: HEIDENHAIN TNC 430 Storage location: Halberstadt Country of origin: Czech Republic Machine-No.: 23XX X-Travel: 3500 mm Y-Travel: 2500 mm Z-Travel: 1250 mm W-Axis: 800 mm Table Load: 12.500 kg Clamping Area: 1800 x 2500 mm Tool Taper: SK 50 Tool Piece Magazine With: 60 Pcs./pcs. Spindle Speed: 3.000 RPM Max. Torque: 3323 Nm Rapid Travel X/Y/Z: 10000 mm / min Drive Capacity - Spindle Motor: 37 / 1500 kW Weight Of The Machine Ca.: 40 t Further information: - Tools + accessories - Angle head - Angle up to 2.5m - Chip conveyor - 3D measuring probe - Clamping device Machine is still in production and can be inspected under power by arrangement. Itedpfew Nmw Hjx Ad Dep

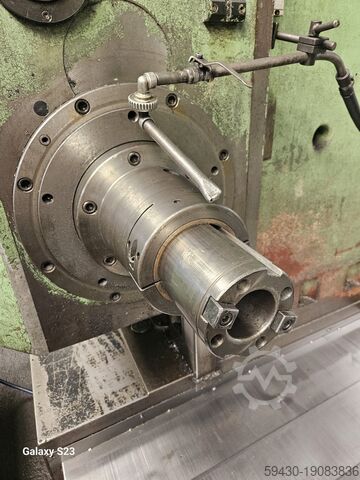

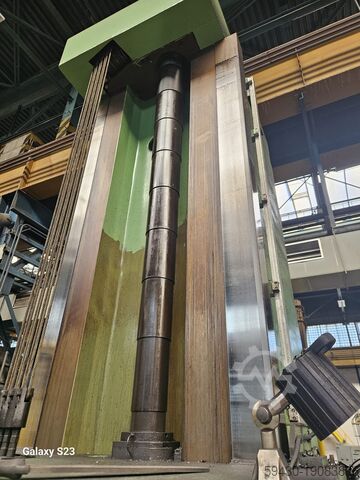

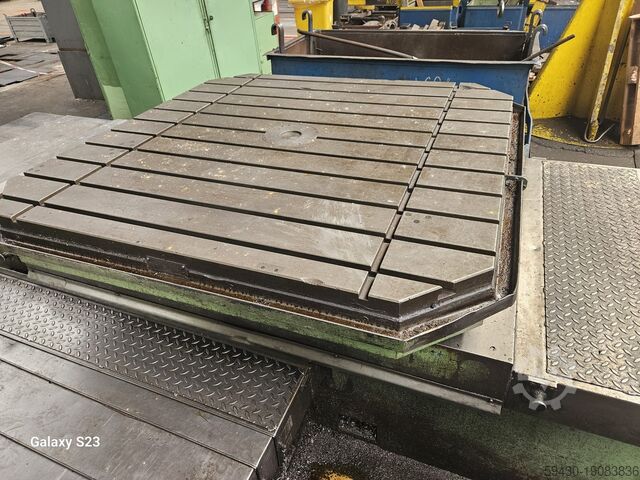

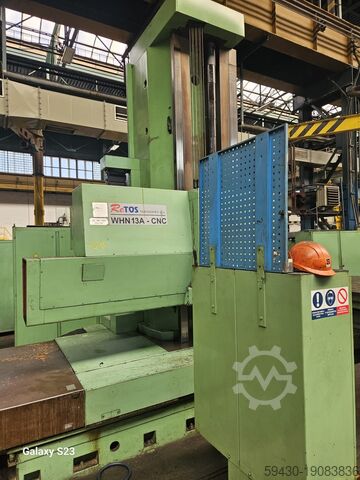

Condition: good (used), Year of construction: 2013, Ref. -No.: 10484 Manufacturer: TOS VARNSDORF Type: WHN 13 CNC Year of construction: 2013 Type of control: CNC Control: HEIDENHAIN 530 Storage location: Halberstadt Country of origin: Czech Republic X-Travel: 3500 mm Y-Travel: 2000 mm Z-Travel: 1250 mm W-Axis: 800 mm B-Axis: 360 ° Table Load: 15.000 kg Tool Taper: SK 50 Itjdsw Iu Nhjpfx Ad Dsp Turning Speeds: 1.400 RPM Spindle Speed: 2000 RPM Further information: The control system was converted to a HEIDENHAIN 530i in 2013. All drives were upgraded to digital. The thrust bearing tower was also replaced in 2013. Accessories: 3D probe - Heidenhain, large spindle support Additional table dimensions: 3850 x 900mm 1x axis module Heidenhain (overhauled), 1 new axis module is installed in the machine. Newly packed spare parts, covers from the machine. All bearings have been replaced by the machine in recent years. Tools and milling cutter heads are available. Machine is from 1st hand. The machine is still under power and in production. The machine can be viewed by appointment.

Condition: excellent (used), Year of construction: 2018, Heidenhain iTNC 640 CNC control Table dimensions: 1800 x 2200 mm Max. workpiece weight: 25,000 kg X-axis travel: 3,500 mm Y-axis travel: 2,500 mm Z-axis travel: 1,600 mm Spindle/cone diameter: 130 mm Speed range: 3,000 RPM Spindle power: 46 kW Max. torque at 100% duty cycle: 1,000 Nm Ijdpfxow Hbnvj Ad Dotp Machine weight: 38,000 kg Power-on hours: 16,631 Spindle hours: 4,430 Accessories: – Controlled B-axis – 40-position tool changer / chain-type magazine – Belt filter system with high-pressure pump – Chip conveyor – Heidenhain TS 460 workpiece probe – Automatic milling head type HUI 50 – Movable operator cabin Yp = 1,600 mm, Zp = 600 mm – Centralized lubrication system – Pfannenberg oil cooler – Documentation

Condition: used, Year of construction: 1980, functionality: fully functional, travel distance X-axis: 6,000 mm, travel distance Y-axis: 1,600 mm, travel distance Z-axis: 450 mm, spindle diameter: 130 mm, spindle speed (min.): 3 rpm, spindle speed (max.): 900 rpm, feed length X-axis: 6,000 mm, feed length Y-axis: 1,600 mm, feed length Z-axis: 450 mm, quill diameter: 130 mm, overall weight: 35,000 kg, year of last overhaul: 2008, The machine is in fully functional condition, connected to power and can be tested. Tool holders are included (see photo), as well as a 4-axis digital readout. Iedpfjwu Sqdox Ad Djtp

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, travel distance X-axis: 5,000 mm, travel distance Y-axis: 3,000 mm, travel distance Z-axis: 2,200 mm, table load: 15,000 kg, spindle diameter: 130 mm, spindle speed (max.): 3,000 rpm, table length: 2,500 mm, table width: 1,800 mm, spindle stroke: 800 mm, Tos Varnsdorf WHQ 13 CNC boring mill with: - X-axis travel 5000 mm - Y-axis (vertical) travel 3000 mm - Z-axis (cross) travel 2200 mm - W-axis (quill) travel 800 mm - rotary table size 2500 x 1800 mm - Heidenhain iTNC 530 CNC control - spindle speed 3000 rpm - 60-position tool magazine - high pressure through-spindle coolant - hinged belt chip conveyor - standard accessories included - year of manufacture 2012 Ijdjwtmvxjpfx Ad Dstp - year of installation 2017 0% financing over 12/24 months available

Condition: good (used), In good technical condition and fully functional. Worktable length: 3,150 mm. ISO 50 taper Travel range X-axis: 3,000 mm. Travel range Y-axis: 2,500 mm. Ijdpfxewrcpro Ad Dstp Travel range Z-axis: 1,400 mm. Travel range W-axis: 1,250 mm. Machine weight approx. 66 tons.

Condition: used, Year of construction: 2013, Varnish Coater is designed for most roll-to-roll solvent, eco-solvent and UV inkjet prints to laminate, which can supply smooth and consistent liquid coating thickness. The Varnish Coating can protect inkjet graphics on Vinyl, Banner, Canvas, Wall Paper, Truck tarpaulin against Scratches, Abrasion, UV rays, Water and Chemical. The easy access design to allow one people to operate to save labor cost and time. Features: a. Standard Interchangeable Mayer bar - 0.5mm and 0.8mm b. Fixed position for Mayer bar c. Coating bar and heating bank up and down controlled by Air compressor d. Infrared heating and fans cooling curing system e. Easy to Clean by Water f. Varnish empty alarm system g. Varnish Pumping up and Recycling return system h. 3" Interchangeable Auto-grip shaft for unwind and rewind i. Variable speed control with forward and reverse j. E-stop and circuit breaker for safety use k. CE certified Max. Coating Width 3200mm Variable Working Speed 0.5-1.5m/min Max. Coating Thickness 32microns Recommended Working Temp. 100-120℃ Alarm Temp. 150℃ Drive Motor AC110V 230V 120W Power Consumption 13Kw Power Requirement 380V/3P 50/60Hz 25A 220V/3P 50/60Hz 60A Machine Size 3380*1020*1050mm Shipping Dimensions 3450*1100*1230mm Weight ( NW / GW) 700kg / 960kg Itsdpfjwpu D Nox Ad Dsp Optional Mayer Bar 0.3mm / 1.0mm

Condition: good (used), Year of construction: 1998, functionality: fully functional, travel distance X-axis: 2,000 mm, travel distance Y-axis: 1,750 mm, travel distance Z-axis: 700 mm, table load: 7,000 kg, spindle diameter: 130 mm, spindle speed (min.): 15 rpm, spindle speed (max.): 2,700 rpm, table length: 1,300 mm, table width: 1,300 mm, Colgar Prog 213 TR 120-90 Ijdpfx Aowmbfned Djtp Siemens Sinumerik 840C Controller

Condition: used, Year of construction: 1998, Table 1800 x 1800 mm Spindle diameter 130 mm Iodpfxowhpv Rj Ad Dotp Axes X x Y x Z ... 2000 x 2000 x 800 mm Spindle 800 rpm Max. table loading 12 t Machine dimesnions 6700 x 6000 x 4420 mm Machine weight 32 000 kg Control system MEFI 872 Series. Rebuilt in 1998.

Condition: good (used), Year of construction: 2004, In good technical condition. GO 2004. CNC control based on an industrial PC. Measuring system: Tilting device for measuring the workpiece diameter with automatic corrections. Max. grinding length: 630 mm. Center height: 140 mm. Machine dimensions: Height 1600 mm, width 2300 mm, length 3750 mm, and machine weight approx. 3000 kg. Isdpjwfnvwefx Ad Dotp Machine accessories Complete technical documentation for the machine DE Manuals for using the CNC control system CZ

Condition: used, Year of construction: 2007, functionality: fully functional, travel distance X-axis: 3,100 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 1,000 mm, spindle speed (max.): 3,000 rpm, table length: 1,800 mm, table width: 2,000 mm, feed length W-axis: 700 mm, workpiece weight (max.): 12,000 kg, milling spindle length: 700 mm, FPT CASTEL RED HEIDENHEIN TNC 430. Built in 2007. X=3100mm Y=2000mm Z=1000mm Table 2000 x 1800 mm, 12 Ton Cooling through spindle. X Column travel 3,100 mm Y Headstock vertical travel 2,000 mm Z spindle stroke 700 mm W Column in spindle direction 1,000 mm Spindle diameter 130 mm Spindle diameter ISO 50 Itsdpfx Aswdiu Esd Djp Spindle speed 3000 rpm Spindle motor 37 kW Rotary table size 1,800 x 2,000 mm Table load 12 tons C-axes 360,000°

Condition: good (used), Year of construction: 2005, travel distance X-axis: 3,500 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 1,250 mm, In good technical condition. Year of modernization: 2005. Main electric motor power: 37 kW Installed machine power: 50 kVA Maximum machine length and width (including control cabinets): 7800 x 7200 mm Maximum machine height: 4900 mm Assembled floor space: 50 square meters Required installation height: 5800 mm Maximum workpiece weight: 12000 kg Work spindle diameter: 130 mm Itodswc Sm Ijpfx Ad Dsp Spindle taper: ISO 50 Work spindle throat: 800 mm Work spindle speed range: 5 to 1800 rpm Distance of spindle axis from table clamping surface (Y): 70 mm Table clamping surface: 2500 x 1800 mm

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, travel distance X-axis: 4,000 mm, travel distance Y-axis: 3,000 mm, travel distance Z-axis: 2,000 mm, table load: 15,000 kg, spindle diameter: 150 mm, spindle speed (min.): 4 rpm, spindle speed (max.): 3,000 rpm, table length: 2,000 mm, table width: 1,800 mm, drill spindle length: 900 mm, HEIDENHEIN iTNC 530. ATC 60, X= 4.000 mm. Y= 3.000 mm. W, Tower= 2.000 mm. Z, Spindle= 900 mm. Rotary Table 1.800 x 2.300 mm, 15 Ton. Iodev U D Ntjpfx Ad Detp

Condition: used, Year of construction: 2006, functionality: fully functional, travel distance X-axis: 5,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,400 mm, spindle diameter: 100 mm, spindle speed (min.): 10 rpm, spindle speed (max.): 2,500 rpm, The machine is in good technical condition, currently disconnected. Heidenhain TNC 530i control system, chip conveyor, tool magazine 40 pcs. Itsdpfxov Upbnj Ad Djp

Condition: good (used), travel distance X-axis: 4,000 mm, travel distance Y-axis: 3,000 mm, travel distance Z-axis: 2,000 mm, table load: 20,000 kg, Spindle diam. 130 mm Spindle nose attachment iso 50 X-axis stroke: 4000 mm Y-axis stroke: 3000 mm (vertical) Z-axis stroke: 2000 mm W-axis stroke: 800 mm Spindle motor power 37 kw Spindle speed 0 - 3000 rpm Itedpevxvcaofx Ad Dep Table 1800 x 2500 mm Table capacity 20 tons CNC HEIDENHAIN TNC I 530 ATC 60 places Chip conveyor Electronic handwheel Coolant through spindle Spindle sleeve

Condition: used, Technical details: spindle diameter: 130 mm drill depth: 1380 mm x-travel: 2500 mm y-travel: 1600 mm z-travel: 380 mm w-axis: 900 Bohrspindelvorschub mm U-axis: 320 Planschiebervorschub mm control: auf Wunsch tool taper: ISO SK50 revolution per minute: Planschieber:4,5-180 U/min rpm - drive spindle: 4,5-900 U/min feed:: x/y: 5-2000 total power requirement: ca. 40 kW Iedevr S Uljpfx Ad Djtp weight of the machine ca.: ca.< 35 + AZusatzeinrichtungen t The machine can be offered in 4 different sales options. Please choose! 1. the machine is in mint mechanical condition. As is/is. 2. the machine as is/is incl. plate field 4000x2000x300mm = stock no. 1101081 3. the machine is newly wired, with new electrical cabinet, digital display, with 4-axis, AC drives from Siemens, axis motors from Siemens (50A/31Nm) with 12 months warranty on all new parts. 4. further additional equipment can be offered as an option. Such as coolant system, chip conveyor, enclosure etc. We should discuss this on the table with your technical staff. i.D. *

Condition: excellent (used), Union KCU-130 Table Type Horizontal Boring Machine Heidenhain TNC430 Control, Itodpfxsvgqide Ad Djp X/Y/Z = 4000/3000/1500mm, Table Size 2000 x 2500 x 20,000kgs, B-axis 360 Deg, Spindle Taper BT50, 60 Position ATC, W-axis, U-axis, Swarf Conveyor, Through Spindle Coolant, Guarding Enclosure. S/No. 1370022 (2001)

Condition: used, Technical details: spindle diameter: 130 mm x-travel: 2190 mm y-travel: 1520 mm z-axis: 1520 mm w-axis: 1000 mm table surface area: 2000 x 1800 mm workpiece weight: 8 t spindle motor: 18 kW spindle taper ISO: 50 spindle turning speed range: 4,5 - 900 U/min faceplate diameter: 785 mm rapid traverse: 5 m/min total power requirement: 40 kW dimensions of the machine ca.: 5,5 x 6,9 x 5,2 m weight of the machine ca.: 35 t Machine was retrofitted in 2023 with HEIDENHAIN TNC 360 CNC control - inf. variable spindle spped Iedpfjvclrxjx Ad Dotp - 4 x 90° table positioning - diverse toolholders - dDust exhauster *
