Condition: excellent (used), Year of construction: 1996, functionality: fully functional, turning length: 1,000 mm, turning diameter: 350 mm, travel distance X-axis: 260 mm, travel distance Z-axis: 1,020 mm, CNC Lathe Manufacturer: Okuma Model: LB15 II-M 1SC-1000 Year of Manufacture: 1996 Codpoyrtkrofx Ah Iogp Control: OSP-7000L Country of Origin: Japan Delivery: Ex-stock Machine Features - Long turning length - Tailstock - Chip conveyor - Live tooling - One touch - IGF - Touch setter Technical Specifications - Working Areas - Swing diameter: 340 mm - Max. turning diameter: 350 mm (chuck work) - Max. turning length: 1000 mm Travel Distances - X-axis: 260 mm - Z-axis: 1020 mm Spindle - Speed: 45~4500 rpm - Standard spindle bore diameter: 62 mm - Spindle front bearing bore diameter: 100 mm - Chuck passage: 52 mm Turret - Number of stations: 12 - Tool holder: VDI40 - Indexing time station to station: 0.1 sec Feed Rates - Rapid traverse X/Z: 15,000/20,000 mm/min Tailstock - Quill diameter: 90 mm - Quill stroke: 120 mm Main Drive - Spindle motor: 15/11 kW Machine Dimensions: approx. 3315 x 1895 mm Machine Height: approx. 1905 mm Weight: approx. 5700 kg Optional - Transport organization and handling - Machine installation and setup - Commissioning of the machine

Condition: ready for operation (used), Year of construction: 2023, spindle motor power: 26,000 W, spindle speed (max.): 4,000 rpm, travel distance X-axis: 630 mm, travel distance Z-axis: 1,585 mm, total height: 3,025 mm, total width: 2,360 mm, controller manufacturer: FANUC, controller model: 0i-F with 15" display, product length (max.): 5,125 mm, number of axes: 7, This 7-axis DN SOLUTIONS PUMA MX2600ST was manufactured in 2023. It features a maximum spindle speed of 4,000 RPM and a bar capacity of 76 mm. The machine is equipped with a multi-tasking configuration, including 3 spindles and a lower turret with 12 stations. If you are looking to get high-quality milling and turning capabilities, consider the DN SOLUTIONS PUMA MX2600ST mill-turn centre we have for sale. Contact us for further details. • Configuration: Multi-tasking with 3 spindles and lower turret • Chuck size: 10" (255 mm) • Bar capacity: 76 mm • Travels: • X1 / X2: 630 / 230 mm • Z: 1,585 mm • Axis count: 7 (fully controlled) • X1 / Z1 / Y1: Milling spindle axes • B-axis: Milling spindle swivel/tilt (approx. 240° range) • X2 / Z2: Lower turret axes • C-axis: Spindle indexing/rotation • Spindle motor power: 26 / 22 kW • Spindle architecture: 3 spindles including top-mounted milling spindle • Lower turret: 12 stations, BMT 65 interface • Tooling interface: CAPTO C6 (milling head) • Guideway type: Linear guideway • Precision: 0.001° indexing accuracy in B and C axes • Thermal control: Intelligent heat compensation and optimized cooling to minimize thermal displacement • Cooling system: Coolant flushing for right/left spindle; high-pressure coolant through lower turret and milling spindle • Filtration/monitoring: Level monitoring; flow monitor • Data/software: AICC contouring; Data Server 1 GB Additional equipment • Renishaw RMP60 probe • Tool setter Csdpfxoyrtc Us Ah Iogp • Auto door (automation) • Oil skimmer

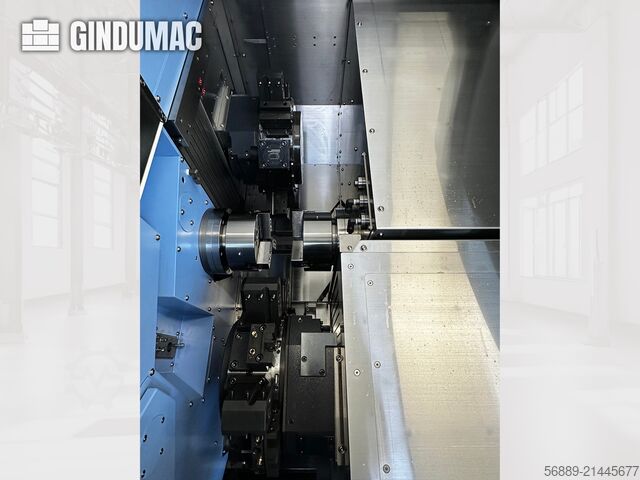

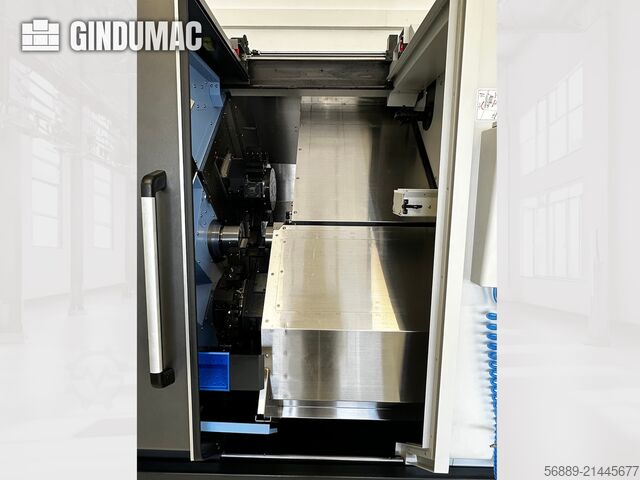

Condition: ready for operation (used), Year of construction: 2023, spindle motor power: 22,000 W, spindle speed (max.): 5,000 rpm, travel distance X-axis: 165 mm, travel distance Y-axis: 100 mm, travel distance Z-axis: 700 mm, total height: 2,250 mm, total width: 2,360 mm, controller manufacturer: FANUC, product length (max.): 3,880 mm, number of axes: 8, This 8-axis DN SOLUTIONS PUMA TT2100SYY was manufactured in 2023. It features a twin-spindle and twin-turret configuration, with a maximum spindle speed of 5,000 RPM and a bar capacity of 65 mm. The machine is equipped with 24 turret stations and high-rigidity linear roller guides for enhanced stability. If you are looking to get high-quality turning capabilities, consider the DN SOLUTIONS PUMA TT2100SYY turn-mill centre we have for sale. Contact us for further details. • Chuck size: 8" (204 mm) • Bar capacity: 65 mm • X1/X2 travel: 165 / 100 mm • Z1/Z2 travel: 700 / 700 mm • Y1/Y2 travel: 30 / 40 mm • Spindle motor power: 22 / 18.5 / 15 kW • Turret stations: 24 (12 + 12) • Turret interface: BMT 55 • Guideway type: High-rigidity linear roller guides • Spindle type: Integral motor spindle with wide speed range • Turret capability: Upper and lower turrets with Y-axis and 12 driven stations each • Structural design: Highly stable Y-axis design for high-volume serial production Cgsdpfx Asyrtbqeh Isp Additional equipment • Cooling and filtration: High-pressure coolant through turret; Oil skimmer • Sub-spindle features: Coolant supply through sub-spindle; Parts ejector • Parts handling: Parts catcher; Parts conveyor for both spindles • Calibration: Tool setter (auto-electric) • Automation and interfaces: Air conditioning (electrical cabinet); Bar feeder interface; 3-color tower light Technical Specification Driven Tools Yes Counter Spindle No

Condition: ready for operation (used), Year of construction: 2019, spindle motor power: 15,000 W, spindle speed (max.): 6,000 rpm, travel distance X-axis: 135 mm, travel distance Y-axis: 30 mm, travel distance Z-axis: 230 mm, total height: 2,070 mm, total width: 2,300 mm, controller manufacturer: FANUC, product length (max.): 3,510 mm, number of axes: 8, This 8-axis DN SOLUTIONS PUMA TT1300SYYB turn-mill centre was manufactured in 2019. It features a twin-spindle and twin-turret configuration, allowing for independent operation. With a maximum spindle speed of 6,000 RPM and integrated high-speed C-axis and Y-axis, it offers advanced capabilities for complex machining. If you are looking to get high-quality turning capabilities, consider the DN SOLUTIONS PUMA TT1300SYYB machine we have for sale. Contact us for further details. • Configuration: Twin-spindle / twin-turret (independent operation) • Chuck size: 6" (170) • Bar capacity: 51 mm • Travels: X1/X2 135/80 mm; Z1/Z2 530/530 mm; Y-axis 30/40 mm • Spindle motor power: 15 / 11 / 7.5 kW • Turret stations: 12 / 12 (BMT 45) • Guideways: Roller guideway Cjdpfxoyrr Suj Ah Ijgp • Capabilities: Integrated high-speed C-axis and Y-axis for complex machining Additional equipment • High-pressure coolant through turret • Oil skimmer • Coolant supply through right/sub-spindle • Parts ejector (sub-spindle) • Parts catcher at main spindle with collection box • Parts removal conveyor belt for sub-spindle • Tool setter (automatic electric) • Automatic shut-off • Bar feeder interface (bar feeder not included) • 3-color status light Technical Specification Counter Spindle No Driven Tools Yes

Condition: used, Year of construction: 2019, Control: MITSUBISHI M730UM with CELOS Main spindle with integrated motor spindle ISM 80: 15/18.5 kW Speed range: 10–4000 rpm 10" hollow chuck 254mm KITAGAWA BB210A821 Counter spindle with integrated motor spindle ISM 65 Speed range: 10–5000 rpm 10" hollow chuck 254mm KITAGAWA BB208A621 20-position BMT star turret KNOLL high-pressure coolant system 70 bar Y-axis with 100mm travel Gantry loading system LG-10AI Csdoyrrxhopfx Ah Ijgp

Condition: used, Year of construction: 2008, functionality: fully functional, Turning / milling center with counter spindle with 10 CNC axes (X1, X2, Z1, Z2, Y1, Y2, B1, B2, C1, C2) Control: FANUC 31:iA Main Spindle Power: 15/11 kW bar material dia.: 51 mm spindle revolution: 5.000 min-1 Cedpfx Ajyrrw Roh Iegp Counter Spindle Power: 11/7,5 kW bar material dia.: 51 mm spindle revolution: 5.000 min-1 Turning and milling spindle Power: 7,5/3,7 kW Turning and milling spindle speed: 12.000 min-1 max. rotation length turret bottom: 1.005 mm Slide cross X1 / X2 / Z1 / Z2 / B2: 455 / 222,5 /1.090 / 1.005 / 1.008 mm Slide cross Y1 / Y2: +/- 70 / +20, -50 mm Swivel range B1 axis: +/- 95 ° Linear rack magazine incl. support robot CNC support steady rest Coolant cyclone filter system incl. 2 pcs. coolant pumping spindle oil cooler

Condition: good (used), Year of construction: 2013, functionality: fully functional, CNC machining center DMG DECKEL MAHO DMF 260-11 with travelling column, suitable for machining large and heavy components in the energy, engineering, or automotive sectors. The machine is equipped with a modern DMG ERGOline control panel and a robust design for high precision and stability during machining. Technical specifications Axis travels X: 2600 mm Y: 1100 mm Z: 900 mm Table Table size: 3200 × 1100 mm Max. table load: approx. 4000 kg Spindle Max. speed: 10,000 rpm Taper: SK40 / SK50 (depending on configuration) Control system Siemens / Heidenhain (ERGOLINE panel) Cjdpfx Aeyrrcyeh Iegp Tool magazine Up to 60 positions Machine weight Approx. 25,800 kg Power supply 400 V / 50 Hz Connected load approx. 77 kVA (according to nameplate) Equipment Fully enclosed working cabin Automatic tool magazine Cooling system Chip conveyor DMG ERGOline control panel Paper filtration of coolant

Condition: excellent (used), Year of construction: 2005, functionality: fully functional, CNC lathe with sub-spindle, two turrets with driven tools, upper turret Y-axis travel 50 mm. Year of manufacture (possibly with repairs, major overhaul): 2005. Upper turret ball screw on X-axis replaced in 2011. Clamping cylinder for spindle no. 1 replaced around 2018. Bearings on both spindles replaced in 2011. Both turrets have undergone continuous overhaul. Technical specifications: - Swing over bed: 700 mm - Maximum turning diameter: 520 mm - Distance between spindle faces: 1500 mm - Sub-spindle travel: 1100 mm Model: CNC lathe Emco Hyperturn 690MC TCMY plus with sub-spindle, two turrets with driven tools, upper turret Y-axis travel 50 mm. Control unit: Siemens Sinumerik 840D. Accessories: - Driven tools: 2 straight, 2 angular - Toolholders: 2 through-bore, 2 surface-mount Cgjdpfoyrqnusx Ah Iop - Chucks: 2x hard base jaws Complete documentation for the machine. Additional spare turret head available – fully overhauled.

Condition: used, Doosan Puma 700L / 2006 Model Ø 900 mm turning diameter Ø 1030 mm swing over bed Ø 3000 mm between centres Codpfoyrnqajx Ah Iogp Fanuc Series 21i-TB CNC Control 600 mm diameter 3-jaw power chuck Fixed steady included Turret tool holders Chip conveyor Spindle motor 45 kW Power requirements 62.2 kVA Weight 22 tons Dimensions 7.1 x 2.2 x 2.2 m 10-position tool turret Tailstock

Condition: good (used), Year of construction: 2001, functionality: fully functional, spindle speed (min.): 5,000 rpm, travel distance X-axis: 700 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 700 mm, rotational speed (max.): 5,000 rpm, rotational speed (min.): 25 rpm, type of input current: three-phase, Equipment: rotational speed infinitely variable, TECHNICAL DETAILS 2x Pallets 500 x 500 mm Travel distances X: 700 mm, Y: 800 mm, Z: 700 mm Table size: 500 mm x 500 mm Rotary table/B-axis: indexed in 1° steps, 360 positions Table load capacity: 800 kg Spindle speed: 5,000 rpm Distance spindle nose to table surface: 150 mm - 850 mm Tool holder: MAS BT 50 Tool magazine (ATC): 60 positions, chain magazine Maximum tool length: 450 mm MACHINE DETAILS Control: CNC OSP 100M Dimensions & Weight Machine weight: 21,000 kg Dimensions (L x W x H): 5,500 x 3,160 x 3,300 mm Spindle hours: 18,500 Cgjdpfxoyrgzks Ah Isp EQUIPMENT Chip conveyor, coolant system, and pocket filter system for internal cooling

Condition: excellent (used), Year of construction: 2006, Doosan Puma 700L Turning Centre with Fanuc Series 21i-TB CNC Control, 600mm Diameter Powered 3 Jaw Chuck, 3000mm Between Centres, Swing 1030 mm Turning dia 900 mm Fixed steady included Chip conveyor Spindle motor 45 kw Power requirements 62.2 kva Weight 22 ton Dims 7.1 x 2.2 x 2.2 m 10 Position Tool Turret, Tailstock, Machine Weight 21500kg. S/No. P60L0377 (2006) Codpoyrf Tfsfx Ah Ijgp

Condition: used, Year of construction: 2016, Okuma MULTUS B300II Lathe with Okuma OSP-P300S-H Control, Y Axis Travel 160mm, 60 Tool ATC/High Pressure Coolant Preparation: 70 Bar / External Coolant Pump: 0.8kw, 6 Bar, 20 L/Min/Electric Spindle Orientation/Air Blast for Chuck Cleaning, Collision Avoidance System (CAS)/Chip Conveyor Preparation/Big Bore Spindle ASA 6": 22/15 kW, 3800 rpm/ High-precision C-axis positioning/ Continuous B-axis/ Tool Magazine with 60 positions/ 0.1 Micron Resolution Software/ API Library 2 for OSP-P300S/ Standard Right Side Chip Conveyor/ 15 Bar Coolant Pump 20 L/min/ Filtration unit with 4 fabric filter bags (25 micron), pump 15 bar, 20 L/min, SCHUNK ROTA THW+260-81R A8 chuck with KITAGAWA SS1770 cylinder for Big Bore main spindle, SCHUNK ROTA THW+215-66 A6 chuck with KITAGAWA SS1452 cylinder for sub-spindle, Y-Axis Machining Kit: Helical interpolation /Y-axis turning function with offset turning toolholders/ Coordinate conversion /Double pressure clamping system for main spindle chuck via M-codes (irreversible) /Double pressure clamping system for sub-spindle chuck via M-codes (irreversible), 5-Axis Machining Kit: Super NURBS on 5 axes /Vector control /DNC-DT interface /Tool position control/ 3D coordinate transformation /Helical interpolation (includes inclined plane profile software), Main and sub spindle: asa 8, 15 kw, 5000 rpm, 651 mm bar capacity / max turning diameter: ⌀630 mm / swing and distance between spindle noses: 1290 mm / B-axis: continuous, indexing 0. 001°, hsk63, 11 kw, 6000 rpm / milling spindle hsk a63: 10000 rpm, 16/11 kw. Country of Origin: Japan Loading is free of charge to a suitable vehicle. Removed for convenience of sale now lying at Brescia, Italy Cgodpfsyrdvlex Ah Isp

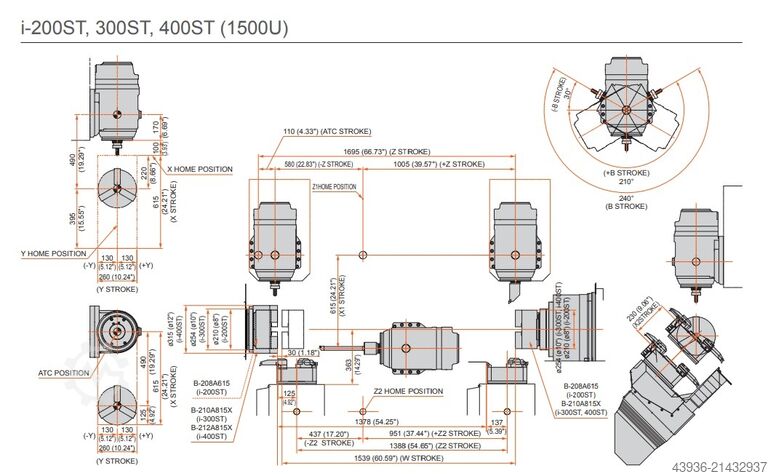

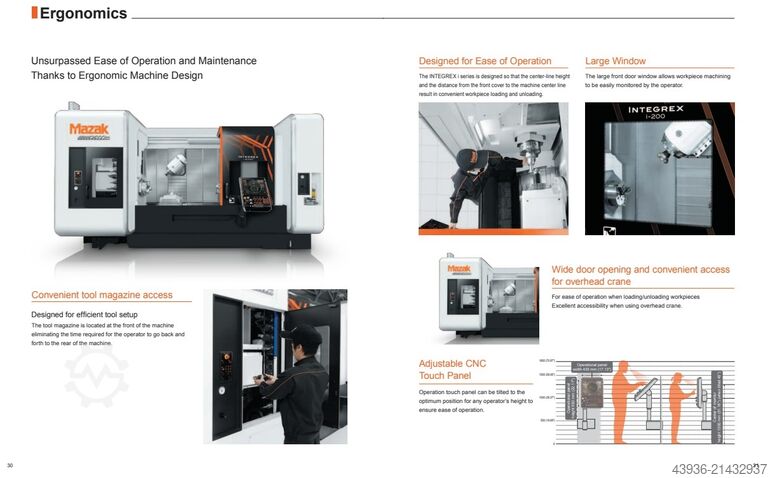

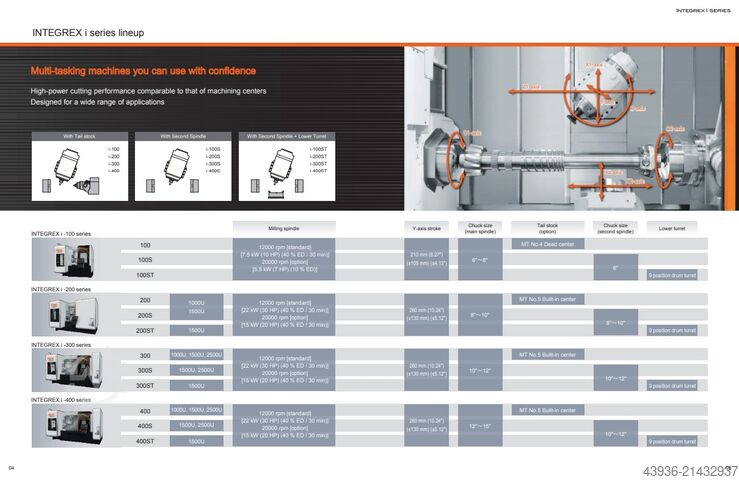

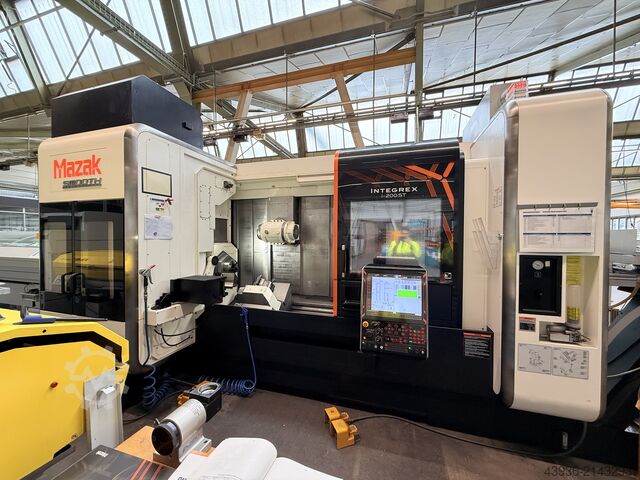

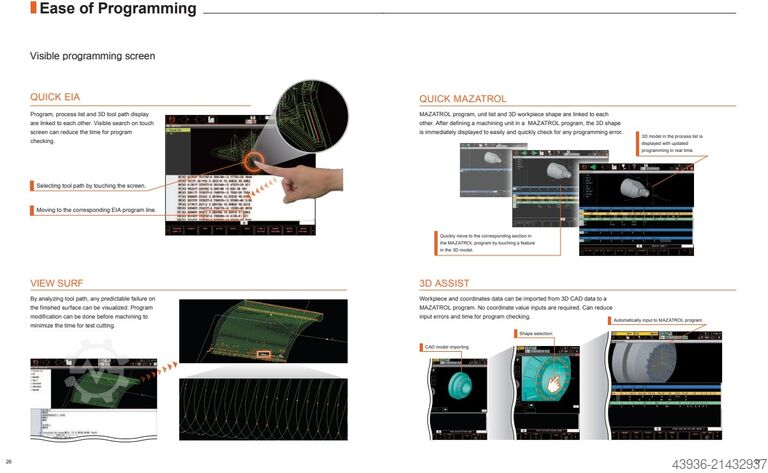

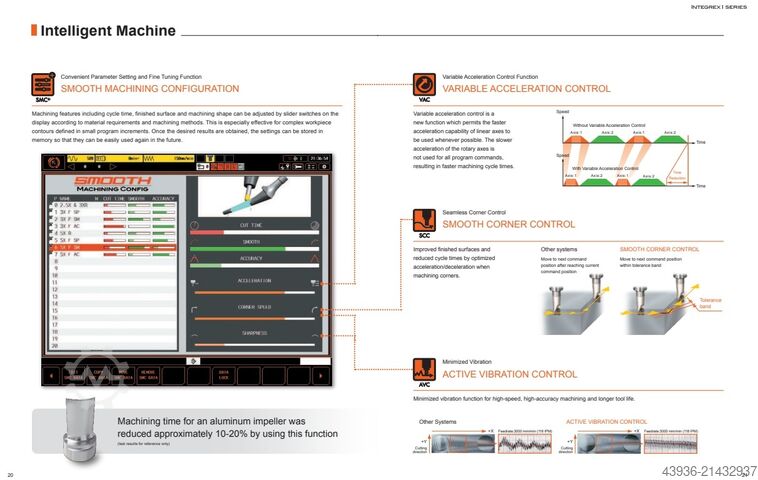

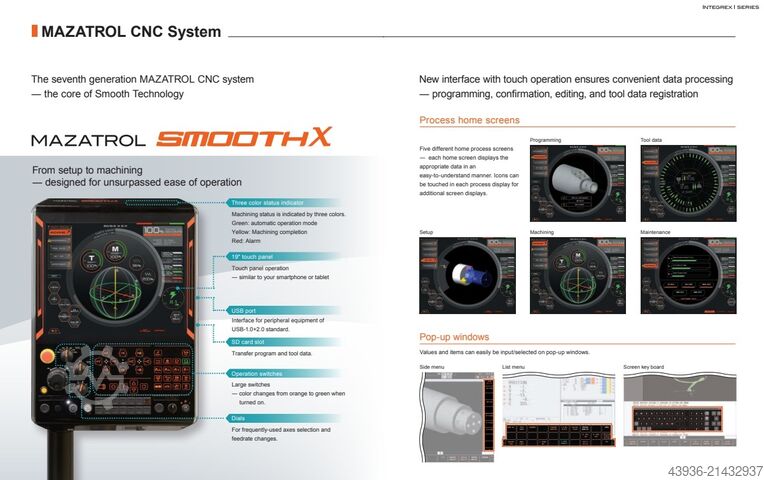

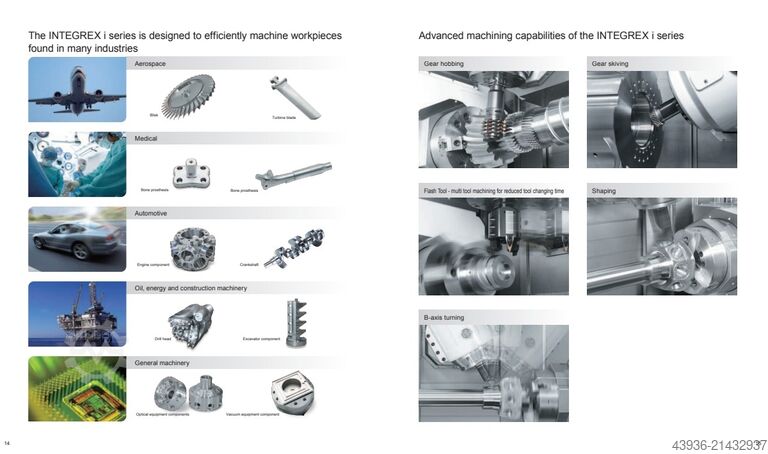

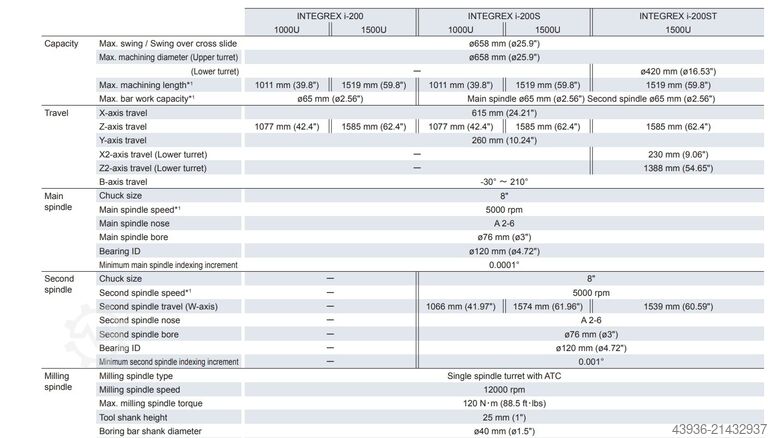

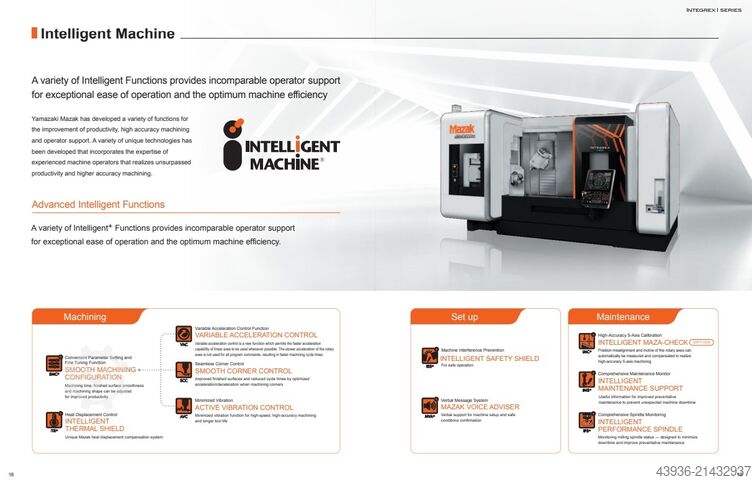

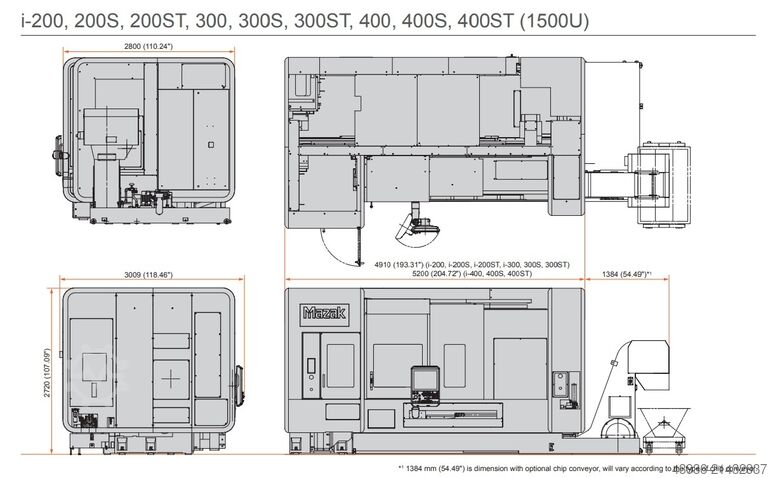

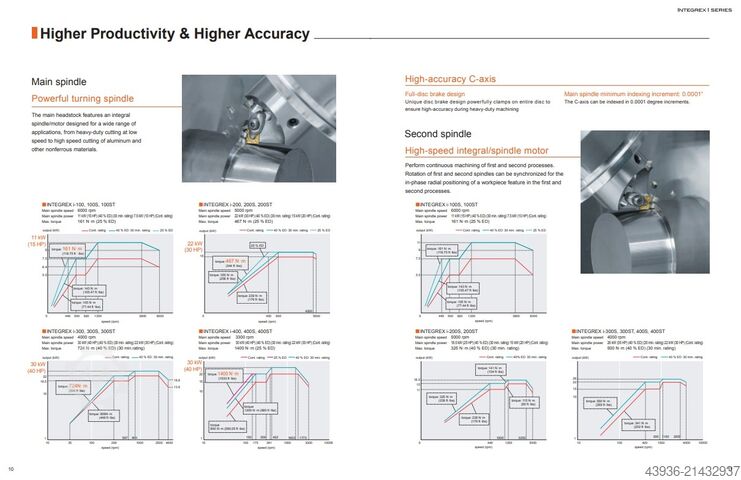

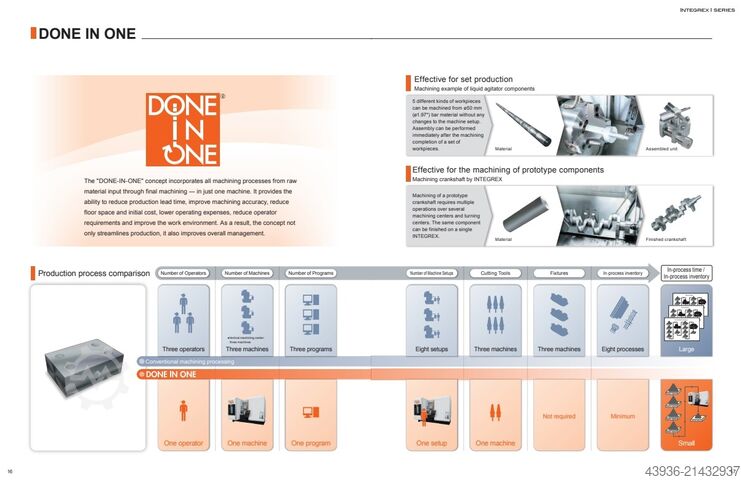

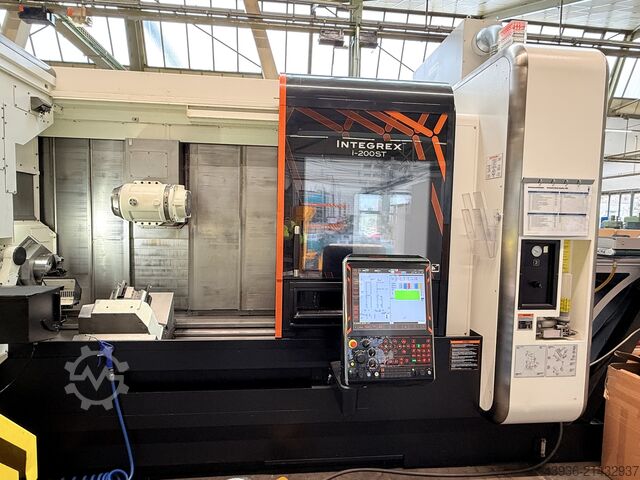

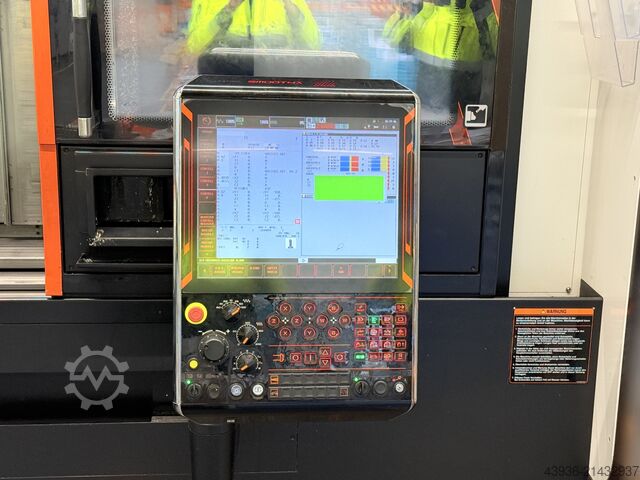

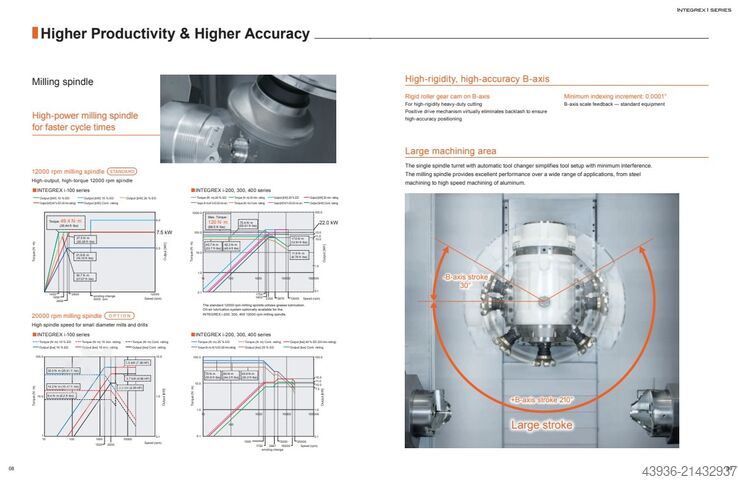

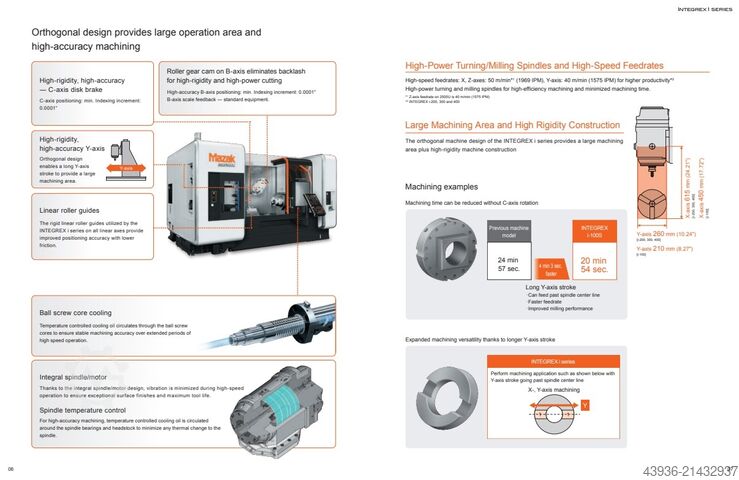

Condition: good (used), Year of construction: 2016, turning length: 1,585 mm, spindle motor power: 22,000 W, spindle speed (min.): 5,000 rpm, travel distance X-axis: 260 mm, travel distance Y-axis: 1,585 mm, travel distance Z-axis: 230 mm, total height: 3,100 mm, total length: 6,100 mm, total width: 3,230 mm, overall weight: 16,600 kg, Multi-tasking lathe MAZAK - Integrex i-200ST x 1500U MACH-ID 9450 Make: MAZAK Type: Integrex i-200ST x 1500U Control: Smooth Mazatrol Year: 2016 5 Axis Simuteneous EIA/ISO Milling spindel with Threading Function Extra M-Code (1 pair for 2-M-Code) Preparation RMP-60 Sub spindel with C Axis any C1 + C2 Synchronisation IKZ with 70 Bar main spindel IKZ with 15 Bar on lower Revolver Knoll Filtration KF-400/2300 SMW KNCS-N-325-104 3 chuck Max. turning Ø: 658mm X-Axis: 260mm Y-Axis: 1585mm Z-Axis: 230mm B Axis: 360° Spindle bore: 76mm Speedrange: 5000Rpm Cgedpfxoyrcxlo Ah Ijp Spindle power: 22kW Subspindle speeds: 5000Rpm Subspindle bore: 65mm Subspindle power: 22kW ATC / revolver: 36 Speed live tools: 12000Rpm B-Axis Toolsystem: HSK-63 Positions lower revolver:9 Speed live tools: 6000Rpm Power live tools: 5,5kW Length: 6100mm Width: 3230mm Height: 3100mm Weight: 16600kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: good (used), Year of construction: 2007, functionality: fully functional, NAKAMURA WY250 SUPERMILL LATHE, YEAR 2007, OPERATIONAL, WITH DOUBLE Y-AXIS - FANUC 31iA2 CNC control - Main spindle bar capacity: 65mm, power: 18 kW, ASA 6, 4500 RPM - Sub-spindle bar capacity: 51mm, power: 11 kW, ASA 5, 5000 RPM - Live tool power: 7 kW with 40 Nm torque on both turrets (65mm throat, SUPERMILL) - Y-axis on both turrets (Y-stroke upper +50/-50 mm; Y-stroke lower +20/-50 mm) - Part catcher type G - Distance between spindle noses: 870 mm - Maximum turning diameter: 225 mm - Rapid traverse Z: 36 m/min, rapid traverse X: 18 m/min - Enlarged 500L coolant tank with chip conveyor - Turret coolant pumps: GRUNDFOSS CRK4-100/10, double stage, 3-12 bar with filters - Coolant wash over spindles - Air blow and coolant wash through sub-spindle - Auto shut-off - 3-color stack light - NT Nurse axes load monitor - IEMCA MASTER 880 bar feeder, year 2003 - Set of toolholders and collet holders as follows: Supplied with the machine: 4 external toolholders 4 dual opposed toolholders 6 boring bar holders 1 H32 cutoff blade holder 4 radial live toolholders (brand HEIMATEC) 4 axial live toolholders 1 Bellegrandi collet holder type MSCNT70-A6” for BA and BD series, size 70 (complete with mounting sleeves, main spindle side) 1 Bellegrandi collet holder type MSCTNR70-A5” for BA series, size 70 (complete with spring ejector, sub-spindle side) Cedpoyrb Tnofx Ah Iegp Complete Hand Jaw set for the part unloader

Condition: excellent (used), Year of construction: 2022, Swiss CNC Chucker-Convertible Sliding Headstock Lathe W/ "B" Axis Codpfeyq S Utex Ah Ijgp

Condition: good (used), Year of construction: 2004, Mfd. 2004 Gildemeister Twin 65 CNC Lathe Specifications Chuck Size: 8" Bar Capacity: 2" Turning Diameter: 8" Spindle Speed: 5,000 RPM Control: Siemens CNC Control Distance Between Centers: 20" Turret: 12 Station Sub-Spindle: Yes Chip Removal: Chip Conveyor Csdeyq S Ugepfx Ah Iogp Features Barfeed Included

Condition: good (used), Year of construction: 1998, functionality: fully functional, OKUMA LCC15, OSP 700L, collet chuck, chip conveyor, coolant pump, touch setter, chip conveyor, parts catcher, V12 turret direct mounting. Codsyq S E Sepfx Ah Isgp A very compact and efficient machine for bar stock workpieces. * The LNS bar feeder is included free of charge with the machine, but it is not part of the sale and must be electronically serviced by an LNS technician.

Condition: used, Year of construction: 1993, CNC Lathe Monforts RNC 4 with KNCS 260 chuck Collet up to Ø 60 mm Bar feeder up to Ø 65 mm Year of manufacture: 1988 Lots of accessories CNC Lathe Monforts RNC 4 with 15-series control and C-axis, KNCS 260 chuck, year 1995, lots of accessories Cgedpfsyq R T Ijx Ah Isp RNC 5 Chucking-only lathe Year of manufacture: 1992 Includes many jaws Monforts RNC 7 with automatic tailstock, 1500 mm Z-axis travel Driven tools with spindle indexing every 2.5° Chuck 500 mm, many tools and jaws included Year of manufacture: 1993 Very good condition The last CNC lathe, an RNC 7-1000 with automatic tailstock, steady rest, C-axis Lots of tools and jaws Ideally, everything would be sold as a package — 5 Monforts lathes with a very large amount of accessories.

Condition: used, functionality: unexamined, Iemca BOSS 545E/32 Csdpsyq Rg Iefx Ah Iogp Chip conveyor

Condition: used, Year of construction: 2006, functionality: fully functional, Iemca BOSS 545E/32 Equipment Cgsdpjyq Rdgjfx Ah Iop

Condition: good (used), Year of construction: 2008, Description: Cedpfx Ahoyq Il Is Iogp The machine is in good technical condition, with the possibility of testing upon prior agreement. Spindle bore 65 mm. 38,444 operating hours, with the spindle accounting for approximately 1/3 of the machine’s hours. Yes, it is a Sinumerik control. Chuck: SCHUNK ROTA THW plus 215-65.

Condition: good (used), Year of construction: 2011, Description: The machine is in good technical condition; a test run is possible after prior agreement. Max diameter: 65 mm, max length: 590 mm. Number of tools: 12. Power: 50.44 kVA. Cgjdoyq Ifzopfx Ah Ijp Machine specifications: Machine dimensions (L x W x H): Max D 65 mm, max L 590 mm.

Condition: good (used), Year of construction: 2015, functionality: fully functional, Machine parameters: Machine dimensions (L x W x H): D max. 51 mm, L max. 120 mm Description: The machine is in good technical condition; test operation is possible by prior arrangement. 54.7 kVA Number of tools: 12 Cgjdpoyq Iaxsfx Ah Iep

Condition: excellent (used), Year of construction: 2009, operating hours: 87,000 h, functionality: fully functional, turning length: 600 mm, turning diameter over cross slide: 410 mm, spindle speed (min.): 22,000 rpm, For sale is a CNC turning center manufactured by DMG, model CTX beta 800, year of manufacture 2009. The machine is in a well-maintained and fully operational condition. Technically flawless and immediately ready for operation. Technical Data Machine type: CNC Turning Center Manufacturer: DMG Model: CTX beta 800 Year of manufacture: 2009 Control system: Heidenhain 4290 Max. turning length: 600 mm Tool turret: 12-position Tool holder: VDI 40 Operating hours: approx. 87,000 h Spindle hours: approx. 22,000 h Linear guide Z1 recently renewed Turret drive S2 recently replaced Machine regularly serviced by customer service Technically flawless and fully functional Inspection under power possible by appointment Service and maintenance reports available Extensive accessory package Driven tools by WTO Csdeyq Hq Nspfx Ah Isgp Further documentation and photos available on request Availability: from July 2026 If interested, simply write or call Maschinenhandel Nord Gerstenstraße 2 17034 Neubrandenburg

Condition: excellent (used), Year of construction: 2020, functionality: fully functional, spindle speed (min.): 18,000 rpm, feed length X-axis: 730 mm, feed length Y-axis: 450 mm, feed length Z-axis: 520 mm, workpiece weight (max.): 200 kg, total length: 3,000 mm, total width: 2,300 mm, tool length: 300 mm, We offer this very good Mazak CV5-500 CNC 5-axis machining centre, year of manufacture 2020. Manufacturer: Mazak Model: CV5-500 Year of manufacture: 2020 Condition: Very good If you have any further questions or need more information, please do not hesitate to send us a message or call us. Cgodjyq Hgdepfx Ah Ijp
