Dipl.-Ing. Winfried Schnabel GmbH

Condition: new, neu ca. 10 Wochen ab Auftrags Spanien 49500 € 945.45 € 60 to 500 mm 5 40x11 mm 32 mm 350x15 mm 120x10 mm 45/40 mm 150x10 mm 5.5 kW 1950 mm Bodpfx Aheynnb Rj Iowi 2000 mm 1900 mm 1900 kg with bending station 5 working stations flat steel shear with device to reduce deformation angle iron shear with round- and squarebars opening triangle notcher punching station press brake device for flat steel table at flat steel station table at notching station length stop 1000 mm with contact switch, for angle, flat or bar station hydraulic drive 2 foot release user manual in GERMAN and ENGLISH Semipaxy:Increased repeat accuracy instead of time consuming laying out ·including B&R 15" CNC with touchscreenand integrated keyboard ·automatic positioning in x- and y axis ·manual feed of sheet to the stop ·simple grafic programming by touchscreen ·working area 1.000 x 400 mm ·direct importing of DXF files possible

Condition: new, neu ca. 10 Wochen ab Auftrags Spanien 24700 € 474.24 € 1000 mm 400 mm 12 m/min 0,2 mm 0,1 mm 300 kg The Semi Paxy table is a positioning unit with CNC control unit which may be factory fitted onto any GEKA punching machine with a 500 mm or larger throat. THE ASSEMBLY CONSISTS OF: * Mounting plate. * Table assembly with “X” and “Y” axis driven by servo motors. * B&R Power Panel 500 PC based 15” touch screen control * Each axis “X” and “Y” has servo motors with built encoder for precise measurement. * Electric cabinet THE WORK PROCESS IS AS FOLLOWS: Bjdpfsynmrhsx Ah Iowi * The position of the holes to be punched is programmed either in absolute or incremental dimensions. * When the control is started up, the guide stops are positioned for first hole. * The material to be punched is placed against guide stops and the punching pedal is activated, the ram then cycles. * After the punch has returned to the pre-set clearance height, the table guide stops move to the next programmed position. * Repeat this sequence until all holes are punched. B&R PC BASED 15” TOUCH SCREEN CONTROL MAIN FEATURES: * * B&R Power Panel 500 * Integrated keyboard * Windows embedded operating system * 15” colour touch screen WXGA resolution * Compact Flash Memory. * USB front port * Ethernet port * Easy and user friendly interface * Programming is made through Line Pro software developed by Geka * Importing of dxf/dstv files * Network connectivity * Remote assistance via the internet * Run, design, jog, configuration and alarm modes ELECTRIC CABINET * Electric cabinet containing power and control equipment for the axis positioning and control of the machine * Includes Allen-Bradley Guarmaster® safety relays * Electric cabinet is mounted inside Hydracrop’s or Puma’s frame. If machine is retrofitted, the electric cabinet is mounted out of the machine’s frame. * Standard input power is 400 V - 50 Hz - 3 phases. In case different input requirement is needed, let us know LINE PRO MAIN FEATURES: * It is a visual and a very easy to use application with graphic representations. * It shows the operator the image of the piece that is being designed. * All the process of the part (from designing to manufacturing) can be done and controlled directly from the Positioning Control. * Importing of dxf and dstv files available according to designing specifications of the software. * It is easier to make changes on holes that have been already designed and the operator can easily identify any mistake on the part; as he is watching physically on the screen all the steps of the process of manufacturing of the part. * Line Pro can be installed in a PC for later on sending the file via the network or with a USB stick to the machine * Other X- and Y- ranges are also available, please ask for an offer.

Condition: used, Year of construction: 2007, GEKA HYDRACROP 80 / 150 Bwodpfeynkacex Ah Iji

Condition: used, total length: 1,100 mm, total width: 1,670 mm, total height: 1,900 mm, Empty weight: 1.930 kg - Documentation available: No - CE certificate present: No - Serial number: 4422758897010 - Drive system: Conventional - Drive: Hydraulic - Punching force [ton]: 60 - Punch throat depth [mm]: 400 - Notching width [mm]: 70 - Max. plate thickness notching [mm]: 13 - Round bar cutting capacity [mm]: 40 Bedpfjymfa Uex Ah Ijwi - Shearing width [mm]: 400 - Max. plate thickness shearing [mm]: 20 - Options: Length stop - Transport dimensions: 1100mm x 1670mm x 1900mm (l x w x h) - Transport weight [kg]: 1930kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: ready for operation (used), Year of construction: 1992, Hydraulic Section Steel Shear Peddinghaus Hydraulic machine with 5 stations for punching, notching, shearing flat steel, angle steel, and solid material; punch actuation by hand lever; section steel shear operated by foot switch. Punch depth: 510 mm Pressing force: 60 t Throat depth: 510 mm Shearing capacity: 500 x 12 or 400 x 16 mm Punch diameter: 27 mm in 17 mm Punch diameter: 39 mm in 12 mm Round steel: 45 mm Bwedpfx Ahsyl Uf Do Ioi Square steel: 40 mm Angle steel: 120 x 13 mm Flat steel: 500 x 12 mm Drive: 7.5 kW Oil capacity: 80 liters Weight: 3 t Price: EUR 3,750 plus VAT, ex works

Condition: good (used), Year of construction: 1990, machine/vehicle number: 4077752490008, Offer 25413 Technical Specifications: - Sheet and flat bar shear, blade length: 175 mm - Cuts flat steel up to 100 x 15 mm or up to 150 x 10 mm - Profile bar shear: - Cuts angle steel up to 80 x 8 mm - Cuts round steel up to 32 mm - Cuts square steel up to 30 mm - Punching unit: - Punching force: 360 kN - Stroke: 10 to 32 mm Bjdpfjyli Hvsx Ah Iswi - Throat depth: 155 mm - Punches steel up to 20 mm diameter in 14 mm material thickness - Or up to 27 mm diameter in 10 mm material thickness - Drive: 400 V / 3 kW - Foot switch - Space requirement: approx. W 800 x H 1600 x D 855 mm - Weight: approx. 600 kg - Various punch dies and matrices included

Condition: good (used), functionality: fully functional, Year of construction: 1991, Hole punch 700 kN, projection 510 mm, punches 30 mm in max. 20 mm . Flat steel shears: 500 x 18 mm . Notching device with rectangular tool up to 13 mm . Bodpfsyfibgsx Ah Iowi Profile steel shears, L-steel, 90° mm . - Machine in good original condition!! approx. 70 sets of hole punching tools . .

Condition: good (used), functionality: fully functional, Year of construction: 1987, Shearing force 60 t Punching force 40 t Bedpfjx Symnex Ah Iewi Section steel shear L- and T-iron at 90°: 100 x 10 mm at 45°: 65 x 8 mm Notching unit with square notcher for sheets up to 10 mm Flat bar shear for flat steel 380 x 8 mm or 150 x 14 mm Weight: approx. 1.5 t Dimensions: approx. 1.7 x 1.05 x 1.98 m Accessories - electric back gauge 3000 mm - stop table - adjustable hold-down - tool package Validity of safety inspection until Feb. 2026

Condition: good (used), functionality: fully functional, Year of construction: 2007, Used punching and shearing machine from Peddinghaus Model: Peddimaster 110/170 Punching capacity: 110 tons Shearing capacity: 170 tons Bedpfjx Iicwex Ah Iswi Includes side stop and various tools

Condition: new, Year of construction: 2024, The machine is equipped with 5 workstations: • Punching station • Flat steel shear • Angle steel shear • Notching station • Bar steel shear (round and square) Technical Data Strokes per minute at 20 mm stroke: 37 /min Throat depth: 500 mm Punching force: 550 kN Hole diameter and thickness up to max.: 40×10 mm or 20x20 mm Flat steel up to max.: 300×15 or 200×20 mm Angle steel 90° up to max.: 130x130x13 mm Angle steel 45° up to max.: 70x70x7 mm Bodpfsx Hzf Usx Ah Iswi Bar steel up to max.: 40 mm Square steel up to max.: 40 mm Notching up to max.: 10 mm

Condition: as good as new (ex-display), Year of construction: 2024, Strokes per minute with 15 mm stroke 34 /min. Punching force 500 kN Hole diameter and thickness up to max. 27x13 or 20x18 mm Flat steel (2 inclinations) up to max. 350x10 mm Flat steel (5 inclination) up to max. 350x15 mm 90 degree angle steel up to max. 80x80x8 mm Bar steel up to max. 35 mm Square steel up to max. 30 mm Notching up to max. 10 mm Bending capacity: Fixture up to max. 100x10 mm Bwodpfx Aoxyyzxeh Iji Motor power 3.0 kW Net weight 950 kg Gross weight 1150 kg

Condition: as good as new (ex-display), Year of construction: 2023, Incl. control for entering the bending angle. Strokes per minute with 15 mm stroke 34 /min. Punching force 500 kN Hole diameter and thickness up to max. 27x13 or 20x18 mm Flat steel (2 inclinations) up to max. 350x10 mm Flat steel (5 inclination) up to max. 350x15 mm 90 degree angle steel up to max. 80x80x8 mm Bar steel up to max. 35 mm Square steel up to max. 30 mm Notching up to max. 10 mm Bedpfxjxyyy Ue Ah Ijwi Bending capacity: Fixture up to max. 100x10 mm Motor power 3.0 kW Net weight 950 kg Gross weight 1150 kg

Condition: good (used), Year of construction: 1991, machine/vehicle number: 4073756691005, Offer 25360 Technical Data: - Sheet and flat bar shear, blade length: 175 mm - Cuts flat steel up to 100 x 15 mm or up to 150 x 10 mm - Profile and bar shear: - Cuts angle steel up to 80 x 8 mm - Cuts round steel up to 32 mm - Cuts square steel up to 30 mm - Punching station: - Punching force: 360 kN - Stroke: 10 to 32 mm - Throat depth: 155 mm - Punches steel up to 20 mm Ø in 14 mm - Or up to 27 mm Ø in 10 mm - Drive: 400 V / 3 kW - Foot pedal Bjdpfx Ahoxupvbj Iswi - Space requirement approx. W 800 x H 1600 x D 855 mm - Weight approx. 600 kg - Various punch and die sets included

Condition: used, functionality: fully functional, Year of construction: 1987, Punching Machine + Profile Steel Shear Mfr. Peddinghaus Type: Peddimaster 40/60H Year: 1987 Technical Data Manufacturer: Peddinghaus Model: Peddimaster 40/60H Year of manufacture: 1987 Bedsxp Ndhspfx Ah Iswi Shearing force: 60 t Punching force: 40 t Profile steel shear: L- and T-angles at 90° 100 x 10 mm at 45° 65 x 8 mm Notching unit with square notcher for sheet metal up to 10 mm Flat bar shear for flat steel 380 x 8 mm or 150 x 14 mm Weight: approx. 1.5 t Dimensions: approx. 1.7 x 1.05 x 1.98 m Accessories - Electric back gauge 3000 mm - Stop table - Adjustable hold-down - Large tool package as per photos All information given without guarantee. A demonstration is possible at any time in our showroom.

Condition: new, pressure 60,0 t square edge steel 35,0 mm Bedoxcuxqopfx Ah Iowi L-beam 120x120x12 mm round bar steel 40,0 mm punching cross-cut in cmm Ø28 in 15 / Ø38 in 11 mm throat 220 mm flat steel 200x20 / 300x15 mm blade length 317 mm oil volume 45,0 ltr. work height max. 940 / 1140 mm strokes per minute max. 26 work stroke 55,0 mm total power requirement 4,0 kW weight of the machine ca. 1425 kg. Dimensions (HxWxD) 1510 x 590 x 1570 mm Furnishing: - Support table at the hole punch - Support table on the square notcher - foot switch - Bed. Instructions - CE declaration + MUBEA - punch and die holder

Condition: used, functionality: fully functional, General Information Manufacturer: Peddinghaus Corporation Model: 210 Type: Hydraulic Ironworker Bedpfx Aow Sy Ecsh Iewi Workstations: Punching, section shearing, flat bar shearing, notching, and round/square bar shearing. Capacity and Performance Punching Capacity: Approximately 55 - 60 tons (US tons). Punching: Typically, a 25 mm diameter hole in 16 mm thick steel. Angle Shear: 90-degree cut: Approx. 100 x 100 x 10 mm. 45-degree miter cut: Approx. 75 x 75 x 8 mm. Flat Bar Shear: Maximum thickness: Approx. 300 x 15 mm or 200 x 20 mm. Notcher: Plate: Approx. 10 mm. Angle: Approx. 75 x 75 x 8 mm. Round and Square Bar Shear: Round bar: Approx. 38 mm. Square bar: Approx. 32 mm. Other Information: Weight: Approx. 1700 - 2000 kg. Dimensions (L x W x H): Approx. 1500 x 800 x 1900 mm. Verify the accuracy of the information with the seller.

Condition: used, Year of construction: 2005, round bar steel 32 / 17 mm square edge steel 30 x 18 mm L-beam 100 x 8 mm punching pressure 50 t weight of the machine ca. 900 kg Bwsdpfx Ajwu Hkfoh Iei dimensions of the machine ca. 1000 x 700 x 1700 mm Features: - Flat steel shears Cuts flat steel: up to 350 x 13 mm L-steel, 45° cut: up to 100 x 8 mm Blade cutting length: 370 mm Working height: 734 mm - Profile and bar steel shears Shear cross-section: max. 1550 m² Stroke, infinitely adjustable: 10 - 36 mm - Shears with standard blade 90° L-steel 90° cut: up to 100 x 8 mm Round steel: 32 + 17 mm Square steel: 30 x 18 mm U-steel, 90° cut: up to 100 mm Double-T steel, 90° cut: up to 100 mm Working height (center of blade cross): 1044 mm - Notcher with square notcher U-steel, in flange: 80 - 120 mm Double-T steel, in flange 80 - 120 mm Notch width: 44.5 mm Notch depth: 50.0 mm Working height: 1000 mm

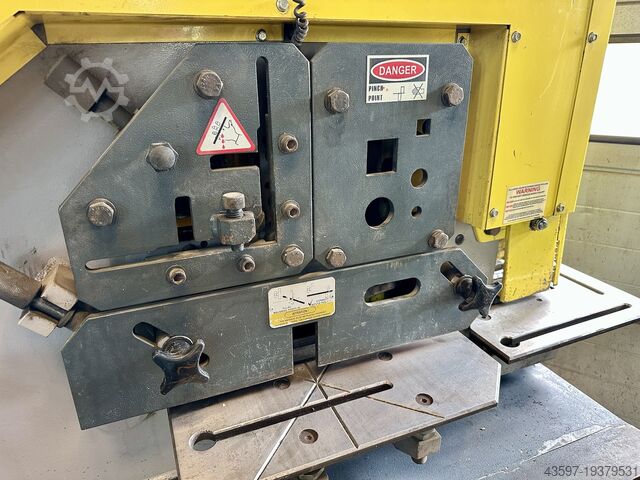

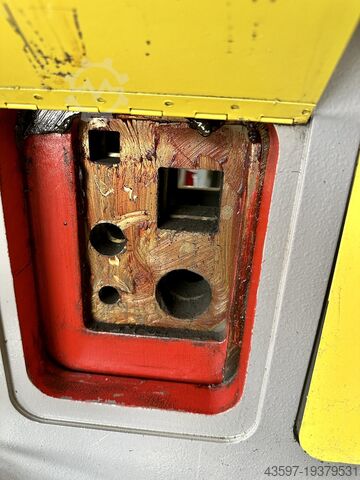

Condition: used, functionality: fully functional, Hydraulic bar steel shear with punch Manufacturer: Epple Model: E-HPS 65 E-Line Technical specifications Manufacturer Epple Model E-HPS 65 E-Line Stations 5 Bodpfxswtqmnj Ah Ijwi Punching force 65 t Max. punching capacity Ø 26 x 20 mm Stroke 55 mm Working radius 305 mm Working height 1,030 mm Motor 5.5 kW Dimensions (LxWxH) 1.7 x 0.95 x 1.90 m Weight 1.6 t Equipment - Electric contact stop All details without guarantee. A demonstration is available at any time in our exhibition hall.

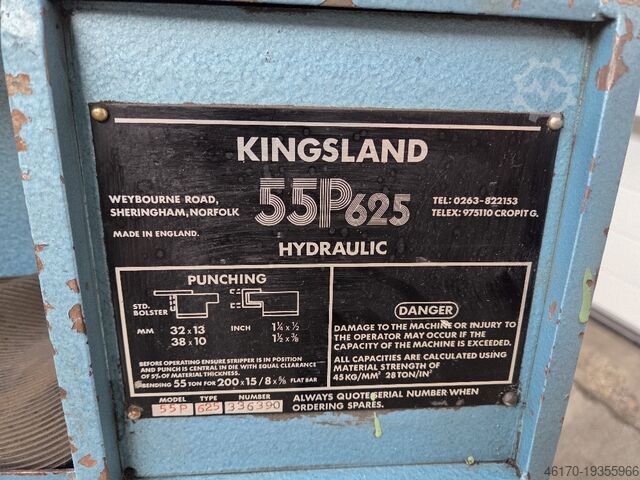

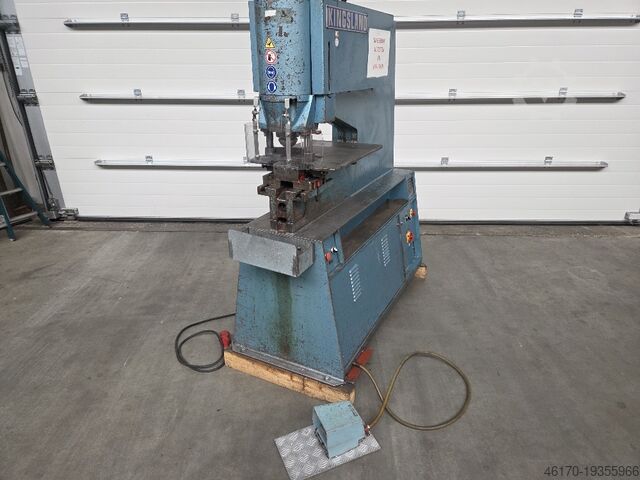

Condition: used, Year of construction: 1990, Used punching machine by Kingsland Bsdpfowr Al Tsx Ah Iewi Type: 55 P 625 Capacity: 55 tons Throat depth: 625 mm Year built: 1990

Condition: new, Year of construction: 2025, neu 2025 090054 Bwsdewirxwopfx Ah Iji prompt, Zwischenverkauf v Spanien 17300 € 298.94 € 1 15570 € 55 to 250 mm 5 40/10 mm 20 mm 37 1/min 300x15 mm 120x10 mm 40 mm 10 mm 5 kW 1670 mm 1160 mm 2090 mm 1390 kg 2 foot pedal for independent working on 2 stations flatsteel station anglesteel station round- and square steel station rectangular notching station punching station table on flat steel station table on punching station table on notching station complete with hydraulic oil user manual in GERMAN and ENGLISH OPTION: Kit € 930,00 length stop 1000 mm with contact switch, for angle, flat or bar station magnetic machine lamp 10 set round punches and dies: 8, 10, 12, 14, 16, 18, 20, 22, 24 and 26 mm

Condition: new, Year of construction: 2026, neu 2026 Bwsdpfx Aowirnxeh Iei 090194 Mai 2026, Zwischenverkauf Spanien 22400 € 430.08 € 1 60 to 250 mm 5 40 x 11 mm 32 1/min 350 x 15 mm 120 x 10 mm 45 / 40 mm 10 mm max. 150x10 mm 5.5 kW 1850 mm 1300 mm 2100 mm 1390 kg with bending station 5 working stations flat steel shear with device to reduce deformation angle iron shear with round- and squarebars opening triangle notcher punching station press brake device for flat steel table at flat steel station table at notching station length stop 1000 mm with contact switch, for angle, flat or bar station hydraulic drive 2 foot release user manual in GERMAN and ENGLISH WE HAVE MORE THAN 700 REFERENCES!

Condition: new, neu ca. 8 Wochen ab Auftragse Spanien 19600 € 376.32 € 55 to 500 mm 5 40/10 bzw. 20/20 mm 20 mm 37 1/min Bodpfx Ahswirgbj Iswi 300x15 / 200x20 mm 10x42x90 mm 5 kW 2100 mm 1160 mm 2090 mm 1750 kg 2 foot pedals for independent work at 2 stations hydr. drive flat bar shear angle bar shear with minimum deformation by diagonal moving of the blade round and square bar shear rectangular notching unit punching unit up to diam. 40 mm fast hydraulic, Ankörnvorrichtung oilfilling table at the punching station with gauge table at the notching unit with gauge table at the flat bar shear user manual in GERMAN and ENGLISH OPTION: Kit € 970,00 length stop 1000 mm with contact switch, for angle, flat or bar station magnetic machine lamp 10 set round punches and dies: 8, 10, 12, 14, 16, 18, 20, 22, 24 and 26 mm

Condition: new, Year of construction: 2026, neu 2026 090195 Mai 2026, Zwischenverkauf Spanien 15800 € 303.36 € 1 50 to 177 mm 5 1 31 x 12 mm Bjdswirahjpfx Ah Iswi 34 1/min 350 x 15 mm 80 x 8 mm 35 / 30 mm 10 mm 100 x 10 mm 3 kW 1300 mm 1100 mm 1850 mm 950 kg with bending station capacity 50 to 5 working stations flat steel shear with device to reduce deformation 350 x 10 mm with adjustment 2° 350 x 15 mm with adjustment 5° angle iron shear 80 x 8 mm with round- and squarebars opening 35/30 mm recangular notcher 90 x 42 x 10 mm punching station 31 x 12 mm press brake device for flat steel max. 100 x 10 mm table at flat steel station table at notching station manual backgauge with electric contact 2 dies V40 and V70 gap at punching station 177 mm vertical movement of all stations (nor radial) hydraulic drive 1 foot release user manual in GERMAN and ENGLISH WE HAVE MORE THAN 700 REFERENCES!

Condition: new, neu ca. 8 Wochen ab Auftragse Spanien 24800 € 476.16 € 60 to 500 mm Bwjdpfxowiq Evo Ah Iei 5 2 40x11 mm 32 1/min 350x10 mm 120x10 mm 45/40 mm 100x10 mm 150x10 mm 5.5 kW 2100 mm 1400 mm 2060 mm 1750 kg 5 workstations foot pedal trigger hydr. drive flat steel shears incl. Device for reducing the deformation angle iron scissors with round and square bar opening triangle claw punching and bending device for flat iron table at the flat steel and notching station user manual in GERMAN and ENGLISH

Condition: used, Year of construction: 1996, Max. punching force: 55 tons Notching: 10 mm Hole diameter and thickness: 40x10 mm Bsdpfewgkq Tsx Ah Iswi Flat steel: 300x15 or 200x20 mm 90° angle steel: 120x120x10 mm 45° angle steel: 70x70x7 mm Bar steel: 40 mm Square steel: 40 mm Strokes per minute with a 20 mm stroke: 37 /min Throat: 250 mm Machine weight: approx. 1,800 kg
