BZT Maschinenbau GmbH

Condition: ready for operation (used), Year of construction: 2010, x-travel 10000 mm Dujdpfx Ahex S Rx Ie Ssl y-travel 1500 mm z-travel 1000 mm passage 1300 mm passage width 1500 mm control Siemens Sinumerik 840 D turning speeds 2 Stufen: 6000 U/min Number of working hours 54821 h tool taper SK 50 Boring power 120 mm thread capacity M 55 toolpiece magazine: chain magazine 30 Stück rapid traverse X-axis 36000 m/min rapid motion Y-axis 30000 m/min rapid traverse Z-axis 30000 m/min total power requirement 36 kW dimensions of the machine ca. 12 x 11 m Gantry-style milling machine with movable portal bridge and stationary clamping table. Features: • Clamping table designed with transverse clamping beams spaced 750 mm ndard panel panels are not included. Panel panels must be purchased separately if required. • Hydraulic clamping device with clamping bridges for axis machining, includinghydraulic system • Angle drilling and milling head, n = 4000 rpm SK50 • High accuracy and stability thanks to Hirth gearing • Automatic tool change in the angle head • RWP20.50-M touch probe • Pendulum operation • Safety fence with light curtains, Sick brand • Clamping table with 750 mm transverse clamping beams • 30-position tool chain magazine on the gantry frame • Machine cooling system • Integrated water-to-air heat exchanger in the control cabinet • Unisign remote diagnostics for Siemens Sinumerik 840 D • Makrolon curtains on both sides of the gantry bridge motorized height adjustment • Partition wall with viewing window • Chip conveyor with hinged belt design • Mounting and alignment elements • Documentation Accessories: 1 spare SK50 angle drill and milling head 1 spare Hexagon RWP 20.50-M touch probe 1 2500 x 1200 mm T-slot clamping frame, which can be installed on the machineinstead of the hydraulic device. Various spare parts

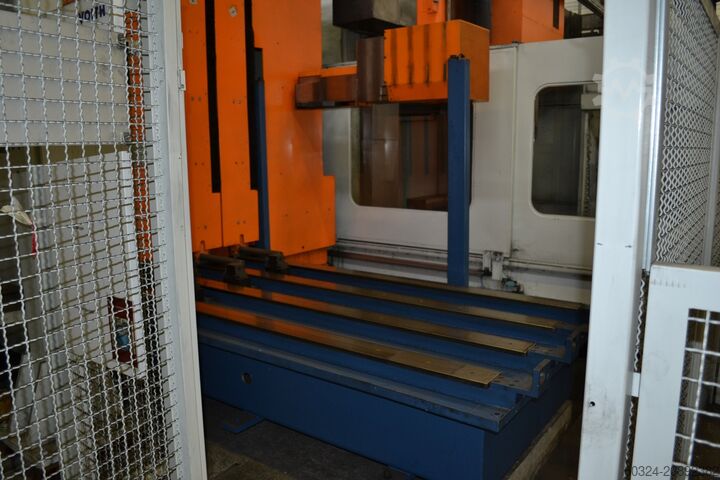

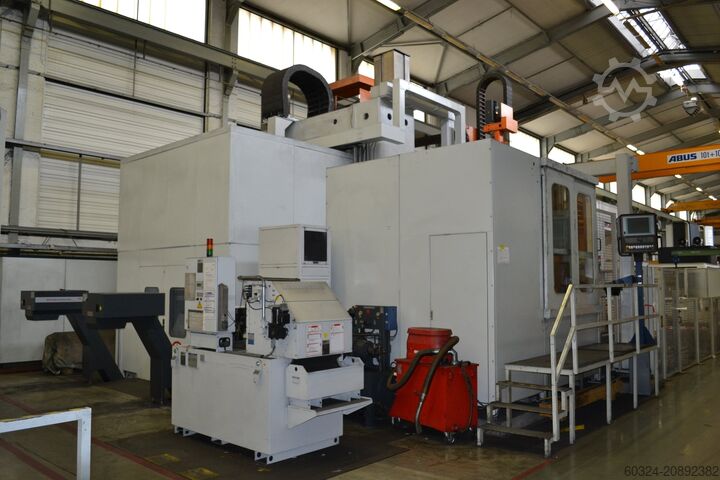

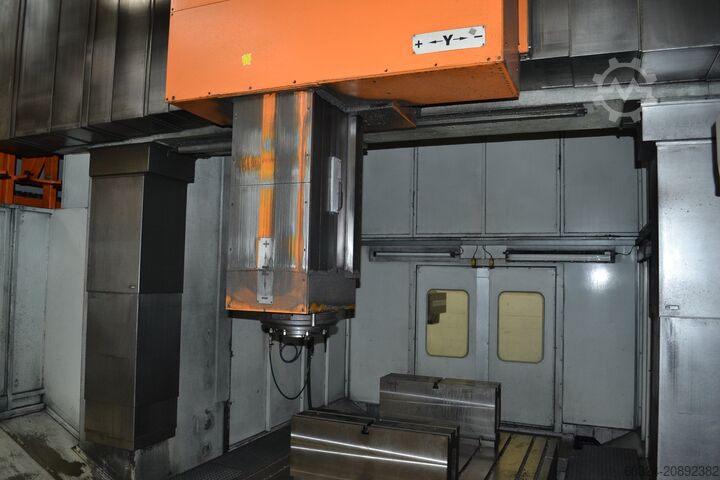

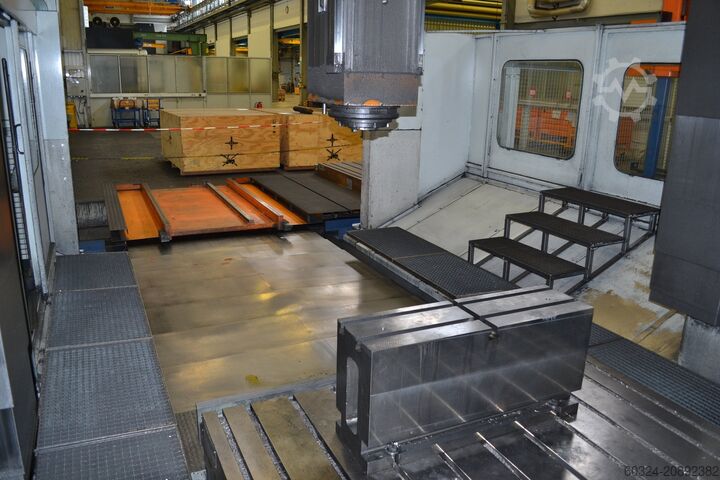

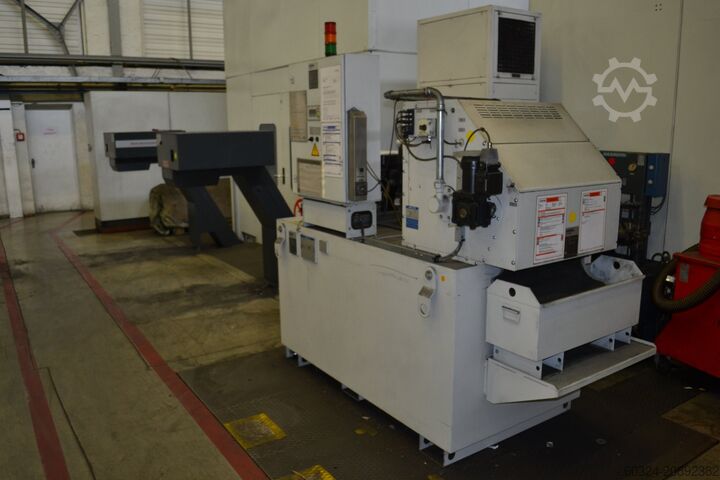

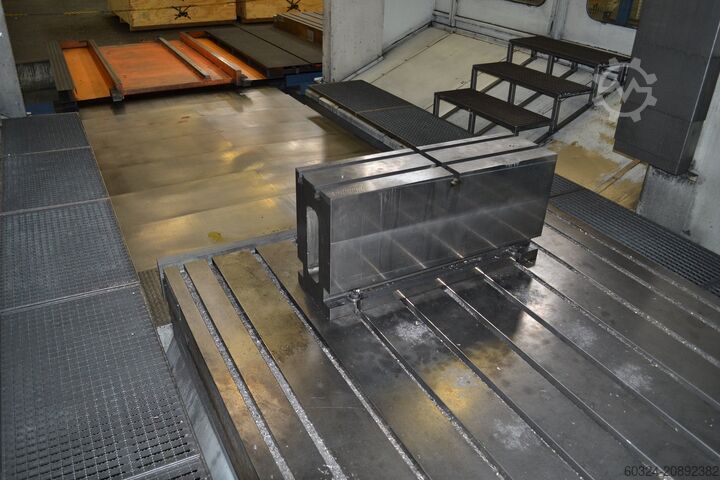

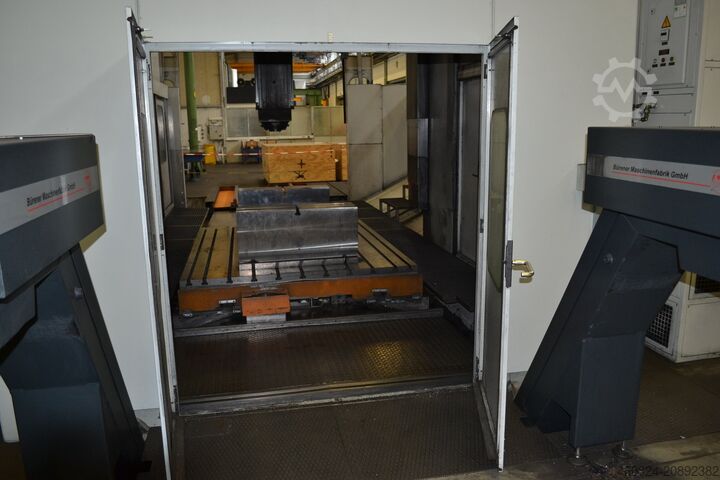

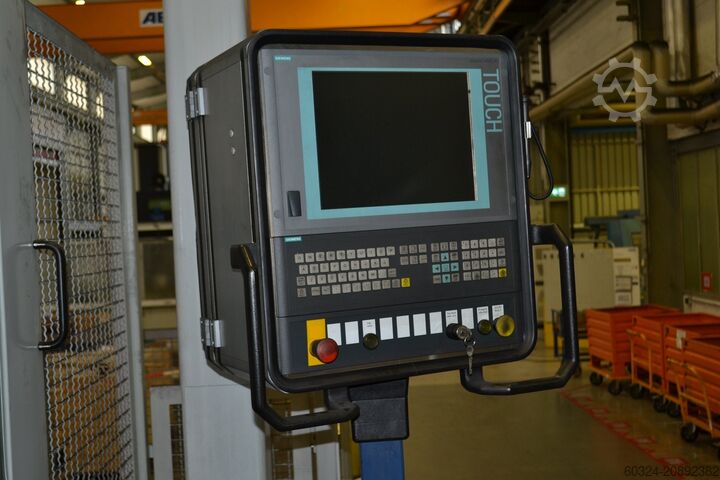

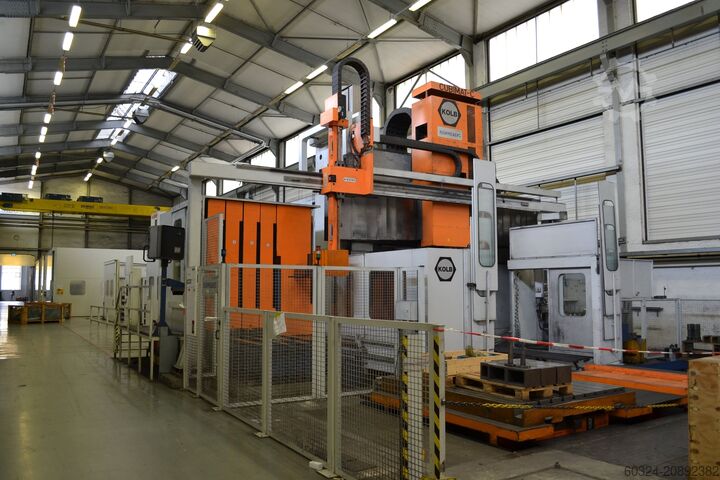

Condition: good (used), Year of construction: 2012, Ref. -No.: 10290 Duedsx Sw A Tspfx Ah Sjl Manufacturer: KOLB KLUEPPELBERG Type: Cubimat YC 2000 Year of construction: 2012 Type of control: CNC Control: Siemens Sinumerik 840 D Storage location: Halberstadt Country of origin: Deutschland Machine number: 016453-20.1 X-Travel: 7000 mm Y-Travel: 4000 mm Z-Travel: 4000 mm W-Travel: 2.000 mm Speed work spindle: 4.000 RPM Max. Torque: 2.100 Nm Max. Workpiece Weight: 20 t Table-Size (Lxw): 2.800 x 2.000 mm Table load max.: 18.000 kg Tool Taper: SK 50 Tool places: 360 Distance Between Columns: 3.200 x 4.000 mm Further information: - 4 milling heads available - 1 universal head - Pick Up Head Station The machine can be viewed under power by arrangement.

Condition: repair required (used), Year of construction: 2007, functionality: not functional, type of input current: three-phase, We are offering this Knuth X-Mill 900 CNC portal milling machine, year of manufacture 2007, which is in need of repair. The Z-axis requires repair. Machine type: X-MILL 900 CNC Serial number: 141887 Year of manufacture: 2007 Total power: 12.4 kW Voltage: 400 V Frequency: 50 Hz Phases: 3 Duedpfx Ajx Stfqsh Ssl If you have any questions or require further information, please feel free to send us a message or give us a call.

Condition: used, Year of construction: 2009, functionality: fully functional, machine/vehicle number: CAM060818P1515, overall weight: 500 kg, We are offering this used vhf camfacture AG CAM 1515 Premium gantry milling machine, year of manufacture 2009. Model: CAM 1515 Premium Serial number: CAM 060818P1515 Weight: 500 kg Year of manufacture: 2009 If you have any questions or require further information, please feel free to send us a message or call us. Duedpfxsx Sryyo Ah Ssl For sale is a VHF gantry milling machine CAM 1515 Premium (CNC gantry milling machine) from our inventory. Suitable for the machining of aluminium and plastics (milling/drilling/contouring, depending on configuration/spindle). Sale includes the control panel/controller as shown in the photos. The machine can be inspected by prior arrangement. Technical details (available): Manufacturer: VHF camfacture AG (DE) Model: CAM 1515 Premium Year of manufacture: 2009 S/N: CAM 0608171515 Weight: approx. 500 kg Inventory no.: 03246 Scope of delivery / collection: Scope of delivery as per photos; additional accessories/clamping devices by arrangement. Collection from site. Dismantling/loading by the buyer or by arrangement.

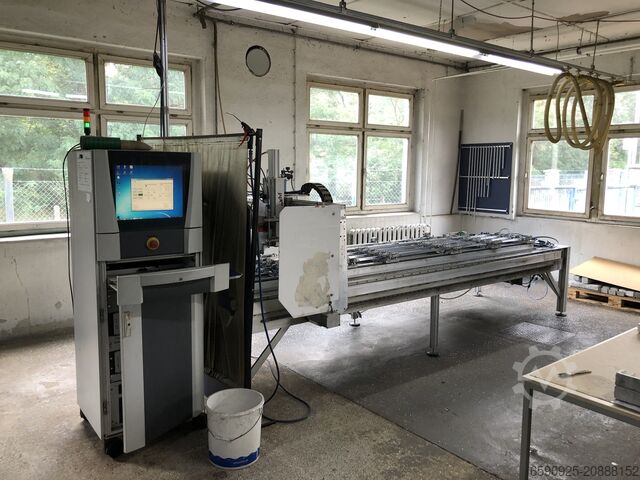

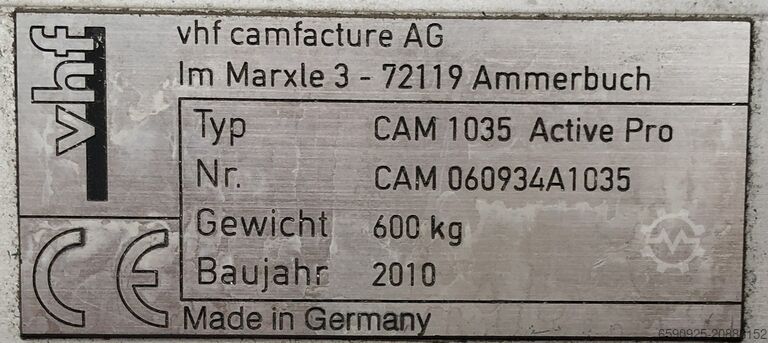

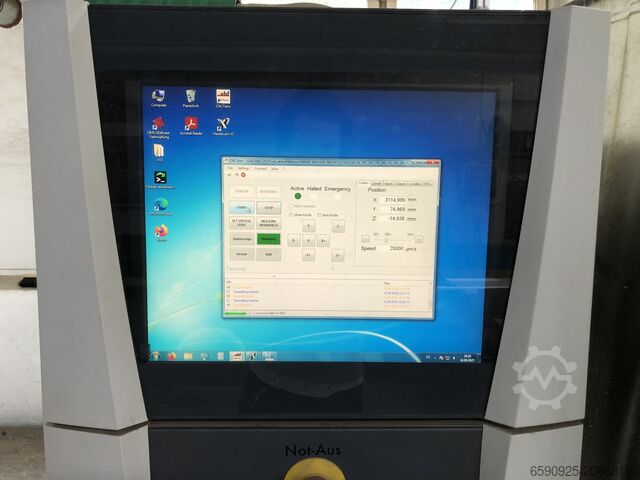

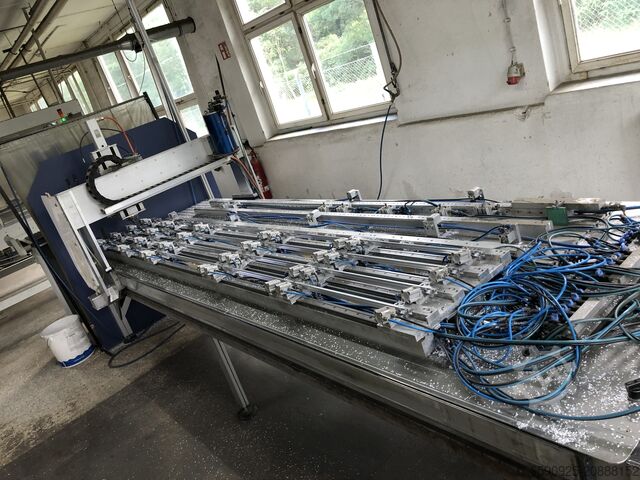

Condition: used, Year of construction: 2010, functionality: fully functional, machine/vehicle number: CAM 060934A1035, overall weight: 600 kg, We are offering this used vhf camfacture AG CAM 1035 Active Pro gantry milling machine, year of manufacture 2010. Type: CAM 1035 Active Pro Serial number: CAM 060934A1035 Weight: 600 kg Year of manufacture: 2010 Dusdpfex Srw Eex Ah Sol If you have any questions or need further information, please feel free to send us a message or give us a call. For sale is a vhf CAM 1035 Active Pro CNC gantry milling machine from 2010 (Made in Germany). This machine is suitable for precise operations such as milling/engraving in typical materials used for fittings/profile machining. Nameplate data: Machine no. CAM 060934A1035, weight approx. 600 kg. On-site inspection is possible by prior arrangement; loading/collection by the buyer.

Condition: good (used), Year of construction: 1999, travel distance X-axis: 3,000 mm, travel distance Y-axis: 2,500 mm, travel distance Z-axis: 1,150 mm, total length: 6,000 mm, total width: 5,200 mm, rapid traverse X-axis: 20 m/min, rapid traverse Y-axis: 20 m/min, rapid traverse Z-axis: 10 m/min, Control: Siemens 840 D Powerline Tool holder: HSK-A63 Max. rpm: 16,000 X-travel: 3,000 mm Djdpfxsx Sd Txs Ah Soul Y-travel: 2,500 mm Z-travel: 1,150 mm A-axis: +/- 100 mm C-axis: +/- 181.5 mm Table size: 3,000 mm x 2,500 mm Option: External blowing air Kinematics: Fork head

Condition: ready for operation (used), functionality: fully functional, Gantry Portal Milling Machine / Manufacturer: WALDRICH SIEGEN Type: PF-S-150 - 1953: Original year of manufacture (originally a workbench) - 1974: Reconstruction by the manufacturer WALDRICH SIEGEN to a portal milling machine (completely new milling support) - 2001: Modernised to CNC, with new electrical control cabinet - 2015: Modernization / Reconstruction to NC table drive - 2024: Reconstruction to crossbeam drive (gantry) Machining options: - Milling / Boring: horizontal / vertical The machine can be inspected by appointment under power. Condition: Ready for operation. TECHNICAL DATA / DESCRIPTION: Travel distances of feed axes (CNC): Dujdpfx Ahsx N Idve Sol - Table: 14.000 mm - Crossbeam support: 4.500 mm - Crossbeam: 4.000 mm - Stand passage: width 4.545 mm - Clear width: 4.200 mm - Height from table to spindle: 4.000 mm - Quill: 450 mm - Table size / clamping: 14.000 x 4.350 mm - Table load: max. 200 tons (10 tons point load) - Drive power of main spindle motor: 125 kW - Total machine weight: approx. 350 tons - Space requirement for entire machine: Length 40 / Width 10 / Height above floor 9 m EQUIPMENT / ACCESSORIES: - CNC control: SINUMERIK 840D - Documentation - Additional comprehensive equipment ... No guarantee is given for the completeness and accuracy of the technical information and equipment. - Subject to prior sale - Detailed technical data sheet and information on equipment available on request.

Condition: reconditioned (used), Year of construction: 2005, functionality: fully functional, Initial commissioning: 2005 Overhauled: 2022 Control system: SIEMENS SINUMERIK 840D PL Working area X-axis: 3,000 mm Y-axis: 2,500 mm Z-axis: 1,250 mm A-axis: +/- 100° C-axis: +/- 360° Hours Total machine hours: 110,000 h Total spindle hours: 60,000 h Current spindle hours: 1,900 h (new, February 2024) Clamping table Length x width: 3,000 x 2,500 mm T-slots: 18 H12 T-slot spacing: 250 mm Table load capacity: 5,000 kg/m² Installation: above floor Milling head VH6 Spindle power: 41 kW Spindle speed: max. 10,000 rpm Torque: approx. 200 Nm Tool holder: HSK 100A Axis clamping A & C: 3,000 Nm Drives linear axes Drive technology: linear motor Feed rate X/Y/Z-axis: 40–60 m/min Axis acceleration X/Y/Z: 3–5 m/s² Electrical specifications Voltage: 400 V Frequency: 50 Hz Dimensions & weight Machine space requirement: approx. 7,300 x 6,500 x 5,600 mm Dodpfx Ahjx Npmrj Soul Total weight: 60 t Additional equipment - 1x chip conveyor, left - Video camera system for work area monitoring - 40 bar ICS coolant supply with belt filter system - 11 bar external coolant supply, face end - 30-position tool changer, expandable by 20 additional positions - Renishaw RMP60 / Renishaw touch probe - BLUM tool measurement and tool breakage control

Condition: good (used), Year of construction: 2007, functionality: fully functional, feed length Z-axis: 500 mm, rotational speed (min.): 3,000 rpm, fuel type: electric, fuel: electricity, throat depth: 500 mm, Chuck Diameter: 12" Dsdpfxex Nnryo Ah Sjul Spindle Bore: 500 mm Machinable Materials: Steel, Aluminum, Titanium, Graphite, Copper, Invar, Composite, Delrin, PEEK

Condition: used, Year of construction: 1997, functionality: fully functional, travel distance X-axis: 3,000 mm, travel distance Y-axis: 2,360 mm, travel distance Z-axis: 1,000 mm, feed rate X-axis: 20 m/min, feed rate Y-axis: 20 m/min, feed rate Z-axis: 20 m/min, spindle speed (max.): 15,000 rpm, rapid traverse X-axis: 20 m/min, rapid traverse Y-axis: 20 m/min, rapid traverse Z-axis: 20 m/min, type of input current: three-phase, rotational speed (min.): 1,500 rpm, rotational speed (max.): 9,000 rpm, overall weight: 15,000 kg, Equipment: rotational speed infinitely variable, Initial commissioning: 1997 Control system: Heidenhain Working ranges X-axis approx. 3,000 mm Y-axis approx. 2,360 mm Z-axis approx. 1,000 mm A-axis ±90° Clamping table Length x width x height approx. 4,500 x 2,000 x 400 mm T-slots longitudinal 18H12 T-slot spacing 250 mm (The zero-point clamping plates shown and additional clamping devices are not included in the scope of delivery!) Dsdjx Iuguopfx Ah Ssul Milling head Spindle power: 12 kW Spindle speed: max. 9,000 rpm Tool holder: SK40 / ISO40 Linear axes drives Feed speed X, Y, Z axes: approx. 20 m/min Connection data Power requirement: approx. 20 kW Frequency: 50 Hz Voltage: 400 V Main fuse: approx. 63 A Dimensions, weights Space required by machine (without control cabinet): approx. 5,600 x 3,500 mm Required height: approx. 4,050 mm Total weight: approx. 14,000 kg Condition of the machine Fully functional, the machine is delivered without enclosure and must be enclosed in a CE-compliant manner by the buyer. Note: The tool changer, vacuum table including pump, and extraction unit can be purchased at an additional cost. However, they are NOT included as standard equipment with the machine!

Condition: used, Year of construction: 1999, functionality: fully functional, travel distance X-axis: 3,000 mm, travel distance Y-axis: 2,360 mm, travel distance Z-axis: 1,000 mm, feed rate X-axis: 20 m/min, feed rate Y-axis: 20 m/min, feed rate Z-axis: 20 m/min, spindle speed (max.): 15,000 rpm, rapid traverse X-axis: 20 m/min, rapid traverse Y-axis: 20 m/min, rapid traverse Z-axis: 20 m/min, type of input current: three-phase, torque: 57 Nm, overall weight: 15,000 kg, Equipment: rotational speed infinitely variable, Initial commissioning: 1999 Control: Heidenhain TNC430 PA with portable hand control unit Working ranges X-axis approx. 3,000 mm Y-axis approx. 2,360 mm Z-axis approx. 1,000 mm A-axis ±110° C-axis ±300° Clamping table Length x Width x Height: approx. 4,500 x 2,000 x 400 mm Longitudinal T-slots 18H12 T-slot spacing 250 mm Dusdpfjx Ifdkjx Ah Sel (Shown zero-point clamping plates and additional clamping devices are not included in the scope of delivery!) Milling head Spindle power: 18 kW Spindle speed: max. 15,000 rpm Torque: 57 Nm Tool holder: HSK 63 F Tool clamping: hydraulic Linear axis drives Feed rate X, Y, Z axes: approx. 20 m/min Connection data Power requirement: approx. 20 kW Frequency: 50 Hz Voltage: 400 V Main fuse: approx. 63 A Dimensions, weights Machine footprint without control cabinet: approx. 6,000 x 3,500 mm Required height: approx. 4,050 mm Total weight: approx. 15,000 kg Additional equipment - 12-position tool changer - External minimum quantity lubrication - TT140 touch probe Condition of the machine Fully operational, machine is supplied without enclosure and must be enclosed by the purchaser in accordance with CE regulations.

Condition: new, Year of construction: 2025, functionality: fully functional, travel distance X-axis: 3,200 mm, travel distance Y-axis: 2,100 mm, travel distance Z-axis: 900 mm, Travel distances: X-axis (longitudinal) 3200 mm Y-axis (transverse) 2100 mm Z-axis (vertical) 900 mm Working area: Table clamping surface 3000 x 1700 mm Spindle nose to table 66 – 966 mm Table load capacity 11000 kg Dodpfxjx H Srlo Ah Ssul 5-axis fork head: Tool holder HSK 63 A C-axis (4th axis) +/- 360° B-axis (5th axis) +100° / -110° Main drive: Drive type Motor spindle Drive power 63 kW Spindle speed: Spindle speed 18000 rpm Torque 106 Nm Max. rapid traverse: X and Y axes 15000 mm/min Machine weight: 37700 kg Accessories: HURCO CNC Machining Center DCX 32-5 Si (ATC 60) with MAX5 control - AXS control with detachable electronic handwheel - Pentium technology, SSD (Solid-State Drive), 2 GB RAM, Ethernet interface, USB interface, built-in self-diagnosis system, WINDOWS platform - Rigid tapping (tapping without compensation chuck) - 60-position tool changer - 5-axis fork head - Motor spindle - Spindle cooler - Chip conveyor 5-axis simultaneous machining, enabling simultaneous movement of 4 or 5 axes in NC operation.

Condition: good (used), Year of construction: 1995, operating hours: 43,499 h, functionality: fully functional, travel distance X-axis: 4,000 mm, travel distance Y-axis: 2,500 mm, travel distance Z-axis: 1,000 mm, 5-Axis Gantry Milling Machine WALDRICH Product manufactured on the machine: AIRBUS LANDING GEAR (aerospace) Year of construction: 1995; Delivery year: 1998 Installation & Commissioning: 1999 Operating period: 03/1999 to 07/2022 (21 years) Condition: Very Good Customer Specifications / History Previous owner (1999–2022): German aerospace group Technical Specifications Travel Distances & Working Area X-axis (longitudinal table travel): 4,000 mm Y-axis (cross-slide traverse): 2,500 mm Z-axis (vertical ram travel): 1,000 mm Clearance between columns: 2,000 mm C-axis: 360,000 positions (increment 0.001°) B-axis: 360,000 positions Tables & Pallets Number of tables: 2 Table dimensions: 1,500 x 3,000 mm Table height above floor: 740 mm Max. table load: 12,000 kg Feed & Rapid Traverses X/Y/Z: Feed 0–6,000 mm/min, rapid traverse 15,000 mm/min B-axis nutator: 0–3,600 deg/min C-axis nutator: 0–3,600 deg/min Feed Forces / Torque X/Y/Z max.: 30 kN each C-axis detachable torque: max. 20,000 Nm C-axis bearing control: max. 4,000 Nm Speed range Stage I: 20–875 rpm Stage II: 876–4,000 rpm Spindle Drive Power: 50 kW Speed range: 20–4,000 rpm Tool Change System Type: Chain magazine Capacity: 120 tools Tool holder: ISO 50 Max. tool diameter: 315 mm Tool diameter at full occupancy: 100 mm Max. tool length: 550 mm Max. tool weight per gripper: 35 kg Spindle Units / Distances Vertical spindle unit: Spindle nose – table surface 250–1,250 mm Horizontal spindle unit: Spindle center – table surface 150–1,150 mm Nutator (MC303): Spindle center – table surface 45–1,045 mm Coolant & Lubrication Coolant supply: internal and external available Lubrication: automatic (spindle bearings and gearbox) Dimensions & Weight Machine dimensions (approx.): Length: 14,700 mm Width: 10,000 mm Height above floor: 6,079 mm Total machine weight (approx.): 72,500 kg Machine bed: 8,500 kg Machine table & pallet: 16,000 kg 2 columns: 10,200 kg Crossbeam with platform: 20,000 kg Special Features & Accessories Fully automatic tool changer (ATC): 120 stations (ISO 50) Fully automatic head changer incl. universal milling heads Milling head: C-axis: 360,000 x 0.001° B-axis: 360,000° Accessories: 3 chip conveyors Toolbox + pallets with loose accessories Packing List (Transport Dimensions) Axes: 8,950 x 1,700 x H 1,000 mm 2 tables: 3,300 x 1,700 x H 340 mm Tool changer with carriage: 3,500 x 2,300 x H 2,670 mm Tool changer without carriage: 4,450 x 1,060 x H 1,870 mm Pick-up heads: 3,000 x 470 x H 2,200 mm Crossbeam: 7,000 x 2,000 x H 2,500 mm 2 support columns: 2,900 x 1,000 x H 1,500 mm Carriage with RAM: 3,450 x 1,800 x H 2,100 mm Chain section: 3,700 x 2,000 x H 1,100 mm Electrical cabinet No. 1: 5,400 x 600 x H 2,000 mm Electrical cabinet No. 2: 2,100 x 650 x H 2,000 mm Chip conveyor: 5,000 x 500 x H 2,300 mm Head: 900 x 600 x H 700 mm Tool case: 2,100 x 1,200 x H 600 mm 7 pallets with loose accessories Dsdpfx Aox Hxdzoh Sjul This WALDRICH SIEGEN 5-axis portal milling machine is ideally suited for machining steel, cast iron and non-ferrous metals. The combination of a 50 kW spindle drive, automatic tool changer (120 stations), fully automatic head changer, and high-precision B/C axis positioning (0.001°) makes it the ideal solution for demanding and complex manufacturing tasks.

Condition: used, Year of construction: 2006, x-travel 3.500 mm Dedpsx Hp Drefx Ah Seul y-travel 2.600 mm z-travel 1.000 mm Control HEIDENHAIN iTNC-530 table-size 4.500 x 1.500 mm distance between columns 2.300 mm rapid motion - x-axis 15.000 mm/min rapid traverse Y,Z 12.000 m/min feed 5.000 m/min tool taper ISO 50 number of spindle speeds 5.000 U/min/rpm milling head -swivable UAGA 3.000 U/min 45 Grad spindle drive 22 kW transmission ratio 2 table weight 15.000 Kg Tools changer 30 fach/tools handwheel HEIDENHAIN HR 410 air pressure 6 bar total power requirement 44 kW weight of the machine ca. 25 t - Auto Indexing Head 2, 5º /2.5º - Automatic Support in the right side for Head UAGA - Direct Output Head. - Automatic Head Changer - Automatic tools changer

Condition: excellent (used), Year of construction: 2019, X-axis 5,000 mm Y-axis 3,000 mm Z-axis 1,500 mm Table size 5,000 x 2,500 mm Tool holder HSK 63 Duedpfx Ahox E S E No Sel Tool changer 60 positions Control HEIDENHAIN TNC 640 Including through-spindle coolant (IKZ) 40 bar Including simultaneous fork head Including complete documentation Including IKZ 40 bar

Condition: excellent (used), Year of construction: 2024, travel distance X-axis: 4,200 mm, travel distance Y-axis: 2,100 mm, travel distance Z-axis: 1,000 mm, table length: 4,000 mm, table width: 2,500 mm, table load: 12,000 kg, X AXIS (WORK TABLE) 4,200mm Y AXIS (SADDLE) 2,600mm Z AXIS (HEAD) 1,000mm TABLE SIZE 4000mm*2500 T-SLOT SIZE 11x22mmx200mm DISTANCE FROM TABLE SURFACE TO GROUND 890 mm MAX. TABLE LOAD 12,000 SPINDLE TAPER (BT/CAT) BT50/CAT50 SPINDLE SPEED RPM(BT50) 6,000rpm RAPID TRAVERSE(X/Y/Z) 10/10/10M/Min. CUTTING FEEDRATE(X/Y/Z) 1~8000mm/min MAGAZINE CAPACITY FOR ARM TYPE 32 TOOL MAX. TOOL DIAMETER(WITH ADJACENT POCKET EMPTY) BT50-Ø125MM Djdpfxsx Evzue Ah Sjul MAX. TOOL LENGTH 300mm MAX. TOOL WEIGHT 20 kg Tool Change Time(T TO T/C TO C) 8/12 SEC.

Condition: excellent (used), Year of construction: 2024, travel distance X-axis: 2,500 mm, travel distance Y-axis: 3,500 mm, travel distance Z-axis: 1,500 mm, table length: 3,500 mm, table width: 2,500 mm, spindle speed (max.): 24,000 rpm, torque: 39 Nm, Drives – Linear axes Feed rate X-, Y-, Z-Axis up to 60 m/min Acceleration X-, Y-, Z-Axis up to 3 m/s² Dsdpjx Elhqefx Ah Sjul Drives – Rotary axes – VH10 Feed rate A-, C-Axis 180 °/s Acceleration A-, C-Axis 700 °/s² Resolution A-, C-Axis 0,0001° Accuracy – Linear axes, according to VDI/DGQ 3441 according to ISO 230-2 Positioning accuracy X- Axis P≤ 0,015 mm A≤ 0,011 mm Y- Axis P≤ 0,017 mm A≤ 0,013 mm Z- Axis P≤ 0,013 mm A≤ 0,010 mm Repeatability X- Axis Ps≤ 0,007 mm R≤ 0,006 mm Y- Axis Ps≤ 0,008 mm R≤ 0,007 mm Z- Axis Ps≤ 0,006 mm R≤ 0,005 mm Milling spindle - 34 kW Spindle power S1 (100% ED) 34 kW S6 (40% / 2 min) 41 kW Spindle speed 24.000 min-1(Permanent grease lubrication ) Torque S1 (100% ED) 39 Nm S6 (40% / 2 min) 49 Nm Constant power 8.260–24.000 min-1 Swivel axis – spindle nose 250 mm Tool holder HSK-A63 Tool clamping Spring clamp Tool unclamping Hydraulic Blowing air supply external and through tool Coolant supply external and through tool

Condition: used, Year of construction: 2017, functionality: fully functional, CNC Heidenhain iTNC 640 HSCI TRAVELS X-axis longitudinal travel: 3,000 mm Y-axis cross travel: 2,700 mm Z-axis vertical travel: 1,250 mm Rapid traverse speed: 40 m/min Maximum acceleration: 5 m/s² Distance between columns: 3,700 mm TABLE Worktable dimensions: 2,000 × 3,000 mm Worktable load capacity: 5 tons/m² GLOB 123 BI-ROTARY HEAD Hydraulic clamping of axes C-axis travel: 400° (±200°) A-axis travel: 230° (+120° / -110°) Rotary axis speed: 10 rpm Spindle power–torque: 40 kW – 139 Nm Max spindle speed: 15,000 rpm Tool holder: HSK-A-100 TOOL CHANGER MRT 40/100 Tool capacity: 40 Tool holder: HSK-A-100 Year of construction: 2017 Machine equipped with: • Remote electronic handwheel HR10 • Belt-type chip conveyor along the Y-axis • Low-pressure external coolant system • Air blow through the spindle + external nozzle • External spray-mist tool cooling system • RMP60 probe • NC4 laser tool presetting • Monitronix device for tool-load and head-vibration monitoring • Heidenhain DCM anti-collision software • Dual balancing pistons for the vertical ram • Electrical cabinet air conditioner Djdpfx Ahsx Dm Nqo Seul • Operation and maintenance manual and CE declaration

Condition: excellent (used), Year of construction: 2023, travel distance X-axis: 1,750 mm, travel distance Y-axis: 1,400 mm, travel distance Z-axis: 800 mm, table length: 1,200 mm, table width: 1,000 mm, spindle speed (max.): 18,000 rpm, Max. feed rate of interpolating axes m/min 35 Max. power installed kVA 65 Max. current requested A 93 Table length mm 1200 Table width mm 1000 Load capacity (centered and evenly distributed) kg 3000 Air flow required for the pneumatic system Nl/min 400 Working pressure of the pneumatic system bar 6 Dujdpfox Dihiex Ah Sel Distance between the table surface and the spindle nose mm 105-905 (in 4.13- 35.62) Max. horizontal passage mm 1430 Height of table surface over the floor mm 800 (in 31.49) The table has 18mm H11 T-slots (central slot H7) for the workpiece clamping, distance 100mm (9 slots).

Condition: used, Year of construction: 2016, x-axis 6.800 mm y-axis 4.000 mm z-axis 1.500 mm Control iTNC 530 HSCI Heidenhain distance between columns max. 5.090 mm distance spindle center to table 1.825 mm type 175149A-0007 turning speed range - main spindle max. 19.800 min/-1 power capacity - main spindel 20 kW tool taper HSK-A63 swivellable B: +115° / -115 ° rotatable C: +/- 200 ° type 178099-0005 turning speed range - main spindle max. 10.020 min/-1 power capacity - main spindel 20 kW tool taper HSK-A100 swivellable B: +115° / -115 ° rotatable C: +/- 200 ° table surface area 6.000 x 3.000 mm max. table load 50,0 t height over floor 100 mm number of T-slots 12 T-slot - width 28H12 mm T-slot - distance 250 mm number of toolpositions 62 (38+24) pos. number of toolpositions HSK A63: 37+1 pos. number of toolpositions HSK A100: 23+1 pos. max. tool diameter HSK A63: 52 mm max. tool length HSK A63: 250 mm max. tool weight HSK A63: - kg max. tool diameter HSK A100: 80 mm max. tool length HSK A100: 450 mm max. tool weight HSK A100: - kg rapid traverse ( X / Y / Z ) 40.000 mm/min rapid traverse B/C: 4.320 °/min feed speeds X/Y/Z: 30.000 mm/min Working speed B/C: 2.160 °/min Accelaration max. 3,2 m/s² x-axis 6.800 mm y-axis 4.000 mm z-axis 1.500 mm Dsdpfjx Avqbox Ah Sjul b-axis +115° / -115 ° c-axis +/- 200 ° total power requirement 180 kVA dimensions of the machine ca. 12,5 x 15,0 x 7,0 m 5-Axis-High-Speed-Gantry-Big-Machining-Center DROOP & REIN - FOGS 40 60 C - Fork head

Condition: ready for operation (used), Year of construction: 2004, operating hours: 47,870 h, functionality: fully functional, travel distance X-axis: 3,000 mm, travel distance Y-axis: 2,100 mm, travel distance Z-axis: 760 mm, table load: 10,000 kg, rotational speed (max.): 6,000 rpm, TECHNICAL DETAILS X-axis travel: 3,000 mm Y-axis travel: 2,100 mm Z-axis travel: 760 mm Distance between columns: 2,300 mm Table size: 3,020 mm × 2,010 mm Table load capacity: 10,000 kg Spindle taper: ISO 50 Standard spindle speed: 6,000 rpm Spindle motor (continuous / 30 min): approx. 22/26 kW Tool changer capacity: 32 tools Max. tool diameter: Ø 127 mm / Ø 215 mm Max. tool length: 350 mm Max. tool weight: 20 kg Dedpfxex Agh Rj Ah Seul Rapid traverse X-axis: up to 20,000 mm/min Rapid traverse Y-axis: 15,000 mm/min Rapid traverse Z-axis: 15,000 mm/min Cutting feed: approx. 1 – 10,000 mm/min MACHINE DETAILS Program runtime hours: 47,870 h EQUIPMENT Extension of equipment to automatic head changer with angular milling head

Condition: good (used), Year of construction: 2006, functionality: fully functional, travel distance X-axis: 3,000 mm, travel distance Y-axis: 2,500 mm, travel distance Z-axis: 1,250 mm, spindle speed (max.): 10,000 rpm, Zimmermann FZ38 – 5-axis gantry Year of manufacture: 2005 – fully refurbished and upgraded in 2022 by Zimmermann for €600,000, full documentation available X 3000 Y 2500 Z 1250 Dsdpfx Ahoxziamo Soul A +/- 100 degrees C +/- 360 degrees 2 spindles: 50 kW – 24,000 rpm and 44 kW – 10,000 rpm HSK 100 Linear axes certification 5/m Siemens control U… Immediately available This machine was completely overhauled and upgraded by Zimmermann in 2022. At that time, approximately €600,000 was invested, with all invoices available. The machine is in very good, near-new condition.

Condition: excellent (used), Year of construction: 2013, operating hours: 64,269 h, functionality: fully functional, travel distance X-axis: 2,200 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 1,000 mm, table length: 2,300 mm, table width: 1,600 mm, spindle speed (max.): 20,000 rpm, overall weight: 30,000 kg, For sale is a well-maintained Parpas Diamond Linear. – C-axis (milling head): (degrees) +/- 370 – A-axis (milling head): (degrees) +/- 105 Distance between columns: (mm) 2,700 Distance between table surface and spindle nose with milling head mounted, max.: (mm) 1,220 – X and Y axis rapid traverse: (m/min) 60 – Z axis rapid traverse: (m/min) 40 Spindle: 5-axis orthogonal milling head – Internal coolant supply (ICS): (bar) 20 – Maximum spindle speed: (rpm) 20,000 – Drive power S1 / S6: (kW) 29 / 37 – Torque S1 / S6: (Nm) 92 / 115 Tool magazine – Tool holder: HSK 63 A – Tool positions: 42 – Tool diameter: (mm) 80 – Tool length: (mm) 350 – Tool weight: (kg) 6 Duodsxxvp Nepfx Ah Sel Machine table – Table size L x W: (mm) 2,300 x 1,600 – T-slot spacing: (mm) 200 – T-slot dimensions: (mm) 22 – Max. workpiece weight: (kg/m²) 6,000 FEATURES & EQUIPMENT + Heidenhain iTNC 530 control + Portal (gantry) design: U-shaped "monoblock" construction with one crossbeam and stationary workpiece + Milling head (A- and C-axis), A-axis with torque motor and hydraulic clamping, A-axis positioned perpendicular to the C-axis + No foundation required + Glass scales in X, Y, and Z linear axes + C-axis with Heidenhain angle measurement system, resolution 0.001 degrees + Heidenhain HR 520 electronic handwheel + 2 chip conveyors (one at the front and rear of the table) + Internal coolant supply (ICS) 20 bar + Paper filter unit + Sliding roof with opening for loading and unloading

Condition: used, Year of construction: 2010, travel distance X-axis: 3,020 mm, travel distance Y-axis: 1,520 mm, • Monoblock structure in welded steel with a mobile gantry in steel. • Processing speed up to 18 m/min. • Worktable: fixed table made of high-thickness aluminum profiles. • Hardened linear guides and preloaded ball-bearing carriages. • Transmission via precision ball screws on all 3 axes. • CN7000 numerical control with touch screen and brushless servo drives. Dsdpfxexxii As Ah Seul • Available in 5 sizes for maximum flexibility. • Z 350 option for 3D applications. • Quality and performance suitable for good productivity. • Well-known ease of use. • Compliant with European safety regulations. • Numerous options: brushless servomotors, micro-lubrication, automatic tool changer, vacuum table (with turbine or vacuum pump), high-frequency spindles, contact engraving spindles, fourth axis.

Condition: used, Year of construction: 2014, functionality: fully functional, For sale is a Steelcut precision CNC gantry milling machine. The machine has been regularly serviced and is in excellent visual and technical condition. It is fully functional, inspected, and ready for immediate use. Our service promise: Dusdpexwa A Refx Ah Sjl Quality, expertise, and customer satisfaction are our top priorities. Our team consists of qualified and experienced technicians who specialize in Mazak machines as well as other brands. We place great value on personalized support and are always happy to assist you even after your purchase. With us, you are in the best hands – professional, reliable, and passionate about machinery! PS CNC Service Germany GmbH & Co. KG All details provided without guarantee.
