SDT-Schall-Dämm-Technik GmbH

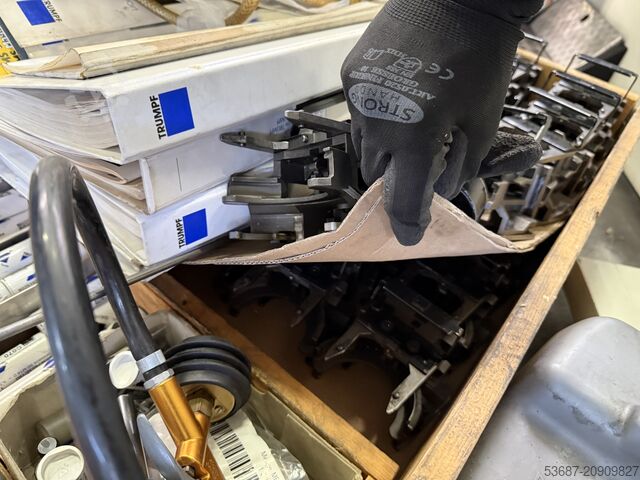

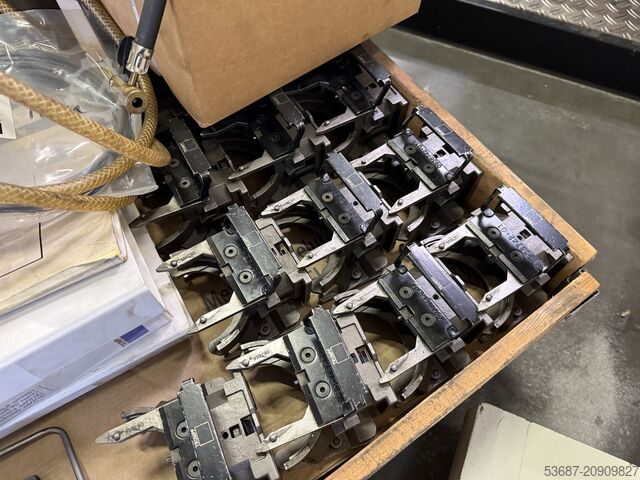

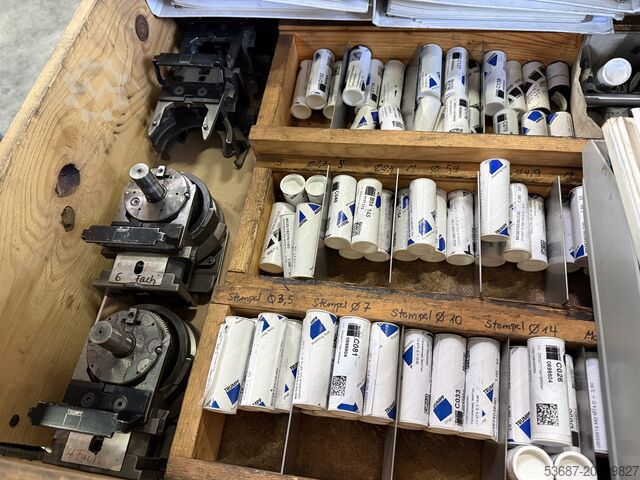

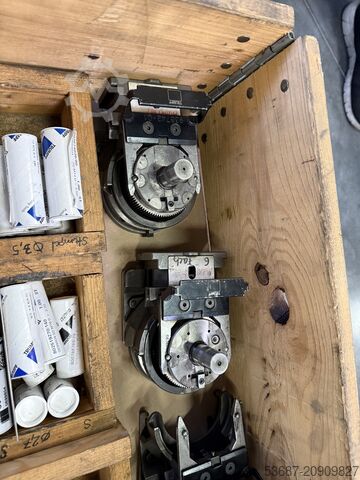

Condition: good (used), functionality: fully functional, Year of construction: 2000, machine/vehicle number: 041613, Punching and nibbling machine TRUMPF Trumatic 500 Fpedpfx Aox Td Edsgmeb Year of manufacture: 2000

Condition: used, functionality: fully functional, Year of construction: 2010, operating hours: 7,900 h, control type: CNC control, degree of automation: automatic, controller manufacturer: Siemens, laser type: CO₂ laser, laser source manufacturer: Trumpf, laser hours: 7,850 h, laser power: 3,200 W, punching diameter: 76 mm, Equipment: centralized greasing system, cooling unit, dust extraction, emergency stop, foot remote control, fume extraction, nozzle changer, quick-change device, safety light barrier, Laser TruFlow 3200, including LensLine with optimized standby Nozzle changing device Fodpex N Hyvofx Agmopb Multitool drive system "Multishear" function "Multibend" function Tapping function High-speed "Marking" / "Ribbing" function Engraving function Rolling and deburring function Softpunch function Active Die Stripline Repositioning with pneumatic cylinders Vibration-dampened installation Chip conveyor with container Ball table work surface with brush inserts Blowing device SheetMaster (3000 x 1500) Automatic sheet separation system with lateral air blast Additional positioning guides for sheet size (2500 x 1250) Additional positioning guides for sheet size (2000 x 1000) Discharge control device GripMaster (3000 x 1500) Double trolleys with toothed belt drive (3000 x 1500) Loading and unloading unit Good part conveyor on punching side Good part conveyor on laser side Warehouse interface No. 21 RTC toolboxes incl. die holder plate

Condition: ready for operation (used), Year of construction: 2002, Control Unit Brand SIEMENS Model Siemens Sinumerik 840D Main Drive Throat Work Chute: Opening for cut pieces Punching force 20 tons (Servo-electric) Number of axis 3 Table Outer length 2500 mm Outer width 1250 mm Turret Number of tool slots 20 Fpedpfxex Nr I Se Agmjb Tools Max tool diameter 89 mm Additional Equipment Sorting Unit (SU6): Capacity for up to 3 euro pallets, each dividable into 2 sections for a total of 6 sorting locations Offline Software License: x1 Brush Table Protective Light Barrier around the machine This 3-axis Finn-Power LPE5 SWUH punch-laser combination was manufactured in 2002. It features a Siemens Sinumerik 840D CNC, a ROFIN-SINAR laser with 2.5 kW power, and a servo-electric punching force of 20 tons. The work surface is 2500×1250 mm, and it includes 20 tool stations with a max tool diameter of 89 mm. Consider the opportunity to buy this Finn-Power LPE5 SWUH punch-laser combination. Contact us for more information about this machine. Application Types Punching

Condition: excellent (used), functionality: fully functional, Year of construction: 2009, max. pressing force: 130 tonnes max. bending length: 3 metres Fodpfx Agox D Tv Remopb

Condition: good (used), functionality: fully functional, Year of construction: 2013, laser power: 2,700 W, X working area max.: 2500 mm Y working area max.: 1250 mm Control system: Rexroth IndraMotion MTX (basic version) Laser power: 2700 Watt Standard Equipment Machine - Sturdy, easily accessible C-frame - Coordinate guide system for high-precision machining - Linear magazine with 23 tool stations and 2 clamps - Maintenance-free three-phase drive motors - Repositioning unit with programmable hold-down device - Foot pedal for clamp closing - Alignment pin (right inside) - Ball tables - 2 parts flaps 500 x 500 mm incl. sensor for parts ejection - Two good parts containers - NitroLine - Focus Line - FastLine - FlyLine - Slag cone detection - Ejector cylinder for laser parts TRUMPF Laser - TruFlow 2000 laser with LensLine and optimized standby mode - High-frequency excitation - Cooling unit - Laser control - Enclosed beam guidance - Fine filtration of compressed air for beam tube ventilation Cutting Head - Lens cutting head with 170 mm focal length - Universal cutting head quick-change system UTI with bus connection - ControlLine Punching Station - Electro-hydraulic punching head - Rotatable mono-tool holder - Tool length compensation - Programmable hold-down device with manually adjustable holding force - Stroke counter for punch and thread-forming - Punch spray lubrication - Punch slug extraction - Measurement of fill level in punching console - Level monitoring for thread-forming and tool lubrication Control - TRUMPF control based on Rexroth IndraMotion MTX - Operating panel with 17" touch screen - Integrated technology data - Teleservice via internet - Programmable cutting gas pressure - Automatic shutdown incl. wake-up mode - Program management - Production scheduling Data Transfer - Network connection RJ45 and USB interface Safety - CE marking - Two-beam light curtain - Monitoring system for gas pressure, temperature, and cooling water - Emergency stop - Protection against stray radiation - Compact extraction unit + Brush tables + Lowerable die + MultiTool function + Softpunch function + Marking function + Chip conveyor with tilting container + Roll technology functions: roll knurling, roll deburring, roll shearing, roll offsetting, roll bead forming, roll cutting Fodpfx Aox Aq Axogmjpb + Die spray lubrication + Blow-off device for small parts + 1 pc. additional clamp + Smart Punch Monitoring (punch breakage monitoring) + Vibration-damped installation + Repositioning cylinder + Warping detection + Parts conveyor belt in punching area + Parts conveyor belt in laser area + GripMaster (2500x1250) + Scissor lift table + Scrap grid pallet + SheetMaster (2500x1250) (AK04) + Peeling system + Automatic clamp closing + HZP loading/unloading + TwinCarts loading station with toothed belt drive + TwinCarts unloading station with toothed belt drive

Condition: used, Punching machine Fpodpfx Aexyl D Ssgmeb

Condition: good (used), functionality: fully functional, Year of construction: 2006, operating hours: 17,000 h, Trumpf TruMatic 6000 FMC -1300 Sheetmaster + Gripmaster Manufacturer: Trumpf Type: TruMatic 6000 FMC -1300 Year of manufacture: 2006 Condition: used, very good. Regularly serviced by Trumpf. Machine is powered and in use. Operating hours NC hours: 70,305h Beam-on hours: 17,217h Control: Siemens Sinumerik 840 D Punching force: 220KN Laser power: 2700W Working area for laser operation approx.: 2585 x 1280 mm Working area for punching operation approx.: 2585 x 1370 mm Max. sheet thickness approx.: 8 mm Support tables Brush tables CE marking Standard equipment: Stable, easily accessible C-frame Coordinate guide with integrated linear magazine, 21 places for tools and clamping claws 1 clamping claw Maintenance-free three-phase servo motors Parts chute 500 x 500 mm (sensor-monitored) HI-LAS high-pressure cutting TRUMPF laser: CO2 laser TLF 2700 High-frequency excitation Laser control TASC 3 Cutting head: Laser cutting head 5″ Laser cutting head 7.5″ Quick change device Cutting gas pressure setting programmable Distance control DIAS ContourLas Punching head: Hydraulic mono tool holder 360° rotation Programmable hold-down device Tool spray lubrication Punching slug extraction Control: Sinumerik 840D 10.4″ TFT color screen Teleservice Automatic switch-off 3.5″ floppy disk drive RJ45 network connection MDE interface Fodpfoxwmuaox Agmepb Safety: Multi-beam light barriers Quick switch-off hydraulics Compact dust extraction system Options: Automatic switch-off Thread former Soft punch Adaptive stroke calibration Adjustment cylinder Individually openable claws Chip conveyor with container Multishear Multitool Control Brush tables Automation SheetMaster (loading and unloading during production) Scissor lift table Chip conveyor with container TrumaGripMaster TrumaSortmaster R4 TwinCarts (unloading) Spreading magnet Rotor scanner (unloading monitoring) Autolas Plus Remaining grid pallet 2500x1250mm

Condition: excellent (used), Year of construction: 2008, Operating hours: approx. 20,000 h Fodpfsxvqawex Agmopb

Condition: excellent (used), Year of construction: 2018, Operating hours: 19,000 h Fedpfx Ajxvp Tpogmjpb

Condition: excellent (used), Year of construction: 2003, operating hours: 31,486 h, Medium format Operating hours: 31,486 h Price on request Fpodpfxjxl R I Tj Agmob

Condition: excellent (used), Year of construction: 2013, operating hours: 43,028 h,  Max. force: 180 kN  Max. plate thickness: 6,4 mm  Axe X: 2500 mm  Axe Y: 1250 mm Fsdpfjxftz Aex Agmepb  Max. workpiece weight: 150 kg  Machine dimensions 6282 mm x 6548 mm x 1990 mm

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2008, operating hours: 72,918 h, laser power: 2,700 W, punching force: 22 t, sheet thickness (max.): 6 mm, sheet thickness steel (max.): 8 mm, sheet thickness aluminum (max.): 4 mm, TECHNICAL DETAILS Combined punching/laser operation: 2,585 x 1,650 mm Punching mode: 3,085 x 1,740 mm Laser operation: 3,085 x 1,650 mm Outputs Laser power: 140 - 2,700 W Maximum sheet thickness: 8 mm Cutting capacity for mild steel: 8 mm Cutting capacity for aluminum: 4 mm Cutting capacity for stainless steel: 6 mm Maximum punching force: 220 kN Active hold-down device (programmable in stages): 4.5 - 20 kN Maximum workpiece weight: 230 kg Speeds Maximum positioning speed X-axis: 90 m/min Y-axis: 60 m/min Simultaneous (X and Y): 108 m/min C-axis punching: 60 revolutions/min Thread forming: 180 revolutions/min Fjdew Suwyspfx Agmjpb Punching stroke sequence (E = 1): 900 1/min Marking: 2,800 1/min Tools Linear magazine: 18 tools with 3 clamps Tool change time: 1.5 - 5 s Tool accuracy Position deviation: ±0.10 mm Average position spread: ±0.03 mm Programmable slides for punched and laser parts (max.) Size: 500 x 500 mm TRUMPF CNC control: based on Siemens Sinumerik 840D MACHINE DETAILS Laser switch-on time: 72,918 h Cutting time: 18,536 h Space requirement (width x length): 7,900 x 9,100 mm Height: 2,400 mm Weight: 22,500 kg Laser gas consumption CO2 / N2 / He: 1 / 6 / 13 l/h Connected load: 73 kVA

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2019, control type: CNC control, Equipment: CE marking, centralized greasing system, cooling unit, emergency stop, safety light barrier, Laser for profiles and tubes. Maximum profile length without rotation: 6.5 m, max cross-section: 220x220 mm. The machine is in continuous use in production; selling due to purchase of a new one. Fsdpfsw N Rf Ijx Agmjpb

Condition: excellent (used), functionality: fully functional, Year of construction: 2022, operating hours: 500 h, TruMatic 6000 fiber large format (K06) + SheetMaster + GripMaster + TruStore 3030 Double tower (46 Storage pallet) Full automated high-end punch laser combination machine with with all available options! Fpjdpfxsw Iz N Is Agmob Operating hours: 500 h (!) Year of prod.: 06/2022 Highlited options: Punching quality package : • MultiShear function • Deburring and roller technology function • Adaptive stroke calibration • StripLine Forming package: • Tapping function including forming tap breakage control • Marking/quick beading function • MultiBend function • Height-adjustable clamps Descending die MultiTool function Engraving function Die spray lubrication with level monitoring Chip conveyor with tipping container Loading/Unloading: SheetMaster 3000 x 1500 mm (AK04) Loading and unloading parallel to production Peeling unit including positioning aid for large sized sheets Additional positioning aid for small-sized sheets Additional positioning aids for medium-sized sheets First additional suction package Second additional suction package Unloading monitoring of laser cut parts Integrated tool changer, 40 stations GripMaster 3000 x 1500 mm Three scrap skeleton grippers, one of which with sensor system Parts conveyor belt for punch and laser side TruStore 3030 double tower storage system (46 pallet) • Storage equipment • Sheet size 3048 x 1524 mm • 3 t load capacity per pallet • Storage safety device • Column covering • Pallet lift (lifting chain, cable carrier) • 19" touchscreen operating panel • Storage interface for connecting two automation solutions • Instruction, documentation • Electrical cabinet lighting • CE marking and EC Machinery Directive

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2011, operating hours: 97,000 h, laser power: 2,500 W, sheet thickness (max.): 6 mm, workpiece length (max.): 2,000 mm, workpiece width (max.): 1,500 mm, Submission of a bid obligates the buyer to collect the machine on time by 05/09/2025! The machine has been serviced by the manufacturer. TECHNICAL SPECIFICATIONS Power and Cutting Force Cutting force: 300 kN Power: 2.5 kW (CO₂) Workpiece Cutting elements to length: 3,020 × 1,500 mm Laser cutting length: 2,000 × 1,500 mm Max. sheet thickness: 6 mm Stations Turret station: 41 fixed and 4 rotatable stations MACHINE DETAILS Electrical Data Connected load: 400 V / 68.3 kVA Apparent power: 60 kVA Compressed Air Connection Compressed air connection: 8 bar Compressed air consumption: 48 m³/h Occupational Safety Width of protected area: 30 m Minimum safety distance: 1.36 m Machine reaction time + total fire protection wall reaction time: 320 ms Overrun time: 300 ms Machine braking distance: 180 mm Weight of the punching/laser machine: 30,000 kg EQUIPMENT Automatic part removal (suction cups) up to 45 kg Automatic sheet metal feed max. 3,050 × 1,500 mm Automatic bale output 1,500 × 400 mm Double loading ramp Light barrier Wire cutting kit Bale push sensor Chip extraction Conveyor for offcuts removal Separate lubrication for punching and threading tools Fpodow Axa Ujpfx Agmsb Sheet bending sensors Punches included in the offer Loading of the machine can be arranged upon request. A large tooling package can be purchased for an additional 10,000 EUR.

Condition: excellent (used), functionality: fully functional, Year of construction: 2009, Options: ACB, BendGuard for manual bending, HQ version, interface to 2nd machine Fpsdpfx Agjwykccjmjb

Condition: ready for operation (used), functionality: fully functional, Year of construction: 1999, operating hours: 76,500 h, machine/vehicle number: 080430, laser power: 3,200 W, punching force: 22 t, punching diameter: 64 mm, type of input current: three-phase, working range: 1,250 mm, Equipment: cooling unit, documentation/manual, safety light barrier, machine in very good condition, fully functional and reliable. currently dismantled and prepared for immediate removal. I can provide videos of operation. help with assembly. Fpedewwumyepfx Agmsb

Condition: used, functionality: fully functional, Year of construction: 2017, operating hours: 5,899 h, Other machines and tools included with the machine: - Tools belonging to the machine (a detailed list can be provided) - Quick Sharp - Multiset ITM BASIC MACHINE: TruPunch 3000 Large Format (S11) Fjdpewm Shaefx Agmepb Machine Configuration: • C-frame structure • Coordinate guidance system • Linear magazine with 24 stations for clamps and tools • Hydraulic clamps (3 units) • Maintenance-free 3-phase servo motor drives • Repositioning unit with programmable stripper • Foot switch for clamp closure • Part removal flap • Transport and assembly fixtures Punching Head: • Servo-electric punching head • Rotatable single tool adapter • Manually adjustable press foot force • Programmable press foot positioning • Tool length compensation • Spray lubrication system for punches • Vacuum slug removal • Forming capability • Adjustable stroke rate • Tool lubrication level monitoring Control System: • TRUMPF controller based on Bosch Rexroth IndraMotion MTX • Control panel with 17" TFT display • Integrated technology database • Internet-based teleservice interface • Automatic shutdown function • NC program management • Production planning feature Data Transfer: • USB and network interfaces • Network connection (RJ45) Safety Features: • CE marking • Multi-beam light curtains • Rapid drive shutdown Advanced Standard Equipment: • 1st index pin position, right-hand inner side • Ball transfer tables • Finished parts container • Scrap/chip container OPTIONAL BENEFIT PACKAGES: 2. Productivity Package • MultiTool function • Sensor for part chute • Spray die lubrication with level monitoring 3. Punch Quality Package • MultiShear function • Deburring and roller technology • Adaptive stroke calibration 4. Forming Package • Tapping function with breakage detection • Marking/rapid beading function • MultiBend function • Height-adjustable clamps 5. Engraving Function 6. Smart Punch Monitoring 7. Wireless Operation Point 8. MobileControl App 9. 21 RTC cartridges + TOOLS!

Condition: good (used), functionality: fully functional, Year of construction: 2014, laser power: 3,000 W, X Working area max.: 2500 mm Y Working area max.: 1250 mm Control: IndraMotion MTX Laser power: 3000 watts Standard equipment: Machine - Coordinate guide for high-precision machining - Stable, easily accessible C-frame - Linear magazine with 21 tool positions and 4 clamps - Drives with maintenance-free three-phase servo motors - Repositioning device with programmable hold-down device - Foot switch for clamp closing - Ball tables - 2 part flaps 500 mm x 500 mm - FocusLine - NitroLine - FastLine - Ejection cylinder for laser parts - Slag cone detection TRUMPF laser - TruDisk 3001 solid-state laser with 1 LLK outlet - Excitation via pump diodes - LLK according to standard layout (10m) - TruControl laser control 1000 - Cooling unit - Laser logbook function Cutting head - Solid-state laser compact cutting unit - ControlLine Punching head - Electro-hydraulic punching head - Rotatable mono tool holder - Tool length compensation - Programmable hold-down device (active / passive / repositioning) - Punch stroke counter and thread stroke counter - Spray lubrication of punch - Punch slug extraction - Calculation of filling level in the punching console - Level monitoring of thread forming and tool lubrication Control - Open control based on Rexroth IndraMotion MTX - Control panel with 17" touch control panel - Program management - Production plan - Integrated technology data - Teleservice via Internet - Programmable cutting gas pressure - Automatic switch-off with wake-up mode Data transfer - USB interface - RJ-45 network connection Safety - CE marking - Two-beam light barriers - Monitoring system for, among others Gas pressure, temperature, cooling water - Quick shutdown hydraulics - Protection against scattered radiation - Compact dust extraction system - MultiTool function - MultiBend function - Thread forming function - Engraving function - Deburring and rolling technology function - SoftPunch function - StripLine - Lowerable die - Spray lubrication die including level monitoring - Additional clamping claw - 4 pcs. Height-adjustable clamping claws - Vibration-damped installation - Chip conveyor with tilting container - Blow-out device for small parts Fedpfx Ajwld Sujgmspb - Warping detection SheetMaster - Unloading platform - Suction frame with 36 suction cups - Peeling suction cup - Vacuum sensors for each suction cup - Double sheet detector for double sheet control - Central lubrication - TRUMPF control based on Rexroth IndraMotion MTX - Automatic clamp closing machine - Loading and unloading parallel to production time - Peeling system including positioning aid medium format (2500x1250) - First additional suction cup package standard - Second additional suction cup package standard - Unloading monitoring laser parts GripMaster - Parts conveyor belt punching station - Parts conveyor belt laser station ToolMaster with 70 stations (only for punching operation) - ToolMaster set-up parallel to production time

Condition: good (used), functionality: fully functional, Year of construction: 2008, operating hours: 41,804 h, used TRUMPF TruMatic 6000 (K01) – Medium format Technical data: Year of manufacture: 2008 Last maintenance: 18.03.2025 Operating hours NC: 41804 Resonator hours: 14466 Beam ON hours: 2054 Y-Axis: 1300 mm Additional equipment: various tools Recently installed new parts: Conversion to laser control TASC5 (01/2025) Control panel with display (01/2025) Box PC (01/2025) Hydraulic punching head/multilayer (10/2021) Fsdpfswkd Efex Agmjpb

Condition: used, Trumpf Type: TruDisk 4002 / W20.HL29 Trumpf TruDisk 4002 laser beam source with KLH cooler The Trumpf TruDisk 4002 laser beam source is an industrial disk laser source (disk laser) from TRUMPF, characterized by high power, beam quality, and efficiency. It is frequently used for welding, cutting, and other material processing applications. Maintenance has been performed regularly. Fjdjwh Rnzopfx Agmepb Unit consisting of a beam source with associated cooler, but without optics and fiber optic cable. Technical Specifications Laser power: 4,000 watts (4 kW) (minimum 80 W) Wavelength: ~1030 nm (infrared range) (Yb:YAG) Beam quality (BPP): typically ≤ 8 mm mrad Fiber connection: TruDisk lasers usually have multiple fiber connections Cooling: Water-cooled – via a KLH cooler Dimensions: 1.0 x 2.0 x H1.6 m (laser) + 1.0 x 1.5 x 1.8 m (cooler) 380 V -10% ... 460 V +10%, 3AC + PE 23 kW / 25 kV A - 34 A / 400 V 50 ... 60 Hz KLH cooler: The KLH cooler is an industrial liquid cooler that ensures heat dissipation from high-performance laser systems such as the TruDisk 4002. Typical Features: Water-to-water cooling Precise temperature control (typically 20–25°C) Refrigerant: R 404A Can be controlled via TRUMPF interface Required to comply with laser specifications Device Type W20.HL29 Weight: 850 kg (laser) + estimated 550 kg (cooler) Condition: Used Scope of delivery: (See image) (Subject to change and errors in the technical specifications, information is subject to change!) We are happy to answer any further questions over the phone.

Condition: good (used), Year of construction: 2004, operating hours: 73,056 h, functionality: limited functionality, machine/vehicle number: A0060A0266, Machine operating hours: 73,056 h Max. punching force: 220 kN Punching working area: 2,535 x 1,280 mm Max. sheet thickness: 8.0 mm Total connected load: 29 kVA Last commissioned: March 2024 Standard equipment Machine • Sturdy C-frame • Coordinate guide with integrated linear magazine • 21 tool stations • 3 clamps • Automatic part chute 500 x 500 mm Punching head • Hydraulic single-tool holder, 360° rotation • Adjustable hold-down force • Programmable hold-down device • Spray lubrication for punches • Punch slug extraction Safety • CE mark • Multi-beam light barriers • Rapid hydraulic shutdown • Bowing detection Extended equipment • Brush table with loading and unloading aid • Height-adjustable, individually opening clamps • Reloading cylinder • Vibration-damped installation • Chip conveyor Available additional options • Trumalift Sheetmaster • Trumagrip 2500x1250 mm • Trumatool 40 • Trumasort R4 • Trumasort L The machine is available immediately. Fpodpswduukefx Agmob Due to the last commissioning more than a year ago, malfunctions may occur during commissioning. The sale is ex works: dismantling, removal, loading, and transport are at the buyer's expense.

Condition: good (used), functionality: fully functional, Year of construction: 2006, operating hours: 47,000 h, laser power: 2,000 W, punching force: 76 t, workpiece weight (max.): 120 kg, working range: 2,500 mm, Equipment: cooling unit, safety light barrier, Special features: + Thread forming function with thread breakage detection + MultiTool function + Marking/Fast beading function + Repositioning cylinder + Sensor for part chute Standard features: - Stable C-frame - Coordinate guide with integrated linear magazine - 21 pockets for tools and clamps - 2 clamps - Drives: maintenance-free three-phase servo motors - Brush tables - TCF1 laser (2000W) - HI-LAS high-pressure cutting - Fast machining with SprintLas - Programmable Cutting gas selection/pressure adjustment - Laser cutting head with 5" lens - Cutting head quick-change device - APC capacitive height control - Lens monitoring sensors - Laser logbook function - Compact dust extractor - Rotating tool holder - Automatic repositioning device with hold-down clamp - Automatic part chute for parts 300x500 mm - Automatic tool changer with 19 stations Fjdpfxswcq Hgo Agmjpb - 2 clamps - Good parts container - Spray lubrication for punches - 2nd lubricant container - Punch slug extraction system - Chip bucket - Hydraulic quick shut-off system - External control panel - 15" TFT touch color screen - USB stick interface - 3.5" floppy disk drive - Safety features - RJ45 network connection - Network connection - Detailed operating instructions - Remote diagnostics system

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2002, operating hours: 11,676 h, machine/vehicle number: KM-1148, laser power: 3,200 W, punching force: 22 t, punching diameter: 76 mm, sheet thickness (max.): 8 mm, workpiece weight (max.): 230 kg, workpiece length (max.): 1,650 mm, workpiece width (max.): 2,585 mm, No reserve price - guaranteed sale at the highest bid! Machine including SheetMaster and TrumaGrip TECHNICAL DETAILS Punching force: 22 tons Control: Siemens Sinumerik 840 D Punching working area: 3,085 x 1,740 mm Fedpfjv Am Twex Agmjpb Combined working area: 2,585 x 1,650 mm Max. sheet thickness: 8 mm Max. workpiece weight: 230 kg Max. punching diameter: 76.2 mm Rapid traverse X / Y / simultaneous: 90 / 60 / 108 m/min Tool holder: Hydraulic mono tool holder, 360° rotation Holder: Programmable for repositioning processes Chip handling: Chip bucket Laser unit: High-frequency excited CO₂ laser TruFlow Laser working area: 3,085 x 1,650 mm Laser power: 2,700 Watt Laser cutting heads: 5" lens, 7.5" lens, cutting head quick-change device Distance control: DIAS Cutting technology: HI-LAS high-pressure cutting Functions: AutoLas, ContourLas Laser control: TASC 3 MACHINE DETAILS Width: 2,400 mm Length: 8,700 mm Height: 7,800 mm Total weight: 22,500 kg Switch-on time: 59,2344 h Laser cutting time: 11,676 h EQUIPMENT - Parts chute 500 x 500 mm, sensor-monitored - 2 good parts boxes - AutoLas - Ejection cylinder on laser chute - Automatic tool length compensation - Tool spray lubrication - Punch slug extraction - 2nd lubricant container - Multi-beam Light barriers - Quick shutdown hydraulics - Extraction and compact dust extractor - MultiTool function - Thread forming function - Vibration-damped installation - Brush tables - Chip conveyor with tilting container - Standard equipment SheetMaster 1606 - Loading station with spreading magnets - TRUMAGRIP scrap skeleton disposal unit with scissor lift table - Sheet thickness gauge for double sheet control - Suction plate module - Parts conveyor belt A deposit of EUR 7,500 is required for transport security.

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2005, operating hours: 13,549 h, laser power: 3,200 W, punching force: 22 t, sheet thickness (max.): 8 mm, sheet thickness aluminum (max.): 3 mm, workpiece weight (max.): 200 kg, TECHNICAL DETAILS Punching work area: 2,585 x 1,280 mm Laser working area: 3,085 x 1,370 mm Combined working area: 3,085 x 1,280 mm Control system: Siemens Sinumerik 840 D Laser power: 140 - 3,200 watts Wavelength: 10.6 µm Sheet thickness: 8 mm Cutting capacity mild steel: 8 mm Cutting capacity aluminum: 3 mm Cutting capacity stainless steel: 4 mm Workpiece weight: max. 200 kg Punching force: 220 kN Active hold-down device: 4.5 - 20 kN Linear magazine: 21 tools with 3 clamps Programmable chute: 500 x 500 mm C-axis punching: 60 rpm C-axis thread forming: 180 rpm Punching stroke sequence: 900 rpm Stroke sequence marking: 2800 1/min Compressed air connection: 7 ± 1 bar Laser gas consumption CO2 / N2 / He: 1 / 6 / 13 l/h MACHINE DETAILS Length: approx. 7.5 m Width: approx. 8.1 m Height: 2.4 m Weight: 16 tons Laser switch-on time: 49,949 h Cutting time: 13,549 h EQUIPMENT - Sturdy C-frame - 2 x clamping claws - Drives: Maintenance-free three-phase servomotors - Programmable hold-down device for repositioning - Sensor-monitored parts chutes 500 x 500 mm for punching and laser station, ejection cylinder on laser chute - 2 x good parts box - HI-LAS high-pressure cutting - Fast processing with SprintLas - ContourLas for producing small holes - Cutting gas pressure setting programmable Fsdpsvzrb Dsfx Agmepb - Laser cutting head: 5" lens, quick-change device, distance control APC - Lens monitoring sensor system - Additional cutting head with 7.5" lens - Punching head: hydr. mono tool holder, 360° rotation for all tools, automatic tool length compensation, tool spray lubrication, 2 x lubricant containers, punching slug extraction, chip bucket - Safety: multi-beam light barriers, quick shut-off hydraulics, extraction and compact dust protection device against stray radiation on the cutting head - TLF 3200 laser incl. 9" cutting head for stainless steel - AutoLas Plus - MultiTool function - MultiBend function - Thread forming function - Marking/quick beading function - Rolling technology function - Softpunch function - 1 x additional clamping claw - Chip conveyor with tilting container - Brush tables with loading and unloading aid - Blow-out device for small parts - BNC network connection instead of RJ45 connection
