Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: AE/020112, total width: 1,300 mm, overall weight: 2,750 kg, number of rollers: 4, No reserve price – guaranteed sale to the highest bidder! MACHINE DETAILS Overall width: 1,300 mm Electrical data Rated voltage: 400 V Frequency: 50 Hz Phases: 3 ~ Fgedpfexmhiwjx Afpoh Rated current: 180 A Short-circuit current: 10 kA Max. load current: 420 A Weight: 2,750 kg EQUIPMENT Two rollers at the top Two rollers at the bottom Note: The machine was dismantled as part of a liquidation and is loaded onto a truck. The machine was fully operational at the time of dismantling.

Condition: excellent (used), SCM Sandya 3 wide belt sander, model: 3 RCS 95 - Max sanding width: 95 cm - Single 11 kW motor - First calibrating unit with steel roller, second unit with platen, rubber-coated roller - Weight: 1 tonne, year: 1998 Fgsdpfxsxl Twqs Afpjh The machine is in very good condition. The machine runs very well.

Condition: refurbished (used), Year of construction: 2025, Dear customers, we are currently offering a fully refurbished vertical belt sanding machine for model and mold making by F. Zimmermann. Here are the machine’s technical specifications: Sanding belt width: 250 mm Sanding height: 400 mm Belt length: 2,400 mm Sanding speed: 18 m/s Worktable: 750 x 350 mm Swivel range: 30/45° Power: 4.0 kW Speed: 1,400 rpm Fsdpfexlzgmsx Afpegh Extraction port diameter: 120 mm Including angle stop Including sanding belts Foot emergency stop Dimensions: 990 x 850 x 1,740 mm Weight: 470 kg The machine has been painted in RAL 7035 light grey, the sanding plate is completely new, the roller bearings have been replaced, and various other small parts have been exchanged. We have also installed a motor brake and several additional electrical components for enhanced machine safety. The machine comes with a 6-month warranty. Price plus VAT, which will be separately itemized on the invoice. If you have any questions, please feel free to contact us.

Condition: used, Year of construction: 2009, functionality: fully functional, working width: 950 mm, grinding width: 950 mm, - Austrian-made - Year of manufacture: 2009 - Combination pad (trzewik kombi) TECHNICAL PARAMETERS: - Sanding width: 950 mm - Sanding height: 4–170 mm - Main motor power: 11 kW Fedpfx Afsxlr U Iopjgh - 1st unit: rubber drum with pneumatic engagement - Drum diameter: 110 mm - 2nd unit: combination pad (trzewik kombi) - Cleaning brush: 1.1 kW - Pneumatic engagement of rubber drum - Pad with pneumatic engagement - Pneumatic oscillation - Air blower on sanding belt - Electric height adjustment - Sanding belt speed controlled by inverter - Electronic positioning of sanding height - Two feed speeds: feed motor power 0.55 kW - Minimum workpiece length: 400 mm - Extraction port diameter: 3 x 130 mm and 2 x 80 mm - Machine dimensions (L/W/H): 170 x 150 x 210 cm - Weight: approx. 800 kg

Condition: excellent (used), Wide Belt Sander SCM Sandya Uno Working width: 900 mm Working height: 3–160 mm Number of sanding units: 1 Unit configuration: COMBI metal-shoe Main motor power: 4 kW Optical oscillation Abrasive belt dimensions: 930×1525 mm Fsdpfxoxlq Ime Afpogh Weight: 830 kg

Condition: used, Year of construction: 2006, functionality: limited functionality, machine/vehicle number: 0084603, workpiece width (max.): 300 mm, Equipment: double-sided, VG FANTASTIC 300 CALIBRATION SANDER VG MACHINES MOD. DOUBLE-SIDED Fodpfx Afoxiycujpogh FANTASTIC F/G 300 - 3KKS/3KKS - Working width: 300 mm - Total installed power: 37 kW - Configuration: RRT/RRT (lower roller + upper roller) - Motors: 2x (7.5 + 7.5 + 7.5) + 3 + 2 - Belt width: 1900 x 300 mm

Condition: excellent (used), Griggio wide belt through-feed sander Combination unit with pad, rubber-coated calibration roller. Oscillation with photocell, electric table lifting. Dimensions: length 140 cm, width 100 cm, height 210 cm Fgsdpfxjxixxno Afpoh Machine in very good condition.

Condition: excellent (used), Through-feed sander Tornado Cindy 400 Working width 400 mm Fgodpfx Aoxhc Rfjfpsh Sanding height 3 – 200 mm 1 combi unit Electric height adjustment Optical oscillation Two feed speeds

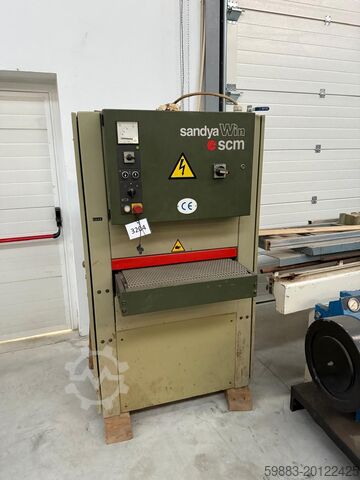

Condition: excellent (used), SCM Sandya Win Wide Belt Sander Working width: 610 mm Fgodjxhc H Hopfx Afpoh Sanding height: 3 – 140 mm 1 combi unit Electric height adjustment Pneumatic oscillation Two feed speeds

Condition: used, Year of construction: 2007, functionality: fully functional, grinding width: 950 mm, grinding height: 170 mm, height adjustment type: electric, type of input current: three-phase, - Italian-made - Year of production: 2007 - Combination pad (combi shoe) TECHNICAL SPECIFICATIONS: - Sanding width: 950 mm - Sanding height: 4-170 mm Fgsdpfsxdxfqsx Afpoh - Motor power: 7.5 kW - 1st unit: Steel roller with pneumatic lift - Roller diameter: 110 mm - 2nd unit: Combination pad (combi shoe) - Pneumatic lift for rubber roller: 78 Shore - Pad with pneumatic lift - Pneumatic oscillation - Air cleaning for sanding belts - Electric height adjustment - Two belt speeds: 8.3 m/s and 16 m/s - Electronic sanding height positioning - Feed speed, stepless adjustment: from 4-20 m/min - Minimum workpiece length: 500 mm - Extraction port diameter: 2 x 140 mm - Machine dimensions (L/W/H): 150 x 180 x 210 cm - Weight: ~1010 kg

Condition: used, Year of construction: 2017, total width: 950 mm, total height: 2,350 mm, total length: 1,330 mm, Empty weight: 768 kg - Number of units [pcs]: 1 - └ Unit 1: - - Sanding belt width [mm]: 430 - - Roller diameter [mm]: 150 - - Motor power [kW]: 5.5 - Max. sanding width [mm]: 400 - Feed table length [mm]: 220 Fgjdpfx Afoxdk I Djpeh - Output table length [mm]: 320 - Min. feed speed [m/min]: 4.5 - Max. feed speed [m/min]: 9 - Year: 2017 - Documentation available: No - CE marking present: Yes - Serial number: 305 - Current consumption [A]: 13 - Transport dimensions: 1330mm x 950mm x 2350mm (l x w x h) - Transport weight [kg]: 768kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Glenn Smeets

Condition: ready for operation (used), Year of construction: 1996, functionality: fully functional, Andi Stratos CNC machine Working area 2520 x 1285 ISO30 spindle Tool changer 250m3 Becker vacuum pump Fencing left and right Laser safety at the front Fanuc control Machine fully operational Fgedjxc T Ahspfx Afpoh Available November 2025

Condition: good (used), Wide belt sander Vertongen S320 - Sanding width: 30 cm Fgsdjxc Exbopfx Afpeh - Manual table lifting - Max sanding height: 20 cm - Combination unit - 2 feed speeds - Main motor: 5.5 kW - Mechanical oscillation.

Condition: like new (used), Year of construction: 2018, Costa sanding machine suitable for sanding veneer, 650 mm working width, with 5 rollers Fsdpfx Afoxbh Agepjgh

Condition: excellent (used), Wide belt sander SCM Sandya 5S Fodpjxal Auofx Afpjgh Working width: 1350 mm Working height: 3-160 mm Number of units: 2 Calibration unit Combi unit Combi unit with paper blow-off system Main motor power: 15 kW Optical oscillation Feed speed adjustable by variator: 3–17 m/min Technical documentation

Condition: excellent (used), Year of construction: 2020, Compact wide-belt sanding machine with combination sanding unit With special offer equipment – Top condition – Special offer equipment: - Switching the sanding shoe on and off from the control panel - Switching the roller on and off from the control panel - Electronic control Fox 500 KTR - Table extension with 2 rollers for infeed and outfeed - Automatic table positioning with button control Article number: 5222100A2 Also suitable for smaller workshops for occasional use Combination sanding unit with sanding shoe for fine sanding Standard with diagonal-grooved steel roller Ø 120 mm for calibration Fine adjustment of working height Clear control panel on the front side Robust tube-reinforced monoblock steel machine body, robot-welded, with work units positioned high up for maximum rigidity Motorized table height adjustment with digital display Electronically controlled sanding belt oscillation Feed carpet driven by gear motor with two speeds Natural rubber feed belt with negative profile Flexible steel pressure rail in front of the first unit Rubber pressure rollers before and after each working unit Pneumatic belt tensioning per unit with decimal correction possible for grit/belt thickness Universally applicable for solid wood and veneer thanks to the combination unit Entry-level model for smaller companies Working width 950 mm Equipment details Combination unit for calibration and sanding Diagonal-grooved steel roller Ø 120 mm with fine height adjustment Hard sanding shoe with graphite pad Universal version for calibration and sanding of solid wood, chipboard, and veneer Technical data Length (product) approx. 1388 mm Height (product) approx. 1668 mm Width/depth (product) approx. 1545 mm Connection for extraction Extraction port diameter 140 mm Fsdjxac E Hjpfx Afpogh Electrical data Connection voltage 400V Current type AC Phases 3Ph Line frequency 50Hz Feed motor power 0.33 / 0.55 kW Table height adjustment motor power 0.25 kW Drive motor power 7.5 kW Sanding unit Sanding belt length 1525 mm Max. sanding width 950 mm Sanding belt width 970 mm Feed unit Feed speed 4.5 / 9 m/min Workpiece Min. workpiece height 4 mm Max. workpiece height 170 mm Location: ex stock 54634 Bitburg - Immediately available -

Condition: good (used), Year of construction: 2001, Wide belt sander SCM Sandya3 Max. sanding width: 950 mm Year of manufacture: 2001 15 kW Operating hours: 1,650 2 sanding units Front unit with ribbed steel roller Rear unit with rubber roller and selectable pneumatic pad Total width of machine: 128 cm Fedpfx Afjw Iy I Aspsgh Length of machine in working direction incl. infeed and outfeed table: 162 cm Overall height of machine: 187 cm (without extraction nozzle) Sale on behalf of customer Available at short notice by arrangement The machine is located in a small joinery and is in well-maintained condition – with low operating hours

Condition: used, Year of construction: 2007, functionality: fully functional, grinding width: 940 mm, grinding height: 150 mm, – Year of manufacture: 2007 TECHNICAL SPECIFICATIONS: – Grinding width: 940 mm – Grinding height: 150 mm – Min. workpiece thickness: 0.8 mm – Min. workpiece length: 230 mm – Feed motor power: 0.25 HP – Main motor: 5.55 kW – Grinding rollers: 2 x ø 152 x 940 mm – Speed: 1400 rpm – Feed speed: 2 or 3 m/min – Extraction port diameter: 2 x ø 100 mm Fjdow Ip Rtepfx Afpogh – Motor power: (400 V) 5600 W / S1 100% – Dimensions (L/W/H): 1090 / 1420 / 1090 mm – Weight: 440 kg

Condition: used, Year of construction: 2008, functionality: fully functional, grinding width: 635 mm, grinding height: 133 mm, – Year of manufacture: 2008 Fgedpfxow Ip Hus Afpeh TECHNICAL SPECIFICATIONS: – Rated power: 5550 W – Actual power: 3700 W = 3.7 kW – Max. sanding width: 635 mm – Max. workpiece thickness: 133 mm – Min. workpiece thickness: 0.8 mm – Min. workpiece length: 230 mm – Sanding rollers: 2 x ø 152 x 635 mm – Height adjustment for the second roller – Speed: 1400 rpm – Sanding belt width: 600 mm – Two feed rates – Machine dimensions (L/W/H): 110 / 110 / 110 cm – Weight: 332 kg

Condition: used, functionality: fully functional, grinding width: 630 mm, grinding height: 150 mm, height adjustment type: electric, - Italian-made - Used sander, in very good condition TECHNICAL SPECIFICATIONS: - Maximum working width: 630mm - Maximum working height: 150mm 1 unit: + - Grooved rubber calibrating roller + pad + 1 metal roller: + *from above: - Rubber feed-in slip roller: + - Processing unit: + - Rubber feed-out slip roller: + *from below: - Rubber slip roller: + - Feed belt: + - Pneumatic belt oscillation with photocells: + - 2 feed speeds: 0.28kW - Motor: 6kW - Electric brake: + Fedpfxew Ip Eke Afpsgh - Electric table elevation: + - Working pressure: 6-8 bar - Extraction nozzle diameter: 150mm - Overall dimensions (L/W/H): 1070x1320x1900mm - Weight: 722kg

Condition: excellent (used), Vertongen M-300 Combi Through-Feed Sander Working width: 300mm Working height: up to 200mm Combi unit with sanding shoe Pneumatic oscillation Electronic height readout Manual lifting and lowering of the worktable Two feed speeds Main motor power: 5.5kW Abrasive paper size: 300x1900mm Weight: approx. 600kg Fjdpfxew H Anwj Afpjgh

Condition: ready for operation (used), Grinding width 600 mm Fgodpfew Drfmex Afpsh First rubber roller Second rubber roller + shoe with manual adjustment 2 conveyor feed speeds Pneumatic oscillation Paper 1520x600 380 V Year of production 2001

Condition: used, working width 900mm calibrating unit with metal shaft Fsdsw Dq D Uspfx Afpegh kobi unit with rubber shaft and shoe pneumatically shot-in shoe pneumatic oscillation pneumatic tape tensioning star/delta start two feed speeds electric table adjustment up/down material thickness gauge

Condition: ready for operation (used), Working width: 1000 mm Combination unit with pneumatic shoe Shoe set automatically Pneumatic belt tensioning Pneumatic oscillation Pneumatically activated shoe (lub: Shoe activated by air blast – w zależności od kontekstu) Fodpfx Afow Dq Duspogh Electric table adjustment Two feed speeds Thickness gauge Abrasive paper: 1030x2100 mm

Condition: excellent (used), Year of construction: 2001, Description of the device working width 950mm Fgjdow Dq Dbspfx Afpeh calibrating unit with metal shaft combi unit with rubber shaft and shoe shoe pneumatically fitted star delta start pneumatic oscillation controlled by photocells two conveyor feed speeds engine power 11 kW year of manufacture 2001 power supply 400V weight 975 kg
