Condition: ready for operation (used), Year of construction: 1996, functionality: fully functional, machine/vehicle number: 040808, punching force: 220 t, sheet thickness copper (max.): 8 mm, overall weight: 11,050 kg, table width: 1,250 mm, table length: 2,500 mm, control type: CNC control, degree of automation: automatic, actuation type: hydraulic, TC500 R Punching Center with Sheetmaster Medium format 2500mm x 1250mm Standard tools are included with the machine. However, there is an extensive tool arsenal available, which is sold separately. Also available: a Quick Sharp and Multiset. The machine and basic tool set can also be purchased as a package. Price is negotiable in this case. We are selling our used Trumpf TC 500R Punching Center. The reason for the sale is that the machine has hardly been in use for years and we need the space. This is a complete punching center with Sheetmaster and waste disposal unit. We acquired the machine in 2008. At our facility, it has only ever been operated up to a maximum of 2 shifts per week. Since 2015, it has been used more or less once a month, as the products it was used for are no longer required. Hnodpfx Ahex Th R Dsujg The machine is offered with a standard tool set and is fully functional. Additional tools and a Trumpf Quicksharp are offered separately.

Condition: good (used), Year of construction: 2008, operating hours: 53,992 h, functionality: fully functional, punching force: 18 t, total height: 2,252 mm, total width: 5,825 mm, total length: 6,000 mm, sheet thickness (max.): 6 mm, sheet thickness steel (max.): 6 mm, punching diameter: 76 mm, overall weight: 12,000 kg, space requirement width: 6,500 mm, space requirement length: 6,500 mm, space requirement height: 2,252 mm, Equipment: safety light barrier, Trumpf TruPunch 3000 – Excellent Condition | Exceptionally Well Maintained For sale is a Trumpf TruPunch 3000 in very good technical and visual condition. The machine has been serviced regularly, operated with care, and is in fully functional working order—ideal for precise and cost-effective punching operations. - Complete maintenance including low-pressure accumulator due in 2025 - Complete stripper bar system for the stripper clamp replaced in 2025 - Complete punch clamping system replaced in 2023 - Complete drag chain with hoses replaced in 2023 - IPC control computer fully replaced with new software in 2020 - Complete recirculation valve and pressure valve newly installed! The machine has never processed more than 3mm steel sheet. Most of the time, it was used for punching 0.8–2mm in DX51 or DC01 material. Highlights • ✅ Very well maintained & extremely reliable • ✅ Regular servicing per manufacturer specifications • ✅ High precision & repeat accuracy • ✅ Ready for immediate use – no investment required • ✅ TRUMPF’s renowned quality Technical Data (typical – further details on request) • Model: TruPunch 3000 Hnodsx Ryyxopfx Ahueg • Manufacturer: TRUMPF • Control: TruTops / TRUMPF CNC • Punching force: approx. 165 kN • Max. sheet format: approx. 1250 × 2500 mm • Max. material thickness: up to approx. 6.4 mm (steel dependent) Condition • Overall excellent condition • Very well maintained • No backlog of maintenance • Machine was exclusively operated in production under standard load (no overloading) Scope of Supply • Machine including standard equipment • Documentation • Tool holder / tools (per agreement) Inspection Viewing and test run available anytime by appointment. Transport and loading support can be provided upon request. The video shows this machine following a TruPunch 5000 in operation.

Condition: ready for operation (used), Year of construction: 2009, operating hours: 22,574 h, punching force: 20 t, total height: 2,082 mm, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,270 mm, overall weight: 13,000 kg, controller manufacturer: AMADA, controller model: AMNC-F, product length (max.): 4,165 mm, General Data Machine weight 13000 kg Measurements height 2082 mm Control Unit Brand AMADA Model AMNC-F Main Drive Punching force 200 Kn Hodex E Ecujpfx Ahueng Dimensions Machine Length 4165 mm Movement X-Axis Movement 2500 mm Y-Axis Movement 1270 mm This AMADA AC2510 NT + MP 250 was manufactured in 2009. It features a 51-station turret and can handle sheet sizes up to 1270 × 5000 mm, with a maximum thickness of 3.2 mm for mild steel. The machine includes a loading system MP 250, enhancing its efficiency. Consider the opportunity to buy this AMADA AC2510 NT + MP 250 CNC punching machine. Contact us for more information. Application Types Punching

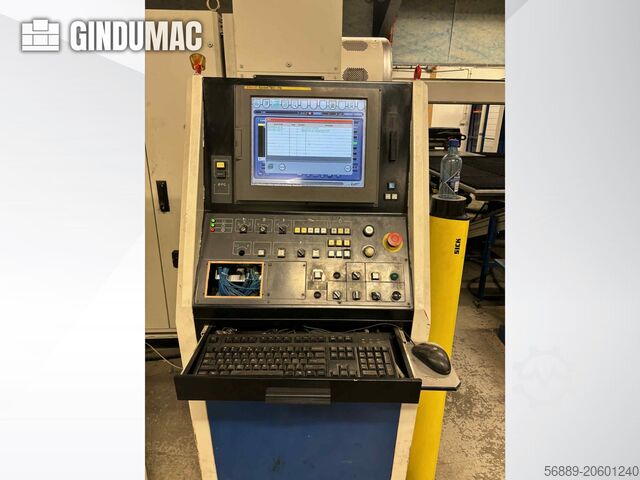

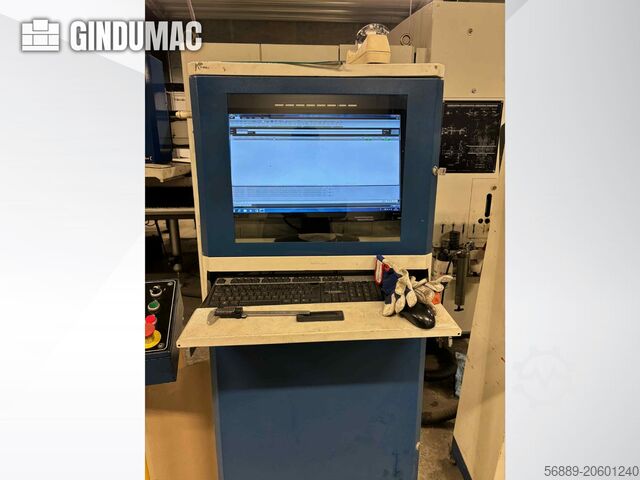

Condition: ready for operation (used), Year of construction: 2008, General Data Hnodpfxox Enlxs Ahusg Machine weight 21000 kg Table Table load 160 kg Main Drive Number of axis 2 Movement X-Axis Movement 2500 mm Y-Axis Movement 1525 mm This AMADA EMZ 3610 NT was manufactured in 2008. It features a press force of 300 kN, can handle material up to 4.5 mm thick, and supports a maximum table load of 160 kg. The machine includes 45 turret stations with auto-index and achieves a stroke rate of 1000 strokes/min. If you are looking to get high-quality punching capabilities consider the AMADA EMZ 3610 NT machine we have for sale. Contact us for more information. Application Types Punching

Condition: ready for operation (used), Year of construction: 2012, punching force: 18 t, total height: 2,252 mm, sheet thickness (max.): 6 mm, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,250 mm, controller manufacturer: BOSCH, controller model: MTX CMP70, product length (max.): 6,500 mm, General Data Measurements height 2252 mm Control Unit Brand BOSCH Model MTX CMP70 Dimensions Machine Length 6500 mm Movement X-Axis Movement 2500 mm Y-Axis Movement 1250 mm Main Drive Punching force 180 Kn Maximum sheet thickness 6.4 mm This TRUMPF TruPunch 3000 S11 was manufactured in 2012. It features a Bosch MTX CMP70 control system, with X/Y-axis travels of 2500 / 1250 mm, and can handle sheet weights up to 160 kg. The machine includes a linear tool magazine with 18 stations and offers functions like MultiTool, MultiBend, and thread forming. Consider the opportunity to buy this TRUMPF TruPunch 3000 S11 CNC punching machine. Contact us for more information about this machine. Hedpfx Ajx D Dkljhusng Application Types Punching

Condition: ready for operation (used), Year of construction: 2011, General Data Measurements width 4413 Measurements depth 5860 mm Measurements height 2263 mm Machine weight 14500 kg Hnsdpfxex D Dn De Ahusg Control Unit Brand BOSCHERT Main Drive Maximum sheet thickness 6 mm Movement X-Axis Movement 3430 mm Y-Axis Movement 2670 mm Z-Axis Movement 1500 mm Additional Equipment 8 Station Automatic Tool Change tooling, system TRUMPF Rotation with stepless Index (360°) of all tools Up to 64 Tools available (with Revotools) Very short time for tool change All standard Trumpf tools may be used Clamp system for automatic material handling with 2 clamps Stepless programmable clamp positioning Automatic repositioning of the clamps with 2 sheet hold downs for sheets up to 9999 mm This BOSCHERT Multipunch 1500 x 3000 was manufactured in 2011. A robust CNC punching machine, it offers precision and efficiency for your sheet metal operations. Ideal for a variety of punching applications, ensuring consistent performance. Contact us for more information. Application Types Punching

Condition: ready for operation (used), Year of construction: 2011, General Data Machine weight 21000 kg Main Drive Punching force 300 Kn Number of axis 2 Table Table load 160 kg Control Unit Brand FANUC Movement X-Axis Movement 2500 mm Y-Axis Movement 1525 mm This AMADA EMZ 3610 NT CNC punching machine was manufactured in 2011. It features a Fanuc control system, a punching force of 300kN, and a working area of 2500 x 1525 mm, extendable to 5000 x 1525 mm with repositioning. The machine can handle sheet thicknesses up to 4.5 mm and supports a maximum table load of 160 kg. If you are looking to get high-quality punching capabilities, consider the AMADA EMZ 3610 NT machine we have for sale. Contact us for more information. Hnjdox D Hpqspfx Ahuog Application Types Punching

Condition: used, Year of construction: 1999, Working area 4000 x 1500 mm Max pressure 30 ton No. of stations in turret 21 pcs. No. of indexing tool stations 10 pcs. Max. material thickness 8 mm Max. sheet size 3061 x 1528 m Hedpoxyiw Ajfx Ahujng Max. punch dia. 89 mm Control: Siemens Sinumeric 840 D Equipped with: 4 threading stations Automatic loading/unloading system

Condition: excellent (used), Year of construction: 2012, functionality: fully functional, punching force: 18 t, working range: 30,001,500 mm, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,600 mm, Very well maintained and fully serviced used Large format Trumpf 3000 cnc punch press for sale Manufacturer TRUMPF Type TruPunch 3000 (S11) Year 11/2012 Hodpexrnggofx Ahujng Working area 3000 x 1500 mm - without reposition Working range on cross-side (X-axes) 3000 mm Working range along (Y-axes) 1600 mm Large throat 1600 Complete with multi tool capability Type S11 Video available upon request

Condition: good (used), Year of construction: 2004, Used CNC punching machine from Finn Power Hjdpfx Ahoxphwyeujng Type: C5 Travel range X: 2580 mm Travel range Y: 1270 mm Punching force: 30 tons Including tools

Condition: ready for operation (used), Year of construction: 1998, functionality: fully functional, punching force: 28 t, workpiece length (max.): 1,000 mm, workpiece width (max.): 2,000 mm, TECHNICAL DETAILS Sheet width: 2,000 mm Sheet length: 1,000 mm Punching force: 28 t MACHINE DETAILS Machine weight: approx. 11,000 kg Hodew Suvvspfx Ahujng EQUIPMENT - Various tools

Condition: good (used), Year of construction: 2000, functionality: fully functional, punching force: 28 t, travel distance X-axis: 2,000 mm, travel distance Y-axis: 1,000 mm, TECHNICAL DETAILS Pressing force: 28 t X-axis: 2000 mm Y-axis: 1000 mm MACHINE DETAILS Hedpew Suu Sofx Ahujng Machine weight: approx. 11000 kg

Condition: as good as new (ex-display), functionality: fully functional, punching force: 20 t, overall weight: 12,000 kg, repeat accuracy: 0.1 mm, MOTORUM-2048TS CNC Turret Punch Press – New from Showroom ✅ CE Certification included We offer a MOTORUM-2048TS CNC turret punch press, never used in production and in showroom-new condition. Key features: Standard 44-station turret: 10 x XB, 16 x B, 6 x C, 4 x D, 1 x E, 1 x F, 1 x G, 1 x H (non-indexed) 1 set of 114-type punch holders for non-index stations Sliding die holders and urethane stripper for non-index stations 3 F-Index stations with dedicated 114-type punch holders Die holders and urethane strippers for each index station Hnjdpjwx N Tdjfx Ahuog 1 standard Varitool-Z punch holder (12 stations), complete with die holder and urethane stripper (punches and dies not included) Additional specifications: Brush table system for sheet protection Material distortion detection during processing Slug punch extraction unit for enhanced cleanliness Roller tool control function Standard NC memory: 1,280 m Integrated read/write device (LAN, USB, Compact Flash) Technical specifications: Punching force: 20 tons Maximum sheet thickness: 6.35 mm Maximum sheet size: Without repositioning: 1,250 x 2,500 mm With repositioning: 1,250 x 5,000 mm Number of turret stations: 44 Power supply voltage: 200V, three-phase, 50/60Hz (Note: Step-down transformer to match local power grid not included) Condition: ✔️ Showroom new ✔️ Ready for delivery

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, punching force: 22 t, sheet thickness (max.): 6 mm, travel distance X-axis: 2,000 mm, travel distance Y-axis: 1,250 mm, punching diameter: 76 mm, TECHNICAL DETAILS Sheet thickness - max.: 6.4 mm Pressing force: 220 kN Workpiece weight: 150 kg Punching diameter: 76.2 mm X-axis travel: 2,000 mm Y-axis travel: 1,250 mm Positioning speeds Positioning speed X-axis: 90 m/min Positioning speed Y-axis: 60 m/min Simulation positioning speed: 108 m/min Positioning speed rotary axis: 360 °/s Smallest programmable path dimension: 0.01 mm or 0.01° Tools Tool stations: 15 tools Tool change time: 1.5 - 6.5 s MACHINE DETAILS Hsdpfswur Dqox Ahusng Machine dimensions: 6,400 x 5,800 x 2,100 mm Machine weight: approx. 11,050 kg

Condition: ready for operation (used), functionality: fully functional, punching force: 16 t, sheet thickness (max.): 6 mm, travel distance X-axis: 2,070 mm, travel distance Y-axis: 1,280 mm, punching diameter: 76 mm, TECHNICAL DETAILS Punching force: 165 kN Working area: 2,070 x 1,280 mm Sheet thickness: 6.4 mm Workpiece weight: 150 kg Punch diameter: 76.2 mm X-axis: 80 m/min Y-axis: 55 m/min Hodpfx Aewur Aashusng MACHINE DETAILS Machine weight: approx. 8,000 kg Control: CC 220 EQUIPMENT

Condition: new, neu ca. 12 - 14 Wochen ab Auf Türkei 209800 € 3371.76 € 178400 € 20 to 2000x1250 mm 2000 mm 1250 mm 90 m/Min 70 m/Min 114 m/Min 1100 1/Min Hodpfxewirpco Ahujng 375 1/Min 1200 1/Min 6 mm 3 mm 3 mm 1.5 mm 27 0,1 mm 0,05 mm 30 U/Min 150 U/Min 100 kg 940 mm 6 bar 88.9 mm 7.5 kW 5600 mm 6600 mm 4200 mm 6200 mm 2310 mm 11000 kg SPECIAL CAMPAIGN UNTIL 23.12.2025 Control unit, Siemens Sinumerik 840 D SL CAD-CAM software Programming on the control panel Remote diagnostic function Automatic clamp positioning Network Ethernet communication Automatic tool lubrication UPS for control panel Movable scrap box Brush table Oil Cooler USB Driver Command pedal Web cam for service Reposition on X axis Alignment Tools for Index Stations C+B Station Manual nesting turret (27 stations without tool and holder): 11 x A-Station fix: 0,8-12,7 mm 10 x B-Station fix: 12,8 - 31,7 mm 2 x B-Station Index: 12,8 - 31,7 mm 1 x C-Station fix: 31,8 - 50,8 mm 1 x C-Station Index: 31,8 - 50,8 mm 2 x D-Station fix: 50,9 - 88,9 mm Infra-red light barriers according to CE rules

Condition: good (used), Manufacturer: LVD STRIPPIT Type: Global 20 FANUC Control: FANUC 180i-P Year of manufacture: 2006 Thick turret WILSON tool system Under power inspection possible Large package tooling WILSON Auto indexing rotation tools included Laser safety guids included Specifications Metric US standard Table load 150 Working area X axis 2500 mm Working area Y axis 1250 mm Working area X axis with takeover 5000 mm Punching force 20 T Max. sheet thickness 6 mm Hsdpfev Ic Tqex Ahueng Turret positions 30 Auto index. positions 4 Positioning speed X and Y axis 4500 mm/min. Turret change speed 900 rpm Dimensions (estimate) Length 6400 mm Width 5600 mm Height 2445 mm Weight 16500 kg Please note: The information on this page is correct to the best of our knowledge and belief and, where possible, has been obtained from the manufacturer. The information is given in good faith but its accuracy cannot be guaranteed. Accordingly, it will not constitute a representation and terms of contract. We recommend that you check all important details.

Condition: excellent (used), Year of construction: 2001, operating hours: 24,000 h, functionality: fully functional, WE OFFER AN VERY NICE CONDITION TRUMATIC 5000R PUNCHING MACHINE Hsdpfxjvuld Eo Ahusng WITH COMPLETE AUTOMATION MACHINE WILL BE AWAILIBLE IMEDIATELY

Condition: excellent (used), Year of construction: 2000, Used Trumpf Trumatic 200r CNC punch press for sale: Brand: TRUMPF Model: TRUMATIC 200 Year: 2000 Type: CNC Punching Machine Control:Bosch CC 220 Punching force (ton) 16.5 Movement X-axis (mm) 80 m/min Movement Y-axis (mm) 55 m/min Simultaneous positioning speed (X+Y m/min) 97 m/min Max. sheet thickness (mm) 6.4 Hnodpfx Ahovq N Ndsuog Tool changing time (sec.) 1.5-6.5 s Number of tool places 15 Max. hole diameter (mm) 76.2Max. workpiece weight (kg) 150 Max. stroke rate (1/min) 420 Picture of punch samples: 6mm aluminium

Condition: excellent (used), Year of construction: 2000, operating hours: 59,448 h, functionality: fully functional, WE OFFER AN VERY NICE CONDITION TRUMATIC 500 WITH COMPLETE AUTOMATION-SHEEMASTER Hodpfsvnzuaex Ahusng

Condition: good (used), Year of construction: 1990, functionality: fully functional, punching force: 22 t, sheet thickness steel (max.): 6 mm, Murata Weidemann C 2000 Hnodpfjtulrfsx Ahuog

Condition: good (used), Year of construction: 1998, Boschert TRI1500 x 2500 CNC Z TRUMPF quick tool change system Punching force: 280 kN (28 tons) Travel x- 2500 mm (repositioning up to 9999 mm) y- 1560 mm Hnedpsizctcofx Ahueg Punching arm throat: 1850 mm 3 punching heads tool system Trumpf Gr1-3(105mm) head 1-3 Control Labod 32040 graphic control / workshop programmable Max. Sheet thickness: 6 mm(clamp opening)/10 mm Lifting height: 40 mm up and down steplessly adjustable. Table width left + right: 2600 mm each Table depth: 1800 mm table height: 900 mm total width: 5282 mm total depth: 4500 mm total height: 2080 mm Driving power: 20 kVA Machine weight: 17.800 kg Hydraulic filling: 80 l Color: Blue /Light gray RAL7035 Machine year 1998 good condition / overhauled., New safety light barriers New memory module with USB/SD card and LAN with accessories
