FTS Frästechnik & Service GmbH

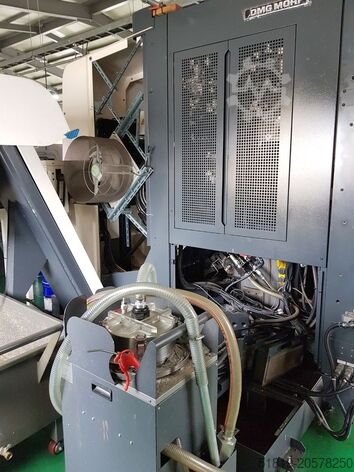

Condition: used, NZX 1500/800SY is a CNC Turning-Milling-Drilling Center with high precision, accuracy and reliability. Capacities: 2 turning spindles, 2 revolvers, swing diameter over bed 800 mm, max. turning Ø 320 mm, max. bar Ø 52 mm; travels Z 810 mm, X 210 mm, Y 110 mm (both carriages). Specs: spindle speeds 0–6000 t/min, spindle power 22/18.5 kW, driven tools power 7.5/5.5 kW, spindle nose JIS A2-5, spindle hole 61 mm; rapid traverse X 30 m/min, Z 50 m/min, Y 20 m/min; weight ~8100 kg; overall dims L4396×W2835×H2320 mm. Accessories: direct measuring system X axis, lamp, coolant system, coolant through counter spindle, loader interface, parts catcher, workpiece conveyor, chip conveyor. Delivers tight tolerances; typical applications: automotive, aerospace, medical, watchmaking and machine tools. Itodpfx Adexx U Tmo Dsp

Condition: good (used), Year of construction: 1986, controller manufacturer: TRAUB, controller model: TX 8, number of spindles: 1, CONTROLS .. CNC controls TRAUB TX 8 Itjdpfxjxxqbyj Ad Dop BASIC FUNCTIONS .. number of spindles: 1 .. number of x/z slides: 1 .. number of turrets: 1 .. live positions: yes .. number of c-axes: 1 WORKING RANGE TURNING .. swing diameter (max): 450 mm .. turning diameter (max): 350 mm .. bar diameter (max): 60 mm .. worpiece length max.: 490 mm MAIN SPINDLE .. spindle revolutions (max): 4000 /min .. c-axis: yes TOOL MAGAZINE .. number of positions: 12 ELECTRICAL SPECIFICATIONS .. total power consumption: 39 kW .. mains voltage: 400 V .. mains frequency: 50 Hz DIMENSIONS / WEIGHTS .. space requirements -left/right-: 3150 mm .. space requirements -front/back-: 2100 mm .. total height: 2100 mm .. total weight approx.: 4000 kg ATTACHMENTS (TURNING) .. tailstock: yes - Machine in good condition Features: - Complete tool holders (very comprehensive) - Includes driven tool holders - Documentation

Condition: good (used), Year of construction: 1990, Internal Article No.: 25075 CNC Lathe Mazak QT28N Year: 1990 Control: T32-2 The machine is equipped as follows: - Kitagawa B210 power chuck - Various tool holders - Measuring arm - Oil mist extraction + Machine accessories and documentation (Various top jaws for the power chuck, tool holders and inserts, documentation) Technical data: - Turning diameter: 320 mm - Turning length: 972 mm - Bar work up to max. diameter: 70 mm - Speed range: 30 – 3,000 rpm - Spindle bore: 80 mm - Turret: 8 stations / 16 positions Isdpfx Adexxk R Ij Dstp - Turret travel: x-axis: 200 mm z-axis: 1,020 mm - Tailstock travel: 835 mm - Quill taper: MT 5 - Quill stroke: 130 mm - Total connected load: 41 KVA - Machine weight: approx. 5,500 kg - Machine dimensions (LxWxH): approx. 350 x 200 x 200 cm

Condition: ready for operation (used), Year of construction: 2013, operating hours: 24,412 h, functionality: fully functional, turning length: 1,000 mm, turning diameter: 300 mm, travel distance X-axis: 235 mm, travel distance Z-axis: 1,144 mm, controller model: OSP P300L-R, TECHNICAL DETAILS X-axis travel: 235 mm Z-axis travel: 1,144 mm Turning length: 1,000 mm Turning diameter: 300 mm Swing over bed: 450 mm Turret: 12 positions – all driven Spindle speed: 45 – 4,500 rpm Spindle bore: 68 mm Tool holder: VDI 40 MACHINE DETAILS Control: OSP P300L-R Weight: 6,600 kg Operating hours: 24,412 h Ijdsxxi Ulspfx Ad Dstp EQUIPMENT Chip conveyor Chuck diameter 250 mm Touch setter Tailstock

Condition: used, Year of construction: 1998, controller manufacturer: Okuma, controller model: OSP7000L, _____ Description: Year of manuf. : 1998 Control : Okuma OSP7000L Turning diam. : 340 mm Turning length : 250 mm Mainspindle: Technology:Motorspindle Speed:4.500 rpm Power (max.):22 kW Barcapacity:65 mm Workpiecemeasurement:3-Jaw chuck, Kitagawa B-210 Toolcarrier I (X/Z): Technology:Turret with 12 Stations Taper:VDI40 Movement in X/Z:260/640 mm Iodpfx Adoxxftwj Dotp Rapid travers in X/Z:15/20 m/min Toolcarrier II (X/Z): Technology:Turret with 12 Stations Taper:VDI40 Movement in X/Z:140/615 mm Rapid travers in X/Z:15/20 m/min Equipment/Accessory: Chipmanagement:Chip conveyor :Coolingmanagement:; Coolant pump Toolmeasurement:Automatic Measuringarm Further Equipment:Trafo

Condition: excellent (used), Year of construction: 2015, 2-axis Mazak QT200 Smart Itsdpfx Asxxb T Hod Dep Year of manufacture: 2015 Z-axis travel: 560 mm Maximum turning diameter: 350 mm Spindle bore: 65 mm Kitagawa BB208 chuck Programmable tailstock Tool probe Parts catcher Bar feeder interface Only 3,500 operating hours With the machine: -documentation -chip conveyor, coolant tank and pump

Condition: used, Year of construction: 1995, LATHE DAEWOO PUMA 12 L CNC FANUC: O – T MAX. SWING DIAMETER: 570 mm MAX. TURNING LENGTH: 1,020 mm MAX. TURNING DIAMETER: 480 mm BAR CAPACITY: 90 mm Ijdpsxwvxnsfx Ad Dstp SPINDLE SPEED: 12 – 2,500 RPM ASA – 8 POWER CHUCK: 315 mm TRAVELS: X: 260 mm Z: 1,050 mm TOOL TURRET: 12 POSITIONS WEIGHT: 6,000 kg CHIP CONVEYOR

Condition: good (used), Haas ST-10 CNC lathe, year 2017. Itodpfx Asxwncxed Dep

Condition: excellent (used), Year of construction: 2015, functionality: fully functional, machine/vehicle number: E2A010, MACHINE SPECIFICATION Maximum swing over bed 440mm Itedpfx Adjxwk Spo Djp Maximum turned diameter 215mm X axis travel 187mm Z axis travel (max. turned length) 420mm Carriage inclination 60° (slant bed) Spindle centre height (from floor) 950mm Spindle nose A2-5 Hole through spindle 64mm Maximum spindle speed 4000 rpm Spindle motor 7.5kW X axis Ballscrew (diameter and pitch) 32mm x 10mm X axis rapid traverse rate 30 m/min Z axis Ballscrew (diameter and pitch) 32mm x 10mm Z axis rapid traverse rate 30 m/min Turret tooling type VDI 30 Turret stations 12 Approximate Weight 4000 Kg Machine Equipped with Fanuc 0i-TD CNC Control System Hydraulic 3 jaw chuck 170mm diameter 5 off toolholders Coolant system Lighting Interlocked guarding Manual

Condition: used, Year of construction: 2001, turning diameter 340 mm turning length 750 mm control SYSTEM TX 8H spindle passage 80 mm swing over plan sled 530 mm greates pass round over bed 665 mm turning speed range - main spindle 3.150 min/-1 drive capacity - main spindle 22 kW number of tool places 12 Pos. Itjdpfjxwdw Eox Ad Djp In our assessment, the machine is in good used condition and can be inspected under power by appointment. Two machines are available. Price per unit. Machine 1: - Images 1-5 - Operating hours approx. 55,790 h Machine 2: - Images 6-10 - Operating hours approx. 54,347 h Technical Features & Accessories: - Y-axis - Accessory package with rigid and driven tool holders - Chip conveyor Accessories, tools, and clamping devices shown are only included in the scope of delivery if this is noted in the additional information. Subject to changes and errors in the technical data and specifications, as well as prior sale!

Condition: good (used), Year of construction: 2005, functionality: fully functional, turning diameter over cross slide: 310 mm, turning length: 520 mm, turning diameter: 310 mm, travel distance X-axis: 210 mm, travel distance Z-axis: 610 mm, Sinumerik 810D Powerline with Shopturn CNC control 3-jaw chuck Schunk (diameter 210mm) 12-fold turret head (VDI 30 taper) C-axis driven tools tailstock coolant device chip conveyor Technische Daten / technical details: max. Umlaufdurchmesser über Bett / max rotary diameter over bed 600 mm max. Umlaufdurchmesser über Schlitten / max. rotary diameter over sledge 360 mm max. Drehdurchmesser / max. turning diameter 310 mm max. Drehlänge / max. turning length 520 mm Abstand zwischen den Spitzen / distance between centers 680 mm Isdpfx Adjxvy Ahs Djtp Planweg (x) / cross way (x) 210 mm Längsweg (z) / longitudinal way (z) 610 mm max. Stangendurchmesser / max bar diameter 65 mm Drehzahlbereich / spindle speed 0-4200 UpM /rpm Drehzahl angetriebene Werkzeuge / speed of driven tools 5000 UpM /rpm Werkzeugrevolver / turret head 12 fach /holes Eilgang x,z / rapid feed x,z 24,24 m/min Antriebsleistung Spindel / drive capacity spindle 18 kW Gewicht der Maschine ca. / weight 3900 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

Condition: excellent (used), Year of construction: 2000, CNC Lathe MAZAK SUPER QUICK TURN 200 Year of manufacture: 2000 Working area: Max. swing diameter: 525 mm Max. turning diameter: 350 mm Max. turning length: 514 mm Bar work up to max. diameter: 51 mm Main spindle: Speed range: 35 – 5,000 rpm Main drive power: 18.5 kW Constant torque: 333 Nm Spindle nose: A2 – 6 inch Spindle bore: 61 mm Turret: Standard version: 12 stations Travel: Turret travel: X-axis: 190 mm Z-axis: 535 mm Itodjxvb E Dopfx Ad Dep

Condition: excellent (used), CNC Lathe with y-axis DMG MORI - CTX BETA 800 4A MACH-ID 9282 Make: DMG MORI Type: CTX BETA 800 4A Iodpfexuqw Hox Ad Detp Control: Siemens 840 D-SL Year: 2012 Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: good (used), Year of construction: 2014, Swing over bed 660mm, maximum machining diameter 350mm, maximum machining length 1060mm, bar capacity 65mm, Iodpfxexup Nbe Ad Dstp spindle speed 5,000rpm, 12 station turret, Mazatrol Smart control, swarf conveyor, & 3 jaw chuck.

Condition: used, Year of construction: 2013, functionality: fully functional, HWACHEON - Cutex 160 B Offer Details Stock Number: 1039-9338 Machine Type: CNC Lathe Manufacturer: HWACHEON Model: Cutex 160 B Year of Manufacture: 2013 Control System: Fanuc Oi-TD Location: D-59302 Oelde Country of Origin: Korea Delivery Time: by arrangement Freight Terms: ex location Additional Information: CNC Lathe HWACHEON - Cutex 160 B Operating Hours: - Control on: approx. 26,932 h - Machining time: approx. 7,546 h WE OFFER YOU: - Workshop-inspected machines - Free loaded on truck - NO auction fee - Delivery possible (at extra cost) - Unloading and commissioning (at extra cost) Technical Details Turning diameter max.: 300 mm Turning length max.: 284 mm Control: Fanuc Oi-TD Swing diameter over bed: 550 mm Chuck diameter: 210 mm Spindle nose: A2-6 Main Spindle: Max. speed: 4,500 rpm Spindle bore: 62 mm Bar capacity: 51 mm Spindle bearing diameter: 100 mm Iedpfjxt N I Iex Ad Dotp Main spindle drive power: 11 / 7.5 kW Travel: X-axis travel: 170 mm Z-axis travel: 335 mm Tool Turret: Number of tool stations: 12 positions Tool size: Ø25 x Ø40 mm Feed Rates: Rapid traverse (X / Z): 36 / 36 m/min Tailstock: Quill diameter: 60 mm Quill stroke: 80 mm Tailstock taper: MT 4 Total power requirement: 25 kVA Machine weight approx.: 3.2 t Space requirement approx.: 8.5 x 2.5 x 2.0 m Accessories - Documentation - Chip conveyor - Coolant system - Tailstock - Signal lamp - Parts catcher - Hydraulic unit - 3-jaw chuck: SEOAM CAH-08 - Collet chuck: HAINBUCH nova size 65 - Tool measurement - Interface for bar feeder - Bar loading magazine: Breuning SIMAG 70.1-3000 - Various toolholders

Condition: excellent (used), Year of construction: 1982, functionality: fully functional, machine/vehicle number: 0748, turning diameter over cross slide: 330 mm, turning length: 3,000 mm, spindle bore: 63 mm, spindle motor power: 11,200 W, total length: 3,000 mm, overall weight: 3,250 kg, Equipment: documentation/manual, Clasic lathe with turning lenght of 3000mm and digital positioning controler. Isdpfx Adsxt D Ehj Djtp

Condition: ready for operation (used), Year of construction: 1996, functionality: fully functional, machine/vehicle number: TF250023, turning length: 1,100 mm, turning diameter: 320 mm, TECHNICAL DETAILS Turning diameter: 320 mm Turning length: 1,100 mm MACHINE DETAILS Control: SEICOS EQUIPMENT Tailstock Ijdpfx Adsxrc D Ts Djtp

Condition: excellent (used), Year of construction: 2008, Hwacheon Hitech 200B Year: 2008 Control: Fanuc OiTC Manual Guide Itodpfx Adsxqpi Hj Dop Good working machine Videos available

Condition: ready for operation (used), Year of construction: 1995, functionality: fully functional, Leadwell CNC lathe Model LTC - 20 AP Year : 1995 Working lenght : 550 mm. Max. working diameter : 300 mm. Spindle borer : 62 / 52 mm. Number of tools : 12 pcs. X-axis travel : 175 mm. Z-axis travel : 600 mm. Control : Fabuc O-T 3-jaw chuck Iodpjxqcqqofx Ad Djtp Tailstock Tool-Setter Tool posts Interface RS-232 C Tool locker Chip conveyer Coolant

Condition: used, Year of construction: 2021, DOOSAN LYNX 2100 LSYA Year of manufacture: 2021 Control: Siemens SINUMERIK 828D touch Turning diameter: 300 mm, Turning length: 510 mm, Axis travels: Z - 560 mm X - 205 mm Y - 105 mm Bar capacity: 51 mm, Hydraulic chuck: 6 inch 4500 rpm, 24-position turret, Spindle motor: 12.5 kW, Milling: 6000 rpm, 2x C-axis Sub spindle Itodpfx Aexny Axsd Dsp -part conveyor, -part catcher, tool probe, chip conveyor.

Condition: good (used), Year of construction: 2012, For sale is a ROMI C 420 cycle lathe, year 2012, Siemens control, extensive accessories. Iedpfexnr Nwox Ad Detp

Condition: ready for operation (used), Year of construction: 2003, functionality: fully functional, machine/vehicle number: 5746-01-358509.3, turning diameter: 280 mm, travel distance X-axis: 210 mm, travel distance Y-axis: 330 mm, controller model: OKUMA OSP-U100L, workpiece length (max.): 200 mm, No reserve price – guaranteed sale to the highest bidder! The payment deadline for the machine is 20.11.2025! Submitting a bid obligates you to collect the machine on time between 01.12.2025 and 05.12.2025! TECHNICAL DETAILS Swing diameter over bed: 320 mm Max. turning diameter: 280 mm Max. workpiece length: 200 mm Travel X: 210 mm Travel Y: 330 mm C axis (indexing): 360° Spindle speed: 40–4,000 rpm Spindle bore: 62 mm Number of tool positions in turret: 12 MACHINE DETAILS Control: OKUMA OSP-U100L Length of feeder conveyor: approx. 3,500 mm Dimensions & Weight Dimensions (L x W x H): 5,000 x 1,500 x 2,400 mm Weight: 6,500 kg EQUIPMENT Turret can accommodate driven tools Feeder conveyor Three pallets Itedpfexnlfrjx Ad Dop Note: The toolholders and tools visible in the working area, as well as the chuck, are not included in the scope of sale and delivery. Any oil mist extractor and pallets on the feeder conveyor visible in the photos are also not included in the scope of sale and delivery.

Condition: ready for operation (used), Year of construction: 2008, operating hours: 20,130 h, functionality: fully functional, machine/vehicle number: 02260008351, turning length: 600 mm, turning diameter: 324 mm, travel distance X-axis: 185 mm, travel distance Y-axis: 40 mm, travel distance Z-axis: 620 mm, No minimum price – guaranteed sale to the highest bidder! The payment deadline for the machine is November 20, 2025! Placing a bid obligates you to collect the machine within the scheduled collection period between December 1, 2025 and December 5, 2025! TECHNICAL DETAILS Turning length: 600 mm Swing diameter: 324 mm Travel X-axis: 185 mm Travel Y-axis: 40 mm Travel Z-axis: 620 mm Ijdpfx Adsxm Sxio Dstp Rapid traverse X-axis: 4 m/min Rapid traverse Y-axis: 7 m/min Rapid traverse Z-axis: 7 m/min Spindle bore: 72 mm Spindle speed (max.): 5,000 rpm Bar capacity: 45 mm Counter spindle speed (max.): 7,000 rpm Counter spindle bore: 57 mm Number of magazine tool stations: 12 Tool holder: VDI 40 Driven tool power: 12 kW Torque: 10.5 Nm Speed: 4,500 rpm MACHINE DETAILS CNC control: HEIDENHAIN iTNC 530 Dimensions & Weight Dimensions (L x W x H): 4,890 x 2,460 x 2,080 mm Total weight: 6,500 kg Operating Hours Spindle hours: 20,130 h Power-on hours: 50,305 h EQUIPMENT Documentation / manual 12 driven tools Tool package Belt filtration system Bar loader MKE HL 12 PN, year of manufacture 2008

Condition: excellent (used), Year of construction: 1970, turning length 300 mm Itsdpsxmahlofx Ad Djp weight of the machine ca. 0,4 t

Condition: used, Year of construction: 1997, turning length 1.000 mm swing diameter max. over bed cover 600 mm swing diameter above cross guideway 420 mm control Eltropilot Heidenhain travel -x axis 275 mm travel -z axis 1.065 mm turning speed range - main spindle 16 - 3.200 min/-1 power capacity - main spindel 27 kW max. Torque 800 Nm spindle diameter in front bearing 120 mm spindle bore 85 mm chucking diameter 260 mm spindle head 220H5 number of toolpositions 12 pos. Shank diameter 40 mm turret change time 0,8 sec. diameter of quill 100 mm quill stroke 120 mm taper of center MK 5 pressure center sleeve max. 950 daN rapid traverse X: 10 / Z: 15 m/min Feed force X: 500 / Z: 1.000 daN total power requirement 52 kVA weight of the machine ca. 7,5 t dimensions of the machine ca. 5,5 x 2,5 x 2,1 m Ijdpfx Adsxmagbs Djtp CNC-Lathe GILDEMEISTER - CTX 500
