Condition: ready for operation (used), functionality: fully functional, Grinding length: 600 mm Hfedpfxoz Ayrvs Ac Asl Grinding width: 250 mm Workpiece height: 450 mm Electromagnetic clamping table: 600 x 250 mm Grinding wheel diameter: 300 x 50 x 76.2 mm Spindle speed - stepless: 800 - 4200 rpm Total power requirement: 4 kW Machine weight: approx. 2.9 t

Condition: ready for operation (used), functionality: fully functional, grinding length, max. 600 mm Table clamping surface 600 x 200 mm Magnet dimensions 500 x 200 mm Maximum distance between table surface and center of the grinding spindle 495 mm Grinding wheel dimensions (D x b x d) 250 x 25 x 51 mm Hfedsz Ayqxspfx Ac Ajl Grinding spindle drive 5.5 kW

Condition: ready for operation (used), functionality: fully functional, grinding length 500 mm grinding width 200 mm workpiece height 250 mm table surface 600 x 200 mm grinding wheel dimensions 225 x 20 x 51 mm grinding spindle drive 1.5 kW table feed 1 - 20 m/min Hodpfxez Aynws Ac Aefl total power requirement 2.6 kW machine weight approx. 2 t machine dimensions approx. 2.6 x 1.6 x 1.8 m

Condition: excellent (used), Year of construction: 1989, Jung JF 520 Jung JF 520 surface grinding machine, manufactured in 1989 / 2019, mechanically overhauled, very good original condition. The machine comes from the technical department of a renowned German die-casting company. Technical data: Year of manufacture 1989 / 2019 Technical data Clamping area (L x W in mm) 600 x 200 Oversize grinding area (L x W in mm) 600 x 250 Magnet size max. mm 500 x 200 Grinding wheel dimensions max. mm 225 (250) x 25 x 51 Distance table/spindle center mm Max. 400 Table longitudinal feed, oscillating m/min 1 – 20 Creep feed mm/min 0 – 500 Grinding spindle drive, speed rpm 800 – 4200 Power kW (with creep feed) 1.6 – 2.2 Machine weight approx.: 2.0 t Accessories and equipment: Magnet Hodpoz Agz Refx Ac Asfl Coolant system Machine feet Grinding wheel About the machine: We offer a Jung JF 520 surface grinding machine, manufactured in 1989 / 2019, in very good condition. The machine is, of course, fully functional and has approximately 250 operating hours since its overhaul. All slides run very smoothly and evenly. Even at high speeds, the Jung runs very quietly. This newer generation of surface grinding machines is very user-friendly, and surfaces with a low Ra value can be produced. Take advantage of the opportunity to inspect this machine on site under power and see for yourself the condition of the machine. Video: Jung JF 520 You can find more surface grinding machines from well-known manufacturers on our website.

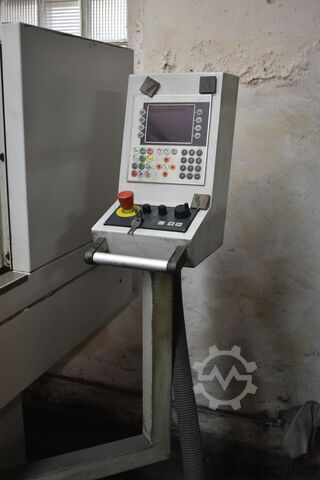

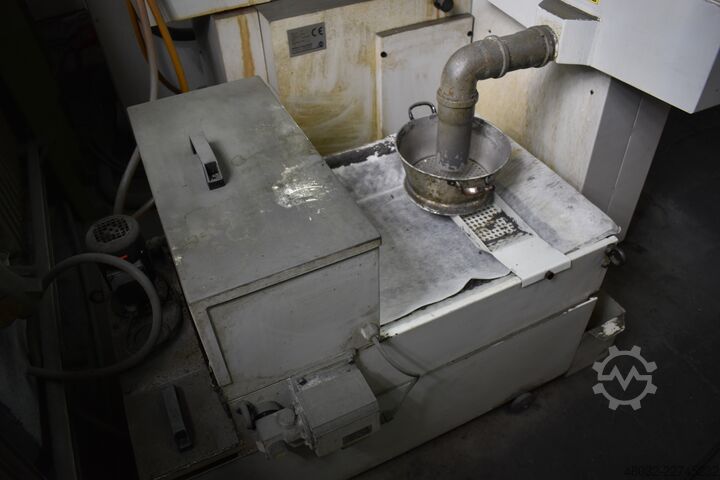

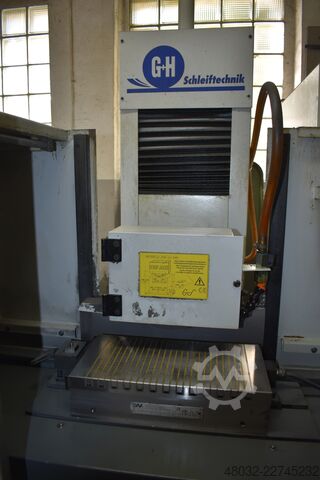

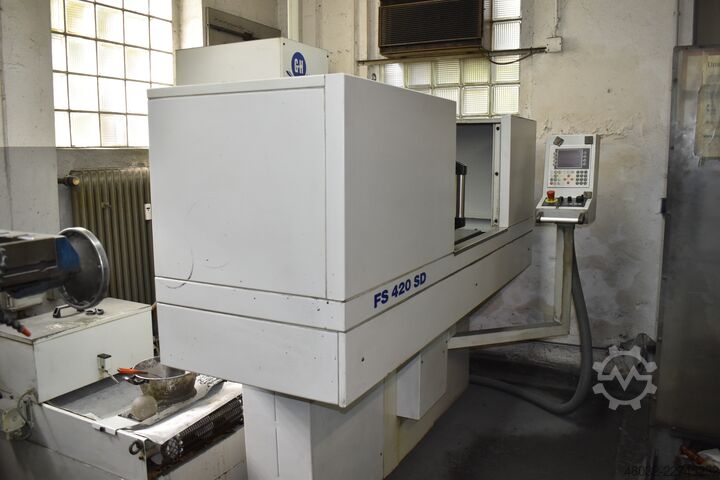

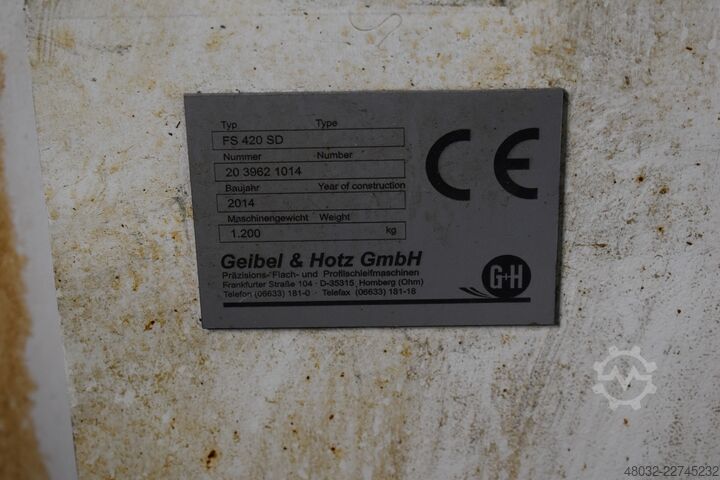

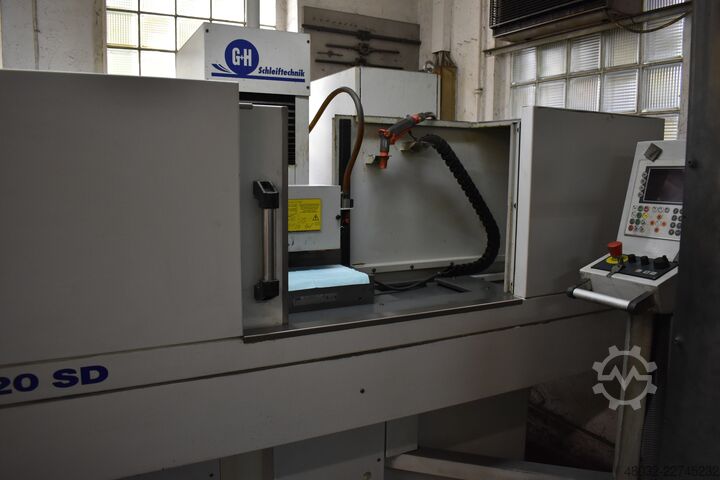

Condition: used, Year of construction: 2014, Surface grinding machine, Geibel + Hotz, type FS 420 SD. Hjdpfx Acez Affuo Asfl

Condition: ready for operation (used), Year of construction: 2005, total length: 600 mm, total width: 600 mm, 600x300mm travel range 600x300mm magnetic table Hedpszz N A Ijfx Ac Ajfl fully automatic

Condition: used, Surface Grinding Machine JONES & SHIPMAN 540 P Travel X: 480 mm Travel Y: 170 mm Travel Z: 405 mm Mounted grinding wheel diameter: Ø 140 mm Max Grinding wheel diameter: Ø 180 mm Manual magnetic tray Magnetic chuck dimensions: Length 250 mm x Width 160 mm Scale: 2 axes HEIDENHAIN Y and Z Serial number: BO 74221 Manual + automatic Z-axis ascent X and Y auto stepover Voltage: 380 V Width: 1500 mm Depth: 1200 mm Hodpfx Acjzzw Tzs Aofl Total height: 1800 mm Weight: approx 1,2 T

Condition: good (used), Year of construction: 2007, functionality: fully functional, Technical details grinding length 600 mm grinding width 400 mm workpiece height 375 mm workpiece weight 400 kg table longitudinal travel 650 mm table speeds 2 - 28 m/min table cross travel 400 mm speed 100 - 1000 mm/min grinding wheel size 300 x 50 x 76,2 mm grinding spindle drive 3,7 kW peripheral speed 10 - 32 m/sec Hodpfxszzw Rts Ac Aofl total power requirement 11 kW weight of the machine ca. 2,1 t dimensions of the machine ca. 2,95 x 2,65 x 2,47 m Additional information CNC Precision Surface Grinding Machine Table drive: hydraulic Cross-axis drive: electromechanical Electromagnetic plate: 600 x 400 mm with holding force control and automatic magnetic pole reversal for demagnetizing Features: Partially enclosed, open-topped loading compartment with a sliding door Cleaning kit for cleaning the work area with hand-held impulse nozzle Holder for prism arm with single-point diamond, MK 0 Grinding spindle speed control with V-constant controller Universal paper filter unit UPF 100, tank capacity approx. 280 liters Coolant pump: 20 liters/minute at 1.5 bar Machine light Without grinding wheels and flanges.

Condition: used, Control Siemens In our assessment, the machine is in good used condition and can be inspected under power by appointment. Accessories, tools, and clamping devices shown are included in the scope of delivery only if specified in the additional information. Hjdpezzrhtofx Ac Ajfl Subject to change, errors in technical data and specifications, and prior sale.

Condition: used, functionality: fully functional, Coolant system manufactured by JUNG, type HF 50. Hfsdpfxjzzpxvs Ac Aol

Condition: excellent (used), Year of construction: 2012, functionality: fully functional, Longitudinal travel, X-axis (mm) 600 Grinding width (mm) 400 Max. grinding height (mm) 500 Hsdpfx Aozzll Ssc Ajfl Clamping area (mm) 600 x 400 Grinding wheel (mm) 300 x 50 Power of grinding spindle motor (kW) 5.5 Manufacturer ELB Year of manufacture 2012 Control system ELB Comfort Type of control system CNC Total power requirement (kW) 23 kW Space requirement (mm) approx. 2,800 x 2,400 x 2,500 mm Weight (kg) approx. 4,000 kg Condition Good

Condition: used, Year of construction: 2017, Hydraulic flat grinding machine, Bernardo BSG 2040 TDC, used 🧰 Product features • Manufacturer: Bernado • Model: BSG 2040 TDC • Condition: Used, see photos • Color: blue-white • Year of manufacture: 06.2017 • Rated load capacity: 3500 kg • Weight: 1650 kg • Voltage: 400V 💰 Price: €5,900,- net, excluding VAT • Quantity discount: available upon request • Private sale: No minimum order quantity • Shipping costs: available throughout Europe upon request • Delivery time: Immediately available • Inspection and collection: possible at any time by appointment We constantly have over 5,000 linear meters of pallet racking from numerous manufacturers in stock. Hfsdpfx Acjzzdf Ds Ajl (Subject to changes and errors in technical data, information and prices, as well as prior sale! See our general terms and conditions, all prices excluding VAT, ex warehouse.)

Condition: used, Year of construction: 1989, total height: 2,120 mm, total length: 1,510 mm, total width: 1,390 mm, Colour: Green Empty weight: 1.200 kg - Year: 1989 - Documentation available: No - CE certificate present: No Hfodpfxezy Uums Ac Aol - Serial number: 660/89 - Drive system: Conventional - Power [kW]: 3.3 - Number of axes [pcs]: 3 - X-axis travel [mm]: 550 - Y-axis travel [mm]: 215 - Z-axis travel [mm]: 350 - Max. workpiece weight [kg]: 100 - Table width [mm]: 200 - Table depth [mm]: 500 - Magnet width [mm]: 200 - Magnet depth [mm]: 500 - Max. grinding wheel diameter [mm]: 225 - Max. grinding wheel thickness [mm]: 25 - Main spindle power [kW]: 2.2 - Max. spindle speed [rpm]: 2820 - Travel speed [mm/s]: 400 - Options: Digital readout - Transport dimensions: 1510mm x 1390mm x 2120mm (l x w x h) - Transport weight [kg]: 1200kg - Transport packages [pcs.]: 2 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: used, Year of construction: 1991, grinding length 600 mm grinding width 375 mm Hodpfjzycnnox Ac Aefl workpiece height 375 mm workpiece weight 300 kg table surface area 900 * 350 mm grinding spindle speed 1500 / 3000 U/min dimensions of grinding wheel 300 x 50 x 76,2 mm weight of the machine ca. 3,3 t dimensions of the machine ca. 3,1 x 2,6 x 2,1 m MICRO GRANIT has excellent properties for high-precision grinding machine construction. Damping properties: 1:10 ratio compared to gray cast iron, ensures the best grinding quality. Thermal behavior: suitable for grinding operations with µ tolerances. X-axis – table longitudinal movement: - Table switching: extremely quiet, contactless. - Quick adjustment: via cams. - Work table: Mehanit cast iron. - Guide system: two precision flat guides. - Lubrication: plastic coating. - Drive: hydraulic, automatic. - Table stroke: 100–250 mm. - Table speed: 40 m/min. - Switching: via cams, contactless. - Hydraulics: horizontal monoblock. - Table cycle: 30 min. Y-axis – Vertical adjustment of the grinding wheel: - Play-compensating mechanism: > ensures even contact with the guides. - Vertical movement: > via precision lead screw. - Drive: adjustable electric motor.

Condition: excellent (used), Year of construction: 1988, functionality: fully functional, grinding length: 600 mm, grinding width: 375 mm, grinding height: 375 mm, grinding wheel diameter: 300 mm, grinding wheel width: 50 mm, Equipment: documentation/manual, Very well-maintained ELB surface grinding machine with automatic feed Hodpfx Ajzxn H Hjc Aefl Type: Optimal 6375 ND Year of manufacture: 1988 Grinding area: 600 x 375 x 375 Grinding wheel: 300 x 50 x 76.2 mm Accessories: Magnetic chuck with adjustable holding force (600 x 350 mm), paper band filter system, operating manual.

Condition: defective spare-parts repository (used), For dismantling – spindle drive defective – without coolant system. Hjdezxmdwjpfx Ac Asfl

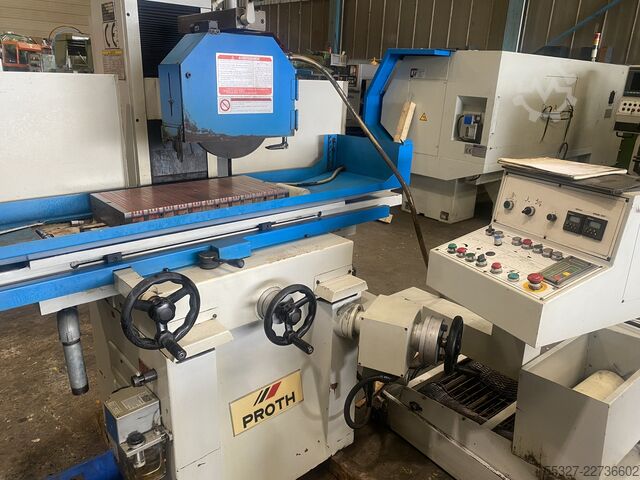

Condition: good (used), PROTH PSGS-3060AH surface grinder Grinding surface: 300 × 600 mm Cross travel × longitudinal travel: 340 × 700 mm Spindle center height above the table: approx. 500 mm Table longitudinal feed rate: 1 to 25 m/min Standard grinding wheel: Ø355 × 25 × Ø127 mm Hfjdpfx Acozxg Uve Aol Spindle speed: 1,500 / 1,800 rpm at 50/60 Hz Spindle motor: 2.2 kW / 3 HP Net weight: approx. 1,650 kg Dimensions of packaged machine: approx. 2.28 × 1.74 × 2.06 m

Condition: excellent (used), Year of construction: 2021, functionality: fully functional, machine/vehicle number: 2145027, grinding length: 800 mm, grinding width: 400 mm, workpiece weight (max.): 400 kg, grinding wheel diameter: 405 mm, distance table to spindle center: 550 mm, table length: 800 mm, table load: 400 kg, type of input current: AC, table width: 400 mm, overall weight: 3,250 kg, grinding spindle motor power: 6,800 W, input voltage: 380 V, space requirement height: 1,900 mm, space requirement length: 3,450 mm, space requirement width: 2,050 mm, NC Auto down feed system and Parallel dresser Handwheel Dimension of table (magnetic plate): 800 x 400 mm Distance: table - spindle head: 550 mm Table speed: 5-25 m/min Hedezxdh Tjpfx Ac Asfl Dimension of grinding wheel: fi 405 x 50 x 127 mm Motor power: 5HP Hydraulic pump motor: 2 HP Equipped with Easson SC-402 2-axis digital readout (DRO) for precise positioning Paper filter and magnetic separator Condition: Overall in very good condition

Condition: used, Year of construction: 1967, grinding length 450 mm grinding width 250 mm workpiece height 275 mm Hodpfxszwxxds Ac Aofl table surface area 550 x 200 mm distance spindle center to table max. 400 mm table speeds 0 - 30 m/min cross feed 0 - 60 mm/Hub rapid traverse cross 1,2 m/min grinding wheel size ø 250 x 30 x ø 51 mm grinding spindle speed 1400 / 2800 U/min total power requirement 4 kW weight of the machine ca. 1 t dimensions of machine L x W x H 1,55 x 1,23 x 1,80 m Accessories: magnetic plate 450 x 200 mm, grinding wheel with flange, wheel trueing attachment

Condition: ready for operation (used), Year of construction: 1988, Horizontal surface grinding machine Okamoto Type PSG 63 – UAN Year of manufacture: 1988 Grinding length: 600 mm Grinding width: 320 mm Max. workpiece height: 500 mm Table travel (longitudinal): 750 mm Hjdpfx Ajzwub Ujc Asfl Table travel (cross): 340 mm Grinding wheel diameter: 350 mm Grinding wheel width: 40 mm Spindle speed: 1500 rpm Rapid vertical feed: 400 mm/min Power: 3.7 kW Automatic feed Magnetic chuck Coolant system Weight: 2500 kg Price: EUR 2,000—plus VAT, ex location

Condition: used, Year of construction: 2003, CNC External Cylindrical Grinding Machine: total connected load 67 kW, voltage 3x400V 50Hz, nominal current 121A, weight approx. 9500 kg Hfsdozwf Uxjpfx Ac Asl Data Kelvin Chiller (Model KRA45): serial number 0304666, year 2003, cooling capacity 4500W Data Ritz Coolant Pump (Type F2506): serial number 3196140, manufactured in 1994, 2.9kW

Condition: used, Year of construction: 2003, Surface and Profile Grinding Machine table clamping surface approx. 600 x 250 mm grindable workpiece area (including 25 mm wheel width) approx. 600 x 300 mm max. permissible table load including magnetic plate approx. 130 kg Hedpezwfzlofx Ac Asfl height above floor approx. 1085 mm main spindle drive speed range 800-4200 rpm drive power 10 kW cutting speed 35 m/s grinding wheel diameter 300 mm, width 25/30 mm, bore 76.2 mm X-axis pendulum grinding travel speed (hydraulic, infinitely variable) 1000-24000 mm/min X-axis creep-feed grinding travel speed (AC servo motor) 5-1000 mm/min usable pendulum stroke 630 mm machine weight approx. 3400 kg, total weight approx. 3800 kg electrical supply 400V, 3-phase, 50Hz, rated current 30A, connected load 16kVA, supply fuses 35A

Condition: used, Year of construction: 2004, CNC Surface Grinding Machine CNC control Siemens Sinumerik with handwheel, GRIPS 32 control software spindle drive motor type MS501/5 machine weight approx. 2300 kg, total weight approx. 3500 kg electrical supply 400V, 3-phase, 50Hz, rated current 29A, connected load 20kVA, supply fuses 50A Table clamping surface (standard): approx. 500 x 250 mm, other sizes available upon request Grindable workpiece area incl. 25 mm wheel width: approx. 600 x 300 mm Grindable workpiece area with VJCE cover incl. 25 mm wheel width: approx. 600 x 290 mm Distance from table top to upper limit switch (Y) at 250 mm wheel diameter: approx. 366 mm Max. permissible table load incl. magnetic plate: approx. 130 kg Height above floor: approx. 1085 mm Main spindle drive speed range: 800-4200 rpm, other options available upon request Main drive power: 10 kW at max. rpm, option 5 kW at max. rpm Cutting speed: 35 m/s, other options available upon request Grinding wheel diameter: 300 mm, option 250 mm Grinding wheel width: 25/30 mm, option 50 mm Grinding wheel bore: 76.2 mm, option 50.8/51 mm available upon request Radial wheel wear allowance: approx. 45 mm X-axis pendulum grinding speed (hydraulic, infinitely variable): 1000-24000 mm/min X-axis creep-feed grinding speed (AC servo motor): 5-1000 mm/min X-axis travel between limit switches: approx. 660 mm X-axis usable pendulum stroke: approx. 630 mm Y-axis travel speed: 0.1-2000 mm/min Hfedpfxszwfmhs Ac Ajl Y-axis travel between limit switches: approx. 360 mm Y-axis measuring system resolution: 0.0002 mm Z-axis travel speed: 0.1-2000 mm/min Z-axis travel between limit switches: approx. 280/275 mm Z-axis travel between limit switches with JC/JCE cover: approx. 270/265 mm Z-axis measuring system resolution: 0.0002 mm Installation length: approx. 3400 mm Installation width: approx. 2700 mm Installation depth (without control pendant): approx. 2440 mm Machine weight without full enclosure and control cabinet: approx. 3000 kg Machine weight with full enclosure and control cabinet: approx. 3700 kg Supply voltage: 400V AC -5% to +10%, 50 Hz, option 60 Hz Control voltage: 230V AC / 24V DC Connected load at 5 kW / 10 kW grinding power: 13.5 / 20 kVA Fuse protection: 35 A Data Cooling Unit (Erba/Schüler): equipment no. 85056334 Data Cooling Unit (Hyfra Pedia TRK 20-EF): equipment no. 85056333, year 2004 Data Filter Unit (Airtech MFE 20-SP): serial no. 393196, year 06/2004, rated voltage 230/400V, rated current 3.0A

Condition: used, Year of construction: 2001, functionality: fully functional, OKAMOTO ACC 64 DX Surface Grinding Machine Year: 2001 TBC Servo Automatic Downfeed Hfedpfxozv Ef Uj Ac Aol 600 x 400.0mm WALKER HAGOU MAGNET Electromagnetic chuck Paper coolant filtration system

Condition: good (used), 1x electromagnet with coolant connection, 500 x 200 x height 125 mm, and 1x electromagnet without coolant connection. Items are sold individually. Hedszu S Utopfx Ac Ajfl
