Condition: used, Year of construction: 2004, pressure 80 t chamfer lenght 2550 mm distance between columns 2050 mm Stroke beam 350 mm max. opening beam/table 620 mm C-recess 420 mm traveldistance X1+X2 cnc programmable 700 mm Z1+Z2 axes controlled by cnc 0-2000 mm max. distance R-axes 200 mm Quick speed,inspeed 100 mm/sec Lodexyzzaepfx Agmorw bendingspeed 0-10 mm/sec opening speed 100 mm/sec Number of working hours 24000 h length 3380 mm width 1800 mm height 2750 mm weight 6100 kg total power requirement 9 kW dimensions of the machine ca. 3x2x2,5 m All machines can be viewed under power at all times. Demonstrations of the machines possible at any time.

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2000, bending force (max.): 85 t, stroke length: 215 mm, throat depth: 410 mm, distance between stands: 1,750 mm, working length: 2,050 mm, TECHNICAL DETAILS Press force: 85 t Bending length: 2,050 mm Distance between uprights: 1,750 mm Stroke: 215 mm Throat depth: 410 mm MACHINE DETAILS Control: DELEM Dimensions & Weight Machine dimensions (L x W x H): 2,700 x 2,100 x 2,400 mm Lredpexxq T Nefx Agmjw Weight: 7,900 kg EQUIPMENT Two-hand operation 2 support arms Side safety doors Lasersafe Fissler Wila tool clamping system Die shifting Crowning Tool cabinet

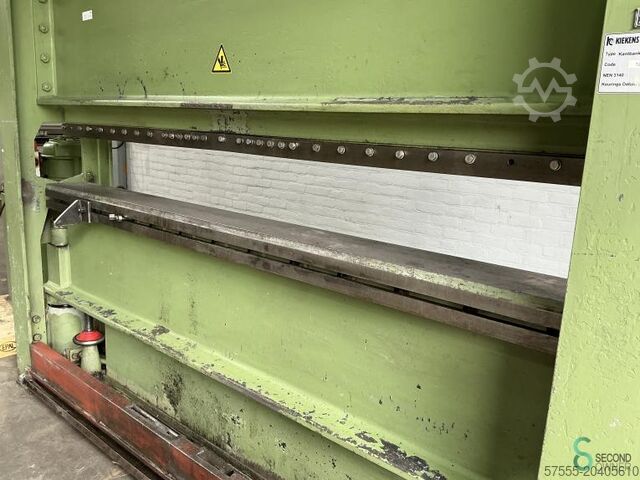

Condition: ready for operation (used), Year of construction: 1972, Pressing force: 75 t max. working width: 2500 mm clear distance between uprights: 2160 mm throat depth: 400 mm max. installation height without tool: 300 mm Ledexvx D Djpfx Agmorw stroke: 100 mm working speed approx.: 7.5 mm/s hydraulic drive: 380 V, 5.5 kW weight: 3.8 t required space: 2550 x 1555 x 2020 mm

Condition: used, total length: 3,000 mm, total width: 600 mm, total height: 2,130 mm, Weight: 2.500 kg - Documentation available: No - CE certificate present: No - Serial number: 2439 - Drive system: Conventional - Press force [ton]: 83 - Max. working width [mm]: 2500 - Column gap [mm]: 2700 - Crowning system: None Lredpfxjxr Dnmj Agmjw - Punch holder: Standard - Transport dimensions: 3000mm x 600mm x 2130mm (l x w x h) - Transport weight [kg]: 2500kg - Transport packages [pcs.]: 3 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: used, functionality: fully functional, Year of construction: 1970, control type: manual, bending force (max.): 75 t, working width: 3,000 mm, oil tank capacity: 150 l, Equipment: lower tooling, upper tooling, well-preserved Colly press brake, slight leakage at the right cylinder Lredpfxjxpn Ewe Agmjw

Condition: good (used), functionality: fully functional, Year of construction: 1988, Used Safan 3 meter CNC press brake Type: DNCS 80 3100 Capacity: 3100 x 80 tons Lodpfx Agexphynjmjrw New ESA CNC control + new internal computer + new rulers 1 set of tools

Condition: good (used), Year of construction: 2001, working width: 2,500 mm, overall weight: 6,800 kg, Equipment: european tool clamping system, Press Brake Darley EHP-LT80 Pressing force: 80 tons Working length: 2500 mm Year of manufacture: 2001 Machine weight: 6800 kg Control: Delem 69 Lrsdpfx Asxnxdbegmsw No tools included, compatible with Amada tools

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2004, machine/vehicle number: P-1843, actuation type: hydraulic, controller model: Siemens Sinamics G110, bending force (max.): 80 t, overall weight: 5,500 kg, TECHNICAL DETAILS Bending force: 80 t Lowering speed: 80 mm/s Safety distance: 1,500 mm MACHINE DETAILS Control: Siemens Sinamics G110 Dimensions & Weight Dimensions (L x W x H): 2,800 x 2,150 x 2,700 mm Machine weight: 5,500 kg Lsdpfx Aexlthcogmsrw IP protection class: 54

Condition: used, functionality: fully functional, Year of construction: 2013, Pressure: 80 t Bending length: 2500 mm Stroke: 200 mm Accessories/Equipment: Lodpfx Aexfh Svsgmsrw – 2 support arms in front of the machine – Light barrier in front of the machine – Foot switch

Condition: used, Year of construction: 1986, - incl. various bending tools - year of manufacture: 1986 Lrsdpfx Agexdc A Hsmow Specifications - Capacity: 800 kN - Bending length: 2550 mm - Throat depth: 250 mm - Passage: 2050 mm - Stroke: 140 mm - Stopping time: 140 ms - Backgauge travel: 600 mm - Operating pressure: 300 bar - Motor power: 5.5 kW - Operating voltage: 400 V - Dimensions (W x H x D): approx. 3400 x 2600 x 1300 mm - Weight: 4800 kg

Condition: used, Year of construction: 1995, pressure 80.0 t chamfer lenght 2050 mm distance between columns 1550 mm column arm 250 mm table width 85.0 / 135 mm stroke ca. 390 mm dayligth ca. 585 mm ajustment speed 180 mm/sec working feed 1.0 - 10.0 mm/sec return speed 135 mm/sec work height max. 1050 mm Number of working hours 32.495 h oil volume 200 l operating pressure 320 bar total power requirement 11.6 KW weight of the machine ca. 7300 kg range L-W-H 3700 x 2000 x 3000 mm Good/well-maintained condition (!!) - in checked conditions - machinevideo - ?v=IKyUmzB0WTI ----- Lodpexachusfx Agmjrw CNC electro-hydraulic press brake with: * Increased installation height .. approx. 550 mm * Increased cylinder stroke .. approx. 390 mm ----- Features: - Robust electro-hydraulic press brake * MADE IN GERMANY (!!) - CYBELEC CNC control "DNC 904 PS-A" (SN 0332) * Pivoting, front right * High-resolution graphic display * Clear, easy-to-read menus in the operator's language * Large tool and product library * Graphic 2D programming * Automatic bending sequence calculation - CNC-controlled axis adjustment: Y1+Y2 / X / R axes - CNC electro-motorized backgauge (X axis) * With 4 manually adjustable stop fingers - CNC Electric height adjustment (R axis) - WEINBRENNER electro-hydraulic upper tool clamp - WEINBRENNER electro-hydraulic lower tool clamp - 1x freely movable 2-hand/foot control - 2x front, movable support arms - Side safety device (swinging doors) - Rear safety device (swinging doors) - Machine/control manual + circuit diagram

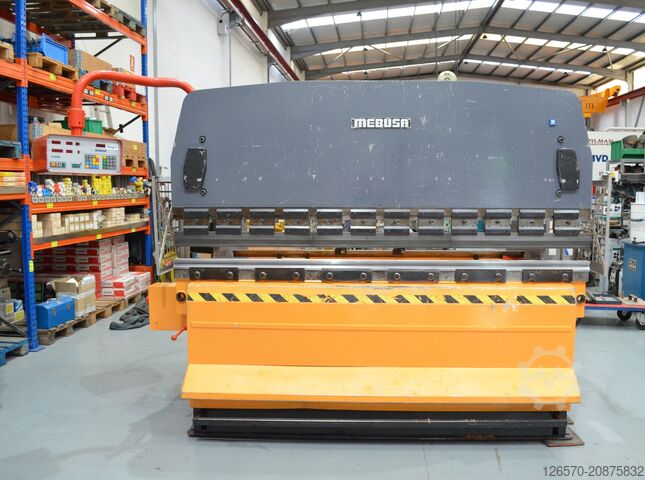

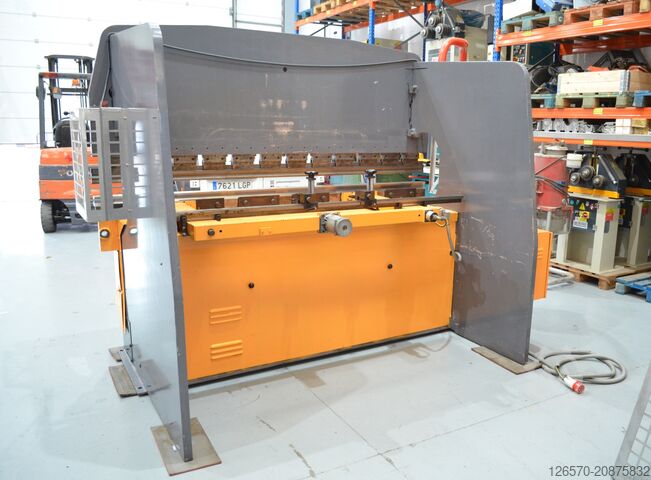

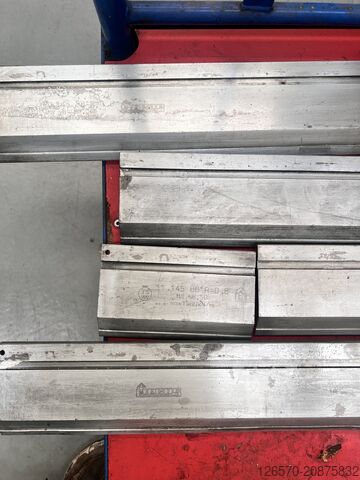

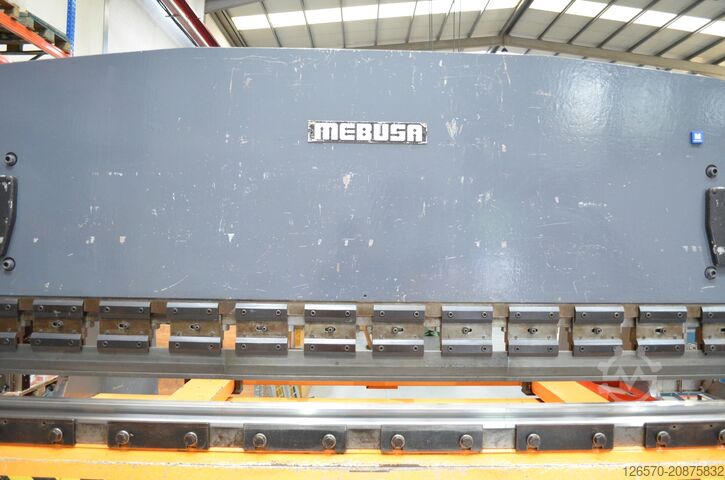

Condition: used, Year of construction: 2008, pressure 90.0 t chamfer lenght 3100 mm distance between columns 2600 mm column arm 410 mm ajustment speed 100 mm/sec working feed 10.0 mm/sec return speed 100 mm/sec back stop - adjustable max. 750 mm stroke 260 mm dayligth 460 mm table height 880 mm oil volume 200 ltr. Number of working hours ca. 47.100 h total power requirement 7.5 kW weight of the machine ca. 7500 kg. range L-W-H 4250 x 1800 x 2450 mm good condition - with 1x set of new bending tools (!!) current new price approx. 80.000 euros special price on request - in checked condition - machine video - ?v=Xlb8EgQ8088 Equipment: - electro-hydraulic CNC press brake - with DELEM CNC control model DA 66W * graphic 2D programming * automatic bending sequence calculation and collision detection * high-quality color LCD screen (TFT) - swiveling operation, front left - CNC controlled axes: Y1 + Y2 + X + R Lsdpfx Agjxacdcsmsrw - CNC electro-motorized back stop (X axis) * with 4x manually adjustable stop fingers - CNC electro-motorized height adjustment of the back stop (R axis) - manually adjustable table crowning * including analogue value display * including hand crank for adjustment - AMADA upper tool Quick-change clamping * including crowning device in the tool holder - AMADA die adapter rail, bottom - 2x front, movable support arms ("sliding" system) - side protective device (swinging doors) - rear protective device (sliding door) - 1x freely movable 2-hand/foot control - Operating instructions (PDF) Special accessories included: - 1x NEW split set of upper tools (4x 835 mm) * Angle 85° / Radius R 0.8 mm / Height 66.5 mm - 1x NEW split set of lower tools (4x 835 mm) * V openings: 16/22/35/50 mm * Height 60.0 mm / Angle 85° / Material=C45

Condition: used, Year of construction: 2000, pressure 85.0 t chamfer lenght 2050 mm distance between columns 1650 mm column arm 400 mm stroke 240 mm dayligth 320 - 560 mm ajustment speed 150 mm/sec working feed 15.0 mm/sec return speed 150 mm/sec back stop - adjustable 5.0 - 1000 mm table width 110 mm work height max. 1050 mm operating pressure max. 297 bar compressed air 4.5 - 6.0 bar oil volume 200 l operating pressure 340 bar total power requirement 7.5 kW weight of the machine ca. 5900 kg range L-W-H 4100 x 2100 x 2750 mm Lsdsxab Ugepfx Agmsrw with increased installation height / piston stroke well-maintained condition (!!) - in checked condition - machine video - ?v=ikl6RNZWeiU Equipment: - CNC electro-hydraulic press brake - including CYBELEC CNC control * swiveling control panel at the front right * external screen - CNC axis adjustment: Y1 - Y2 - X - R - Z1 - Z2 - I + CNC crowning - CNC electro-motorized back stop (X axis) * Travel range .. 5.0 - 1,000 mm * Travel speed .. 250 mm/sec. - CNC electro-motorized height adjustment of the back stop (R axis) * Travel range .. 70 - 235 mm * Travel speed .. 100 mm/sec. - CNC electro-motoric adjustment of the stop fingers (Z axes) * Travel range Z1 .. 405 - 1.565 mm * Travel speed .. 1.000 mm/sec. * Travel range Z2 .. 485 - 1.645 mm * Travel speed .. 1.000 mm/sec. - CNC electro-motoric table crowning - CNC pneumatic die displacement (I axis) - EHT pneumatic tool clamping - upper tool - EHT manual tool clamping - lower tool * Tool holder 90.0 mm + 13.0 mm possible - 1x freely movable 2-hand/foot control - 2x front, stable support arms including "sliding system" - side protective device (swinging doors) - rear protective device (swinging door) - original operating instructions + circuit diagram etc. * Special accessories included: - Oil cooler for use in continuous operation

Condition: used, Year of construction: 1991, pressure 75.0 t chamfer lenght 2600 mm distance between columns 2100 mm stroke of upper beam 100 mm throat 200 mm dayligth 280 mm working feed 8.0 mm/sec return speed 55.0 mm/sec 330 bar Control konv. work height max. 840 mm total power requirement 7.5 kW weight 4700 kg range L-W-H 2900 x 1450 x 2100 mm from a prototype construction In good condition (!!) - in checked conditions - machinevideo - ?v=3KZF0BT8dOQ Features: - Simple electro-hydraulic press brake, including torsion bar - Pivoting control panel, front left - Electro-motorized + stepless depth adjustment (Y1 + Y2 axes) - Manually adjustable material backgauge * Manually adjustable with hand crank - from the front * Includes analog position indicator * 2 manually adjustable stop fingers Lrsdpfx Agoxabwbjmjw - 1 split pointed upper tool set - "HACO" holder - 1 rotating MULTI V die block (lower tool) - Side guard (pivoting doors) - 1 freely movable double foot switch - 2 sturdy front material support arms (homemade) - Operating instructions (PDF)

Condition: ready for operation (used), Year of construction: 1996, pressure 80.0 t chamfer lenght 2550 mm distance between columns 2130 mm column arm 420 mm ajustment speed 100 mm/sec working feed 10.0 mm/sec return speed 80.0 mm/sec stroke 200 mm dayligth 470 mm table width 60.0 mm table height 910 mm Ljdpfxjxabnyj Agmsrw Number of working hours ca. 37.102 h total power requirement 9.0 KW weight of the machine ca. 5750 kg range L-W-H 3100 x 2180 x 2540 mm good / well-maintained condition (!!) - Inspected condition - Machine video - ?v=fwdjSiQYq_A Equipment: - CNC electro-hydraulic press brake - OPERATEUR CNC control for 8 axes X1 + X2, Y1 + Y2, R1 + R2, Z1 + Z2 - CNC-controlled backgauge adjustment (X-axes) - CNC-controlled vertical adjustment of the stop fingers (R-axes) - CNC-controlled left-right adjustment of the stop fingers (Z-axes) - Freely movable two-hand control & foot switch - Tool crowning - AMADA type - Various tools - CE marking - Side guards (hinged doors) - Rear guards (hinged door) - 2x emergency stop buttons at the front - Operating instructions

Condition: used, Year of construction: 1998, pressure 85.0 t chamfer lenght 2050 mm distance between columns 1750 mm column arm 410 mm stroke 365 mm dayligth 535 mm ajustment speed 200 mm/sec working feed 1.0 - 10.0 mm/sec return speed 135 mm/sec back stop - adjustable max. 600 mm table width 120 mm work height max. 1050 mm Number of working hours 28.500 h oil volume 200 l operating pressure 340 bar total power requirement 14.0 kVA weight of the machine ca. 9050 kg range L-W-H 2680 x 2100 x 2885 mm with increased installation height / piston stroke very well maintained condition (!!) with only approx. 28.500 operating hours - in checked condition - machine video - ?v=ZuwyPKJSYLw Equipment: - CNC electro-hydraulic press brake Ledoxaa Uropfx Agmsrw - including DELEM CNC control * swiveling control panel at the front left - CNC controlled axes: Y1 - Y2 - X - R - Z1 - Z2 - I + CNC crowning - CNC electro-motorized back stop (X axis) - CNC electro-motorized height adjustment of the back stop (R axis) - CNC electro-motorized adjustment of the stop fingers (Z axes) - CNC pneumatic die displacement (I axis) - CNC motorized table crowning - WILA electro-hydraulic upper tool clamping - WILA electro-hydraulic Lower tool clamp - 1x freely movable 2-hand / foot control - 2x front, stable support arms including "sliding system" - side protective device (swinging doors) - rear protective device (swinging doors) - bending tool storage cabinet (right front, side) - original operating instructions + circuit diagram etc. further technical data: - feed speed X axis .. 500 mm/sec. - feed speed R axis .. 300 mm/sec. - feed speed Z axis .. 1000 mm/sec. - travel range X axis .. max. 600 mm - travel range R axis .. max. 250 mm

Condition: new, pressure 80.0 t chamfer lenght 2600 mm distance between columns 2200 mm column arm 250 mm ram stroke speed 90.0 mm/sec work speed 7.5 mm/min return speed 60.0 mm/sec work stroke 160 mm dayligth 380 mm table height 900 mm oil volume 150 ltr. voltage 400 Volt weight 5227 kg range L-W-H 3750 x 1950 x 2400 mm Furnishing: - DELEM - CNC control model DA-58T Ledpfsxaafwex Agmsrw - controlled axes: Y1 - Y2 and X - AKAS laser in front of the machine - manual crowning - Upper tool, deer foot - Lower tool, die block with 4Vs - SICK light barrier behind the machine - 2 front support arms - SIEMENS - electrical system - BOSCH / HOERBIGER hydraulic system - CE mark / declaration of conformity - Operating manual: machine and control - Safety manual: press brakes

Condition: ready for operation (used), functionality: fully functional, Year of construction: 1987, machine/vehicle number: 13597, working width: 6,200 mm, back gauge adjustment: CNC-controlled, back gauge: 1,000 mm, overall weight: 49,500 kg, power: 30 kW (40.79 HP), input voltage: 400 V, sheet thickness (max.): 20 mm, sheet thickness aluminum (max.): 20 mm, sheet thickness steel (max.): 20 mm, sheet thickness stainless steel (max.): 12 mm, HYDRAULIC GUILLOTINE SHEAR LVD MVCSB 62/20 MNC 85 YOM 1987 SN: 13.587 - Max plate thickness: 20mm ST45 Lredjw T Sqaepfx Agmsw - Cutting length: 6200mm - GAP : 300mm - Stroke back guagel: 1000mm - tank: 650 liter - V: 3x400V - P: 30kW - Pomp: Vickers 25VQ 21A 1A 20 TRANSPORT Weight : 49500kg LxWxH: 7950mm x 3000mm x 3720mm VIDEO AVAILABLE

Condition: excellent (used), functionality: fully functional, Year of construction: 1996, MACHINE WAS FULLY SERVICED AND ITS READY TO WORK. TECHNICAL DATA 850KN FORCE 85 TON Lsdpfx Aew R E Akogmorw MAX GAP 215mm max lenght 2500mm

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2013, control type: CNC control, actuation type: hydraulic, bending force (max.): 80 t, working width: 2,500 mm, stroke length: 200 mm, TECHNICAL DETAILS Pressure: 80 t Bending length: 2,500 mm Stroke: 200 mm MACHINE DETAILS Control: CNC EQUIPMENT 2 support arms in front of the machine Ledpsw Rcgasfx Agmsrw Light curtain in front of the machine Foot switch

Condition: good (used), Year of construction: 1987, bending force (max.): 80 t, working width: 2,550 mm, stroke length: 105 mm, throat depth: 300 mm, distance between stands: 2,020 mm, overall weight: 4,000 kg, total length: 2,700 mm, total width: 1,500 mm, total height: 1,900 mm, power: 4 kW (5.44 HP), Bending length 2550 mm, capacity 80 to, gap between column 2020 mm, stroke 105 mm, throat gap 300 mm, motor 4,0 KW, back gauge 400 mm, control EMS MMP, dimension 2700x1500x1900 mm, weigth ca. 4000 kg, 2 cabinet with tools Lodpfow Nyh Sjx Agmorw

Condition: used, functionality: fully functional, Year of construction: 2001, Press force 85 t, Bending length 2050 mm, Distance between uprights 1750 mm, Control DELEM, Stroke 215 mm, Throat depth 410 mm, Total power 13 kW, Weight 8,750 kg, Machine dimensions 3190 x 2100 x 2375 mm Ledpfx Aew Imq Regmerw

Condition: excellent (used), Year of construction: 1998, Model Amada APX 8025 8 Axis CNC Hydraulic down stroking Press Brake with Operateur II 7 axis CNC control Erwin sick machine mounted light screen guarding system year 1998 stock no. 01834 specification 80 TONS CAPACITY X 2500 7 AXIS CNC CONTROL HYDRAULIC UPSTROKING PRESS BRAKE description TYPE HYDRAULIC UPSTROKING CONTROL OPERATEUR 2 Ledpfewybcyjx Agmjrw BENDING PRESSURE 80 TONS BENDING LENGTH 2500 OPEN HEIGHT 370 STROKE LENGTH 100 THROAT DEPTH 400 TABLE WIDTH 60 NO. OF AXIS 7 AXIS CONFIGURATIONS 1-X YI-Y2 RI-R2 Z1-Z2 GUARDS ELECTRONIC SIDE FENCING REAR INTERLOCKED MACHINE HEIGHT 2300 MOTOR POWER 7.5 KW

Condition: ready for operation (used), functionality: fully functional, Year of construction: 1994, working width: 2,500 mm, pressing force: 80 t, table width: 60 mm, TECHNICAL DETAILS Pressure: 80 t Bending length: 2,500 mm Table width: 60 mm Working height: 960 mm Ljdpfx Ajwmdf Djgmorw Dimensions and clearances Clearance between columns: 2,160 mm Clearance between press beams: 370 mm Thrust: 400 mm Weight Machine weight approx.: 5,000 kg

Condition: good (used), Press Brake AMADA Brand Lrsdpfx Agowivddemew Type HFT 80/25 Capacity 2500 x 80T Distance between uprights 1800mm Dimensions 3500 x 1500 x 2100 Weight 6.5T Equipped with new and used tools
