Condition: used, Year of construction: 2006, x-travel 4000 mm y-travel 1200 mm z-travel 1000 mm Control Heidenhain type iTNC 530 milling-head swivable +/- 90 ° spindle taper ISO 50 table surface area 4200x1000 mm Rapid movement 10.000 mm/min spindle 28 kW turning speeds 50-4000 U/min transmission ratio 2 total power requirement 70 kW weight of the machine ca. 21,4 t Head 2 axis control Bwsdpoyqv Abjfx Ah Isi The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

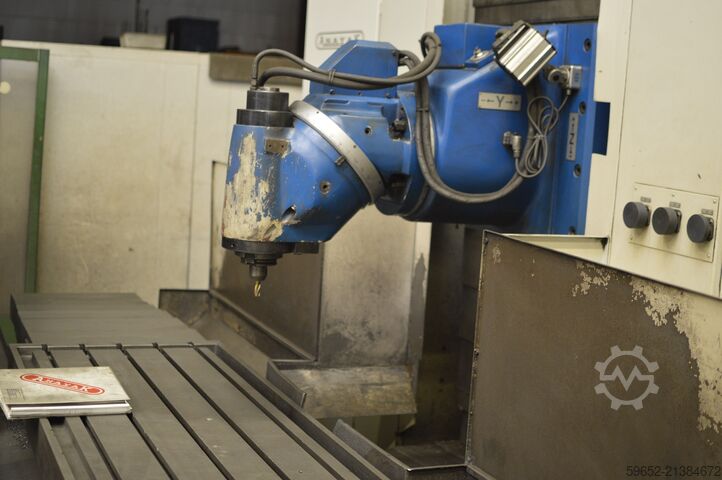

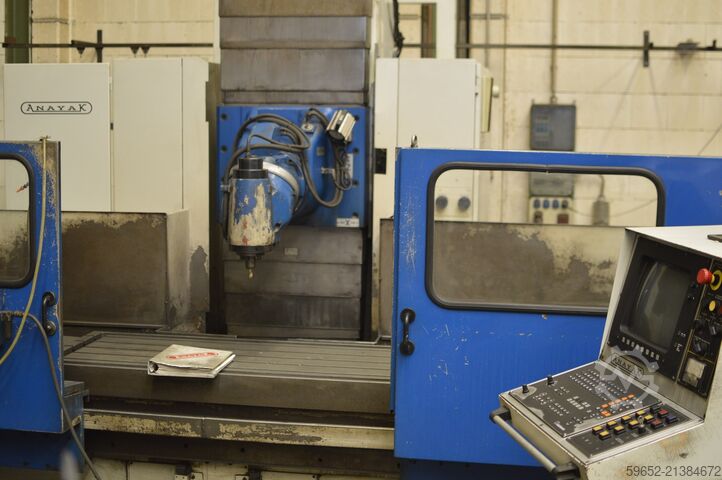

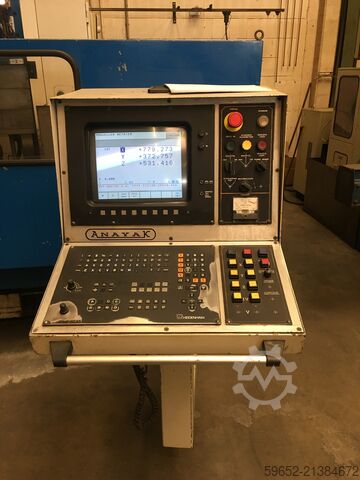

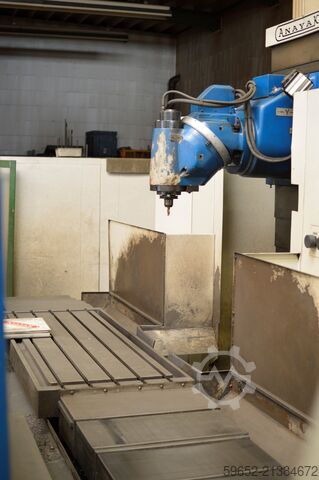

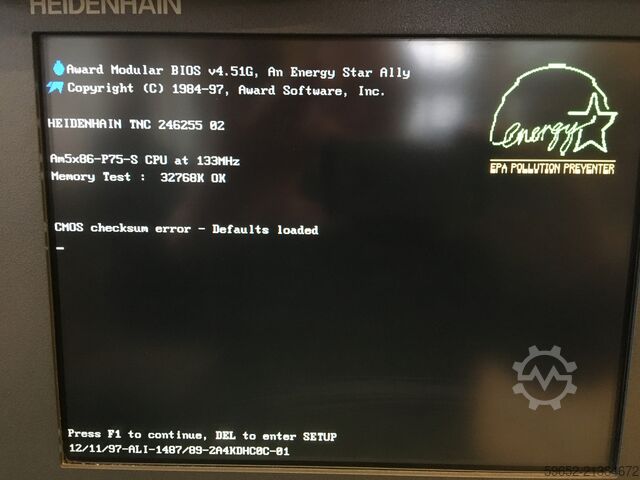

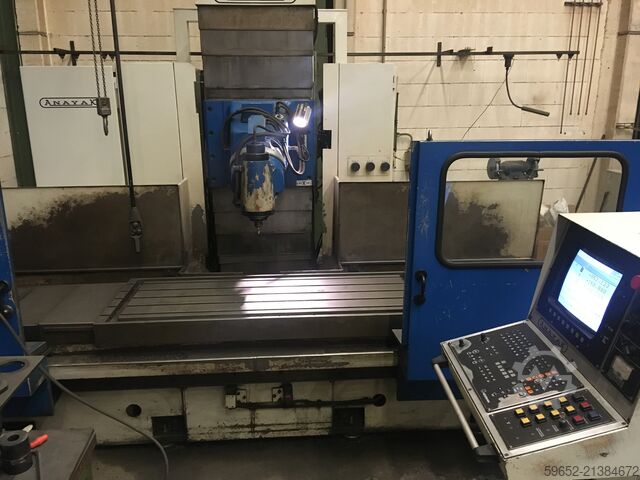

Condition: used, Year of construction: 1994, functionality: limited functionality, travel distance X-axis: 1,600 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 900 mm, table width: 700 mm, table length: 1,800 mm, Anayak VH 1800 bed milling machine Heidenhain TNC 415 B control Tool holder SK 50 Machine runs, further condition unknown Bwedpeypxtaefx Ah Ioi Machine is still connected to power Overhead crane available for loading

Condition: ready for operation (used), Year of construction: 2010, Immediately available ex stock: CNC bed-type milling machine Wagner Model WBE 1300 R Year of manufacture 2010 Siemens Sinumerik 810 D Table 1500 x 400 mm Bwedpfx Aoyl Ucijh Iji Travel X/Y/Z 1300/500/570 mm SK 40 Automatic tool clamping Drive 12/9 kW Spindle speeds 60 – 8,000 rpm Electronic handwheel Ball screw Machine vice Various tool holders Weight 4 t Priced at EUR 6,750.— plus VAT ex location

Condition: used, Year of construction: 2000, x-travel 4300 mm Bodpsyhhvhefx Ah Iswi y-travel 1000 mm z-travel 1700 mm Control TNC430 ja

Condition: ready for operation (used), Year of construction: 1986, travel distance X-axis: 1,300 mm, travel distance Y-axis: 700 mm, travel distance Z-axis: 500 mm, spindle speed (max.): 2,066 rpm, workpiece weight (max.): 3,500 kg, HEIDENHAIN display, 3 axes Bwsdpoydv Udsfx Ah Iei External electrical cabinet Spindle SA 40, max speed 2066 rpm Table 1635x460 mm Travel 1300x700x550 mm Weight 3500 kg

Condition: used, MRF FBF 2000 CNC Bed Mill, Universal Head, Fagor Control System,2000mm x 500mm tee slotted bed, speeds 45-1700 rpm, spindle 45 int, (6) tool holders, serial number 2000023, Intza lube, Jet brake safety system, operators foot kick, table guards interlocked, spindle guards interlocked, ISOFLUC Servomotors, Coolant tank, (2) self centring vices fitted on table. Bwjdex I Sb Aepfx Ah Isi

Condition: refurbished (used), Year of construction: 1990, functionality: fully functional, travel distance X-axis: 1,500 mm, travel distance Y-axis: 630 mm, travel distance Z-axis: 630 mm, rapid traverse X-axis: 10 m/min, rapid traverse Y-axis: 10 m/min, rapid traverse Z-axis: 10 m/min, feed rate X-axis: 2 m/min, feed rate Y-axis: 2 m/min, feed rate Z-axis: 2 m/min, position of the milling head: VERTIKÁLNÍ, spindle speed (max.): 2,500 rpm, spindle speed (min.): 2,500 rpm, table width: 630 mm, table load: 2,000 kg, table length: 2,200 mm, table height: 800 mm, total height: 3,670 mm, total width: 3,250 mm, total length: 5,000 mm, type of input current: three-phase, rotational speed (max.): 2,500 rpm, workpiece weight (max.): 2,000 kg, overall weight: 14,500 kg, year of last overhaul: 2025, torque: 900 Nm, spindle motor power: 23,500 W, power: 23.5 kW (31.95 HP), Equipment: rotational speed infinitely variable, FCQV 63 CNC - TOS KUŘIM Bed Type Milling Machine System: TNC 415F Warranty: 6 months Availability: immediately available FCQV 63 CNC Technical specifications: Manufacturer: TOS Kuřim Overall length: 5,000 mm Overall width: 3,250 mm Overall height: 3,670 mm Total weight: 14,500 kg Number of tool magazine positions: 24 Total power consumption: 45 kVA Working range: Longitudinal travel X-axis: 1,500 mm Cross travel Y-axis: 630 mm Vertical travel Z-axis: 630 mm Bwsdpoxp Dz Uofx Ah Isi Spindle: Spindle taper: ISO 50 Number of speeds / speed range: stepless / 11 – 2,500 rpm Spindle motor power: 23.5 kW Max. spindle torque: 900 Nm Feed rate range X – Y / Z: Number of speeds / range: stepless / 1 – 2,000 mm/min Rapid traverse: 10,000 – 10,000 / 10,000 mm/min Table: Table size (width x length): 630 x 2,200 mm Max. table load (axially): 2,000 kg Control system: Heidenhain TNC 415F Further details upon request.

Condition: ready for operation (used), Year of construction: 1995, travel distance X-axis: 1,800 mm, travel distance Y-axis: 740 mm, travel distance Z-axis: 900 mm, table width: 600 mm, table load: 2,000 kg, table length: 2,000 mm, workpiece weight (max.): 2,000 kg, overall weight: 9,000 kg, Fanuc OM Spindle with size 50 taper Maximum spindle speed 2250 rpm Bodpfxew Hq Hze Ah Iewi Table 2000 x 600 mm Travel 1800 x 740 x 900 mm

Condition: ready for operation (used), Year of construction: 1982, travel distance X-axis: 1,650 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,000 mm, table load: 3,500 kg, Mitutoyo 3-axis DRO Bwedswxyzfepfx Ah Isi table 2000 x 700 mm travels 1650 x 1000 x 1000 mm automatic lubrication spindle taper SA 40, maximum spindle speed 2066 rpm weight 7500 kg

Condition: refurbished (used), Table Size: 1635mm x 460 mm X Long Axis: 1300 mm Y Cross Axis: 700 mm Z Vertical Axis: 500mm Spindle Taper: 40 ISO Spindle Speeds: 30-2066rpm Feed Range: 1.6 to 820mm/min Rapid Feed Rates X/Y/Z: 2800mm/min Max. distance between milling head and table 649 mm Machine Weight 3200 kg Machine Dimensions L x 2361mm Bodpfowh N Uysx Ah Iewi D x 2500mm H x 1648mm Main Motor 8.7 kW Machine Light Universal Head Coolant Condition: Fully Refurbished (reground, hand scraped and re-aligned) New Screws & Nuts on X, Y and Z

Condition: used, Year of construction: 1999, x-travel 4500 mm y-travel 2000 mm z-travel 1200 mm spindle taper ISO 50 Cube 2 Bodewhqyqepfx Ah Iswi weight of the machine ca. 20.000 t

Condition: used, Year of construction: 1990, x-travel 1100 mm y-travel 600 mm Bjdowf Etyopfx Ah Ijwi z-travel 600 mm Control Heidenhain 355 weight max. 10 t head swivability ja ° ja table length 1200 mm table width 550 mm serial number A12055

Condition: reconditioned (used), functionality: fully functional, travel distance X-axis: 1,320 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 610 mm, spindle speed (max.): 1,800 rpm, controller model: Fagor 8055, TECHNICAL DETAILS Table size: 1,700 x 510 mm Max. table load: 3,000 kg Travel paths X-axis travel: 1,320 mm Y-axis travel: 610 mm Z-axis travel: 610 mm Spindle Bedpjwfghrofx Ah Iswi Spindle speed range: max. 1,800 rpm Tool holder: ISO-50 Control system CNC control: Fagor 8055 Electronic handwheel: Fagor MACHINE DETAILS Machine weight: 8,500 kg

Condition: used, Year of construction: 1995, x-travel 1200 mm y-travel 600 mm z-travel 600 mm Bjdpfxsvw Duho Ah Ijwi table-size 1300 x 600 mm max. workpiece weight 2000 kg spindle taper ISO 50 spindle turning speed - stepless 30 - 3500 U/min feeds -stepless- 1 - 6000 mm/min rapid traverse 10 m/min power capacity - milling spindle 18 kW max. torque on the spindle 500 Nm distance work spindle /surface of the table 267 - 867 mm distance table-vertical head 58 - 658 mm voltage 380 V / 50 Hz control voltage 230 V total power requirement 22 kW weight of the machine ca. 6,5 t dimensions 3,6 x 4,2 x 2,3 mm • CNC control DR. HEIDENHAIN TNC 360, • hydr. tool clamping attachment • electr. handwheel, • vertical head manually tiltable, • coolant device,

Condition: excellent (used), travel distance X-axis: 1,500 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 750 mm, table width: 1,500 mm, table length: 850 mm, rotational speed (max.): 2,500 rpm, quill stroke: 120 mm, SHW UF 5 Travels - X-axis (rotary table): 1,500 mm - Y-axis (vertical headstock): 1,000 mm - Z-axis (horizontal headstock): 750 mm Control system - CNC control: Heidenhain TNC 355 Automatic swivel head (change between horizontal and vertical machining) Quill 120mm Milling spindle holder SK 50 Speed 2500 rpm Partial overhaul 2014 - Year of construction 1990 - Inspection/repair 2025 Table assembly - Travel distance: X = 1,500 mm - Clamping surface: 1,500 x 800 mm Chip conveyor Splash guard cabin We have ALL spare parts for this series (SHW UF 5) in stock! About us: MBM Maschinenservice & Gebrauchtmaschinen GmbH is an independent specialist for SHW machine tools. Our main focus is in the field of tool milling machines. Our services include spare parts deliveries, on-site customer service, machine overhauls and control system modernizations. Services: - Used machines - Spare parts - Customer service - Machine service - Machine overhauls - Control modernization _____ Used machine - used milling machine - used bed type milling machine - orthogonal milling head - metalworking - tool milling machine - milling head - SHW machine - SHW spare parts - milling machine used - milling machine used - CNC milling machine used - drilling milling machine used - milling machine metal used - metal milling machine used - metal milling machine used metal milling machine used - used cnc milling machine - cnc milling machines - cnc milling machines - milling machine - large part machining - large part machining - large part machining - cnc large part machining - milling - shw - uf5 - uf 5 - Uniforce - SHW UF - SHW Uniforce - SHW Uniforce 5 - UFZ 5 - UFZ5L - UFZ 5 L - MBM Milling Machine - MBM Machine Bwsdpfx Asvfm I Toh Isi

Condition: used, Technical details: x-travel: 700 mm y-travel: 250 mm z-travel: 200 mm spindle taper ISO: SK40 range of revolution per miute: Spindel 32 - 2000 / 18 step U/min spindle head swivable left - right: 90 ° Bwjdsva Hfhopfx Ah Ioi table surface area: 1000x400 mm weight approx.: k.A. kg dimension machine xH: 1,6 x 1,2 x 1,9 m with vise *

Condition: used, Year of construction: 2004, Technical details: x-travel: 1500 mm y-travel: 1000 mm z-travel: 1000 mm control for program: TNC 530 spindle hours: noch nicht bekannt h milling head speed: 1: 30 bis 930 und 2: 930 bis 4000 / steples U/min tool taper: horiz./vertical: SK 50 (DIN 69871/Din 69872 Form A) max. torque on the spindle: 1000 Nm spindle head swivable left - right: 90 ° feed: 1 - 6000 mm/min feed power: 30 kN kN rapid traverse: 15 m/min Number of tools: 1 St. table clamping surface LxW: 1600 x 800 mm table load: 40 kN kN voltage: 400 V / 50 HZ V total power requirement: 42 kW Weight approx.: 15,2 t compressed air: 6,3 bar dimension machine xH: 3,1 x 4,7 x 2,6 m dimensions: Kühlfilter: 1,9 x 1,6 x 1,4 mm space requirements approx. LxWxH: ca. 38,5 m² m² Applications: Milling, drilling; tapping, boring. with direct coded length measuring systems the guideways of the 3 axes are on flat guideways CTS and external cooling Bsdpfou Nc Riex Ah Iowi Milling head position controlled +/-90° milling spindle nominal drive power 22 kW with integrated hydraulic power unit up to 100bar operating pressure with coolant unit with filtration, with high pressure pump 60 bar (internal cooling), nominal delivery 20 l/min. and low pressure pump 4 bar (external cooling) as well as spray gun Hinged belt chip conveyor DGS, type SSF 600 P50 Accessories: Measuring probe SK40 Reference tool SK40 Milling head SEMPUCO *

Condition: used, Year of construction: 1992, x-travel 1700 mm y-travel 800 mm z-travel 890 mm table surface area 2000 x 630 mm spindle taper SK 50 spindle turning speed range 35 - 3000 U/min spindle drive 26 kW feeds longditudinal/cross/vertical 6 - 5000 mm/min rapid traverse 15 m/min table load max. 6000 kg control HEIDENHAIN control TNC 360 total power requirement 45 kVA Bwedjtqqxfjpfx Ah Ioi weight of the machine ca. 13 t dimensions of machine L x W x H 5,2 x 2,78 x 2,95 m Accessories: vertical head swivelling in 2 planes with hydr. tool clamping, various tool fixtures, coolant

Condition: excellent (used), Year of construction: 2001, operating hours: 8,155 h, functionality: fully functional, feed length X-axis: 1,800 mm, feed length Y-axis: 1,000 mm, feed length Z-axis: 1,000 mm, spindle speed (max.): 4,000 rpm, spindle speed (min.): 50 rpm, table width: 850 mm, table length: 2,000 mm, overall weight: 13,500 kg, power: 30 kW (40.79 HP), CME FS-2 bed milling machine with only 8155 hours control Heidenhain 426B incl measuring probe and complete set of manuals Bwedoquqq Ajpfx Ah Iji

Condition: excellent (used), Year of construction: 2016, SHW UF 5 Travels - X-axis (rotary table): 1,500 mm - Y-axis (headstock vertical): 1,300 mm - Z-axis (headstock horizontal): 750 mm Control system - CNC control: Siemens 3 M Conversion to Heidenhain TNC 415 possible Automatic swivel head (change between horizontal and vertical machining) quill 120mm Milling spindle holder SK 50 speed 2500rpm Year of manufacture 1994 - 2016 general overhauled Stepless NC rotary table - Rückle PKTF 55 - Clamping surface: 1500 x 1250 mm About us: MBM Maschinenservice & Gebrauchtmaschinen GmbH, is a freelance specialist for SHW machine tools. Our main focus is in the area of tool milling machines. Our services include spare parts deliveries, on-site customer service, machine overhauls and control system modernizations. Services: - Used machines Bwsdpjh Rh T Hofx Ah Ioi - spare parts - after-sales service - machine service - machine overhauls - Control system modernization

Year of construction: 1990, condition: excellent (used), machine/vehicle number: VH-7360, a used well-preserved CNC bed type milling machine with HEIDENHAIN control, HURON-head, hydraulic Werkzeugklemmumg,. Coolant system, central lubrication system, lighting, TFT - monitor new. Traverse path x/Y / Z 1600/ 800 / 650 mm Spindle retainer for SK 50 Spindelderhzahl 60-1800U/min Bwjdpedzy Uyefx Ah Isi Working feed 10-3000 mm / min Rapid traverse 10 m / min Table size 1800x610mm Machine weight 9500 kg Table load: 3000 kg

Condition: used, Year of construction: 1980, x-travel:1600 mm y-travel:800 mm z-travel:630 mm spindle taper:SK 50 feed speeds:10-6000 mm/min Bwodpfjcxxrnex Ah Iji rapid traverse:6 m/min turning speed range - stepless:20-2000 U/min max. table load:5000 kg dimensions of switch cabinet:1800 x 530 x 2000 mm total power requirement:18 kW weight of the machine ca.:11 t dimensions of the machine ca.:4,6 x 2,9 x 2,62 m with PHILIPS NC 6664 3-axis control with program memory, hydraulic tool clamping, coolant system, chip-conveyor, horizontal and vertical spindles (SK 50), separate electrical cabinet, NC-round table, emergency cut-off
