Udech-Tehnika

Condition: like new (used), Year of construction: 1997, operating hours: 14 h, functionality: fully functional, Attention!!! Only 13.7 operating hours and 7,750 riveting operations in total, it is in new condition. Riveting machine, radial riveting machine Riveting force max. 12 kN at max. 6 bar air pressure max. rivet shank diameter 8,5 mm with solid material St 370N/mm² Working stroke 5-40 mm with 0.1 mm pitch and stroke stop Starting the riveting process with two-hand relaese Weight approx. 95 kg Ndedpfxjxx Iqxe Ah Djd RC 10 riveting machine control The machine is in a very good condition, looks like new.

Condition: excellent (used), Year of construction: 2005, Yoshikawa US-66 riveting machine 5mm high spin manufacturer: Yoshikawa "Japan" type: US 66 - Crimping ability (Mild steel rivet) φ5 mm or less - Spinning head: 5-40 mm - Distance between tabletop and punch: 90-285 mm - Table working surface size: 250x250 mm - Processing time setting range: 0.2-9 seconds - Normal pressure: (Varies depending on pressing conditions) 2-5 kg/cm2 Air consumption: Power supply and motor Three-phase 200V 0.12kw Ndedpfxjxlt Uij Ah Dod Machine size Width 330 x depth 610 x height 800mm Machine weight 95

Condition: used, throat depth: 610 mm, Pressing force (72 kN) with 610 mm dept Automatic lower tool changer with 4 stations Automatic upper tool changer with 4 stations Ndjdpexfi Npsfx Ah Djd Reliable and energy-efficient thanks to fully hydraulic system Equipped with patented safety system as standard Advanced control with touch screen and automatic press-in fastener length control Equipped with 2 * MAS-350 modular feed systems for press-in elements

Condition: good (used), Year of construction: 1978, functionality: fully functional, 1 used orbital / riveting machine Brand: STEINEL Model: NR 10 Year of manufacture: approx. 1978 Ndsdpfxjwxxw Ss Ah Ded Technical details Table surface: 350 x 250 mm Throat depth: 250 mm Adjustable table: 400 mm Air pressure: up to 10 bar Total connected load: 1.3/1.6 kW Machine weight approx.: 0.45 t Space requirement approx. LxWxH: 0.7 x 0.45 x 1.8 m Details without guarantee

Condition: used, Year of construction: 2003, functionality: fully functional, machine/vehicle number: 00026, overall weight: 400 kg, Specifications: 8 bar 24 V Ndodpfx Ahjwrp Ius Djd 80 kN 3 K 150 E The Arnold & Shinjo / Multipower Farger & Joosten C-Press is a powerful and versatile hydropneumatic riveting press, ideal for efficient and precise joining of components. Thanks to its robust design and reliable hydraulic technology, it allows for high force transmission in various riveting tasks, making it a valuable solution in manufacturing and assembly. The press stands out for its ease of use and flexibility, so it can be used in different production processes.

Condition: excellent (used), Year of construction: 1986, functionality: fully functional, input voltage: 220 V, throat depth: 172 mm, type of input current: three-phase, overall weight: 110 kg, operating pressure: 6 bar, input frequency: 50 Hz, power: 0.12 kW (0.16 HP), spindle stroke: 40 mm, table length: 250 mm, table width: 250 mm, Yoshikawa US-66 riveting machine 5mm high spin type: US 66 Ndedswd Uf Nepfx Ah Dsd - Crimping ability (Mild steel rivet) φ5 mm or less - Spinning head: 5-40 mm - Distance between tabletop and punch: 90-285 mm - Table working surface size: 250x250 mm - Processing time setting range: 0.2-9 seconds - Normal pressure: (Varies depending on pressing conditions) 2-5 kg/cm2 Air consumption: Power supply and motor Three-phase 200V 0.12kw Machine size Width 330 x depth 610 x height 800mm Machine weight 95 kg If you need more information. We are here to help! Please contact us using the contact form or give us a call Your ad has been automatically translated. Translation errors are possible.

Condition: excellent (used), functionality: fully functional, Brother Hi-Spin riveting machine 5mm high spin Type: BR1-103 Ndedpfx Aswdwv Roh Dod - Crimping ability (Mild steel rivet) φ5mm or less - Spinning head: 20-40mm - Distance between tabletop and punch: 60-180mm - Table working surface size: 310 x 180mm - Processing time setting range: 0.3-5 seconds - Normal pressure: (Varies depending on pressing conditions) 2-5kg/cm2 Air consumption: Power supply and motor Three-phase 200V 0.2kw 4Pole Machine size Width 390 x depth 510 x height 1000mm Machine weight 95kg

Condition: excellent (used), functionality: fully functional, 1 Used Haeger 412 Insertion Machine Sheet Metal Inserts Stud & Nut Self Clinching For Sale With tooling and J shape lower tool Nodpfjwbhipex Ah Dsdd

Condition: good (used), Manufacturer: Dunkes Type: DN 2 Nsdpfxovxrzle Ah Dedd Thrust: 2t Diameter: max: 12mm Table dimensions: 210 x 200 mm Motor power: 0.55 kW Machine weight approx.: 130 kg The dimensions of the machine are approx. 0.40 x 0.50 x 1.00 m

Condition: used, Year of construction: 1988, pressure 40 t throat 350 mm material thickness max. 12 mm power requirement 2,2 kW weight of the machine ca. 1,5 t dimensions of the machine ca. 0,8 x 1,5 x 1,9 mxmxm Wobbling / Riveting machine permitted only for safe tools or fixed screen according to the German Safety Regulations (UVV) maximum material thickness approx. 12 mm at 12 mm material thickness: stamping power (diameter) approx. 24 mm at 6 mm material thickness: stamping power (diameter) approx. 50 mm Ndsdpfxjvut Dms Ah Ded as is where is, WITHOUT putting into operation

Condition: used, Year of construction: 2012, pressure 6 bar voltage 24 V weight of the machine ca. 1,75 t Ndsdpfjvdublox Ah Ded length in total 1500 mm length in width 900 mm Total height 2100 mm Riveting machine, riveting machine from Arnold Shinjo Changes and errors in the technical data and information as well as prior sale reserved!

Condition: used, Technical details: Pressure: Hebelkraft t throat: 115 mm work stroke: 15 mm work height max.: 1050 mm weight of the machine ca.: 55 kg dimensions L x W x H: 780 x 300 x 1360 mm AS GOOD AS NEW Conventional riveting machine, bolted steel casting with welded construction. Application for: rivet connections e.g. tubular rivets machining further details of the machine: - stamp holder Ø 11,5 x 15mm - ram Ø 25mm - distance 70mm - Countersink: Drill diamter Ø 11.5 mm continuous, intake is currently mold piece operation is via a foot lever with return spring size of the base plate L: 380 x W: 300 mm with 4 drill holes Nsdsvc Au Ropfx Ah Dedd *

Condition: used, Year of construction: 1995, Technical details: Ndjdpfju Ictnsx Ah Dsd throat: 1000 mm air pressure: 6,0 bar total power requirement: 5,0 kW weight of the machine ca.: 0,4 t dimensions electric cabinet LxWxH: 1,03 x 0,4 x 2,05 m dimension machine xH: 2,6 x 1,0 x 2,3 m AUTOMATIC DRILLING AND RIVETING MACHINE Application: automatic drilling and riveting of sheet metal parts. Features: - Rivet Ø 3.2 - 4.0mm, rivet length 6.0 - 10.0mm; riveting force = 40,000N. - Drilling: Speed up to 5,000 rpm, drilling feed 50 - 1,500 mm/min, stroke height 80mm. - Clamping: clamping force 50 - 400 daN, lower tool 75mm adjustable - Hydraulics: pressure 128 bar, supply 14 l/min, power 4 kW - Pneumatic: pressure 6 bar, supply 9,5 l/sec. - Operation via control panel or/and foot switch. Equipment: - side table - 8 oscillating conveying heads - hydraulic power unit accessories: - Tool cabinet, div. drill countersink, 2 closing heads, hold-down and other div. tools comparable in photo. *

Condition: as good as new (ex-display), Year of construction: 2023, Press-in machine with automatic feed via conveyor bowl Automatic feeds from above and below available. Touchscreen control with database for press-in pressure/fastener-dependent Thrust 450 mm Nsdpold Thrjfx Ah Dedd Press-in force 56 kN Suitable for self-clinching fasteners up to M8/M10

Condition: good (used), Pneumatic rivet gun, rivet nut pliers, blind rivet nut clamp, pneumatic riveting tool, blind rivet gun, blind rivet -Compressed air rivet gun -Application range: 2.0 to 4.0 mm Nedjgzhxtjpfx Ah Dedd -Dimensions: 275/80/H220 mm -Weight: 1.3 kg

Condition: used, Wobble riveting head BODMER KÜSNACHT Type FMK 3 Year of manufacture approx. 1980 rivet shaft diameter: max. 10 mm tool diameter: 12 mm rivet head stroke: 40 mm riveting spindle speed: approx. 1400 rpm motor power: 0,37 kW Mains connection: 380 Volt, 50 Hz - Riveting pressure adjustment infinitely variable via hydraulic pressure - Micrometer stop for stroke limitation - stroke movement via oil hydraulics (max. 45 bar) - machined flange surface Ø 115 mm with fixing nut on housing total length: approx. 800 mm weight: approx. 40 kg good condition Ndsdeglarlopfx Ah Ded The rivet head has a multi spindle head to set 2 or 3 rivets at the same time. This can be dismantled and used normally. For normal use the normal wobble head which holds the tool is missing.

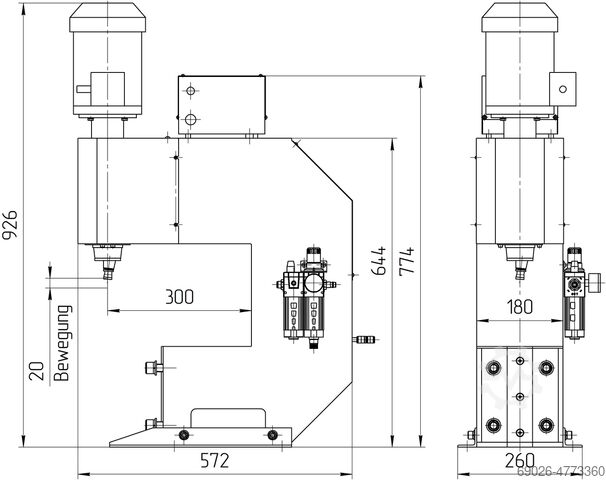

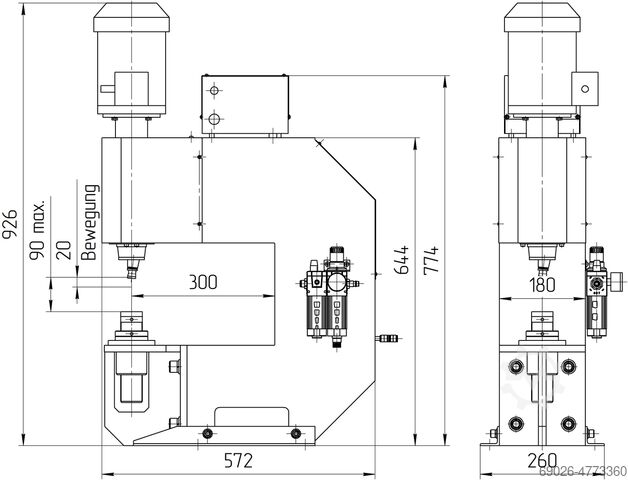

Condition: new, Year of construction: 2025, Pneumatic radial riveting machine RMU-12-C is designed for forming caps in solid steel rivets d=2...12 mm and in tubular steel rivets d=4x1...14x1 mm. This riveting machine can be used for movable and immovable riveted connections. Technical data: Nedpofvztujfx Ah Dsdd 1. Diameter of solid steel rivets - 2...12 mm. 2. Diameter of tubular steel rivets - 4...14 mm. 3. Motion of riveting head - 20 mm. 4. Time of unriveting for one rivet - 1...10 sec. 5. Motor power - 0,75 kW. 6. Voltage - 220/380 V 50 Hz. 7. Working pressure - 3...6 Bar. 8. Weight - 100...120 kg.

Condition: used, Cordless riveting tool, blind rivet gun, blind rivets -Transfer in current condition as seen -The device works, the batteries are defective -without: batteries -Dimensions: 345/90/H250 mm -Weight: 5.3 kg Nsdpfx Asdz Ul Ish Dodd

Condition: excellent (used), Here we offer you a ToX full punched rivet system. ToX full punched rivet system type TZ-VSN The full punch rivet severed all joining and pushes the slug from the joint. TOX PRESSOTECHNIK, supplemented with innovative technology for full self-piercing rivets the specialist for sheet metal connections, his delivery and performance program is a pioneering procedure. The full punch riveting offers an additional mechanical connection of sheet metal, This is for lightweight construction and the combination of hybrid parts and assemblies of great importance. The rivet advancements, forceps, and toolholders are also so universally designed, that full punching rivets with a diameter of 4.0 mm and lengths between 3.3 and 8.1 mm as well as full punching rivets with a diameter of 5.0 mm and lengths between 3.9 and 9.0 mm with TOX - hand pliers as well as with TOX robot pliers flexible can be processed. Nedpfodz Af Aox Ah Dodd Type TZ-VSN Pressing force 55KN Total stroke 140 mm Rivet type: Diameter 5 x 4, 6 Connection values Performance: 3,4KW Power supply: 400/15/50-60 V / A / Hz Speed: 200mm / s Web form: 3 p + N + PE Control voltage: 24 V DC Back-up fuse: 25 A Type: TZ-VSN Condition: pre-owned / used Scope of delivery: (See image) (Errors and omissions in the technical data, information are reserved!) We can answer questions on the phone for you. Written order possible by email or fax

Condition: excellent (used), Here we offer you a ToX full punched rivet system. ToX full punched rivet system type TZ-VSN The full punch rivet severed all joining and pushes the slug from the joint. TOX PRESSOTECHNIK, supplemented with innovative technology for full self-piercing rivets the specialist for sheet metal connections, his delivery and performance program is a pioneering procedure. The full punch riveting offers an additional mechanical connection of sheet metal, This is for lightweight construction and the combination of hybrid parts and assemblies of great importance. The rivet advancements, forceps, and toolholders are also so universally designed, that full punching rivets with a diameter of 4.0 mm and lengths between 3.3 and 8.1 mm as well as full punching rivets with a diameter of 5.0 mm and lengths between 3.9 and 9.0 mm with TOX - hand pliers as well as with TOX robot pliers flexible can be processed. Type TZ-VSN Nedpfx Ahodz Afwo Dodd Pressing force 55KN Total stroke 140 mm Rivet type: Diameter 5 x 4, 6 Connection values Performance: 3,4KW Power supply: 400/15/50-60 V / A / Hz Speed: 200mm / s Web form: 3 p + N + PE Control voltage: 24 V DC Back-up fuse: 25 A Type: TZ-VSN Condition: pre-owned / used Scope of delivery: (See image) (Errors and omissions in the technical data, information are reserved!) We can answer questions on the phone for you. Written order possible by email or fax

Condition: used, Orbital riveting machine Double riveting automatic with rotary indexing table DUNKES type DN 4 Nedpfxjdzp T Ns Ah Dsdd with SIEMENS control Machine No. P 81 - 5458 Year of construction 1982 / 2009 Rivet shank diameter max. 12 mm Tool shank diameter 16 mm Throat depth 190 mm Rivet head stroke per riveting unit approx. 60 mm Rivet spindle speed approx. 1400 rpm Mounting height tool - counter tool max. 80 mm Compressed air requirement 6 bar Motor power per riveting unit 1.1 kW Power supply 380 Volt, 50 Hz - Rotary indexing table with servo drive, step size programmable via Siemens PLC control - Double riveting unit adjustable in the machine frame towards rotary table - Table diameter Ø 295 mm for accommodating round workpieces - Pneumatic riveting stroke movement - Riveting unit adjustment via geared motor with leadscrew, positioning via adjustable microswitch - Control system modernized and rotary table drive converted to servo in 2009 - New electrical control cabinet with Siemens Simatic Panel - year 2009 - Riveting time infinitely programmable - Riveting pressure continuously adjustable via pressure gauge - Micrometer stop for stroke limitation of the opposing riveting units 0-60 mm Space requirement L x W x H 3200 x 1250 x 2400 mm Weight approx. 2500 kg Good condition The machine was used for riveting segment saw blades from Ø 400 to Ø 2000 mm. The segments were manually placed onto the carrier disc and fixed with straight rivets. The opposing riveting units rivet the pins simultaneously from both sides. The controlled table automatically rotates to the next working position. Ideal for saw blade manufacturers and repair shops. Or for constructing a custom special-purpose machine.

Year of construction: 2011, condition: used, Toxi Press TOX-Clinch-unit TZ including EPMR-drive & electrical cabinet very good condition Robot tool Typ:  TZ 05.422289 weight: 121kg Max Kraft 52kN complete system Typ: STE 606-006-125 3,4kW 125 mm/s power 400V Ndsdedq E Eiepfx Ah Dod Press Typ: EPMR 055.034.100.000 including Schematic diagramm You get everything as shown. Including electrical cabinet. Attention: the cables to connect the clinch unit and the electrical cabinet are not included

Condition: used, machine/vehicle number: 003, Number of heating chambers: 5 Chamber size: 140 Ø x 150 mm high tested maximum temperature: 1000°C electrical connection: 400 V, 13 kW space requirement: 550 x 1600 x 1830 mm Weight: 492 kg Nedobn I Tzopfx Ah Dsdd
