HWM Werkzeugmaschinen GmbH

Condition: excellent (used), Year of construction: 2019, CNC vertical lathe – 3 axes Brand: HYUNDAI WIA Model: LV 800 RM Year: 2019 (575 cutting hours) CNC: FANUC 32iB + manual guide Specifications: Turning capacities: Max through diameter: 890 mm Max turning diameter: 800 mm Max turning height: 800 mm Horizontal travel: 440 mm Vertical travel: 800 mm C axis: 360,000 positions Hydraulic 3-jaw chuck: Diameter: 530 mm Spindle speed: 2,000 rpm Main motor power: 37/30 kW Dimensions (W x D x H): 2000 x 2877 x 3300 mm Weight: 11 T Equipped with: 12-position tool turret C axis 0.001° Live tooling spindle 7.5 kW, 3000 rpm Coolant through tools 20 Bar Renishaw Quickset Kdedpfx Aoxxt Ebjd Iow Live tool holders 3 x axial, 3 x radial Turning tool holders Set of jaws Manual 3-jaw chuck dia. 630 mm Chip conveyor

Condition: repair required (used), Year of construction: 2007, functionality: not functional, machine/vehicle number: P-30010521, Technical specifications: Work Area - Maximum diameter of clamping plate: 260 mm - Maximum turning diameter: 260 mm Kdsdpfxsxxt D Rs Ad Iew - Maximum machining diameter: 220 mm - Maximum workpiece length: 110 mm - X-axis travel: 570 mm / Rapid traverse in X: 60 m/min - Z-axis travel: 200 mm / Rapid traverse in Z: 30 m/min - Y-axis travel: 40 mm / Rapid traverse in Y: 30 m/min - Standard closed automation (number of loading magazines by workpiece diameter: 14/(80...200), 18/(30...160), 30/(30...85)) Main Spindle - Spindle according to DIN 55026: Size 6 - Maximum spindle speed: 4500 rpm - Power at 100% / 40% duty cycle: 18 / 27 kW - Torque at 100% / 40% duty cycle: 202 / 303 Nm Tool Turret with Driven Tools - Tool holder for cylindrical shank DIN 69880: 12 - VDI40 - Number of turret stations: 12 - Max. tool length including holder: 190 mm - Maximum speed: 6000 rpm - Maximum torque at 10% duty cycle: 37 Nm, 25% duty cycle: 26 Nm, 100% duty cycle: 14 Nm Electrical Equipment - Operating voltage: 400 - 480 V - Connected load: 42 kW Dimensions - Total machine dimensions: Length = 2680 mm (3820 mm with chip conveyor), Width = 2040 mm, Height = 2400 mm - Weight: 6500 kg Main Features and Capabilities - Vertical design: Enables optimal chip removal and easy loading/unloading - Control system: GE Fanuc Series 18i TB - High precision: Positioning accuracy on X/Z axes is ±0.001 mm thanks to Heidenhain linear scales - Main spindle: High power and wide speed range - Automated loading/unloading: Parts are loaded and unloaded via integrated automation - Driven tools: Enables drilling and milling operations - Chip conveyor - Documentation: Electronic version not available, printed manual incomplete Machine status: NOT WORKING - Spindle drive - X-axis linear scale - Safety access door (Euchner) - Emulsion solenoid valves x2

Condition: used, Year of construction: 2007, functionality: fully functional, machine/vehicle number: 100864, Technical Specifications: Work Area - Maximum clamping plate diameter: 260 mm - Maximum turning diameter: 260 mm - Maximum machining diameter: 220 mm - Maximum workpiece length: 110 mm - X-axis travel: 570 mm / Rapid traverse X: 60 m/min - Z-axis travel: 200 mm / Rapid traverse Z: 30 m/min - Y-axis travel: 40 mm / Rapid traverse Y: 30 m/min - Standard closed automation (number of loading nests per workpiece diameter: 14/(80...200), 18/(30...160), 30/(30...85)) Main Spindle - Spindle according to DIN 55026: Size 6 - Maximum speed: 4,500 rpm - Power at 100/40% duty cycle: 18 / 27 kW - Torque at 100/40% duty cycle: 202 / 303 Nm Tool Turret with Driven Tools - Tool holder shank according to DIN 69880: 12 - VDI40 - Number of turret positions: 12 - Maximum tool length including holder: 190 mm - Maximum speed: 6,000 rpm - Maximum torque: 37 Nm (10% duty cycle), 26 Nm (25% duty cycle), 14 Nm (100% duty cycle) Electrical Equipment - Operating voltage: 400 - 480 V - Connected load: 42 kW Dimensions - Overall dimensions: Length = 2,680 mm (3,820 mm with chip conveyor), Width = 2,040 mm, Height = 2,400 mm - Weight: 6,500 kg Kedpfxoxxttfe Ad Iedw Main Features and Capabilities: - Vertical Design: Ensures optimal chip evacuation and easy loading/unloading operations. - Control System: GE Fanuc Series 18i TB. - High Precision: Positioning accuracy in X and Z axes: ±0.001 mm (Heidenhain linear scales). - Main Spindle: High power and wide speed range. - Automated Loading/Unloading: Parts are automatically fed and removed via integrated automation. - Driven (live) tools: Enables drilling and milling operations in addition to turning. - Chip conveyor included. - Documentation: Electronic manual not available; printed book manual available. Machine Status: Operational, in working condition.

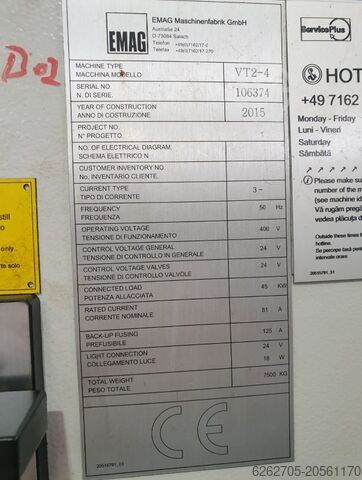

Condition: repair required (used), Year of construction: 2015, functionality: not functional, machine/vehicle number: 106374, Technical characteristics: Work Area - Chuck diameter: 160 mm - Maximum weight of chuck + workpiece: 45 kg - Maximum workpiece diameter/height: 100/400 mm - Distance spindle nose to origin of tailstock: 795.5 mm - X1/X2 working stroke: 340 mm / Rapid traverse in X: 30 m/min - Z1/Z2 stroke: 625 mm / Rapid traverse in Z: 30 m/min / Feed force: 18.7 kN - Loading time: 5–6 sec - Standard closed automation (number of loading nests by workpiece diameter): 14/(80–200 mm), 18/(30–160 mm), 30/(30–85 mm) Main Spindle - Spindle according to DIN 55026: Size KK5 - Maximum speed: 8,500 rpm - Power at 100% / 40% duty cycle: 34 / 26.5 kW - Torque at 100% / 40% duty cycle: 75 / 48 Nm Tailstock - Interface: MK3 - Clamping force: 120 N/bar - Clamping stroke: 5 mm Tool Holder with Motorized Tools - Tool holders with cylindrical shank according to DIN 69880: 12 – BMT65 - Number of positions: 2 x 12 (1 gripper per turret) - Maximum speed: 6,000 rpm - Maximum torque at 10% duty cycle: 27 Nm, at 100% duty cycle: 14 Nm Electrical Equipment - Operating voltage: 400–480 V, 120 A - Connected load: 45 kVA Dimensions - Total dimensions: Length = 5,300 mm with chip conveyor, Width = 1,760 mm, Height = 3,650 mm - Weight: 7,500 kg Main Features and Capabilities - Vertical design: Optimized chip evacuation and automatic loading/unloading - Control: GE Fanuc FS 32i - High precision: Positioning accuracy on X and Z axes ±0.001 mm with Heidenhain linear scales - Main spindle: High power and wide speed range - Automation: EMAG O-type – Parts are loaded and unloaded automatically via integrated automation - Live tools: Allows drilling and milling operations - Tool life monitoring with sister tool management - Chip conveyor, coolant unit, switchable dual cartridge filter, high pressure pump (15 bar) - Fully enclosed working area, LED light in working area - Documentation: Available both electronically and as hardcopy book Machine Status: NOT WORKING - X-axis drive - Five electrical switches (Siemens) Kjdpfx Ajxxtkwed Iodw - Hydraulic pump - Operator panel (in stock, needs installation) - Valve chiller - Pressure switch for oiling unit - Emulsion tank pump - Four emulsion circuit switches (electrovalves) - Pressure switch for hydraulic circuit - Complete hydraulic block

Condition: used, Year of construction: 2007, functionality: limited functionality, machine/vehicle number: P-30008793, Technical characteristics: Work Area - Maximum diameter of clamping plate: 260 mm - Maximum turning diameter: 260 mm - Maximum machining diameter: 220 mm - Maximum workpiece length: 110 mm - X-axis travel: 570 mm / Rapid traverse in X: 60 m/min - Z-axis travel: 200 mm / Rapid traverse in Z: 30 m/min - Standard closed automation (number of loading nests by workpiece Ø: 14/(80...200), 18/(30...160), 30/(30...85)) Main Spindle - Spindle mount: DIN 55026, size 6 - Maximum speed: 4,500 rpm - Power at 100% / 40% duty cycle: 18 / 27 kW - Torque at 100% / 40% duty cycle: 202 / 303 Nm Tool Turret with Driven Tools - Toolholder shank per DIN 69880: 12 stations – VDI40 - Number of positions: 12 - Maximum tool length incl. holder: 190 mm - Maximum speed: 6,000 rpm - Maximum torque at 10% duty cycle: 37 Nm, at 25%: 26 Nm, at 100%: 14 Nm Electrical Equipment - Operating voltage: 400 – 480 V - Connected load: 42 kW Kdodpfx Asxxr Rped Iew Dimensions - Overall dimensions: L=2,680 mm (3,820 mm with chip conveyor), W=2,040 mm, H=2,400 mm - Weight: 6,500 kg Main Features and Capabilities: - Vertical design: Optimal chip evacuation and easy loading/unloading - Control: GE Fanuc Series 18i TB - High precision: Positioning accuracy on X and Z axes ±0.001 mm with Heidenhain linear scales - Main spindle: High torque and wide speed range - Automated loading/unloading: Integrated automation feeds and removes parts - Driven/live tools: Enables drilling and milling operations in addition to turning - Chip conveyor - Documentation: Electronic not available, paper manual available Machine status: WORKING - Operator panel safety switch broken

Condition: ready for operation (used), Year of construction: 2000, General Data Machine weight 14500 kg Movement X-Axis Movement 350 mm Z-Axis Movement 410 mm Main Drive Number of axis 2 Spindle Speed 2500 RPM This Okuma 2SP-V35 was manufactured in 2000. A robust vertical turning machine featuring a max turning diameter of 350 mm and height of 410 mm. It includes a spindle speed up to 2,500 RPM and a 12-station tool holder. Ideal for precise, heavy-duty turning operations. Contact us for more information. Application Types Kjdpsxxngmjfx Ad Iedw Turning

Condition: excellent (used), Year of construction: 2002, Control: Siemens SINUMERIK 840D, C200-4D Spindle speed: 6000 rpm Travel X/Y/Z: 280/280/145 mm Number of turrets: 1 with 6 positions Number of tool stations: 2x4 Chip conveyor Pallet conveyor belt Pallets Kdjdpfjxxmy Ssx Ad Iow

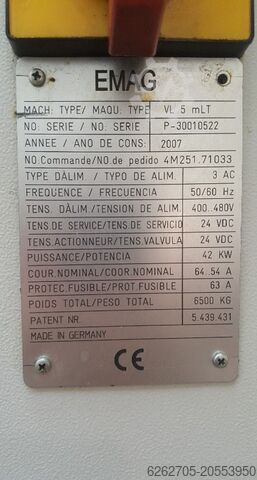

Condition: repair required (used), Year of construction: 2007, functionality: not functional, machine/vehicle number: P-30010522, Technical characteristics: Work Area - Maximum clamping plate diameter: 260 mm - Maximum turning diameter: 260 mm - Maximum machining diameter: 220 mm - Maximum workpiece length: 110 mm - X-axis travel: 570 mm / Rapid traverse X: 60 m/min - Z-axis travel: 200 mm / Rapid traverse Z: 30 m/min - Standard closed automation (number of loading nests by workpiece diameter: 14/(80...200), 18/(30...160), 30/(30...85)) Main Spindle - Spindle according to DIN 55026, Size 6 !!! Brand new, replaced in 2024 !!! - Maximum speed: 4,500 rpm - Power, 100% / 40% duty cycle: 18 / 27 kW - Torque, 100% / 40% duty cycle: 202 / 303 Nm Tool Turret with Driven Tools - Tool holders with cylindrical shank to DIN 69880: 12 - VDI40 - Number of turret stations: 12 - Maximum tool length (including holder): 190 mm - Maximum speed: 6,000 rpm - Maximum torque: 37 Nm (10% duty cycle), 26 Nm (25% duty cycle), 14 Nm (100% duty cycle) Electrical Equipment - Operating voltage: 400 – 480 V - Connected load: 42 kW Dimensions Kdodpfjxxkh Tsx Ad Iew - Overall dimensions: Length = 2,680 mm (3,820 mm with chip conveyor), Width = 2,040 mm, Height = 2,400 mm - Weight: 6,500 kg Main Features and Capabilities: - Vertical design: Optimal chip evacuation and easy loading/unloading - CNC control: GE Fanuc Series 18i TB - High precision: Positioning accuracy in X and Z axes ±0.001 mm (Heidenhain linear scales) - Main spindle: High power and broad speed range - Automated loading/unloading: Integrated automation system for part feeding and removal - Driven tools: Capability for drilling and milling operations - Chip conveyor - Documentation: Electronic unavailable, partial hard copy/manual available Machine status: NOT WORKING - Hydraulic solenoid valves: 4 units - Coolant (emulsion) pump defective

Condition: repair required (used), Year of construction: 2017, functionality: not functional, machine/vehicle number: 109238, Technical characteristics: Work Area - Chuck diameter: 260 mm - Maximum workpiece weight: 150 kg - Swing diameter: 280 mm - Maximum workpiece diameter/height: 200/200 mm - X-axis stroke (working stroke): 760 mm / Rapid traverse in X: 60 m/min / Feed force: 6.9 kN - Z-axis stroke: 415 mm / Rapid traverse in Z: 30 m/min / Feed force: 18.7 kN - Loading time: 5 to 6 seconds - Standard closed automation (number of loading stations by workpiece diameter): 14 (80–200 mm), 18 (30–160 mm), 30 (30–85 mm) Main Spindle - Spindle interface according to DIN 55026: Size 6 - Maximum speed: 4,500 rpm - Motor output at 100% / 40% duty cycle: 25 / 18 kW - Torque at 100% / 40% duty cycle: 280 / 200 Nm Tool Holder with Driven Tools - Toolholders with cylindrical shank according to DIN 69880: 12 positions – BMT65 - Number of positions: 12 - Maximum tool length including holder: 200 mm - Maximum speed: 6,000 rpm - Maximum torque (10% duty cycle): 27 Nm, (100% duty cycle): 14 Nm Electrical Equipment - Operating voltage: 400–480 V, 100 A - Connected load: 36 kVA Dimensions - Overall dimensions: Length = 5,300 mm (with chip conveyor), Width = 2,300 mm, Height = 3,650 mm - Weight: 9,000 kg Main Features and Capabilities: - Vertical design for optimal chip removal and easy workpiece loading/unloading - CNC control: GE Fanuc FS 32i B - High positioning accuracy on X and Z axes: ±0.001 mm (Heidenhain linear scales) - Main spindle: High power output and wide speed range - In-process measurement: Marposs T25 measuring probe - Automated loading/unloading: EMAG O-Type. Parts are loaded and unloaded via integrated automation - Driven tool capability extends machining operations to drilling and milling - Chip conveyor, coolant unit, switchable double cartridge filter, high-pressure pump (15 bar) Ksdpfx Aoxxkgped Iedw - Tool life monitoring with sister tool management - Completely enclosed work area with workstation lighting - Documentation: Electronic version available; printed version incomplete Machine status: NOT WORKING - Requires replacement of hydraulic actuator and electrical motor - Live tool motor needs attention

Condition: repair required (used), Year of construction: 2014, functionality: not functional, machine/vehicle number: 67137, Technical characteristics: Work Area - Maximum clamping plate diameter: 250 mm - Maximum turning diameter: 250 mm - Maximum machining diameter: 220 mm - Maximum workpiece length: 200 mm - X-axis travel: 886 mm / Rapid traverse X: 60 m/min - Z-axis travel: 250 mm / Rapid traverse Z: 30 m/min - Y-axis travel: -85/+100 mm / Rapid traverse Y: 30 m/min - Standard closed automation (number of loading stations by workpiece diameter): 14/(80...200), 18/(30...160), 30/(30...85) Main Spindle - Spindle (Weiss) per DIN 55026: Size A6 - Maximum speed: 5,500 rpm - Power at 100% duty cycle: 38 kW - Torque at 100% duty cycle: 300 Nm Secondary Spindle HSK63 - Spindle head size/type: HSK-A63 - Nominal speed: 2,700 rpm / Nominal power: 12 kW / Nominal torque: 42.4 Nm - Maximum speed: 15,000 rpm - Power at 100% duty cycle: 38 kW - Torque at 100% duty cycle: 300 Nm Tool Holder with Motorized Tools - Turret VDI40, Siemens-drive 0.5.440.220 (manufacturer: Sauter) - Number of stations: 12 - Live tool nominal speed: 3,000 rpm / Nominal torque: 33.1 Nm - Live tool maximum speed: 10,000 rpm / Nominal torque: 56.2 Nm - Live tool nominal power at 100% duty cycle: 10.4 kW Kodpfx Ajxxi Urod Ijdw Electrical Equipment - Operating voltage: 400 V, fused 100A GL - Connected load: 45 kW Dimensions - Overall dimensions: Length = 4,021 mm, Width = 4,709 mm, Height = 3,527 mm - Weight: 8,000 kg Main Features and Capabilities: - Vertical design for optimal chip evacuation and easy loading/unloading - Control system: Siemens 840D SL - High precision with Heidenhain linear scales for X, Y, Z axes - High-power main spindle (Weiss) with a wide speed range - High-power secondary spindle (Weiss), easily accessible for drilling/milling operations - Automated loading/unloading via integrated automation - In-process control probe: Marposs T25 - Live tooling for extended machining capabilities (drilling, milling, etc.) - Chip conveyor: Knoll - Coolant 'paper' filter unit & chiller: Knoll KF150/500 - Electrostatic mist filter: IFS type IFM1000 Machine status: NOT WORKING - Sauter turret replaced with new unit; assembly not complete – turret motor spindle installation still required - Operator panel safety switch needs replacement

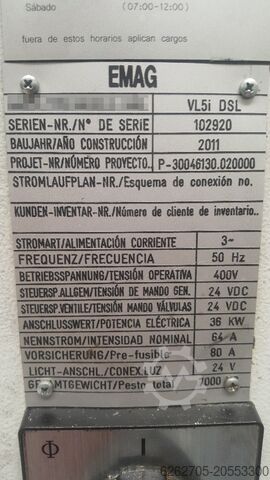

Condition: repair required (used), Year of construction: 2011, functionality: not functional, machine/vehicle number: 102920, Technical Characteristics: Work Area - Maximum diameter of clamping plate: 250 mm - Maximum turning diameter: 270 mm Kdjdpfx Adsxxiwys Isw - Maximum machining diameter: 220 mm - Maximum workpiece length: 175 mm - X-axis travel: 660 mm / Rapid traverse in X: 60 m/min - Z-axis travel: 300 mm / Rapid traverse in Z: 30 m/min - Standard enclosed automation (number of loading stations by workpiece diameter: 14/(80...200 mm), 18/(30...160 mm), 30/(30...85 mm)) Main Spindle - Spindle according to DIN 55026: Size 6 - Max. speed: 4,500 rpm - Power at 100% / 40% duty cycle: 18 / 27 kW - Torque at 100% / 40% duty cycle: 202 / 303 Nm Turret with Driven Tools - Tool holders per DIN 69880: 12 x VDI40 - Number of positions: 12 - Max. tool length (including holder): 190 mm - Max. speed: 6,000 rpm - Max. torque at 10% duty cycle: 37 Nm, at 25%: 26 Nm, at 100%: 14 Nm Electrical Equipment - Operating voltage: 400 V - Connected load: 36 kW / 80 A Dimensions - Total dimensions: Length: 3,120 mm (4,185 mm with chip conveyor), Width: 2,266 mm, Height: 3,200 mm - Weight: 7,500 kg Main Features and Capabilities: - Vertical design: Enables optimal chip evacuation as well as easy loading and unloading - Control: Siemens 840D - High precision: Positioning accuracy in X, Z, and Y axes ±0.001 mm, Heidenhain linear scales - Main spindle: High power and broad speed range - Automated loading/unloading: Automated workpiece loading and removal via integrated system - Driven (live) tools: Supports live tooling for extended machining range, including drilling and milling - Part detection sensor with compressed air gauge through spindle: SMW Autoblock Linear Position Sensor LPS-X - In-process control: Marposs T25 - Chip conveyor - Coolant chiller: Texa TCW55PMSBXMF000, max. 30 bar input - Coolant filtration with paper belt filter: Micron filter EVO500Pro+KMT150, 550 liters, 80 l/min - Documentation: Digital & hard copy manuals available Machine Status: NOT WORKING - Lifetool motor - Slideways & carriages (X & Z axes) - Hydraulic pressure compensation block

Condition: used, Year of construction: 2017, functionality: fully functional, machine/vehicle number: 109242, Technical specifications: Kjdpfsxxit Uex Ad Iedw Work Area - Chuck diameter: 260 mm - Maximum weight: 150 kg - Swing diameter: 280 mm - Max. workpiece diameter/height: 200/200 mm - X-axis stroke (effective travel): 760 mm / Rapid traverse in X: 60 m/min / Feed force: 6.9 kN - Z-axis stroke: 415 mm / Rapid traverse in Z: 30 m/min / Feed force: 18.7 kN - Loading time: 5–6 sec - Standard closed automation (number of loading positions per workpiece diameter): 14/(80...200), 18/(30...160), 30/(30...85) Main Spindle - Spindle interface according to DIN 55026: Size 6 - Max. speed: 4,500 rpm - Power at 100% / 40% duty cycle: 25 / 18 kW - Torque at 100% / 40% duty cycle: 280 / 200 Nm Tool Turret with Driven Tools - Tool holder with cylindrical shank per DIN 69880: 12 positions - BMT65 - Number of tool stations: 12 - Max. tool length (incl. holder): 200 mm - Max. speed: 6,000 rpm - Max. torque (10% duty cycle): 27 Nm, (100% duty cycle): 14 Nm Electrical System - Operating voltage: 400 – 480 V, 100 A - Connected load: 36 kVA Dimensions - Overall dimensions: Length = 5,300 mm (with chip conveyor), Width = 2,300 mm, Height = 3,650 mm - Weight: 9,000 kg Main Features and Capabilities: - Vertical design: Optimized for efficient chip removal and easy part loading/unloading - CNC control: GE Fanuc FS 32i B - High precision: Positioning accuracy (X/Z axes) ±0.001 mm; equipped with Heidenhain linear scales - Powerful main spindle: High output and large speed range - In-process measurement: Marposs T25 probing system - Fully automated loading/unloading: EMAG O-Type—parts are loaded and removed by integrated automation - Live tooling: Allows for drilling and milling operations beyond standard turning - Tool life monitoring with sister tool management - Chip conveyor and coolant filtration unit: Micron filter with paper filter and 40 bar pumps (suitable for filtering two machines) - Fully enclosed work area, illuminated for safe and easy operation - Documentation: Electronic documentation available (hard copy not complete) Machine status: Operational (in production)

Condition: used, Year of construction: 2017, functionality: fully functional, machine/vehicle number: 109239, Technical characteristics: Work Area # Chuck diameter: 260 mm # Maximum workpiece weight: 150 kg # Swing diameter: 280 mm # Maximum workpiece diameter/height: 200/200 mm # X-axis travel (working stroke): 760 mm / Rapid traverse in X: 60 m/min / Feed force: 6.9 kN # Z-axis travel: 415 mm / Rapid traverse in Z: 30 m/min / Feed force: 18.7 kN # Loading time: 5-6 sec # Standard enclosed automation (number of loading stations based on workpiece diameter: 14/(80...200), 18/(30...160), 30/(30...85)) Main Spindle # Spindle according to DIN 55026: Size 6 # Maximum speed: 4,500 rpm # Power at 100% / 40% duty cycle: 25 / 18 kW # Torque at 100% / 40% duty cycle: 280 / 200 Nm Turret with Driven Tools # Tool shank interface according to DIN 69880: 12 positions - BMT65 # Number of tool stations: 12 # Maximum tool length including holder: 200 mm # Maximum speed: 6,000 rpm # Maximum torque: 27 Nm at 10% duty cycle, 14 Nm at 100% duty cycle Electrical Equipment # Operating voltage: 400 - 480 V, 100 A # Connected load: 36 kVA Dimensions # Overall dimensions: Length = 5,300 mm (with chip conveyor), Width = 2,300 mm, Height = 3,650 mm # Machine weight: 9,000 kg Main Features and Capabilities: # Vertical design: Optimized for chip removal with easy loading/unloading. # CNC control: GE Fanuc FS 32i B. # High precision: Positioning accuracy in X, Z axes ±0.001 mm with Heidenhain linear scales. # Powerful main spindle: High power and broad speed range. # In-process control: Marposs T25 measuring probe. # Fully automated loading/unloading: Emag O-Type; workpieces are automatically loaded and unloaded via integrated automation. # Driven tools: Enables drilling and milling operations within the machine. # Tool life monitoring with sister tool management. # Chip conveyor and coolant filtration unit: Micron filter with paper filter, 40 bar pumps (suitable for filtering two machines). Kodpfexxir Dox Ad Iedw # Fully enclosed work area, internal work light. # Documentation: Electronic version available (book version incomplete). Machine status: OPERATING

Condition: repair required (used), Year of construction: 2017, functionality: not functional, machine/vehicle number: 108113, Technical Characteristics: Work Area - Maximum clamping plate diameter: 160 mm - Maximum turning diameter: 160 mm - Maximum machining diameter: 100 mm - Maximum workpiece length: 150 mm - X-axis travel: 700 mm / Rapid traverse X: 60 m/min - Z-axis travel: 375 mm / Rapid traverse Z: 30 m/min - Standard automation with closed system (number of loading nests by workpiece diameter: 14/(80–200), 18/(30–160), 30/(30–85)) Main Spindle - Spindle interface per DIN 55026: Size A5 - Maximum spindle speed: 6000 rpm - Power (100% / 40% duty cycle): 18.1 / 13.9 kW - Torque (100% / 40% duty cycle): 77 / 59 Nm Tool Holder with Driven Tools - Tool shank per DIN 69880: 12 – BMT65 - Number of stations: 12 - Maximum tool length including holder: 190 mm - Maximum speed: 6000 rpm - Maximum torque (10% duty cycle): 27 Nm; (100% duty cycle): 14 Nm Electrical Equipment - Operating voltage: 400–480 V, 80 A - Connected load: 27 kVA Dimensions - Total dimensions (L x W x H): 4350 mm (with chip conveyor) x 1600 mm x 2500 mm - Weight: 5500 kg Main Features and Capabilities: - Vertical Design: Optimized for chip removal and easy loading/unloading - CNC Controller: GE Fanuc FS 32i B - High precision: Positioning accuracy in X and Z axes ±0.001 mm with Heidenhain linear scales - Main spindle: High power and broad speed range - In-process control: Marposs T25 measuring probe - Automated loading/unloading: Integrated automation for feeding and removing parts Kdedexxip Aepfx Ad Ijw - Live tools: Capability for drilling and milling operations - Tool life monitoring and sister tool management - Chip conveyor & Knoll coolant filtration unit with paper filter and 40 bar pumps (suitable for filtering two machines) - Fully enclosed work area, with work area lighting - Documentation: Electronic version available, printed booklet incomplete Machine Status: - NOT WORKING - LT motor defective, repairable - Operator panel, safety switch, and two buttons broken and need replacement

Condition: repair required (used), Year of construction: 2017, functionality: not functional, machine/vehicle number: 179057653, Technical characteristics: Work Area - Chuck diameter: 600 mm - Max. workpiece diameter/height: 450 / 400 mm - Distance from spindle nose to tailstock reference point: 639 mm - X1/X2 axes travel (working stroke): 335/289 mm / Rapid traverse in X: 30 m/min - Z1/Z2 axes travel: 560/494 mm / Rapid traverse in Z: 30 m/min - Fully enclosed with automatic door opening, supporting manual or automatic loading Main Spindle - Spindle according to DIN 55026: Size A6 - Max. speed: 4,500 rpm - Power at 100% / 40% duty cycle: 23 / 18 kW - Torque at 100% / 40% duty cycle: 146 / 115 Nm Tailstock - Interface: MK4 - Clamping force: 850 daN - Clamping stroke: 200 mm Turret Configuration X1/Z1: Toolholder with Powered Tools - Cylindrical shank holders per DIN 69880: 8 - VDI40 - Max. tool length: 130 mm - Number of positions: 1 x 8 Kdedsxxinfepfx Ad Iew - Max. speed: 4,500 rpm - Max. torque at 10% / 100% duty cycle: 27 Nm / 14 Nm Turret Configuration X2/Z2: Toolholder with Powered Tools - X-HOT unit for polygonal turning, max. eccentricity (stroke): 8 mm - X-HOT tool clamping system: HSK 32S Electrical Equipment - Operating voltage: 400 V, 100 A - Connected load: 37 kVA Dimensions - Overall dimensions: Length = 3,000 mm (6,477 mm with chip conveyor), Width = 3,000 mm, Height = 3,650 mm - Weight: 11,000 kg Main Features and Capabilities: - Vertical design for optimum chip removal, suitable for manual or automated loading/unloading - Siemens 840D control, NC1 and NC2 axes - High precision: Positioning accuracy in X, Z axes ±0.002 mm (Heidenhain linear scales) - Powerful main spindle with a wide speed range - Live tooling extends machining capabilities to drilling and milling - Tool life monitoring - Chip conveyor: Knoll - Coolant system filtration up to 40 bar: Knoll FKA/1400 - Workpiece presence detection with low pressure sensor - ROBOT AUTOMATION INFRASTRUCTURE INSTALLED - Fully enclosed work area; integrated lighting - Documentation: available both electronically and as hard copy Machine status: Not operational - Missing: valve for emulsion circuit and inductive sensors

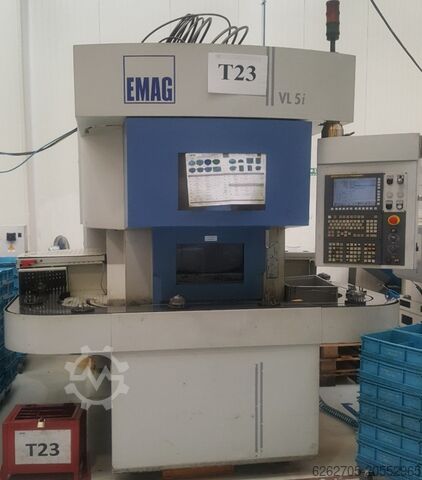

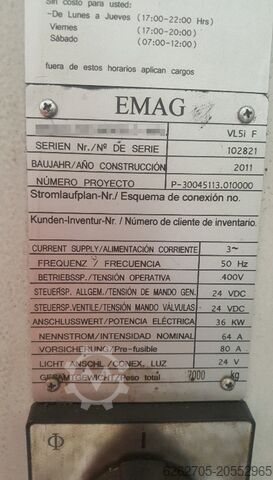

Condition: used, Year of construction: 2011, functionality: fully functional, machine/vehicle number: 102821, Technical characteristics: Work Area - Maximum diameter of the clamping plate: 250 mm - Maximum turning diameter: 270 mm - Maximum machining diameter: 220 mm - Maximum workpiece length: 175 mm - X-axis travel: 660 mm / Rapid traverse in X: 60 m/min - Z-axis travel: 300 mm / Rapid traverse in Z: 30 m/min - Standard closed automation (number of loading nests by workpiece diameter: 14/(80...200), 18/(30...160), 30/(30...85)) Main Spindle - Spindle interface to DIN 55026: Size 6 - Maximum speed: 4,500 rpm - Power at 100% / 40% duty cycle: 18 / 27 kW - Torque at 100% / 40% duty cycle: 202 / 303 Nm Tool Turret with Driven Tools - Toolholders, cylindrical shank DIN 69880: 12x VDI40 - Number of stations: 12 - Maximum tool length including holder: 190 mm - Maximum speed: 6,000 rpm - Maximum torque at 10% duty cycle: 37 Nm, 25%: 26 Nm, 100%: 14 Nm Electrical Equipment - Operating voltage: 400 V - Connected load: 36 kW / 80 A Dimensions - Dimensions (L x W x H): 3,120 mm (4,185 mm with chip conveyor) x 2,266 mm x 3,200 mm - Weight: 7,500 kg Main Features and Capabilities: - Vertical design for optimal chip removal and easy access for loading/unloading - CNC control: GE Fanuc Series 32i Model A - High precision with X, Z, and Y axis positioning accuracy ±0.001 mm (Heidenhain linear scales) Kodpfxsxxikgo Ad Ijdw - Powerful main spindle with wide speed range - Integrated automation for part loading/unloading - Driven tools available for both milling and drilling operations - Workpiece detection sensor with compressed air gauge through spindle: SMW Autoblock Linear Position Sensor LPS-X - In-process gauging: Marposs T25 - Chip conveyor included - Documentation: Complete, both electronic and paper versions Machine status: IN OPERATION

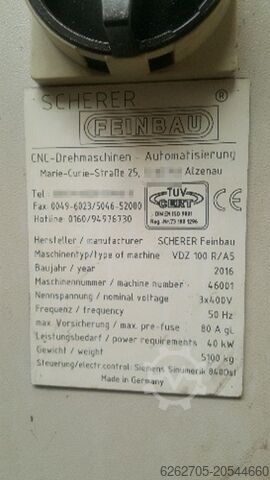

Condition: used, Year of construction: 2016, functionality: fully functional, machine/vehicle number: 46001, Technical characteristics: Work Area - Maximum clamping plate diameter: 220 mm - Maximum turning diameter: 170 mm - Maximum machining diameter: 170 mm - Maximum workpiece length: 100 mm - X-axis travel: 495 mm / X-axis rapid traverse: 48 m/min - Z-axis travel: 250 mm / Z-axis rapid traverse: 30 m/min - Standard enclosed automation (number of loading positions by workpiece diameter: 14/(80...200), 18/(30...160), 30/(30...85)) Main Spindle - Spindle (DIN 55026): Size A5 - Maximum speed: 7000 rpm - Power at 100% duty cycle: 23 kW Kodpfexw Ufyjx Ad Ijdw - Torque at 100% duty cycle: 130 Nm Tool Turret with Driven Tools - Turret VDI40, Siemens drive 0.5.435.220, Manufacturer: Sauter - Number of stations: 12 - Maximum speed: 4000 rpm Electrical Equipment - Supply voltage: 400 V, 80A GL fuse protection - Connected load: 41 kW Dimensions - Total dimensions (L×W×H): 3913 × 2160 × 2955 mm - Weight: 6500 kg Main Features and Capabilities: - Vertical design: Optimal chip evacuation and easy loading/unloading - Control system: Siemens 840D SL - High precision: X and Z axis position accuracy via Heidenhain linear scales - Main spindle by Weiss: High power and broad speed range - Automated loading/unloading: Parts are loaded and unloaded via integrated automation - In-process control probe: Marposs T25 - Driven tools: Enables drilling and milling operations - Chip conveyor: Knoll - Coolant “paper” filtration & chiller unit: Knoll KF150/950 - Fire suppression system: Kraft&Bauer - Electrostatic mist collector: IF Vario EC1500 Machine status: - Working

Condition: used, Year of construction: 2016, functionality: fully functional, machine/vehicle number: 46003, Technical characteristics: Work Area # Maximum diameter of the clamping plate: 220 mm # Maximum turning diameter: 170 mm # Maximum machining diameter: 170 mm # Maximum workpiece length: 100 mm # X-axis travel: 495 mm / Rapid feed in X: 48 m/min # Z-axis travel: 250 mm / Rapid feed in Z: 30 m/min # Standard enclosed automation (number of loading stations by workpiece diameter: 14/(80–200 mm), 18/(30–160 mm), 30/(30–85 mm)) Main Spindle Kdjdpjxw Ub Iofx Ad Ijw # Spindle interface to DIN 55026: Size A5 # Maximum speed: 7000 rpm # Power at 100% duty cycle: 23 kW # Torque at 100% duty cycle: 130 Nm Powered Tool Turret # Turret type: VDI40, Siemens drive 0.5.435.220, Manufacturer: Sauter # Number of stations: 12 # Maximum speed: 4000 rpm Electrical Equipment # Operating voltage: 400 V, fuse protection 80A GL # Connected load: 41 kW Dimensions # Total dimensions: Length = 3913 mm, Width = 2160 mm, Height = 2955 mm # Weight: 6500 kg Main Features and Capabilities: # Vertical design: Optimal chip evacuation and easy loading/unloading # CNC control: Siemens 840D SL # High precision: Positioning in X and Z axes via Heidenhain linear encoders # Main spindle - Manufacturer: Weiss, providing high power and wide speed range # Automated loading/unloading: Integrated automation supplies and removes parts # In-process probe: Marposs T25 # Live tooling: Allows drilling and milling operations in addition to turning # Chip conveyor: Knoll # Coolant filtration and cooling: Knoll KF150/950 paper filtering unit # Fire suppression system: Kraft & Bauer # Electrostatic oil mist filter: IF Vario EC1500 Machine status: WORKING

Condition: good (used), Year of construction: 2003, machine/vehicle number: 103848, travel distance X-axis: 210 mm, travel distance Y-axis: 330 mm, spindle speed (max.): 4,000 rpm, spindle speed (min.): 40 rpm, turning diameter: 330 mm, total length: 5,000 mm, total height: 2,400 mm, total width: 1,600 mm, overall weight: 6,500 kg, OKUMA LVT300-M Vertical CNC Lathe Serial Number: 103848 Swing diameter over bed: 320 mm Max. turning diameter: 280 mm Max. workpiece length: 200 mm Travel distances: X-axis: 210 mm Y-axis: 330 mm C-axis (indexing): 360° Kdjdpfoxw Uawsx Ad Iow Spindle speed: 40–4000 rpm Spindle bore: 62 mm Number of tool positions in turret: 12 Turret can accommodate driven tools Important note: The tool holders (including tools) and the chuck visible inside the machining area are not included in the sale or delivery. The chip conveyor is included in the sale and delivery, but not the pallets located on the conveyor. The three pallets shown at the end of the photos are included in the sale and delivery. Any oil mist extraction system visible in the photos is not included in the sale and delivery. Control: OKUMA OSP-U100L Length of chip conveyor: approx. 3500 mm Manufacturer: EWA-B Type: PS800 Year of manufacture: 2003 Machine number: 5746-01-358509.3 The technical documentation was not photographed but will be supplied with the machine. DIMENSIONS & WEIGHT: Dimensions (L x W x H): 5000 x 1500 x 2400 mm Weight: approx. 6500 kg

Condition: repair required (used), Year of construction: 2016, functionality: not functional, machine/vehicle number: 107965, Technical characteristics: Work Area - Maximum diameter of the clamping plate: 160 mm - Maximum turning diameter: 160 mm - Maximum machining diameter: 100 mm - Maximum workpiece length: 150 mm - X-axis travel path: 700 mm / Rapid traverse in X: 60 m/min - Z-axis travel path: 375 mm / Rapid traverse in Z: 30 m/min - Standard enclosed automation (number of loading nests in relation to part diameter: 14/(80...200), 18/(30...160), 30/(30...85)) Main Spindle - Spindle interface according to DIN 55026: Size A5 - Maximum rotational speed: 6000 rpm - Power at 100% / 40% duty cycle: 18.1 / 13.9 kW - Torque at 100% / 40% duty cycle: 77 / 59 Nm Tool Turret with Driven Tools - Tool shank as per DIN 69880: 12 positions - BMT65 - Number of positions: 12 - Maximum tool length including holder: 190 mm - Maximum speed: 6000 rpm - Maximum torque at 10% duty cycle: 27 Nm, at 100% duty cycle: 14 Nm Electrical Equipment - Operating voltage: 400 - 480 V, 80 A - Connected load: 27 kVA Dimensions - Total machine dimensions: Length = 4350 mm (with chip conveyor), Width = 1600 mm, Height = 2500 mm - Weight: 5500 kg Main Features and Capabilities: - Vertical construction: Optimized chip removal and easy loading/unloading - CNC controller: GE Fanuc FS 32i B - High precision: Axis positioning accuracy in X, Z ±0.001 mm (Heidenhain linear scales) - Main spindle: High power and wide speed range - Process control: Marposs T25 measuring probe - Automated loading/unloading: Parts are loaded and removed via integrated automation system - Live tooling: Enables drilling and milling operations in addition to turning Kedpfexw Svisx Ad Ijdw - Tool life monitoring with sister tool management - Chip conveyor & coolant filtration system Knoll with paper filter and 40 bar pumps (capable of filtering 2 machines) - Fully enclosed work area; integrated work lighting - Documentation: Available electronically; hardcopy manuals incomplete Machine status: NOT WORKING - Live tool drive motor - Safety locking mechanism (Euchner) for loading door - Turret drive motor - Turret motor driver - Lubrication pump - Hydraulic manifold (4x electrovalves) - Lubrication pressure system - Rotary union - Hydraulic cylinder for loading door - Spindle clamping/unclamping sensor

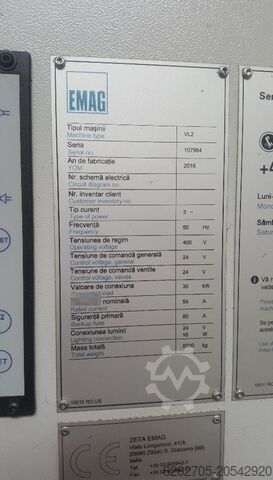

Condition: repair required (used), Year of construction: 2016, functionality: not functional, machine/vehicle number: 107964, Technical characteristics: Work Area - Maximum diameter of the clamping plate: 160 mm - Maximum turning diameter: 160 mm - Maximum machining diameter: 100 mm - Maximum workpiece length: 150 mm - X-axis travel: 700 mm / Rapid traverse in X: 60 m/min - Z-axis travel: 375 mm / Rapid traverse in Z: 30 m/min - Standard enclosed automation (number of loading nests by workpiece diameter: 14/(80...200), 18/(30...160), 30/(30...85)) Main Spindle - Spindle interface according to DIN 55026: Size A5 - Maximum speed: 6000 rpm - Power at 100% / 40% duty cycle: 18.1 / 13.9 kW - Torque at 100% / 40% duty cycle: 77 / 59 Nm Tool Holder with Motorized Tools - Tool holders with cylindrical shank according to DIN 69880: 12 - BMT65 - Number of stations: 12 - Maximum tool length including holder: 190 mm - Maximum speed: 6000 rpm - Maximum torque at 10% duty cycle: 27 Nm, at 100% duty cycle: 14 Nm Electrical Equipment - Operating voltage: 400 - 480 V, 80 A - Connected load: 27 kVA Dimensions - Total dimensions: Length = 4350 mm with chip conveyor, Width = 1600 mm, Height = 2500 mm - Weight: 5500 kg Main Features and Capabilities: - Vertical Design: Enables optimal chip evacuation and easy loading/unloading. - CNC Control: GE Fanuc FS 32i B. - High Precision: Positioning accuracy on X and Z axes ±0.001 mm with Heidenhain linear scales. - Main Spindle: High power and wide speed range. - In-process Measurement: Equipped with Marposs T25 measuring probe. - Automated Loading/Unloading: Integrated automation for part loading and unloading. - Live Tooling: Capability for driven tools expands machining to drilling and milling operations. - Tool Life Monitoring: Sister tool management for tool life tracking. - Chip Conveyor - Fully Enclosed Work Area with Work Area Lighting - Documentation: Electronic available; hardcopy/incomplete book. Kjdpfxsxw Srke Ad Isdw Machine Status: NOT OPERATIONAL - Cooling pump x2 units - Live tool drive motor - Lubrication pump - Operator panel - touchscreen needs replacement - Hydraulic block valves x3 - Hydraulic loading door cylinder - Rotary joint - Lubrication pressure switch - Safety door, Euchner type

Condition: used, Year of construction: 2015, functionality: fully functional, machine/vehicle number: 106679, Technical Specifications: Work Area - Chuck diameter: 260 mm - Maximum weight: 150 kg - Swing diameter: 280 mm - Maximum workpiece diameter/height: 200/200 mm - X-axis stroke (working stroke): 760 mm / Rapid traverse in X: 60 m/min / Feed force: 6.9 kN - Y-axis stroke: ±30 mm / Rapid traverse in Y: 15 m/min / Feed force: 7.5 kN - Z-axis stroke: 415 mm / Rapid traverse in Z: 30 m/min / Feed force: 18.7 kN - Loading time: 5–6 sec - Standard closed automation (number of loading stations by workpiece diameter): 14 (80–200 mm), 18 (30–160 mm), 30 (30–85 mm) Main Spindle - Spindle interface according to DIN 55026: Size 6 - Maximum speed: 4,500 rpm - Power at 100% / 40% duty cycle: 25 / 18 kW - Torque at 100% / 40% duty cycle: 280 / 200 Nm Turret with Driven Tools - Toolholder interface according to DIN 69880: 12 positions – BMT65 Kjdjxw Smbspfx Ad Iodw - Number of stations: 12 - Maximum tool length (incl. holder): 200 mm - Maximum speed: 6,000 rpm - Maximum torque at 10% duty cycle: 27 Nm, at 100%: 14 Nm Electrical Equipment - Operating voltage: 400–480 V, 100 A - Connected load: 36 kVA Dimensions & Weight - Overall dimensions: Length = 5300 mm (incl. chip conveyor), Width = 2300 mm, Height = 3650 mm - Weight: 9,000 kg Features and Capabilities: - Vertical Design: Optimized for chip evacuation and easy loading/unloading - Control: GE Fanuc FS 32i B - High Precision: Positioning accuracy X/Z axes ±0.001 mm (Heidenhain linear scales) - Main Spindle: High power and broad speed range - In-Process Control: Marposs T25 measuring probe - Automated Loading/Unloading: Emag O-Type with integrated automation for feeding and removing parts - Live Tools: Supports drilling and milling operations - Tool Life Monitoring: Sister tool management - Chip conveyor & coolant filtration unit: Micronfilter with “paper filter,” 40 bar pumps (supports two machines) - Fully enclosed work area, integrated lighting - Documentation: Electronic available, incomplete printed manual Machine Status: - In Operation

Condition: repair required (used), Year of construction: 2016, functionality: not functional, machine/vehicle number: 107786, Technical characteristics: Work Area - Maximum clamping plate diameter: 160 mm - Maximum turning diameter: 160 mm - Maximum machining diameter: 100 mm - Maximum workpiece length: 150 mm - X-axis travel: 700 mm / Rapid traverse in X: 60 m/min - Z-axis travel: 375 mm / Rapid traverse in Z: 30 m/min - Standard closed automation (number of loading stations per workpiece diameter: 14/(80...200), 18/(30...160), 30/(30...85)) Main Spindle - Spindle as per DIN 55026: Size A5 - Max. speed: 6000 rpm - Power at 100 / 40% duty cycle: 18.1 / 13.9 kW - Torque at 100 / 40% duty cycle: 77 / 59 Nm Tool Turret with Driven Tools - Toolholders per DIN 69880: 12 × BMT65 - Number of stations: 12 - Maximum tool length including holder: 190 mm - Maximum speed: 6000 rpm - Maximum torque at 10% duty cycle: 27 Nm; 100% duty cycle: 14 Nm Electrical Equipment - Operating voltage: 400 - 480 V, 80 A - Connected load: 27 kVA Dimensions - Overall dimensions: Length = 4350 mm (with chip conveyor), Width = 1600 mm, Height = 2500 mm - Weight: 5500 kg Main Features and Capabilities: - Vertical construction: optimal chip evacuation and easy part loading/unloading - Control: GE Fanuc FS 32i B Kdjdpfx Asxw Slked Iew - High precision: positioning accuracy in X and Z axes ±0.001 mm (Heidenhain linear scales) - Main spindle: high power and wide speed range - In-process control: Marposs T25 measurement probe - Automated loading/unloading: integrated automation feeds and removes workpieces - Driven tools: enhances machining capabilities for drilling and milling - Tool life monitoring with sister tool management - Chip conveyor - Fully enclosed work area; workspace lighting - Documentation: Electronic available; physical manual incomplete Machine Condition: NOT WORKING - Operator panel touchscreen needs replacement - Hydraulic cylinder for loading door broken - Emulsion pump - Hydraulic pump - Spindle clamp/unclamp sensor - Hydraulic accumulator - Turret motor

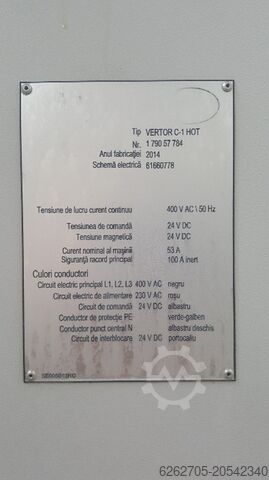

Condition: used, Year of construction: 2014, functionality: limited functionality, machine/vehicle number: 179057784, Technical characteristics: Working Area - Chuck diameter: 600 mm - Max. workpiece diameter/height: 450 / 400 mm - Distance from spindle nose to tailstock reference point: 639 mm - X1/X2 travel (working stroke): 335 / 289 mm - Rapid traverse in X: 30 m/min - Z1/Z2 travel: 560 / 494 mm - Rapid traverse in Z: 30 m/min - Standard enclosure with automatic door opening – manual or automatic loading possible Kedpfoxw R Rfjx Ad Iedw Main Spindle - Spindle interface as per DIN 55026: Size A6 - Max. speed: 4500 rpm - Power at 100 / 40% duty cycle: 23 / 18 kW - Torque at 100 / 40% duty cycle: 146 / 115 Nm Tailstock - Interface: MK4 - Clamping force: 850 daN - Clamping stroke: 200 mm Turret X1/Z1: Tool Carrier with Live Tools - Cylindrical tool holder interface as per DIN 69880: 8 x VDI40 - Max. tool length: 130 mm - Tool stations: 1 x 8 - Max. speed: 4500 rpm - Max. torque (10% duty cycle): 27 Nm, (100% duty cycle): 14 Nm Turret X2/Z2: Tool Carrier with Live Tools - X-HOT unit for polygonal machining, max. eccentricity/stroke: 8 mm - X-HOT tool holder clamping system: HSK 32S Electrical Equipment - Operating voltage: 400 V, 100 A - Connected load: 37 kVA Dimensions - Overall dimensions: Length = 3000 mm (6477 mm with chip conveyor), Width = 3000 mm, Height = 3650 mm - Weight: 11,000 kg Main Features and Capabilities - Vertical design: Optimal chip removal, manual or automatic loading/unloading - Control: Siemens 840D, controls NC1 and NC2 - High precision: Positioning accuracy in X and Z axes ±0.002 mm (Heidenhain linear scales) - Main spindle: High power, wide speed range - Live tools: Allows drilling and milling operations - Tool life monitoring - Chip conveyor / Coolant: Knoll - Coolant filtration unit, max. 40 bar: Knoll FKA/1400 - Part presence detection system with low air pressure sensor - Automation infrastructure: Prepared for robot integration - Fully enclosed work area with working area lighting - Documentation: Electronic and hardcopy available Machine condition: Working only on X1/Z1 – X2/Z2 operational, but XHOT not available

Condition: excellent (used), Year of construction: 2006, functionality: fully functional, OKUMA V-Turn LVT 400 CNC Vertical Turning Lathe (2 machine cell) Model: LVT 400 Control: OKUMA OSP 1000L Year: 2006 Kdedpfx Asxwy S Ejd Isw 12 – tool turrets Hi – Power 60 Bar High Pressure coolant Swarf Conveyor Work Measurement Carousel System linking with both machines with turnover station
