Condition: used, Year of construction: 1977, 1977 GRABENER GK 800 800T Press Cpedjym Aqkspfx Ah Iew Force: 800 tons, Stroke: 65 mm, Stroke rate: 45 stroke/min, Table: 590 x 650 mm, Slider: 590 x 450 mm, Adjustment: 50mm, Dimensions: 2600 x 1800 x 3100 mm, Weight approx. 18 ton, Note: In 2022 done new electrical schemes, S/No: 5488 (1977)

Condition: used, Year of construction: 1977, pressure 30 t throat 110 mm stroke 50 mm no. of strokes 35 - 80 /min passage to the back 170 mm dayligth 230 mm table surface area 410 x 260 mm table height over floor 790 mm ram surface 190 mm ram adjustment 35 mm power requirement 1,0 x 1,1 x 1,8 kW Weight 1,3 t SPECIAL DEAL as is where is WITHOUT putting into operation / WITHOUT additional work free loaded to truck Cedpjylzyzsfx Ah Ispw

Condition: used, Year of construction: 1988, pressure 100 t Cpodpfx Aoylzyheh Isw distance between columns 1180 mm stroke 1 - 120 mm no. of strokes 90 /min distance table/ram, stroke up 470 mm table surface area 1100 x 700 mm table height over floor 800 mm side window 400 mm ram surface 740 x 350 mm ram adjustment 100 mm power requirement 37,0 kW weight 11,0 t dimensions (WxDxH) 2,3 x 2,0 x 3,5 m SPECIAL DEAL as is where is WITHOUT putting into operation / WITHOUT additional work free loaded to truck difference-way press - without T-slots in table and ram

Condition: used, Year of construction: 1978, pressure 100 t stroke 60 mm no. of strokes 60 /min throat 150 mm passage to the back 245 mm dayligth 320 mm table surface area 580 x 400 mm hole in the table 100 mm Cedpfx Aheylzxwo Iopw table height over floor 900 mm ram surface 300 mm power requirement 4,0 kW required space 1,1 x 1,4 x 2,0 m SPECIAL DEAL as is where is WITHOUT putting into operation / WITHOUT additional work / NOT CHECKED free loaded to truck

Condition: new, Year of construction: 2025, functionality: fully functional, Kyori High-Speed Press ANEX 40-1100 with Fixed Stroke Technical Specifications Capacity: 400 kN Die Area (L-R x F-B): 1100 x 600 mm Fixed Stroke Length: 13 mm (other stroke lengths available upon request) Speed with Maximum 180 kg Upper Die Weight (other upper die weights available upon request): 13 mm Stroke Length: 1050 SPM (strokes per minute) Power Supply: 76 kVA Servo Motor Power: 47 kW Die Shut Height: 250 – 300 mm (customizable) Slide Adjustment: 50 mm Strip Inlet Width: max. 200 mm Strip Inlet Height: 90 – 150 mm Additional Information · Highly dynamic, link-motion fixed stroke design · Modern, high-performance PCS100 press control with modular design · Highly efficient drive system for reduced CO2 footprint · Bottom dead center position and crank angle remain unchanged Csdpfx Aoydvgtjh Iopw · Industry 4.0 ready via OPC-UA interface · Press force monitoring · Integrated tool monitoring · Integrated PV100 servo feeder system

Condition: excellent (used), Year of construction: 1996, Toggle Press Schling Pressing force 60KN (6000 kg) Stroke adjustable from 0 to 25 mm Very clean and in very good condition Cpjdpeyc Eatofx Ah Isw

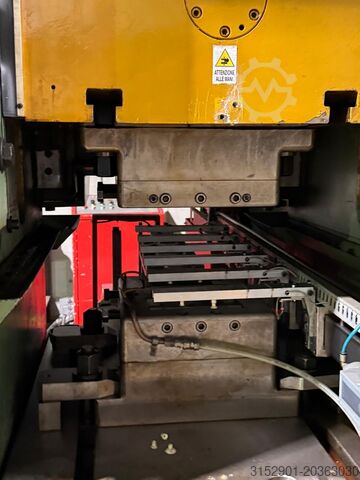

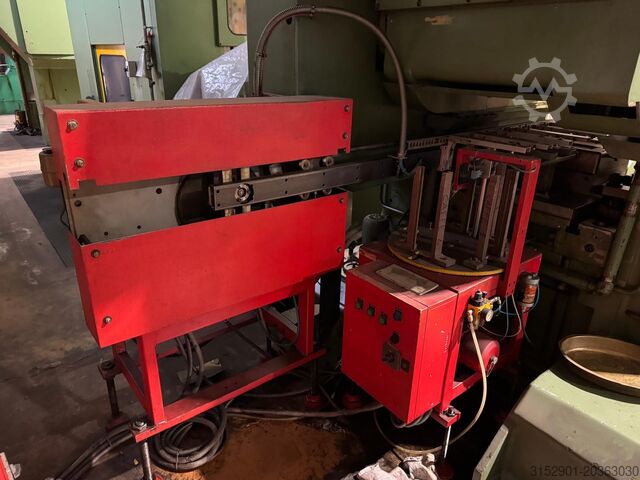

Condition: excellent (used), Year of construction: 1984, Model KB8340 Nominal force: 1,000 tons Slider stroke, mm: 170 Distance between table and slider, mm: 470 Main drive motor power, kW: 25 Table size (width/length), mm: 800/800 Machine dimensions (Length/Width/Height), mm: 3,060/1,730/3,980 Weight, kg: 25,920 Cpsdpfx Aoya U Izoh Isw

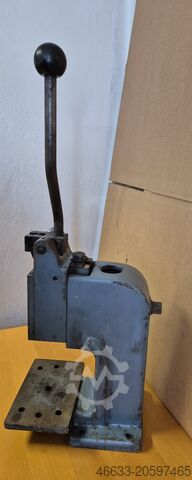

Condition: used, functionality: fully functional, throat depth: 80 mm, total width: 100 mm, total length: 220 mm, ram adjustment: 77 mm, table width: 100 mm, table length: 160 mm, installation height: 140 mm, overall weight: 17 kg, space requirement length: 220 mm, space requirement width: 100 mm, stroke length: 25 mm, Toggle Press / Hand Lever Press with Square Ram Make: Steinel Type / Machine Number: PHK 8 Press Force: 6 kN Table Size: 100 x 160 mm Cpsdpfxoxyw A He Ah Isw Throat Depth: 80 mm Stroke: 25 mm Installation Height: 63 – 140 mm Height Adjustment: 77 mm Ram Bore: Ø 10 mm Machine Weight: 17 kg Space Requirement: 100 x 220 x 600 mm

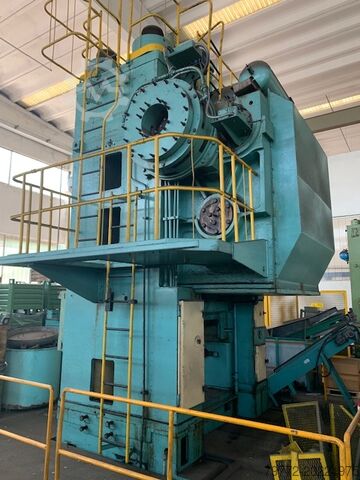

Condition: excellent (used), Year of construction: 1992, Manufacturer: Woronez TMP Year: 1992 Model and configuration: KB8044 / 2500 ton Nominal force: 2500 tons Slide stroke: 190 mm Cpsdoxlh Ttspfx Ah Isw Number of strokes: 14-20 Closed die height: 560 mm Slide adjustment: 15 Table dimensions: 1530 x 1530 mm Distance between uprights: 1600 mm Main motor: 77 kW, 380 V Overall dimensions: 4920 x 3340 x 5980 mm Weight: 125 tons.

Condition: ready for operation (used), Schmidt 33-156-01 Toggle Press PressControl 500 Pressing force: 15 kN Stroke: 40 mm Overrun time: 0.07 sec Overrun distance: 15 mm PressControl 500 Two-hand operation You are welcome to arrange a viewing. We can also organize affordable shipping for you! You will receive a proper invoice. Codpsxcn Apefx Ah Ijpw For international customers, a net invoice can also be issued, provided a valid VAT ID number is supplied. Subject to prior sale. Visit our shop and check out our other offers. Specified company names and trademarks are the property of their respective owners and are used solely for identification and description of the products. Deviations from technical data as well as errors in the description of the item may occur and are subject to change.

Condition: used, Year of construction: 1994, pressure 600 t stroke 100 mm no. of strokes 45 /min distance between columns 580 mm dayligth 460 mm table surface area 550 x 620 mm ram surface 550 x 430 mm ram adjustment 50 mm Cedpfx Aew U Ekpjh Iopw power requirement 15,0 kW Weight 13,5 t dimensions (WxDxH) 1,5 x 2,45 x 2,75 m Nominal force travel 1.7 mm Nominal energy 10.2 kJ With knuckle-joint drive, flywheel brake, hydraulic clutch, press frame balancing, self-monitoring control system

Condition: new, Year of construction: 2024, functionality: fully functional, Kyori High Speed Press VX50-1500 with variable stroke adjustment Tonnage: 500 kN Drive design: flywheel with dynamic balancing Strip running direction: possible on both sides Main drive position: right Ram adjustment range: 55 mm Shut height standard: 300 mm Max. upper die weight: 300 kg Safety doors: front and back Work area lighting: 2 LED lights Bolster (LxW): 1500 x 600 mm Bolster thickness: 210 mm Bolster plate: T-slot pitch Bolster material: steel Press bed opening (LxW): 1200 x 160 mm Bridge in machine bed: No Ram size (LxW): 1400 x 420 mm Machining ram: 90 slot pitch Dimensions: 2311 x1835 mm Total height: 3780mm Press weight: (approx.) 14,500 kg Strip inlet height: 100 - 140 mm Strip inlet width: max. 280 mm Possible feeds: PV30-200 Cooling: water cooled, for cooling of control cabinet; AC servo main drive; as well as machine oil; connection to existing hall cooling system Press control with the following features: - 15" touch screen with stand. - User-friendly visualized menu navigation - Data import/export - Energy safe / night shutdown - Three-level energy options - User administration - Error log - High resolution coding system - Tool changeover including stored process parameters - TDC shutdown with brake angle calculation over entire speed range - Oil and air pressure display including monitoring - Integration of the press into a process chain via peripheral interfaces -Ethernet interface - USB interface - Backup function - Test stroke - Reverse run - Increased working capacity, i.e. reduction of speed to 80 strokes/min. - Quick lift including automatic approach to quick lift position and the shut height in set-up and continuous mode - Stroke change menu driven - Detection of the working stroke after stroke change with SET/ACTUAL comparison - UPS - for fail-safe operation - Absolute ram position display - Punching area protection with non-contact safety switches - Beckhoff "Twincat 3.1" control system - Beckhoff "TwinSafe" safety controller - water-cooled, for cooling the control cabinet and AC servo main drive * for stable production with fluctuating environmental influences such as heat * minimal heat dissipation inside the sound enclosure due to main drive * no suction and swirling of punching oils and particles through main drive - all electrical cables, connectors, control elements, are professionally installed - Remote support Team Viewer - Internet access through integrated Ethernet interface - Interlinked EMERGENCY STOP function - Extension of the press control for further SYS products on request - Integrated service counters for programmable maintenance intervals and maintenance instructions - 8 customer-specific error messages - 2 peripheral interfaces including power supply *Harting Interface 16A *Harting Interface 32 A Cpsdpfowhk Dpsx Ah Iow - SCHUKO socket outlet 230V 10A

Condition: good (used), Year of construction: 1980, For sale Knee press 200 tons Cpedpfov Uxwlex Ah Isw The price given in the advertisement is a net price to which VAT should be added

Condition: used, Single-column toggle press MAY - MAYPRES - KOMATSU Type MKN 1-63/6 Eccentric toggle press, eccentric press Year of manufacture approx. 1984 Pressing force 60 tons Cpjdjv Uraaepfx Ah Ijw Thrust 160 mm Table size 580 x 360 mm Ram surface Ø 270 mm Clamping pin bore Ø 40 mm Distance between columns 218 mm Ram stroke 60 mm Ejector stroke 15 mm Ram adjustment travel 30 mm Max. installation height 300 mm (with intermediate table plate) Stroke rate 70 strokes per minute Motor speed 1400 rpm Motor power 3 kW Power supply 380 V, 50 Hz - Pneumatic clutch and mechanical brake with pneumatic release (separate clutch-brake combination) - Table intermediate plate L x W x H 580 x 360 x 58 mm, with holes and cutouts - Mechanical ejector, ejector device in the machine table, Ø 80 mm - Electric two-hand control and foot switch - Movable safety screen, UNIDOR protective housing with pneumatic front screen - BALLUFF cam switch Space requirement L x W x H 1400 x 1200 x 1850 mm Weight 3 tons Good condition

Condition: used, pressing force: 1,500 t, pressure: 6 bar, operating pressure: 6 bar, space requirement height: 80 mm, space requirement length: 60 mm, space requirement width: 45 mm, stroke length: 60 mm, Alfamatic B-15 tromboline type mini press Ideal for assembly of prototypes and series, very easy to program Cpodpfx Ahjv Hp Hus Iow It has a CSQ Visual control system for processing force and travel data with various functions and the possibility of connecting to a computer

Condition: used, Year of construction: 2003, pressure 400 t distance between columns 1060 mm stroke 450 mm no. of strokes 15 - 30 /min distance table/ram, max. stroke up, adjustment up 1160 mm Codpjvzxpuofx Ah Iopw table surface area 1000 x 700 mm capacity of ejector in table 2 x 16 t ejector stroke of ejector in table 125 mm Die cushion pressure in table 120 t Die cushion stroke in table 2 mm capacity of ejector in ram 2 x 4 t stroke of ejector in ram 100 mm ram surface 1000 x 700 mm column travel -side 630 mm power capacity 55,0 kW weight 50,0 t year of manufacture 1986 - overhaul 2003 multi-station press with automatic parts feed, Transfer, drawing cushion in table (2. stage) as is where is, WITHOUT putting into operation, stored in dismantled condition

Condition: used, Year of construction: 2012, pressure 260 t distance between columns 360/270 mm stroke 60 mm Stroke rate 50 / min Distance table/ram, max. stroke up, adjustment up 225 mm Table surface area 340 x 380 mm table height over floor 800 mm Ram surface 230 x 220 mm Ram adjustment 12 mm Power capacity 4,5 kW Dimensions (WxDxH) 2,0 x 1,55 x 2,6 m Cpsdsvuuk Ispfx Ah Ijw Weight 4,5 t Overhauled in 2012 permitted only for safe tools or fixed screen according to the German Safety Regulations (UVV) overhaul in 2012: new clutch-brake combination new control Siemens S 7 new two-hand and foot operation

Condition: used, Year of construction: 1997, pressure 1000 t distance between columns 1260 mm stroke 315 mm no. of strokes 10, 21 - 42 /min distance table/ram, max. stroke up, adjustment up 1295 mm table surface area 1250 x 800 mm table height over floor 670 mm side window 830 mm capacity of ejector in table 63 t ejector stroke of ejector in table 75 mm capacity of ejector in ram 16 t stroke of ejector in ram 23 mm ram surface 1250 x 800 mm ram adjustment 20 mm feeding length transfer 0 - 250 mm closing travel of each rail programmable 0 - 140 mm Cpodpfovuukujx Ah Ijw no. of strokes of the transfer 42 /min power requirement 135,0 kW weight 120,0 t Dimensions (WxDxH) 5,9 x 4,8 x 7,95 m height above floor 6,95 m height beneath floor 1,0 m with DC drive, pneumatic clutch, motoric ram adjustment, pneumatic counterbalance in ram, mechanical ejector in table (pneumatically controlled), mechanical ejector in ram, ram interlocking, die clamping system in table and ram, motoric oil circular lubrication, grease lubrication control of the press: Siemens S 5 - CNC 2-Achs-Transfer (Fabrikat Dreher, Type STV-D Modell 350/100-SO, Bj. 2008), Steuerung Siemens S 7 - cleaning system (make Beyss, yom. 1989) as is where is, WITHOUT putting into operation, stored in dismantled condition The press was previously installed in a soundproof enclosure, which is not part of the scope of delivery Video at seller's site before dismantling available

Condition: used, Year of construction: 1988, pressure 400 t distance between columns 1100 mm stroke 250 mm no. of strokes 25 - 75 /min distance table/ram, max. stroke up, adjustment up 900 mm table surface area 1100 x 965 mm capacity of ejector in table 30 t ejector stroke of ejector in table 80 mm Cjdpfx Ajvuuknoh Iopw capacity of ejector in ram 3 t stroke of ejector in ram 60 / 70 mm ram surface 980 x 800 mm column travel -side 800 mm ram adjustment 20 mm power capacity 80,0 + 5,5 kW weight 47,0 t Dimensions (WxDxH) 3,5 x 3,3 x 6,0 m weight of switch cabinet 1,4 t dimensions of electrical cabinet (WxDxH) 4,9 x 0,5 x 2,6 m Multi-station cold extrusion press with link drive with infinitely variable drive, hydraulic clutch-brake combination (Ortlinghaus), hydraulic overload protection in the slide, motorised slide adjustment, pneumatic counterbalance cylinder in press frame, cam-controlled ejector in table (30 t / 80 mm), pneumatic ejector in slide (3 t, 60 mm), motorised central lubrication can be offered without putting into operation or alternatively with new control Siemens S 7-1500 F

Condition: used, Year of construction: 1988, pressure 100 t distance between columns 1180 mm stroke 3 - 120 mm no. of strokes - 95 /min distance table/ram, stroke up 500 mm table surface area 1100 x 700 mm Hole in the table 220 x 100 mm table height over floor 800 mm side window 400 mm ram surface 750 x350 mm ram adjustment 100 mm Oil volume 1300 l power requirement 42,0 kW weight 10,0 t dimensions (WxDxH) 1,8 x 1,8 x 3,55 m permitted for manual put-in according to the German Safety Regulations (UVV) with hydraulic driven knuckle-joint system, controllable dependent on pressure and way, two-hand operation with electro-hydraulic roll feed no foundation pit necessary Option additionally: decoiler Fecker (price on request) Cpodpfx Ajvut Tzsh Iew can be offered with or without putting into operation - video at seller's site before dismantling available

Condition: ready for operation (used), Schmidt 32-151-01 Toggle press PressControl 60 Compressive force: 15 kN Stroke: 40mm Follow-up time: 0.07 sec Overtravel: 15mm PressControl 60 Two-hand operation You are welcome to come by for a viewing. We will be happy to arrange a cost-effective forwarding agent for you. organize! You will receive a proper invoice. A net invoice can also be issued for foreign customers. Prerequisite is a valid VAT number. Subject to prior sale. Codpfxsulf A Ej Ah Ijpw Visit our store and have a look at our other offers. Company names and trademarks are the property of their owners and are used only to identify and describe the products. Deviations from technical data and errors in the description of the article may occur and are reserved.

Condition: excellent (used), pressing force: 5 t, I sell a Schling DUO 5T pneumatic press. Codpfx Ahjudph Uo Ispw

Condition: new, Kyori High-Speed-Press VX40-W with Siemens-Control Technical specification: Cpedpfx Ahjt Upvbj Ijw tonnage: 400 KN drive: flywheel with dynamic balancer feeding direction: right to left color: Kyori white RAL 7035 position of main drive: right ram adjustement range: 50 mm shut height : 240 mm max. upper die weight: 180 kg safety doors: front and back tool load area light: 2 LED-lights bolster area (LxW): 950 x 600 mm bolster design: T-slot bolster material: steel bolster thickness: 120 mm base plate opening (LxW): 760 x 120 mm ram area (LxW): 950 x 450mm ram design: T-slot dimensions: 2120 x 1400 mm total height: 3170 mm weight: (approx.) 9.500 kg strip inlet height: has to be defined strip inlet width: max. 300 mm feed: Vamco SR-150

Condition: used, Year of construction: 1978, pressure:300 t stroke:88 mm no. of strokes:50 /min Csdpet Hmlksfx Ah Ijpw distance table/ram, max. stroke up, adjustment up:380 mm table surface area:700 x 450 mm table height over floor:790 mm passage to the back:480 mm ram surface:480 x 470 mm ram adjustment:40 mm power requirement:5,5 kW weight:8,4 t dimensions (WxDxH):2,0 x 1,6 x 3,3 m

Condition: new, Year of construction: 2024, Kyori High Speed Press VX50-1100 with variable stroke adjustment Technical specification: tonnage: 500 KN drive: flywheel with dynamic balancer feeding direction: right to left colour: Kyori white RAL 7035 position of main drive: right ram adjustment range: 55 mm shut height max.: 290 mm max. upper die weight: 300 kg (higher upper die weight is possible with reduced performance) safety doors: front and back tool load area light: 2 LED lights Bolster area (LxW): 1100 (1140) x 600 mm Bolster design: T-slot Bolster material: steel Bolster thickness: 220 mm base plate opening (LxW): 00 x 160 mm ram area (LxW): 1100 x 420 mm ram design: T slot dimensions: 2300 x 1600 mm total height: 3750 mm weight: (approx.) 14,000 kg strip inlet height: has to be defined strip inlet width: max. 280 mm cooling system: liquid cooling system, for electrical cabinet;AC servo main drive and machine oil Press control with the following features: - 15" touch screen with stand. - User-friendly visualized menu navigation - Data import/export - Energy safe / night shutdown - Three-level energy options - User administration - Error log - High resolution coding system - Tool changeover including stored process parameters - TDC shutdown with brake angle calculation over entire speed range - Oil and air pressure display including monitoring - Integration of the press into a process chain via peripheral interfaces -Ethernet interface - USB interface - Backup function - Test stroke - Reverse run - Increased working capacity, i.e. reduction of speed to 80 strokes/min. - Quick lift including automatic approach to quick lift position and the shut height in set-up and continuous mode - Stroke change menu driven - Detection of the working stroke after stroke change with SET/ACTUAL comparison Cpsdpfx Aotndfreh Isw - UPS - for fail-safe operation - Absolute ram position display - Punching area protection with non-contact safety switches - Beckhoff "Twincat 3.1" control system - Beckhoff "TwinSafe" safety controller - water-cooled, for cooling the control cabinet and AC servo main drive * for stable production with fluctuating environmental influences such as heat * minimal heat dissipation inside the sound enclosure due to main drive * no suction and swirling of punching oils and particles through main drive - all electrical cables, connectors, control elements, are professionally installed - Remote support Team Viewer - Internet access through integrated Ethernet interface - Interlinked EMERGENCY STOP function - Extension of the press control for further SYS products on request - Integrated service counters for programmable maintenance intervals and maintenance instructions - 8 customer-specific error messages - 2 peripheral interfaces including power supply *Harting Interface 16A *Harting Interface 32 A - SCHUKO socket outlet 230V 10A
