Condition: used, Year of construction: 2004, operating hours: 76,000 h, total height: 2,480 mm, total width: 2,330 mm, total length: 9,830 mm, screw diameter: 70 mm, clamping force: 4,200 kN, displacement volume: 1,047 cm³, 2. Unit 55 with ø 22 Injection pressure: 1674 bar Bjdpfx Ahozgt Npepsli Volume: 30cm³Distance between injection unit 1 and 2: 300 mm (piggy / Multinject) clamping force: 4200 kN distance between tie-bars h x v: 800 x 800 mm size of mould plates h x v: 1270 x 1200 mm min. mould height: 380 mm max. open daylight: 1400 mm opening stroke: 1020 mm screw diameter: 70 mm swept volume: 1047 ccm injection pressure: 1778 bar equipment included screen text german core pulling hydraulically 6x Machine without Handling machine without material hopper Anti vibration mounts mould heating 16x Injection moulding machine for two components measures of machine l x w x h: 9.83m x 2.33m x 2.48m total weight: 23090KG

Condition: excellent (used), Year of construction: 2018, ENGEL duo 8160H/860W/1700 combi Machine type: ENGEL duo 8160H/860W/1700 combi Year: 2018 Machine version: 2-component machine Injection unit arrangement: H/W arrangement, one above the other, distance 300 mm Clamping force: 17,000 kN Min./max. mould height: 800 / 1,600 mm Max. opening stroke: 2,550 mm Max. platen distance: 3,350 mm Rotary table diameter: 2,250 mm Mould weight: DS: 30,000 kg AS with rotary table: 21,590 kg Total: 36,586 kg AS without rotary table: 25,790 kg Rotary table weight: 4,200 kg Injection unit 1 / 3660H Nozzle: hydraulic shut-off nozzle Nozzle radius: R35 Nozzle bore: Ø8 mm Screw diameter: 105 mm Max. stroke volume: 4,070 cm³ Max. shot weight PC-ABS: 4,600 g Max. shot weight PP: 3,700 g Max. shot weight PA6 GF30: 5,500 g Max. shot weight TPU: 4,960 g Injection unit 2 / 500W Nozzle: open nozzle Nozzle radius: R35 Nozzle bore: Ø4 mm Screw diameter: 50 mm Max. stroke volume: 432 cm³ Max. shot weight TPV 55 Shore: 390 g Max. shot weight EPDM 65 Shore: 483 g Tie bars / platens Tie-bar spacing horizontal: 1,850 mm Tie-bar spacing vertical: 1,415 mm Tie-bar diameter: 265 mm Centring rings Nozzle side: 1K Ø250 mm / 2K Ø200 mm, pitch 300 mm Ejector side: Ø250 mm Centring groove DS: 300 mm below nozzle centre, 100 × 32H8, depth 18 mm Ejector Max. ejector stroke: 300 mm Central ejector: without Thread: M20 Ejector rod diameter: Ø50 mm Limit monitoring connector: 4-pin Core pullers AS: 4× + 1× proportional valve DS: 4× + 1× proportional valve Core in: SKM13IR3 / alternative SKM10IR2 Core out: SKS13IR3 / alternative SKS10IR2 Limit monitoring connector: 16-pin according to Euromap 13 Valve gate control Hydraulic: 16-fold / SKM10IR2 / SKS10IR2 Pneumatic valves Ejector side: 1× blow function Nozzle side: 1× blow function Mould temperature control Ejector side: 16 circuits Nozzle side: 16 circuits Machine-side water connection: Hasco N9 Tool-side water connection: USA system DME N9 / alternative N6 Mould heating 64 control zones 8 plugs for sensors and heating 16-pin Robot / handling Robot: ENGEL viper 60-RC 300 Travel Z: 3,320 mm Travel X: 1,500 mm Travel Y: 2,600 mm C-axis: 210 Nm B-axis: 210 Nm Automation Conveyor belt for parts deposit Belt width: 1,600 mm Blodpszatkhofx Ahpei Light barrier Special features iQ weight control Gas-assisted processing / blowing agent processing Injection compression moulding Cavity pressure sensors MuCell prepared, not yet installed Electrical data Main connection A: 3×400V + N + PE / 50 Hz Nominal current A: 0 A Rating A: 250 kW Main fuse A: 630 A Short circuit current rating: 10,000 A Control voltage: 230V AC / 24V DC Main connection B: Nominal current B: 210 A Rating B: 150 kW Main fuse B: 250 A

Condition: excellent (used), Year of construction: 2016, clamping force: 4,500 kN, Clamping force: 450 t Screw diameter: 55 mm / 35 mm Distance between tie bars V: 830 mm Distance between tie bars H: 910 mm Bodpfxsy Ufd Re Ahpjli Shot volume: 295 cm3 Type: Multicomponent Drive: Hydraulic \+ robot Wittmann \+ rotary table

Condition: excellent (used), Year of construction: 2015, functionality: fully functional, clamping force: 1,800 kN, M025 — Wittmann Battenfeld Wittmann Battenfeld HM 180/350H/210S* (-) CLAMPING UNIT • Clamping force: 180 T • Coining: NO • Max mold weight: - kg • Max mold weight per plate: 700 kg • Size between bars (WxH): 570x520 mm • Min mold height: 355 mm Blodpfxoy Tn Ens Ahpei • Max mold height: x mm • Max stroke open: - mm • Centering ring FIX / MOVE: 125 / 125 mm • Fast clamping system: NO MOLD INTERFACE • Heating zones: 12 (24 pin combi TC/PW (6 zones per harting)) • Water cooling circuits: 2+2 • Hydraulic circuits (cores): 3+1 • Hot runner sliders hydraulic (nozzles): x • Hot runner sliders pneumatic: 2+2 INJECTION UNIT • Screw diameter: 35/30 mm • Nozzle face + thread: R14,5+M35x2,0+R14,5+M35x2,0 • Injection unit type: 350H/210S • Screw stroke: - mm • Max injection capacity: - cm³ • Max injection pressure: 2080/2040 Bar • Max injection rate: 159/102 cm³/s • Accumulator SW / HW: NO / NO ⚡ *ELECTRICAL / ROBOT* • Mold ejector clamp: NO • Sockets 400V/16A: 6 • Sockets 400V/32A: 5 • Sockets 400V/63A: 0 • Robot type: Linear • Quick connector gripper: WGS-QLRD Midi • Vacuum ports: 2 • Air pressure ports: 3 • User inputs / outputs: 0 / 0 \+ Rotary table \+ Robot wittmann

Condition: excellent (used), Year of construction: 2010, Clamping force: 260 t Screw diameter: 50 mm Screw dia 2 : 35mm Type: Horizontal Bljdpsy Eytzofx Ahpoi Drive: Hydraulic Robot Engel Conveyor cage

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, clamping force: 2,157 kN, No reserve price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Clamping force: 220 t Screw diameter: 55 mm + 40 mm Maximum injection volume: 618 cm³ + 251 cm³ MACHINE DETAILS Mounting platen: 960 x 830 mm Minimum mold installation height: 320 mm Maximum mold installation height: 730 mm EQUIPMENT EC100/A03 Note: When purchasing multiple items from the same location (see offers below), you will benefit from reduced costs for disassembly and loading. Bljdpjy Exdxjfx Ahpsi

Condition: ready for operation (used), Year of construction: 1998, functionality: fully functional, clamping force: 1,961 kN, No reserve price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Clamping force: 200 t Tie bar spacing: 560 x 560 mm Screw diameter (first component): 60 mm Screw diameter (second component): 35 mm Shot weight (first component): 566 g Shot weight (second component): 178 g EQUIPMENT Two-component system Blodpfoy Exdlsx Ahpei Kraussmaffei Multinject system Note: When purchasing multiple items from the same location (see listings below), the lower costs for dismantling and loading will be waived.

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, clamping force: 1,225 kN, controller model: CC100, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Clamping force: 125 t Horizontal cylinder: 35 Vertical cylinder: 18 MACHINE DETAILS Control: CC100 EQUIPMENT 1x hydraulic core pull BAP 1x proportional hydraulic interface for index plate BAP Bodpfxey Exc Ij Ahpoli 16x heating zones (HK) 2x magnetic clamping plates for BAP and FAP Note: When purchasing multiple items from the same location (see offers below), you will benefit from the lowest costs for dismantling and loading.

Condition: ready for operation (used), Year of construction: 1998, functionality: fully functional, screw diameter: 45 mm, clamping force: 2,000 kN, No reserve price – guaranteed sale to the highest bidder!\n\nTECHNICAL DETAILS\n\nClamping unit: 2,000 kN\n\nScrew diameter unit 1: 45 mm\nScrew diameter unit 2: 45 mm\n\nMax. shot volume unit 1: 226 cm³\nMax. shot volume unit 2: 183 cm³\n\nMACHINE DETAILS\n\nMinimum mould installation size: 250 mm\nMaximum mould installation size: 750 mm\n\nEQUIPMENT\n2-component machine\nTie-bar-less design\n\nNote: When purchasing multiple items from the same location (see offers below), you will benefit from the most favourable disassembly and loading costs for each item. Bodsy Exatopfx Ahpeli

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, 1,0 St. gebr. Zweikomponenten Spritzgießmaschine mit Roboter Hersteller: ENGEL Typ: ES650H/200W-200HL-2F Baujahr: 2004 Schließkraft: 200 Tonnen Holmabstand Holmlos Einbauhöhe min.: 500 mm Öffnungsweg: 750 mm Schnecken DN 1: 40 mm Max. Hubvolumen: 251 cm³ Spritzteilgewicht in PS: 216 g Schnecke DN 2: 25 mm Max. Hubvolumen: 69 cm³ Spritzteilgewicht in PS: 60 g Steuerung: CC100 Technische Ausstattung: Bedeyak A Iepfx Ahpsli -Roboter Engel, Typ: ERC23/1-E -4 Stück Kernzüge -Drehtischsteuerung

Condition: excellent (used), Year of construction: 2009, operating hours: 78,100 h, functionality: fully functional, screw diameter: 25 mm, Arburg 520S 1600 290/70 2-Component 78,099 hours, automatic Injection Unit 1: horizontal, 290mm, diameter 25mm, max. 71 cm³ Injection Unit 2: vertical, 70mm, diameter 18mm, max. 21 cm³ Opening stroke: 925 mm Electric table indexing 12-zone integrated hot runner 3x core pulls 2x air blow (control for needle shut-off) Various customer-specific inputs and outputs Interfaces: - ALS - Temperature control units - Dryers Multilift H 6kg: - 2x vacuum - 5x double-acting grip - Z-axis servo 800mm - C, G, X, and B axis pneumatic - Various customer-specific inputs and outputs (gripper monitoring, etc.) At Maschinen-Handel, we offer a commissioning guarantee for every machine purchased from us, meaning the machine will be started up by the manufacturer. This offers you, as a customer, maximum security on the used machinery market. Important Note!!! Current legal update – Tax advantage for used machinery Bsdpfx Ahex A Dy Rjpoli Effective from 01.07.2025, used machines can also be subject to an annual special depreciation of 30%. In addition to the lower price compared to a new machine, you can benefit from the same depreciation allowances as with a new machine. Keyword: growth booster (§ 7 Paragraph 2 EStG-E)

Condition: like new (used), Year of construction: 2015, clamping force: 1,200 kN, Engel E-Victory 170H/50V/120 combi (2015) 2k machine CC300 controll Clamping force: 1200 kN Mould min-max: 300mm Total tool max height: 800 mm plate size : 740 x 680mm Opening stroke: 505 mm Ejector stroke: 130 mm Ejector force: 39.8 kN Pump drive power: 15 kW Injection unit 1 Screw diameter: 25 mm Max. swept volume: 59 cm³ Screw speed max: 400 r/min Screw speed max (current): 400 r/min Injection rate: 109 cm³/s Injection rate (increased): 109 cm³/s Specific injection pressure: 2400 bar Specific injection pressure (increased): 2400 bar Blodpfexyi Rvox Ahpoi Injection unit 2 Screw diameter: 20 mm Max. swept volume: 25 cm³ Screw speed max: 450 r/min Injection rate: 104 cm³/s Specific injection pressure: 2400 bar Machine with conveyor. Working hours : 41.427 h Possible to buy robot Engel VIPER 20 Linear (Z=3320mm)

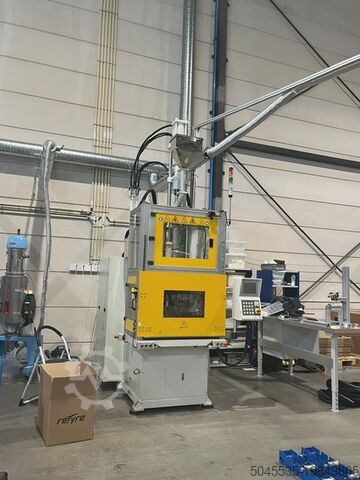

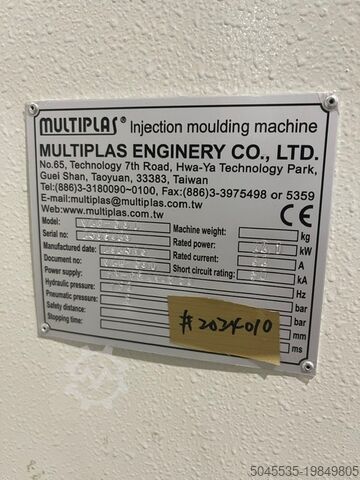

Condition: excellent (used), Year of construction: 2023, operating hours: 421 h, functionality: fully functional, Equipment: CE marking, Multiplas V4 Injection molding Machine (new 2024) We are offering for sale a well-maintained vertical injection molding machine from 2024 which is currently being used in a clean and well maintained production facility outside of Oslo, Norway. Price: 25.000 EUR This Multiplas vertical injection molding machine ensures precise positioning, enhancing the overall quality of your products. With precise control over injection speed, pressure, and temperature, you can produce high-quality parts with tight tolerances, minimizing waste and maximizing yield. Traditional horizontal injection molding machines require significant floor space, limiting your production capacity. In contrast, vertical injection molding machines utilize vertical space efficiently, allowing you to maximize your factory's footprint. With a smaller footprint, you can optimize your layout and increase machine density. Vertical injection molding machines excel in molding complex, intricate parts with precision. Their vertical clamping and injection units facilitate seamless integration into multi-component molding processes, enabling you to manufacture diverse products with varying material properties. Bljdpfxsw S Ewqj Ahpoi General information: • Manufacturer: Multiplas Enginery Co. LTD • Model: Multiplas V4, V2C-50T • Serial number: on request • Year of manufacturing: 2023, delivered 2024 • Operating hours: 421 • Dimensions (L/W/H): 2,3 x 1,5 x 3.7 m • Weight: 3,4 ton • Functionality: fully operational • Condition: very well maintained Extras: • TPU Screw and barrel • CE Certificate • Color RAL 9002 • 400V Transformer • Installation guide • Machine Manual Machine Specifications: • Screw diameter: 35 mm • Theoretical Injection Volume: 154 cm3 • Injection Capacity (PVC): 145 gm • Injection Pressure: 1383 kg/cm2 • Injection Rate: 69cm3/sec • Plasticizing Capacity (PVC): 53 kg/hr • Screw Rotation speed: 186 r.p.m. • Heater Capacity: 3,9 kw • Clamping Force: 55 ton • Min. mold Thickness: 350 mm • Opening Stroke: 300 mm • Max. opening Thickness: 650 mm • Ejector power: 1,8 ton • Electrical Power: 10/7,5 hp/kw • Oil tank Capacity: 160 L • Cooling water Capacity: 230 l/hr • Machine size: 2,3 x 1,5 x 3,7 m • Machine weight: 3,4 ton Can be viewed on site. More pictures and videos can be sent to interested buyers. The machine is ready to be sold immediately.

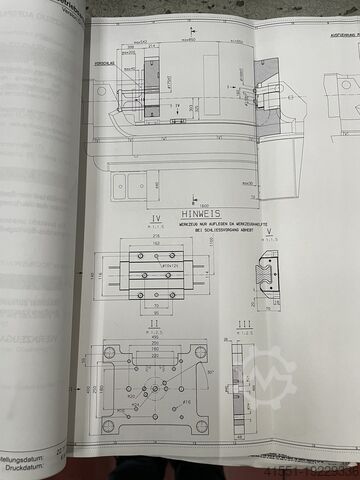

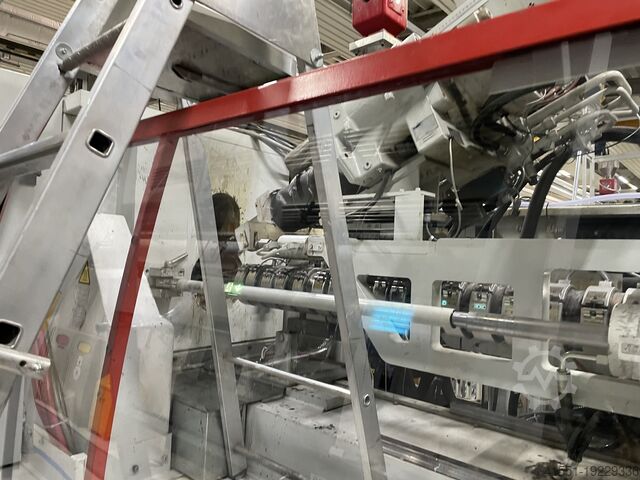

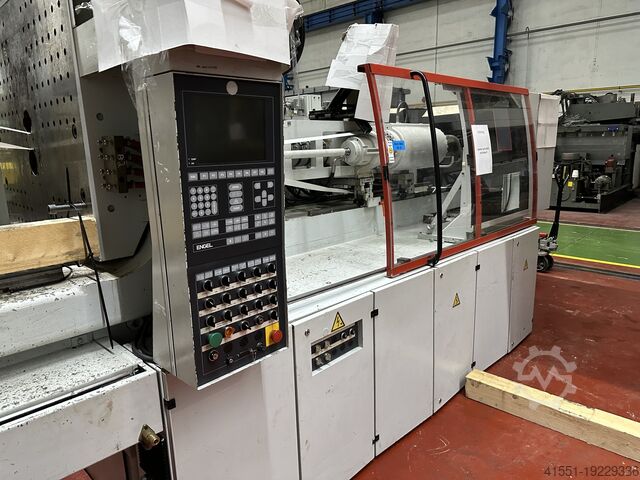

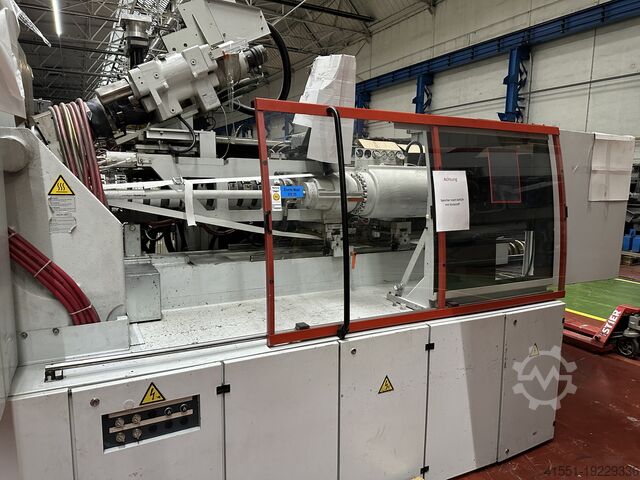

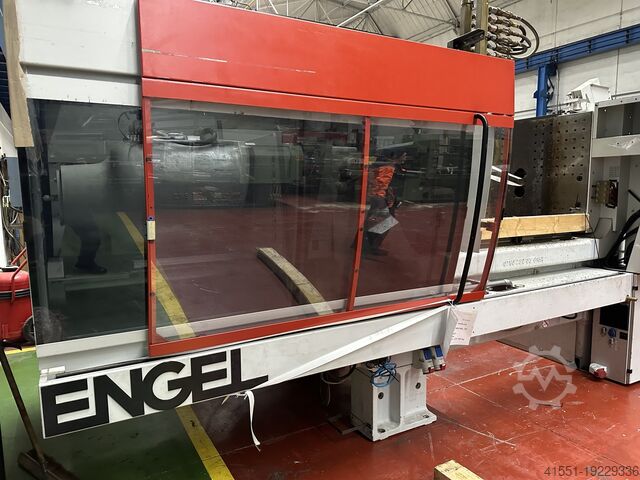

Condition: good (used), Year of construction: 2001, Ref. no.: 18092 Manufacturer: ENGEL Type: ES 1350H 200W / 300HL-2F Year of construction: 2001 Bodpfx Aswm Iy Ejhpoli Clamping unit Clamping force: 300 ton Opening stroke: 855 mm Platen size (h x v): 1050 x 650 mm Injection unit Screw diameter: 60 +35 mm Injection volume: 735 +135 cm³ Shot weight: 662 + 122 g Injection pressure: 1834 +1620 bar Measurements and weight Dimensions: 7,75 x 2,35 x 2,6 m Machine weight: 24780 kg Further information: ENGEL ES 1350H200W/300HL-2F — 2K Injection Moulding Machine This machine from the prestigious Austrian manufacturer ENGEL, built in 2001, features a clamping force of 300 tonnes and a true 2K L-configuration in horizontal layout. Motor and Hydraulic System The machine is equipped with a powerful electric motor coupled to a high-pressure hydraulic pump group. The electric motor continuously drives the hydraulic pump, providing pressurised oil flow throughout the entire system. This pressurised oil feeds the clamping cylinder, the injection pistons of both units, and the ejector system. The thick red hydraulic hoses visible behind Unit B carry this high-pressure oil flow — both units are supplied via independent hydraulic circuits, allowing Unit A and Unit B to operate simultaneously without influencing each other. Operating Principle The two independent injection units are positioned at 90° to each other — in an L-shape. The mould is locked with 300 tonnes of clamping force. Unit A injects the primary material into the mould at 1834 bar. Immediately afterwards, Unit B injects the second material or colour from a 90° angle into the same mould at 1620 bar. The two materials bond at a molecular level inside the mould, cooling is completed and the ejectors push out the finished 2K part as a single piece. No gluing, screwing or assembly is required — two materials emerge as one single part in a single cycle. Applications Automotive interior and exterior trim parts, large technical plastic components, parts combining a rigid body with a soft grip surface, two-colour large-surface parts.

Condition: good (used), Year of construction: 2019, EASYMASTER EM480-SVP-2 injection molding machines Injection volume 2164 cm3 Clamping force 480 T Bjdeubuznspfx Ahpjli

Condition: reconditioned (used), Year of construction: 2002, Multicomponent Arburg IMM (Horizontal & Vertical) Clamping force 100 tons. Year 2002. Machine will be delivered RE-Conditioned (full checked tested and operate) Ask us for our service of Start Up with Warranty of working condition. Technical details CLAMPING FORCE 1000 kN SCREW DIAMETER Horizontal bimetalic 25mm SCREW DIAMETER Vertical 18mm INJECTION PRESSURE 2500 BAR Blsdpjp Audqefx Ahpei INJECTION VOLUMEN horizontal 54gr INJECTION VOLUMEN Vertical 20gr DISTANCE BETWEEN TIE BARS (h x v) 420x420mm MIN. MOULD HIGHT 250mm DAYLIGHT MAX 750mm WORKING HOURS 79.115 YEAR OF BUILDING 2002

Condition: reconditioned (used), Year of construction: 2004, Engel 2-shot injection molding machine (horizontal and vertical) 80 tons clamping force also for moulds INDEX. Year 2004, approx. 58.000 hours. This machine will be delivered re-conditioned (Full checked tested and operative) Ask us about our service of Start up. Technical details CLAMPING FORCE 800 kN Bedpfx Ahsp At Udopeli YEAR OF BUILDING 2004 WORKING HOURS 58.332 SCREW DIAMETER 18 mm horizontal SCREW DIAMETER 30 mm vertical TRAVEL OPENING 457mm INJECTION PRESSURE 2207 BAR (horizontal) INJECTION PRESSURE 1451BAR (vertical) INJECTION VOLUMEN 26cm3 (horizontal) INJECTION VOLUMEN 99cm3 (vertical)

Condition: excellent (used), Angel Victory 1350H500V/220 Combi Closing 220 tons Blodpepa Rhbsfx Ahpoi year 2004 Clamping plan WxH 960x830 Scrow 55mm+40 mm 618 cm3+251 EC100/A03 Minmal mold height 320mm Maximum 730mm

Condition: excellent (used), Year of construction: 2000, Engel ES 330H80V/125HL .2F Year of manufacture: 2000 Closing force: 125 tons Multi-component injection molding machine Control system: CC100 Cylinder H: 35 Cylinder V: 18 1x Hydraulic core pull unit, BAP 1x Proportional hydraulic indexing plate connection, BAP Blodpfx Ahsigrinspei 16x Hot runner zones 2x Magnetic clamping plates for BAP and FAP

Condition: excellent (used), Year of construction: 1998, Engel ES 650W500V/200HL. 2F 2-component machine Bjdsgrafvepfx Ahpeli  Tie-barless  2000 kN clamping force  Screw diameter, aggregate 1: 45 mm, aggregate 2: 45 mm  Max. injection volume, aggregate 1: 226 cm³, aggregate 2: 183 cm³  Installation dimensions, mold: min 250 mm, max 750 mm  Year of manufacture: 1998

Condition: excellent (used), Year of construction: 1998, Injection molding machine With two components Kraussmaffei Multiinject KM200-1000-390 CZ Year of manufacture 1998 Closing force 200 tons Screw diameter 60 mm - 566 g Bsdpjfx Tztjfx Ahpjli Screw diameter 2 - 35 mm - 178 g Tie bar spacing 560 x 560 mm
