Rommelmann GmbH

Condition: used, functionality: fully functional, power: 1.5 kW (2.04 HP), spindle mount: MK 4, drilling depth: 190 mm, rotational speed (max.): 2,020 rpm, rotational speed (min.): 75 rpm, throat depth: 340 mm, Equipment: CE marking, Max. drilling capacity (steel): Ø 35 mm Max. drilling capacity (cast iron): Ø 40 mm Max. tapping capacity: M24 Spindle taper: MT4 Spindle speed range: 75 – 2020 rpm (12 steps) Spindle auto feed: 0.12 / 0.24 / 0.40 mm/rev. Spindle stroke: 190 mm Throat depth: 340 mm Crosstable X/Y: 630 x 250 mm Worktable size: 540 × 440 mm (14 mm T-slots) Max. spindle-to-table: 605 mm Bcedoyplukjpfx Afcow Max. spindle-to-base: 1195 mm Column diameter: 140 mm Complete with: - Powered lifting worktable - Cooling pump - Worklight - Drill protection - Digital speed display Motor power: 1.5 kW Machine (L×W×H): 90 × 66 × 230 cm Machine weight: 500 kg

Condition: new, neu ca. 2 - 4 Wochen ab Auftr Deutschland 15095.86 € 289.84 € 30 mm MK 3 300 mm 0 - 4000 U/min 3 kW M30x3,5 900 mm 610 mm 1980 mm 385 kg 0,10 / 0,16 / 0,25 mm/U 125 mm 150 - 700 mm 590 x 450 mm 125 mm Drilling capacity / normal drilling capacity 30/35 (in E335/ST60) Main switch Dispositif de taraudage Control panel with OLED display Robust, high quality drill head hood with ergonomically inclined front LED lighting Quickly adjustable and ergonomic drill depth stop Stepless speed control via central rotary knob Emergency stop button Thermal overload protection Spindle stop Drill protection with electr. Fuse Bjdpsynnczjfx Afcocw Connection cable with CEE plug 3 years warranty for single shift operation Mechanical feed of the Z-axis incl. electromagnetic clutch for (3) feed rates Drilling cross with pushbutton (on/off) for feed rate In tapping mode: Right-left lifting via drill cross switch or optional foot switch OPTIONS: Drill package 5 (vice & keyless chuck) Coolant device LED lighting with pivot arm

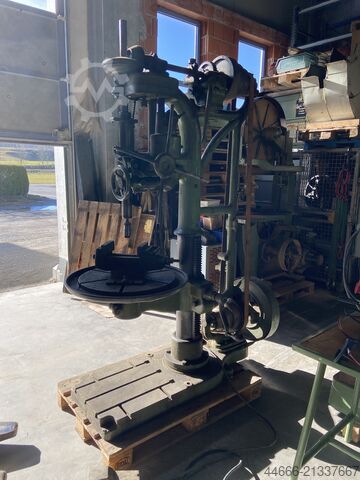

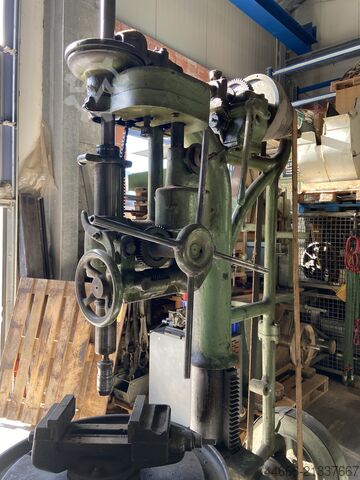

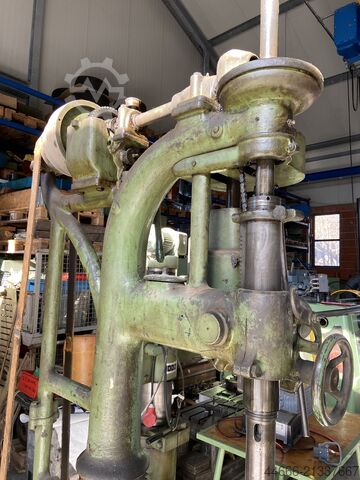

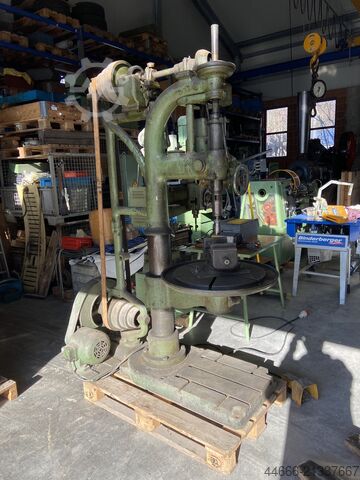

Condition: used, Historic column drilling machine Saalfeld MK 4 Year of manufacture: approx. 1938 Bcodpfx Afoyngwdocow With feed.

Condition: used, Year of construction: 2005, functionality: fully functional, power: 2.3 kW (3.13 HP), input voltage: 400 V, input frequency: 50 Hz, type of input current: three-phase, tool diameter: 40 mm, spindle mount: MK 4, drilling depth: 150 mm, height adjustment type: mechanical, actuation type: hydraulic, rotational speed (max.): 2,800 rpm, rotational speed (min.): 80 rpm, total height: 2,020 mm, throat depth: 280 mm, table width: 400 mm, table length: 550 mm, overall weight: 350 kg, Equipment: CE marking, documentation/manual, For sale is a used IXION / MAXION BS 35 RV column drilling machine with hydraulic feed, separate hydraulic unit, control cabinet, and coolant system. The machine is in ready-to-use condition. Both hydraulics and spindle are running flawlessly. Viewing and operation under power are possible and expressly encouraged. Collection in 57439 Attendorn. Forklift available – loading is free of charge. Technical Data (according to manufacturer specifications) Drilling capacity: • Continuous drilling capacity: 35 mm • Standard drilling capacity: 40 mm Bcedeymxppspfx Afcew • Drilling depth: 150 mm Geometry: • Throat: 280 mm • Spindle mount: MT4 • Spindle-to-table distance: 85 – 755 mm • Table size: 550 × 400 mm • T-slots: 14 mm (DIN 650) • Column diameter: 120 mm • Overall height: 2020 mm • Weight: approx. 350 kg Drive / Electrical: • 12 speeds • Speed range: 80 – 1400 rpm or 160 – 2800 rpm • Operating voltage: 400 V • Frequency: 50 Hz Hydraulic feed: • Hydraulic unit (50 liters HLP 46) • Automatic functions as per manufacturer's specifications All technical details are provided without warranty and are based on manufacturer data and available information. Scope of delivery • Drilling machine IXION / MAXION BS 35 RV • Hydraulic unit + control cabinet • Coolant system • Available documentation Legal notice Sale exclusively to businesses as defined in §14 BGB (B2B). The sale is made without any warranty for material defects. No guarantee, no returns. The machine is sold as inspected and/or demonstrated. Subject to prior sale. If you have any questions or require further information, please feel free to send us a message.

Condition: excellent (used), The Gillardon GB50V column drill is a reliable and robust German-made machine, designed for professional use in workshops, metalworking, and mechanical engineering. With a drilling capacity of up to 50 mm, the column drill ensures maximum precision and versatility. The sturdy metal frame, the spacious swiveling worktable, and the integrated cooling system make the GB50V ideal for intensive use. Bodpfx Asymra Uofcscw Specifications Drilling capacity: Up to 50 mm in steel, 60 mm in cast iron. Spindle holder: MK4. Speed: Steplessly adjustable from 35 – 950 rpm. Feed: 0.1 / 0.16 / 0.25 mm per revolution. Table: round 600 mm with T-slots, swiveling. Maximum spindle distance to table: 740 mm. Motor power: 2.2 – 4.0 kW, 400V. Weight: approx. 850 kg.

Condition: used, Year of construction: 1975, drilling capacity steel/cast iron 23,30 mm throat 300 mm bore stroke 140 mm spindle taper MT MK 3 spindle turning speed range 208- 2000 U/min table travel 400 mm weight of the machine ca. 275 kg table-size 415 x 300 mm Bcodeymp Snjpfx Afcjw distance work spindle /surface of the table 450 mm voltage 400 V connected load 0,9/1,4 kW

Condition: good (used), Year of construction: 1996, GILLARDON GB 40 V Drilling capacity in ST 60: 40 mm Drilling capacity in GG 20: 50 mm Bcjdpjylygmefx Afcjw Maximum drilling diameter in ST 60: 55 mm Right/left-hand rotation Thread cutting device Coolant system MK 4 taper Stepless spindle speeds: 140 - 1100 rpm 3 automatic feeds: 0.1; 0.16; 0.25 mm/rev Distance table/spindle: 135 - 760 mm Distance table/baseplate: 1200 mm Table dimensions: 630 x 530 mm External dimensions approx.: 630 x 985 x 2020 mm with - Stepless speed adjustment - 3 automatic feeds

Condition: excellent (used), Year of construction: 1991, Drilling diameter in St 60/GG 20: 28/32 mm Spindle taper: MT 3 Throat: 250 mm Spindle stroke: 120 mm Table size: 400 x 415 mm Bjdpfx Aeyk T A Ejfcjcw Maximum distance between table and quill: 665 mm Spindle speeds: 140 - 2000 rpm Drive motor: 380 V, 1.1/1.3 kW Weight: 210 kg Space requirements: 800 x 420/600 x 1790 mm

Condition: ready for operation (used), GILLARDON GB 20 – Column Drilling Machine from University - Infinitely variable speed control - Equipped with MK 3 adapter - Maximum drilling capacity in steel: 30 mm - Throat: 285 mm - Quill travel: 150 mm - Table clamping surface: 400x400 mm - Table height adjustment approx. 650 mm - Adjustable drill depth stop - Speed display - Emergency stop - Work lamp - Foot switch - Documentation Bjdpfx Afoyk Dl Rocscw Dimensions (LxWxH): 0.7x0.6x1.8 meters / Weight: 650 kg Subject to errors and input mistakes

Condition: good (used), Stock number: 3075 Manufacturer: Alzmetall Bjdpfx Afjyifmwecjcw Machine number: 11495 Type / Model: AB3 ES Quill stroke: 180 mm Spindle taper: MK3 Drilling capacity: 30 mm Speed range: 160 to 1,420 rpm, stepless Throat: 280 mm Table diameter: 450 mm Clamping surface diameter: 360 mm Table height adjustment: – mm Column diameter: 110 mm Footprint: 450 x 650 mm Total connected load: 2 kW Accessories/Equipment: Condition: good Weight: 0.3 t Machine dimensions: 600 x 900 x 1,850 mm

Condition: used, Column Drill Gillardon Type GSB 32 V Machine No.: Year of manufacture approx. 1975 Drilling capacity: 32 mm Taper: MK 4 – long quill Throat: 350 mm Quill travel: 170 mm Table size: 570 x 470 mm Column diameter: 140 mm Spindle speed Motor speed step 1, Belt step 1: 50 – 300 rpm, stepless Spindle speed Motor speed step 2, Belt step 1: 100 – 600 rpm, stepless Spindle speed Motor speed step 1, Belt step 2: 100 – 500 rpm, stepless Spindle speed Motor speed step 2, Belt step 2: 150 – 1000 rpm, stepless Motor power: 1 / 1.5 kW Power supply: 380 Volt, 50 Hz - automatic feed approx. 0.1 / 0.16 / 0.25 mm/rev, 3 steps Bjdsyhf Izjpfx Afcjcw - spindle speed via 2 motor speeds, 2 V-belt stages and variator gearbox - adjustable drilling depth stop - table height adjustment via rack and hand crank - tiltable drilling table with angle scale - drill chuck RÖHM Ø 1 to 13 mm - machine lamp Required space (L x W x H): 1000 x 750 x 2000 mm Weight: 470 kg Good condition

Condition: good (used), Year of construction: 1977, machine/vehicle number: 1314, Radial Drilling Machine ALZMETALL - AB 30 R Arm reach: 800 mm Spindle taper: MK 4 Drilling capacity in steel: 45 mm Thread cutting device - up to M30 Bcodpsyhbnkofx Afcow Spindle stroke: 160 mm Spindle speeds: 8 steps, 56 to 1,250 rpm Thread cutting steps: 4 - 0.15 / 0.2 / 0.3 / 0.35 mm/rev Clamping cube with T-slots: 550 x 480 x H - 500 mm Machine vice on rotary table - jaw width: 200 mm Space requirements: 1,600 x 700 x H - 2,250 mm Weight: 1,370 kg

Condition: good (used), Year of construction: 1978, 1 used column drilling machine Manufacturer: Alzmetall Model: AB 35 S Year of manufacture: 1978 Drilling capacity: 35 mm Spindle taper: MK 4 Automatic feed: 0.1 – 0.2 – 0.3 mm/rev Spindle speed: 65 – 1750 rpm, stepless Arm reach: 300 mm Quill stroke: 160 mm Table: 620 x 470 mm Bcedpfx Afoyhazvscow Clamping surface: 500 x 370 mm Column diameter: 140 mm Mains connection: 380 Volt, 50 Hz Coolant system Required space (L x W x H): 1070 x 650 x 1880 mm Weight: 480 kg

Condition: used, Year of construction: 2012, bore capacity in steel (diameter) 32 mm throat 300 mm bore stroke 150 mm MK 4 480 x 480 mm 0,1 - 0,2 mm/U M 22 (St 60) 35 mm 80-1170 U/min 2,3 kW Bjdpfxeygm Sfj Afcscw 350 kg 800 x 1000 x 2000 mm Accessories: - Automatic feed - Coolant device in the foot - Automatic thread cutting reversal - stepless speed adjustment - adjustable drilling depth stop - spindle protection

Condition: used, Year of construction: 1993, bore capacity in steel (diameter) 40 / 23 mm throat 320 mm bore stroke 180 mm Bjdpfoyfwzujx Afcocw 4 speeds 30 - 765 U/min table-size 720 x 550 mm weight 480 kg dimensions 750 x 900 x 1900 mm Equipment: - Multi-spindle head, drill Ø 23 mm - automatic feed - coolant device - infinitely variable speed - adjustable drilling depth stop

Condition: used, bore capacity in steel (diameter) 25 mm throat 220 mm bore stroke 110 mm taper MK 3 MK table-size 350 rund mm turning speeds 100 - 2080 U/min connected load frequency 400 V total power requirement 0,9 KW Bodpfx Ajyfwy Rsfcecw weight of the machine ca. 0,2 t dimensions 0,8 x 0,6 x 1,9 m

Condition: excellent (used), functionality: fully functional, type of input current: three-phase, spindle mount: MK 4, drilling capacity: 45 mm, spindle speed (max.): 2,400 rpm, A MAXION column drill in good, used condition is for sale, as shown in the pictures. Technical data: • Manufacturer: Zimmer MAXION • Model: UNIMAX 4 • Cycle-programmable column drilling machine, also for complex work processes, with programmable speeds and feeds. As simple as a conventional machine, with the functionality of a controlled machine. • Continuous drilling capacity: approx. 40 mm • Normal drilling capacity: approx. 45 mm • Thread cutting capacity: up to M 36 • Spindle: MK 4 • Stepless feed: approx. 30-1,650 mm/min. • Automatically programmable feeds • Drilling depth: approx. 175 mm Bedpfoydvlvex Afcscw • Reach: approx. 300 mm • Spindle/table 70 to 830 mm • Table surface: approx. 460 x 340 mm • Spindle speed continuously variable 30-2,400 rpm • Motor power: approx. 7.5 kW • Power connection: 32A CEE plug • External dimensions: approx. 110x60x200 cm • Weight: approx. 480 kg • Condition: Used, in working order Shipping costs by freight forwarder: approx. €180 You will receive an invoice with VAT shown separately. Viewing/collection is possible by arrangement in 42855 Remscheid. Sale from location 42855 Remscheid, free loading. Subject to errors in technical data and prior sale.

Condition: used, Year of construction: 2013, functionality: fully functional, Equipment: lighting, Very few operating hours, 95% used for aluminium. Bcjdpfx Ajydum Ejfcsw

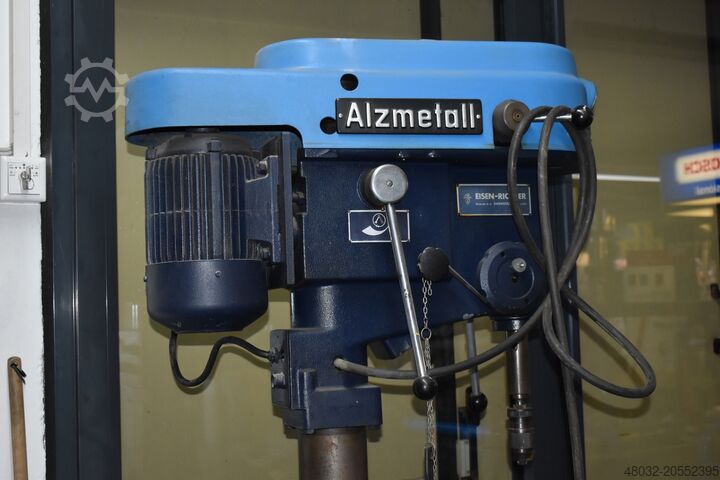

Condition: good (used), Column drilling machine ALZMETALL AB 3 ES from training facility - Well-maintained original condition - Drilling capacity / steel: 35 mm - Throat depth: 280 mm - Table size: 600x470 mm - Drilling stroke: 180 mm - Morse taper MK 3 Bodpfxeycv Tdo Afcscw - Infinitely variable speed control - Drill depth stop - Speed display - Drill chuck - Documentation Dimensions: LxWxH 1.2x0.8x2 meters / Weight 450 kg Errors and omissions excepted.

Condition: used, Year of construction: 1996, bore capacity in steel (diameter) 32 mm throat 295 mm bore stroke 140 mm 3 speeds 160 - 2250 U/min table-size 375 x 415 mm total power requirement 1,5 / 1,9 kW weight 350 kg dimensions 590 x 500 x 1900 mm Equipment: - Automatic feed Bcjdpoyclu Rsfx Afcow - Thread cutting device - coolant device - infinitely variable speed - Adjustable drilling depth stop - EMERGENCY STOP switch

Condition: like new (used), Year of construction: 2023, - Year of construction 2023 (lightly used) - MK4 Bcjdpsya U R Ajfx Afcow - 95–1600 rpm - Thread cutting function - Height-adjustable drill head - Swiveling drill head - Table 580 x 190 mm - Gear-driven - Cooling - Safety guard - Emergency stop - Documentation - 400V

Condition: good (used), functionality: fully functional, Data : Bjdpfx Afsyapv Hscocw Continuous drilling capacity in ST 60 30 mm 12 speed levels 60 - 2240 rpm Spindle motor 1.1 / 1.6 kW . Projection approx. 320 mm Spindle stroke 170 mm Column diameter approx. 120 mm .

Condition: ready for operation (used), Year of construction: 2002, machine/vehicle number: 30282, functionality: fully functional, Alzmetall AB 32/SV-RFT20 drilling machine with fixed table in very neat condition. Specifications: Drilling capacity in steel ST60: 32/40mm Spindle travel: 160mm Tapping capacity: M24/M30 Bcjdpsyanmqofx Afcew Spindle taper: MK4 Automatic feed in 3 steps: 0.1/0.2/0.3mm Minimum distance spindle-table: 300mm Maximum distance spindle-table: 950mm Distance spindle-column: 300mm Speed: 62-2000rpm variable in 4 steps Table clamping area: 760x770mm Weight: 760kg

Condition: used, Year of construction: 1995, Technical details: bore capacity in steel (diameter): 32 mm throat: 293 mm bore stroke: 120 mm bore capacity in St 60 - full boring: 40 mm bore capacity in cast iron: Ø 38 mm spindle taper MT: MK 3 spindle throat: 293 mm spindle speed:: 160 - 2250 / seples U/min feed: 0,10 - 0,20 / manuell+automatisch mm/U Distance spindle/table max.: 55 - 642 mm table clamping surface:: 300 x 300 mm drill table adjustment: ja mm column diameter: 115 mm distance spindle center to floor plate:: 1207 mm total power requirement: 1,9 kW weight of the machine ca.: 280 kg dimension machine xH: 0,7 x 1,0 x 1,9 m Bcsdpex U Dkcofx Afcsw

Condition: new, functionality: fully functional, Drilling capacity in steel St 60: 25 mm Drilling capacity in cast iron GG 20: 30 mm Boring capacity in St 60: 30 mm Thread cutting in ST 60: M 16 Thread cutting in GG 20: M 20 Short spindle: MK 3 Spindle stroke: 140 mm Throat: 293 mm Column diameter: 115 mm Machine table – usable surface: 514 x 360 mm T-slot quantity – width – spacing: 2 x 14 x 224 mm Distance spindle-table min./max.: 132 / 724 mm Feed: manual Spindle speeds – stepless: 100 – 1,800 rpm Total power requirement: 1.0/1.6 kW Machine weight approx.: 260 kg Standard equipment: - Mushroom pushbutton (latching) for emergency stop - Reversing switch for clockwise and counterclockwise rotation - Motor protection switch - Stepless speed adjustment - Digital speed display Bcedpfx Aox Sqt Ssfcsw - Protection class IP 54 - Plug connector (pre-installed) - Spindle guard with electrical interlock - Paint finish: DD textured varnish signal white RAL 9003, Pantone 7545c, black Special equipment: Pos. 12 LED machine lamp with radially adjustable light beam, connection power 230 V, protection class IP65
