noVus Messtechnik GmbH & Co.KG

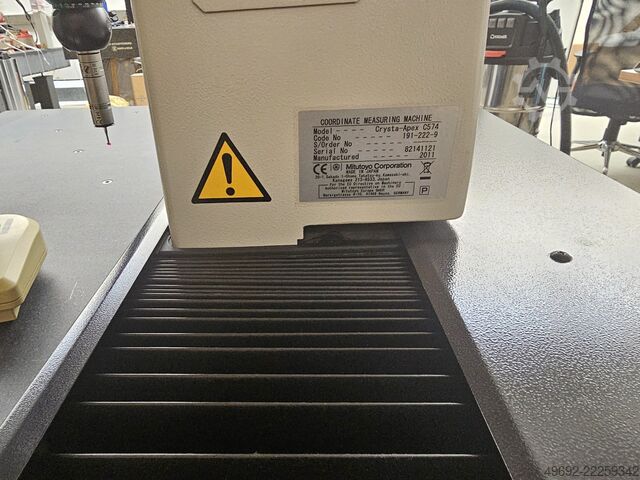

Condition: like new (used), Year of construction: 2011, measuring range X-axis: 505 mm, measuring range Y-axis: 705 mm, measuring range Z-axis: 405 mm, Mitutoyo CMM Crysta Apex C574 Measuring Range X – axis 505 mm Y – axis 705 mm Z – axis 405 mm Accuracy acc. ISO 10360 E = [1,7 + 3,0L/1000] µm at temperature range 18 … 22 °C max. workpiece height 445 mm wax. workpiece weight 180 kg base material granit dimension measuring table 638 x 1160 mm fixing holes M8 x 1,25 Scalesystem Mitutoyo Linear Scales resolution 0,0001 µm DCC Controller Mitutoyo UC200 DC motors all axis Bedpozilyrefx Ambjdd Guideways air bearings Tilt&swivel head Renishaw PH10M/PHC10-2 Probesystem Renishaw SP25M/SM25-1 Probe Changer FCR25 3x Computer Workstation (Windows 10) Software MCOSMOS-1 V4.2

Condition: used, For sale is a high-quality 3D CNC coordinate measuring machine from the renowned manufacturer Werth Messtechnik – model Scope-Check 650×750×500/MB/Z. This device stands out for its precision, reliability, and versatility in industrial metrology. Features & Equipment: - CNC-controlled 3D coordinate measuring machine - Multi-sensor capable (optical and tactile measurements possible) - Moving-bridge design (MB/Z) for high stability and flexibility - High precision measurement of complex workpieces - Robust construction, designed for continuous industrial use - Suitable for quality control, production monitoring, and R&D applications Additional Equipment – Renishaw TP200 Probe System: The high-precision, touch-trigger Renishaw TP200 probe is ideal for workpieces with tight tolerances and complex geometries. It allows for quick probe change-outs and precise measurements even with long probe styli. Key Features: - Strain gauge technology: Minimizes deflections are registered with high accuracy; typical errors such as “lobing” are avoided - High precision: Repeatability up to 0.4 μm, 2D probing uncertainty ±0.8 μm - Fast changeover: Automatic probe change with SCR200 rack, no recalibration required - Durability: Probe module lifetime exceeds 10 million triggerings - Flexibility: Standard- (SF) and low-force (LF) modules for sensitive materials - Compatibility: Usable with Renishaw PH10 probe heads and extensions up to 300 mm Technical Specifications (excerpt): - Connection: M8 connector, PI200 interface - Probing directions: 6-way (+X, -X, +Y, -Y, +Z, -Z) - Probing force XY: 0.02 N, Z: 0.07 N - Overtravel force XY: up to 0.4 N, Z: up to 4.9 N - Weight (sensor + module): 22 g - Stylus threads: M2 Technical Data: - Manufacturer: Werth Messtechnik - Model: Scope-Check 650×750×500/MB/Z - Measuring range: X = 650 mm, Y = 750 mm, Z = 500 mm - Supply voltage: 115–230 V AC - Power consumption: max. 10 A Scope of Supply: Bjdpfx Aszii Dzsmbedd - Werth Scope-Check 650×750×500/MB/Z - Renishaw TP200 probe system including probe modules - Accessories as shown in the attached images Important note: "The table shown in the photos is not included in the sale." (Specifications and technical details subject to change and errors!) We are happy to answer further questions by phone.

Condition: excellent (used), Mitutoyo Model: QV-L404Z1L-D Item Description: For sale is a CNC vision measuring machine from the renowned manufacturer MITUTOYO. This is the Quick Vision Active 404 model. The device is ideal for precise optical measurements in production, quality assurance, and research. Technical Data: Brand / Type: Mitutoyo QV-L404Z1L-D (Quick Vision Active 404) Measuring range (X / Y / Z): 400 × 400 × 200 mm Camera: CMOS color camera Software: Mitutoyo QVPAK QVPAK (R) Version: 13.301.0075 Optics: Zoom lens, LED illumination system Worktable: High-precision glass stage Equipment: Control PC with QVPAK measuring software 2 × 22" TFT monitors Keyboard & mouse Control panel Swivel office chair for comfortable operation Bsdpfx Amszii Duobsdd Scope of delivery: Mitutoyo Quick Vision Active 404 measuring device Control PC with QVPAK 2× TFT monitors (22") Keyboard, mouse Control panel Swivel office chair Condition: used Scope of delivery: (see image) (Specifications and technical data are subject to change and errors reserved!) Further questions can gladly be answered by phone.

Condition: excellent (used), Year of construction: 2020, Keyence KEYENCE XM-2000 with XM-H1000 – 3D Coordinate Measuring System (CMM) Professional handheld measurement system for precise 3D measurements directly in production environments. Item description: For sale is a used KEYENCE XM-2000 coordinate measuring system including the XM-H1000 handheld probe. This innovative system enables precise 3D measurements directly at the workplace – without a dedicated measuring room, complex setup, or special CMM expertise. The device is ideally suited for manufacturing operations, quality assurance, initial sample inspection reports (ISIR/PPAP), in-process controls, as well as for reverse engineering. Bsdozii Dnepfx Ambodd Technical Data – KEYENCE XM-C1000 / XM-H1000 (XM Series) Measuring System (General) Specification: Measurement range (XYZ): approx. 600 × 300 × 200 mm (depending on setup) Measurement accuracy: ±(8 + L/80) µm (L = measured length in mm) Repeatability: ±3 µm (typical) Resolution: 1 µm Measuring principle: Optical tracking with camera-based detection Calibration: User calibration with calibration sphere possible CAD Comparison: Directly on the device (STEP, IGES, etc.) Export formats: PDF, Excel, CSV, DXF Tolerance analysis: Automatic with color mapping XM-C1000 – Control and Evaluation Unit (Controller) Component: Display: 15” touchscreen Connections: USB, LAN, HDMI, power Storage options: Internal + USB export Software functions: Measurement, CAD comparison, report generation Operation: Touchscreen + pushbutton operation Languages: Multilingual (including German) XM-H1000 – Handheld Probe Specification: Probe type: Handheld with pressure button Feedback: LED status indicator, vibration signal Probe tip: Interchangeable, various tips available Tracking: Detected via controller’s camera system System Characteristics Specification: Operating temperature: 10 – 35 °C Power supply: 100–240 V AC, 50/60 Hz System dimensions (complete): approx. 800 × 600 × 800 mm (depending on setup) Total system weight: approx. 25–40 kg (depending on configuration) Mounting: On table or optional measuring table Scope of delivery: KEYENCE XM-2000 control and evaluation unit KEYENCE XM-H1000 handheld probe XM-C1000 (Controller) Camera unit / tracking module Connection cables and power supplies Condition: Used, fully functional, in very good condition. Shipping & Delivery: Shipping via freight forwarding Collection by appointment possible. International shipping available on request. If you have any questions, need further information or wish to arrange a viewing appointment, please feel free to contact us. (Subject to changes and errors in the technical data and information!) We are also happy to answer any further questions by phone.

Condition: excellent (used), Zeiss Coordinate Measuring Machine Model: O-INSPECT 442 Machine Designation: Coordinate Measuring Machine Machine Type: O-INSPECT 442 The multisensor measuring machine O-INSPECT ZEISS enables optimal optical or contact measurement of all features. The CALYPSO software simultaneously displays the actual state, nominal profile, and deviations, making measurement results easy to identify and interpret. General Data: Dimensions: Width 1055 mm, Length 1351 mm, Height 1770 mm Measuring range: X 400 mm, Y 400 mm, Z 200 mm Weight: CMM 800 kg Workpiece, max. 20 kg CMM noise level < 70 dBA Electrical Data: Supply voltage: 100, 110, 120, 125, 230, 240 V~ (± 10 %) Current type: 1 / N / PE Frequency: 50 to 60 Hz (± 3.5 %) Power consumption: max. 1500 VA Fuses: At 230 V or 240 V: 16 A At 100 V or 125 V: 15 A Travel Speeds: Creep speed, SLOW function: 0 to 5 mm/s Setup mode: 0 to 70 mm/s Automatic measurement: Axis (X, Y) max. 200 mm/s Axis (Z) max. 50 mm/s Axis (3D) max. 287 mm/s Ambient Conditions: The following conditions must be met for proper operation of the measuring machine. Operating ambient temperature: +17°C to +35°C Relative humidity: 40% to 70% (non-condensing) Room temperature for measurement: 20°C ±1 K Altitude above sea level: 100–125 V: max. 3000 m 230–240 V: max. 2000 m Probe System: Probe System: CFS Probe Types Data: Probe Type: CFS 2 mm Measuring range: 2 mm, Working distance: 61 mm, Spot diameter: 12.5 µm Measurable surface angle to beam direction: 90 ± 15° Measuring range: 3 mm, Working distance: 22.5 mm, Spot diameter: 12 µm Measurable surface angle to beam direction: 90 ± 30° Measuring range: 10 mm, Working distance: 70 mm, Spot diameter: 24 µm Measurable surface angle to beam direction: 90 ± 20° The values for surface angles are limit values and depend on the reflectivity of the workpiece surface. Rotary Table: Mass and resolution Table weight: 7 kg Resolution: 0.15’’ Dynamics: Angular speed max: 50°/s Rotational speed: 8.3 min⁻¹ Scope of Delivery: In the standard version, the O-INSPECT coordinate measuring machine is supplied with the following components: - Coordinate measuring machine (CMM) - Controller (integrated) - Control panel - PC with peripherals - Software - CALYPSO 5.2 - Documentation - Probe system - Reference stylus Bdsdjzii Dhepfx Ambsd - Calibration artifact - Calibration template Scope of delivery: (Zeiss coordinate measuring machine as shown) Condition: used (Specifications subject to change and errors excepted!) Please inquire about transport options prior to purchase. If you have further questions, we are happy to assist you by phone.

Condition: as good as new (ex-display), Year of construction: 2019, machine/vehicle number: 190705251GC, measuring range X-axis: 300 mm, measuring range Y-axis: 200 mm, measuring range Z-axis: 200 mm, workpiece weight (max.): 20 kg, UK DELIVERY ONLY OPTIV Performance 3.2.2 Bench top 10x CNC Zoom HP-S-X1C Tactile Scanning Probe Bedpszibg Iefx Ambedd 3 port changer rack PC-DMIS Measurement Software ISO 10360-7:2011 at 18-22 °C = 1.5 + L / 250 μm ISO 10360-2:2009 at 18-22 °C = 1.9 + L / 250 μm

Condition: used, Year of construction: 2004, Werth Video Check measuring machine, year of manufacture 2004. Bodpfx Amszh Hi Eebedd

Condition: used, Werth Type: Werth SCOPE-CHECK 400 3D coordinate measuring machine Technical data: Measuring capacity (X x Y x Z): 400 x 200 x 200 [mm] Work table with integrated electrical cabinet: 1600 x 950 x 780 [mm] Max. weight on table: 20 [kg] Operating conditions: * Relative humidity: 40 - 70 [%] * Temperature: 10 - 40 [°C] Measuring accuracy (20°C, 8 kg, magnification 5X, resolution 0.5 microns) On table: E1 = 1.8 + L/120; E2 = 2.0 + L/150 All positions: E1 = 2.5 + L/120; E2 = 2.9 + L/100; E3 = 4.5 + L/75 Incremental scales Ball screw drive with servo motor Optical magnification (video): 0.5X to 5X Optical field (video): 13 x 10 [mm] to 1.3 x 1 [mm] Movement on linear guide with ball bearing Combinable lighting: diascopic, episcopic, ring-shaped LED/axial Voltage: 230 [V] Frequency: 50 [Hz] Power: 2 [kW] Weight: 300 [kg] Accessories CN Lighting control via software Video sensor IP for detection of measuring contour (screen display) Electronic control for table movement Manual control for table via joystick Predisposition for mechanical probe Calibration, 3D measurement, probe communication software Scope of delivery: (Werth coordinate measuring machine with accessories as shown) Bdjdpfxjzh Dq Ho Ambod Condition: used (Changes and errors in the technical data and specifications are reserved!) Please inquire about transport options before purchasing. We will gladly answer any further questions you may have by telephone.

Condition: like new (used), Year of construction: 2013, functionality: fully functional, measuring range X-axis: 500 mm, measuring range Y-axis: 400 mm, measuring range Z-axis: 400 mm, Equipment: type plate available, Mitutoyo coordinate measuring machine, Crysta Apex S544 model Multi-sensor wiring (analog scanning) Temperature compensation for all axes Measuring range, X-axis = 500 mm Measuring range, Y-axis = 400 mm Measuring range, Z-axis = 400 mm Measurement uncertainty = 1.7 + 3L/1000 (µm) Mitutoyo UC200H control system Renishaw probe head PH6M Renishaw sensor SP25M Renishaw module SM25-1 Measuring software MCosmos PC system with WIN10 and 27" monitor (new) Reference sphere / calibration sphere (new) Bdodpszhumfofx Ambod Hardware & software upgrades available upon request Delivery and other services available upon request

Condition: ready for operation (used), Year of construction: 2023, An optical 3D coordinate measuring machine Keyence is available. Measurement accuracy: +/-10µm, repeatability: +/-2µm, measurement points: 9 million, max. measurement diameter: 300mm, max. measurement height: 200mm, max. measurement dimensions (multiple capture) X/Y/Z: 580mm/300mm/200mm, max. workpiece weight: 50kg, table tilt: 45°. Including control and evaluation software, rotary table and calibration accessories. Documentation available. An on-site inspection is possible. The image is an example. Bdedpfxezhnuvj Ambod

Condition: ready for operation (used), Year of construction: 2023, A Mitutoyo CNC bridge coordinate measuring machine is available. Travel X/Y/Z: 1200mm/2000mm/1000mm, measuring volume: 2.4m³, max. workpiece weight: 2500kg, max. workpiece height: 1000mm, probe system: Renishaw, probe positions: 20, measuring accuracy: 2.3+/-0.3/100µm, max. travel speed: 693mm/s. Machine dimensions X/Y/Z: approx. 3400mm/2200mm/3600mm, weight: approx. 6150kg, control: Mcosmos-3 V4.3. Documentation available. An on-site inspection is possible. Bdodpfx Aezhnrbembjd

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, machine/vehicle number: 06010056, total height: 1,620 mm, total width: 910 mm, total length: 980 mm, A coordinate measuring machine manufactured by Tesa, model: Micro-hite 3D, will be auctioned. MACHINE DETAILS Bdsdszhmq Nepfx Ambed Overall length: 980 mm Overall width: 910 mm Overall height: 1,620 mm Installation date: March 24, 2006

Condition: excellent (used), Year of construction: 2012, functionality: fully functional, measuring range X-axis: 6,000 mm, measuring range Y-axis: 1,600 mm, measuring range Z-axis: 2,100 mm, table width: 3,280 mm, table length: 6,700 mm, We are selling our well-maintained Wenzel RS1621 plus CNC coordinate measuring machine from 2012. The machine has a measuring range of 6000x1600x2100 mm, and the measuring plate has dimensions of 6700x3280 mm. The machine is currently disassembled in our warehouse. It is equipped with a TP20 probe head and a PH10M probing system. The machine control is a WPC2040 with PC-Dmis software. If you have any further questions, please do not hesitate to contact us. Bsdpfx Aezhbaxjmbsdd

Condition: excellent (used), Year of construction: 2004, functionality: fully functional, measuring range X-axis: 600 mm, measuring range Y-axis: 500 mm, measuring range Z-axis: 450 mm, We are selling our very well-maintained Hexagon GLOBAL S 070705 coordinate measuring machine, manufactured in 2004. The machine has a measuring range of 600x500x450 mm. The PC-Dmis measuring machine software is used. The latest calibration certificate can be sent to you upon request. If you have any further questions, please do not hesitate to contact us. The machine is powered and can be inspected at any time by appointment. Bdjdpfx Amozha U Iobsd

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, Profile projector Werth Optimus 300 IL Evaluation unit HEIDENHAIN Metronics Quadra-Chek 100 Bdodpjzg Nqisfx Ambjd

Condition: used, Original ZEISS CMM Probe Holders and Stylus Extensions Original ZEISS probe holders Stylus extensions Bdodpfx Amozg Eczjbod Various star styli and straight styli As shown in the pictures Condition: Used Good working condition Carefully removed from a functioning ZEISS CMM Ideal for ZEISS CMM users looking for original replacement or additional probing equipment.

Condition: used, functionality: fully functional, Equipment: type plate available, The machine is used, well-maintained, and has been inspected by us as a dealer and metrology service provider. Developed and manufactured in Switzerland, this complete solution is particularly suitable for precise measurements of small features. Easy-to-operate, manual and motor-driven coordinate measuring machine with software control panel. Due to its specifications, this device is ideally suited for both workshop use and use in a measuring laboratory. - Tricision® technology (triangular shape of the portal axis) ensures high stability and improves measuring accuracy. - Manual axis movement for very fast measurements. - Patented ZMouse control on the quill allows the user a faster measurement process (the software is controlled directly on the machine). - Locking/unlocking system for each axis. - Patented optoelectronic, non-contact reading system (glass scales and sensors). - Control panel with display area W x H = 89 x 118 mm and active backlighting, function keys, RS232 interface. Bdjdpfxjzgwv He Ambsd Measuring functions: Point, line, plane, circles, cylinders, cones, spheres Distances, construction of elements, links, etc. Form and position deviations, positional tolerances, etc. Measuring range (X/Y/Z) 454 460x500x420 mm

Condition: used, Year of construction: 2004, Werth Video Check measuring machine, year of manufacture 2004. Bdsdjzgurrspfx Ambod

Condition: good (used), Hexagon Type: Hexagon Optiv Performance 442 Product description: The 3D multi-sensor coordinate measuring machine Optiv Performance 442 combines optical and tactile measurements in a single system. The system supports multi-sensor measurements with a vision sensor, tactile sensor, TTL laser (Through-The-Lens), and the innovative Chromatic White Light Sensor (cws). The base unit with a vision sensor can be modularly expanded with all available sensors. Application areas: • Use on a level surface • Versatile geometric measurements and GD&T analyses with standard construction accuracy • Design principle: » Low-vibration granite construction with a fixed bridge and movable table » Integrated substructure with optional vibration dampers Bsdpfx Aezgr R Eembedd • Guides: » Precise mechanical linear guides in all axes • Drives: » DC servo motors, power transmission via backlash-free ball screws at the center of gravity • Length measuring system: » Incremental length measuring system • Resolution: 0.1 pm Hexagon Optiv 442 multi-sensor measuring machine equipped with a camera, laser, and Renishaw probe system. • Measuring range per sensor: 410x410x200mm • Dimensions: 1232x910x1663mm • Weight: approx. 940kg • Max. load capacity: Glass plate 30kg • Accuracy: U1=1.9 + L/200; U2=2.4 + L/150; U3=2.9 + L/100 (L = measuring length in mm) • Max. travel speed per axis: 200mm/s • Camera with 2-stage zoom • Laser • LED ring light • Renishaw 6-position probe changer • Renishaw TP200 probe system • Monitor operation • Windows 7 Ultimate evaluation station • Measuring machine HEXAGON Optiv 442 Electrical connection values: Voltage 115/230 V ± 10% Mains frequency 50/60 Hz ± 5% Power consumption 1000 VA Weight: approx. 1100 kg Condition: used Scope of supply: (See image) (Changes and errors in the technical data are subject to change!) We will be happy to answer any further questions you may have by telephone.

Condition: used, Year of construction: 2020, x-travel 800 mm y-travel 700 mm Bodpfx Aszgibzsmbodd z-travel 700 mm Control Wenzel max. workpiece weight 0 kg accuracy Renishaw SP 25 M Measurement inaccuray 2,6 µm repeatability 1,6 µm Longitudinal uncertainness MPE: 3,5 + L/0 µm (standard) Longitudinal uncertainness MPE: 3,5 + L/0 µm (extended)

Condition: excellent (used), Year of construction: 2012, functionality: fully functional, 1 x Coordinate measuring machine with video-based system Ogp Smartscope MVP 300 Year of manufacture: 2012 In very good condition. Technical data: Travel ranges: X: 300 mm Y: 300 mm Z: 150 mm Scale resolution: 0.5µ Dimensions (depth x width x height): 815 x 710 x 800 mm Weight: 140 kg Further technical data can be found in the photos. The measuring device can be inspected while powered on and in its operating environment. Bdsdpfx Amezfyzcobsd

Condition: used, used, robust marking-out and spotting plate Bdjdpfx Aszfx Emembsd Table surface: 750 x 1000 mm Working height: 800 mm

Condition: like new (used), Year of construction: 2021, functionality: fully functional, We are selling our Keyence XM because we are acquiring a larger machine. The device has been used regularly, but it is too small for our applications, so it is practically like new and in perfect condition. Bsdpfx Ajzfik Hembsdd The device is fully equipped and comes with an extension and a tripod.

Condition: excellent (used), Year of construction: 2012, Mitutoyo measuring bench in excellent condition, located in a climate-controlled room at 20°C. Calibrated by Mitutoyo on na regular basis. Availability: 10/2026 Bedpfxszd R D Ee Ambjdd SP25M motorized measuring head with PH10MQ probe Tactile and scanning measurement Scanning precision within 2.3µ Measurement precision within 1.7µ +0.4µ per 100mm Max. workpiece weight 1,200kg Granite table dimensions LxW Maximum height under bridge 800mm Software Mcosmos 3 and MiCAT

Condition: excellent (used), Here we offer you a Johansson coordinate measuring machine. This coordinate measuring machine is designed for measuring large workpieces. Johansson Cordimatic 7000 measuring machine with Renishaw retrofit (control system, rotary/swivel probe & probe changing library) Johansson Cordimatic 7000 measuring machine with Renishaw rotary/swivel head PH10T Measuring range: 28" x 17" x 13.5" Granite table size: 42" x 28" x 8" Equipped with: Computer Metrologic 1 joystick pendant control Metrologic software manuals Joystick and control system from RENISHAW SPA2 servo power amplifier Bdjdpfx Amszd N Shebsd UCC2 controller Type: Johansson Cordimatic 7000 coordinate measuring machine Condition: used Scope of delivery: (See image) (Subject to changes and errors in the technical data and specifications!) We would be happy to answer any further questions you may have by phone.
