Kapaga Karol Garbien

Condition: used, Year of construction: 2007, pressure 125 t stroke 12 - 140 mm daylight, max. stroke above - ram adjustment above 495 mm ram adjustment 100 mm ram surface 800 x 400 mm table surface area 1000 x 720 mm clamping plate 990 x 670 mm clamping plate thickness 80 mm Iiedpfx Aoxx A Dtsd Dei total power requirement 70 A weight of the machine ca. 11 t dimensions of the machine ca. BxTxH 2770 x 2520 x 2950 mm - Hydraulically operated multi-disc wet multi-plate clutch and spring-loaded safety brake - Hydraulic overload protection - Hydraulic connecting rod clamping - Motorized ram height adjustment - Semi-automatic stroke adjustment - Ram weight compensation - Manual TDC correction - Belt drive - Press force measuring device - hanging control panel - reverse switch (return) - electric stroke counter - electric preselection counter - electronic cam switch - clamping plate - two-hand control panel, swiveling, height-adjustable - Operating hours counter - 1 set of swing elements - with feed The press is technically inspected at our premises and undergoes a current safety inspection.

Condition: good (used), Year of construction: 1976, functionality: fully functional, Technical data : Power 40 to 2 lifting speeds 57 + 86 H/min Projection 250 mm . Further data according to offer . Delivered with new press test incl. new test report. . Isdpfxsxxbmyj Ad Dsii

Condition: ready for operation (used), Year of construction: 2012, Pressix 25 ton, year 2012 Uncoiler G+K Umformtechnik, year 2012 Roll feeder G+K Umformtechnik, year 2012 Recoiler Iiodpfx Asxw U Saod Dsi

Condition: good (used), Brand: WMW Model series: Ruckmarsdorf / Biberitz Manufacturer: VEB Maschinen- und Anlagenbau Country of origin: GDR (former East Germany) Total weight: 2,700 kg Power type / Frequency: 3 PEN – 50 Hz Mains voltage: 380 V Control voltage: 110 V Power: 3.0 kW Rated current: 12.5 / 7.2 A Technical specifications: Pressing force: 400 kN Torque: 6080 Nm Shearing area: 1000 mm² (at Ta = 392 MPa) Single stroke working energy: 3530 J Continuous working energy: 1765 J Iijdpsxw Nncefx Ad Doi Stroke: 8 – 84 mm Tool installation height: 308 mm Ram adjustment: 55 mm Strokes per minute: 130 Note: The information on this page has been obtained and compiled to the best of our knowledge, but accuracy cannot be guaranteed. Accordingly, it does not constitute representation or contract and we recommend verifying all relevant details. Financial information VAT/margin: Margin: The displayed price includes VAT (VAT not deductible for businesses).

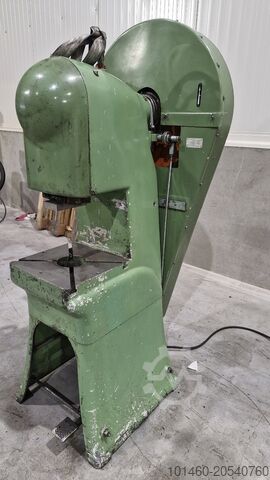

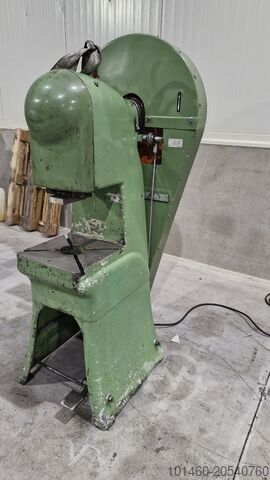

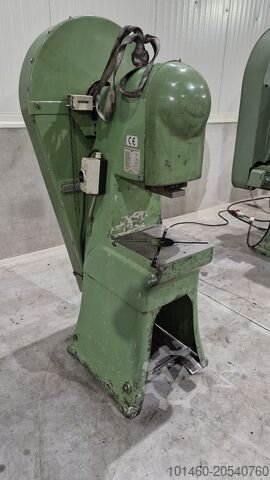

Condition: good (used), Machine data: Make / Model: Ter Hart Eccentric Press THEP25 Machine number: 99302 Press capacity: 250 kN Number of strokes: 140 strokes/minute Adjustable stroke: 6 – 60 mm Adjustable ram: 35 mm Cutting capacity (at 400 N/mm²): 625 mm² Iijdpfxoxw Nm Es Ad Dji Year of manufacture: 1999 Motor power: 1.5 kW Supply voltage: 3 x 400V / N / PE Operating air pressure: min. 0.55 MPa – max. 0.65 MPa Weight: 700 kg Origin: Riva B.V., Epe – Netherlands Included: CE marking Note: The information on this page has been obtained and compiled in good faith, but accuracy cannot be guaranteed. Accordingly, this does not constitute representation or contract and we advise you to verify all relevant details. Financial information VAT/margin: VAT/margin: VAT: The price shown is exclusive of VAT (VAT deductible for businesses).

Condition: good (used), Year of construction: 1999, 1 used eccentric press, Ambold make Model: PEEV 40/2 Iisdpfjxvqltex Ad Doi Press force: 40 t Throat depth: 225 mm Stroke: 8 – 84 mm Table size: 580 x 450 mm Ram adjustment: 55 mm Strokes per minute: 130 spm Ram area: 185 x 180 mm Ram bore: 40 mm Drop-through opening in table: 210 x 170 mm Clamping plate: 570 x 450 mm Total power requirement: 3.5 kW Machine weight: approx. 2.7 t Dimensions (LxWxH): approx. 1.4 x 1.1 x 2.1 m

Condition: excellent (used), safe to handle, with new UVV test: Power 50 to lifting speed 115 /min throat depth 250 mm ram stroke 8 - 120 mm ram adjustment approx. 70 mm , Table, WxD approx. 650 x 500 mm Drop-through hole approx. 250 x 180 mm Max. Max. installation height approx. 380 mm Ijdpfxexu T Hqo Ad Doii . .

Condition: used, pressure 25 t throat 200 mm stroke 4 - 80 mm no. of strokes 150 Hub/min Iiedpfjxu Nqlsx Ad Doi ram adjustment 85 mm distance table/ram 300 mm table surface area 600 x 410 mm hole in the table 210 mm tool shank hole (depth x diameter) 80 x 40 mm total power requirement 1,5 kW weight of the machine ca. 1,7 t

Condition: excellent (used), Year of construction: 1999, AIDA AXEL-300 Manufacturer : AIDA Capacity: 30ton SPM: 200~1000 Die Height: 200~1000mm Slide Adjustment: 50mm Slide Area : 550 x 320mm Bolster Area: 550 x 450mm Main Motor: 11KW Manufactured Year: 1999. 11. Location: South Korea Isdpfexuqzfjx Ad Dsii Very good condition Fully working condition and operating video is available upon request available at a reasonable price Original feeder is attached and included.

Condition: good (used), Year of construction: 1979, Condition: 2012 overhauled to the latest UVV Installation height: 800 mm Ram stroke: 500 mm Iedpfoxr Azxox Ad Doii Projection: 360 mm Nominal force: 400 kN Hydraulic pressure: 160 bar Operating hours: 1356 Other: new control from Pilz, electrical circuit diagrams available Video about functionality available

Condition: like new (used), Year of construction: 2022, operating hours: 1 h, functionality: fully functional, machine/vehicle number: EEP-30.22070 A.D, throat depth: 180 mm, ram adjustment: 60 mm, table height: 700 mm, total height: 2,150 mm, drop-through hole in table: 150 mm, table width: 580 mm, table length: 360 mm, total width: 1,500 mm, total length: 1,250 mm, overall weight: 1,900 kg, pressing force: 45 t, distance table to ram: 350 mm, stroke length: 90 mm, power: 4 kW (5.44 HP), compressed air connection: 6 bar, input voltage: 380 V, stroke rate (max.): 145 1/min, Equipment: CE marking, documentation/manual, safety light barrier, For Sale: ELMALI EEP-PK45 C-Type Eccentric Press – Like New Condition (+ gratis compressor) We are offering a nearly unused ELMALI EEP-PK45 eccentric press machine, manufactured in 2022 in Turkey. This robust C-frame press delivers a 45-ton pressing force, making it ideal for precision metal forming applications. The machine has never been used in production and is in excellent condition — ready for immediate operation. - Steel frame construction body - Ram and similar pieces steel casting Ijdpfxsxq Sbfo Ad Doii - Pneumatic clutch and brake combination - 4 guide ram - Ram adjustment - Main and extra table with T slots - Single or continous stroke - Foot pedal or double hand control - Centralized lubrication system - Gear in oil bath - Photocell safety guard - Die Adjustment and Reverse turn mode For the machine we are offering a KÄSER Premium 200/24W type compressor as a gratis.

Condition: used, Manual folding machine Schuller MAH 2-2000, working width 2030 mm, sheet thickness 2.0 mm Isdpfx Aexn Avnjd Djii

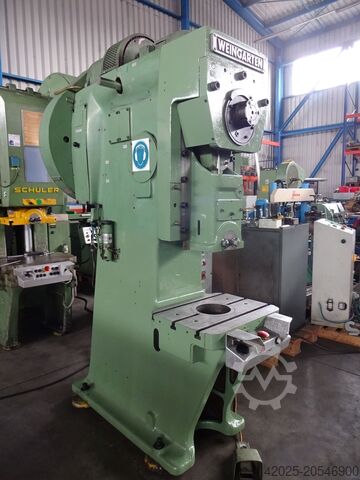

Condition: used, Workshop-refurbished Single-Column Eccentric Press WEINGARTEN Type AV 40 Machine No. 121826 D, Year of manufacture 1976 – Completely overhauled in 2003 Pressing force: 40 tons Throat depth: 225 mm Table opening: Ø 200 mm with support rim Ø 225 mm Table dimensions: 560 x 470 mm Ram area: 260 x 200 mm Adjustable ram stroke: 8–88 mm Ram adjustment: 63 mm Max. install height: 500 mm Clamping shank bore: Ø 40 mm Strokes per minute: 40–120 Motor power: 4 kW Power supply: 400 Volt, 50 Hz Table height above floor: 700–950 mm - Table height adjustment with 2 support spindles - Drop-through hole in table as round table opening with reduction ring from Ø 225 to Ø 100 mm - Clutch-brake combination via WEINGARTEN friction-threaded clutch with TDC run-through protection - Stroke release via electric footswitch or two-hand control console - Front crankshaft support bearing - Overload protection via shear plate Iiodjxlkq Iepfx Ad Dsi - Manual central lubrication - Electrical cabinet with dual-circuit contactor control from 2003, permanently mounted on the machine - Safety standard (UVV) for manual loading/unloading The machine is equipped with the following operating modes: - Setup - Single stroke (two-hand) - Single stroke (foot) - Continuous run (foot) - Automatic continuous run - External engagement Required space (L x W x H): 1900 x 950 x 2600 mm Weight: 3.1 tons Very good condition

Condition: good (used), – Capacity 25 tons – Table 525 x 405 mm Iiedpjxk Tm Nsfx Ad Dei – Stroke 75 mm – 120 strokes/min. – Foot control or two-hand operation – Central lubrication system – 380V

Condition: used, Year of construction: 1986, pressure 35 t throat 240 mm stroke 12-84 mm no. of strokes 135 Hub/min ram - range of adjustment 70 mm table surface area 600x450 mm ram surface 360x180 mm hole in the table 220x130 mm Iiedpfsxh Sx Eex Ad Dei table height 630 mm tool hole in ram Ø35 mm weight of the machine ca. 2,5 t dimensions of the machine ca. BxTxH 1500x2000x2600 mm

Condition: new, Year of construction: 2025, throat depth: 175 mm, table width: 375 mm, table length: 570 mm, stroke adjustment: 60 mm, pressing force: 25 t, STANDARD FEATURES • Steel construction frame • Stress relieving of the frame and welded parts by vibration • Parallelism and squareness tolerance between tables in accordance with ISO and DIN standards • Pneumatic clutch and brake combination • Slide block guided by 4 rails • Slide, connecting rod, ram, and similar parts made of cast steel • High-strength, monobloc crankshaft • Bronze bushings in connecting rod • Equipped with a spare table • Ratchet device table-to-ram adjustment (motorized for 150 ton and above) • Manual centralized lubrication system • Pneumatic pedal with latching mechanism and dual-hand control with timer • Electric counter • PLC integration • CE compliance • Finger protection with light barriers • Safety PLC (controls all electrical systems, valves, double solenoids, and pedal) • Dual-coil safety valve • Panel with position lock switch • Safety block • Made in Türkiye TECHNICAL SPECIFICATIONS Iodjxg R Ucjpfx Ad Dsii Capacity: 25 Tons Distance Between Table and Ram: 300 mm Ram Adjustment: 50 mm Approximate Press Width: 870 mm Approximate Press Depth: 1380 mm Approximate Press Height: 1870 mm Table Hole Diameter: 145 mm Table Size: 375 / 570 mm Die Clamping Slot Diameter: 35 mm Ram Size: 260 / 170 mm Table Height from Floor: 710 mm Stroke Adjustment: 10 / 60 mm Strokes per Minute: 120 spm Motor Power: 3 kW Motor Speed: 1000 RPM Approximate Weight: 1300 kg

Condition: good (used), pressing force: 25 t, – Capacity 25 tons – Table 360 x 350 mm Isdpfx Adjxc N Tcs Djii – Foot control – 380V

Condition: used, Russian manufacturing, Max. pressing force: 25 t Ijdoxbf Sfopfx Ad Deii Table size: 550 x 400 mm

Condition: used, Year of construction: 1970, pressure 30 t stroke verstellbar Iijdpfxew U Epfj Ad Dsi weight of the machine ca. 2 t

Condition: new, Safety valve for presses IMI HERION / NORGREN PSV valve, twin valve, directional control valve Type: XSz 10 V ID No. 2492982 Serial No. 2608 Equivalent to order no.: 2492951 Pressure: 3 to 10 bar Compressed air connection thread (A)+(B)+(P)+(S): 1/2" Compressed air outlet (R): flange connection Supply voltage: 2x 24 Volt (DC) - Base plate hole spacing 115 x 63 mm, 4x mounting holes Ø 6.5 mm - Equipped with silencer on compressed air outlet (R) Valve body dimensions L x W x H: 105 x 90 x 220 mm Dimensions with silencer L x W x H: 180 x 165 x 220 mm Weight: 3.0 kg New, unused, from stock Isdpew T U A Sjfx Ad Dsii

Condition: used, Year of construction: 1978, machine/vehicle number: 4788, Capacity: 35 ton Throat depth: 225 mm Ram stroke: 8 - 80 mm Slide adjustment: 50 mm Shut height (stroke down, adjustment up): 325 mm Iiedpfx Adjw Tukij Doi Table surface area : 600 x 450 mm Slide area: 300 x 225 mm Number of strokes: 160 s.p.m. Required power: 2,2 kW Dimensions L x W x H: 1000 x 1600 x 2200 mm Weight of machine approx.: 1,9 ton

Condition: used, Year of construction: 2004, functionality: fully functional, total height: 2,810 mm, total width: 1,240 mm, total length: 200 mm, overall weight: 3,200 kg, pressing force: 50 t, year of last overhaul: 2025, DESCRIPTION Heavy-duty eccentric press with pneumatic clutch, supplementary counter table, centralised lubrication, and impact protection guards with a front methacrylate door. CE compliant. SPECIFICATIONS Maximum pressing force: 50t Upper work table length: 450 mm Upper work table width: 310 mm Lower work table length: 750 mm Lower work table width: 440 mm Central bore, scrap ejection: 160 mm Minimum closed die height: 290 mm Maximum closed die height: 340 mm Maximum strokes per minute (variable): 72 to 180 x min Minimum slider stroke length: 12 mm Maximum slider stroke length: 110 mm Spindle adjustment: 70 mm Machine height: 2,810 mm Isdpfxsw S Igbj Ad Deii Machine length: 2,000 mm Machine width: 1,240 mm Power: 4 kW Machine weight: 3,200 kg Year of manufacture: 2004

Condition: used, Year of construction: 2000, functionality: fully functional, total height: 2,810 mm, total width: 1,240 mm, total length: 1,500 mm, overall weight: 4,300 kg, pressing force: 60 t, year of last overhaul: 2025, MODEL PE-63 Maximum force (pressing): 63 t Upper work table length: 450 mm Upper work table width: 310 mm Lower work table length: 900 mm Lower work table width: 560 mm Central hole for scrap ejection: 250(280) mm Ijdpfjw S Icvjx Ad Deii Usable vertical daylight between tables: 430 mm Max. admissible closed die height: 340 mm Maximum strokes per minute: 38-100 /min Minimum slide stroke length: 8 mm Maximum slide stroke length: 92 mm Ram adjustment: 80 mm Machine height: 2810 mm Machine length: 1500 mm Machine width: 1240 mm Power: 5.5 kW Machine weight: 4,300 KG Year of manufacture: 2000

Condition: used, Year of construction: 1987, pressure 45 t throat 230 mm stroke 4-80 mm no. of strokes 120 Hub/min ram - range of adjustment 55 mm table surface area 695x455 mm ram surface 365x180 mm hole in the table 220x180 mm table height 890 mm tool hole in ram Ø 40 mm Iijdpsw E Nuzofx Ad Dji

Condition: used, Year of construction: 1987, pressure 35 t throat 220 mm stroke 8-96 mm no. of strokes 120 Hub/min Iedpfx Adew E Nuuo Deii ram - range of adjustment 50 mm table surface area 580x440 mm ram surface 305x170 mm hole in the table 215x175 mm table height 870 mm tool hole in ram Ø 40 mm
