Condition: used, Year of construction: 2006, functionality: fully functional, machine/vehicle number: M301809, Technical characteristics: Work Area # Maximum turning diameter: 270 mm # Maximum machining diameter: 215 mm # Maximum workpiece length: 780 mm Lrodpfx Aexxv A Aegmjw # Distance between spindle noses: min. 250mm/max. 1100mm # X1/X2 axis travel: 195 mm / Rapid traverse X: 30 m/min # Z1/Z2 axis travel: 780 mm / Rapid traverse Z: 30 m/min # Y-axis (Upper Turret) travel: +/- 60 mm / Rapid traverse Y: 30 m/min # B-axis travel (Right Spindle): 850 mm / Rapid traverse B: 30 m/min Spindles # Spindle DIN 55026: Size A26 # Max speed: Left 4,500 rpm / Right 4,500 rpm # Power with 100% ED: Left – 15 kW / Right – 15 kW # Main spindle feature: Optional dual-stage clamping cycle # Bar capacity: Left spindle - 80 mm / Right spindle - 80 mm Tool Holder with Driven Tools # Tool interface: BMT55 # Number of positions: 12-station disc turret, all positions driven # Max speed: 3,600 rpm, Milling drive power: 5.5 kW Electrical Equipment # Operating voltage: 400V 3-phase, fuse 217A GL # Connected load: 71.9 kVA Dimensions # Machine dimensions (L×W×H): 4,059 × 2,314 × 2,225 mm # Weight: 14,000 kg Main Features and Capabilities: # Horizontal design: Optimal chip evacuation and straightforward loading/unloading # CNC Control: Fanuc 18i-TB 2CPU, 2-channel control # Upgraded hydraulic unit: Hazabal S.L. GH1018/008 # Chip conveyor # Bar feeder interface # Automation interface available # Documentation: Electronic and hard copy available Machine status: Operational (in production)

Condition: repair required (used), Year of construction: 2006, functionality: not functional, machine/vehicle number: M301302, Technical characteristics: Work Area - Maximum turning diameter: 270 mm - Maximum machining diameter: 215 mm - Maximum workpiece length: 780 mm - Distance between spindle noses: min. 250 mm / max. 1100 mm Lsdpfsxxvy Uex Agmorw - X1/X2 axis travel: 195 mm / Rapid traverse in X: 30 m/min - Z1/Z2 axis travel: 780 mm / Rapid traverse in Z: 30 m/min - Y-Axis (Upper Turret) travel: ±60 mm / Rapid traverse in Y: 30 m/min - B-axis travel (Right Spindle Stroke): 850 mm / Rapid traverse: 30 m/min Spindles - Spindle standard: DIN 55026, size A26 - Maximum spindle speed (Left/Right): 4500 rpm - Power at 100% duty cycle (Left/Right): 15 kW - Main spindle feature: Optional dual-stage clamping cycle - Bar capacity (both spindles): 80 mm Tool Holder with Driven Tools - Tool holder interface: BMT55 - Number of positions: 12-station turret, all driven positions - Maximum speed: 3600 rpm - Milling motor power: 5.5 kW Electrical Equipment - Operating voltage: 400V 3-phase, 217A GL fuse - Connected load: 71.9 kVA Dimensions - Machine dimensions (L×W×H): 4,059 × 2,314 × 2,225 mm - Weight: 14,000 kg Main Features and Capabilities: - Horizontal design: Optimized for chip evacuation and easy loading/unloading - CNC control: Fanuc 18i-TB, 2CPU, 2-path control - Enhanced hydraulic unit: Hazabal S.L. GH1018/008 - Chip conveyor - Bar feeder interface - Automation interface available - Documentation: Electronic and printed manuals available Machine status: NOT WORKING - Servo drive failure on lower turret - Lifetool reduction gearbox on lower turret broken – requires replacement

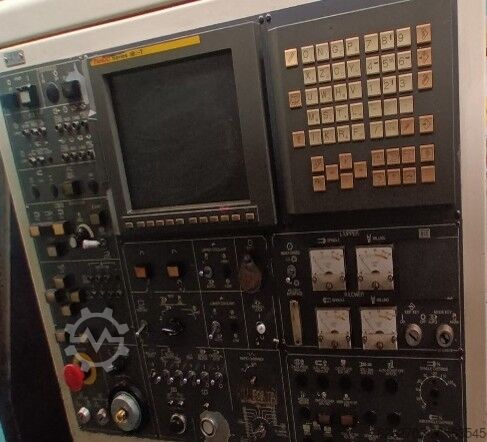

Condition: repair required (used), Year of construction: 2008, functionality: not functional, machine/vehicle number: M234205, Technical Specifications: Work Area - Maximum turning diameter: 250 mm - Maximum machining diameter: 250 mm - Maximum workpiece length: 555 mm - X1/X2-axis travel: 195 mm / X-axis rapid traverse: 30 m/min - Z1/Z2-axis travel: 600 mm / Z-axis rapid traverse: 30 m/min - Y-axis (Upper Turret) travel: ±41 mm / Y-axis rapid traverse: 30 m/min - B-axis travel (Right Spindle Travel): 620 mm / B-axis rapid traverse: 30 m/min Main Spindle - Spindle interface to DIN 55026: Size 6 - Max. speed: Left 4500 rpm / Right 5000 rpm - Power at 100% duty cycle: Left - 15 kW / Right - 7.5 kW - Bar capacity: Left spindle - 65 mm / Right spindle - 51 mm Tool Carrier with Driven Tools Lrodpfxsxxvw Hj Agmsw - Tool interface: BMT55 - Number of stations: 12-station disc turret, all stations driven - Max. speed: 6000 rpm; Milling motor power: 3.7 kW Electrical Equipment - Operating voltage: 200V 3-phase, fuse 217A GL - Connected load: 75 kVA Dimensions - Machine dimensions (L×W×H): 4,059 × 2,314 × 2,225 mm - Weight: 6,000 kg Key Features and Capabilities: - Horizontal design: Optimized chip removal and easy loading/unloading - CNC control: Fanuc 18i-T - Chip conveyor - Bar feeder interface - Documentation: Electronic not available / Paper manual available Machine condition: NOT OPERATIONAL - B-axis not functional - Lower turret not functional

Condition: repair required (used), Year of construction: 2008, functionality: not functional, machine/vehicle number: M232102, Technical characteristics: Work Area # Maximum turning diameter: 250 mm # Maximum machining diameter: 250 mm # Maximum workpiece length: 555 mm # X1/X2-axis travel: 195 mm / Rapid traverse X: 30 m/min # Z1/Z2-axis travel: 600 mm / Rapid traverse Z: 30 m/min # Y-axis (Upper Turret) travel: +/-41 mm / Rapid traverse: 30 m/min # B-axis travel (Right Spindle Travel): 620 mm / Rapid traverse: 30 m/min Main Spindle # Spindle according to DIN 55026: Size 6 # Maximum speed: Left 4500 rpm / Right 5000 rpm # Continuous power (100% duty cycle): Left 15 kW / Right 7.5 kW # Bar capacity: Left spindle - 65 mm / Right spindle - 51 mm Tool Holder with Driven Tools # Tool interface: BMT55 # Number of positions: 12-station disc turret, all driven positions # Maximum speed: 6000 rpm, Milling motor power: 3.7 kW Lsdpfx Aexxvv Ajgmerw Electrical Equipment # Operating voltage: 200V, 3-phase, fuse 217A GL # Connected load: 75 KVA Dimensions # Machine dimensions (L×W×H): 4,059 × 2,314 × 2,225 mm # Weight: 6,000 kg Main Features and Capabilities: # Horizontal design: Optimal chip evacuation and easy loading/unloading # CNC control: Fanuc 18i-T # Chip conveyor # Bar feeder interface # Documentation: Electronic not available / Book available Machine Status: NOT WORKING # Fault not specified. Complete electrical rewiring performed in 2018 and linear guides renewed.

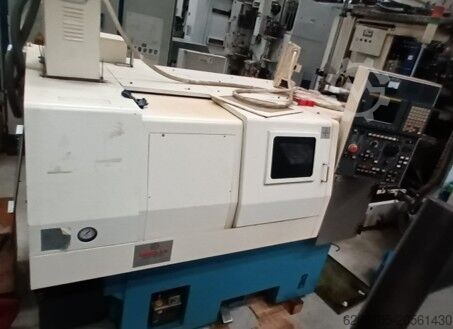

Condition: used, Year of construction: 2009, functionality: fully functional, machine/vehicle number: 3XR2L03, Technical Specifications: Work Area - Maximum turning diameter: 89 mm - Maximum workpiece length: 80 mm - Chuck size: 152 mm, hydraulic drive - Maximum workpiece weight: 0.7 kg x 2 - X-axis travel: 245 mm / Rapid traverse X: 20 m/min - Z-axis travel: 240 mm / Rapid traverse Z: 24 m/min Main Spindle - Spindle mount: ASA 6 - Maximum spindle speed: 60–6000 rpm - Continuous power (100% duty cycle): 7.5 / 5.5 kW Turret with Driven Tools - Tool interface: 20 mm square / 25 mm hole diameter - Number of positions: 12-position lower turret, 6 driven stations - Max speed: 4500 rpm / Milling motor power: 4.5 kW - Turret indexing time: 0.2 s Electrical Equipment Ledpfx Ajxxtu Ajgmerw - Operating voltage: 200V, 3-phase - Connected load: 21 kVA Dimensions - Machine dimensions (L×W×H): 2,100 × 1,555 × 1,680 mm - Weight: 4,000 kg Key Features and Capabilities: - Horizontal design: Optimal chip evacuation, parts catcher, custom-made parts conveyor strip - CNC Control: Fanuc Series 21i-TB - Chip removal conveyor included Machine Condition: Operational

Condition: used, Year of construction: 2012, functionality: fully functional, machine/vehicle number: LZ1R0503, Technical Specifications: Work Area - Maximum turning diameter: 89 mm - Maximum workpiece length: 80 mm - Chuck size: 152 mm, hydraulic drive - Maximum workpiece weight: 0.7 kg x 2 - X-axis travel: 245 mm / Rapid traverse X: 20 m/min - Z-axis travel: 240 mm / Rapid traverse Z: 24 m/min Main Spindle - Spindle mount: ASA 6 - Maximum spindle speed: 60–6000 rpm - Continuous power (100% duty cycle): 7.5 / 5.5 kW Turret with Driven Tools - Tool interface: 20 mm square / 25 mm hole diameter - Number of positions: 12-position lower turret, 6 driven stations - Max speed: 4500 rpm / Milling motor power: 4.5 kW - Turret indexing time: 0.2 s Electrical Equipment - Operating voltage: 200V, 3-phase - Connected load: 21 kVA Dimensions - Machine dimensions (L×W×H): 2,100 × 1,555 × 1,680 mm Lrjdpfx Agsxxr Dvsmjw - Weight: 4,000 kg Key Features and Capabilities: - Horizontal design: Optimal chip evacuation, parts catcher, custom-made parts conveyor strip - CNC Control: Fanuc Series 21i-TB - Chip removal conveyor included Machine Condition: Operational

Condition: repair required (used), Year of construction: 2015, functionality: not functional, machine/vehicle number: 2460039, Technical specifications: # Working area: X 300 mm; Y 500 (725) mm; Z 375 mm # Axis configuration: 3 LINEAR AXES (X, Y, Z) + 1 rotary axis (A – rotary table with indexing head) - Direct angular measuring system with up to 50 rpm, accuracy +/- 5” # Maximum workpiece clamping dimension/weight: Ø575 x 830 mm / max. 360 kg # Rapid traverse: X/Y/Z 65/75/75 m/min; Positioning accuracy Tp: 0.008 mm # Spindle center distance: 300 mm # Spindle speed: 1 – 17,500 rpm # Spindle interface: DIN 69893-HSK-A63 (with internal coolant supply) # Automatic tool changer: 2 x 32 tools; chip-to-chip average time: 2.5 sec # Maximum tool dimensions: Ø75 mm / length: max. 275 mm / up to 7.5 kg Electrical data: # Mains voltage: 3x400V / 50Hz # Connected load: approx. 85 kVA / 125A Dimensions: # Installation area: approx. 3.6 x 6 x 3.7 m # Weight: approx. 10,500 kg Equipment includes: # CNC control: Siemens 840D SL # Linear measuring systems: Heidenhain linear scales # Chip extractor: Knoll Type 550 K-1 # Oil cooling system # Cooling system for shaft, guides, and control cabinet # 2 oil lubrication systems # Oil filtration system (up to 80 bar): Knoll VRF450-2450 (can supply 2 machines simultaneously) # Oil vapor extraction/recovery system: IFS Vario E2000 (2,000 m³/h) # Fire suppression system: Kraft & Bauer # Part detection P/Y: with low-pressure air monitors # In-process measurement: Marposs T25 Ledpfx Asxxrnbjgmjrw # Tool breakage detection and length measurement: inductive sensor # Tool presence monitoring in spindle Machine status: NOT OPERATIONAL - Spindle tool and part presence sensors - Tool breakage sensors - Tool magazine piston and slide system door open/close (2 units) - Tool magazine pistons and tool retainer slide system (2 units) - A-axis position encoder - Inductive and magnetic sensors (4 units each) - Chip extraction conveyor requires repair - Chiller for spindle cooling/heat exchanger - Communication module Murr - X axis linear scale - Emulsion chip conveyor level sensor - Hydraulic pump - Motor for hydraulic pump (repairable) - Heat exchanger unit - Electric Siemens contactors for electrical cabinet (3 units) - Safety door lock Euchner - Emulsion filtration unit is shared with another machine (SW BA321 2460038) Note: Machine is NOT WORKING and offered as described.

Condition: repair required (used), Year of construction: 2015, functionality: not functional, machine/vehicle number: 2460038, Technical specifications: Machining workspace: X 300 mm; Y 500 (725) mm; Z 375 mm Axis configuration: 3 linear axes (X, Y, Z) + 1 rotary table axis (A), index dividing head - Direct measuring system, angular, rotation speed: max. 50 min⁻¹, accuracy: +/- 5'' Maximum clamping/part dimensions: Ø 575 x 830 mm; maximum weight: 360 kg Rapid traverse rates: X/Y/Z = 65/75/75 m/min; positioning accuracy Tp: 0.008 mm Spindle spacing: 300 mm Spindle speed range: 1–17,500 rpm Spindle taper: DIN 69893-HSK-A63 (internal coolant supply) Automatic tool changer: 2 x 32 positions; average chip-to-chip: 2.5 s Maximum tool diameter: Ø 75 mm; maximum tool length: 275 mm; maximum tool weight: 7.5 kg Electrical data: - Supply voltage: 3x400 V / 50 Hz - Installed power: approx. 85 kVA / 125 A Machine dimensions: - Installation area: approx. 3.6 x 6 x 3.7 m - Weight: approx. 10,500 kg Equipment includes: Lsdpfsxxrc Sjx Agmsrw - CNC control: Siemens 840D SL - Linear axis measuring systems: Heidenhain linear scales - Chip conveyor: Knoll Typ 550 K-1 - Oil cooling system - Shaft, guideway, and switch cabinet cooling system - 2 oil lubrication systems - Oil mist extraction/recovery system: IFS Vario E2000 (2,000 m³/h) - Fire protection: Kraft & Bauer - Workpiece presence detection (P/Y): Low pressure air sensors - In-process measurement: Marposs T25 - Tool breakage control and length measurement system: Inductive sensor (BRK) - Tool support detection in working spindle Machine status: NOT OPERATIONAL / NON-FUNCTIONAL Installed components: - Sensors for tool presence in spindle & part presence - Hydraulic pump - Hydraulic unit level & temperature sensors (Parker) - Tool magazine piston & sliding door system (2 units) - Communication module: Murr - A-axis position encoder - Hydraulic switches (Parker, 4 units) - Emulsion filtration unit is shared with another machine (SW BA321 2460038) - High-pressure pump from emulsion filtration system

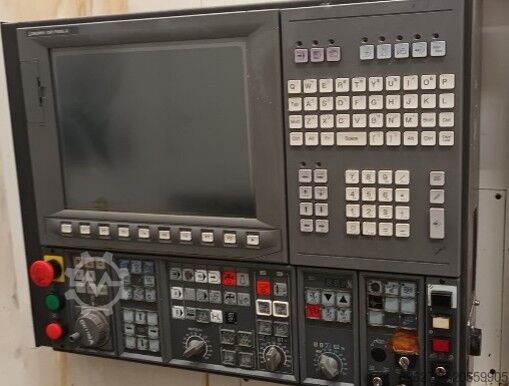

Condition: used, Year of construction: 2015, functionality: limited functionality, machine/vehicle number: MW130, Technical characteristics: Work Area # Maximum turning diameter: 300 mm # Maximum workpiece length: 276 mm # X-axis travel: 250 mm / Rapid traverse X: 24 m/min # Z-axis travel: 460 mm / Rapid traverse Z: 24 m/min # W-axis travel: 520 mm / Rapid traverse Z: 24 m/min Main Spindle # Spindle nose: A2-8 # Maximum speed: Left 3,000 rpm # Continuous power (100% duty): Left 15 kW / Right 7.5 kW # Max swing over bed: 520 mm # C-axis indexing accuracy: 0.001° # Bar capacity: left spindle 80 mm / right spindle 53 mm Sub-Spindle # Spindle speed: 6,000 rpm Lsdpfxexxrbbj Agmorw # Max bar diameter: 53 mm # C-axis indexing accuracy: 0.001° # Travel: 520 mm Tool Holder with Driven Tools # Tool interface: Okuma # Number of positions: 12-station lower turret, all driven stations # Max speed: 4,500 rpm, Milling motor power: 4.5 kW Electrical Equipment # Operating voltage: 400V 3-phase, fuse protection 151A # Connected load: 22.5 kVA Dimensions # Machine dimensions (L×W×H): 3,200 × 2,200 × 1,900 mm; Weight: 5,500 kg # Bar feeder (L×W×H): 3,500 × 800 × 1,200 mm; Weight: 1,500 kg Main Features and Capabilities: # Horizontal construction: Optimal chip evacuation, Parts catcher + Custom-made parts conveyor belt # CNC Control: OSP-P300L-R # Chip conveyor # Fire suppression system # Tool measuring system (Q SETTER) # Broken tool detection: Load force auto-learning analyzer controlled by OSP-P300L-R # Workpiece presence detection on sub-spindle: Low-pressure compressed air sensors # Spindle cooling system # Bar feeder: TopAutomazione model FU352 # Documentation: Electronic/manual available Machine condition: Works with main spindle only – sub-spindle requires repair

Condition: used, Year of construction: 1998, Horizontal CNC Center REALMECA C300H Travel X: 320 mm Travel Y: 350 mm Lredpfx Aoxxqrrogmew Travel Z: 250 mm Numerical Command: NUM 1060 Série II Cone: BT 40 Spindle rotation: from 100 à 6000 RPM Year of construction: 10/98 Maxi distance spindle nose/table: maxi 450 mm / mini 50 mm Tools store: 20 tools Threadings: Fast: maxi 10 m/min Work: 0 to 10 m/min Axe B: 10 RPM Equipped with: 2 palets 300 x 300 mm Voltage: 380 V Dimensions (L x W x H): 2450 x 1700 x 2400 mm Weight: 3,8 T

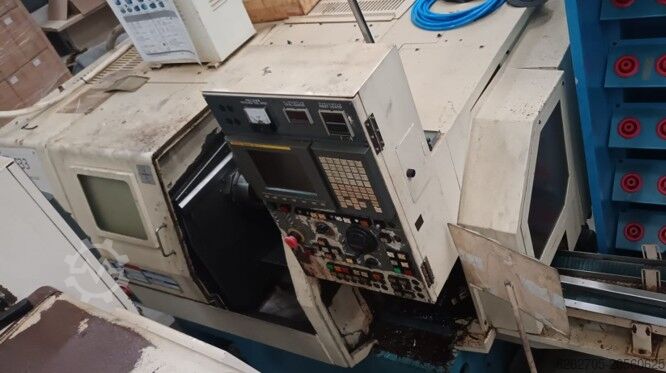

Condition: repair required (used), Year of construction: 2005, functionality: not functional, machine/vehicle number: LZ1R0725, Technical specifications: Work Area - Maximum turning diameter: 89 mm - Maximum workpiece length: 80 mm - Chuck size: 152 mm hydraulic - Maximum workpiece weight: 0.7 kg (per piece, 2 pieces) - X-axis travel: 245 mm / Rapid traverse X: 20 m/min - Z-axis travel: 240 mm / Rapid traverse Z: 24 m/min Main Spindle - Spindle nose: ASA 6 - Maximum speed: 60–6000 rpm - Power at 100% duty cycle: 7.5 / 5.5 kW Tool Turret with Motorised Tools - Tool interface: 20 mm square / 25 mm hole diameter - Number of positions: 12-station lower turret, 6 driven stations - Max. speed: 4500 rpm, Milling motor power: 4.5 kW - Turret index time: 0.2 sec Electrical Equipment - Operating voltage: 200V (3-phase) Lrjdpfoxxkn Tex Agmew - Connected load: 21 kVA Dimensions - Machine size (L×W×H): 2,100 × 1,555 × 1,680 mm - Weight: 4000 kg Main Features and Capabilities - Horizontal layout: Optimum chip evacuation, parts catcher, custom-made parts conveyor belt - CNC control: Fanuc Series 21i TB - Chip conveyor Machine Status: NOT WORKING - Servo drive defective - Main spindle motor defective

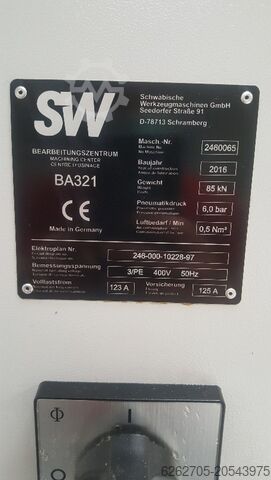

Condition: used, Year of construction: 2016, functionality: fully functional, machine/vehicle number: 2460065, Technical specifications: # Machining Workspace: X 300 mm; Y 500(725) mm; Z 375 mm # Axis Configuration: 3 linear axes (X, Y, Z) + 1 rotational table axis (A) and 2 rotational axes (B) with indexer head - Direct angular measuring system, maximum rotational speed: 50 min⁻¹, accuracy: +/- 5" # Maximum clamping/part dimensions: Ø 575 x 830 mm; maximum workpiece weight: 360 kg # Rapid traverse: X/Y/Z 65/75/75 m/min; positioning accuracy Tp: 0.008 mm # Spindle distance: 300 mm # Spindle speed: 1–17,500 rpm # Spindle taper: DIN69893-HSK-A63 (internal coolant supply) # Automatic tool changer: 2x32 tools, chip-to-chip average 2.5 sec # Maximum tool size: Ø75 mm / max. length 275 mm / 7.5 kg Electrical connection: # Voltage: 3x400V/50Hz # Installed power: approx. 85 kVA / 125A Dimensions: # Installation space: approx. 3.6 x 6 x 3.7 m # Weight: approx. 10,500 kg Equipment includes: # CNC control: Siemens 840D SL # Linear axis measuring device: Heidenhain linear scales # Chip conveyor/extractor: Knoll Type 550 K-1 # Oil cooling system # Oil filtration system max 80 bar: Knoll 550 K-1 450_2450 (can service 2 machines simultaneously) # Shaft cooling system, guideways, and control cabinet # 2 oil lubrication units # Oil vapor absorption/recovery system: IFS Vario E2000 (2,000 m³/h) # Fire protection: Kraft & Bauer # Part presence detection: with low-pressure air sensors # In-process control: Marposs T25 # Tool breakage monitoring and length measurement: inductive sensor Ljdpfjxw Ttijx Agmerw # Toolholder detection system in working spindle # Documentation: Manuals only (printed) Machine condition: Operational / In working condition.

Condition: used, Year of construction: 2016, functionality: fully functional, machine/vehicle number: 2460062, Technical Specifications: # Machining Workspace: X 300 mm; Y 500 (725) mm; Z 375 mm # Axis Description: 3 Linear Axes (X, Y, Z) + 1 Rotational Table Axis (A-axis) with index divider head, equipped with direct angular measuring system, number of revolutions: 50 minˉ¹, accuracy +/- 5" # Maximum Clamping / Part Size: Ø 575 x 830 mm; maximum weight 360 kg # Rapid Traverse Rate: X/Y/Z: 65/75/75 m/min; Positioning Accuracy Tp: 0.008 mm # Distance Between Spindles: 300 mm # Spindle Speed: 1–17,500 rpm # Spindle Interface: DIN69893-HSK-A63 (with internal coolant supply) # Automatic Tool Changer: 2 x 32 tool positions, chip-to-chip average time: 2.5 sec # Max. Tool Dimensions: Ø75 mm / Maximum Length: 275 mm / Maximum Weight: 7.5 kg Electrical Specifications: # Voltage: 3x400V / 50Hz # Installed Power: approx. 85 kVA / 125A Dimensions: # Installation Footprint: approx. 3.6 x 6 x 3.7 m # Weight: approx. 10,500 kg Equipment Includes: # CNC Control: Siemens 840D SL # Linear Axis Measuring System: Heidenhain linear scales # Chip Conveyor: Knoll Type 550 K-1 # Oil Cooling System # High-Pressure Oil Filtration System (max 80 bar): Knoll VRF 450_2350 # Cooling System for Shaft, Guides, and Switchboard # 2 Oil Lubrication Units # Oil Vapor Extraction/Recovery System: IFS Vario E2000 (2,000 m³/h) # Fire Suppression System: Kraft & Bauer # Part Presence Detection: via low-pressure air sensors # In-Process Control: Marposs T25 # Tool Breakage Monitoring and Length Measurement: inductive sensor # Tool Holder Detection in Work Spindle Machine Condition: Operational Lodpfx Agjxw Syujmerw

Condition: good (used), Year of construction: 2015, functionality: fully functional, machine/vehicle number: 2460043, Technical specifications: # Machining workspace: X 300 mm; Y 500(725) mm; Z 375 mm # Axis configuration: 3 linear axes (X, Y, Z) + 1 rotary axis A (rotary table) and 2 rotary axes B (indexing divider head) with direct angular measurement system, max. rotational speed 50 rpm, accuracy ± 5" # Max. clamping/part size: Ø 575 x 830 mm; max. weight 360 kg # Rapid traverse speeds: X/Y/Z – 65/75/75 m/min; positioning accuracy Tp: 0.008 mm # Spindle center distance: 300 mm # Spindle speed: 1–17,500 rpm # Spindle interface: DIN69893-HSK-A63 (with internal coolant supply) # Automatic tool changer: 2 x 32 tool positions / chip-to-chip average 2.5 sec # Maximum tool size: Ø75 mm / length max. 275 mm / 7.5 kg Electrical connection: # Voltage: 3x400V / 50Hz Lrjdjxwvr Iepfx Agmjw # Installed power: approx. 85 kVA / 125A Dimensions: # Required installation area: approx. 3.6 x 6 x 3.7 m # Weight: approx. 10,500 kg Equipment includes: # CNC control: Siemens 840D SL # Linear axis measuring system: Heidenhain linear scales # Chip conveyor: Knoll Type 550 K-1 # Oil cooling system # Oil filtration system max. 80 bar: Knoll 550 K-1 450_2450 (can serve two machines simultaneously) # Cooling system for spindle, guideways, and control cabinet # 2 oil lubrication systems # Oil vapor extraction/recovery unit: IFS Vario E2000 (2,000 m³/h) # Fire suppression: Kraft & Bauer # Part presence detection: pneumatic detectors (low pressure) # In-process measurement: Marposs T25 # Tool breakage monitoring and length check: inductive sensor # Tool holder detection in spindle # Documentation: operating manuals only Machine condition: Operational / In production

Condition: good (used), Year of construction: 2015, functionality: fully functional, machine/vehicle number: 2460042, Technical Specifications: # Machining Area: X 300 mm; Y 500(725) mm; Z 375 mm # Axis Configuration: 3 linear axes (X, Y, Z) + 1 rotary table axis A and 2 rotary axes B with indexable divider head, featuring direct angular measuring system, rotational speed up to 50 min⁻¹, accuracy +/- 5” # Maximum Part Clamping Dimensions: Ø 575 x 830 mm; Maximum weight 360 kg # Rapid Traverse Rate: X/Y/Z 65/75/75 m/min; Positioning accuracy Tp: 0.008 mm # Distance Between Spindles: 300 mm # Spindle Speed: 1-17,500 rpm # Spindle Taper: DIN69893-HSK-A63 (with internal coolant) # Automatic Tool Changer: 2 x 32 tool positions / chip-to-chip average 2.5 seconds # Maximum Tool Diameter: Ø75 mm / Maximum Length: 275 mm / Maximum Weight: 7.5 kg Electrical Connection: # Voltage: 3x400V/50Hz # Installed Power: approx. 85 kVA / 125A Dimensions: # Installation Footprint: approx. 3.6 x 6 x 3.7 m # Weight: approx. 10,500 kg Equipment Includes: # CNC Control: Siemens 840D SL # Linear Axis Measuring System: Heidenhain linear scales # Chip Extractor: Knoll Type 550 K-1 # Oil Cooling System # Oil Filtration System, max 80 bar: Knoll 550 K-1 450_2450 (can serve 2 machines simultaneously) # Shaft, Guideways, and Switchboard Cooling System # 2 Oil Lubrication Units # Oil Vapor Absorption/Recovery Unit: IFS Vario E2000 (2,000 m³/h) # Fire Suppression: Kraft & Bauer # Part Presence P/Y: low pressure air detectors # In-process Gauging: Marposs T25 # Tool Breakage Detection System: BRK and length check via inductive sensor # Tool Support Detection System in Working Spindle # Documentation: Only manuals available Machine Condition: Fully operational Ledpfx Agexwvlnjmerw

Condition: good (used), BAZ with integrated automation and palletizing, Fanuc control, 12 tool stations, HSK 32, 15,000 rpm, 4th axis, change table, pneumatic vices, extraction, chip conveyor, Knoll coolant system, Ljdpfxjw Rru Hs Agmjrw

Condition: ready for operation (used), Year of construction: 2002, Control Unit Brand SIEMENS Model Sinumerik 840D Lrjdpjw Huvajfx Agmjw Movement X-Axis Movement 200 Y-Axis Movement 400 Z-Axis Movement 400 This 4-axis SW BA 400-4 vertical machining center was manufactured in 2002. It features a Siemens 840D control system and two rotary tables, one reconditioned and one new. The travel paths include X 200 mm, Y 400 mm, and Z 400 mm. Consider the opportunity to buy this SW BA 400-4 vertical machining center. Contact us for more information about this machine. Application Types Milling

Condition: used, Year of construction: 2014, DMC 650V with long pallet changer for sale. Travels: x: 650 mm, y: 520 mm, z: 475 mm Lrodpjxurckjfx Agmew Table size: 900x570 mm Control: Heidenhain TNC 640

Condition: used, Year of construction: 2014, DMC 650V with long pallet changer for sale. Lrsdpsw D Sn Isfx Agmew Travels: x: 650 mm, y: 520 mm, z: 475 mm Table size: 900x570 mm Control: Heidenhain TNC 640

Condition: excellent (used), Year of construction: 2014, functionality: fully functional, controller manufacturer: Mitsubishi, Equipment: chip conveyor, documentation/manual, CNC-Drehmaschine Chuan Chay CT2-52YM mit Top Automazioni Stangenlader Baujahr: 2014 | Top gepflegt | Standort: Baden-Württemberg _____ Zum Verkauf steht eine sehr gepflegte und voll einsatzbereite CNC-Drehmaschine des Typs Chuan Chay CT2-52YM, ausgestattet mit einem automatischen Stangenlader von Top Automazioni. Die Maschine stammt aus einem Konzernbetrieb, in dem sie regelmäßig gewartet und sorgfältig gepflegt wurde. Sie befindet sich in technisch wie optisch sehr gutem Zustand und ist sofort verfügbar. _____ Technische Daten • Hersteller: Chuan Chay • Modell: CT2-52YM • Baujahr: 2014 • Steuerung: Mitsubishi • Max. Stangendurchlass: Ø 52 mm • Achsen: C-Achse & Y-Achse • Gegenspindel • Angetriebene Werkzeuge • Späneförderer & Teilefänger • Stangenlader: Top Automazioni • Standort: Baden-Württemberg _____ Zubehör • 16 Werkzeughalter für Außenbearbeitung • 12 angetriebene Werkzeuge Lodpfewg Dabox Agmjrw • 10 Werkzeughalter für Innenbearbeitung • ca. 30 Spannzangen • 2 Spannzangenköpfe • 8 Greifer-Armbacken in verschiedenen Größen _____ Highlights • Sehr gepflegter Zustand • Laufend gewartet (bisher im Konzernbetrieb im Einsatz) • Sofort einsatzbereit • Optimal für Klein- und Mittelserien • Attraktive Komplettausstattung _____ Besichtigung nach Absprache möglich. Die Maschine ist ab sofort verfügbar. Transportorganisation und Verladung können auf Wunsch unterstützt werden. Bei Fragen oder Interesse freuen wir uns auf Ihre Kontaktaufnahme. _____ CNC Turning Machine Chuan Chay CT2-52YM with Top Automazioni Bar Feeder Year of Manufacture: 2014 | Excellent Condition | Location: Baden-Württemberg, Germany _____ We are offering for sale a well-maintained and fully operational CNC turning machine of the type Chuan Chay CT2-52YM, equipped with a Top Automazioni automatic bar feeder. The machine was previously operated in a corporate environment, where it was regularly serviced and carefully maintained. It is in very good technical and visual condition and is immediately available. _____ Technical Data • Manufacturer: Chuan Chay • Model: CT2-52YM • Year: 2014 • Control System: Mitsubishi • Max. Bar Capacity: Ø 52 mm • C-axis and Y-axis • Sub-spindle • Driven tools • Chip conveyor & parts catcher • Automatic bar feeder by Top Automazioni • Location: Baden-Württemberg, Germany _____ Included Accessories • 20 external turning tool holders • 12 driven tools • 10 internal turning tool holders • approx. 30 collets • 2 collet heads • 8 gripper arms in various sizes _____ Highlights • Excellent overall condition • Regularly serviced (previously operated in a corporate environment) • Ready for immediate use • Ideal for small and medium series production • Well-equipped with useful accessories _____ The machine is immediately available. Viewing can be arranged by appointment. Support with loading and transport logistics is available on request. We look forward to your inquiry and will be happy to provide further information.

Condition: like new (used), Control: Fanuc 31i-Model A Travel X / Y / Z: 280 / 330 / 330 mm Table size W x D: 600 x 400 mm Spindle speed: 15'000 rpm Ledpfx Agsurbt Hsmorw Tool changer: 15 places Weight: approx. 1'900 kg Dimensions W x D x H: approx. 1,300 x 3,300 x 2,600 meters

Condition: excellent (used), Year of construction: 2012, CNC - 2 Spindle Horizontal Machining Centre, second-hand Immediately available / ready for operation Manufacturer: Schwäbische Werkzeugmaschinen - Schramberg, Germany Typ: SW BA 322 / Siemen 840 D sl: auf Windows basis und Power Line Servoantriebstechnik Year of construction: 12 / 2012 Axes: X 300 mm; Y 450 mm; Z 375 mm Work spindle: HSK 63 1-10.000 rpm. 25kW at 4,200 rpm. internal coolant supply 40 bar Tool magazine: Pick-up system; capacity 40 (2x20) tool places Workpiece holder; swivel carrier system Q - axis; Two independent swivel axes A - and U - axes Workpiece clamping hydraulics, workpiece support control Coolant system: 1,200 l; paper belt filter, cartridge filter, heat exchanger, high-pressure pump Chip conveyor: Scraper belt conveyor with lifting pump, ejection height 1,100 mm Automatic loading door Automatic rinsing cycle, manual spray gun Machine condition: cleaned, filled with necessary medium in clean condition and is in working order The machine has been checked by SW Maschinen-Service and can be inspected at any time by appointment. Delivery: by arrangement, free loaded ex works, subject to prior sale Lredpfx Agolxp Ufjmsw
