IFA Powertrain GmbH & Co.KG

Condition: used, Year of construction: 2003, turning diameter 340 mm swing diameter 420 mm turning height 315 mm Control S 840 DSL Hfodpfoz At Uksx Ahyel x-travel 850 mm z-travel 315 mm spindle turning speed - stepless 0- 3400 U/min main drive 37(48) kW feed in x - axis 0- 45 m/min feed range Z-direction 0- 30 m/min work piece power 19 kW toolpiece turning speed range 0- 6000 U/min total power requirement 60 kW weight of the machine ca. 10 t dimensions of the machine ca. 3,7 x 3,1 x 3,3 m Machine is offered without chuck but with 12 pieces tool holders Capto 5.

Condition: used, Year of construction: 2005, controller manufacturer: Fanuc, controller model: 21i-TB, _____ Description: Year of manuf. : 2005 Control : Fanuc 21i-TB Hfsdpfoz Am Scsx Ahyjl Turning diam. : 730 mm Turning length : 750 mm In General: Year of manufacture:2005 Control system:Fanuc 21i-TB Max. speed:2,000 rpm Turning diameter:730 mm Turning height:750 mm X-axis:390 mm Z-axis:780 mm Chuck diameter:600 mm Tool turret:8 stations Equipment: Chip removal:Chip conveyor Coolant supply:Coolant pump Tool measurement:Renishaw tool setter Chuck:SMW Autoblok 3-jaw chuck

Condition: used, Year of construction: 2001, controller manufacturer: Fanuc, controller model: 18i-T, _____ Description: Year of manuf. : 2001 Control : Fanuc 18i-T Turning diam. : 730 mm Turning length : 750 mm In General: Hsdpfxjz Am R Se Ahyofl Year of manufacture:2005 Control system:Fanuc 18i-T Max. speed:2,000 rpm Turning diameter:730 mm Turning height:750 mm X-axis:390 mm Z-axis:780 mm Chuck diameter:600 mm Tool turret:8 stations Equipment: Chip removal:Chip conveyor Coolant supply:Coolant pump Chuck:3-jaw chuck

Condition: good (used), Year of construction: 2007, - Speed range: [rpm]: 6,000 - Torque: [Nm]: 480 - Max. turning diameter over bed: 290 mm - Chuck diameter: 200 mm - Turret: 12-position, VDI 40, Sauter - Driven tools: 7.8 kW - Travel: - X-axis: 550 mm - Z-axis: 200 mm - Rapid traverse (X/Z) [m/min]: 30 / 20 - Feed (X/Z): [m/min.] 11 kN - Features: - Left-hand chip conveyor; 300 mm wide; ejection height 800 mm - Probe; direct linear measuring system; glass scales on all axes - Heidenhain circulating pickup tape - Machine with feed belt for part loading - Specification: - Overhauled in 2007 for approx. €50,000, complete headstock replaced. - Feed unit exchanged. Hfjdpoz Ai Ugsfx Ahyol

Condition: used, Year of construction: 2001, turning diameter 220 mm Control Fanuc 18i x-travel 390 mm z-travel 435 mm tool taper VDI 40 number of tool places 12 Pos. spindle tunring speed 4.500 U/min The machine is untested and is being sold for spare parts. Hfsdpfxszz S R Is Ahysl Accessories, tools, and clamping devices shown are only included if explicitly stated in the additional information. Technical data and specifications are subject to change without notice. Prior sale is reserved.

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, Control system: SIEMENS 840D Machining diameter: 2,800 mm Hfsdszz Rfwopfx Ahysl Machining height: 1,000 mm Load capacity: 16,000 kg Max. swing diameter, approx.: 2,800 mm Turning diameter – external, max.: 2,800 mm Spindle speed: 63 min-1 Travel of the cross slide: 620 mm Ram stroke – max.: 690 mm INCLUDES Chip conveyor 4-position tool turret Hydraulic chuck: 2,800 mm EQUIPMENT Tool holder CAPTO 6 Electric handwheel Retrofit in 2009 DESCRIPTION The machine is in very good condition and was used for hard turning of roller bearings. In 2009, the machine underwent a mechanical overhaul by Maschinenbau HELLWIG. As part of this general overhaul, the control system was also upgraded to a SIEMENS 840 Powerline.

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, Control system: SIEMENS 840D Turning diameter: 4,000 mm Turning height: 1,400 mm Travel range of the rotary table: 850 mm Max. swing diameter, approx.: 4,200 mm Turning diameter - external, max.: 4,000 mm Travel range of the cross slide: 850 mm Ram stroke - max.: 950 mm EQUIPMENT - Hydraulic chuck - Tool holder CAPTO 6 - Electric handwheel Hfedpfszz Rfkex Ahysl - Retrofit in 2007 INCLUDES Chip conveyor 4-position tool turret DESCRIPTION The machine is in very good condition and was used for hard turning of 4m cylindrical roller bearings. In 2007, the machine underwent mechanical refurbishment by Maschinenbau HELLWIG. As part of this general overhaul, the control system was also upgraded to a SIEMENS 840 Powerline.

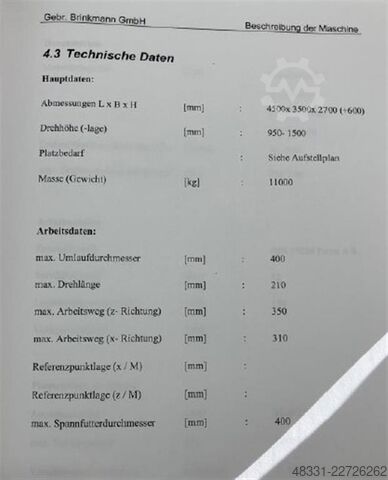

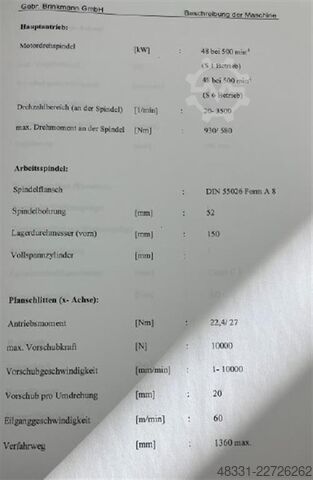

Condition: used, Year of construction: 2007, Technical details: swing diameter: 400 mm turning height: 950-1500 mm Turning length: 210 mm x-travel: 310 mm Hfedjzzvx Aspfx Ahyel z-travel: 350 mm spindle turning speed range: 20-3500 U/min weight of the machine ca.: 11 t dimensions of the machine ca.: 4,5 x 3,5 x 2,7 m

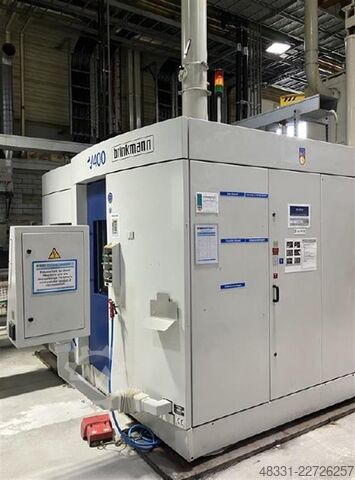

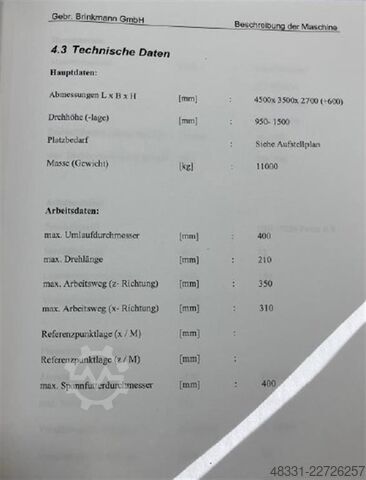

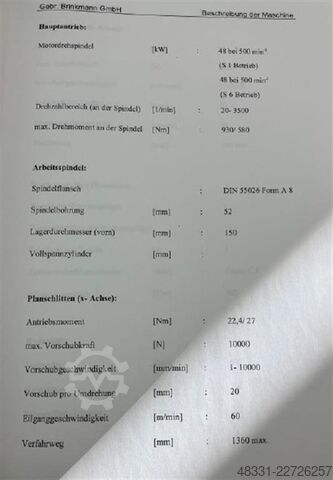

Condition: used, Year of construction: 2007, Technical details: swing diameter: 400 mm turning height: 950-1500 mm Turning length: 210 mm x-travel: 310 mm z-travel: 350 mm spindle turning speed range: 20-3500 U/min weight of the machine ca.: 11 t Hsdpfx Aszzvxvshyefl dimensions of the machine ca.: 4,5 x 3,5 x 2,7 m

Condition: excellent (used), Year of construction: 2016, functionality: fully functional, machine/vehicle number: 107731, Equipment: cooling unit, (Please tell us your offer price) Sale only within Europe, incl. Turkey Price without packaging; delivery condition: FCA (machine location) ===== Technical data see handout. Hsdpfx Aezzc U Dohyofl All warranty rights are excluded. For the correctness of the technical data and year of construction, for the completeness of accessories and tool equipment, and for compliance with all safety and environmental protection requirements specified in the accident prevention regulations. No sale to private individuals. Sales only within Europe, incl. Turkey Price without packaging; Delivery condition: FCA (machine location) ===== Technical data please see handout in attachment. German text leading language. Without any guaranty and warranty, including completeness of tools & accessories as well as environmental and safety regulations. No private sales.

Condition: used, Year of construction: 2016, machine/vehicle number: 179057920, type of input current: three-phase, input voltage: 400 V, input frequency: 50 Hz, input current: 65 A, No minimum price – guaranteed sale to the highest bidder! The machines are still assembled, but disconnected from the power supply. An 11-ton forklift is available on site for loading. For sale is a vertical turning lathe manufactured by WEISSER, model: Vector C-1R. Hfodezy Ukzspfx Ahyol TECHNICAL DETAILS Year of manufacture: 2016 Three-phase operating voltage: 400 V AC Frequency: 50 Hz Control voltage: 24 V DC Magnet voltage: 24 V DC Rated current of the machine: 65 A Main connection fuse: 100 A, time-delay

Condition: used, High Speed Elevating Rail Vertical Boring Machine with Power Indexing Turret & Copying Attachment. Four Jaw Chuck Size 48" Diameter. Table Swing 60" Diameter. Max Height Under Cross Slide 60" Turret Rise & Fall 36" Speeds 10.5 - 234 rpm With 4 Sets of Chuck Jaws, Equipment, Chuck Guards & Newall Digital Readout System. Hfedpozy Ik Iefx Ahyol

Condition: good (used), Year of construction: 2013, functionality: fully functional, The FAMAR TANDEM 400 is a powerful CNC vertical lathe with two independent machining stations. The machine is equipped with driven tools, automatic workpiece loading and unloading, a measuring probe, high-pressure coolant, and coolant filtration. The tandem design enables efficient series production and the simultaneous use of two separate machining stations. Main technical parameters: Standard chuck diameter: 400 mm Maximum chuck diameter: 400 mm Nominal turning diameter: 300 mm Maximum turning diameter: 400 mm Maximum turning length: 480 mm Maximum turning length: 300 mm Number of main spindles: 2 Max. main spindle speed: 4,000 rpm Rated power of main electric spindle: 49.6 kW Rated torque: 458 Nm S6 40% power: 61.7 kW S6 40% torque: 724 Nm Machine dimensions: approx. 3,900 × 3,500 × 3,200 mm Machine weight: approx. 21,000 kg Electrical connection: 400 V / 50 Hz Installed power: 90 kW CE compliant Tooling equipment UTTUM50 – turret for driven tools, size 50 Max. driven tool speed: 8,000 rpm Torque: 100 Nm Power: 15.6 kW UTDUM50 – turret tool disk Size VDI 50 12 tool positions Direct tool drive PPP40 – preparation for 2 hydraulic circuits For special workpiece clamping Piping and valves Control via M-functions Automation TRPAPE20 – 1 automatic circulating pallet conveyor for loading and unloading workpieces A single conveyor system for both workpiece infeed and outfeed Circulating pallet magazine Belt design Pallet occupancy monitoring system Pallet sorting system Working height approx. 950 mm Automatic workpiece loading and unloading via the machine TRPNVBPTE4 – Shuttle system with rotary station Loading/unloading shuttle system Integrated rotary station Including 1 set of jaws for the workpiece AZGRRB500 – set of jaws for Shuttle rotary station MPDM2 – automatic measuring probe Automatic workpiece measurement Coolant, filtration, and chip removal LBCVTT50 – belt conveyor for chips Separate conveyor for chip removal Particularly suitable for short chips, such as cast iron, brass, and some aluminum alloys Hsdpfx Ajzyp Afehysfl LBVA760 – coolant tank Volume 760 l LBAP10 – high-pressure pump Pressure 20 bar Internal tool cooling LBFTC – paper filter for coolant Suitable for cast iron and aluminum Filtration of particles approx. 0.08 mm Flow rate max. 60 l/min LBFTTDF – double switchable filter Filtration of particles approx. 0.1 mm Bypass system allowing filter cartridge replacement AZPL – air workpiece position control Additional equipment: CNC control Siemens 840D sl 2 main spindles Driven tools C-axis 12-position turret VDI 50 1 automatic workpiece pallet conveyor Shuttle system with rotary station Automatic measuring probe Separate belt conveyor for chips High-pressure cooling 20 bar Coolant filtration Hydraulic clamping circuits Central lubrication Complete safety guarding CE The machine is particularly suitable for automated series production of rotational parts, where the two independent machining stations, driven tools, and automatic workpiece handling can be utilized.

Condition: ready for operation (used), Year of construction: 2008, travel distance X-axis: 260 mm, travel distance Z-axis: 450 mm, spindle motor power: 18,000 W, spindle speed (max.): 3,000 rpm, overall weight: 7,000 kg, controller manufacturer: FANUC, controller model: 0i TC, number of axes: 2, Vertical turning machine manufactured in 2008. This HONOR SEIKI VL 46 AR features a maximum turning diameter of 460 mm and a turning height of 400 mm. It is equipped with a chuck diameter of 300 mm or 380 mm and a spindle speed of up to 3000 rpm. If you are looking to get high-quality turning capabilities, consider the HONOR SEIKI VL 46 AR machine we have for sale. Contact us for further details regarding this machine. • Chuck diameter: 300 or 380 mm • Max turning diameter: 460 mm • Max turning height: 400 mm • Tool changer/turret: 10 or 12 stations Hodpfjzyamhox Ahyjfl Technical Specification Taper Size BT 50 Driven Tools No

Condition: ready for operation (used), Year of construction: 2008, travel distance X-axis: 260 mm, travel distance Z-axis: 450 mm, spindle motor power: 18,000 W, spindle speed (max.): 3,000 rpm, overall weight: 7,000 kg, controller manufacturer: FANUC, controller model: 0i TC, number of axes: 2, Vertical turning machine manufactured in 2008. This HONOR SEIKI VL 46A features a maximum turning diameter of 460 mm and a turning height of 400 mm. It is equipped with a chuck diameter of 300 mm or 380 mm and a spindle speed of up to 3000 rpm. If you are looking to get high-quality turning capabilities, consider the HONOR SEIKI VL 46A machine we have for sale. Contact us for further details regarding this machine. • Chuck diameter: 300 mm or 380 mm • Max turning diameter: 460 mm • Max turning height: 400 mm • Tool changer: 10 or 12 stations • Tool shank/interface: BT50 or BMT65 Technical Specification Taper Size BT 50 Hfodpjzyai Asfx Ahyol Driven Tools No

Condition: good (used), Year of construction: 2008, Ref. -No.: 10657 Manufacturer: EMAG Type: EMAG VTC 250 Year of construction: 2008 Type of control: CNC Control: Siemens Sinumerik 840D Storage location: Hakberstadt Country of origin: Germany Turning Length: 630 mm Tool Taper: VDI 40 Turret places: 1 Pcs Number of tool stations: 12 pc Turning Speeds: 5000 RPM Chuck diameter: 250 mm Further information: - The machine features an overhead drive spindle with a tailstock at the bottom. - Coolant tank, approx. 1,000 L, including - a paper filter roll. - Clamping devices: Hainbuch clamping top, including various centering tips - Gripping devices on the turrets for feeding and removing raw and finished parts during magazine operation. - Magazine loading - Vertical pick-up lathe, which can generally be easily upgraded for automatic loading and unloading. Hedpfx Ahezx Nzfjyjfl The machine can be viewed while powered on by prior arrangement.

Condition: good (used), Year of construction: 2010, Ref. -No.: 10436 Manufacturer: SCHERER FEINBAU Type: VDZ 120 rechts Year of construction: 2010 Type of control: CNC-Steuerung Control: SIEMENS SINUMERIK 840 Storage location: Halberstadt Country of origin: Germany Machine-No.: 660XX Hfodpozx Nxkjfx Ahyjl Turning Speeds: 5500 RPM Swing Diameter: 260 mm Rapid Travel Speed X-Axis: 60 m / min Rapid Travel Speed Z-Axis: 30 m / min Travel -X Axis: 626 mm Travel -Z Axis: 250 mm Spindle bearing diameter: 32 mm Rated speed: 1200 1 / min Turret places: 12 Pcs Machine length: 1685 mm Machine width: 2400 mm Machine Height: 2850 mm Weight Of The Machine Ca.: 8 t Further information: Spindle head with short taper DIN 55026: A6 Pallet conveyor WPS KNOLL system (2010) SAUTER turret (12 places) Documentation available Tools in the pictures are sold with the machine. Machine can be inspected and demonstrated under power.

Condition: used, Webster & Bennett 72” E-V Series Elevating Rail Vertical Turning & Boring Machine Table Size 72” Machine swing 84” Hodpfx Aezw H Hpohysfl Table speed Range 5.2 to 117 rpm. Feed range .0.004″ to 0.187″mm per rev. Max Height under cross slide 48” Max Height under turret 48” Ram Travel 38” Main motor 40hp Fitted Options TBC : Centralized lubrication system, Timken Table Bearing, Power clamping to elevating rail, Machine tray and guarding.

Condition: used, Year of construction: 2006, turning diameter 1000 mm swing dia. 1000 mm Z-axis stroke 900 mm control Siemens 840 D tool taper SK 50, VDI 60 tool piece magazine with 44 Plätzen workpiece weight max. 35 kg Hfsdjzwg N Repfx Ahyjl tool length - max. 500 mm

Condition: used, Year of construction: 2002, Chip conveyor (Sermeto): manufactured 07/2005 Data Cooling unit (Aquatherm WLR 3000): serial no. 02VS3000203, manufactured 2002, cooling capacity 3.0 kW Hedpfxjzwf N Ne Ahyjfl

Condition: used, Year of construction: 2002, Vertical Turning Center: GE Fanuc Series 18i-T CNC control Data Hfodozwf Hbspfx Ahyjl Automation Unit (Heilig O2101): manufactured in 2002

Condition: used, Year of construction: 2006, CNC Vertical Turning Lathe: Siemens Sinumerik control, connection rating approximately 42 kW, rated current 63A, total weight approximately 6500 kg. Data: Chip Conveyor (Sermeto): year 2007, serial no. 6901979. Hfodszwfz Sepfx Ahysl Data: Coolant Filter System (W+W Filtersysteme ME-FI 600): serial no. 503458/3, year 2005.

Condition: used, Year of construction: 2008, Vertical turning center, Siemens Sinumerik control, connected load approx. 36 kW, rated current 58 A, total weight approx. 6500 kg. Hedpfezwfxqex Ahysfl Details: Filter unit (W+W ME-FI 600): serial no. 502171/1, manufactured in 2002. Details: Chip conveyor (Sermeto): manufactured in 08/2008.

Condition: used, Year of construction: 2018, workpiece weight (max.): 35,000 kg, total length: 15,600 mm, total height: 6,000 mm, total width: 6,000 mm, overall weight: 155,000 kg, The Pittler WMZ PV4000 / 1-2 is a heavy CNC vertical turning machine with a portal design, featuring one workpiece spindle and two independently movable tool carriers. The machine enables turning, drilling, milling, and grooving. The right tool carrier is designed as a swiveling multifunction head with a B-axis and driven tools. Two separate chain magazines provide a total of 94 tool positions. Technical Data Machine Number: ZV029 Machine Concept: Portal machine with one workpiece spindle and two tool carriers Machining Processes: Turning, drilling, milling, and grooving Maximum Swing Diameter: 3800 mm Maximum Workpiece Diameter: 3800 mm Maximum Workpiece Speed: 100 min-1 Rated Speed: 36.7 min-1 Workpiece Clamping: Manual Chuck: Röhm Tool Holder: Capto C8 Tool Magazines: 2 chain magazines Hjdszwa Rbepfx Ahyjfl Tool Positions: 2 x 47 Total Number of Tool Positions: 94 Maximum Tool Diameter: 120 mm according to the operating manual Maximum Tool Diameter: 150 mm according to the order confirmation with appropriate magazine loading Maximum Tool Length: 400 mm Maximum Tool Weight: 20 kg Travel Paths X1-Axis Right Tool Carrier: 3200 mm X2-Axis Left Tool Carrier: 2800 mm Z1-Axis Right Tool Carrier: 1000 mm Z2-Axis Left Tool Carrier: 1000 mm Rapid Traverse X-Axes: up to 32 m/min Rapid Traverse Z-Axes: up to 20 m/min Workpiece Spindle Gear Reduction: 1 to 30 Maximum Speed: 100 min-1 Rated Speed: 36.7 min-1 Rated Power: 67.4 kW Short-Term Total Power: 202.2 kW Rated Torque: 52.65 kNm Maximum Drive Torque: 71.55 kNm Torque according to Order Confirmation: 67000 Nm at 40% duty cycle Motor Spindle Power according to Order Confirmation: 200 kW at 100% duty cycle Maximum Spindle Load Capacity including Chuck, Clamping Jaws, and Workpiece: 35000 kg Spindle Flange Diameter: 1900 mm Thrust Bearing Diameter: 1400 mm The workpiece spindle is designed as a water-cooled motor spindle with precision axial deep groove ball bearings. Tool Carrier and Multifunction Head The right tool carrier features a swiveling multifunction head with two Capto C8 holders for turning tools as well as drilling and milling tools. B-Axis for Stepless Positioning Swivel Range: 180 degrees Speed of Driven Tools: up to 6000 min-1 Tool Spindle Torque: approx. 120 Nm at 100% duty cycle Hydraulic Clamping Direct Measurement System Direct Coolant Supply High-Pressure Coolant Supply: up to 70 bar Tool Magazines Two chain magazines with 47 tool positions each Tool Holder: Capto C8 Maximum Tool Diameter: 120 mm Up to 150 mm with appropriate magazine loading Maximum Tool Length: 400 mm Maximum Tool Weight: 20 kg Tool Cleaning with Blowing Air Manual Magazine Loading Coolant and Chip Disposal Two Knoll Chip Conveyors Type 600 S-2/120 Knoll Band Filter Type KF400-2300 Additional Equipment Röhm Chuck Spindle Cooling Hydac FLKS-4S Hydraulic Unit Hydac TBM20 Electrical Data Operating Voltage: 3 x 400 VAC Protection Class: IP55 Maximum Power Consumption: 280 kVA Component weight max.: 35,000 kg Swing: 3,800 mm Rotation height max.: 2,100 mm Weight approx.: 155,000 kg Dimensions (LxWxH) approx.: 15600 x 6000 x 6000 mm Table diameter: 3,800 mm Control: Siemens SINUMERIK 840D sl Year of construction: 2,018 Condition: good Terms of payment: 100% prepayment before pick-up Terms of delivery: EXW EX Works under power: Yes

Condition: ready for operation (used), Year of construction: 2008, operating hours: 411 h, functionality: fully functional, chuck outer diameter: 1,200 mm, spindle speed (max.): 300 rpm, spindle speed (min.): 2 rpm, turning diameter: 1,600 mm, Massa Heavy Duty Precision CNC Vertical Borer Model: VL-1200 ATC + C Control: Fanuc 18i TB Year: 2008 Max Swing Dia:1600mm Max Turning Dia: 1350mm Max Turning Height: 1250mm 4 Jaw Scroll Chuck Dia: 1200mm Table Speeds: 2-300 RPM 16 Station Tool Changer ‘C’ Axis 360 Degrees Hedpfx Aezv T A Ijhyjfl ‘C’ Axis Milling Spindle BT 50 Dimensions: 6300 x 4500 x 5800mm Weight: 33,000 KGS
