MD Noass
MD Noass from Riga
We are a company which produces wooden furniture, doors and ladder. We cooperate with different designers and design companies.
Mr Armands Bilzonis
Salamandras 1
1024 Riga
Latvia
Current offers from similar dealers
Listing
Poland
7,824 km

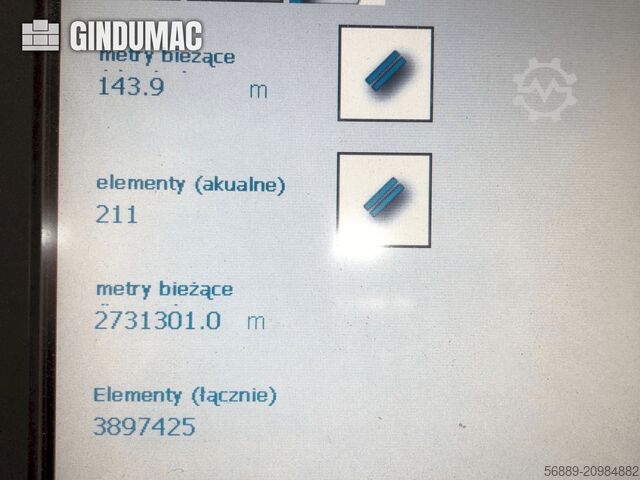

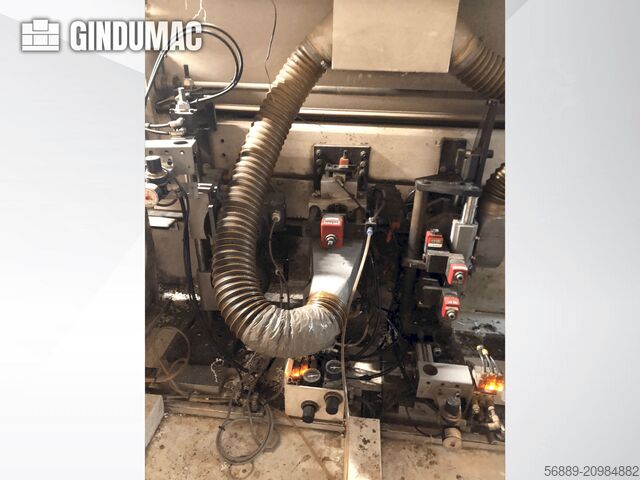

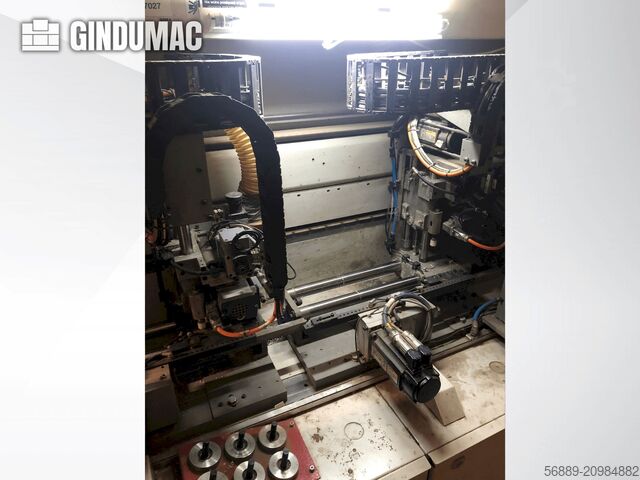

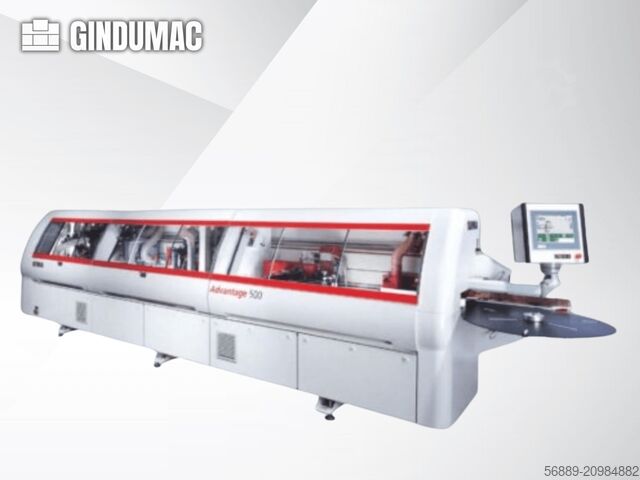

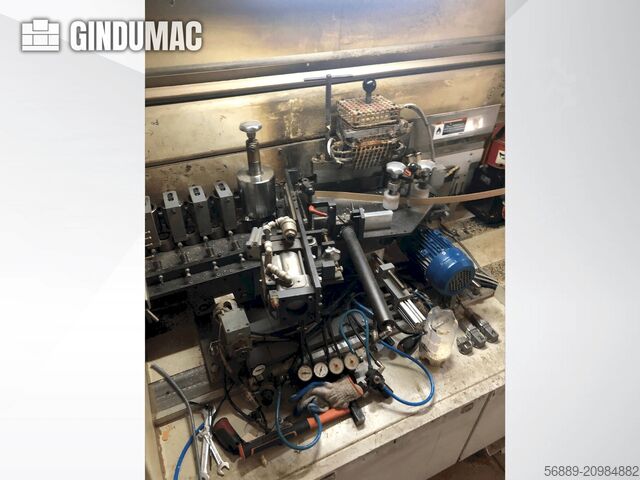

IMA Advantage 550
IMAAdvantage 550
IMAAdvantage 550
Call
Condition: ready for operation (used), Year of construction: 2010, operating hours: 19,714 h, This IMA Advantage 550 was manufactured in 2010. A used single-sided edge bander featuring a jointing cutter, radiant heater, EVA gluing unit, and a roll magazine for edge material. It includes a cutting unit, flush milling top/bottom, and a profile scraper unit. The machine offers a feed speed of 20 m/min, ideal for efficient production. Consider the opportunity to buy this IMA Advantage 550 edgebander. Contact us for more information.
Additional equipment
• Jointing cutter
• Radiant heater
• EVA gluing unit
Ihedpfsyaqbwjx Ahust
• Roll magazine for edge material
• Cutting unit
• Flush milling top/bottom
• MFA with 2 motors for radius r2, servo-controlled
• Profile scraper unit
• Surface scraper unit
• Buffing unit
Machine Benefits
Technical Machine Benefits
• Feed speed: 20 m/min
Extra Information
Machine still under power
Listing
Poland
7,824 km

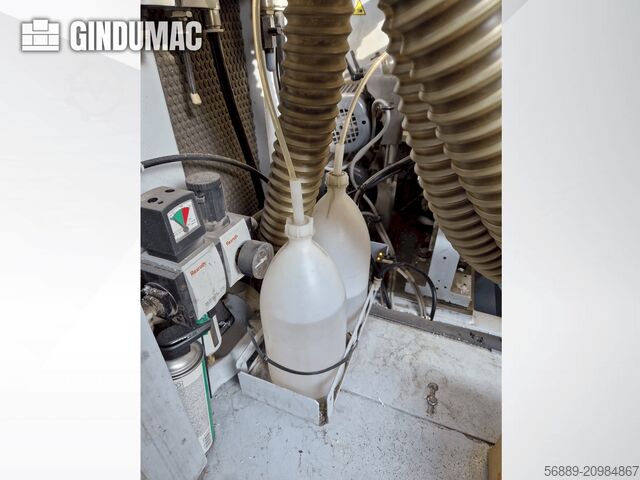

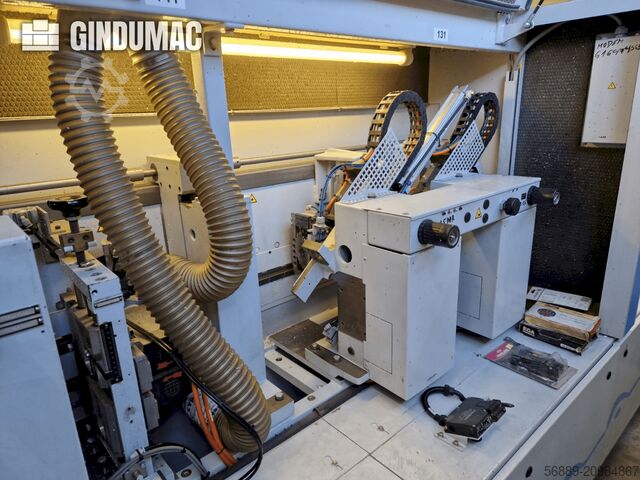

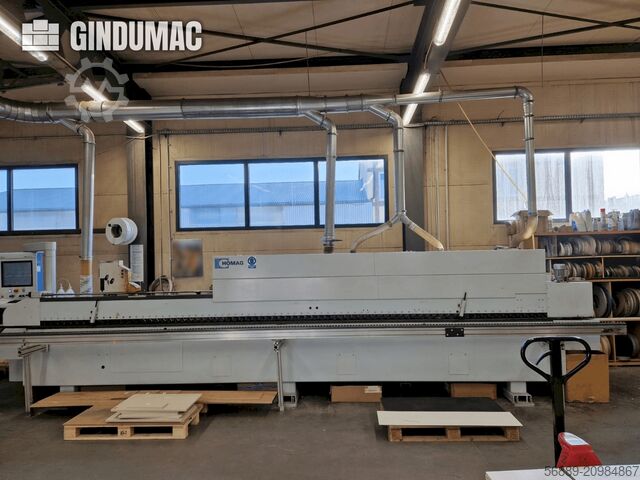

HOMAG KAL210 Ambition 2262
HOMAGKAL210 Ambition 2262
HOMAGKAL210 Ambition 2262
Call
Condition: ready for operation (used), Year of construction: 2013, This HOMAG KAL210 Ambition 2262 edgebander was manufactured in 2013. It features a machine length of 7755 mm, supports edge thickness from 0.4 to 6 mm, and workpiece thickness from 8 to 60 mm. With a feed rate of 18–25 m/min, it is ideal for efficient edgebanding operations. Contact us for more information.
Machine Benefits
Technical Machine Benefits
• Machine length: 7755 mm
• Workpiece thickness: 8–60 mm
• Weight (kg): 4500
• Number of automatically resettable profiles: chamfer + 1 radius / feed rate: 18–25 m/min / edge thickness: 0. 4–6 mm
Ihedpfxoyaqbds Ahuet
• Testing is possible. / the machine is in good condition and was used on only one shift.
Listing
Poland
7,824 km
BRANDT Optimat KDF 650 C
BRANDTOptimat KDF 650 C
BRANDTOptimat KDF 650 C
Call
Condition: ready for operation (used), Year of construction: 2011, This BRANDT Optimat KDF 650 C edgebander was manufactured in 2011. It features a machine length of 5760 mm, working height of 950 mm, and can handle workpiece thicknesses from 8 to 60 mm and edge material thicknesses from 0.4 to 12 mm. Variable feed speed ranges from 8 to 18 m/min. Weight is 2600 kg. Consider the opportunity to buy this BRANDT Optimat KDF 650 C edgebander. Contact us for further details regarding this machine.
Machine Benefits
Technical Machine Benefits
Isdpfxsyaqa He Ahusht
• Dimensions of machine (lxwxh): 5760 mm x 1555 mm x 2300 mm / weight (kg): 2600
• Workpiece thickness: 8 – 60 mm / edge material thickness: 0. 4 – 12 mm / feed speed: variable 8 – 18 m/min (optional 8 – 20 m/min)
• Testing is possible / the machine is in good condition / it was used on only one shift
Listing
Poland
7,824 km
BRANDT Optimat KDF 550
BRANDTOptimat KDF 550
BRANDTOptimat KDF 550
Call
Condition: ready for operation (used), Year of construction: 2008, This BRANDT Optimat KDF 550 was manufactured in 2008. It features a machine length of 5860 mm, power requirement of 11.5 kW, and a weight of 2600 kg. Capable of handling workpiece thickness from 8 to 60 mm and edge thickness from 0.4 to 8 mm, it's ideal for precise edgebanding tasks. Consider the opportunity to buy this BRANDT Optimat KDF 550 edgebander. Contact us for more information.
Machine Benefits
Technical Machine Benefits
• Power requirement: 11. 5 kw / weight (kg): 2600 kg / machine dimensions (lxwxh): 5860 mm x 1560 mm x 2300 mm
• Feed speed: 11 m/min (optional 14 m/min)
• Workpiece thickness: 8 – 60 mm / edge thickness: 0. 4 – 8 mm / working height: 950 mm
• Electricity supply: 400 v – 3 phase – 50 hz / pneumatic pressure: 6 bar / noise emission level: 80…87 db(a)
• Extraction diameter: 1 × 120 mm / 2 × 100 mm / roll separation: max. 3. 0 × 45 mm / 0. 8 × 65 mm
Iodpfx Ahjyaqagsusht
• Testing is possible. The machine is in good condition. It was used on only one shift.
Listing
Netherlands
7,824 km
VITAP Eclipse
VITAPEclipse
VITAPEclipse
Call
Condition: ready for operation (used), Year of construction: 2018, overall weight: 600 kg, This VITAP Eclipse edgebander was manufactured in 2018. Ideal for precise edge finishing, it ensures consistent performance for woodworking projects. Consider the opportunity to buy this VITAP Eclipse edgebander. Contact us for more information.
Additional equipment
• Glue Pot Capacity: Max glue pot capacity 1 Kg (with optional 2 Kg glue pot)
• Gluing Unit:Edge gluing on open and closed curved panels of small and large dimensions/1 gluing roller/2 rollers to copy the shape of the panel/2 800 W resistors with electronic temperature control/Manual adjustment of the glue quantity/Glue temperature adjustment/Automatic edge cutting system
• PLC System: For setting the measurement and cutting of the edge with encoder reading
• Laser: Facilitates cutting programming for closed pieces without the need to measure the piece
• Piece Feeder: On/Off automatic piece feeder
• Work Surface: For edging and trimming small pieces
• Edge Magazine: Rolled edge magazine with idle roller system
• Trimming Group: 2 high frequency 0.5 kW motors with rotation speed of 15000 rpm /On/Off trimming unit/Pneumatic lifting of the two motors/2 brazed cutters R=3 Z=6/
• Articulated Arm: Complete with workpiece depression table for edging and trimming large pieces
Machine Benefits
Qualitative Machine Benefits
Iedpfx Asyap Trjhujht
• Facilitates efficient edging and trimming on both small and large pieces
• Compliant with ce standards
Technical Machine Benefits
• Dimensions of machine (lxwxh): 2000 x 2000 x 1700 mm (with closed arms); 3400 x 3400 x 1700 mm (with arms open)
Listing
Netherlands
7,824 km
HOMAG Optimat KL 78/A20/S2/Z
HOMAGOptimat KL 78/A20/S2/Z
HOMAGOptimat KL 78/A20/S2/Z
Call
Condition: ready for operation (used), Year of construction: 2001, This HOMAG Optimat KL 78/A20/S2/Z was manufactured in 2001. A robust single-sided edge bander, it features a comprehensive setup including joint milling, a glue premelter, pressure zone, snipping, and flush trimming units. It also boasts advanced contour and groove trimming, profile and surface scrapers, and a buffing unit, all controlled by the Homatic NC 21 unit. Contact us for more information about this machine.
Machine Benefits
Technical Machine Benefits
• Single-sided edge banding machine with workpiece return
• Joint milling
• Gluing section with glue premelter
• Pressure zone
• Snipping unit
• Flush trimming
Ihjdjyap Tlopfx Ahuet
• Contour trimming unit fk 13 with automatic tool changer 8-fold
• Groove trimming unit
• Profile scraper // surface scraper
• Buffing unit
Extra Information
Machine still under power
Listing
Grońsko
8,095 km
Edgebander
HOLZHERsprint 1329
HOLZHERsprint 1329
Call
Condition: excellent (used), HOLZHER sprint 1329 Edgebander
Well equipped, possibility to inspect before purchase
Automatic NC control from control panel
Liquids
Pre-milling cutters
Glue application, GLU JET system
Pneumatic pre-cut guillotine
Pressure rollers
Ihodpfxjyankco Ahujt
Ready-cutting saw blades
Liquids
Top and bottom milling cutters R1-R2
Corner rounding on 2 units
Profile scraper R1-R2
Flat scraper
Liquids
Polisher
Documentation
Max feed speed: 18 m/min
Max edging thickness: 8 mm
Max edge band thickness in roll: 3 mm
Max edging height: 60 mm
Machine length: 670 cm, with table: 755 cm
Table dimensions: 180 x 60 cm
Machine checked, ready for testing
Listing
Germany
7,829 km
Edgebander
Holz-HerTriathlon 360
Holz-HerTriathlon 360
Call
Condition: used, Year of construction: 1997, Used machine
Year of manufacture: 1997
Condition: well-maintained
Equipment and technical data:
Machine with PLC control
Feed speed: 12/16 m/min
Edge feed for roll and strip material, automatic 1901
Glue application cartridge 1906 with sensing nozzle
Pressure unit pneumatic, motorized adjustment to edge thickness 1926
End trimming unit, twin-motor, pneumatically tiltable 1918
Milling unit, fixed up to 30 mm 1962
Milling unit MOT 5 with multifunctional flush, radius, bevel 1966
Radius scraper 1927
Corner copying 1983
Surface scraper 1964
Buffing unit 1944
Air blow nozzles
Technical data:
Workpiece thickness min./max.: 6/60 mm
Workpiece width min.: 60 mm
Ihjdoyamcwopfx Ahuot
Workpiece length min.: 140 mm
Edging thickness max.: 13 mm
Weight: 1,350 kg
Machine dimensions: 5,850 x 1,000 x 1,750 mm
Location: Röllbach
Availability: short-term
Listing
Lazareni
8,825 km
Vitap Qartz 5.6
ItaliaVitap Qartz 5.6
ItaliaVitap Qartz 5.6
Call
Condition: excellent (used), edge banding machine, very well maintained, works very well, the adhesive is on granules, year of manufacture 2014. ideal for a small space, has the following features. pre-milling, end cutting, top and bottom milling with radius, radius tickling, straight tickling
Iodpfxeyah Tdo Ahuoht
Listing
Lazareni
8,825 km
Vitap Qartz 5.6
VITAPVitap QARTZ5.6
VITAPVitap QARTZ5.6
Call
Condition: excellent (used), edge banding machine, very well maintained, works very well, the adhesive is on granules, year of manufacture 2014. ideal for a small space, has the following features. pre-milling, end cutting, top and bottom milling with radius, radius tickling, straight tickling
Isdpfxoyah S Tj Ahujht
Listing
Romania
7,824 km
SCM Olimpic K560
SCMOlimpic K560
SCMOlimpic K560
Call
Condition: ready for operation (used), Year of construction: 2019, This SCM Olimpic K560 edgebander was manufactured in 2019. It features a 7" touch screen display with Touch 7 electronic control, supports edging thickness from 0.4 to 3 mm, and handles panel thicknesses from 8 to 60 mm. The machine offers a feed speed of 12-14 m/min and includes a hot air edge banding system. Contact us for more information.
• Machine Condition: Good condition
Isdpfx Aheyabq Ajueht
• 7" touch screen display (16:9) with Touch 7 electronic control
• Edging Thickness: 0.4 – 3 mm
• Panel Thickness: 8 – 60 mm
• Minimum Panel Length: 140 mm
• Minimum Panel Width: 100 mm
• Feed Speed: 12 – 14 m/min
• Hot Air Edge Banding System
Listing
Romania
7,824 km
SCM E10
SCME10
SCME10
Call
Condition: ready for operation (used), Year of construction: 2019, This SCM E10 edgebander was manufactured in 2019. It features a 0.4 to 3 mm edgebanding thickness capacity and can handle panel heights from 8 to 80 mm. The machine supports minimum panel dimensions of 50 mm in width and 210 mm in length. It operates with two feed speeds of 4 and 8 m/min and a maximum temperature range of 140 to 220 degrees C. Installed motor power is 3.5 kW. Contact us for more information about this machine.
• Edgebanding Thickness Capacity: 0.4 to 3 mm
• Thickness of Edges with Shear Device:
Isdpfoyabmkjx Ahueht
• (80 mm height) 0.4 to 1.5 mm
• (50 mm height) 0.4 to 2.5 mm
• (45 mm height) 0.4 to 3 mm
• Panel Height Capacity: 8 to 80 mm
• Edge Height: 10 to 83 mm
• Minimum Panel Width: 50 mm
• Minimum Panel Length: 210 mm
• Minimum Internal Radius with 0.4 mm Edgebanding:
• Concave: 25 mm
• Convex: 5 mm
• Feed Speeds: 4 and 8 m/min
• Maximum Operating Temperature: 140 to 220 degrees C
• Installed Motor Power: 35 kW
• Overall Dimensions: 39.37" x 29.13" x 43.3"
Listing
Germany
7,824 km
IMA Novimat Concept / I / G80 / 440 / R3
IMANovimat Concept / I / G80 / 440 / R3
IMANovimat Concept / I / G80 / 440 / R3
Call
Condition: ready for operation (used), Year of construction: 2012, This IMA Novimat Concept / I / G80 / 440 / R3 edgebander was manufactured in 2012. It features a robust automatic edge banding and post-processing system, including a workpiece returning system for enhanced productivity. Capable of handling edge materials from 0.3 mm to 3 mm and workpiece thicknesses up to 60 mm. Equipped with a pneumatic quick-lock system and electronic temperature control for precise glue application. Consider the opportunity to buy this IMA Novimat Concept / I / G80 / 440 / R3 edgebander. Contact us for more information.
Additional equipment
Ihjdpfjx U U D Tex Ahust
• Joint Milling Unit: 2 motors, each 4.0 kW, 8800 RPM
• Heater: Preheats workpiece edges up to 60 mm
• Glue Application: Handles edges up to 3 mm
• End Trimming Unit: 2 motors, 660 kW
• Additional Units: Milling, Multi-Profile Milling, Contour Milling, Multi-Profile Scraper, and Scraper Units; Buffing Unit
• Automatic Quickmelt hot glue feeder
• Board Return System with powered roller conveyors, cross conveyor, transport belt, angle transfer, air-cushion tables, and safety fence
Machine Benefits
Technical Machine Benefits
• Minimum workpiece length: 150 mm / minimum workpiece width: 65 mm / minimum workpiece thickness: 8 mm / maximum workpiece thickness: 60 mm / smallest workpiece: 150 mm x 150 mm or 65 mm x 300 mm
Extra Information
This machine is configured for efficient edge banding and post-processing with a robust set of features and support for various workpiece sizes. It is immediately available for production use.
Listing
Germany
7,824 km
IMA ADVANTAGE 310
IMAADVANTAGE 310
IMAADVANTAGE 310
Call
Condition: ready for operation (used), Year of construction: 2010, This IMA Advantage 310 edgebander was manufactured in 2010. It handles workpieces from 150 mm in length and 65 mm in width, with thicknesses up to 60 mm. It's equipped for various materials including chipboard and MDF, using melamine, paper, foil, or veneer edges. Features include a gluing unit, cutting unit, and a buffing unit, enhancing finishing processes. Consider the opportunity to buy this IMA Advantage 310 edgebander. Contact us for more information about this machine.
Machine Benefits
Technical Machine Benefits
• Minimum workpiece length: 150 mm
• Minimum workpiece width: 65 mm (with max thickness of 25 mm), 150 mm
• Workpiece thickness: min. 8 mm, 12 mm with profile scraper blades; max. 40 mm (mfa 08346), 60 mm (skf)
• Smallest workpiece: 65 x 300 mm / 150 x 150 x 19 mm
• Machining allowance per workpiece edge: 0 - 5 mm
• Workpiece shape: rectangular
• Material: chipboard, mdf
• Surface material: direct coating (melamine resin paper), paper, foil, veneer
Extra Information
Ijdpfxjx U U Dte Ahujht
Edging Material
Roll material without foil:
Paper edges & plastic edges: 0.3 - 3.0 mm
Veneer edges: 0.5 - 3.0 mm
Max. edge cross-section: 150 - 180 mm²
Cut-to-length edge strips:
Strips: 3.0 - 8.0 mm
Max. strip cross-section: 520 mm²
Edge height: Min. 12 mm, max. 65 mm
Max. upper edge overhang: 2 mm
Edge profiles:
Paper edge: Approx. 0.4 mm, bevel 15°
Plastic edge up to 3.0 mm, depending on radius tool
Milling strip flush up to 8 mm
Machine
Constant workpiece projection from the chain track: 35 mm + edge thickness
Max. cutting cross-section: 520 mm²
Passage width: Min. 65 mm (with 35 mm projection)
Min. workpiece length in feed direction: 150 mm
Basic height (top edge of chain track): 940 mm
Aggregate side: Left in feed direction
Pneumatic connection: Approx. 7 - 8 bar
Joining Unit 08.379 and Blow Nozzle
2 motors 4 kW each, 9000 rpm
Gluing Unit 283.1513
Glue dispenser 0.8 l, 60 mm high
Suitable for hot melt or PU glue
With single roller/strip magazine, roller diameter 800 mm
3 main pressure rollers and 3 pressure rollers
Cutting Unit 08.415
Pneumatically swivels to 0° or 8
2 motors, 12,000 rpm
2 HM cross-cut saw blades
Copy Trimming Unit SKF-L
4 motors, 12,000 rpm
Profile length in throughfeed direction: Max. approx. 50 mm
Workpiece thickness: Max. 60 mm
Working speed: Max. approx. 20 m/min
Distance between 2 workpieces: Min. approx. 400 mm
Profile Scraper Unit 08.519
For rescraping an upper and lower milled quarter circle profile
Self-Scanning Scraper Unit 08.521
For removing hot melt adhesive residue from the edge area of the top and bottom of workpieces
Buffing Unit 08.617-2
Upper and lower motor: 180 W, 1400 rpm
2 polishing wheels 50 x 160 x 19 mm
Listing
Germany
7,824 km
HOLZHER ARCUS 1334 FV2
HOLZHERARCUS 1334 FV2
HOLZHERARCUS 1334 FV2
Call
Condition: ready for operation (used), Year of construction: 2014, This HOLZHER ARCUS 1334 FV2 was manufactured in 2014. A robust edgebander featuring a gluing part, snipping unit, and flush trimming unit. It handles a maximum edge band thickness of 8 mm and includes belt top pressure. Pneumatic control enhances its functionality. Consider the opportunity to buy this HOLZHER ARCUS 1334 FV2 edgebander. Contact us for more information.
Additional equipment
• Gluing Part
• Snipping Unit
• Flush Trimming Unit
Machine Benefits
Iedpfx Ahex U Utbjueht
Technical Machine Benefits
• Maximum edge band thickness: 8 mm
• Machine length: 6760 mm
• Belt top pressure: yes
Extra Information
Machine still under power
Listing
Edewecht
7,611 km
Brandt KD 56 edge banding machine
BrandtKD 56
BrandtKD 56
Call
Condition: excellent (used), Year of construction: 1998, Available immediately… Further information will follow shortly, otherwise feel free to call.
Iedpsx U Eyrefx Ahusht
Listing
Spatenhof
8,439 km
Edgebander
HOLZ-HERStreamer 1057 XL
HOLZ-HERStreamer 1057 XL
Call
Condition: used, Holz Her STREAMER 1057 XL FÜ + PU
Edge thickness: 0.4 - 6 mm
Modern control unit with selector switch for aggregate settings
Fully automatic edge magazine for roll and strip material
Glue application station GLU-JET cartridge + PU bonding
Iodpfxjx Ux U Ae Ahujht
Adhesive application via nozzle technology
Touch-sensitive nozzle
Workpiece height: 6-60 mm
Automatic glue height adjustment
High-quality 3-roller pressure unit, 1st roller motorized
Pneumatic end trimming unit for roll and strip material up to 6 mm edge thickness
Pneumatic adjustment of trimming saws from 0-10° angle
Milling unit: flush trimming 6 mm, radius milling - bevel milling - 15°
Corner copying unit - 3 mm edge thickness
Scraper unit for chamfers and radii with 2 scraper holders
Surface scraper unit - finish
Buffing unit
Spraying device in infeed and outfeed areas, as well as for PU
Machine supplied with all working units/tools
Machine is WORKSHOP TESTED
First delivered in 2016
Available ex stock Lieboch
Listing
Sherburn in Elmet
7,043 km
Edgebander
HOMAGKAL310
HOMAGKAL310
Call
Condition: used, Year of construction: 2010, operating hours: 24,804 h, functionality: fully functional, machine/vehicle number: 0-200-95-8810, We have a fully operational Single side edge bander with return conveyor very high spec machine .The machine is currently being used so more than welcome to see it run.
Iodpfx Ahex Upuajuoht
Listing
Germany
7,829 km
Edge banding machine Holz-Her Streamer 1057 XL
Holz-HerStreamer 1057 XL
Holz-HerStreamer 1057 XL
Call
Condition: used, Year of construction: 2017, Used machine
Year of manufacture: 2017
Equipment and Technical Data:
- Base machine: Streamer 1057XL 200-400 V / 50 Hz, with manual pressure bridge adjustment
- Extendable XL workpiece support: spacing 600 mm
- Jointing milling unit: FG201 with 2 cutterheads for trimming panel edges
- Diamond cutters: Diameter 70 x 64 x 30 mm, Z2 + 2, left-hand rotation, Air Stream System
- Diamond cutters: Diameter 70 x 64 x 30 mm, Z2 + 2, right-hand rotation, Air Stream System
- Edge feeding unit: 1903, automatic transport for roll and strip material
- Glue application system: Glu Jet GJ301 2.3 kW / 50 Hz, automatic glue height adjustment (contact nozzle)
- Automatic reloading function
- Pressure unit: 1912-3, pneumatic, first roller driven, with pneumatic plunge control
- End trimming unit: 1918, 60 mm, pneumatic, angular trimming 0-10 degrees, pneumatic adjustment
- Extraction hoods: for end trimming unit 1918
- Multifunctional milling unit: FR 201, for flush, radius, and profile milling, including DIA cutters
- Corner copying unit: 1832, 1 x 0.35 kW / 200 Hz / 12,000 rpm, corner copying for edge thickness up to 3 mm
- Diamond cutter: Diameter 53 x 10 x 16 mm, Z = 3, R = 2 mm, CM technology (Leuco system), integrated chip extraction, for profile milling unit 1832
- Scraper unit: 1929
- Complete chip box: Diameter 120 mm, for 1929 + 1964 + FK70
- HW reversible knives: for scraper holder R = 2.0 mm, 2 pcs required
- Surface scraper: FK 701 for removing excess glue for a clean glue joint
- Spray device: TR 201 for infeed and outfeed areas
- Buffing unit: 1940, 2 x 0.09 kW / 50-60 Hz / 1,400 rpm, for finishing and polishing edges, with 2 textile discs, tiltable 0-5 degrees
- Minimum workpiece length: 160 mm
- Workpiece thickness: 6-45 / 60 mm
- Edge thickness: 0.4-3 / 6 mm
- Feed speed: 10 m/min
Length: 4,630 mm
Iodox Twh Eopfx Ahuoht
Weight: approx. 1,440 kg
Availability: short notice
Location: 65439 Flörsheim
Listing
Nattheim
8,019 km
Edgebander
SCMOlimpic K 800
SCMOlimpic K 800
Call
Condition: used, Year of construction: 2012, Basic machine Olimpic K 800 "T-ERL" (47) 1 pc. BASIC EQUIPMENT: - Ribbed steel machine frame with tubular reinforcements for optimal work unit support - Pivoting control panel - Support roller conveyor with ball bushing guides along the entire machine length - Protective and sound-absorbing hood with separate doors between the gluing and finishing units - Extractor nozzles located on the sound-absorbing hood - Electrical system with lockable main switch - Emergency/stop buttons at the inlet and outlet - Inverter for electric spindles. PLATE FEED SYSTEM - Feed chain with rubber glide shoes, mounted on a 1 1/4-inch industrial chain with a high friction coefficient - The chain slides on two guides made of hardened and ground steel, one round and one flat, to guarantee straight feed and protect against lateral misalignment. --- Automatic central lubrication of the feed chain - The upper pressure beam is made of thick-walled steel construction. Complete with double rows of bearing rollers and protective device for the printing rollers - manual lifting of the printing unit with automatic working unit positioning when changing the plate thickness - mech. Digital display for checking the selected panel thickness. ORION 100 CONTROL SYSTEM. Control device complete with PLC, allows fast, easy, and error-free execution of custom processing programs (max. 60 programs). Manages the pneumatic positioning of the units, if present on the machine. (The control system does not include pneumatic positioning). - Alphanumeric keyboard and display - Function keys for quick control of the processing units - Ambient temperature range from 0 to +45° C. MAIN FUNCTIONS - Control of the processing units and automatic activation of the motors - Control and regulation of the glue pot temperature - Selection of longitudinal and transverse processing without program change - Simple and guided diagnostics for easy troubleshooting - Statistics on absolute data and individual processing: number of pieces, edge consumption, total chain feed distance - Unit of measurement selectable in mm or inches. Technical data OLIMPIC K800 T-ER L Edge thickness: 0.4 to 8 mm Max. gluing thickness of the roll edge: 3 mmFeed speed: 12/18 m/minWorking height: 8 to 60 mmMax. dimensions of the edge cut: 135 mm²Turntable diameter: 780 mmMax. oversize compared to the panel thickness: 4 (2+2) mmMin. panel width (with 210 mm min. length): 55 mmMin. panel length (with 100 mm min. width) - with strip or roll edges max. 3 mm: 140 mm - with solid wood edges: 200 mmMin. distance between consecutive panels at 11 (16) m/min: 750 (850) Standard equipment - Pre-milling unit in the infeed RT-E- Gluing station VC-800- Trimming unit KSEL- Flush trimming unit, tiltable RI/800- Rounding unit ROUND K- Scraper unit RAS-V- ½ free space for surface scraper- 1 S free space for surface scraper or Universal milling or buffing unit - 1 free space for air nozzle unit. European safety regulations (C.E. mark). 1 unit. Voltage 400 EU. 1 unit. Frequency 50 Hz. 1 unit. "Autoset" for ER2, T-ERS, and T-ERL models. 1 unit. Allows all necessary adjustments to be made from the control panel for each machining change. Includes: - time-controlled pressure unit - pneumatic and independent pivoting of the mitre saw blades (front/rear) - pneumatic remote adjustment for the RI/800 flush trimming unit.
Ihodpsx Twdtsfx Ahuot
Listing
Bretzfeld
7,940 km
Edge banding machine
BIMATICSilence 5 Modell 1802.5
BIMATICSilence 5 Modell 1802.5
Call
Condition: good (used), Year of construction: 1998, 0.4-5 mm
Workingpiece thickness from to 10-50 mm
Total length 2730 mm
Weight 720 kg
Ihsdpfxsx Tu Rds Ahuet
Listing
Constanța
9,396 km
Edgebander
HOMAGEDGETEQ S-300
HOMAGEDGETEQ S-300
Call
Condition: used, Year of construction: 2019, operating hours: 3,488 h, functionality: fully functional, machine/vehicle number: 0-261-71-2252, type of input current: three-phase, input voltage: 400 V, input current: 22 A, input frequency: 50 Hz, We offer this used HOMAG EDGETEQ S-300 edgebander, year of construction 2019.
Type: EDGETEQ S-300
Subtype: OPTIMAT KDF 440 C
Machine number: 0-261-71-2252
Wiring diagram: 0-261-71-2252
Year of manufacture: 2019
Ihjdpfx Aex Tt D Nshuot
Supply voltage: 400Y/230 V
Phases: 3 Phase
Frequency: 50 Hz
Maximum operating full load current: 22 A
Fuse rating: 25 A
Short circuit current rating: 5 kA rms symmetrical
Control voltage: 24 V
Enclosure type: NEMA 1
Largest motor current: 5.7 A
Largest heater current: 2.3 A
If you have any questions or need more information, feel free to send us a message or give us a call.
Auction
Ends in
d
h
min
s
Auction ended
Comunidad Valenciana
7,900 km
Edgebander
HOMAGKAL 210 AMBITION 2264
HOMAGKAL 210 AMBITION 2264
Condition: excellent (used), Year of construction: 2010, functionality: fully functional, workpiece height (max.): 60 mm, edge thickness (max.): 20 mm, workpiece width (max.): 60 mm, The machine has been serviced and is in excellent condition. It is immediately ready for operation!
TECHNICAL DETAILS
- Edge thickness (glued): max. 20 mm
- Maximum gluing height: 60 mm
- Maximum roll material thickness: 3 mm
- Piece width: min. 60 mm
- Maximum feed rate: up to 25 m/min
- Feed: continuous
- Electric height adjustment: available
- Pressure system: upper belt pressure
- Preheating zone: available
- Granulate glue system: with pre-fabricated container
- Glue pot: interchangeable/variable
- Spray unit: available
- Pre-milling unit: available
- Trimming unit: with 2 motors
- Milling stations: flush/radial/chamfer, 1 available
- Corner rounding unit: with 2 motors
- Edge scraper: profile and planer
- Buffing unit: available
- Strip magazine: available
- Units: synchronized units with NC axis/axes
- Machine version: left hand side
- Quick-change units: available
MACHINE DETAILS
- Remote control: PowerControl PC 22
- Weight: 5,000 kg
- Machine length: 7,845 mm
- Standards: CE requirements
EQUIPMENT
Iedpfsx Tqgbsx Ahueht
- Special equipment: with nesting
- New chains
- HOMAG feed device with 2 rollers
- HOMAG A 20 glue unit
- HOMAG HL 84
- HOMAG FK 11
- HOMAG PN 10 profile pull scrape unit
- HOMAG FA 11 finishing unit
Listing
Sierakowska Huta
8,052 km
Edge Bander
ZOTECH OWP 3 BIS
ZOTECH OWP 3 BIS
Call
Condition: excellent (used), CATALOG NUMBER: 7404
TECHNICAL DATA
- Minimum workpiece thickness: 16mm
- Maximum workpiece thickness: 60mm
- Height to table surface: 920mm
- Motor power: 1.2kW
- Voltage: 400V
- Disc – guillotine – feed rollers for tape – glue tank – 3 guide rollers (first one is the drive roller)
- Worktable: 1600x670mm
- Dimensions (L/W/H): 1600x1400x1100mm
- Weight: 170kg
ADVANTAGES
– Polish manufacture
– Suitable for edging both straight and curved edges
– Used machine, in very good condition
Net price: 5,900 PLN
Ijdsx Tgv Sepfx Ahuoht
Net price: 1,400 EUR (based on 4.2 PLN/EUR exchange rate)
(Prices may change with significant fluctuations)
Listing
Grońsko
8,095 km
Edgebander
HolzherSprint 1317
HolzherSprint 1317
Call
Condition: used, Edgebander Holzher Sprint 1317
Pre-milling units
Glue application, glue cartridge
Pneumatic pre-cut guillotine
Pressure rollers
Cut-off saws
Top and bottom milling units
Corner rounding unit
Profile scraper
Ihedsx Tf D Uopfx Ahust
Flat scraper
Polishing unit
Max edge height mm: 50
Edge band thickness in roll: 3 mm
Feed speed: 10 m/min
The machine requires servicing as well as setting and adjustment.
The machine can be switched on; all units activate, but the front saw does not respond to material and the corner rounding unit needs adjustment.
