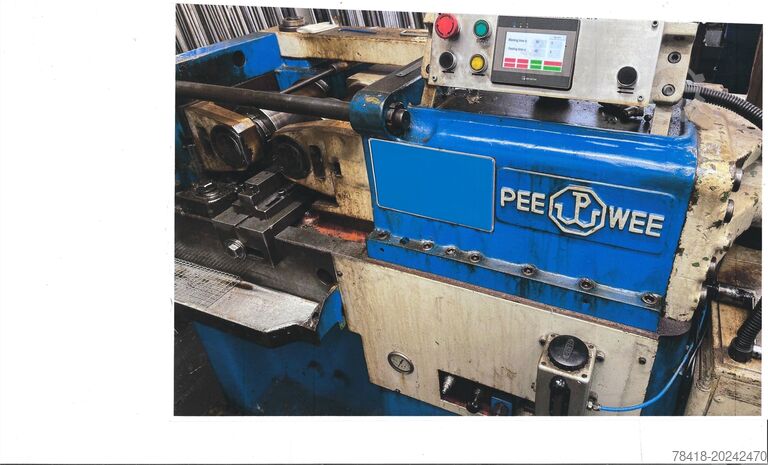

Condition: good (used), functionality: fully functional, type of input current: AC, Pee-Wee Model P24US Hydraulic Thread Rolling Machine for in-feed or thru-feed rolling with helical thru-feed dies Max. rolling pressure: 24 tons Dodexl Ebhopfx Acwjcn Max rolling diameter: 75mm Min rolling diameter: 5mm Max rolling width: 200mm Diameter of rolling spindles: 69.85mm Max thread die diameter:210mm Variable spindle speeds: 20 -90 rpm

Condition: used, Year of construction: 2015, machine/vehicle number: AH/118733, Busellato JET Optima C21 E CNC Machine Description JET OPTIMA C21 - E X = 3050 mm Y= 1250 mm Z = 130 mm CNC Working centre complete of: · Centralized automatic lubrication · Remote push button panel · Nr. 4 jig locking device connections · Nr. 1 air pressure plug · Nr. 2 working areas (X) · Nr. 6 TL 1250 panel supports · Nr. 12 vacuum cups 140 x 115 H =50 (TL) · Double “0” line (references for 6 panel supports and lateral references) · Panel lifting unit with 4 bars · Cross laser for positioning vacuum cups · 0-360° CNC unit for electro spindle · 1-outlet horizontal router unit 4 kW - ERG32 · Pump 90 m3/h · Boring head TFM 18 with integrated saw unit (12V+4X+2Y) · Electro spindle 11 kW (S6) · Tool changer ST10 - HSK F63 · PT1 tool position - HSK F63 · Machine software “Genesis Evolution” · Programming software “Jet Cad” · Tele-service (All changes, mistakes in technical data, info and prices reserved. Availability subject to prior sales. No guarantee on printed data!) (Alle Änderungen und Irrtümer in den technischen Daten, Angaben und Preisen sowie Zwischenverkauf vorbehalten! Keine Garantie auf gedruckte Daten!) Dcsdpfxoxltk Rs Acwsn Best woodworkingmachines from the Netherlands Holland Die besten holzbearbeitungsmaschinen aus die Niederlande De beste gebruikte machines uit Nederland

Condition: excellent (used), HOMAG BOF 211 – CNC Machining Center with 4-Axis Technology Reliable CNC machining center featuring robust engineering, ideal for industrial use in furniture manufacturing and interior fit-out. ⸻ Technical Specifications • Machine type: CNC machining center • Axes: 4-axis technology (including C-axis) • Travel paths X/Y/Z: approx. 6,000 × 1,400 × 150 mm • Controller: HOMAG powerControl • Vertical main spindle: HKS • Tool changer: for multiple tools • Drilling heads: for vertical and horizontal operations • Aggregate interface: milling, drilling, grooving, sawing etc. • Vacuum clamping system: grid nesting or console table • Optional: edge banding and labelling ⸻ Special Features • Dimensional accuracy and repeat precision • Robust construction, well-maintained condition • Software support via HOMAG powerTouch / woodWOP • Suitable for furniture and interior construction ⸻ The machine is available immediately. Disassembly and transport can be arranged by our service team upon request. ⸻ Contact Maschinenhandel Nord Gerstenstraße 2 17034 Neubrandenburg 📞 All prices net plus VAT, subject to change and errors excepted. Dcjdpfxoxk Tumj Acwsn

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, machine/vehicle number: 0-201-15-4101, travel distance X-axis: 535 mm, travel distance Y-axis: 535 mm, travel distance Z-axis: 535 mm, spindle speed (max.): 24,000 rpm, tool diameter: 280 mm, Equipment: chip conveyor, 5-Axis Machining Center with Chip Conveyor! Dcodpfx Acjxhgpfjwon Bidding obligates the buyer to collect the item by 14.10.2025 at the latest! TECHNICAL DETAILS Travel paths Travel range X-axis: 535 mm Travel range Y-axis: 535 mm Travel range Z-axis: 535 mm Feed speed X/Y direction: up to 60 m/min Feed speed Z direction: 30 m/min Spindle Head Spindle power: 12 kW Spindle speed: 1,500 - 24,000 rpm C-axis swivel range: -220 - +220 ° A-axis swivel range: ° Coolant temperature: 15 - 45 °C Tool Magazine Tool holder: HSK-F63 Interface: HOMAG Interface 9-002-04-3360 Number of tool positions: 18 Pitch circle diameter: 760 mm Max. total toolholder weight: 90 kg Max. weight per tool: 10 kg Tool diameter: 280 mm Max. tool height: 320 mm Clamping Cylinder Lower clamping plates: 70 × 90 mm Upper clamping plates: 77 × 100 mm Piston rod diameter: 25 mm Clamping height above console: 100 mm Lift – support cylinder: 55 mm Clamping force: 1,300 N Max. workpiece height: 80 mm Return: manual Drilling Unit with Slotting Tool Drill tool speed: max. 6,000 rpm C-axis swivel range: ± 360° Tool holder for drill tool (rotating): Ø 11.55 mm Tool holder for slotting tool (fixed): Ø 18.95 mm Weight (mounted): 3.5 kg Chip Conveyor Discharge height with incline conveyor: 1.3 m Discharge height without incline conveyor: 0.3 m Max. scrap piece size: 300 × 300 mm EQUIPMENT Chip conveyor Eagle Eye laser projector 40 tools Numerous additional accessories

Condition: good (used), functionality: fully functional, Manual control units for CNC woodworking Dcodpfx Aexg Rmrecwjn

Condition: used, 4-Axis CNC Machining Centre SCM CNC Tech Z 27 Working area: 2650 x 1240 mm Travel range X-Y: 2995 x 1385 mm Z-axis length of travel: 200 mm Passage height: 180 mm TV worktable Automatic tool changer for 8 tools Horizontal milling unit for routing and grooving (lock case unit) Djdpsxg I Efsfx Acwscn HSK tool holder Automatic central lubrication Vector rotary axis 0 – 360 degrees Angular gearbox MIMATIC HSK 63 F Additional right-side stop with roller conveyor Laser system Year of manufacture: 2005 Machine is OPERATIONAL / from small business – business closure Ex site

Condition: ready for operation (used), Year of construction: 2010, functionality: fully functional, travel distance X-axis: 3,680 mm, travel distance Y-axis: 1,260 mm, travel distance Z-axis: 150 mm, TECHNICAL DETAILS Working area: 3,680 x 1,260 x 150 mm Milling motor: 1 unit, 8.5 kW (11.5 HP) Tool changer: 1 automatic rotary magazine with 12 positions Drill beam: 18 vertical, 8 horizontal drills, and 1 "X" saw drill Software: DXF compatible Safety standard: BUMPER protection, CE standards Dcodpfx Acoxg Izaswjn Weight: 3,000 kg Note: The machine has a software issue and does not include a pump. The estimated cost for correction is approximately €3,000 each.

Condition: used, Year of construction: 2013, max. workpiece length 5.130 mm profile spindle 1 Stück main drive 18 kW ormat 4 profit H30L e-motion CNC machining center ----- - Includes window tools and existing units - Includes Felder window design software "Flash Frame" and existing programming - Machine from a small business, in very good condition, only a few operating hours Machine can be viewed in operation until the beginning of December 2025! Technical description: ----- Working dimensions: X: 5,130 mm Y: 1,360 mm Z: 130 mm Travel paths: X: 6,050 mm Y: 1,790 mm Z: 280 mm - 4-axis milling spindle: 18 kW HSK F63 with liquid cooling, 1,000 - 24,000 rpm - Drilling head DH 20 6H1S: Vertical drilling unit with 14 spindles (9 spindles in X direction, 5 spindles in Y direction, grooving saw in X direction) - Disc changer with 24 tool positions. Max. work diameter 240 mm max. Tool height 370 mm - Side pick-up space for 2 tools/units Max. tool diameter 270 mm max. Tool height 270 mm - Mobile pick-up with space for chip deflector slide - Automatic table: 8 workpiece supports with e-motion position control - Vacuum pump 90 m³/h - 6 double x-motion or e-motion insertion aids - Chip conveyor belt - Double straight line laser, line laser for round-arch processing - Handheld terminal for remote control of the axes - Including all existing solid wood clamps and vacuum suction cups as well as horizontal clamps - Automatic central lubrication - CE safety device - Software: "Flash Frame", software for window and frame planning "WOODFLASH" Program editor with CAD function 3D simulator with collision check for Woodflash on the machine - Tools: Wooden windows IV 68, IV 78, IV 92 Front door IV 68, IV 78 Lift-sliding doors IV 68, IV 78, IV 92 Balcony doors IV 68, IV 78 Dcedpfx Acoxgu N Dswen (Technical specifications according to the manufacturer - no guarantee!)

Condition: good (used), Code: 0210 Brand: Code: MASTERWOOD Model: TEKNOMAT 2004 F - CE Standard CNC Working center hinge boring inserting - milling machine with 4 controlled axis and router for milling all types of hardware - CE standard Technical data: Table size mm 3300 x 260 Max distance between the 2 external anuba mm 2700 Max height with head positioned at 0° mm 200 Max thickness with head positioned at 90° mm 120 Dsdpfxoxfv D To Acwocn Anuba diameter mm 14 Anuba unit with double louder for male and female anuba - Double probe with automatic rotation - Drilling motor Hp 1 - Screwing motor Hp 1 Router unit composed of: Milling motor Hp 3 - Rpm 0/18000 - Linear and circular interpolation - Inclination controlled by control from -7° - +90°. Axis speed: X axis mt/min 40 - Y axis mt/min 7 - Z axis mt/min 7 Numerical control for continuous management of 4 axis, interactive graphic programming - Graphic video 10" N° 3 Front pneumatic pressers Safety protections CE standard with perimeter walls Total power Kw 10 Compressed air 6 bar Overall dimensions : Machine mm 3700 x 1600 x 1500 h - Kg 1800 Electric panel mm 600 x 1200 x 2200 h - Kg 260

Condition: used, Year of construction: 2003, functionality: fully functional, Technical data: Machining length X: 2780 mm, machining length Y: 1560 mm, max. matrix table. Drill spindle speed: 4000 rpm Saw unit for longitudinal cuts: D115 / 1 pc Electrospindle: 18000 rpm / 2 pcs Djdexftpgspfx Acwecn Milling carousel: 8 positions / 2 pcs U-axis travel: 55 m/min V-axis travel: 40 m/min W-axis travel: 12 m/min Compressed air consumption: 7/8 bar Drill block – vertical drills: 10 spindles – horizontal drills: 6 spindles

Condition: excellent (used), Year of construction: 2019, operating hours: 278 h, Max. Workpiece Size for Peripheral Milling: X = 3,620 mm Maximum Travel Distances: X = 3,865 mm Minimum Room Height: 3.20 m Machining in Y and Z Y = 1,600 mm; Maximum Panel Width 2,000 mm Maximum Workpiece Height 300 mm Measured from the top edge of the vacuum suction cup 125 mm MACHINE OPERATION SOFTWARE CAMPUS V7 Plus CAD/CAM Software, 1 x license incl. CabinetControl Base and material removal simulation 1 software license secured via USB dongle for the machine CabinetControl Base Software for furniture design and production CAMPUS V7 PLUS, software for CNC machining centers ADDITIONAL MODULE – HIGH-SPEED MILLING Control Siemens industrial PC control Handheld remote control unit for machine operation MILLING HEAD 5-axis head 7840, Power: 12 kW n(max) = 0 - 24,000 rpm, steplessly adjustable Cardanic; C-axis +/- 360° rotatable, A-axis +/- 180° rotatable Liquid cooling (cooling unit included) with HSK-F 63 tool holding fixture Max. Tool weight: 6 kg Milling tools: max. Ø 200 mm Saw blades: max. Ø 350 mm with optional 7886 pick-up changer DRILLING UNIT Pressure booster for increasing the standard pressure from 6 to 8 bar Drilling unit 7881, 24 spindles Drive power 3.0 kW, including saw unit 18 individually selectable vertical spindles Arranged in L-shape, 11+2 in X, 6 in Y direction, 32 mm pitch n(max) 1,000 - 5,710 rpm steplessly adjustable 6 horizontal spindles 2 double drilling spindles in X 1 double drilling spindle in Y Including saw unit Integrated saw unit for sawing / grooving in X direction n(max) 1,000 - 7,330 rpm steplessly adjustable MACHINE TABLE Machine table with 6 consoles, pneumatically clamped, adjustable in X direction Display and positioning of consoles and suction cups via software program 2 lateral stops at field A and D, 2 large buttons for clamping and releasing workpieces, 2 tape-measure position displays for console positioning in X relative to stop at field A/D, tape-measure positioning for suction cups at each console in Y relative to rear stop STOPS 2 additional processing fields at the front for 6 consoles (4-field processing) 4 pneumatically controlled stops per field, including 1 stop per console and one side stop in X direction LOADING AIDS 4 pneumatically liftable and lowerable loading aids for easy handling of heavy workpieces TOOL CHANGERS Tool changer 7996, 18-position magazine (carousel), automatically moves in X-axis direction Moving tool changer 7886, 1-position saw blade magazine Specifically for large saw blade diameters up to 350 mm Pick-up system installed on the gantry, pneumatically operated Max. Tool diameter: Ø 350 mm Tool changer 7892, 16-position linear pick-up VACUUM PUMP 140 m³/h dry-running LED lighting for the machining area. SAFETY OPTIONS Safety enclosure according to CE standards Protective fencing on the side and rear EQUIPMENT VARIANTS AND ACCESSORIES – LUBRICATION Automatic central lubrication Gantry extension – ideal for 4-field processing and large workpieces. 2 controlled pneumatic modules for max. 5 frame clamping elements per field A/D Dcjdoxfaf Uspfx Acwsn Each module can simultaneously control up to 5 frame clamping elements. Simultaneous opening/closing of connected frame clamping elements, including foot pedal for operation, max. 2 modules per field A and field D available; OPTIONAL: LASER - Laser pointer Consisting of two laser pointers for positioning the vacuum suction cups

Condition: good (used), Year of construction: 2002, functionality: fully functional, machine/vehicle number: 0-201-22-4204, rapid traverse X-axis: 60 m/min, rapid traverse Y-axis: 60 m/min, rapid traverse Z-axis: 30 m/min, controller manufacturer: Siemens, workpiece length (max.): 3,000 mm, workpiece width (max.): 1,150 mm, workpiece height (max.): 80 mm, rotational speed (max.): 18,000 rpm, operating hours of spindle: 1,000 h, spindle motor power: 7,500 W, number of spindles: 1, number of slots in tool magazine: 12, input voltage: 380 V, type of input current: three-phase, Equipment: documentation/manual, rotational speed infinitely variable, Main spindle with C axis Dcsdpoxdxg Isfx Acwen

Condition: good (used), Year of construction: 2003, functionality: limited functionality, machine/vehicle number: 0-201-22-4227, rapid traverse X-axis: 80 m/min, rapid traverse Y-axis: 80 m/min, rapid traverse Z-axis: 30 m/min, workpiece length (max.): 4,800 mm, workpiece height (max.): 80 mm, spindle speed (min.): 18,000 rpm, spindle speed (max.): 18,000 rpm, spindle motor power: 7,500 W, number of spindles: 2, number of slots in tool magazine: 18, Equipment: rotational speed infinitely variable, Main spindle equipped with C axis and extension for Flex 5 aggregate. Working area X: 4800 mm. Working area Y: 1300 mm. Working area Z: 80 mm. 8 consoles. 1 vacuum pump. 18-position travelling tool changer. Tool holder HSK 63. Adapter - horizontal boring head with 4 fixed spindles. Boring head with 17 spindles. Additional spindle with collet chuck. Measuring probe. Central automatic oil lubrication. Lifting rails for console table. Dcjdpfexdxa Isx Acwjn

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, machine/vehicle number: 0-250-15-0310, travel distance X-axis: 6,250 mm, travel distance Y-axis: 1,300 mm, rapid traverse X-axis: 80 m/min, workpiece diameter (max.): 60 mm, number of slots in tool magazine: 9, TECHNICAL DETAILS Travel Paths Travel distance X-axis: 6,250 mm Travel distance Y-axis: 1,300 mm Rapid Traverse Rapid traverse X-axis: 80 m/min Rapid traverse Y-axis: 60 m/min Rapid traverse Z-axis: 20 m/min Stroke X-axis: 8,360 mm Stroke Y-axis: 2,015 mm Main Spindle Motor Power: 9 kW Number of controlled axes: 3 Number of drilling spindles: 50 Dedpfx Aoxdw Tgecwjcn Maximum workpiece diameter: 60 mm Tool positions: 9 (8 in tool magazine 1, 1 in tool magazine 2) MACHINE DETAILS Installed total power: 18 kW Control system: HOMATIC-200 Control model: WOODWOP 7.0 Safety standard: CE marking EQUIPMENT Documentation/manual Infinitely variable speed control Automatic tool changer Vacuum pump Worktable with vacuum console supports Suction elements for workpiece holding 1 milling unit 2 drilling units (each with 25 drilling spindles) 2 cutting units Note: Tools are not included in the sale and delivery scope.

Condition: used, Year of construction: 2019, Technical details in the attached .pdf document - X axis longitudinal travel 2700 mm Dcsdpfx Acexdw D Ejwen - X-axis useful stroke (spindle only – unit A) 1900 mm - Useful stroke X-axis (sander only – unit B) 2050mm - Useful travel X-axis (milling cutter only – C unit) 2050 mm - Useful travel of X-axis (gouge only – D unit) 1500 mm - X-axis useful stroke (blade only – E unit) 1750 mm - Useful stroke X-axis (sander only – F unit) 1500 mm - Useful stroke of X-axis with all groups 1500 mm - Y-axis transverse travel 380 mm - V-axis transverse travel 720 mm - Z-axis vertical travel 630 mm - B-axis stroke (electrospindle) +/- 90° - A-axis rotation (divider) infinite - Dimensions: 4000 x 3100 x 2500 mm - Installed power 65 Kw - Compressed air 6 bar - Power supply 380 Volts, 3 / 50 Hz.

Condition: good (used), Year of construction: 2018, functionality: fully functional, machine/vehicle number: 1000028154, Equipment: rotational speed infinitely variable, The machine was commissioned in 2019, single owner. It has seen very little use. Description Useful working area, 5-axis configuration: X=3280mm, Y=1600mm Axis travel: X=3706mm, Y=2294mm, Z1=515mm, Z2=371mm Axis traverse speed: X=80m/min, Y=60m/min, Z=30m/min Electrospindle: HSD, 5 axes 11 kW, with continuous 360° rotation on B and C axes, enabling high-precision machining of complex shapes liquid-cooled Drilling head: HSD 20 vertical spindles 4 horizontal spindles grooving discs on X-axis grooving discs on Y-axis Dsdpfxsxdl H Us Acwjcn Work table: 6 cross beams Isbjwhypnjni Itxtobb 4 suction cups per beam preparation for uniclamp Tool magazines: 16-position revolver-type tool changer Vacuum system: Vacuum pump with a capacity of 250 m³/h, ensuring firm clamping of the parts during processing

Condition: as good as new (ex-display), Year of construction: 2025, functionality: fully functional, travel distance X-axis: 3,747 mm, travel distance Y-axis: 1,554 mm, travel distance Z-axis: 325 mm, workpiece length (max.): 3,620 mm, workpiece width (max.): 1,500 mm, workpiece height (max.): 180 mm, Equipment: rotational speed infinitely variable, Holz-Her / Machining Center PRO-MASTER 7017 Dcedexdlrdspfx Acwon - 2 software licenses (Office & Machine) Campus V8 CAD / CAM software - Machining area for milling = 3425 x 1287 mm (minus cutter radius) - Maximum workpiece height: 180 mm, measured from the top edge of the vacuum cup: 125 mm. - Maximum pass-through width at hood: 1450 mm (Y-direction) - The milling spindle delivers 10.3 kW (S6) and accepts tools with a maximum diameter of 160 mm via HSK interface. - Vector axis / C-axis can be retrofitted - Drilling unit with 14 spindles: 10 vertical and 4 horizontal. Maximum drill diameter: 35 mm. Integrated saw unit for a saw blade with a maximum diameter of 125 mm and 4 mm thickness. - 12-position linear pick-up tool changer for HSK 63F holders for tools up to a maximum diameter of 95 or 100 mm. Please also visit our "Classic Shop" on our homepage.

Condition: good (used), Machining center HOMAG BAZ 723 58/18/FC 4-axis CNC portal machine with 2 moving tables and edge banding unit Dcsdpfx Asxc Ir Rocwsn

Condition: repair required (used), Year of construction: 1998, machine/vehicle number: 0 250 12 0215, Weeke Optimat BP 150 | High-quality Point-to-Point CNC Router. This machine features the large drilling block, a C-axis spindle, and an auxiliary spindle. Due to the hard drive replacement, the automation drivers need to be reprogrammed. Router spindle: 7.5 kW (10 hp) (Constant power from 9,000 rpm to 18,000 rpm) ATC tool magazine: 8 tools Auxiliary router: 5 kW (7 hp) Drilling block: - Number of vertical drilling spindles: 31 - Vertical drilling spindle power: 1.5 kW (2 hp) - Number of horizontal drilling spindles: 6 - Horizontal drilling spindle power: 1.5 kW (2 hp) Table: - Number of panel supports (rails): 8 - Becker vacuum pump capacity: 100 m³/hr - Working length: 3250 mm - Working width (support bench): 1200 mm - Max. panel thickness: 100 mm (4”) Dsdpfx Asxb Di Ajcwecn - Max. drilling depth for through holes: 38 mm (1.5”) Axis travel/positioning speeds: - X-axis: 4730 mm / 80 m/min - Y-axis: 1685 mm / 80 m/min - Z-axis: 280 mm / 25 m/min Machine weight: 5,500 kg

Condition: used, Year of construction: 1993, machine/vehicle number: AL1186, Used CNC milling machine, fully functional. The technical data sheet is attached in the listing. Dcjdpfexay Iljx Acwjn The machine Author 504 is a machining center with NC control, specifically developed for drilling and milling operations on wood and its derivatives.

Condition: like new (used), Year of construction: 2020, operating hours: 270 h, functionality: fully functional, workpiece length (max.): 3,715 mm, workpiece width (max.): 1,320 mm, workpiece height (max.): 180 mm, overall weight: 6,060 kg, spindle speed (max.): 24,000 rpm, Equipment: documentation/manual, rotational speed infinitely variable, The machine has 270 operating hours, almost like new; features laser positioning. Technical data: Brand: Busellato JET Master T 4 Technical specifications: - Machining area: 3715x1320 mm (X,Y) - Workpiece height: 180 mm - Motor power: 9.5 kW - Max spindle speed: 24,000 rpm - C axis: available - Drilling unit: 19 spindles - 1 sawing unit - 16-position plate tool magazine - 3-part safety mat - Automatic central lubrication Vacuum pump capacity (m3/h): 244/286 Payment in euros or forints, price is net. Machine new price: €125,675. Sale price: €47,500 +36-30-9198-716 Dcodpfexawlbex Acwen

Condition: excellent (used), Year of construction: 2011, 5-axis gantry machining center for the production of components for chairs, tables, doors, etc. from wood and MDF Max. useful working area (X-Y-Z) mm: 3550 x 1800 x 750 Spindle power: 2 x 7.5 KW Spindle speed: 2000 - 18000 rpm Equipment: Frame 2 x movable loading tables 4-spindle head 2 x loading magazines Numerical controller Electrical cabinet Djdpfx Acjxau Uyewocn Control panel Protective cabin

Condition: used, machine/vehicle number: 008171, X axis working area: 4200 mm Y axis working area: 1400 mm Working Table: Pod and Rail Main Electrospindle power: 15 KW Number of controlled axes: 4 axes Dcjdpfx Ajxaud Ujcwjn Total number of drilling spindles: 35 Total number of tool changer positions: 18

Condition: used, machine/vehicle number: 008169, X axis working area: 4500 mm Y axis working area: 1500 mm Working Table: Pod and Rail Dedpfx Aexaud Ijcwscn Number of controlled axes: 4 axes

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, machine/vehicle number: 0-201-06-9022, rotational speed (max.): 24,000 rpm, distance between spindles: 32 mm, working height: 950 mm, No reserve price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Workpiece length Single setup: max. 4,000 mm Pendulum setup: max. 1,375 mm Workpiece length for milling operations with 25 mm tool diameter Single setup: max. 4,175 mm Double setup: max. 1,950 mm Pendulum setup: max. 1,550 mm Workpiece width – front fence, operator side Milling with 25 mm tool diameter: max. 1,220 mm All units (except drilling head): max. 1,150 mm Workpiece width – rear fence Milling with 25 mm tool diameter: max. 1,730 mm All units: max. 1,600 mm Extension of consoles available as option, order no. VK 7375 Workpiece thickness Including clamping devices: max. 300 mm With standard clamps, unlimited: up to max. 60 mm Dimensions are not equivalent to the maximum possible processing sizes per unit – see separate tables Minimum workpiece size: Dependent on clamping devices, workpiece surface and contour Working height Bottom edge of workpiece: 950 mm Main spindle Power S6: 18.5 kW Power S1: 14.5 kW Tool holder: HSK F63 – DIN 69893 Tool weight: max. 6 kg including holder Tool length: max. 200 mm from lower edge of motor spindle Milling tool diameter: max. 180 mm Grinding tool diameter: max. 200 mm Speed range: 0 – 18,000 rpm Full torque: 0 – 12,000 rpm Full rated output: from 12,000 rpm Maximum speed: 24,000 rpm Disc tool changer Capacity: 18 positions Tool holder: HSK F63 Configuration option 1: 18 x max. diameter 130 mm Dcodpfxow Upu Sj Acwon Configuration option 2: 9 x max. diameter 180 mm and 9 x max. diameter 70 mm Drilling head Spindles: 17 Motor power: 4 kW, frequency controlled Speed range: 4,500 – 6,000 rpm Function: vertical drilling Stroke: 50 mm Drill spindles: up to max. 35 mm drilling diameter Spindles X-direction: 11 Spindles Y-direction: 7 Spindle spacing: 32 mm Total drill length: 70 mm Shaft diameter: 10 x 20 mm Rotation direction: Alternating left/right MACHINE DETAILS Footprint: 5,000 x 7,750 x 3,000 mm EQUIPMENT 2x vacuum cups per console Note: Unless expressly stated otherwise, tools, tool holders, units, and mechanical clamping devices that may be visible in photos and videos are not included in the scope of delivery.
